Model Electrolux FGF374CCSG RANGE – Common Parts & Diagrams

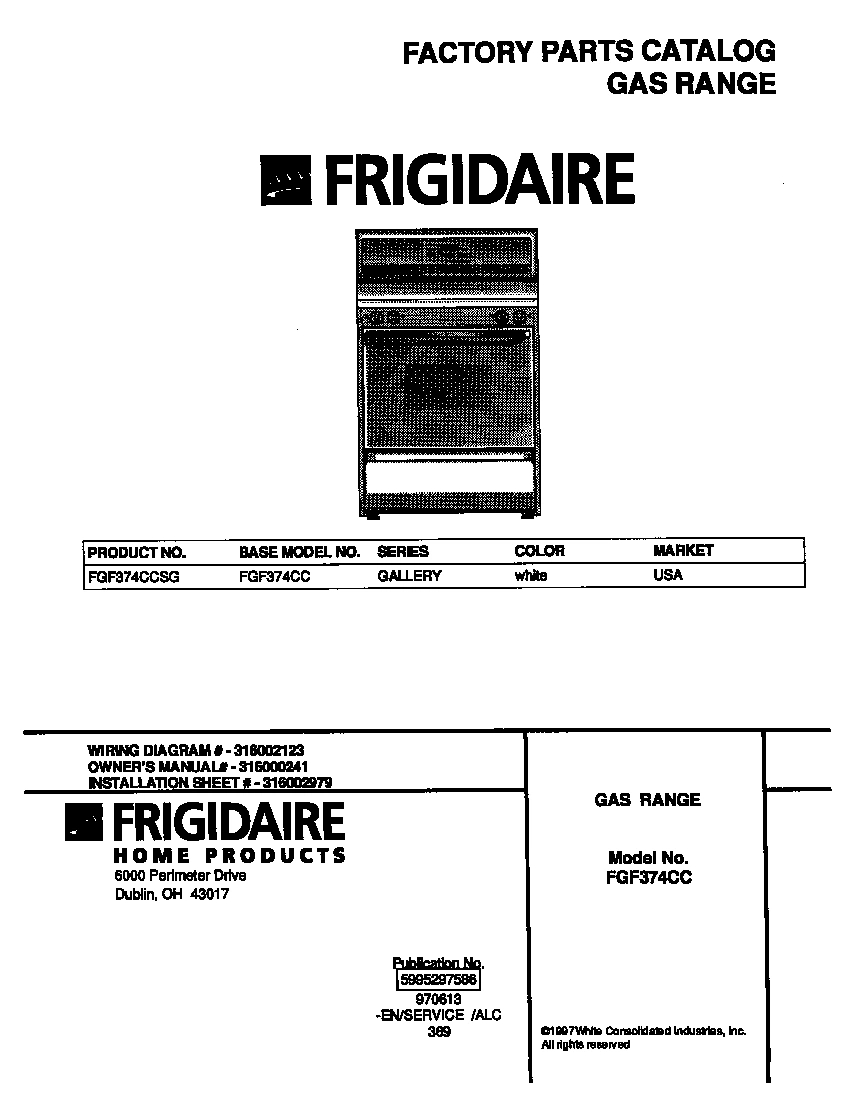

01 - COVER

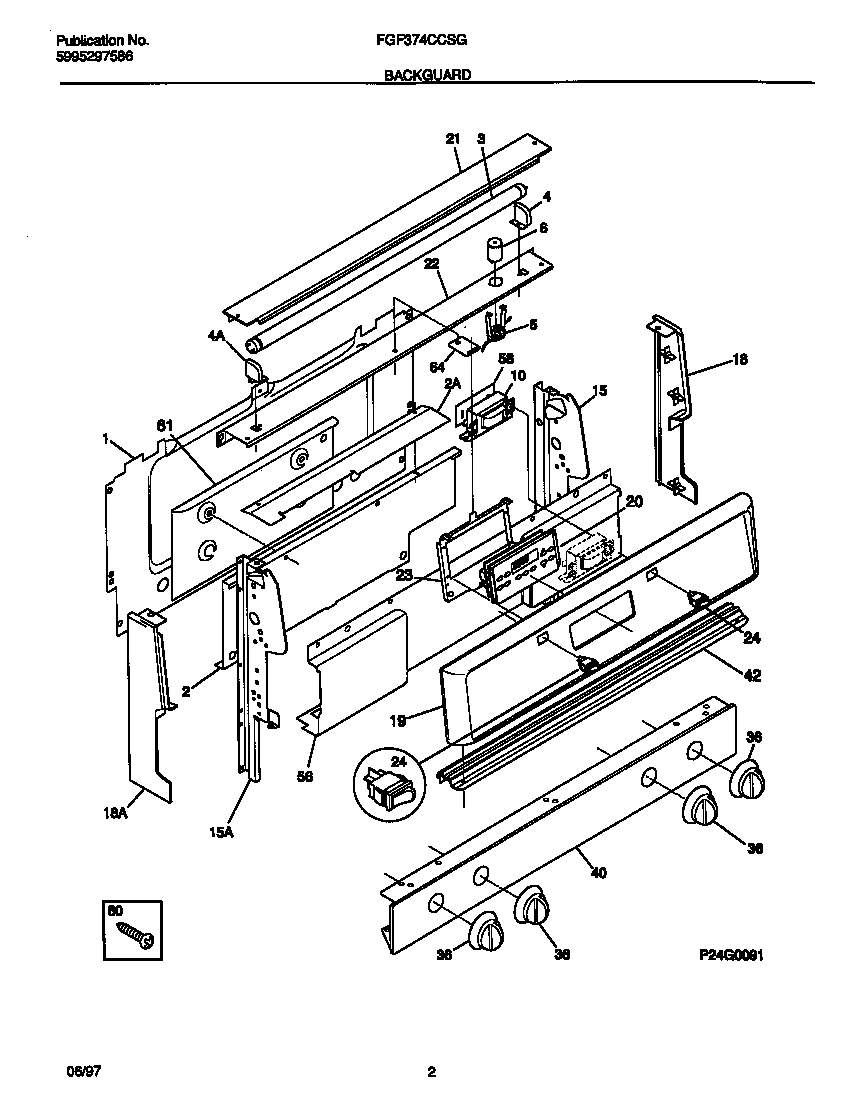

02 - BACKGUARD

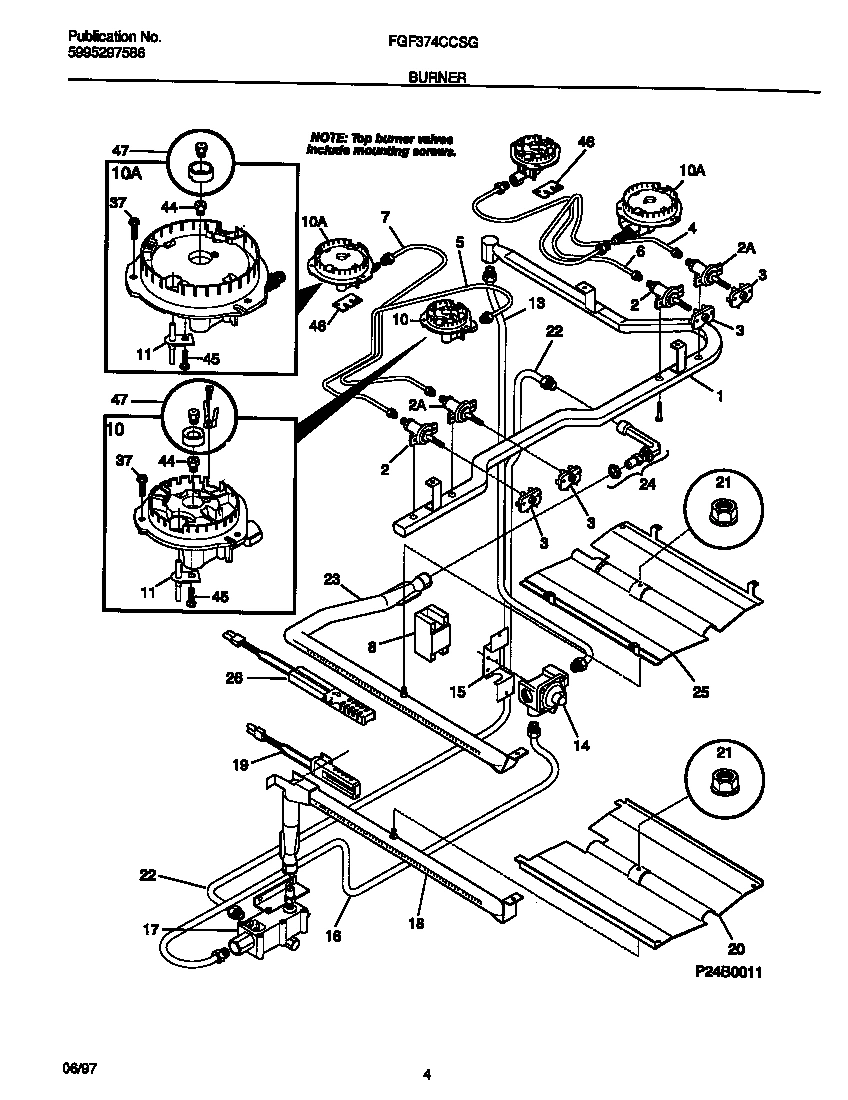

03 - BURNER

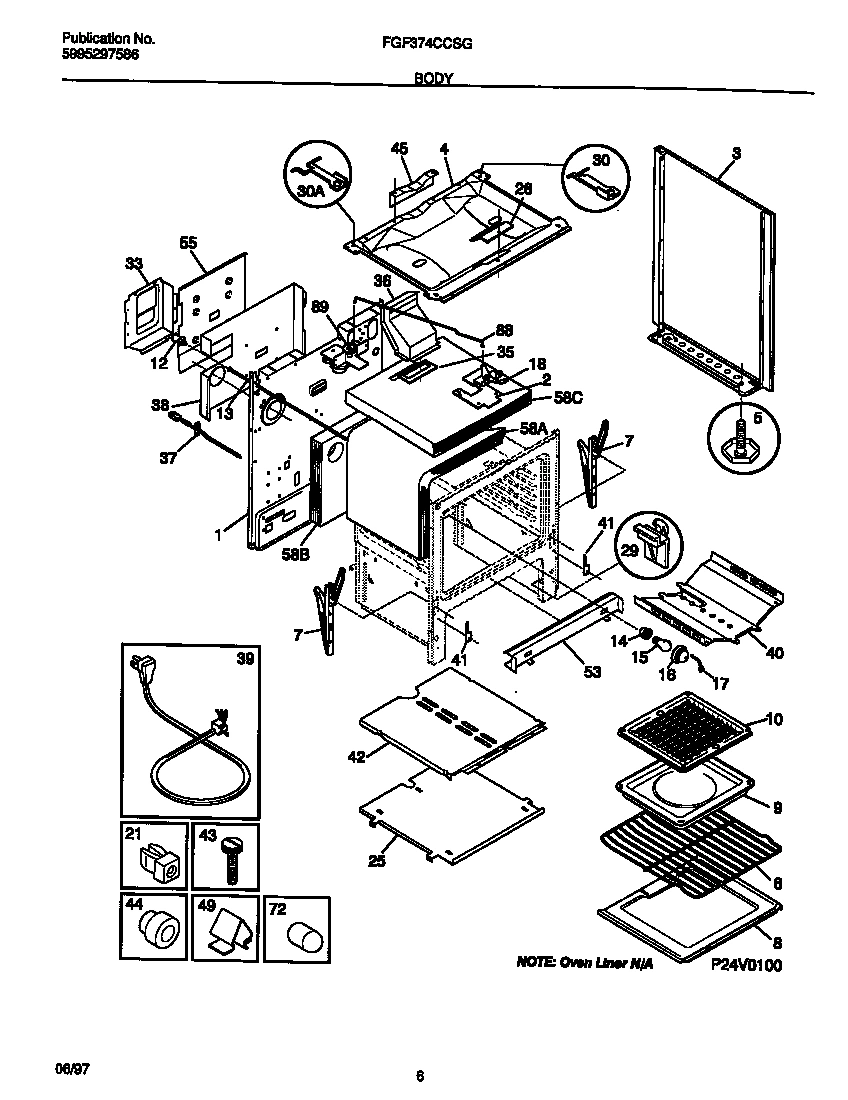

04 - BODY

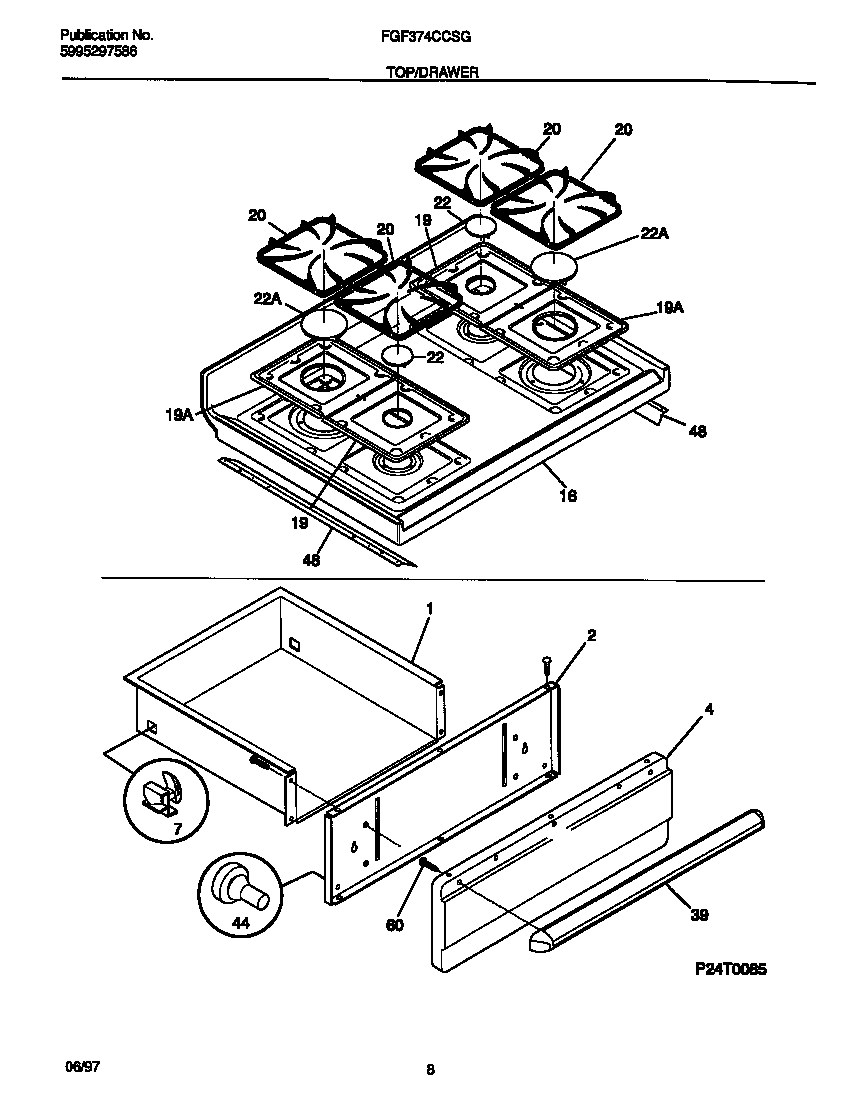

05 - TOP/DRAWER

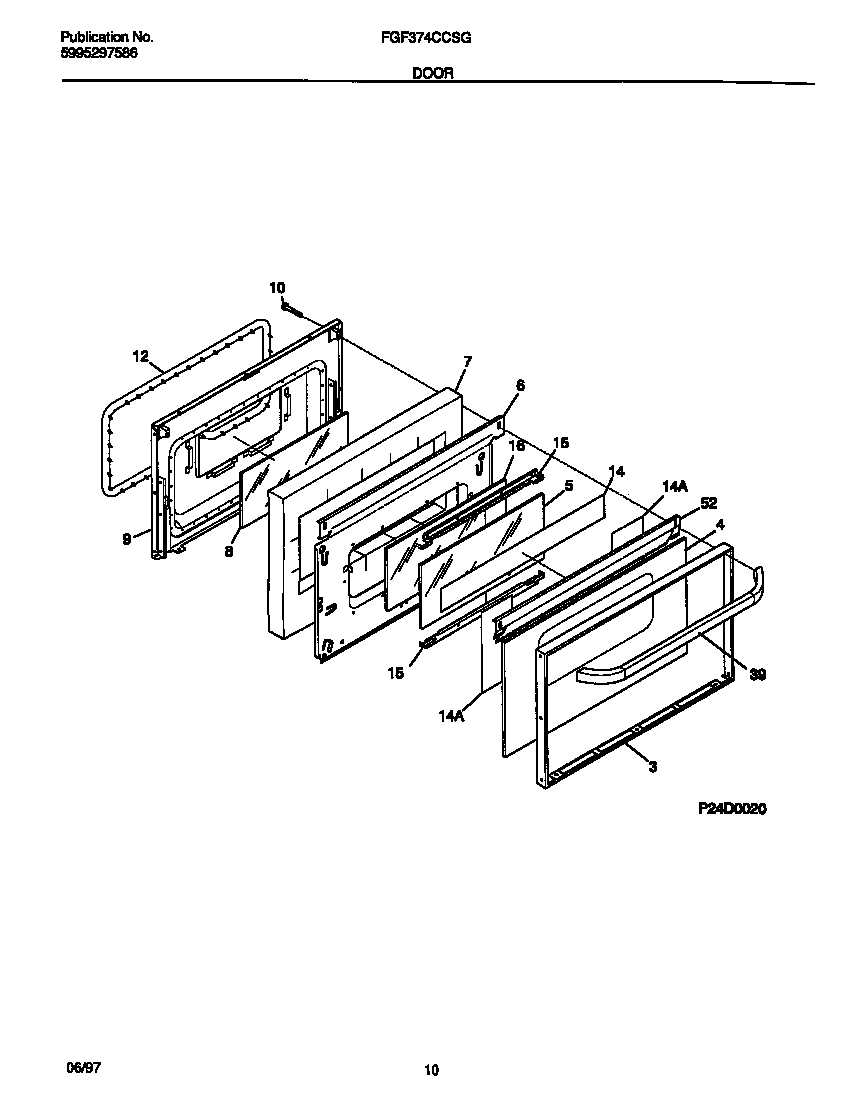

06 - DOOR

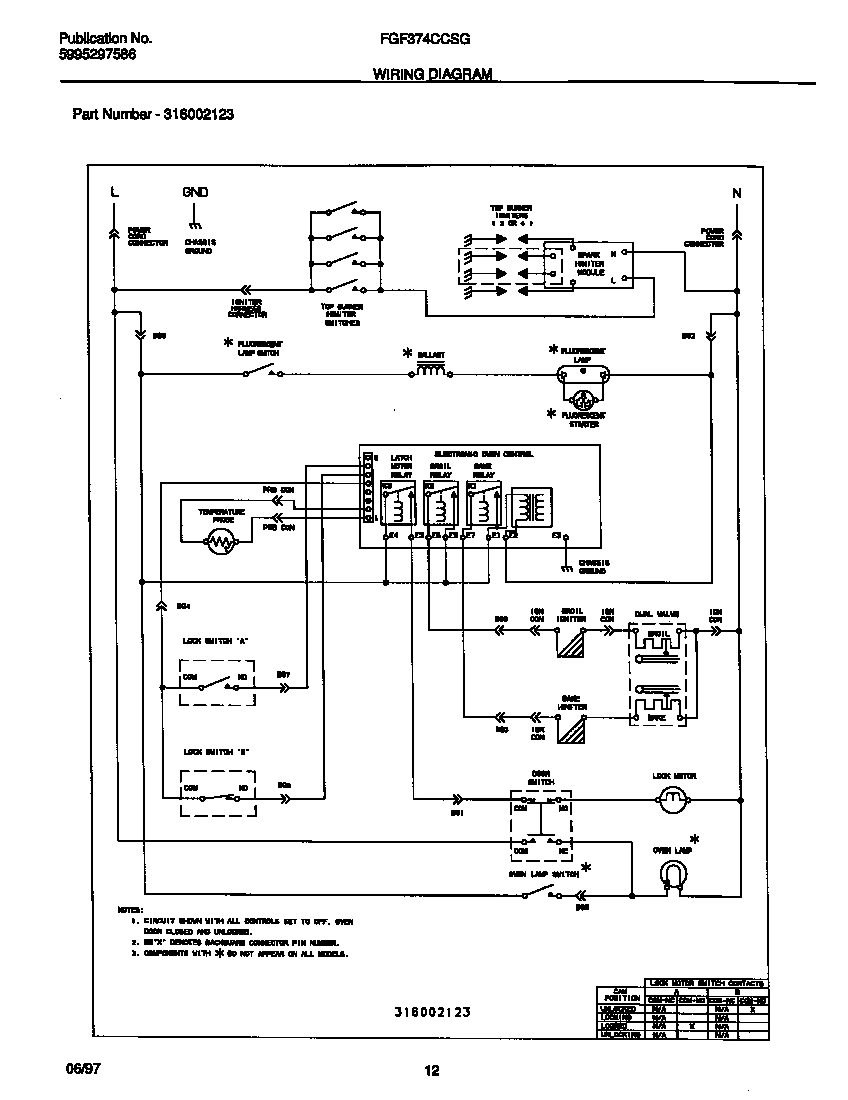

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF374CCSG RANGE
*91405
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*91407
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*91411
WCI 316065301 WCI 316065301 Contact Us For Availability
*91412
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*91414
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
VALVE-TOP BURNER, SMALL, (2) WCI 5303935130 No Longer Available
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
3
WCI 316081028 WCI 316081028 Contact Us For Availability
3
WCI 316081029 WCI 316081029 Contact Us For Availability
3
SPACER-COOKTOP (NOT ILLUSTRATED) WCI 5308003107 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011914 WCI 316011914 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316089005 WCI 316089005 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
WCI 3934058 WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 316099800 WCI 316099800 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SWITCH-OVEN LIGHT WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 5303307709 WCI 5303307709 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
19
PAN-BURNER, GRAY, SMALL, (2) WCI 316011413 Contact Us For Availability
19
PAN-BURNER, GRAY, LARGE, (2) WCI 316011417 Contact Us For Availability
20
WCI 316089306 WCI 316089306 Contact Us For Availability
20
WCI 316085304 WCI 316085304 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, ALMOND, SMALL, (2) WCI 316011004 Contact Us For Availability
22
WCI 316011010 WCI 316011010 Contact Us For Availability
25
WCI 5303288580 WCI 5303288580 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051700 WCI 316051700 Contact Us For Availability
39
WCI 08067961 WCI 08067961 Contact Us For Availability
39
WASHER, HANDLE, (2) (NOT ILLUSTRATED) WCI 316008400 Contact Us For Availability
39
WCI 316026103 WCI 316026103 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 No Longer Available
44
ORIFICE-TOP BURNER, SMALL, (2) WCI 5303210090 No Longer Available
44
WCI 316010802 WCI 316010802 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
53
WCI 5303288579 WCI 5303288579 Contact Us For Availability
55
WCI 316052601 WCI 316052601 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
60
SCREW, TRUSS HEAD, 8-10 X 0.375, HANDLE, (3) WCI 5303288574 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
