Model Electrolux FGF353CASB RANGE – Common Parts & Diagrams

*70404

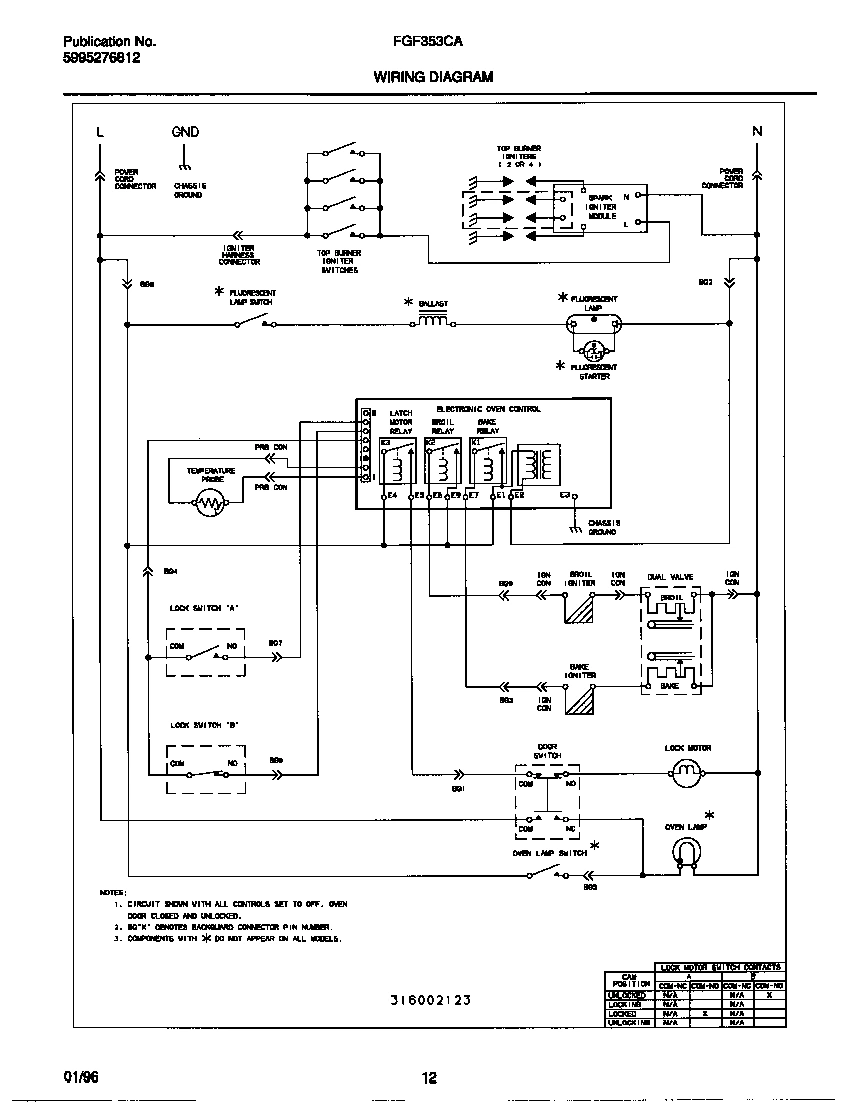

HARNESS-WIRING, MAIN
HARNESS-WIRING, MAIN WCI 316001618 Contact Us For Availability
View on Model
*70406
RIVET-POP, WARING-PLATE
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
View on Model
*70407
WCI 5303281584
WCI 5303281584 WCI 5303281584 Contact Us For Availability
View on Model
*70409
WCI 5303288574
WCI 5303288574 WCI 5303288574 Contact Us For Availability
View on Model
*70410
SPACER-HANDLE, WHITE (2)
SPACER-HANDLE, WHITE (2) WCI 316055102 Contact Us For Availability
View on Model
*70412
WCI 316065301
WCI 316065301 WCI 316065301 Contact Us For Availability
View on Model
*70413
SCREW, CR PAN HD SEMS, 8-32BP X 1.00
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
View on Model
*70415
WCI 5303269859
WCI 5303269859 WCI 5303269859 Contact Us For Availability
View on Model
1
WCI 316029410
WCI 316029410 WCI 316029410 Contact Us For Availability
View on Model
1

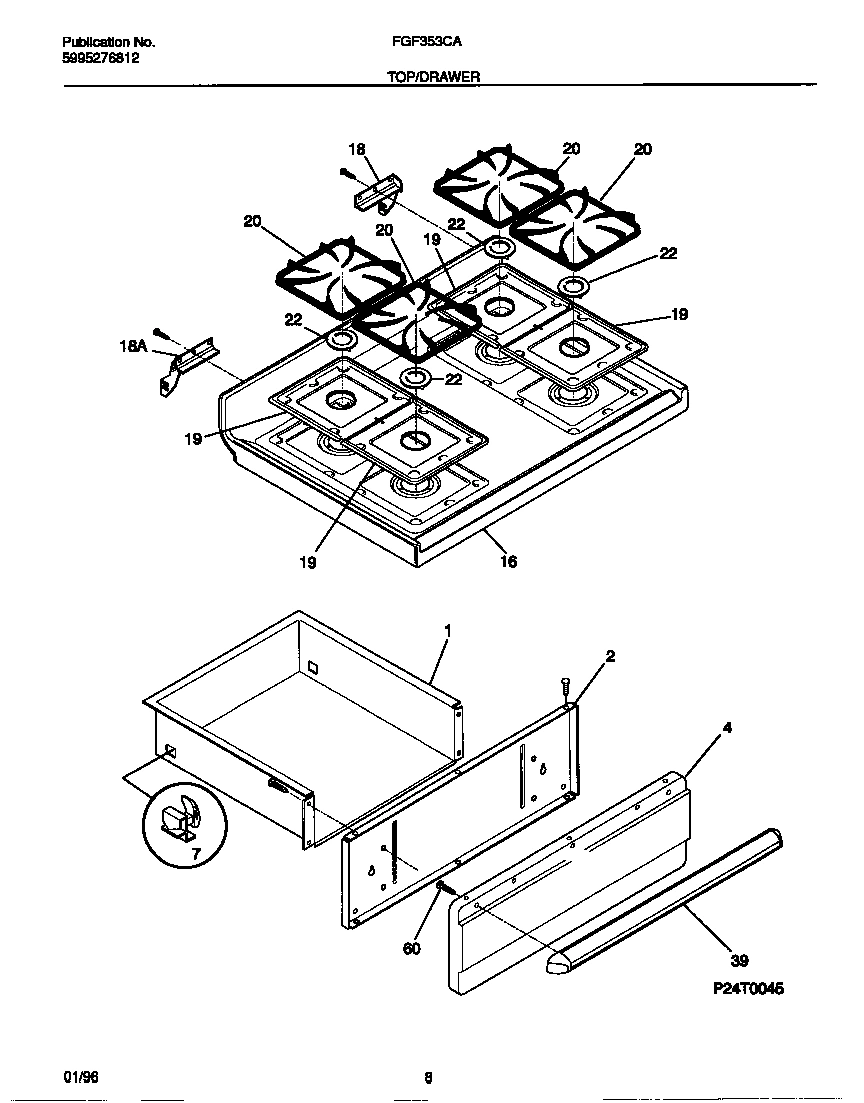

DRAWER-UTILITY
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
View on Model
2
WCI 3131314
WCI 3131314 WCI 3131314 Contact Us For Availability
View on Model
2
WCI 3131975
WCI 3131975 WCI 3131975 Contact Us For Availability
View on Model
3
WCI 316081004
WCI 316081004 WCI 316081004 Contact Us For Availability
View on Model
3
WCI 316081005
WCI 316081005 WCI 316081005 Contact Us For Availability
View on Model
3
WCI 316067804
WCI 316067804 WCI 316067804 Contact Us For Availability
View on Model
3A
SWITCH-IGNITER, (4)
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
View on Model
3A
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
View on Model
3B
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
View on Model
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
View on Model
4
WCI 316059612
WCI 316059612 WCI 316059612 Contact Us For Availability
View on Model
4
WCI 316011912
WCI 316011912 WCI 316011912 Contact Us For Availability
View on Model
4
WCI 316056205
WCI 316056205 WCI 316056205 Contact Us For Availability
View on Model
4
WCI 316089005
WCI 316089005 WCI 316089005 Contact Us For Availability
View on Model
5
WCI 316088600
WCI 316088600 WCI 316088600 Contact Us For Availability
View on Model
5A
SCREW-LEVELING
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
View on Model
5B
WCI 3934058
WCI 3934058 WCI 3934058 Contact Us For Availability
View on Model
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
View on Model
6
WCI 316059614
WCI 316059614 WCI 316059614 Contact Us For Availability
View on Model
6
WCI 316088401
WCI 316088401 WCI 316088401 Contact Us For Availability
View on Model
7
WCI 316076400
WCI 316076400 WCI 316076400 Contact Us For Availability
View on Model
7A
WCI 316007002 No Longer Available
View on Model
8
WCI 316088700
WCI 316088700 WCI 316088700 Contact Us For Availability
View on Model
8A
PANEL-OVEN BOTTOM
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
View on Model
9
WCI 316073800
WCI 316073800 WCI 316073800 Contact Us For Availability
View on Model
9
WCI 316066610
WCI 316066610 WCI 316066610 Contact Us For Availability
View on Model
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
View on Model
10
WCI 3205234
WCI 3205234 WCI 3205234 Contact Us For Availability
View on Model
12
SWITCH-OVEN LIGHT, DOOR FRAME
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
View on Model
13
WCI 316065005
WCI 316065005 WCI 316065005 Contact Us For Availability
View on Model
13
WCI 316026800
WCI 316026800 WCI 316026800 Contact Us For Availability
View on Model
14
REFLECTOR, ALUMINUM FOIL
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
View on Model
15
WCI 316081401
WCI 316081401 WCI 316081401 Contact Us For Availability
View on Model
16
WCI 5303301546
WCI 5303301546 WCI 5303301546 Contact Us For Availability
View on Model
16
WCI 316085700
WCI 316085700 WCI 316085700 Contact Us For Availability
View on Model
16A
GUSSET-TOP MTG, RH (NOT ILLUSTRATED)
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
View on Model
16B
GUSSET-TOP MTG, LH (NOT ILLUSTRATED)
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
View on Model
18
WCI 316036300
WCI 316036300 WCI 316036300 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (RH)
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (LH)
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
View on Model
19
WCI 316011409
WCI 316011409 WCI 316011409 Contact Us For Availability
View on Model
20
WCI 316025401
WCI 316025401 WCI 316025401 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
22
WCI 316065002
WCI 316065002 WCI 316065002 Contact Us For Availability
View on Model
22
WCI 316011003
WCI 316011003 WCI 316011003 Contact Us For Availability
View on Model
23
WCI 08067935
WCI 08067935 WCI 08067935 Contact Us For Availability
View on Model
25
WCI 3131313
WCI 3131313 WCI 3131313 Contact Us For Availability
View on Model
26
WCI 08067757
WCI 08067757 WCI 08067757 Contact Us For Availability
View on Model
28
CLIP-WIRE
CLIP-WIRE WCI 3011813 Contact Us For Availability
View on Model
30
BRACKET-HINGE, MAIN TOP RH
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
View on Model
30
BRACKET-HINGE, MAIN TOP, LH
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
View on Model
33
SHIELD, REAR WALL
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
View on Model
36
WCI 5303272844
WCI 5303272844 WCI 5303272844 Contact Us For Availability
View on Model
38
WCI 316051701
WCI 316051701 WCI 316051701 Contact Us For Availability
View on Model
39
WCI 316026103
WCI 316026103 WCI 316026103 Contact Us For Availability
View on Model
39B
WCI 08067961
WCI 08067961 WCI 08067961 Contact Us For Availability
View on Model
40A
WCI 3200836
WCI 3200836 WCI 3200836 Contact Us For Availability
View on Model
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
42
WCI 5303270104
WCI 5303270104 WCI 5303270104 Contact Us For Availability
View on Model
44
ORIFICE-TOP BURNER, SMALL, (4)
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 Contact Us For Availability
View on Model
45
SHIELD-WIRE
SHIELD-WIRE WCI 08068018 Contact Us For Availability
View on Model
46
WCI 316074700
WCI 316074700 WCI 316074700 Contact Us For Availability
View on Model
47
WCI 5303286386
WCI 5303286386 WCI 5303286386 Contact Us For Availability
View on Model
50
BURNER-TOP, SMALL, (4), INCLUDES 37
BURNER-TOP, SMALL, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
View on Model
52
WCI 316081301
WCI 316081301 WCI 316081301 Contact Us For Availability
View on Model
53A
WCI 5303271047
WCI 5303271047 WCI 5303271047 Contact Us For Availability
View on Model
55
WCI 316052601
WCI 316052601 WCI 316052601 Contact Us For Availability
View on Model
58
INSULATION, OVEN TOP
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
View on Model
58
WCI 316054200
WCI 316054200 WCI 316054200 Contact Us For Availability
View on Model
58
INSULATION, OVEN WRAPPER
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
View on Model
72
COVER-LIGHT/SWITCH ROD
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
View on Model
88
WCI 316026400
WCI 316026400 WCI 316026400 Contact Us For Availability
View on Model
89
WCI 316028101
WCI 316028101 WCI 316028101 Contact Us For Availability
View on Model
