Model Electrolux FFID2423RS1A DISHWASHER – Common Parts &amp; Diagrams

1

154825001 Frigidaire Dishwasher Round Heater In Stock WCI 154825001 $68.86

1

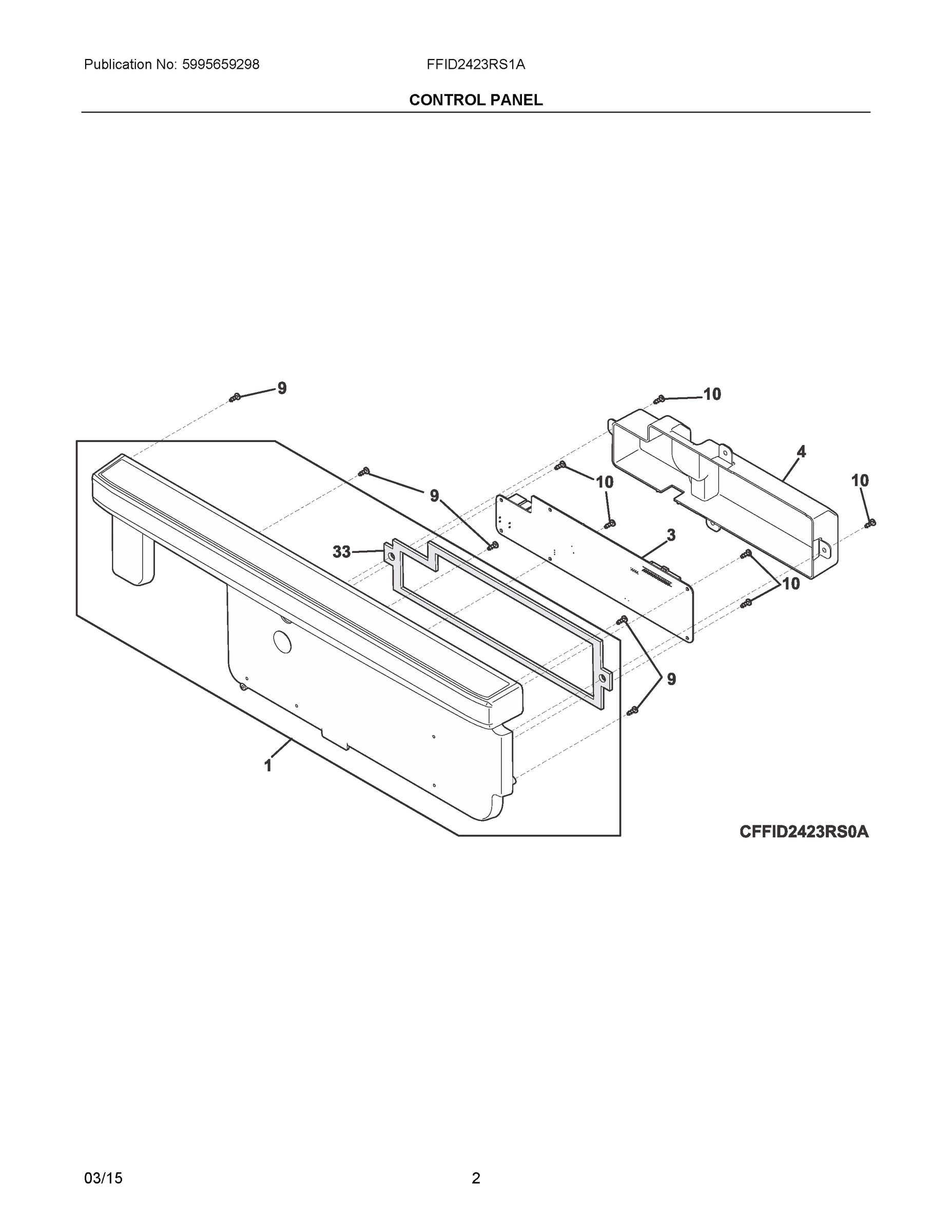

5304501498 Frigidaire Dishwasher Console Asse Backorder WCI 5304501498 $332.15

1

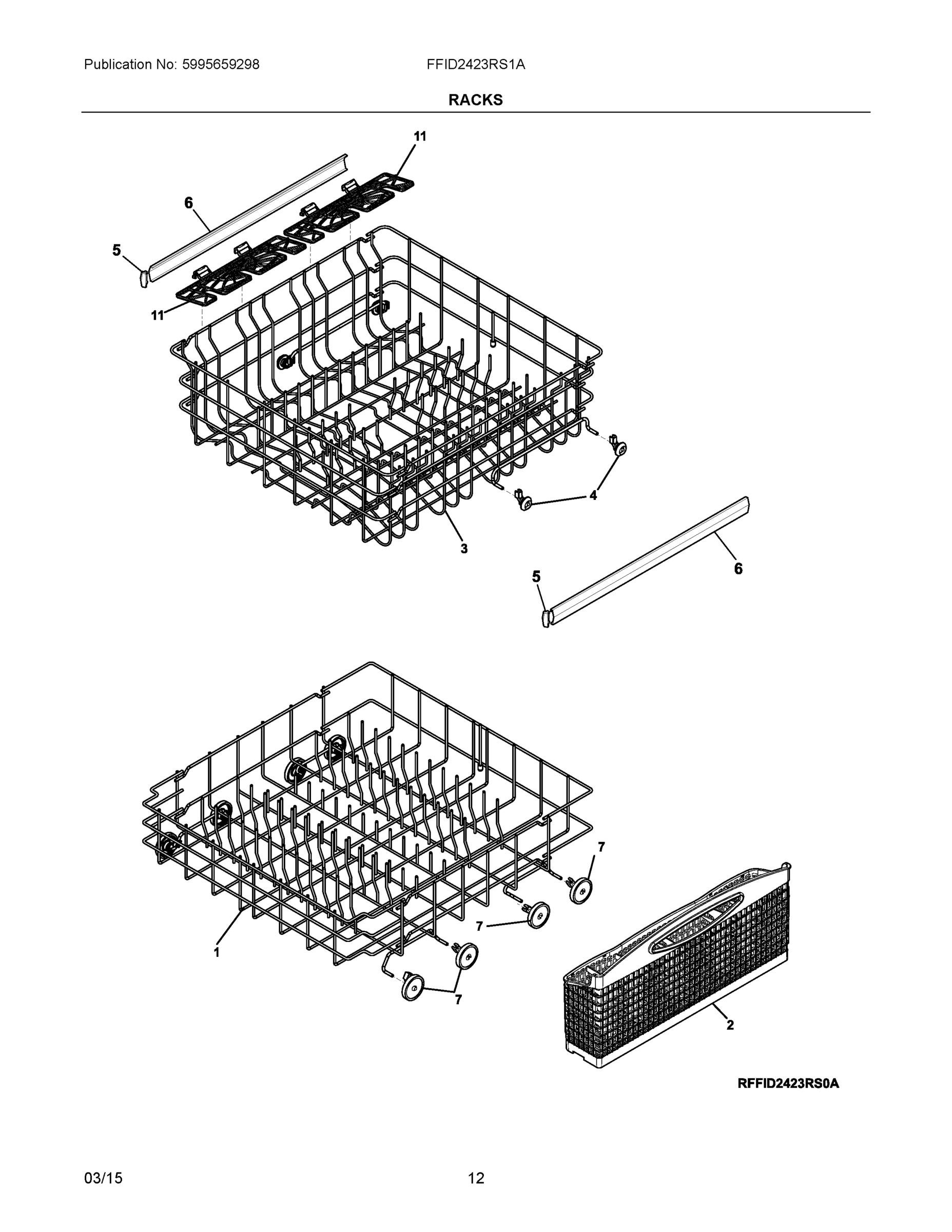

5304533200 Frigidaire Dishwasher Rack with Wh In Stock WCI 5304533200 $105.51

1

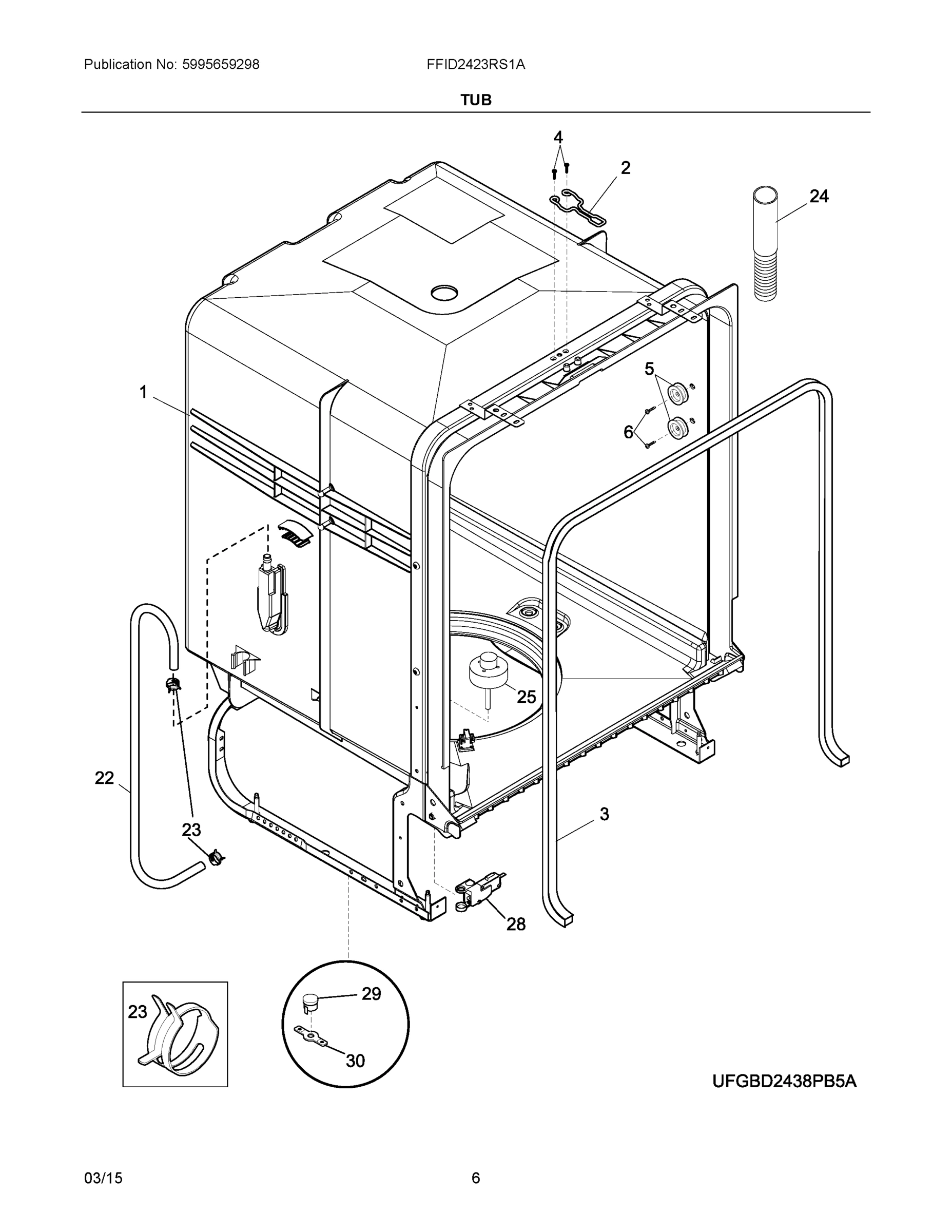

TUB ASSY, W/FRAME PARTS, WHITE, DF WCI 154729401 Contact Us For Availability

1A

154756401 Frigidaire Hinge Cable In Stock WCI 154756401 $7.54

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.65

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $8.87

2

5304532796 Frigidaire Dishwasher Strike In Stock WCI 5304532796 $17.01

2

5304535382 Frigidaire Basket Assembly In Stock WCI 5304535382 $28.41

3

140229954072 Frigidaire Upper Rack Assembly In Stock WCI 140229954072 $94.54

3

154827601 Frigidaire Dishwasher Tub Gasket In Stock WCI 154827601 $24.97

3

5304504655 Frigidaire Dishwasher Board In Stock WCI 5304504655 $201.49

3

807047901 Frigidaire Dishwasher Inlet Water V In Stock WCI 807047901 $46.54

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $53.22

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $32.21

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $22.19

4

5304517614 Frigidaire Dishwasher Cover Assemb Backorder WCI 5304517614 $15.51

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $2,263.98

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $11.31

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $23.64

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $4.01

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $13.86

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $10.40

7

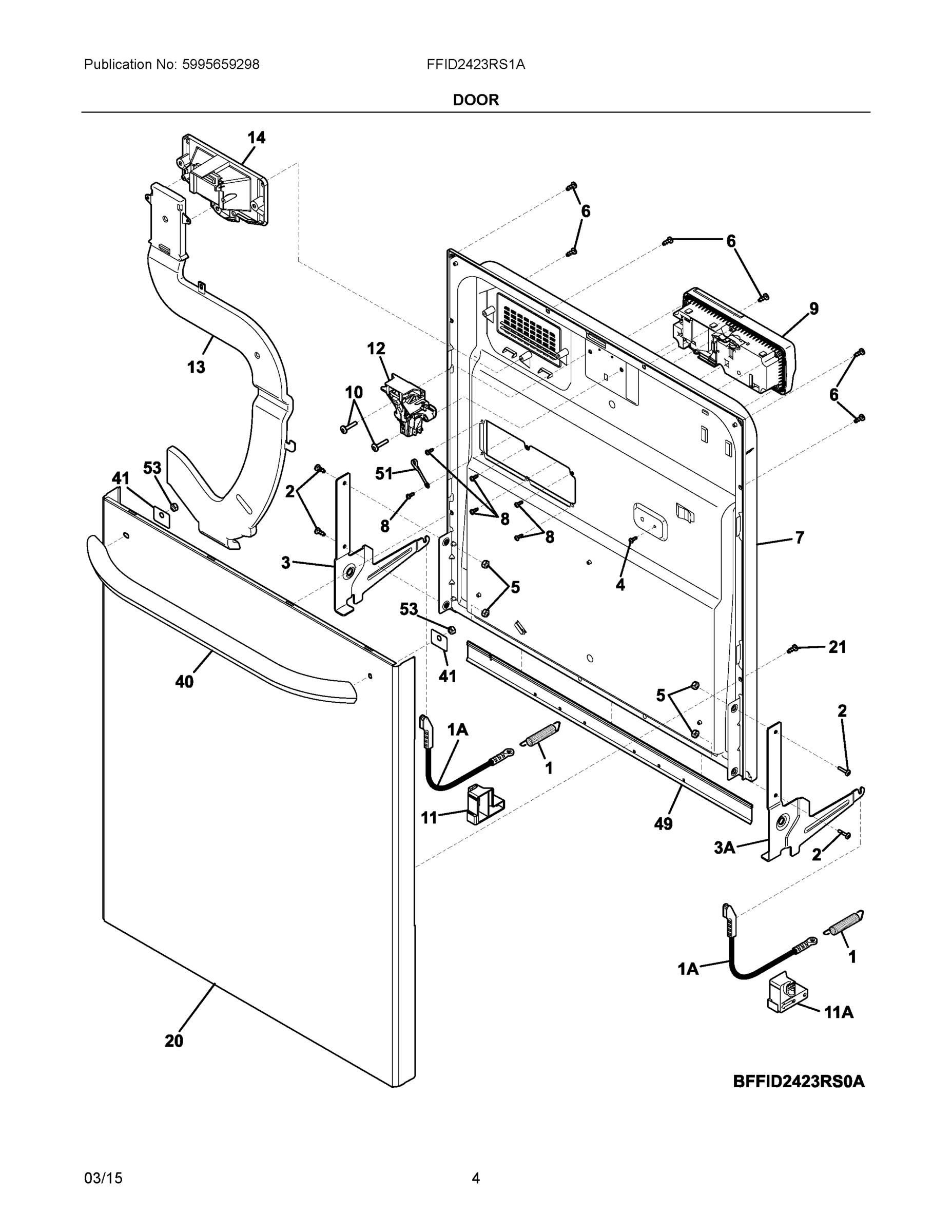

LINER, DOOR ASSEMBLY, WHITE, COMPLETE WCI 154743501 Contact Us For Availability

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $22.72

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $37.44

9

5304506521 Frigidaire Dishwasher Dispenser In Stock WCI 5304506521 $75.96

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $10.53

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $7.18

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $7.74

154754801 Frigidaire Dishwasher Screw In Stock WCI 154754801 $1.59

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $10.53

11

154579201 Frigidaire Dishwasher Pulley In Stock WCI 154579201 $37.15

11

5304532945 Frigidaire Cup Shelf Backorder WCI 5304532945 $5.66

11A

154579202 Frigidaire Dishwasher Pulley In Stock WCI 154579202 $37.17

12

5304525218 Frigidaire Door Latch Assembly In Stock WCI 5304525218 $31.48

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $38.83

13

DUCT ASSEMBLY, VENT, W/TAPE WCI 154755801 No Longer Available

14

154723801 Frigidaire Dishwasher SUMP Assembly In Stock WCI 154723801 $45.86

14

VENT ASSY, DRY, W/GASKETS WCI 154784401 Contact Us For Availability

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $8.31

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $31.58

20

154758501 Frigidaire Power Cord Cover In Stock WCI 154758501 $15.51

20

WCI 5304501053 No Longer Available

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.76

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $19.87

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.81

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $30.52

24

807117001 Frigidaire Dishwasher Drain Hose In Stock WCI 807117001 $36.95

24A

5304506740 Frigidaire Dishwasher Spray Arm Ce In Stock WCI 5304506740 $29.85

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $17.73

25

5304532207 Frigidaire Float In Stock WCI 5304532207 $5.28

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $51.87

29

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $12.11

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.76

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $50.67

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $5.45

33

154478901 Frigidaire Dishwasher Gasket Backorder WCI 154478901 $48.27

40

WCI 5304501039 WCI 5304501039 Contact Us For Availability

49

5304500204 Frigidaire Gasket Bottom Door Seal In Stock WCI 5304500204 $24.18

51

CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability

53

154425001 Frigidaire Dishwasher Nut Backorder WCI 154425001 $7.77

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $11.32

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $43.81

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $52.81

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $52.81

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $12.18

62

5304532235 Frigidaire Support Assembly In Stock WCI 5304532235 $5.59

63

5304532205 Frigidaire Base Assembly In Stock WCI 5304532205 $10.50

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $36.00

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $47.39

70

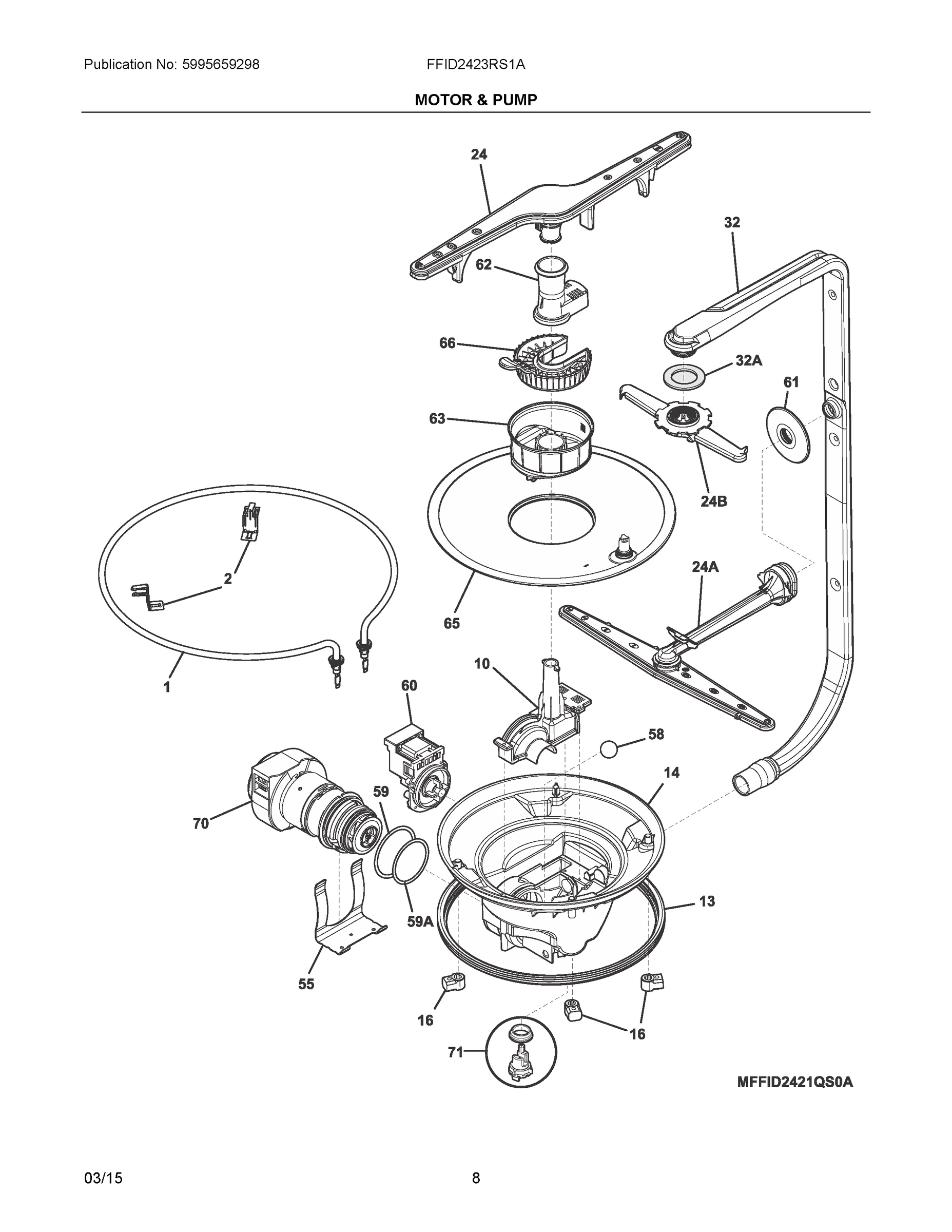

154844301 Frigidaire Dishwasher Motor Kit In Stock WCI 154844301 $191.27

71

154762601 Frigidaire Dishwasher Turbidity Sen Backorder WCI 154762601 $57.53

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $57.66

154406801 Frigidaire Dishwasher Anchor Kit (A Backorder WCI 154406801 $82.64

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $11.09

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $8.31

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $5.52

5304500408 Frigidaire Dishwasher Harness Backorder WCI 5304500408 $109.74

5304525043 Frigidaire Dishwasher Insulation Backorder WCI 5304525043 $34.93

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.76

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $12.28

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $10.53

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $10.53

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $3.31

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $1.06

5304525214 Frigidaire Dishwasher Shield In Stock WCI 5304525214 $7.74

5304538695 Frigidaire Door Insulation Backorder WCI 5304538695 $1.81

SCREW, DRY DUCT, (3) WCI 154793401 Contact Us For Availability

NIB

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $6.09

NIB

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.76

NIB

807048001 Frigidaire Dishwasher Check Valve In Stock WCI 807048001 $14.88
