Model Electrolux FFHN2740PE2A REFRIGERATOR – Common Parts &amp; Diagrams

1

WCI 218976804 WCI 218976804 Contact Us For Availability

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $71.15

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $25.94

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $45.43

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $39.85

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $52.12

10

WCI 242072002 No Longer Available

10A

COVER-EVAP COIL, LOWER WCI 242084102 Contact Us For Availability

11

DOOR-FRZR, BLACK, COMPLETE ASSY WCI 241987935 Contact Us For Availability

12

242016301 Frigidaire Refrigerator Nameplate In Stock WCI 242016301 $3.31

12

WCI 242072401 WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $14.42

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.73

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $14.42

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $90.44

14

SWITCH, LIGHT/LAMP WCI 240505803 Contact Us For Availability

15

242044501 Frigidaire Refrigerator Evaporator Backorder WCI 242044501 $144.78

15

5304517886 Frigidaire Refrigerator Light In Stock WCI 5304517886 $53.49

15

DOOR-REFR, BLACK, RH WCI 242185640 Contact Us For Availability

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $37.70

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.23

17

241928201 Frigidaire Refrigerator Air Duct Ga In Stock WCI 241928201 $13.88

17

WCI 242084201 WCI 242084201 Contact Us For Availability

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $13.86

18

242090503 Frigidaire Refrigerator Door Handle Backorder WCI 242090503 $163.64

18

HANDLE-DOOR, BLACK, W/SET SCREWS WCI 242059303 Contact Us For Availability

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $34.93

20

242072201 Frigidaire Refrigerator Cover In Stock WCI 242072201 $72.15

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $8.31

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $12.20

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $12.18

242046001 Frigidaire Refrigerator Defrost The In Stock WCI 242046001 $56.31

21C

241899703 Frigidaire Refrigerator Screw In Stock WCI 241899703 $11.64

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl Backorder WCI 242075602 $18.27

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $33.26

24

242068701 Frigidaire Refrigerator Shelf Backorder WCI 242068701 $151.98

24

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $14.18

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $8.94

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $161.97

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $14.94

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

26

241801801 Frigidaire Crisper Pan In Stock WCI 241801801 $144.38

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $102.72

30

241577505 Frigidaire Refrigerator Inverter In Stock WCI 241577505 $247.16

30

241778701 Frigidaire Refrigerator Anti-Tip Br In Stock WCI 241778701 $19.43

34

241868301 Frigidaire Refrigerator Washer Asse In Stock WCI 241868301 $24.38

35

241767211 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767211 $74.87

35A

241767212 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767212 $75.96

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $38.80

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $17.18

37

TRIM-CABINET CORNER, BLACK, (2) WCI 240337610 Contact Us For Availability

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.82

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $50.46

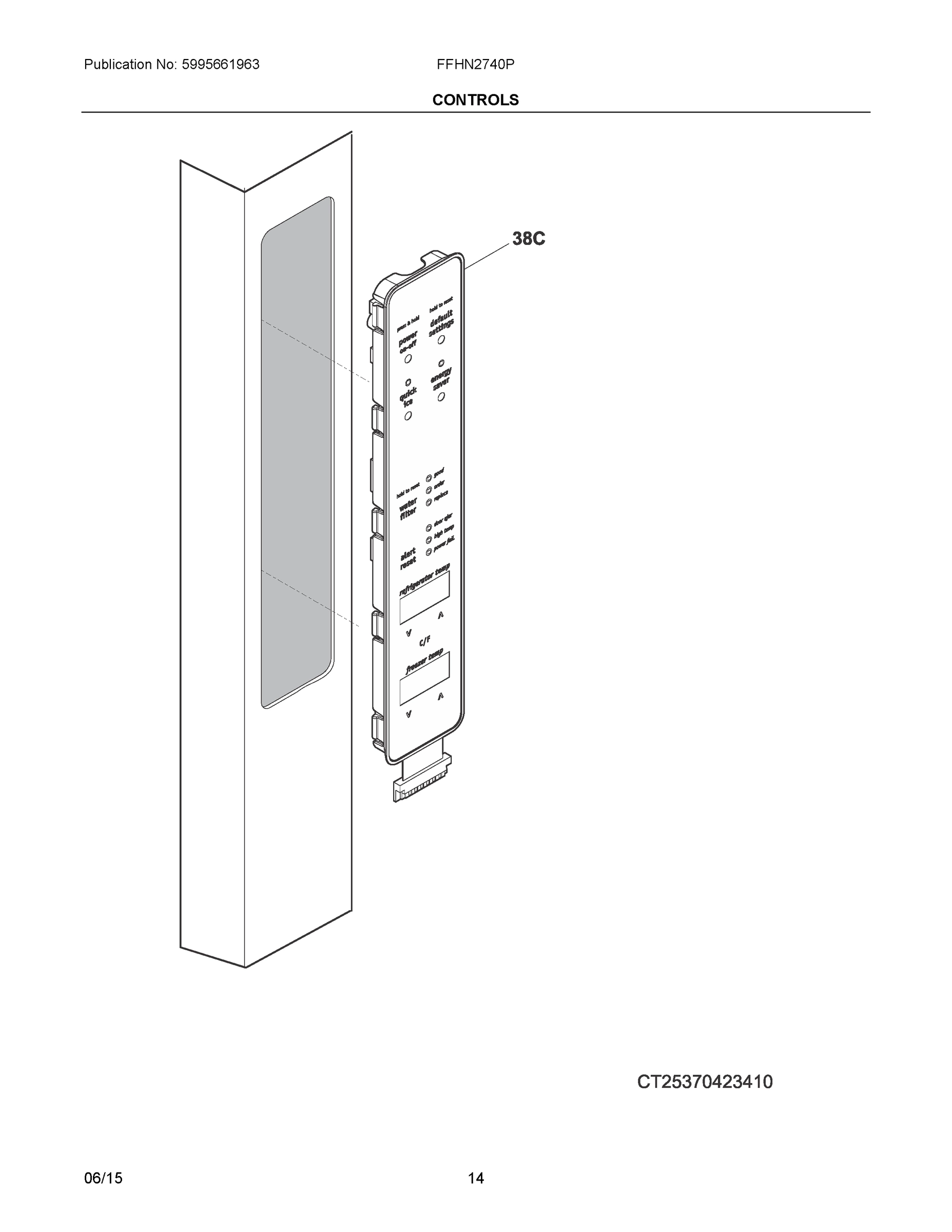

38C

WCI 242048311 WCI 242048311 Contact Us For Availability

40A

242099804 Frigidaire Refrigerator Upper Hinge Backorder WCI 242099804 $32.17

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $10.50

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $11.07

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $17.73

42A

242067801 Frigidaire Refrigerator Door Suppor In Stock WCI 242067801 $34.37

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $24.47

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $79.29

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $68.49

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $62.69

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $79.01

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $52.68

49

BASKET, FREEZER, PLASTIC, LOWER WCI 242159401 Contact Us For Availability

49A

BASKET-FRZR, UPPER WCI 241780815 Contact Us For Availability

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $61.01

49C

242079901 Frigidaire Refrigerator Door Bin In Stock WCI 242079901 $68.49

50

5304504033 Frigidaire Refrigerator Power Boar Backorder WCI 5304504033 $260.00

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $104.85

51

SLIDE ASSEMBLY, BASKET LOWER, RH, FREEZER DRA WCI 242130508 Contact Us For Availability

51A

241894223 Frigidaire Drawer Right Slide Rail Backorder WCI 241894223 $103.71

52

SLIDE ASSEMBLY, BASKET LOWER, LH, FREEZER DRA WCI 242130507 Contact Us For Availability

52A

241894224 Frigidaire Refrigerator Slide Assem Backorder WCI 241894224 $103.15

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $9.42

54

WCI 807854301 WCI 807854301 Contact Us For Availability

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $9.44

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $106.33

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $24.62

62

WCI 242096801 WCI 242096801 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $31.26

70

242041701 Frigidaire Refrigerator Ice Maker B Backorder WCI 242041701 $55.45

72

242054802 Frigidaire Refrigerator Black Kickp Backorder WCI 242054802 $63.78

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $16.64

74

242127901 Frigidaire Refrigerator Ice Contain Backorder WCI 242127901 $144.19

75

242240101 Frigidaire Refrigerator Shield Backorder WCI 242240101 $59.02

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $20.80

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $10.55

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $25.09

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

82

DIVIDER, BASKET WCI 242168701 Contact Us For Availability

83

241812201 Frigidaire Refrigerator Magnet Backorder WCI 241812201 $51.57

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $20.51

85

241778808 Frigidaire Refrigerator White Mulli Backorder WCI 241778808 $223.60

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $67.13

85A

SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242168501 Contact Us For Availability

85B

SUPPORT-BEAM, LOWER BASKET WCI 241872204 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $37.90

86

BAR-STABILIZER, FREEZER DRAWER WCI 242090701 Contact Us For Availability

89

241972302 Frigidaire Refrigerator Drawer Brac Backorder WCI 241972302 $79.87

89

WCI 215346900 WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $10.37

90

WCI 242136903 WCI 242136903 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $93.44

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $8.85

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $17.75

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $13.86

107A

241971601 Frigidaire Refrigerator Light Shiel Backorder WCI 241971601 $26.06

107B

241971202 Frigidaire Refrigerator Light Shiel Backorder WCI 241971202 $26.60

108

COVER-WIRING, TOP A WCI 241971402 Contact Us For Availability

108A

WCI 241971801 WCI 241971801 Contact Us For Availability

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $59.84

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $14.45

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $8.35

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $6.09

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $89.84

139

BASE-WATER FILTER In Stock WCI 242009604 $24.68

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $57.12

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $60.43

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $46.34

154

WCI 242082401 WCI 242082401 Contact Us For Availability

157

WCI 241872201 No Longer Available

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $14.97

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $24.38

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $57.71

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $9.97

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $17.73

212

242236801 Frigidaire Refrigerator Roller Asse In Stock WCI 242236801 $16.07

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $38.83

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $13.86

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.99

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.33

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $47.68

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $73.20

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $11.16

5303918445 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918445 $351.44

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $23.27

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $9.98

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

241810104 Frigidaire Refrigerator Seal Backorder WCI 241810104 $8.85

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $26.60

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $9.40

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $4.41

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $11.09

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $12.75

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $75.41

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $10.53

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $39.80

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

WCI 241510802 WCI 241510802 Contact Us For Availability

HARNESS-WIRING, MACHINE COMP. WCI 242141202 Contact Us For Availability

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $10.53

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $13.38

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $30.70

WCI 242061606 WCI 242061606 Contact Us For Availability

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $14.40
