Model Electrolux FEF351SAWA RANGE – Common Parts & Diagrams
02 - BACKGUARD

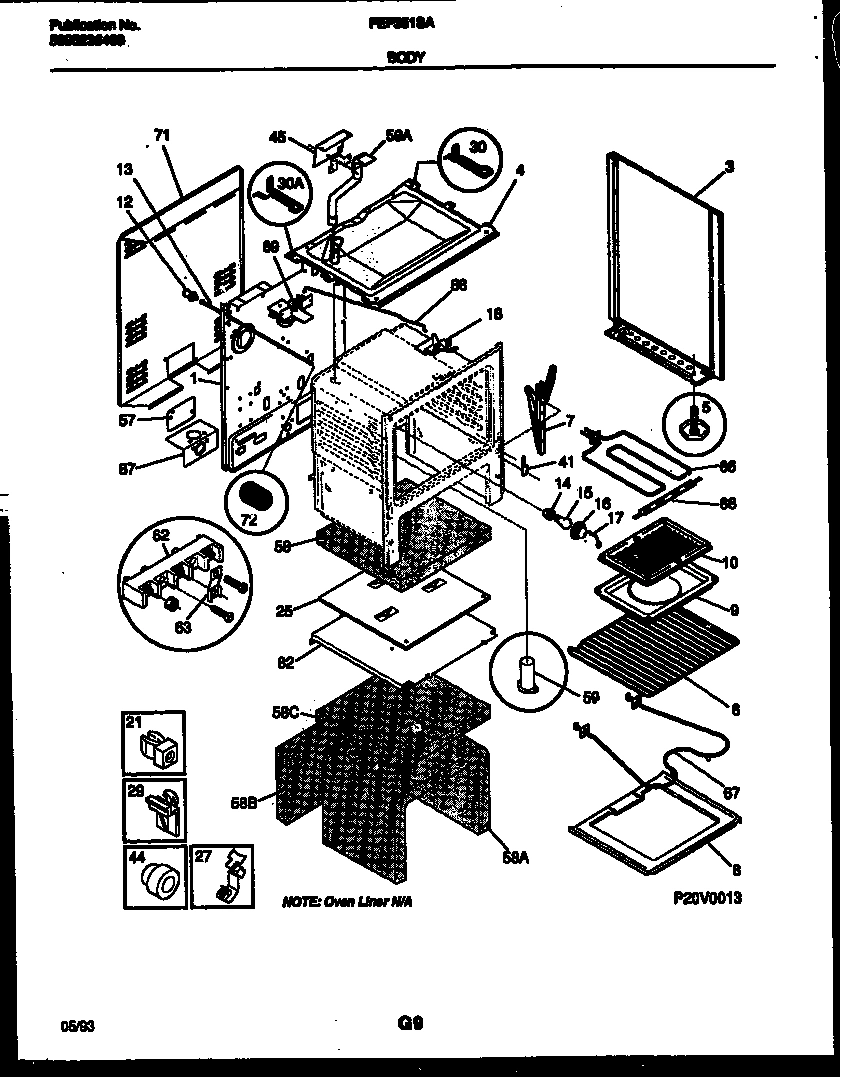

03 - BODY PARTS

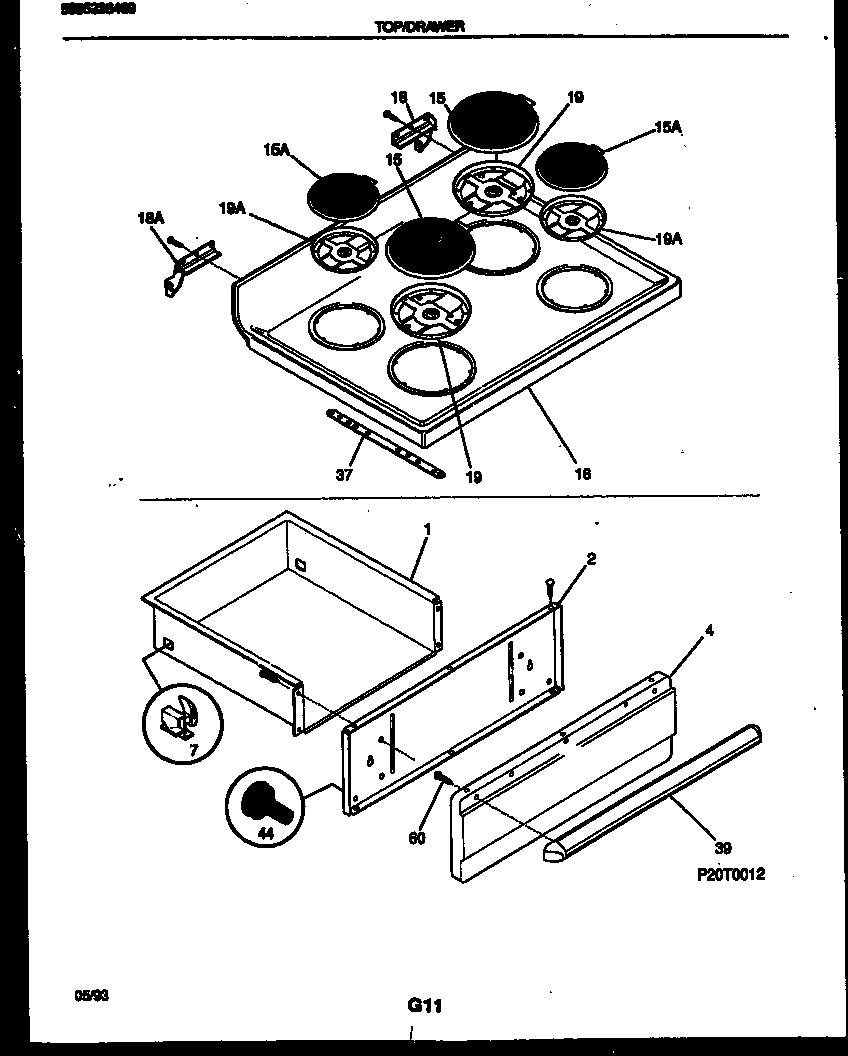

04 - COOKTOP AND DRAWER PARTS

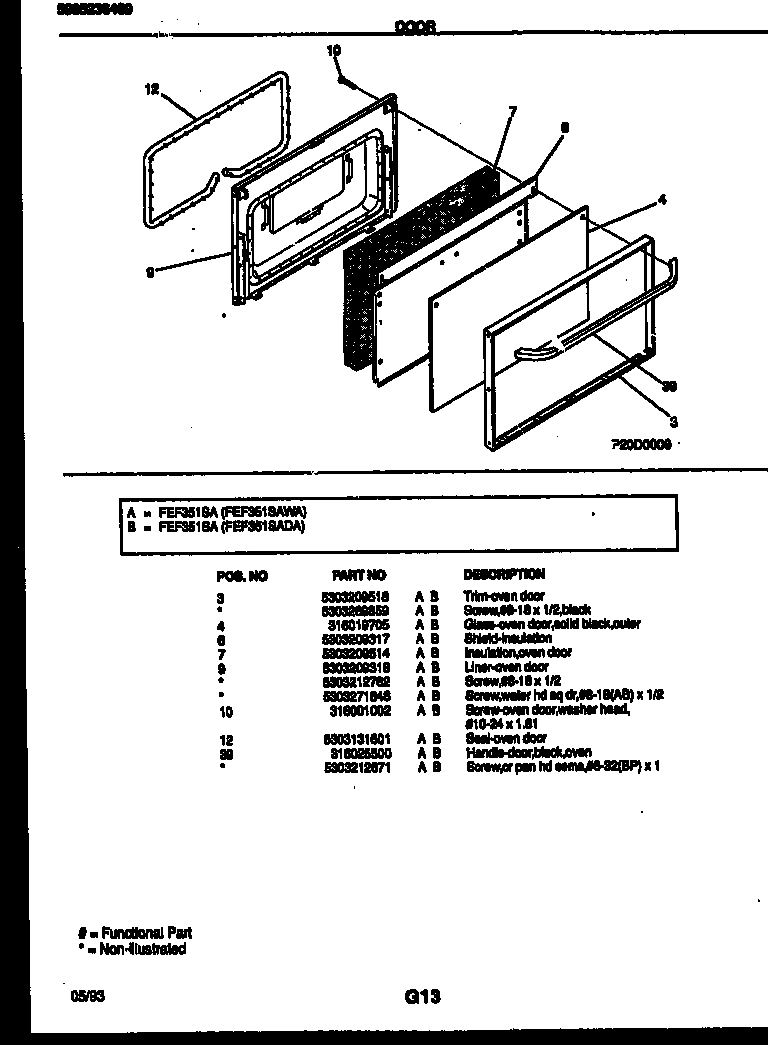

05 - DOOR PARTS
Common parts from model Electrolux FEF351SAWA RANGE
*76098
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
BACK-MAIN, AUTOLATCH WCI 316029401 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3A
SCREW, 8-18 X 1/2, BLACK (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
3B
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 316040601 WCI 316040601 Contact Us For Availability
4
WCI 316056201 WCI 316056201 Contact Us For Availability
4
WCI 316019705 WCI 316019705 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 No Longer Available
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316023200 WCI 316023200 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 316026800 Contact Us For Availability
15
WCI 316046100 WCI 316046100 Contact Us For Availability
15A
WCI 316046300 WCI 316046300 Contact Us For Availability
16
WCI 316042902 WCI 316042902 Contact Us For Availability
16A
CHANNEL, TOP STIFFNER (NON-ILLUSTRATED) WCI 5303271890 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
PAN-ELEMENT SHIELD, MED 8/INCH WCI 5308014551 Contact Us For Availability
19A
PAN, ELEMENT SHIELD, SM 6/INCH WCI 5303271880 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
37
STRAP, ELEMENT MTG WCI 5303271888 Contact Us For Availability
37A
SCREW, TRUSS HEAD, 8, 18 X 1/2 (NON-ILLUSTRA WCI 5303281584 Contact Us For Availability
37B
NUT 6-M ELEMENT MTG (NON-ILLUSTRATED) WCI 3051196 Contact Us For Availability
39
WCI 316026100 WCI 316026100 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316048001 WCI 316048001 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
WCI 316047700 WCI 316047700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 5303271905 WCI 5303271905 Contact Us For Availability
59A
WCI 316023601 WCI 316023601 Contact Us For Availability
59B
WCI 316040100 WCI 316040100 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL WCI 316015801 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
