Model FDB949GFS1 – Common Parts & Diagrams

Common parts from model FDB949GFS1

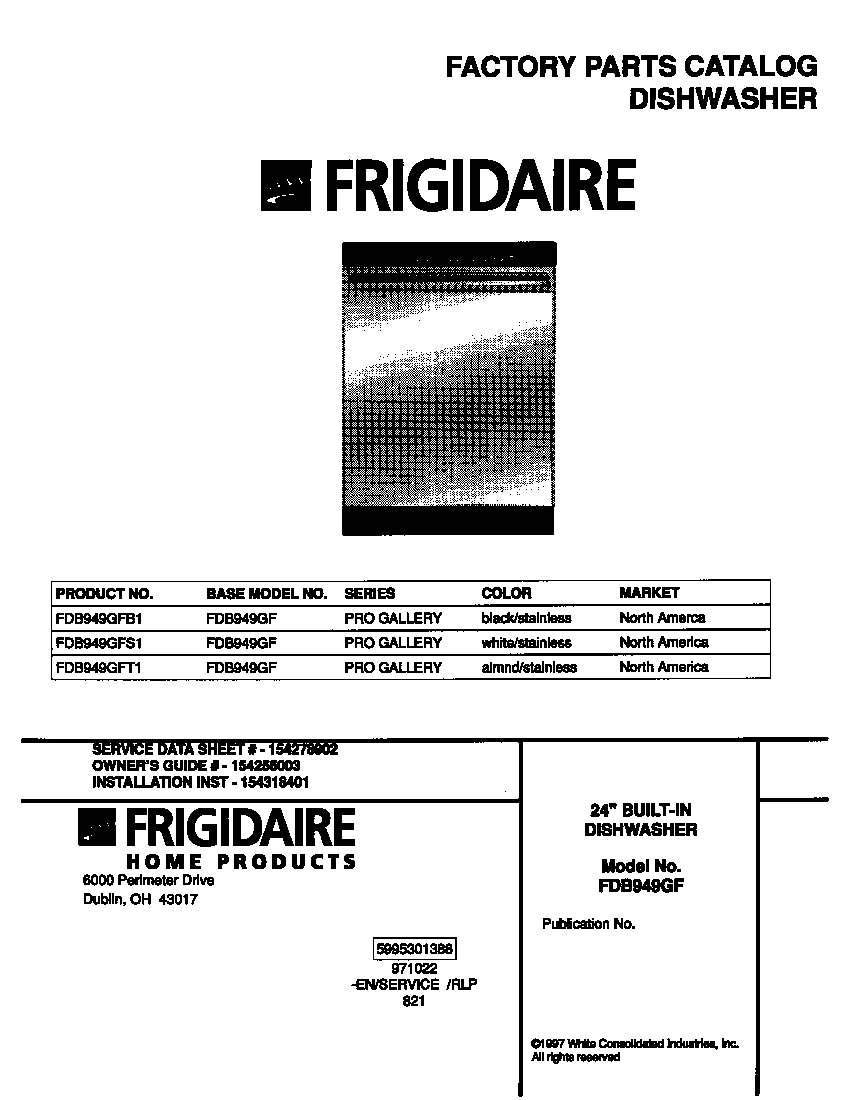

01 - COVER

Print

• This Diagram
• All Diagrams

×

*60480

154103702 Frigidaire/Electrolux Dishwasher Sc Out of Stock WCI 154103702 View Details $10.53

View on Model

*60491

154253201 Frigidaire/Electrolux Dishwasher In Out of Stock WCI 154253201 View Details $130.34

View on Model

1C

154289801 Frigidaire/Electrolux Dishwasher Sh Out of Stock WCI 154289801 View Details $6.09

View on Model

2

154093301 Frigidaire/Electrolux Dishwasher AR In Stock WCI 154093301 View Details $1.65

View on Model

4

808690701 Frigidaire/Electrolux Dishwasher Sc Out of Stock WCI 808690701 View Details $2.76

View on Model

5

5300809927 Frigidaire Endcap Out of Stock WCI 5300809927 View Details $33.28

View on Model

6

5303943103 Frigidaire/Electrolux Dishwasher P In Stock WCI 5303943103 View Details $13.86

View on Model

10

807145201 Frigidaire Dishwasher Volute Cover In Stock WCI 807145201 View Details $13.29

View on Model

11

154294701 Frigidaire/Electrolux Dishwasher Sc Out of Stock WCI 154294701 View Details $7.18

View on Model

13

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 View Details $37.70

View on Model

14

5304506508 Frigidaire Support Bracket In Stock WCI 5304506508 View Details $4.39

View on Model

23

5303318539 Frigidaire/Electrolux Dishwasher C In Stock WCI 5303318539 View Details $1.09

View on Model

24

154225602 Electrolux Frigidaire Dishwasher Dr Out of Stock WCI 154225602 View Details $26.01

View on Model

24

154313601 Frigidaire/Electrolux Dishwasher P1 In Stock WCI 154313601 View Details $34.93

View on Model

28B

154200701 Frigidaire/Electrolux Dishwasher Sc Out of Stock WCI 154200701 View Details $10.53

View on Model

29

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 View Details $50.46

View on Model

29

154753101 Frigidaire/Electrolux Dishwasher Th In Stock WCI 154753101 View Details $19.38

View on Model

30B

154241101 Frigidaire/Electrolux Dishwasher Re Out of Stock WCI 154241101 View Details $2.76

View on Model

30A

154297701 Frigidaire/Electrolux Dishwasher Sc Out of Stock WCI 154297701 View Details $10.53

View on Model

54

154234401 Frigidaire/Electrolux Dishwasher P- Out of Stock WCI 154234401 View Details $52.68

View on Model

58

154246402 Frigidaire/Electrolux Dishwasher P- In Stock WCI 154246402 View Details $43.81

View on Model

59

154246901 Frigidaire Dishwasher Rear O' Ring In Stock WCI 154246901 View Details $44.37

View on Model

59

154247001 Frigidaire Dishwasher Front O-RingP In Stock WCI 154247001 View Details $42.00

View on Model

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 View Details $8.87

View on Model

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 View Details $66.12

View on Model
