Model Whirlpool FCE4041B ELECTRIC RANGE – Common Parts & Diagrams

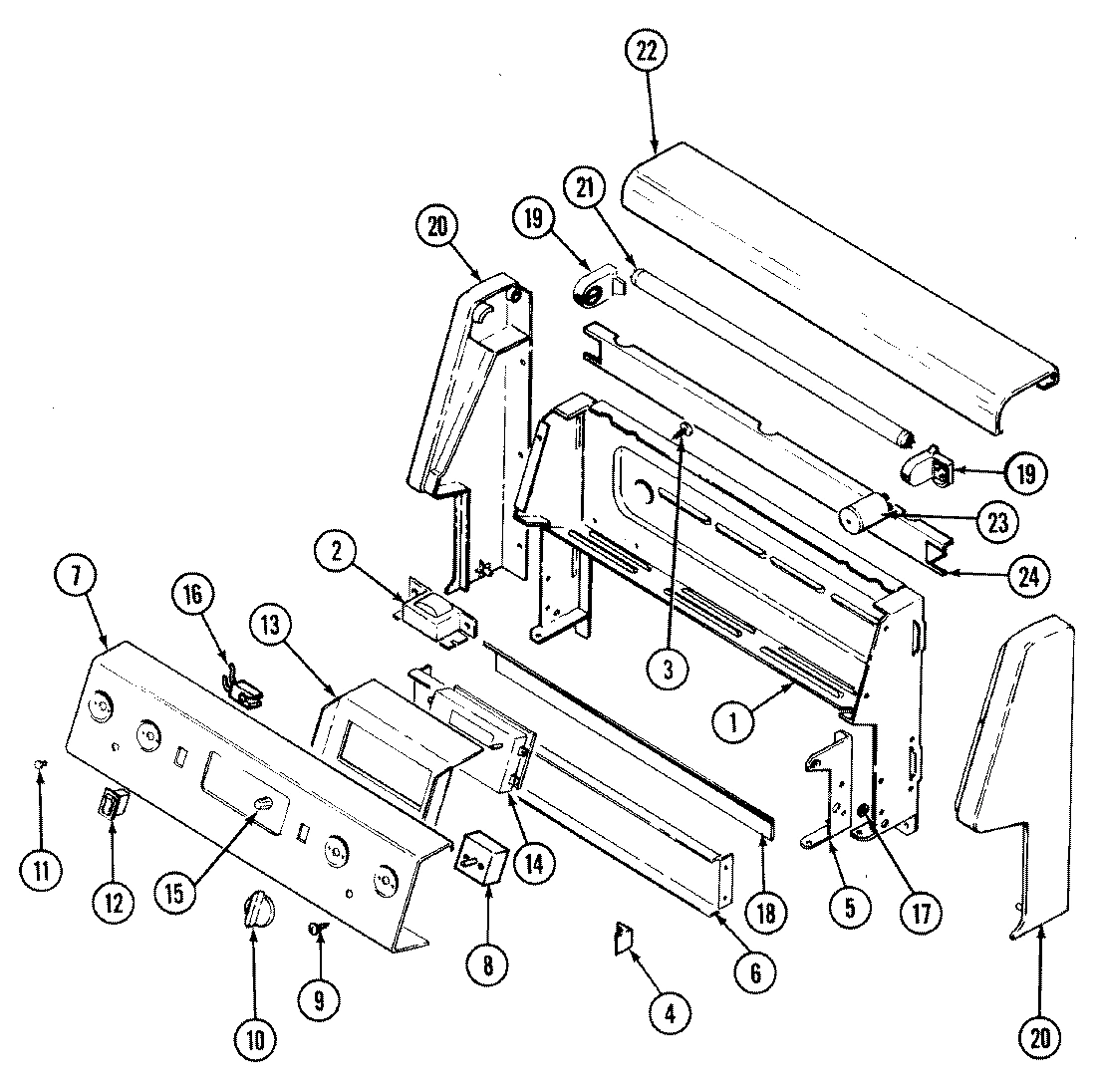

02 - CONTROL PANEL

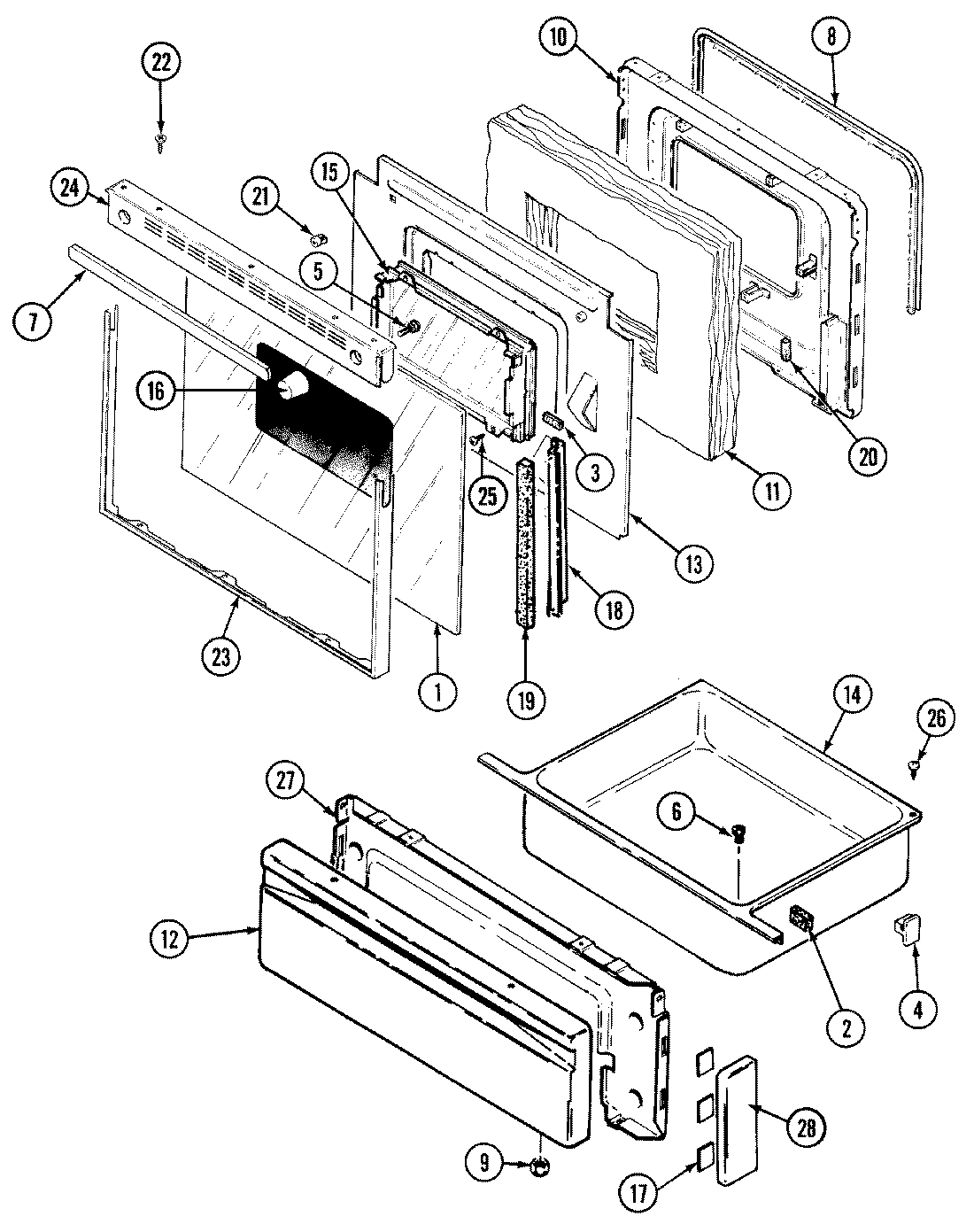

03 - DOOR/DRAWER

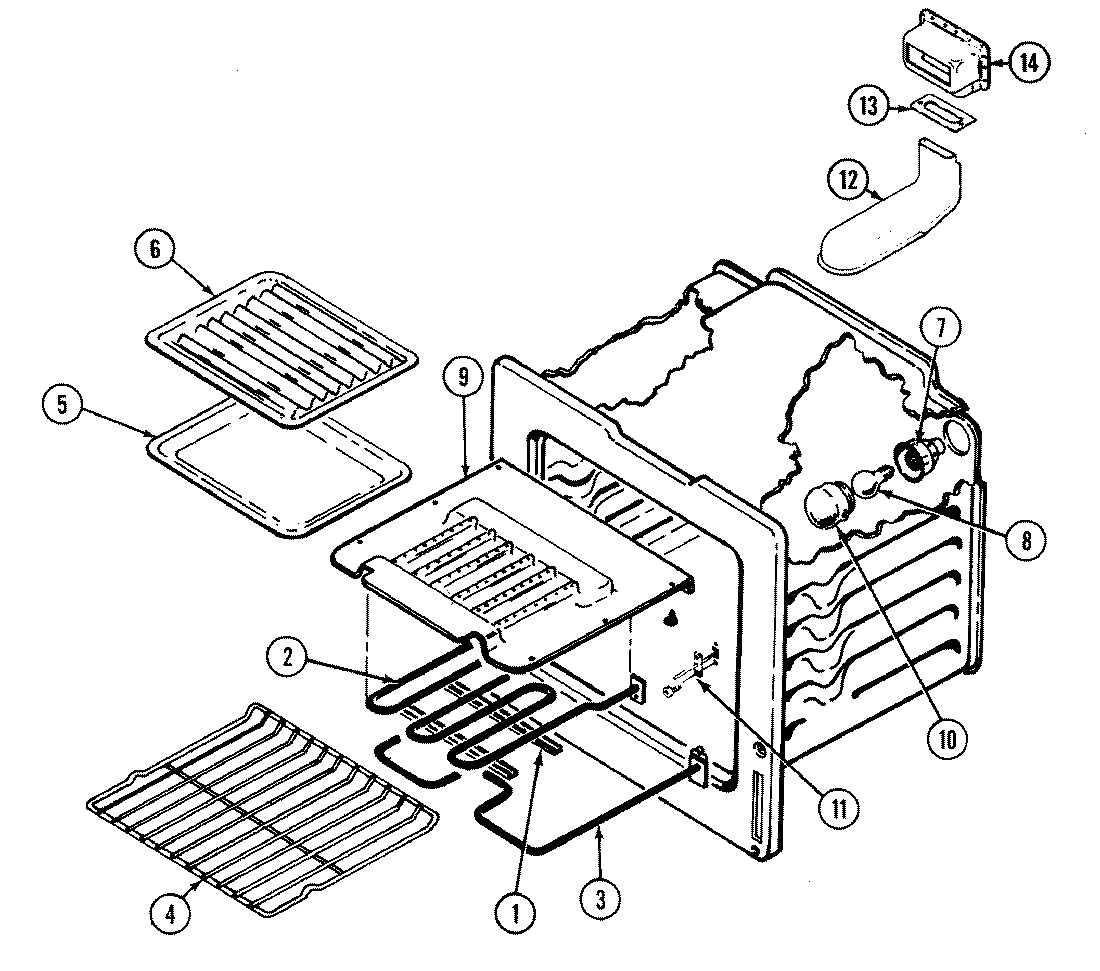

04 - OVEN

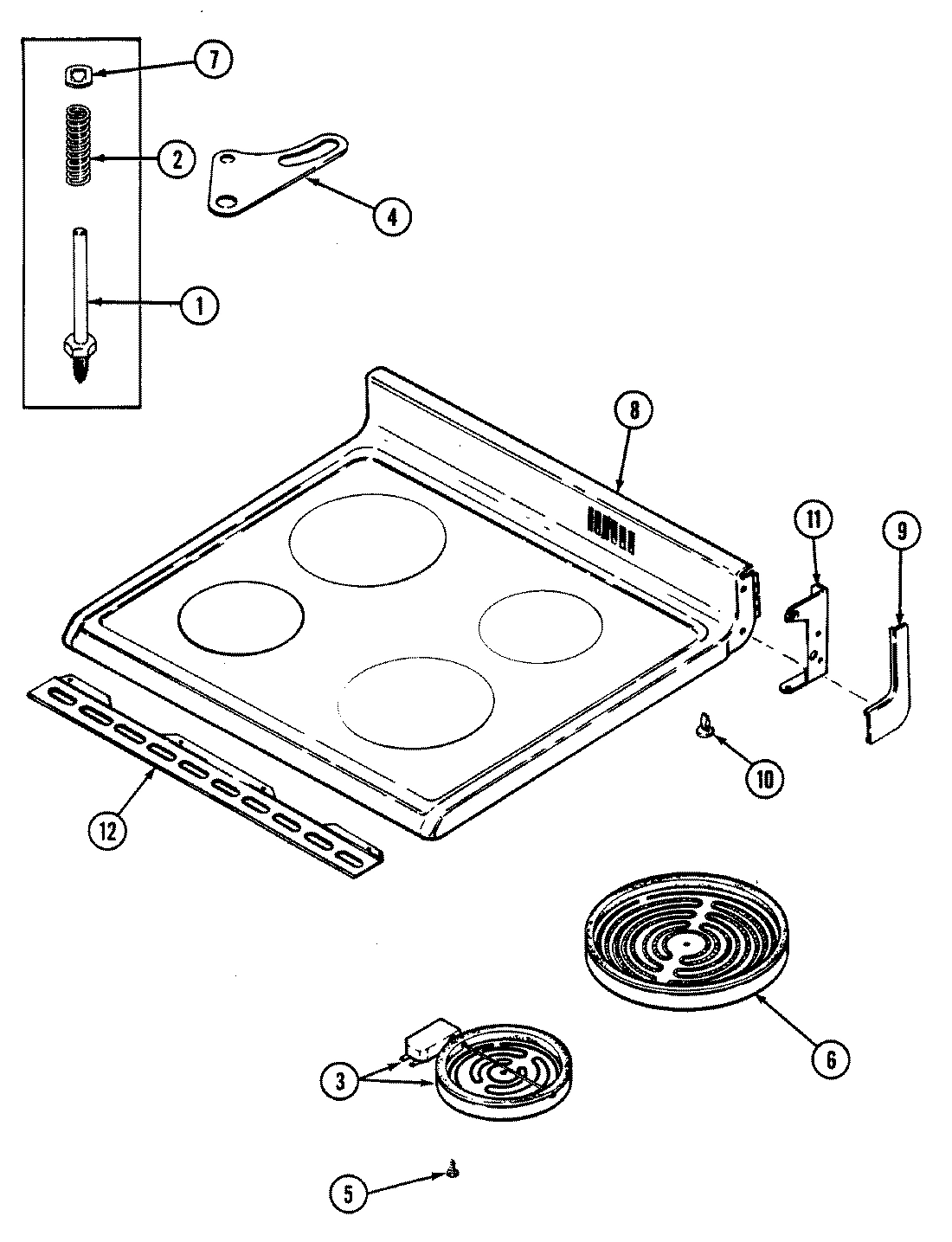

05 - TOP ASSY.

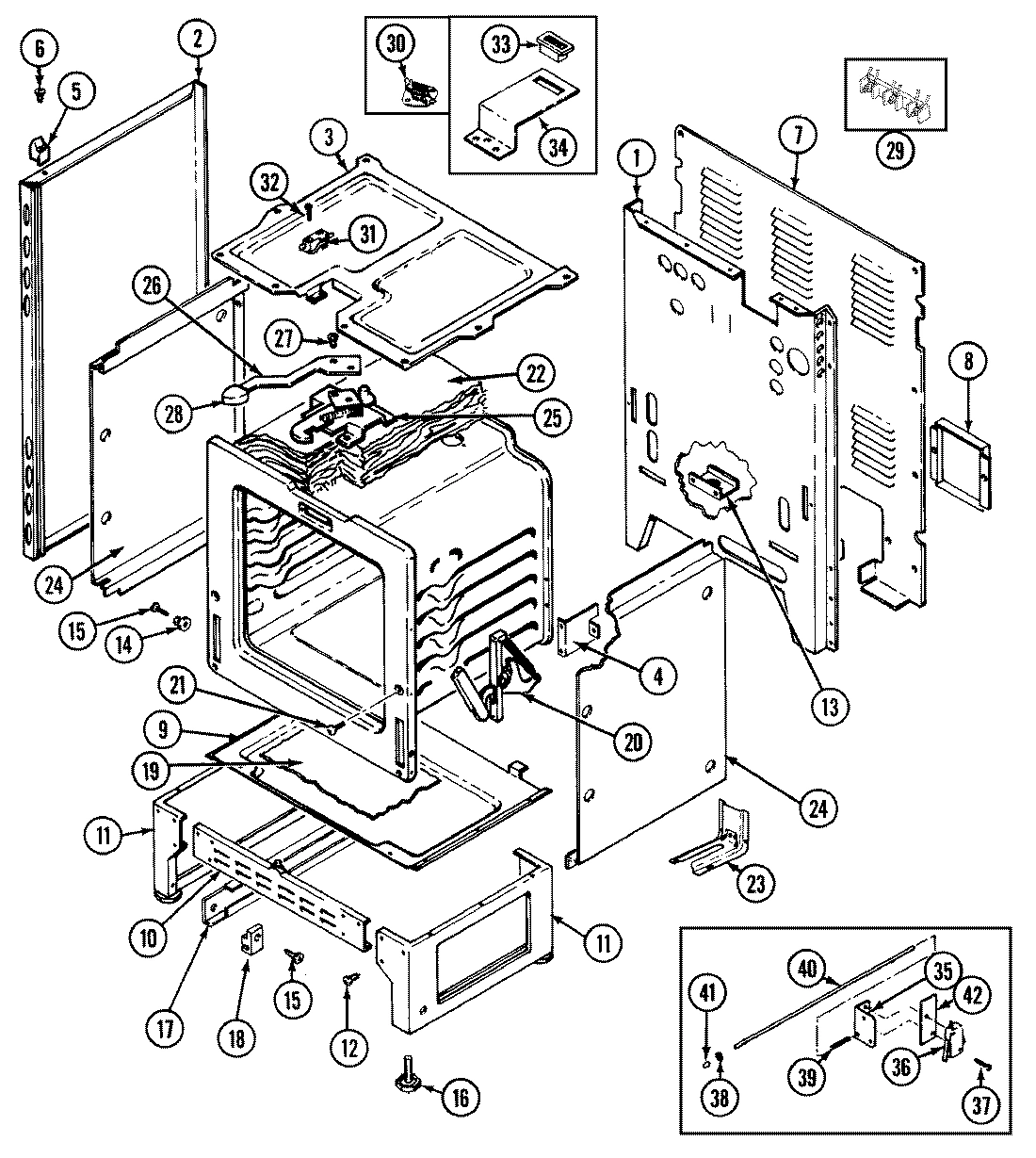

01 - BODY

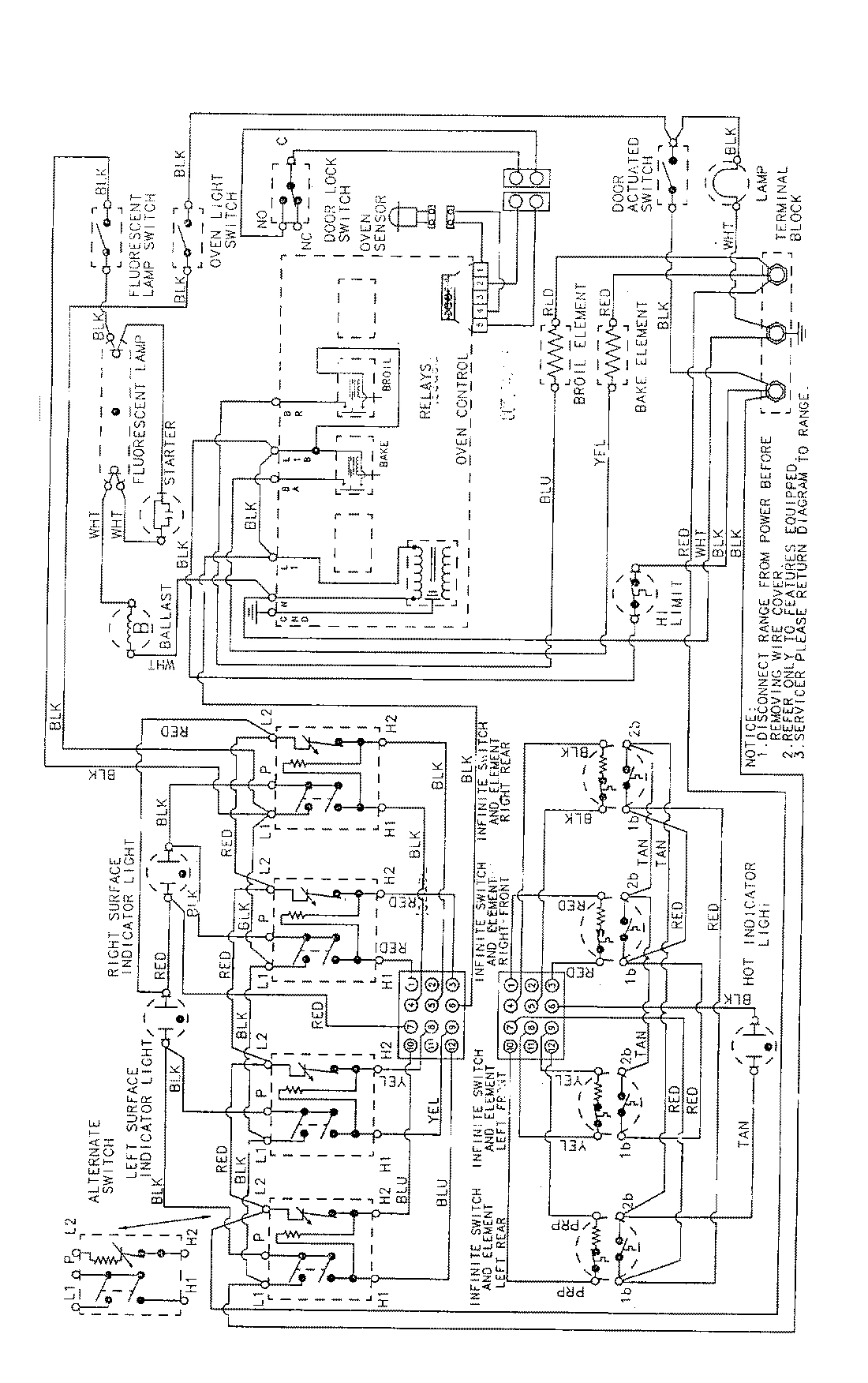

06 - WIRING INFORMATION
Common parts from model Whirlpool FCE4041B ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P38460 Contact Us For Availability
1
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F09970 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
SCREW WPL 7101P35360 Contact Us For Availability
5
PAN, BROIL WPL 3401F01419 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
7
SCREW WPL 7101P33260 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 7703P53260 Contact Us For Availability
7
HANDLE (BLK) WPL 7701P13860 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
8
MAIN TOP ASSY. (BLK) WPL 5706S07809 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
10
KNOB, (BLK) WPL 7737P04360 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
11
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
11
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
11
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
11
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F04370 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
12
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F34345 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
GASKET, VENT WPL 7201P05460 Contact Us For Availability
13
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
13
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
CLOCK (BLK) WPL 7601P26760 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P48660 Contact Us For Availability
15
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
SCREW WPL 7101P30060 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
17
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7726P09160 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7726P09260 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
22
COVER, LIGHT (BLK) WPL 7724P06360 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
SCREW WPL 7101P32160 Contact Us For Availability
23
FRAME, DOOR (BLK) WPL 7706P29460 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
24
TRIM, TOP WPL 7744P08860 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
25
WIRES, INF. SW. WPL 5125A34460 Contact Us For Availability
25
HARNESS, CONTROL PANEL WPL 5170D19760 Contact Us For Availability
25
HARNESS, CONTROL PANEL TO TOP WPL 5175D06960 Contact Us For Availability
25
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
MANUAL, USE & CARE WPL 8111P04560 Contact Us For Availability
26
SCREW WPL 7101P32960 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
27
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
28
END CAP (BLK) WPL 7744P09260 Contact Us For Availability
28
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
28
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
29
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
30
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
31
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
32
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
33
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
34
BRACKET, IND. WPL 3801F30245 Contact Us For Availability
35
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
36
SWITCH, DOOR LIGHT WPL 7403P35760 Contact Us For Availability
37
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
38
WASHER WPL 7109P02060 Contact Us For Availability
39
SPRING WPL 7803P06760 Contact Us For Availability
40
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
41
BUMPER WPL 8003P01260 Contact Us For Availability
42
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
43
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
43
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
44
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001130 Contact Us For Availability
× ![]()
