Model Whirlpool FCE2011W ELECTRIC RANGE – Common Parts & Diagrams

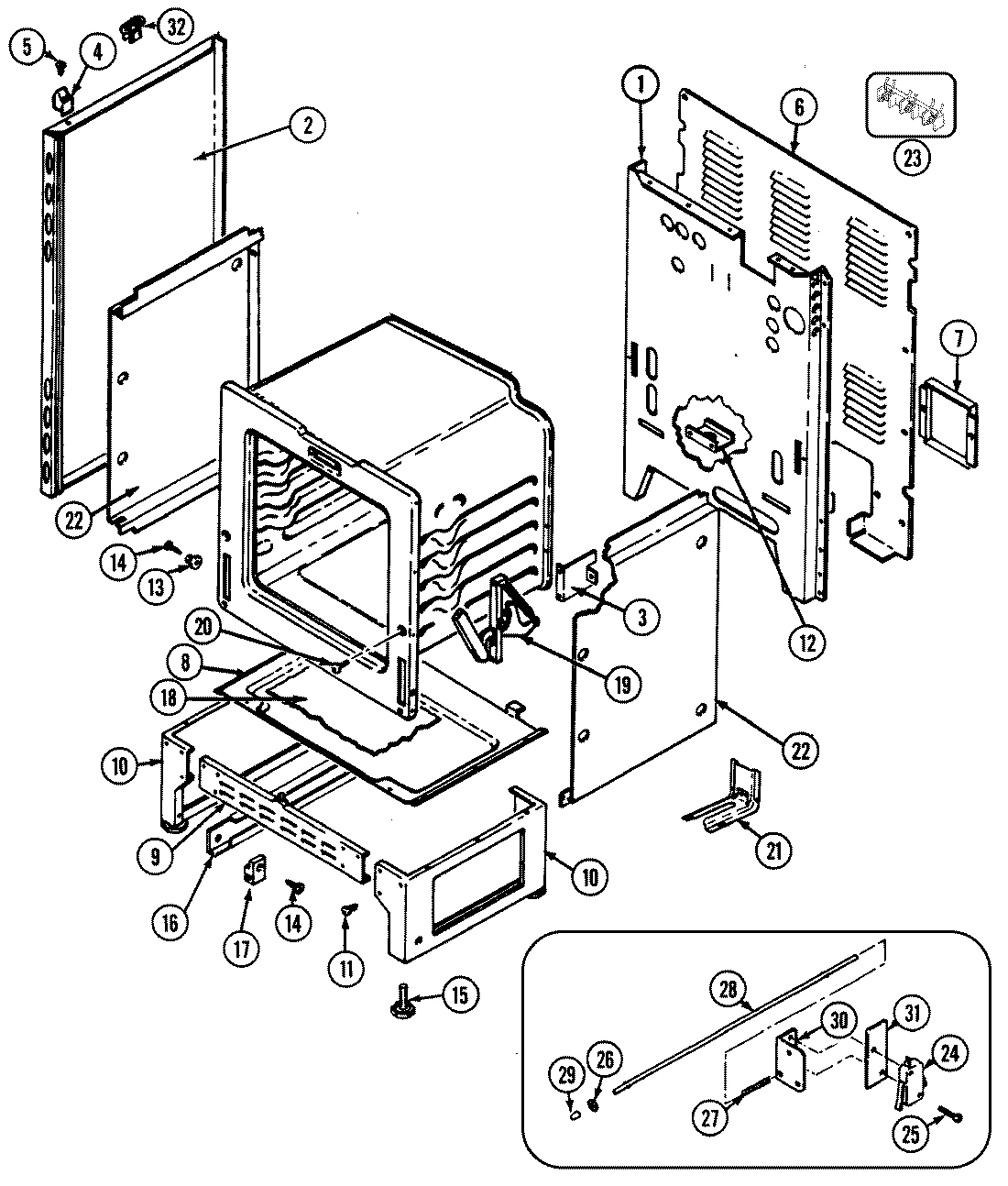

01 - BODY

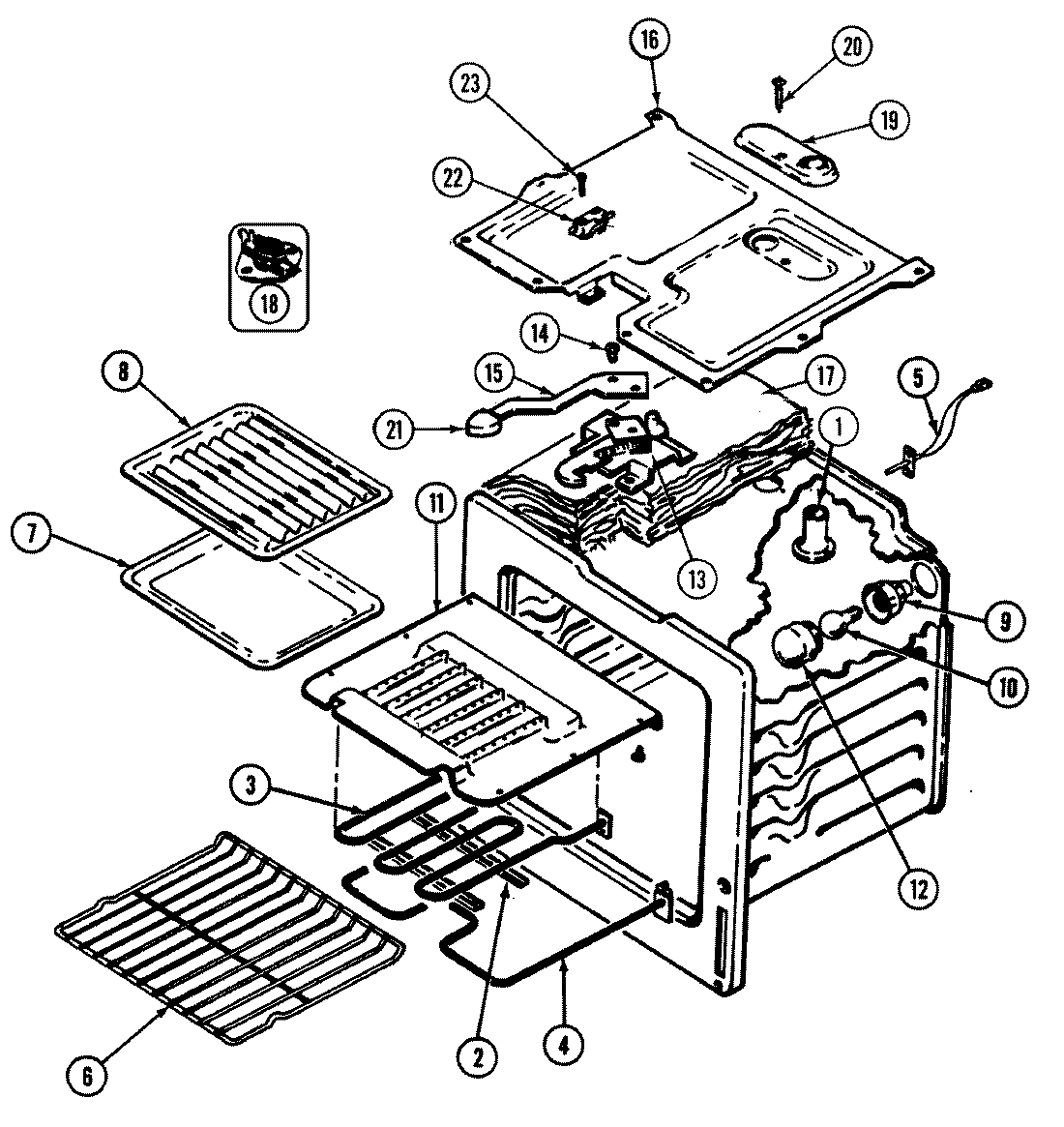

03 - OVEN

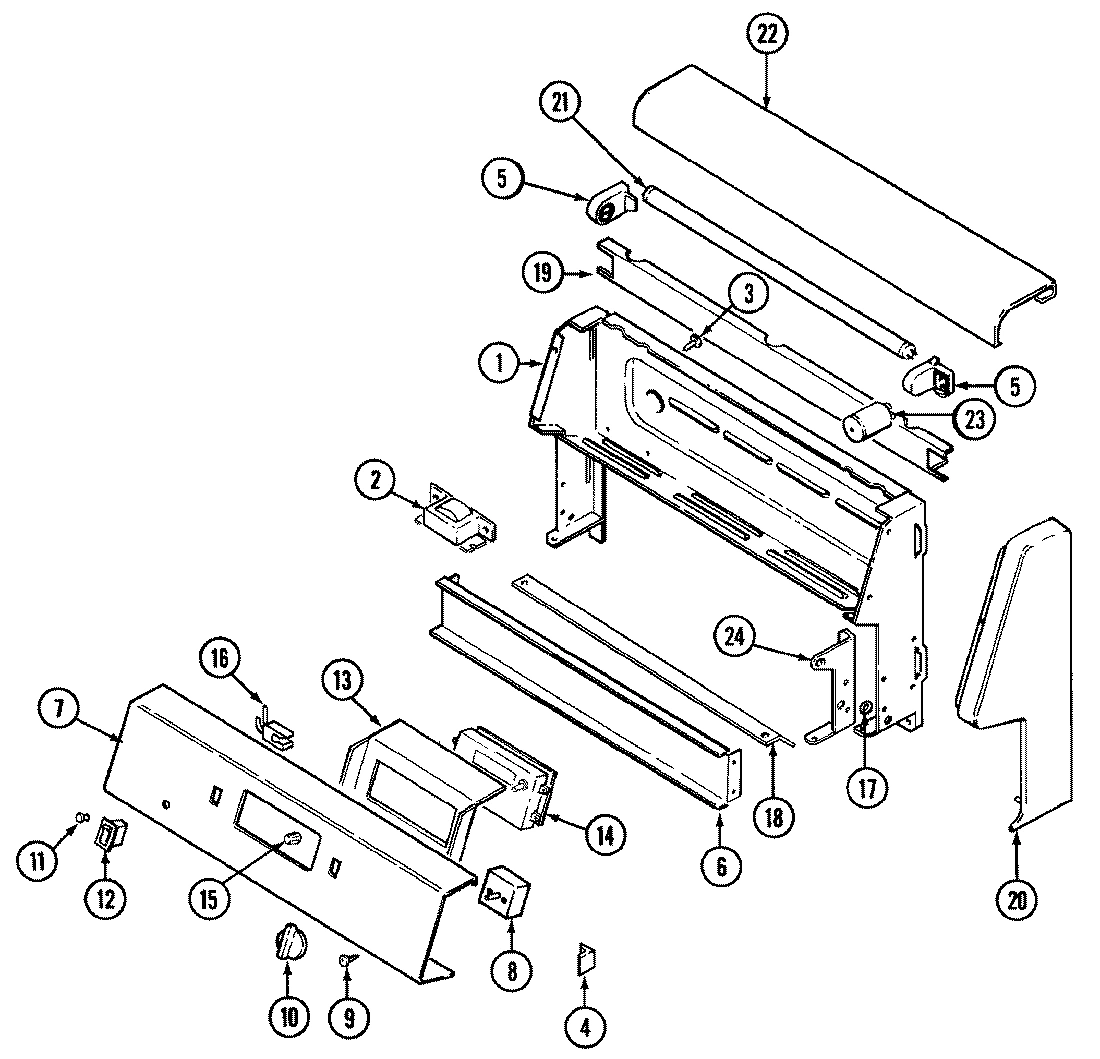

02 - CONTROL PANEL

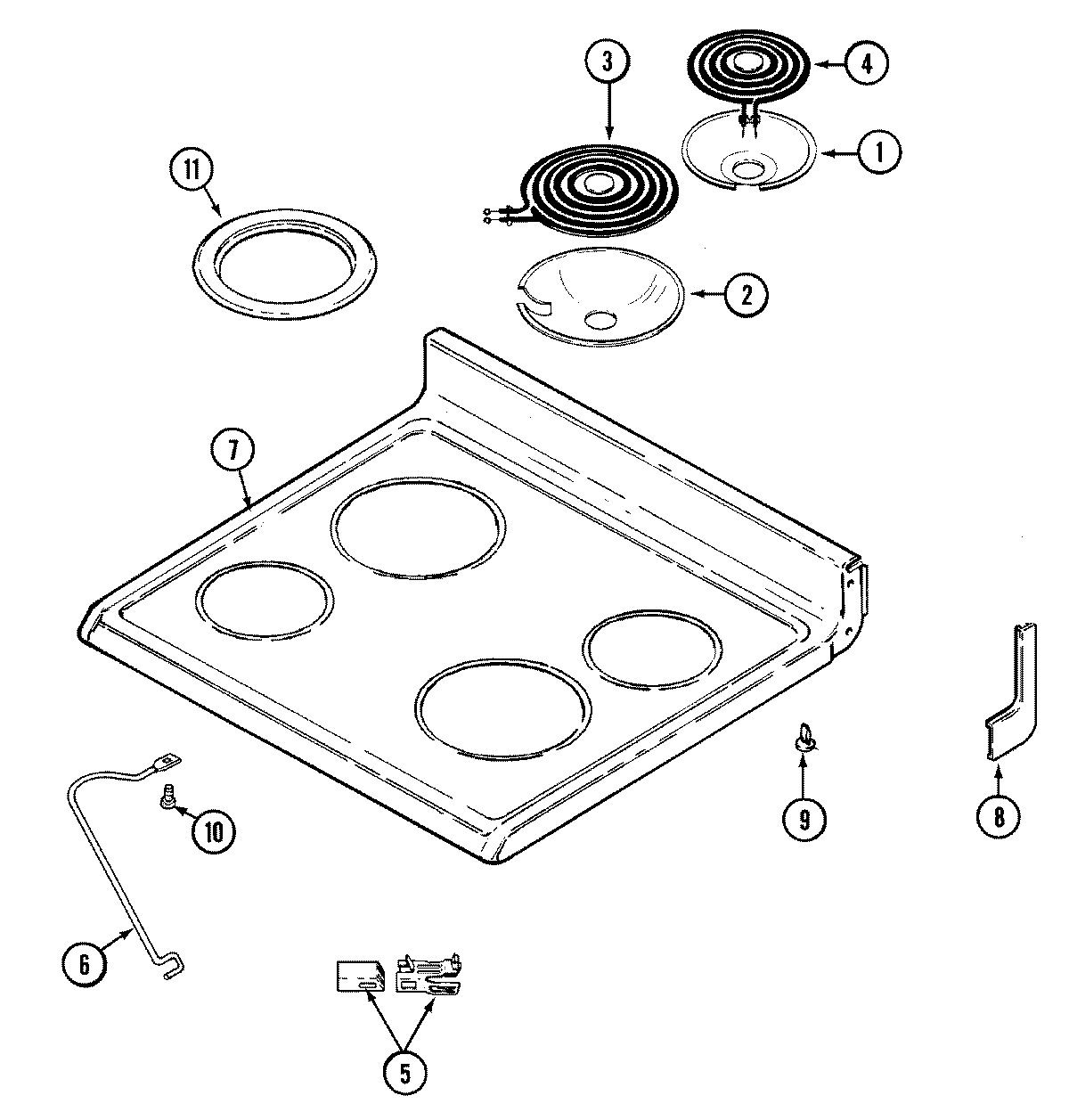

04 - TOP ASSEMBLY
Common parts from model Whirlpool FCE2011W ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
SCREW WPL 7101P33460 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
5
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
5
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
6
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
6
RACK WPL 7801P04660 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SUPPORT, PROP TOP WPL 7809P02060 Contact Us For Availability
7
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SCREW (WHT) WPL 7101P33360 Contact Us For Availability
7
PANEL CONTROL (WHT) WPL 7703P53360 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W09981 Contact Us For Availability
8
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
KNOB, (WHT) WPL 7737P04260 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
13
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F34345 Contact Us For Availability
14
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
CLOCK (WHT) WPL 7601P26860 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
WASHER WPL 7109P01560 Contact Us For Availability
15
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
15
KNOB, CLOCK (WHT) WPL 7711P48760 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
BOX, BURNER WPL 4011F24019 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
17
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
17
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
18
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
19
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
19
COVER, VENT WPL 4005F43245 Contact Us For Availability
19
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
20
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
20
SCREW WPL 7101P10360 Contact Us For Availability
20
END CAP (RT-WHT) WPL 7726P09360 Contact Us For Availability
20
END CAP (LT-WHT) WPL 7726P09460 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
21
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
22
COVER, LAMP WIRE WPL 7724P06260 Contact Us For Availability
22
COVER (WHT) WPL 7724P06460 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
23
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
24
SWITCH, DOOR LIGHT WPL 7403P35760 Contact Us For Availability
24
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
24
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
24
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
24
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
25
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
25
HARNESS, CONTROL PANEL WPL 5170D19760 Contact Us For Availability
25
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
25
HARNESS, CONTROL PANEL WPL 5175D08660 Contact Us For Availability
25
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
26
WASHER WPL 7109P02060 Contact Us For Availability
26
MANUAL, USE & CARE WPL 8111P04560 Contact Us For Availability
27
SPRING WPL 7803P06760 Contact Us For Availability
27
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
28
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
29
BUMPER WPL 8003P01260 Contact Us For Availability
30
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
31
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
× ![]()
