Model Whirlpool FCE2010B ELECTRIC RANGE – Common Parts & Diagrams

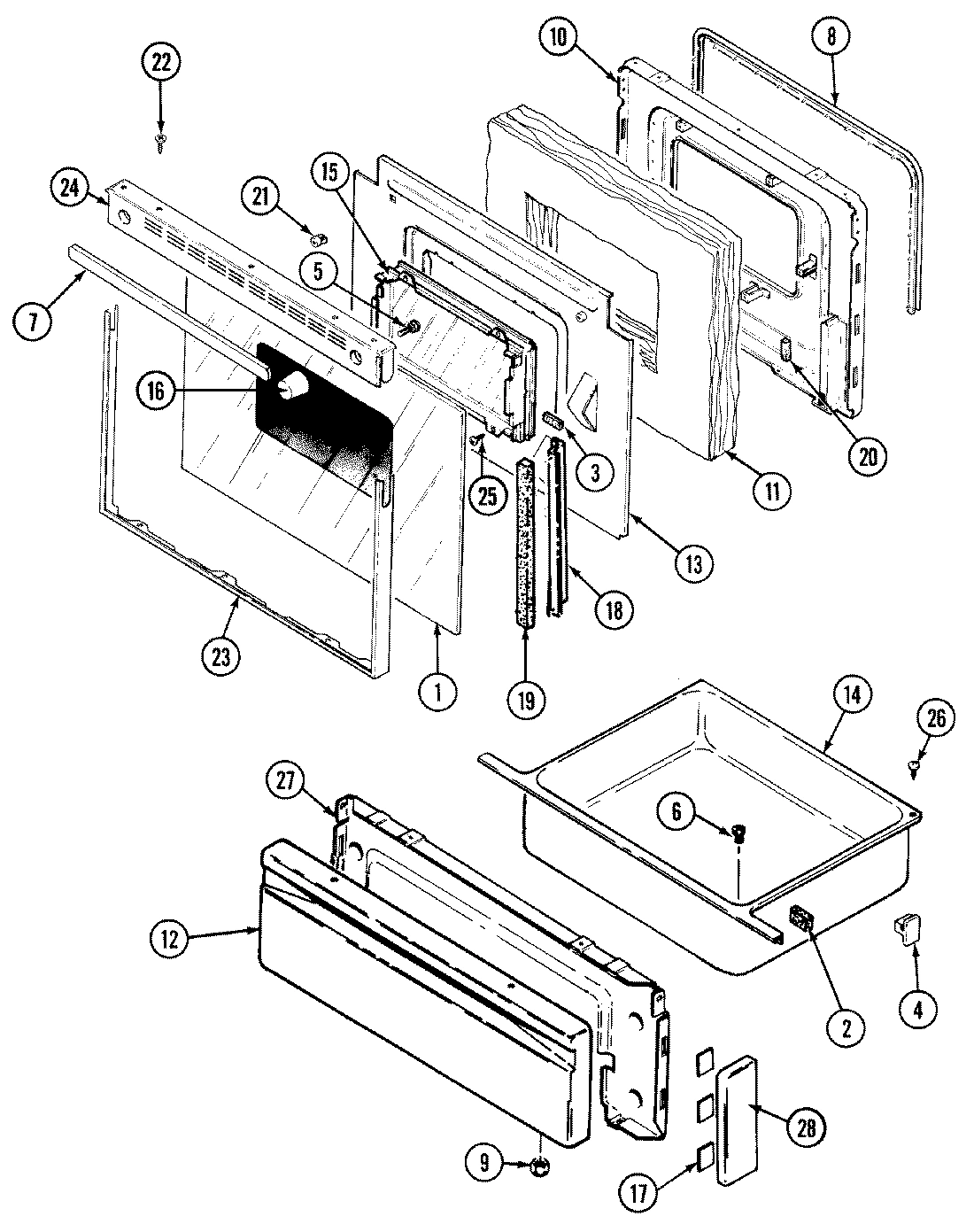

03 - DOOR/DRAWER

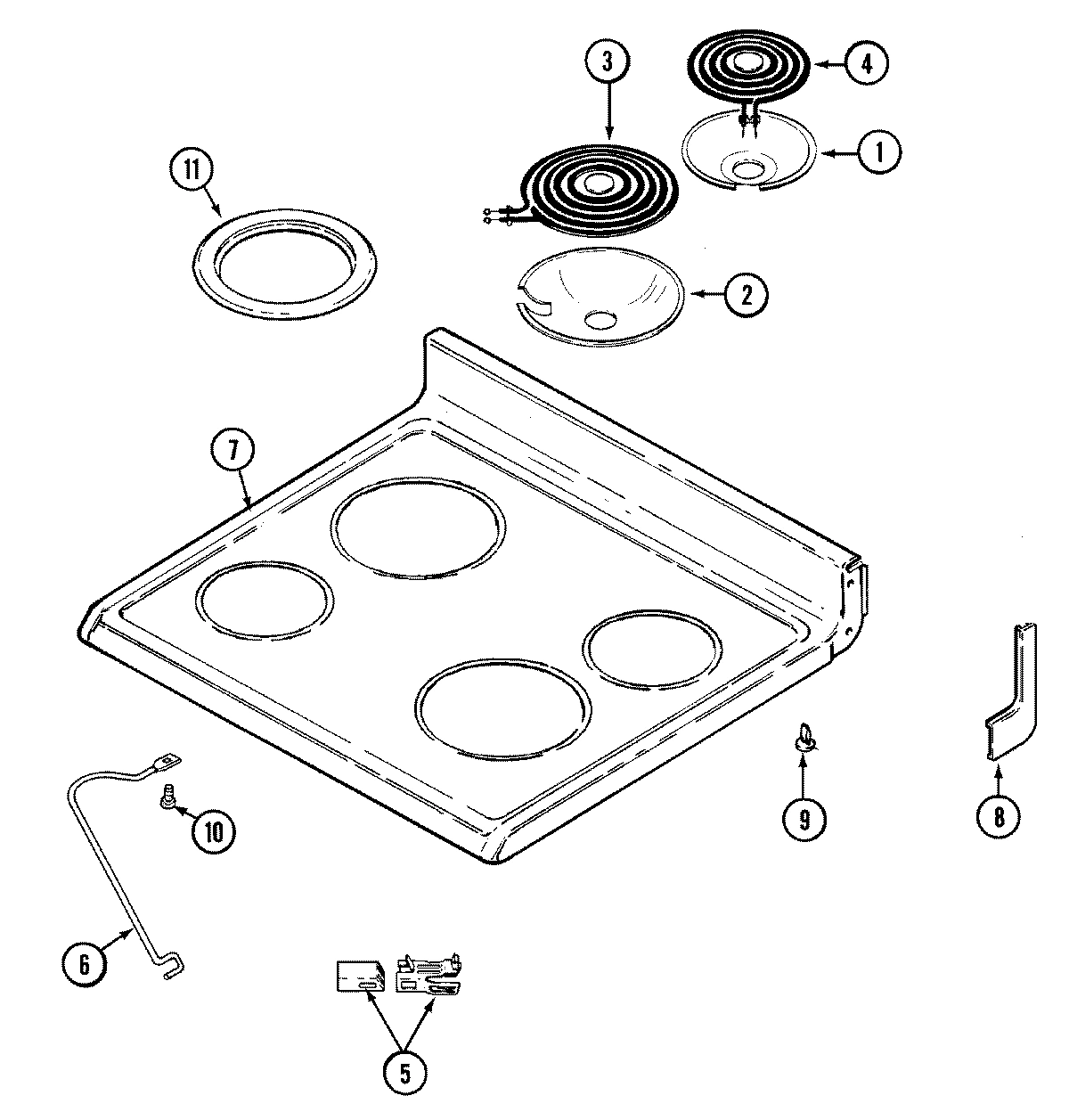

05 - TOP ASSEMBLY

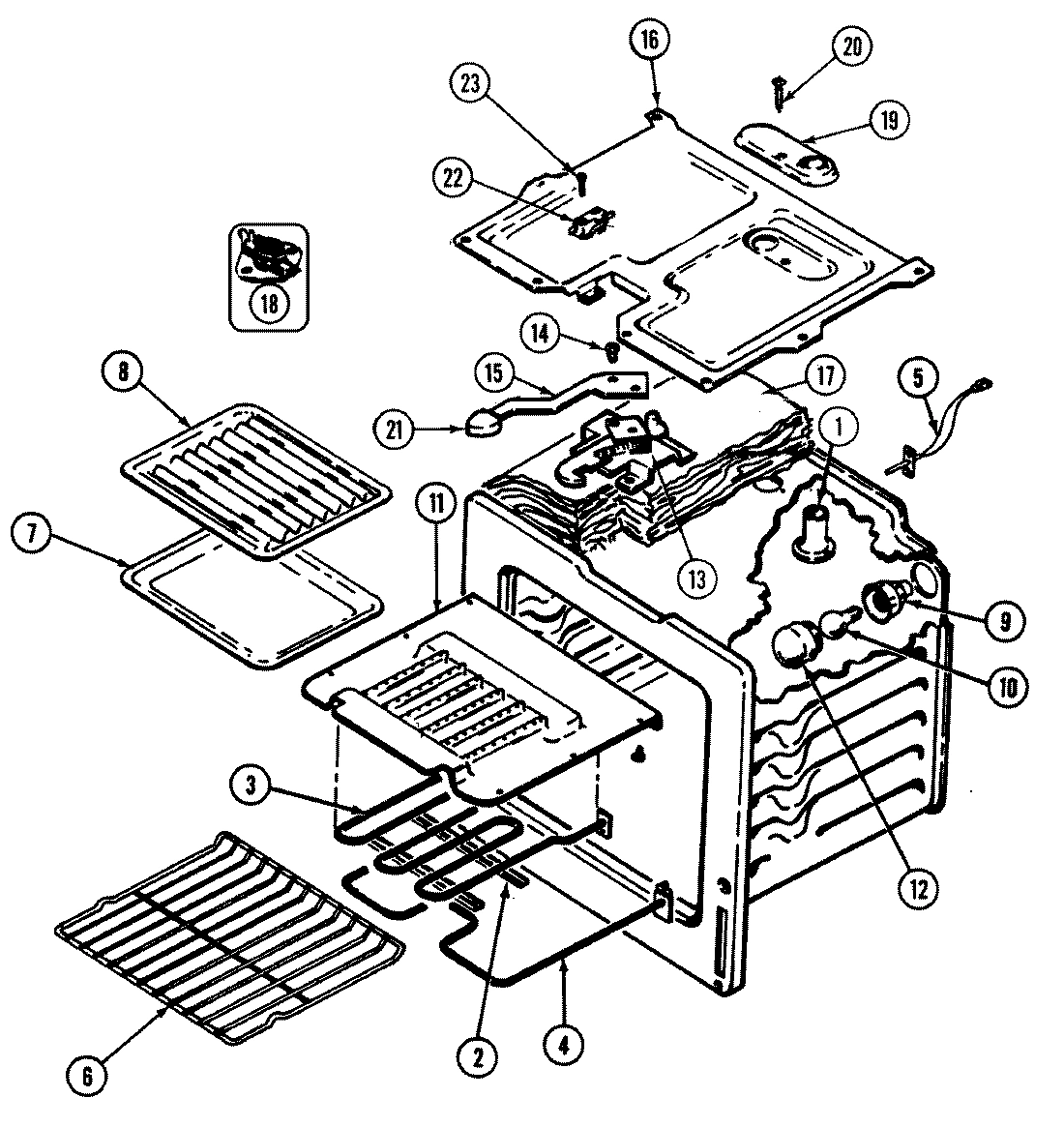

04 - OVEN

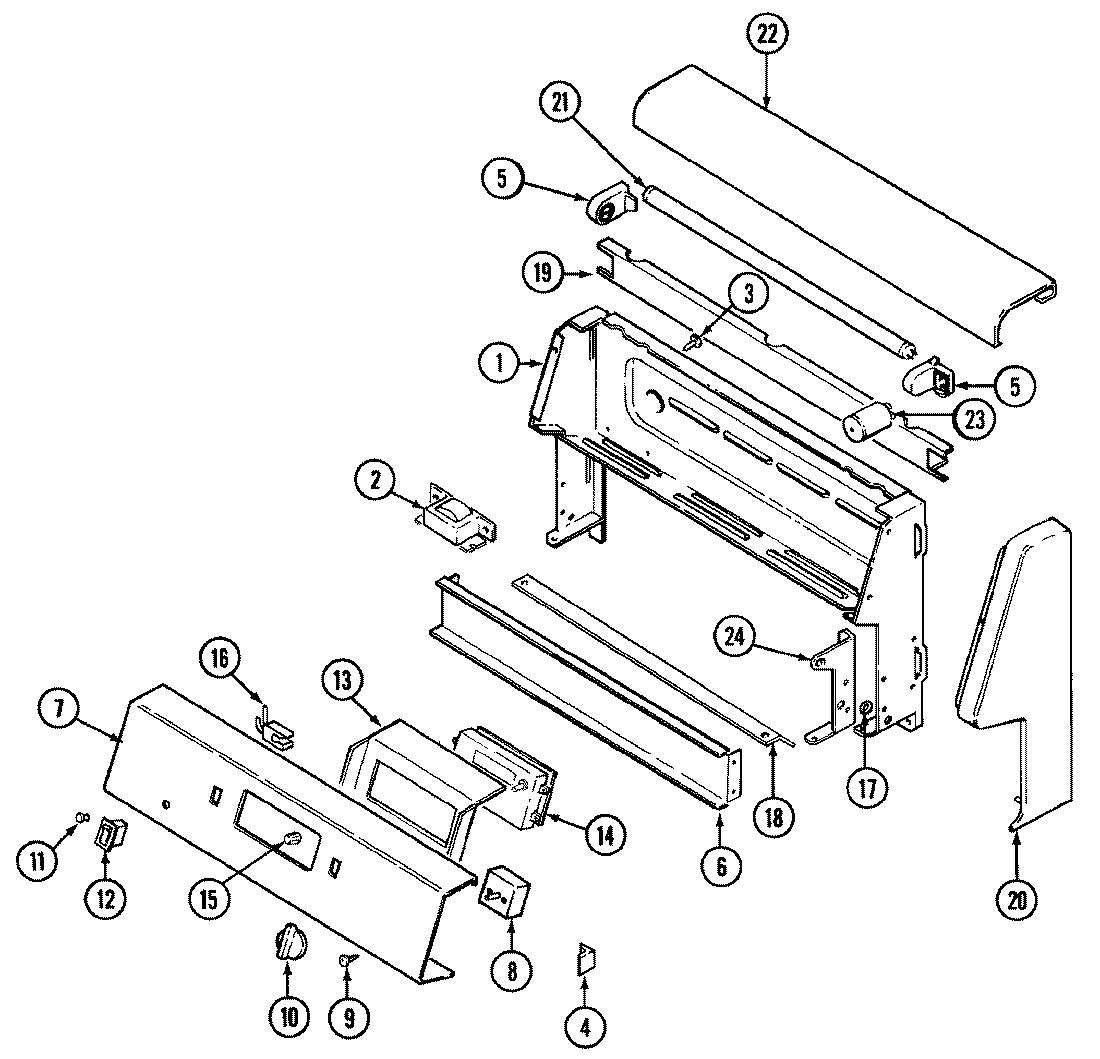

02 - CONTROL PANEL

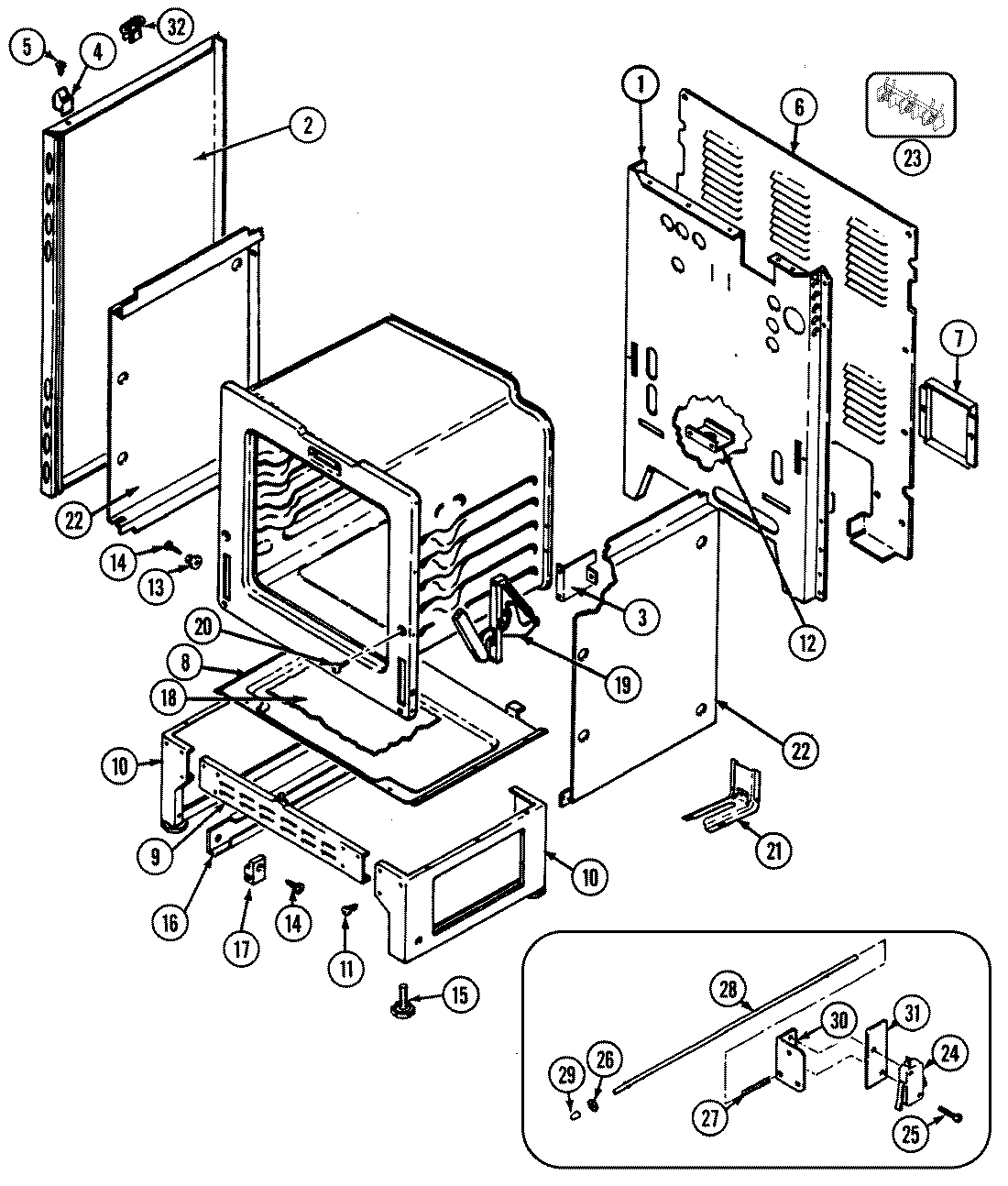

01 - BODY
Common parts from model Whirlpool FCE2010B ELECTRIC RANGE
1
GLASS, DOOR (BLK) WPL 7902P38460 Contact Us For Availability
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F09970 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P35360 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
5
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
5
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
6
SUPPORT, PROP TOP WPL 7809P02060 Contact Us For Availability
6
RACK WPL 7801P04660 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
HANDLE (BLK) WPL 7701P13860 Contact Us For Availability
7
TOP, MAIN BLACK WPL 2002W07809 Contact Us For Availability
7
TOP, MAIN BLACK WPL 2002W09909 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SCREW WPL 7101P33260 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 7703P53260 Contact Us For Availability
7
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
KNOB, (BLK) WPL 7737P04360 Contact Us For Availability
10
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
11
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F04370 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
13
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
13
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
SCREW WPL 7101P33460 Contact Us For Availability
14
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
CLOCK (BLK) WPL 7601P21860 Contact Us For Availability
15
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
WASHER WPL 7109P01560 Contact Us For Availability
15
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P48660 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
END CAP, HANDLE (BLK) WPL 7744P00760 Contact Us For Availability
16
BOX, BURNER WPL 4011F21919 Contact Us For Availability
16
BOX, BURNER WPL 4011F24019 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
17
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
17
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
19
COVER, VENT WPL 4005F43245 Contact Us For Availability
19
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
19
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
SCREW WPL 7101P10360 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7726P09160 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7726P09260 Contact Us For Availability
20
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
21
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
22
COVER, LAMP WIRE WPL 7724P06260 Contact Us For Availability
22
COVER, LIGHT (BLK) WPL 7724P06360 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
23
SCREW WPL 7101P32160 Contact Us For Availability
23
FRAME, DOOR (BLK) WPL 7706P29460 Contact Us For Availability
23
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
24
TRIM, TOP WPL 7744P08860 Contact Us For Availability
24
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
24
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
24
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
24
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
24
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
24
SWITCH, DOOR LIGHT WPL 7403P35760 Contact Us For Availability
25
HARNESS, CONTROL PANEL WPL 5170D15260 Contact Us For Availability
25
HARNESS, WIRE WPL 5170P18760 Contact Us For Availability
25
HARNESS, CONTROL PANEL WPL 5175D08660 Contact Us For Availability
25
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
25
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
26
SCREW WPL 7101P32960 Contact Us For Availability
26
MANUAL, USE & CARE WPL 8111P02960 Contact Us For Availability
26
WASHER WPL 7109P02060 Contact Us For Availability
27
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
27
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
27
SPRING WPL 7803P06760 Contact Us For Availability
28
END CAP (BLK) WPL 7744P09260 Contact Us For Availability
28
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
28
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
29
BUMPER WPL 8003P01260 Contact Us For Availability
30
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
30
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
31
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
31
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
× ![]()
