Model Whirlpool F9908B0 – Common Parts & Diagrams
02 - CONTROL PANEL

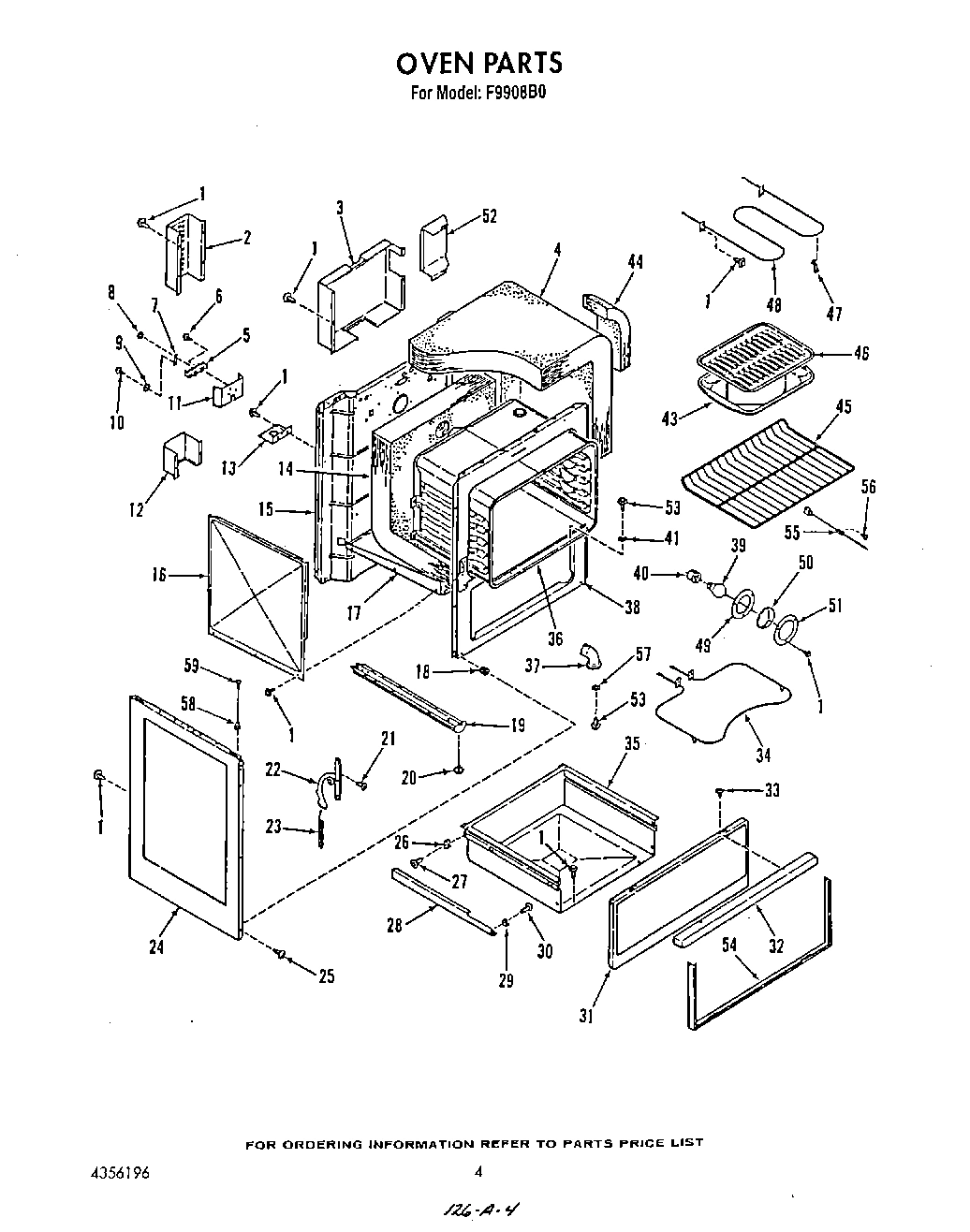

03 - OVEN

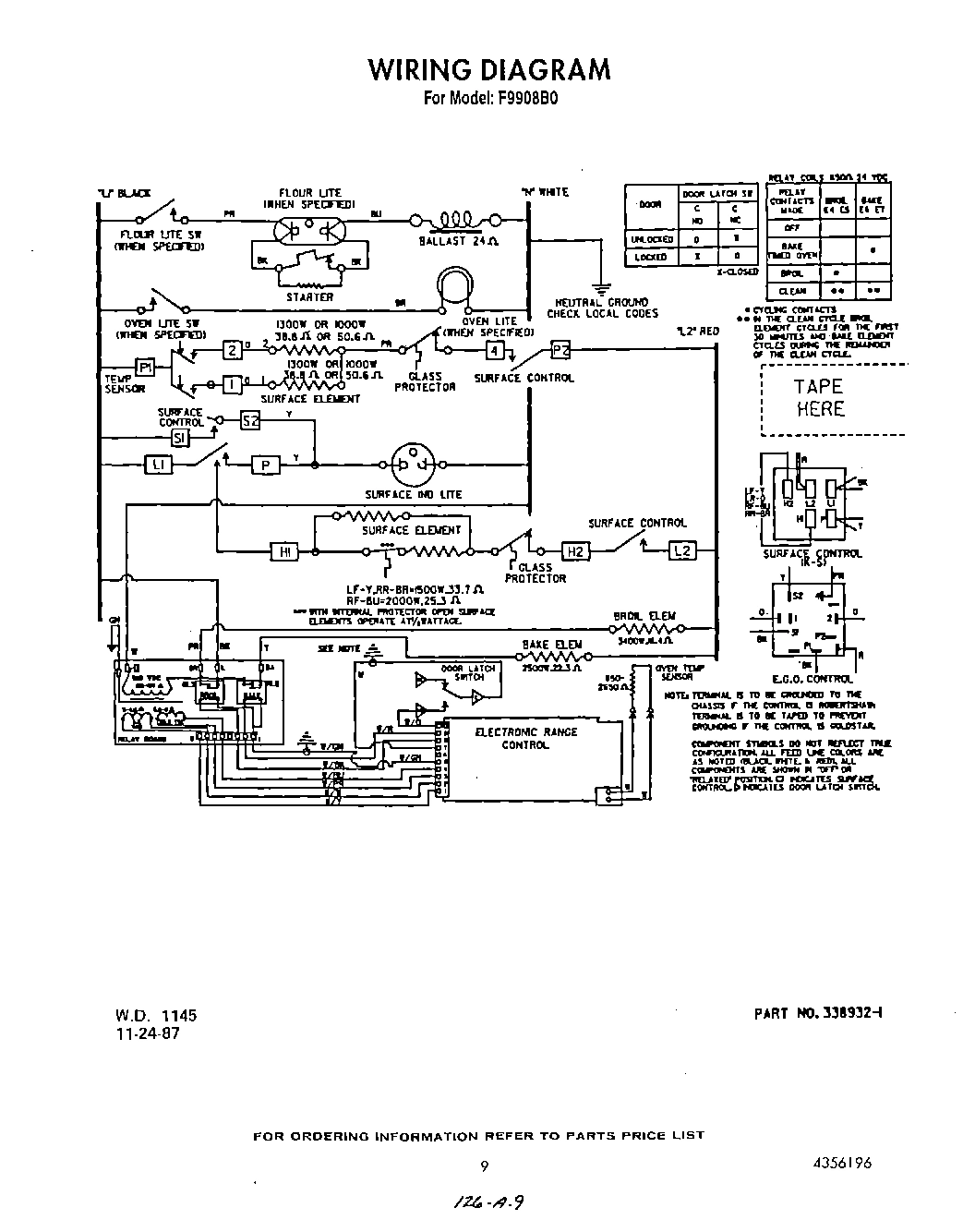

07 - WIRING DIAGRAM

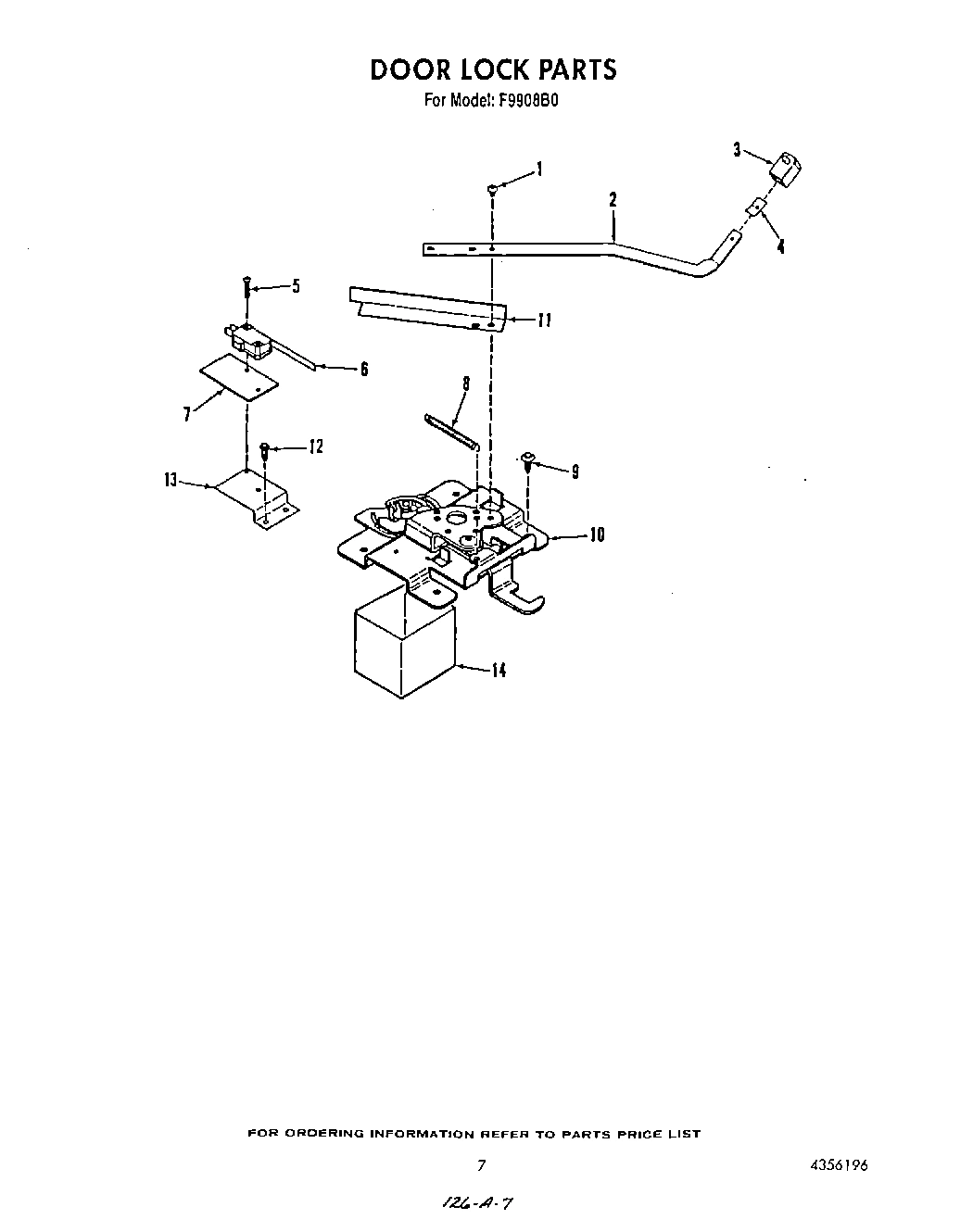

05 - DOOR LOCK

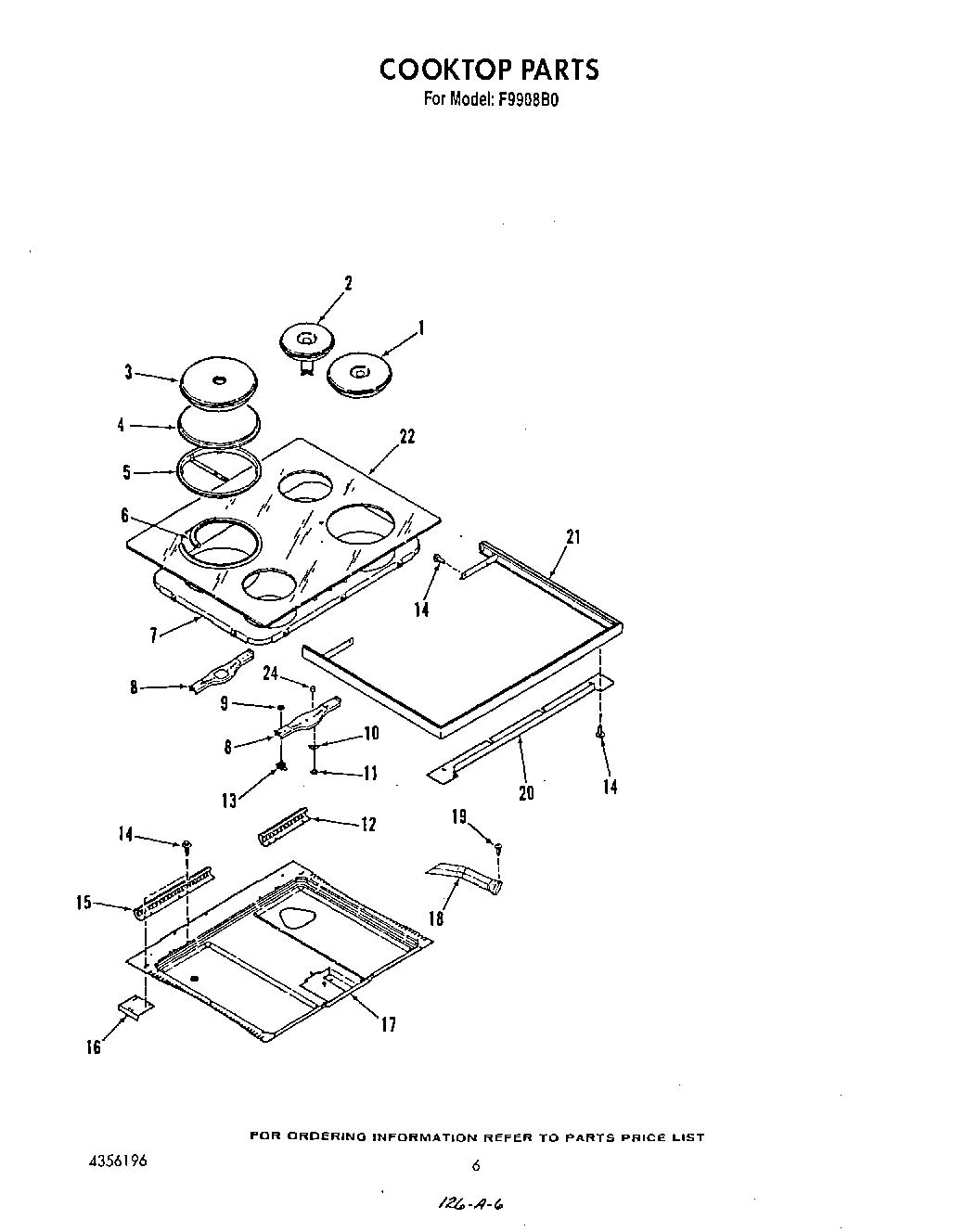

04 - COOKTOP

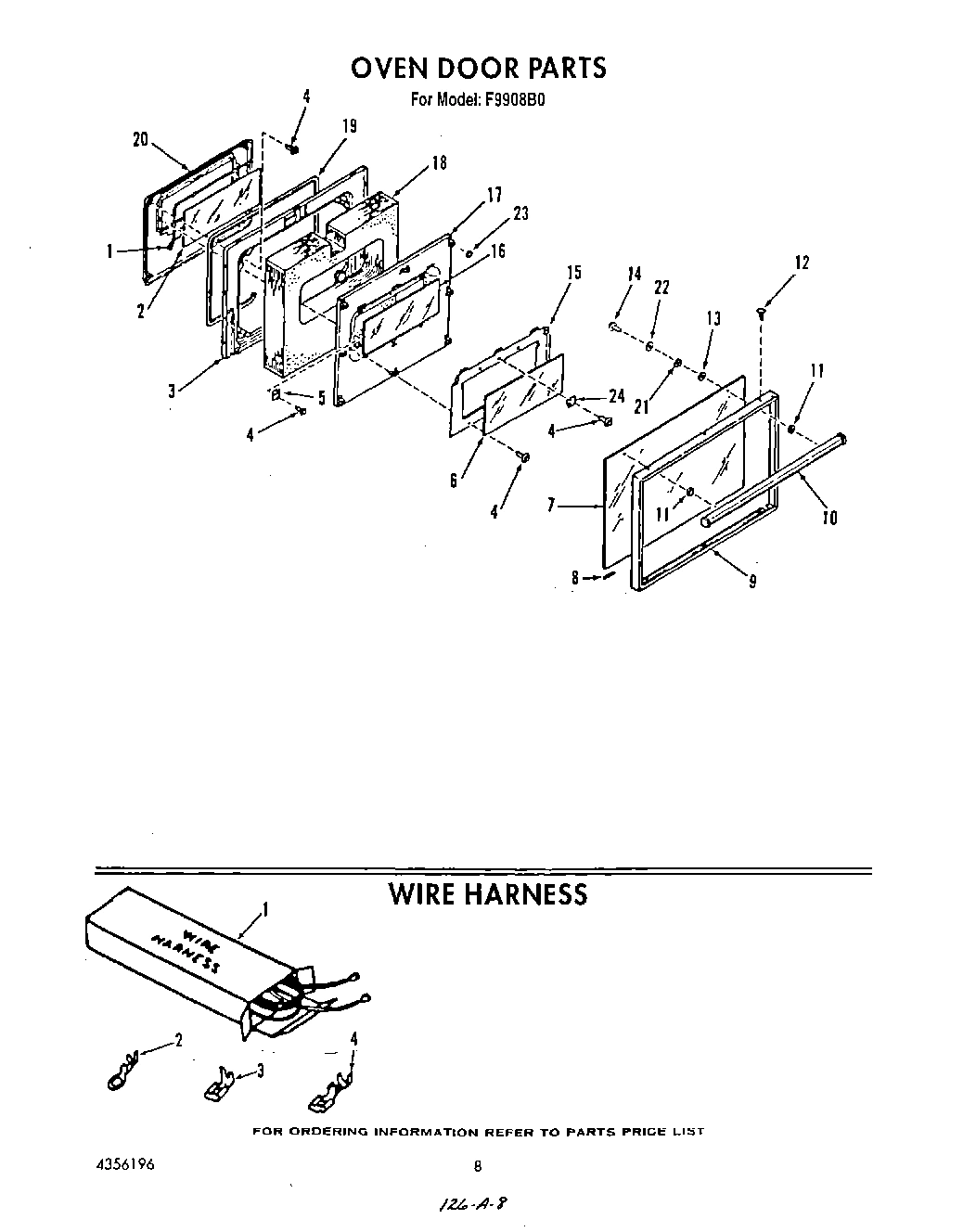

06 - OVEN DOOR , WIRE HARNESS
Common parts from model Whirlpool F9908B0
1
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
1
Wire Harness (Main Top-Right) WPL 4338344 Contact Us For Availability
1
Wire Harness (Backguard) WPL 4338555 Contact Us For Availability
1
Wire Harness (Clock/Oven Control) WPL 4338556 Contact Us For Availability
1
Wire Harness (Lock Switch) WPL 4338557 Contact Us For Availability
1
Wire Harness (Main Top-Left) WPL 4338558 Contact Us For Availability
1
Wire Harness (Sensor) WPL 4338559 Contact Us For Availability
1
Wire Harness (Main) WPL 4338560 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
2
Raceway WPL 4337189 Contact Us For Availability
2
Wire Shield, Upper WPL 4335208 Contact Us For Availability
2
Handle, Latch WPL 4338243 Contact Us For Availability
2
Eyelet Terminal WPL 4325031 Contact Us For Availability
2
Glass-Inner WPL 4337767 Contact Us For Availability
3
Cover, Raceway WPL 4337190 Contact Us For Availability
3
Wire Shield WPL 4337567 Contact Us For Availability
3
Knob, Lock WPL 4337568 Contact Us For Availability
3
Element, Thermal Lt Rear WPL 4337293 Contact Us For Availability
3
Flag Terminal WPL 4325033 Contact Us For Availability
3
Lining WPL 4336608 Contact Us For Availability
4
End Cap (Right) WPL 4337047 Contact Us For Availability
4
End Cap (Left) WPL 4337048 Contact Us For Availability
4
Insulation WPL 4338454 Contact Us For Availability
4
Clip, Knob WPL 4335705 Contact Us For Availability
4
Trim Ring (Lt Front-Rt Rear) WPL 4337635 Contact Us For Availability
4
Trim Ring (Rt Front) WPL 4337636 Contact Us For Availability
4
Trim Ring (Lt Rear) WPL 4337637 Contact Us For Availability
4
Faston Terminal (3/16``) WPL 4325036 Contact Us For Availability
5
Support, Backguard (Right) WPL 4337180 Contact Us For Availability
5
Support, Backguard (Left) WPL 4337181 Contact Us For Availability
5
Screw No.4-40x11/16 WPL 4335881 Contact Us For Availability
5
Gasket Ring (Lt Front-Rt Rear) WPL 4337638 Contact Us For Availability
5
Gasket Ring (Rt Front) WPL 4337639 Contact Us For Availability
5
Gasket Ring (Lt Rear) WPL 4337640 Contact Us For Availability
5
Retainer, Glass WPL 4331472 Contact Us For Availability
6
Clip, Backguard WPL 4338226 Contact Us For Availability
6
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
6
Switch, Micro WPL 4337452 Contact Us For Availability
6
Seal, Element (Lt Rear) WPL 4337633 Contact Us For Availability
6
Seal, Element (Lt Front-Rt Rear) WPL 4354950 Contact Us For Availability
6
Seal, Element (Rt Front) WPL 4354951 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
7
Strap, Ground WPL 4335219 Contact Us For Availability
7
Insulator, Switch WPL 4338222 Contact Us For Availability
7
Burner Box WPL 4338380 Contact Us For Availability
7
Glass, Outer WPL 4336721 Contact Us For Availability
8
Ballast WPL 4323673 Contact Us For Availability
8
Nut, Hex 10-32 WPL 4323653 Contact Us For Availability
8
Spring, Lock-Handle WPL 4331536 Contact Us For Availability
8
Strap, Element (Lt Rear) WPL 4338471 Contact Us For Availability
8
Strap, Element (Lt Front-Rt Rear-Rt Front) WPL 4342973 Contact Us For Availability
8
Cushion (3) WPL 4324217 Contact Us For Availability
9
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
9
Washer WPL 4327921 Contact Us For Availability
9
Nut WPL 4337395 Contact Us For Availability
9
Frame, Door WPL 4338148 Contact Us For Availability
10
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
10
Latch Assembly WPL 4337053 Contact Us For Availability
10
Washer, Spring WPL 4337634 Contact Us For Availability
10
Handle WPL 4336828 Contact Us For Availability
11
Insulator, Service Cord WPL 4335209 Contact Us For Availability
11
Lever, Switch WPL 4337647 Contact Us For Availability
11
Nut WPL 4336026 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
12
Backguard WPL 4338273 Contact Us For Availability
12
Wire Cover, Lower WPL 4335222 Contact Us For Availability
12
Screw WPL 4336631 Contact Us For Availability
12
Screw WPL 4337623 Contact Us For Availability
12
Support, Rt Glass WPL 4338342 Contact Us For Availability
13
Spacer, PC Board WPL 4337387 Contact Us For Availability
13
Mounting Plate WPL 4335223 Contact Us For Availability
13
Bracket, Switch WPL 4337599 Contact Us For Availability
13
Switch, Thermal WPL 4337643 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
14
Relay Circuit Board WPL 4338369 Contact Us For Availability
14
Insulation, Back WPL 4353609 Contact Us For Availability
14
Retainer, Insulation WPL 4342826 Contact Us For Availability
15
Indicator Light WPL 4336633 Contact Us For Availability
15
Back-Main WPL 4337044 Contact Us For Availability
15
Support, Lt Glass WPL 4342974 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
16
Starter, Lamp WPL 4337125 Contact Us For Availability
16
Retainer, Side Insulation (Lt/Rt) WPL 4353951 Contact Us For Availability
16
Plate WPL 4337590 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
17
Retainer, Lower WPL 4353950 Contact Us For Availability
17
Bottom, Burner Box WPL 4338469 Contact Us For Availability
17
Retainer, Insulation WPL 4335756 Contact Us For Availability
18
Spacer, Expansion Nut Sides (Lt/Rt) WPL 4331381 Contact Us For Availability
18
Extension, Vent Tube WPL 4338430 Contact Us For Availability
18
Insulation WPL 4354947 Contact Us For Availability
19
Bracket, Backguard WPL 4337555 Contact Us For Availability
19
Base W/Levelers Rt/Lt WPL 4337332 Contact Us For Availability
19
Gasket, Door WPL 4342564 Contact Us For Availability
20
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
20
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
20
Plate, Cover WPL 4338563 Contact Us For Availability
20
Plug, Door Lining WPL 4337448 Contact Us For Availability
21
Starter Base WPL 4337372 Contact Us For Availability
21
Frame, Cooktop WPL 4338336 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
22
Hinge, Oven Door (Right) WPL 4354928 Contact Us For Availability
22
Hinge, Oven Door (Left) WPL 4354929 Contact Us For Availability
22
Glass, Cooktop WPL 4338374 Contact Us For Availability
22
Washer WPL 4323694 Contact Us For Availability
23
Spring, Oven Door (Lt/Rt) WPL 4337253 Contact Us For Availability
23
Washer, Felt WPL 4337618 Contact Us For Availability
24
Knob, Infinite WPL 4337246 Contact Us For Availability
24
Side Panel, Lt/Rt WPL 4342571 Contact Us For Availability
24
Spacer WPL 4334199 Contact Us For Availability
24
Retainer, Glass WPL 4334791 Contact Us For Availability
25
Screw No.8-32x3/16 WPL 4323476 Contact Us For Availability
25
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
26
Holder, Lamp WPL 4337139 Contact Us For Availability
26
Rear Slide Block (Lt/Rt) WPL 4325731 Contact Us For Availability
27
Control Knob, Clock/Oven WPL 4337391 Contact Us For Availability
27
Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability
28
Control Panel WPL 4338516 Contact Us For Availability
28
Support, Storage Drawer - Lt/Rt WPL 4331092 Contact Us For Availability
29
Front Slide Block, Lt/Rt WPL 4325732 Contact Us For Availability
30
Clock/Oven Control W/Lens WPL 4338368 Contact Us For Availability
30
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
31
Panel, Storage WPL 4336749 Contact Us For Availability
32
Spacer, Infinite Control WPL 4338452 Contact Us For Availability
32
Handle WPL 4336754 Contact Us For Availability
33
Panel, Cover WPL 4337141 Contact Us For Availability
33
Screw WPL 4337797 Contact Us For Availability
34
Bracket, Thermostat WPL 4338459 Contact Us For Availability
34
Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability
34
Element, Bake (208 Volt) WPL 4334929 Contact Us For Availability
35
Thermostat, Hob Element WPL 4337327 Contact Us For Availability
35
Drawer, Storage WPL 4327658 Contact Us For Availability
36
Cover Plate WPL 4337516 Contact Us For Availability
36
Oven WPL 4337959 Contact Us For Availability
37
Screw WPL 4338532 Contact Us For Availability
37
Vent Tube WPL 4338431 Contact Us For Availability
38
Vent Box Assembly WPL 4338341 Contact Us For Availability
38
Frame, Front WPL 4336956 Contact Us For Availability
39
Clip WPL 4338470 Contact Us For Availability
40
Cover, Vent WPL 4338334 Contact Us For Availability
41
Washer WPL 4323979 Contact Us For Availability
42
Panel, Front WPL 4342958 Contact Us For Availability
44
Insulation WPL 4354262 Contact Us For Availability
45
Oven Rack (Non-Folding) WPL 4334809 Contact Us For Availability
45
Oven Rack (Folding) WPL 4338333 Contact Us For Availability
47
Support, Broiler Element WPL 4337249 Contact Us For Availability
49
Seal, Lens WPL 4324481 Contact Us For Availability
50
Lens, Oven Bulb WPL 4324415 Contact Us For Availability
51
Retainer, Oven Lamp WPL 4324482 Contact Us For Availability
52
Wire Shield WPL 4336373 Contact Us For Availability
54
Frame, Front Panel WPL 4336753 Contact Us For Availability
55
Sensor WPL 4337170 Contact Us For Availability
56
Screw WPL 4338182 Contact Us For Availability
57
WPL 4337453 WPL 4337453 Contact Us For Availability
58
WPL 4337082 WPL 4337082 Contact Us For Availability
59
WPL 4335220 WPL 4335220 Contact Us For Availability
× ![]()
