Model Whirlpool F8858W0 – Common Parts & Diagrams

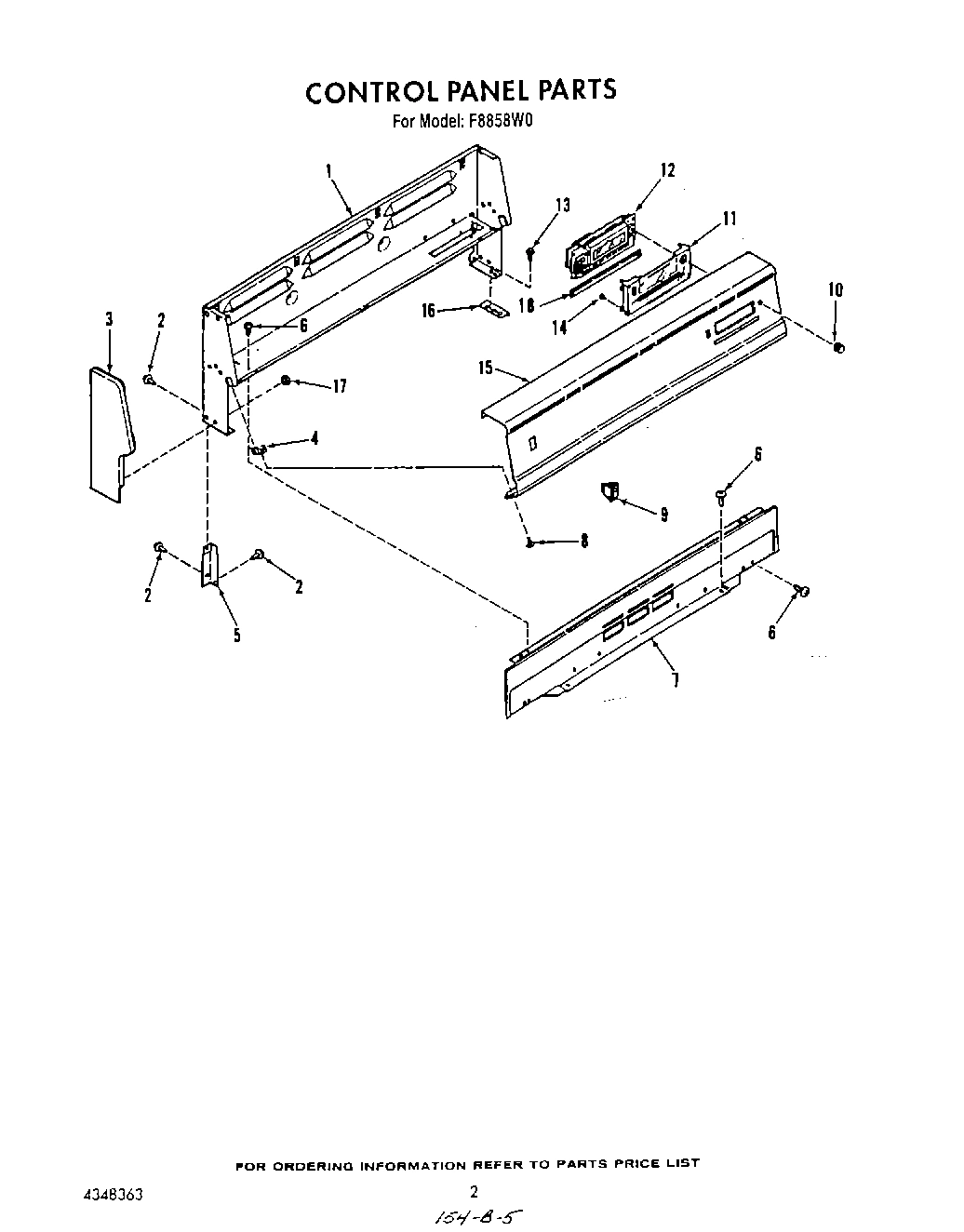

02 - CONTROL PANEL
04 - OVEN

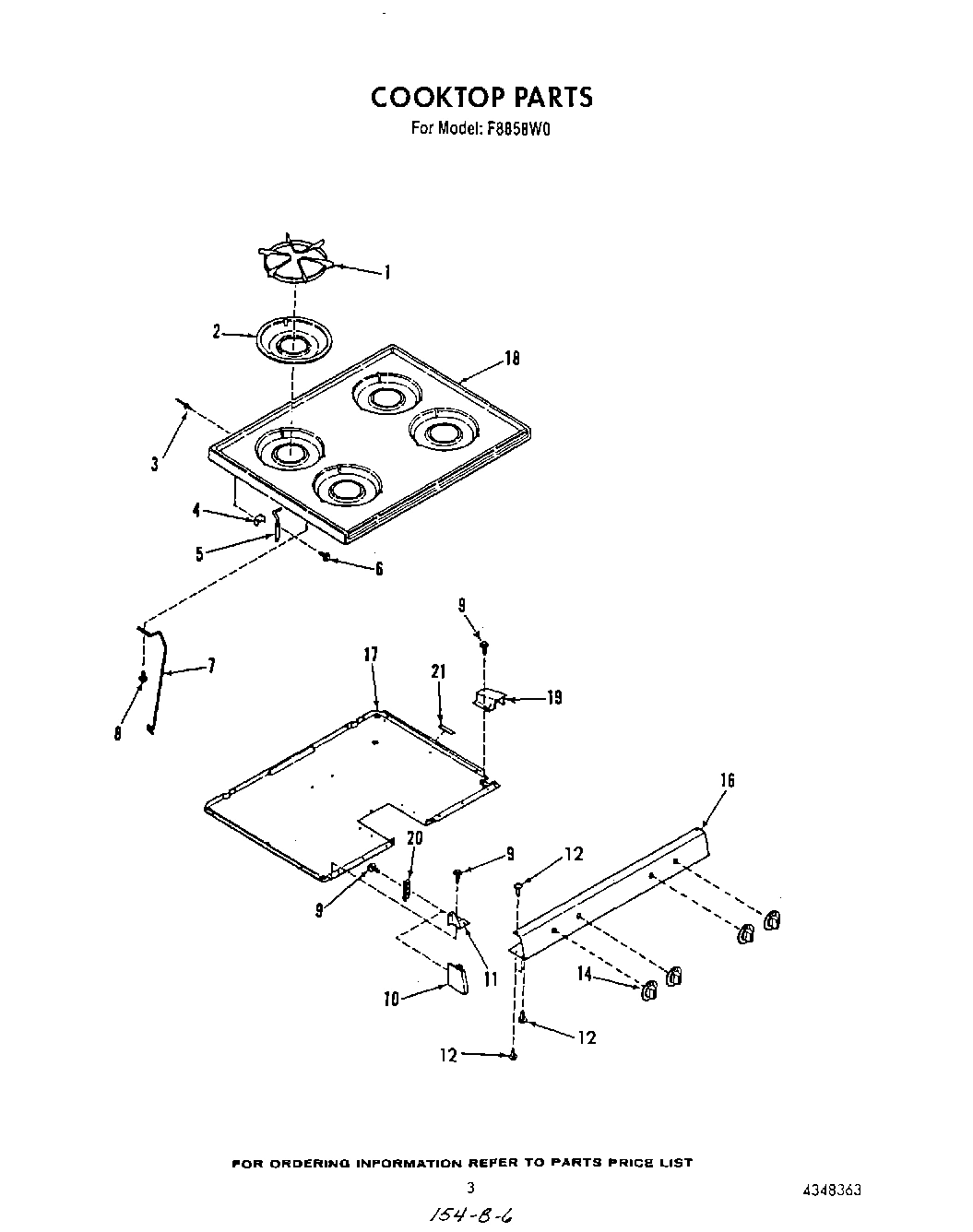

03 - COOK TOP

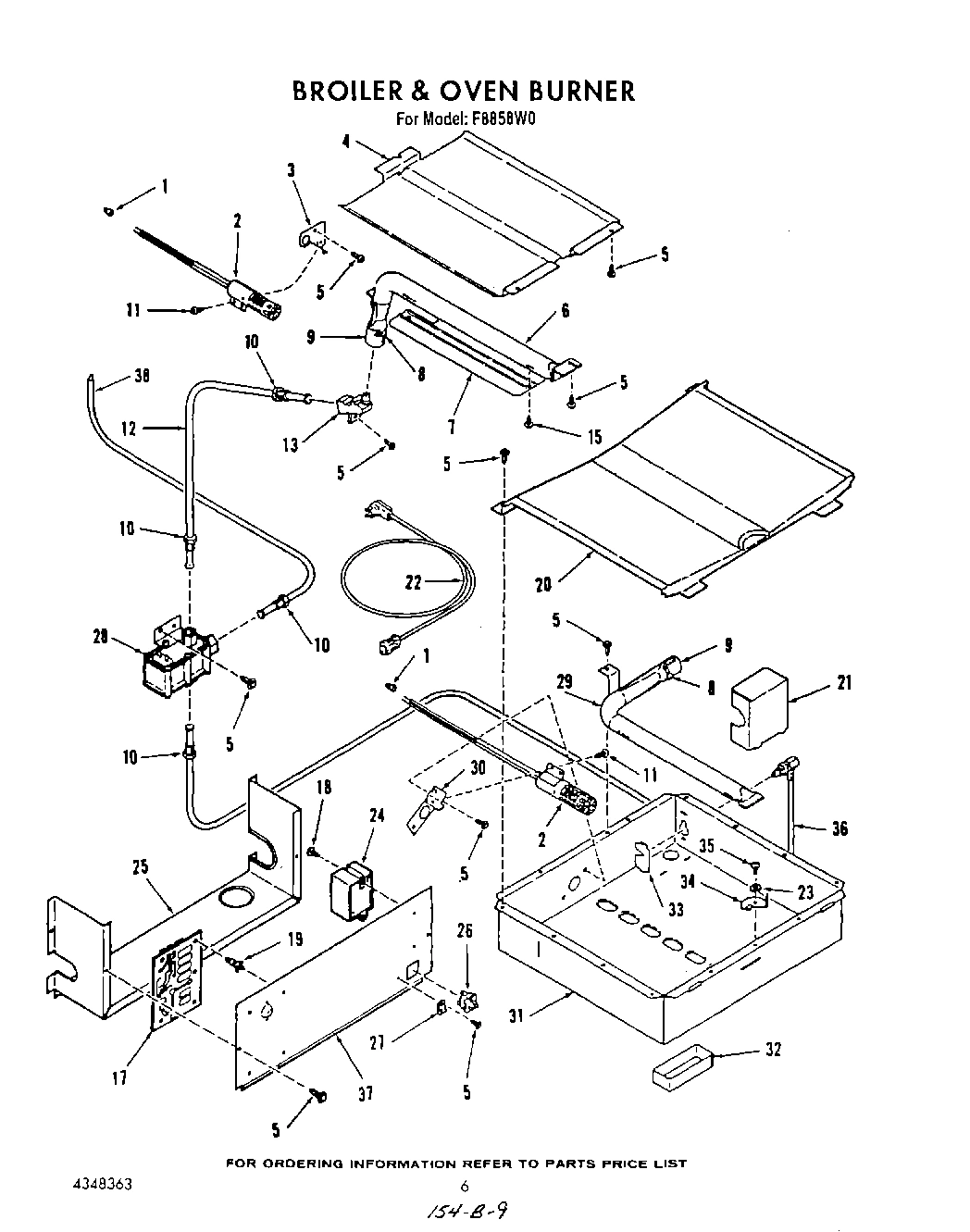

05 - BROILER AND OVEN BURNER

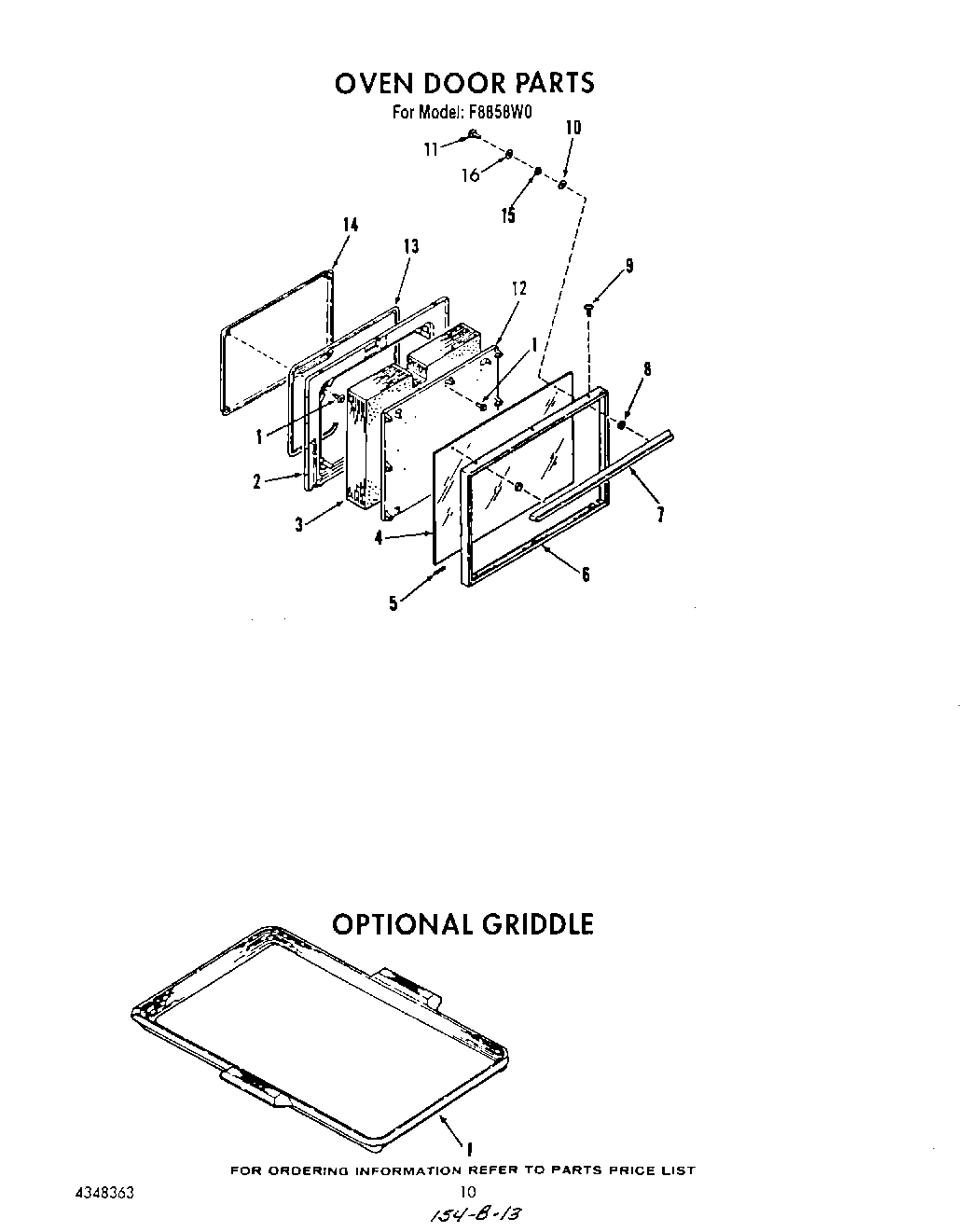

08 - OVEN DOOR , LIT/OPTIONAL GRIDDLE

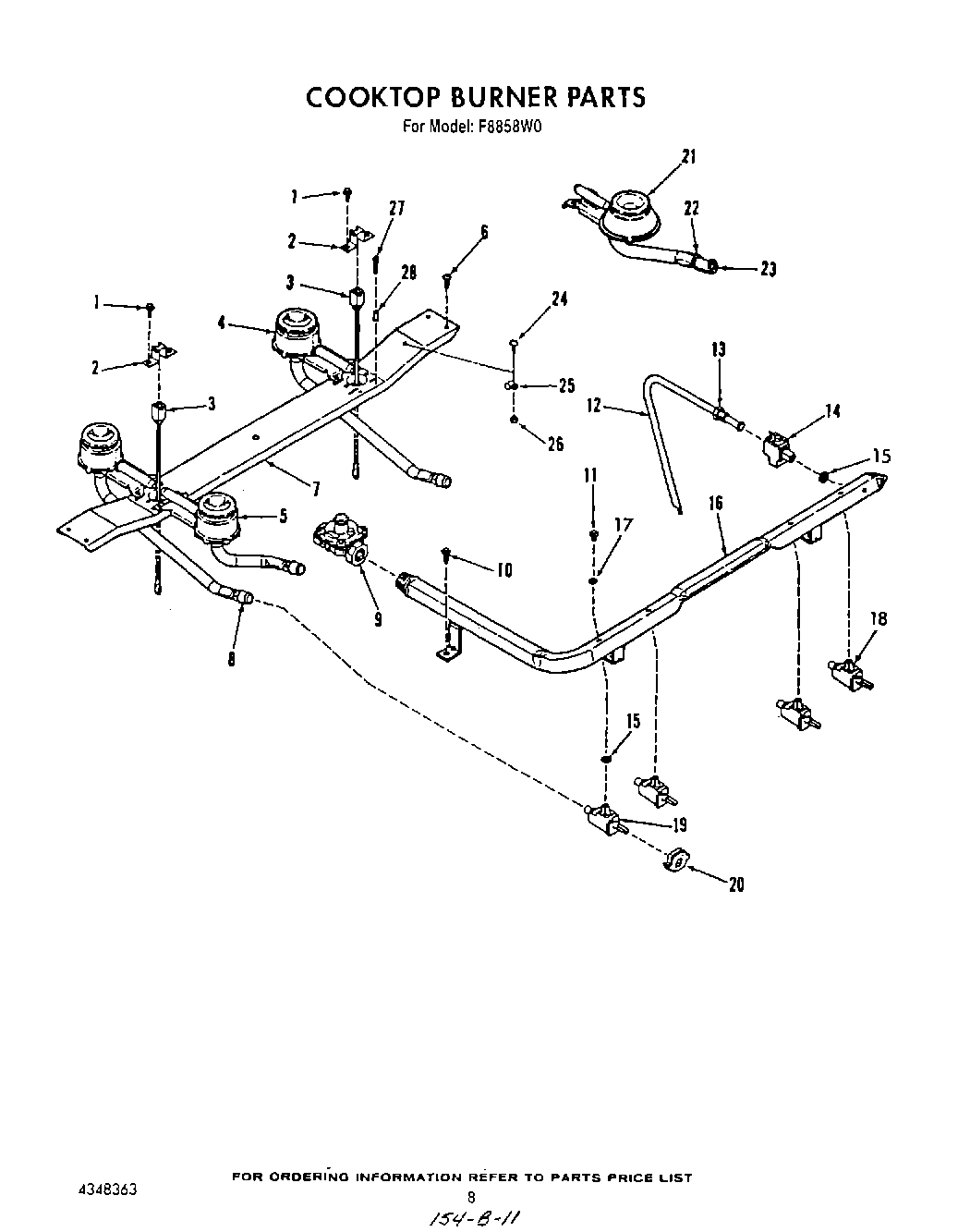

06 - COOK TOP BURNER

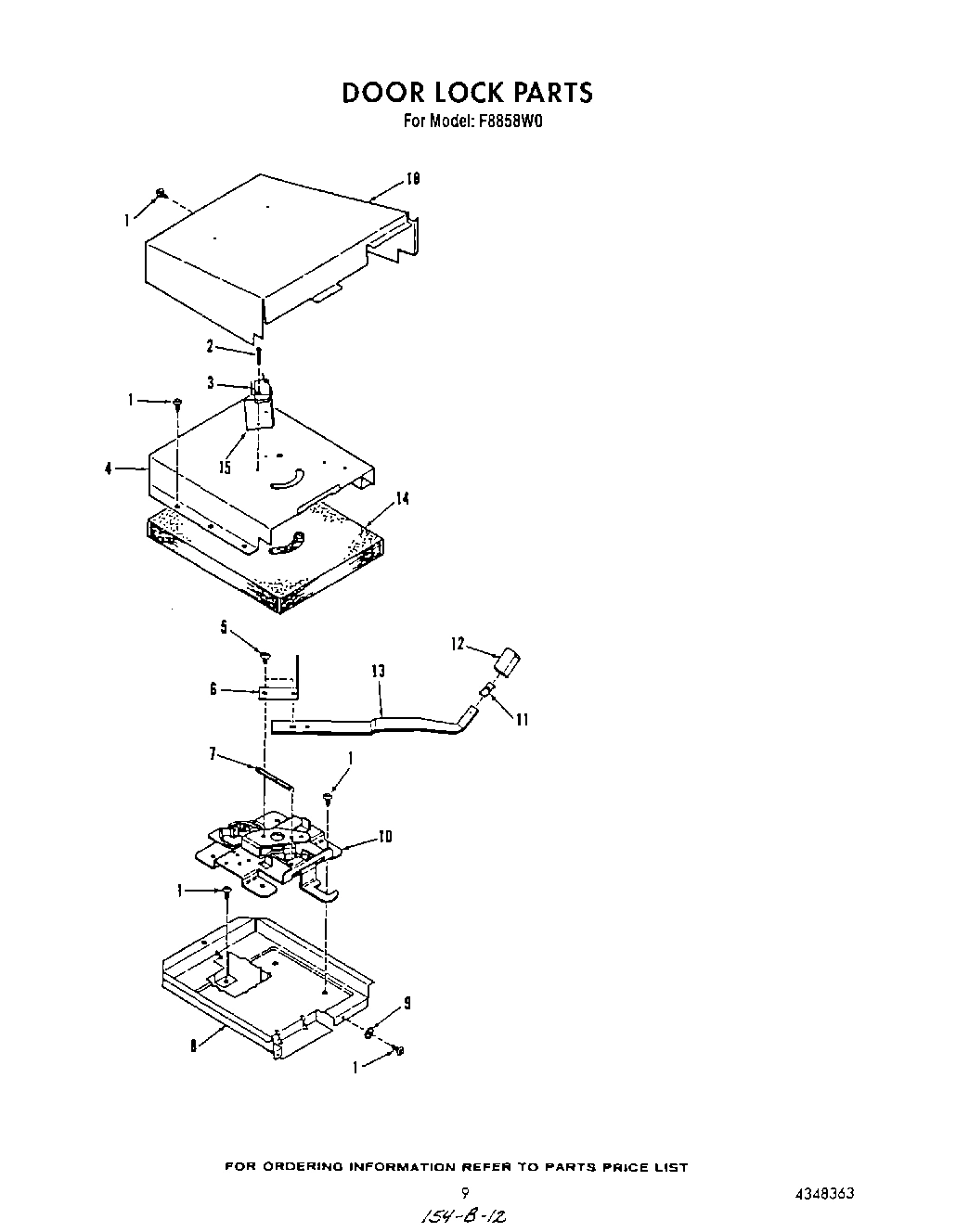

07 - DOOR LOCK

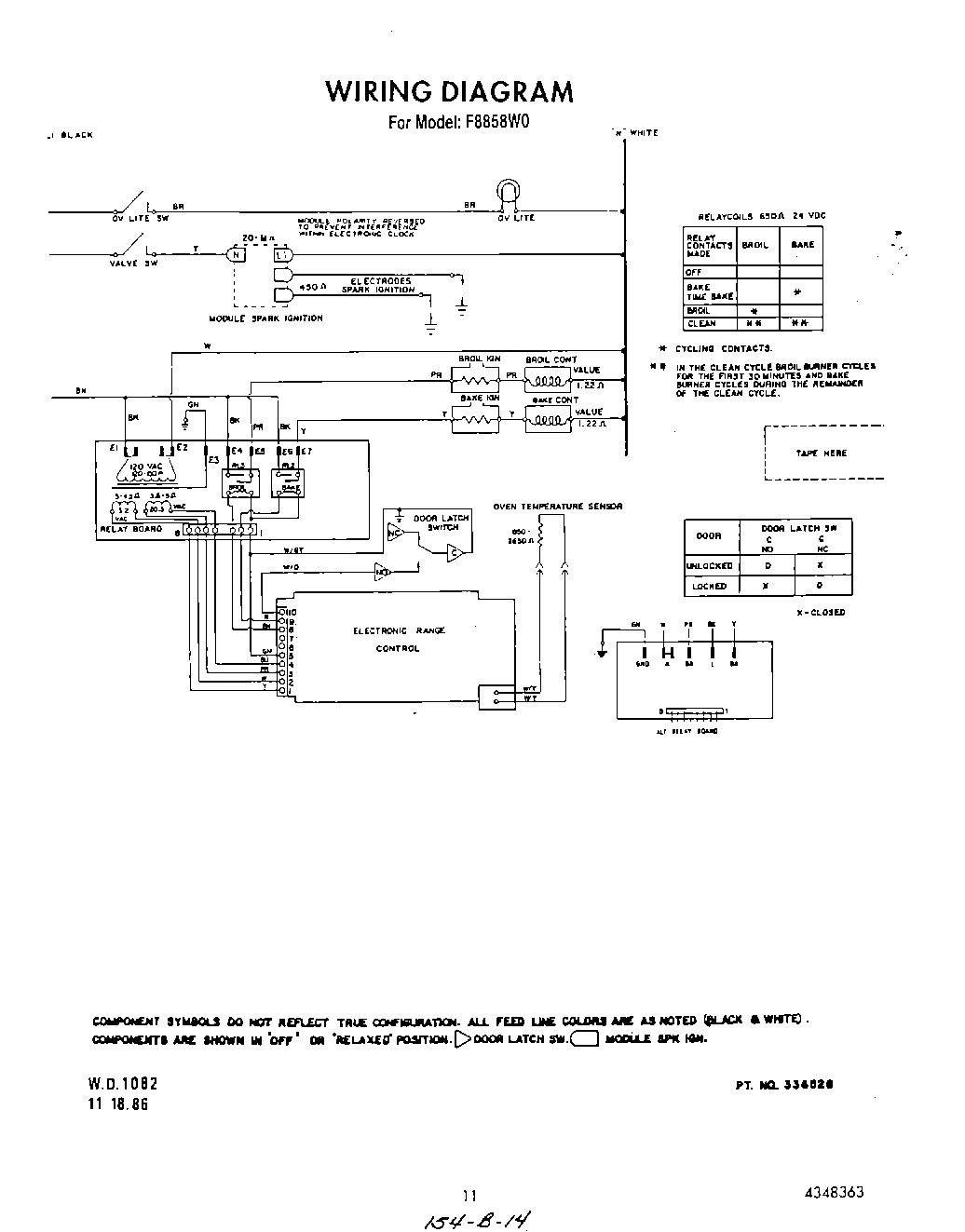

09 - WIRING DIAGRAM
Common parts from model Whirlpool F8858W0
Wire Harness Parts Not Listed May Be Purchase WPL ARI57065A1 Contact Us For Availability
1
Button, Dart WPL 4327640 Contact Us For Availability
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Griddle, Set-On WPL 4326773 Contact Us For Availability
2
Drip Bowl (4) WPL 4336770 Contact Us For Availability
2
Insulation WPL 4354862 Contact Us For Availability
2
Ignitor-Broiler & Oven Burner WPL 4338008 Contact Us For Availability
2
Lining, Inner WPL 4336608 Contact Us For Availability
2
Bracket, Ignitor WPL 4331307 Contact Us For Availability
2
Screw No.4-40x11/16 WPL 4335881 Contact Us For Availability
3
End Cap (Left) WPL 4337135 Contact Us For Availability
3
Shield, Deflector WPL 4335714 Contact Us For Availability
3
Rivet WPL 4338425 Contact Us For Availability
3
Bracket-Ignitor WPL 4335389 Contact Us For Availability
3
Insulation WPL 4354952 Contact Us For Availability
3
Electrode (Right) WPL 4337231 Contact Us For Availability
3
Electrode (Left) WPL 4354925 Contact Us For Availability
3
Switch, Micro WPL 4337377 Contact Us For Availability
4
Clip, Backguard WPL 4338226 Contact Us For Availability
4
Bracket, Hinge WPL 4337624 Contact Us For Availability
4
Baffle-Broiler Burner WPL 4335391 Contact Us For Availability
4
Glass, Outer WPL 4336722 Contact Us For Availability
4
Rear Burner, Lt/Rt. (Inc`s No.8) WPL 4336922 Contact Us For Availability
4
Cover, Lock WPL 4337019 Contact Us For Availability
5
Support, Backguard (Right) WPL 4337180 Contact Us For Availability
5
Support, Backguard (Left) WPL 4337181 Contact Us For Availability
5
Shield, Wire WPL 4354798 Contact Us For Availability
5
Hinge (Right) WPL 4333234 Contact Us For Availability
5
Hinge (Left) WPL 4333235 Contact Us For Availability
5
Cushion WPL 4324217 Contact Us For Availability
5
Front Burner (Left) Inc`s No.8 WPL 4336921 Contact Us For Availability
5
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
6
Insulation WPL 4354948 Contact Us For Availability
6
Broiler Burner, (Inc`s 7,8,9,15) WPL 4336227 Contact Us For Availability
6
Frame WPL 4336719 Contact Us For Availability
6
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
6
Extension, Handle WPL 4337626 Contact Us For Availability
7
Front, Backguard WPL 4337852 Contact Us For Availability
7
Bushing WPL 4334164 Contact Us For Availability
7
Handle WPL 4337344 Contact Us For Availability
7
Rod, Support WPL 4336765 Contact Us For Availability
7
Baffle WPL 4335768 Contact Us For Availability
7
Support, Burner WPL 4337013 Contact Us For Availability
7
Spring WPL 4331536 Contact Us For Availability
8
Screw WPL 4337797 Contact Us For Availability
8
Shield, Wire WPL 4335392 Contact Us For Availability
8
Spacer, Handle WPL 4323997 Contact Us For Availability
8
Adjustment Screw-Air Shutter WPL 4331502 Contact Us For Availability
8
Air Shutter WPL 4335197 Contact Us For Availability
8
Box, Lock WPL 4337018 Contact Us For Availability
9
Insulation WPL 4354868 Contact Us For Availability
9
Screw WPL 4336631 Contact Us For Availability
9
Shutter, Air WPL 4331501 Contact Us For Availability
9
Regulator-Pressure WPL 4334271 Contact Us For Availability
9
Washer WPL 4323206 Contact Us For Availability
10
Knob, Clock WPL 4337368 Contact Us For Availability
10
End Cap (Right) WPL 4336960 Contact Us For Availability
10
End Cap (Left) WPL 4336961 Contact Us For Availability
10
Washer, Fiber WPL 4336868 Contact Us For Availability
10
Latch Assembly (Inc`s No.7) WPL 4335767 Contact Us For Availability
11
Lens, Clock WPL 4337361 Contact Us For Availability
11
Deflector, Flue WPL 4336582 Contact Us For Availability
11
Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability
11
Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability
11
Screw (for 19) WPL 4331097 Contact Us For Availability
11
Clip, Knob WPL 4335705 Contact Us For Availability
12
Clock/Oven Control WPL 4338408 Contact Us For Availability
12
Gasket WPL 4337789 Contact Us For Availability
12
Screw, No.6-20 x 3/8 WPL 4338182 Contact Us For Availability
12
Tubing 3/8``, Control Valve to Broiler Orific WPL 4326334 Contact Us For Availability
12
3/8`` Tubing WPL 4324632 Contact Us For Availability
12
Retainer, Insulation WPL 4334786 Contact Us For Availability
12
Knob, Lock WPL 4337568 Contact Us For Availability
13
Rear Cover WPL 4338312 Contact Us For Availability
13
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
13
Orifice, Broiler WPL 4336710 Contact Us For Availability
13
Door Gasket WPL 4342564 Contact Us For Availability
13
Handle, Latch WPL 4337038 Contact Us For Availability
14
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
14
Insulation WPL 4354840 Contact Us For Availability
14
Knob, (4) Gas Valve WPL 4337120 Contact Us For Availability
14
Plug, Inner Door WPL 4337956 Contact Us For Availability
14
Valve, Shut Off WPL 4335080 Contact Us For Availability
14
Insulation-Latch WPL 4335703 Contact Us For Availability
15
Control Panel WPL 4337488 Contact Us For Availability
15
Retainer, Insulation WPL 4337037 Contact Us For Availability
15
Spacer, Glass WPL 4336869 Contact Us For Availability
15
Seal, (For No.14 & 19) WPL 4331665 Contact Us For Availability
15
Insulator (3) WPL 4335973 Contact Us For Availability
16
Panel, Manifold WPL 4337486 Contact Us For Availability
16
Washer WPL 4323694 Contact Us For Availability
16
Flag Terminal Faston Terminal WPL 4325033 Contact Us For Availability
16
3/16`` WPL 4325036 Contact Us For Availability
16
Backguard WPL 4337487 Contact Us For Availability
16
Relay WPL 4338350 Contact Us For Availability
16
Installation Guide WPL 4348093 Contact Us For Availability
16
Owner`s Manual WPL 4348360 Contact Us For Availability
16
Repair Parts List WPL 4348363 Contact Us For Availability
16
Manifold Pipe WPL 4337088 Contact Us For Availability
17
Spacer, Main Top WPL 4337485 Contact Us For Availability
17
Bottom, Burner Box WPL 4337005 Contact Us For Availability
17
Relay Circuit Board WPL 4337464 Contact Us For Availability
17
Seal (For No.11) WPL 4331164 Contact Us For Availability
18
Clock Support WPL 4338402 Contact Us For Availability
18
Main CookTop (White) WPL 4336778 Contact Us For Availability
18
Main Cooktop (Almond) WPL 4336779 Contact Us For Availability
18
Main Cooktop (Chrome) WPL 4354908 Contact Us For Availability
18
Screw, No.6-32 x 3/8 WPL 4336048 Contact Us For Availability
18
Gas Valve, Right Front (Inc`s No.11) WPL 4337484 Contact Us For Availability
18
Cover, Wire WPL 4337034 Contact Us For Availability
19
Support, Side (Right) WPL 4337183 Contact Us For Availability
19
Support, Side (Left) WPL 4337184 Contact Us For Availability
19
Wire Cover WPL 4337162 Contact Us For Availability
19
Spacer WPL 4337387 Contact Us For Availability
19
Gas Valve, RR, LF, LR (Inc`s No.11) WPL 4336715 Contact Us For Availability
20
Cleat WPL 4337625 Contact Us For Availability
20
Baffle-Ov. Burner WPL 4337456 Contact Us For Availability
21
Strike WPL 4337082 Contact Us For Availability
21
Tubing Spacer WPL 4337571 Contact Us For Availability
21
Shield-Orifice WPL 4336678 Contact Us For Availability
21
Burner, RF (Inc`s No.22, 23) WPL 4337333 Contact Us For Availability
22
Rivet WPL 4325611 Contact Us For Availability
22
Service Cord WPL 4336833 Contact Us For Availability
22
Screw, Adjustment WPL 4328513 Contact Us For Availability
23
Side-Body (White) WPL 4337591 Contact Us For Availability
23
Side-Body (Almond) WPL 4337593 Contact Us For Availability
23
Side, Body (Chrome) WPL 4337594 Contact Us For Availability
23
Washer WPL 4337031 Contact Us For Availability
23
Shutter, Air WPL 4328512 Contact Us For Availability
24
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
24
Module-Ignitor WPL 4333260 Contact Us For Availability
24
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
25
Door Spring WPL 4335115 Contact Us For Availability
25
Bracket, Component Mounting WPL 4338281 Contact Us For Availability
25
Clip WPL 4337581 Contact Us For Availability
26
Hinge, Oven Door (Right) WPL 4354928 Contact Us For Availability
26
Hinge, Oven Door (Left) WPL 4354929 Contact Us For Availability
26
Disconnect WPL 4324642 Contact Us For Availability
27
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
27
Base W/levelers WPL 4337332 Contact Us For Availability
28
Control Valve WPL 4329526 Contact Us For Availability
28
Eyelet WPL 4337565 Contact Us For Availability
29
Rear Slide Block WPL 4325731 Contact Us For Availability
29
Burner, Oven WPL 4337043 Contact Us For Availability
30
Support, Drawer WPL 4331092 Contact Us For Availability
30
Bracket, Igniter WPL 4331163 Contact Us For Availability
31
Front Slide Block WPL 4325732 Contact Us For Availability
31
Bottom, Burner Box WPL 4335381 Contact Us For Availability
32
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
32
Retainer-Insul. WPL 4336004 Contact Us For Availability
33
Front Panel (White) WPL 4338415 Contact Us For Availability
33
Front Panel (Almond) WPL 4338416 Contact Us For Availability
33
Front Panel (Black) WPL 4338417 Contact Us For Availability
33
Plate, Orifice Mounting WPL 4335704 Contact Us For Availability
34
Latch WPL 4335708 Contact Us For Availability
35
Screw, Shoulder WPL 4335745 Contact Us For Availability
36
Screw, No.10-32 x 1/2 WPL 4323778 Contact Us For Availability
36
Tubing 3/8``, with Orifice Fitting (Control V WPL 4336712 Contact Us For Availability
37
Cover, Component Bracket WPL 4338276 Contact Us For Availability
38
Drawer, Storage WPL 4338282 Contact Us For Availability
39
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
40
Retainer, Insulation WPL 4336507 Contact Us For Availability
41
Baffle, Vent WPL 4338277 Contact Us For Availability
42
Spacer, Expansion Nut WPL 4331381 Contact Us For Availability
43
Bottom, Oven WPL 4337461 Contact Us For Availability
45
Retainer, Lens WPL 4324482 Contact Us For Availability
47
Lens, Oven Light WPL 4324415 Contact Us For Availability
48
Gasket, Lens WPL 4324481 Contact Us For Availability
50
Frame, Front WPL 4338308 Contact Us For Availability
52
Cover WPL 4329206 Contact Us For Availability
53
Screw WPL 4327216 Contact Us For Availability
54
Sensor WPL 4337170 Contact Us For Availability
55
Oven Body WPL 4337958 Contact Us For Availability
56
Flue Box WPL 4335382 Contact Us For Availability
57
Insulation, Top & Side WPL 4335963 Contact Us For Availability
58
Oven Rack WPL 4334809 Contact Us For Availability
61
Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability
× ![]()
