Model Whirlpool F4857W0 – Common Parts &amp; Diagrams

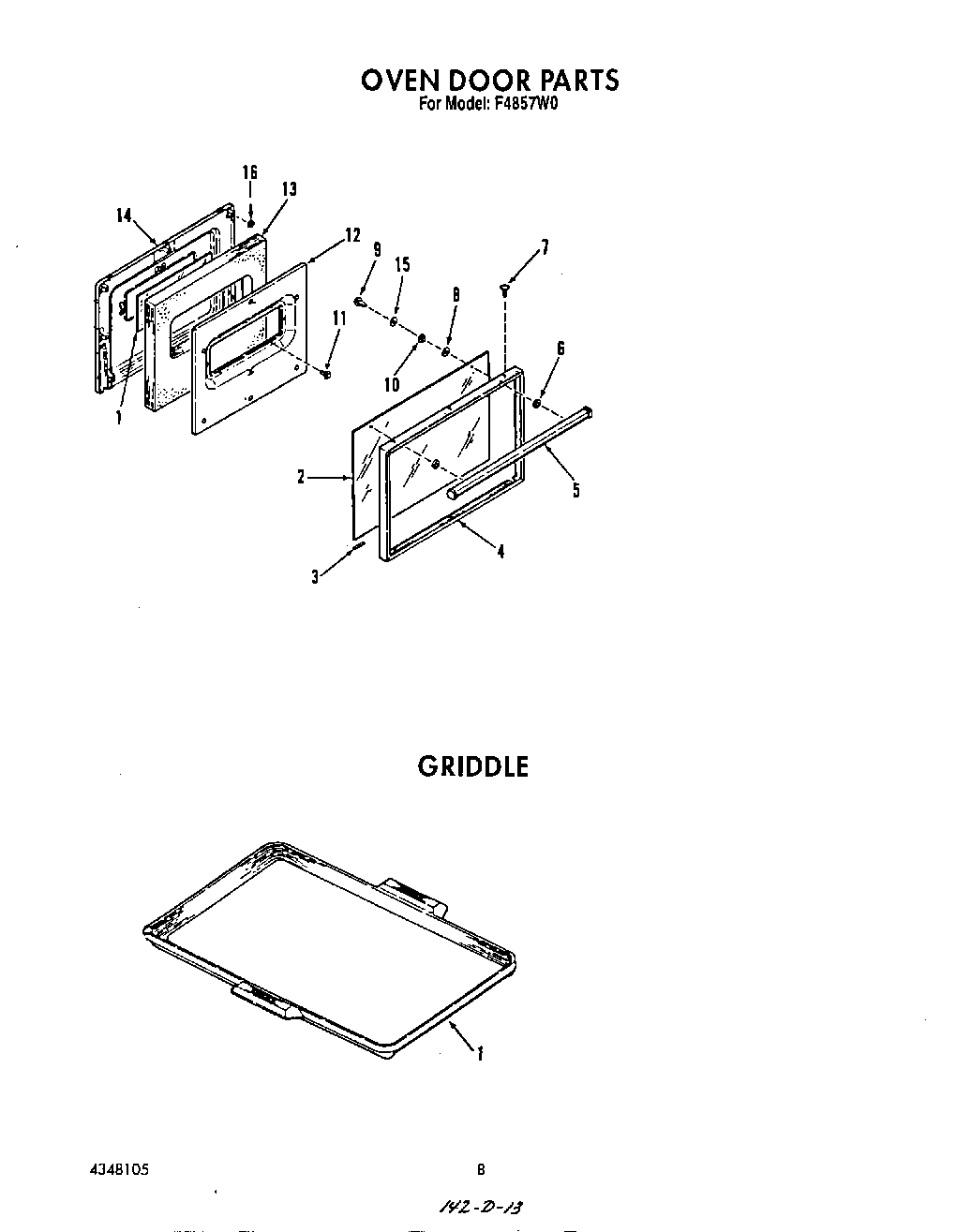

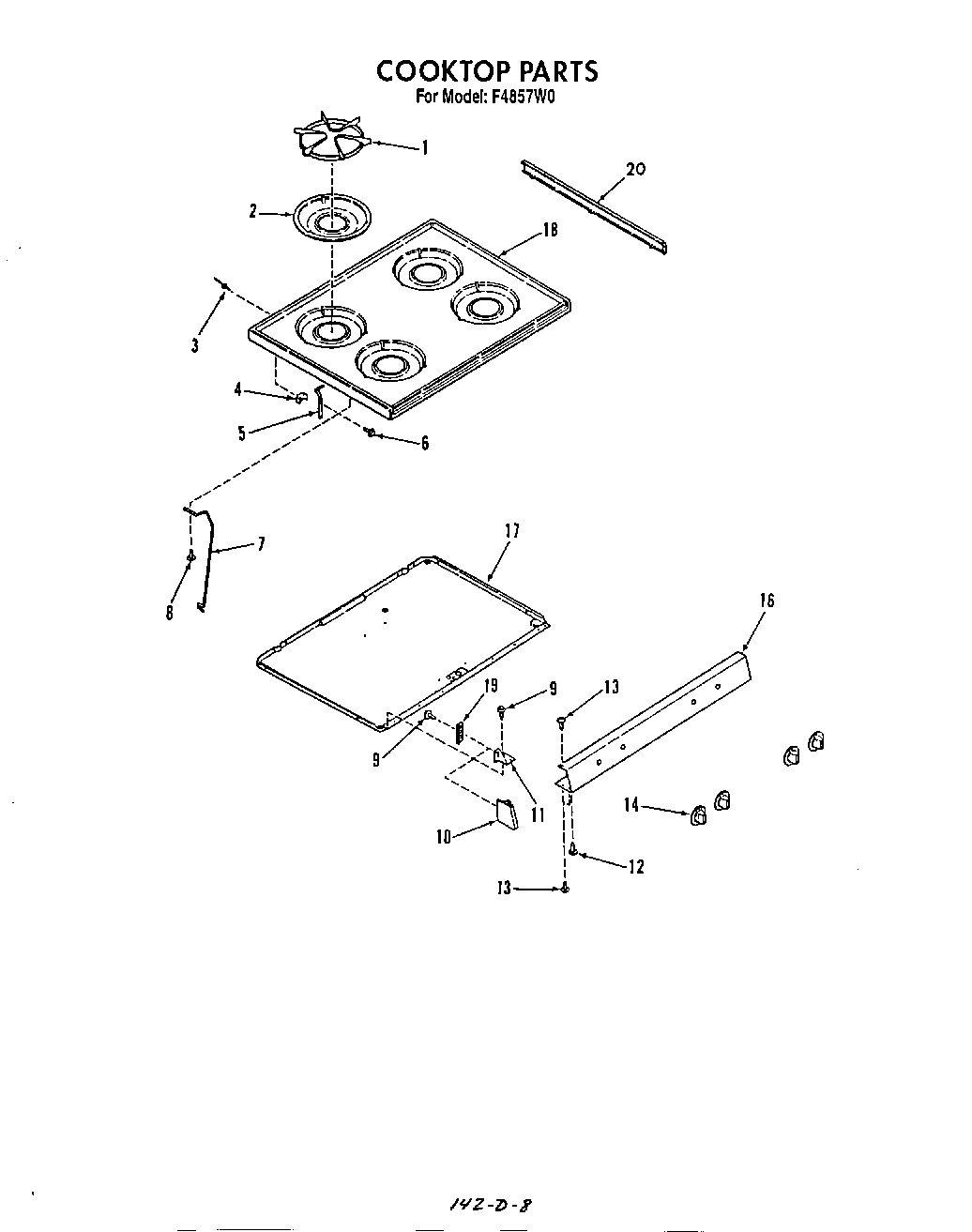

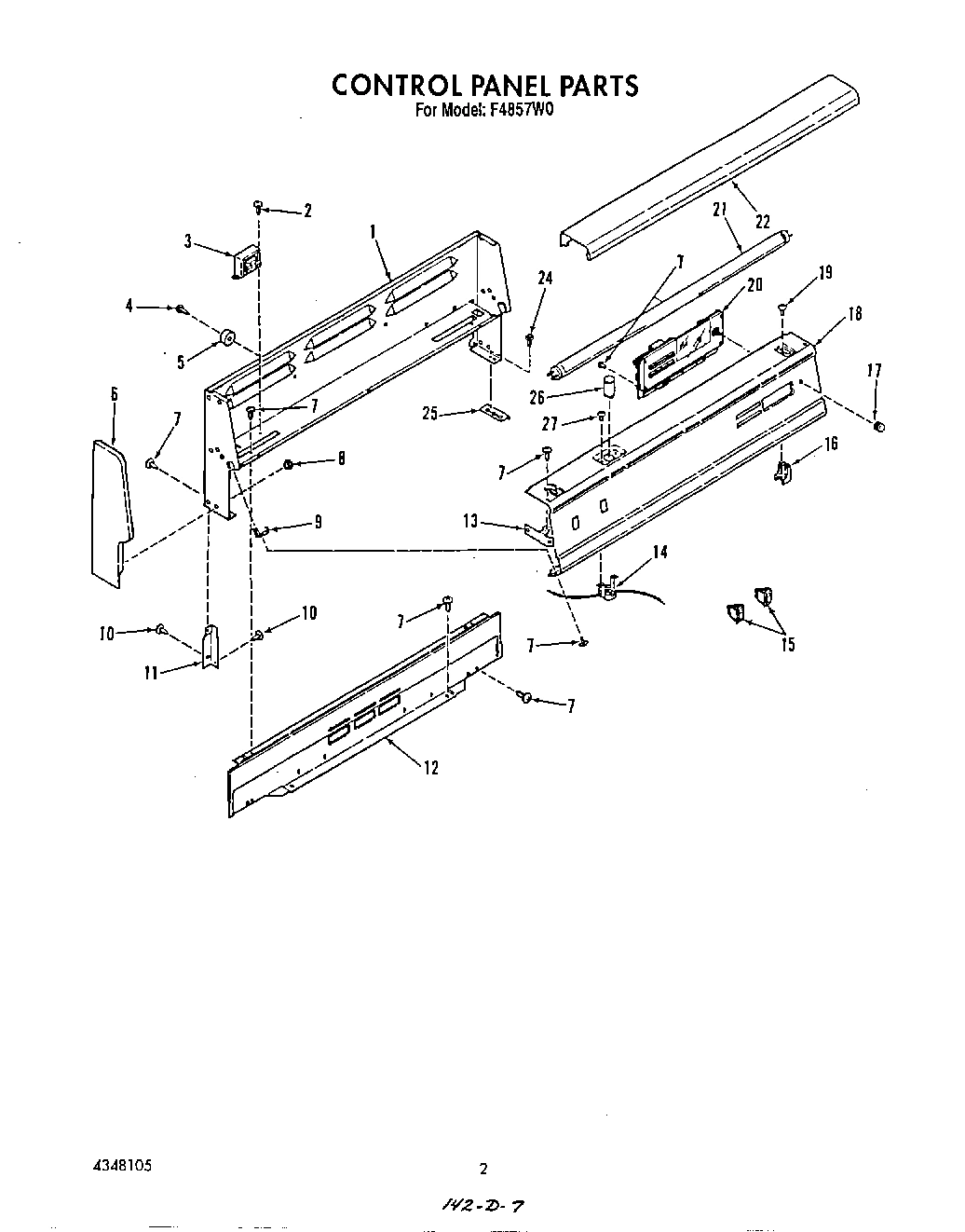

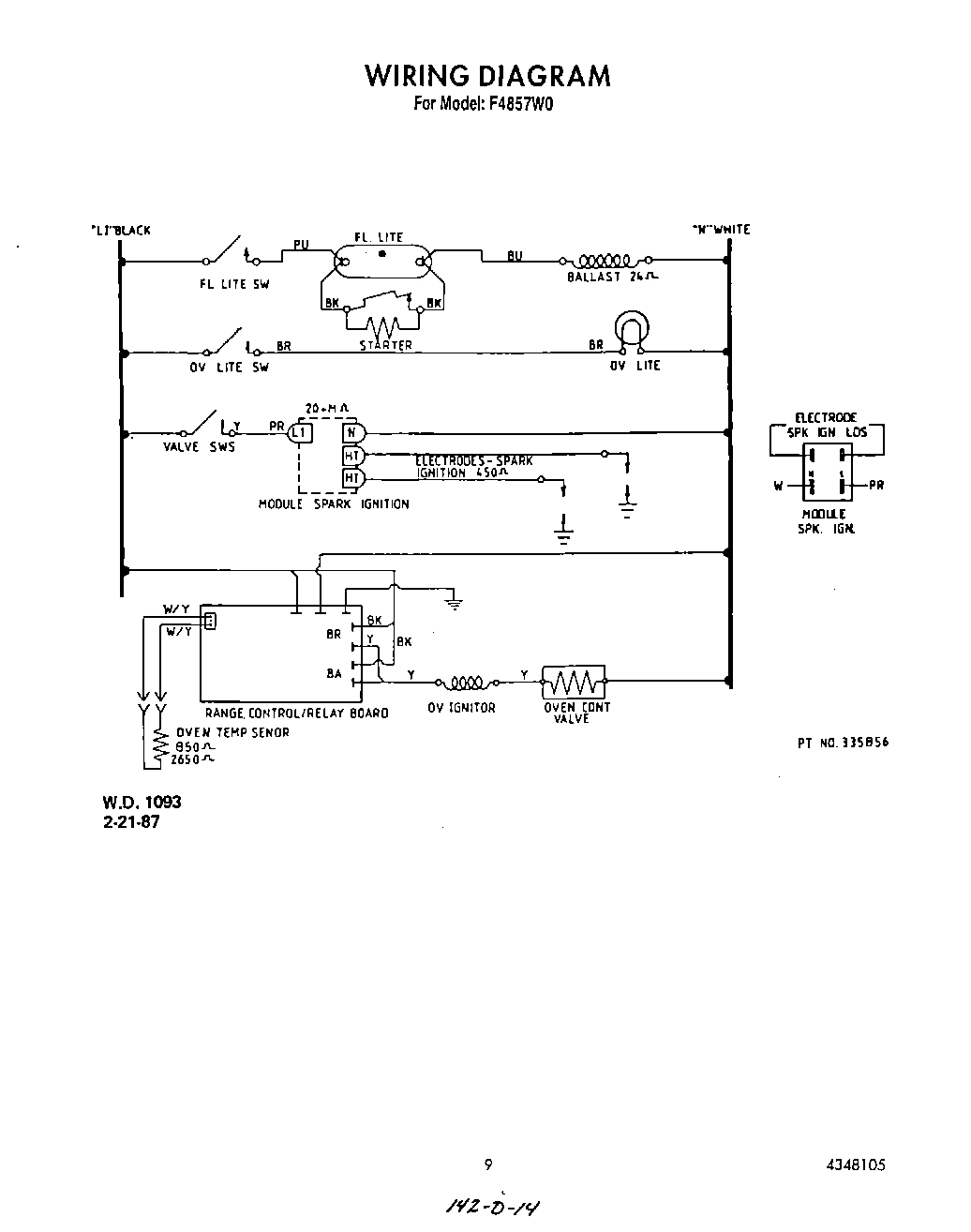

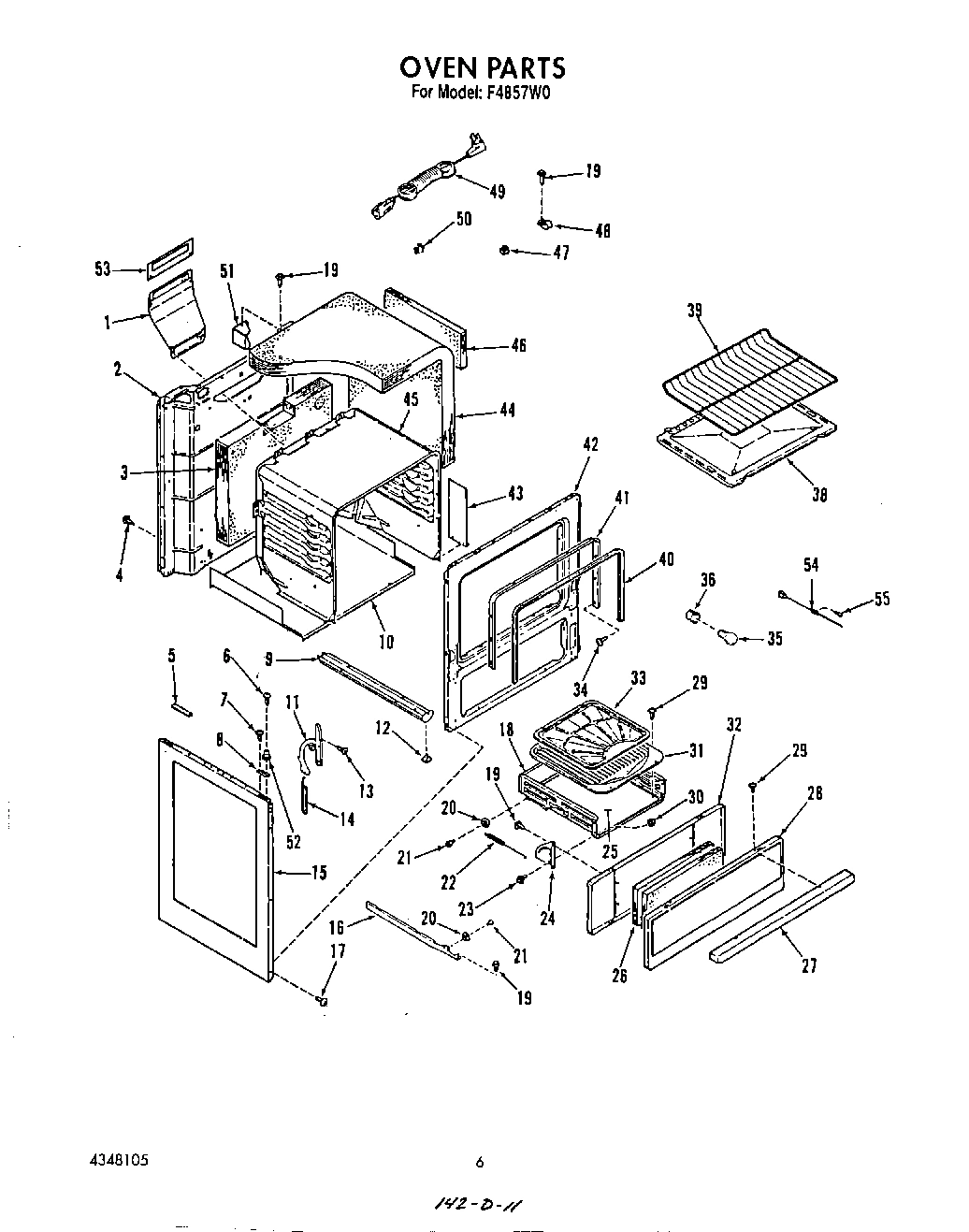

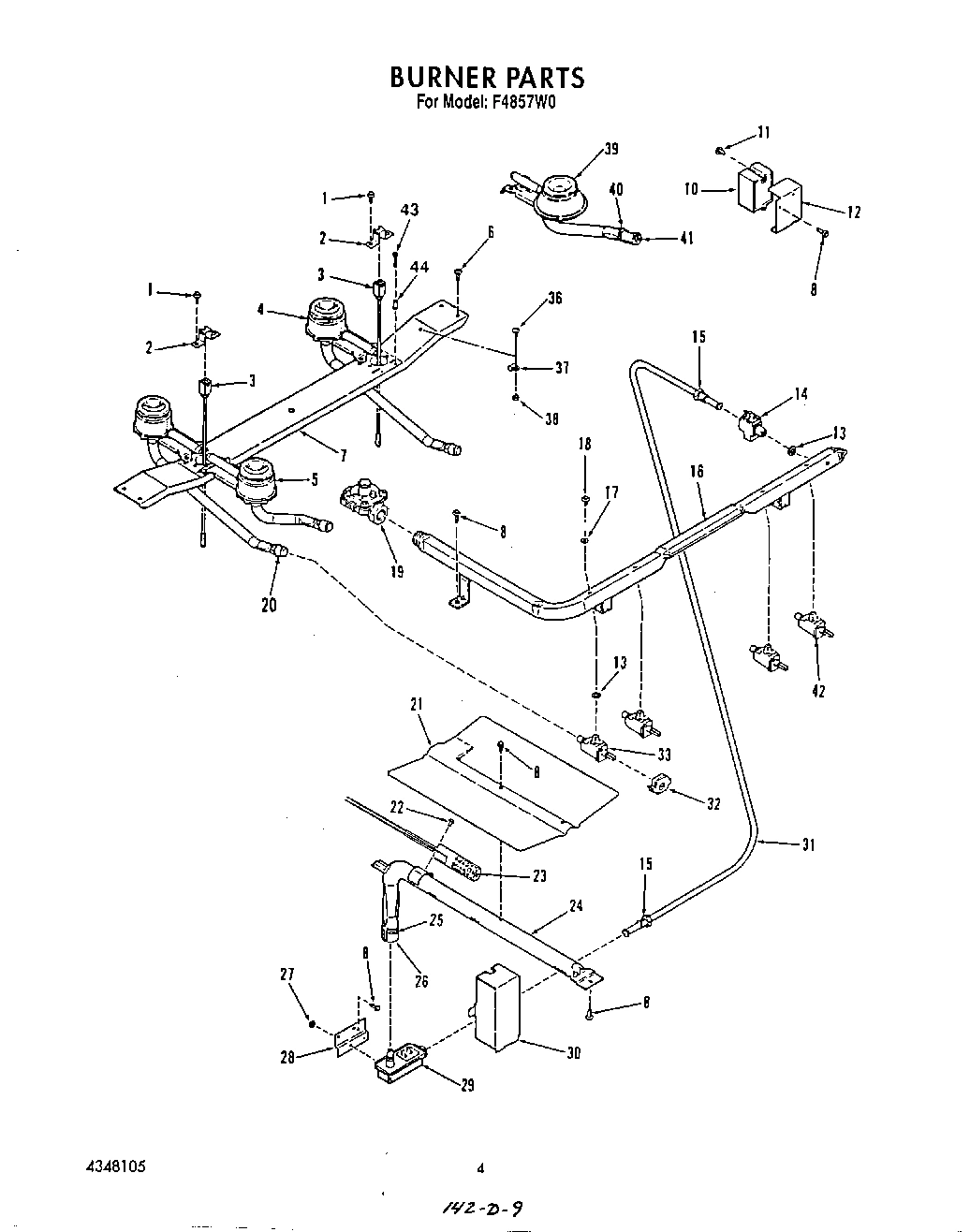

1

Grate, Burner (4) WPL 4336234 Contact Us For Availability

1

Deflector WPL 4335162 Contact Us For Availability

1

Glass, Inner WPL 4334792 Contact Us For Availability

2

Bowl, Drip WPL 4336770 Contact Us For Availability

2

Bracket, Igniter WPL 4331307 Contact Us For Availability

2

Cover, Rear WPL 4335165 Contact Us For Availability

2

Glass, Outer WPL 4336721 Contact Us For Availability

3

Electrode (Right) WPL 4331688 Contact Us For Availability

3

Electrode (Left) WPL 4354924 Contact Us For Availability

3

Rivet WPL 4328335 Contact Us For Availability

3

Insulation WPL 4354817 Contact Us For Availability

3

Cushion WPL 4324217 Contact Us For Availability

4

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

4

Burner, Rear Lt/Rt WPL 4336922 Contact Us For Availability

4

Bracket, Mounting WPL 4335270 Contact Us For Availability

4

Frame WPL 4336720 Contact Us For Availability

5

Bumper WPL 4337434 Contact Us For Availability

5

Burner, Lt Front WPL 4336921 Contact Us For Availability

5

Hinge (Right) WPL 4333234 Contact Us For Availability

5

Hinge (Left) WPL 4333235 Contact Us For Availability

5

Spacer WPL 4337485 Contact Us For Availability

5

Handle WPL 4336828 Contact Us For Availability

6

End Cap (Right) WPL 4337047 Contact Us For Availability

6

End Cap (Left) WPL 4337048 Contact Us For Availability

6

Screw No.6-32x3/8 WPL 4335339 Contact Us For Availability

6

Screw No.10-32x7/8 WPL 4335220 Contact Us For Availability

6

Spacer, Handle WPL 4323997 Contact Us For Availability

7

Support, Top Burner WPL 4337013 Contact Us For Availability

7

Support Rod (2) WPL 4336765 Contact Us For Availability

7

Screw No.6-32x5/16 WPL 4328072 Contact Us For Availability

7

Screw WPL 4336631 Contact Us For Availability

8

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

8

Support, Side (Right) WPL 4337183 Contact Us For Availability

8

Support, Side (Left) WPL 4337184 Contact Us For Availability

8

Washer WPL 4336868 Contact Us For Availability

9

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

9

Clip, Backguard WPL 4338226 Contact Us For Availability

9

Base W/Levelers Rt/Lt WPL 4337332 Contact Us For Availability

Spark Igniter Module WPL 4333260 Contact Us For Availability

End Cap (Right) WPL 4336960 Contact Us For Availability

End Cap (Left) WPL 4336961 Contact Us For Availability

Bottom WPL 4335153 Contact Us For Availability

Spacer, Glass WPL 4336869 Contact Us For Availability

Hinge-Door (Left) WPL 4336784 Contact Us For Availability

Hinge-Door (Right) WPL 4336783 Contact Us For Availability

Support, Backguard (Right) WPL 4337180 Contact Us For Availability

Support, Backguard (Left) WPL 4337181 Contact Us For Availability

Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability

Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability

Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability

Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability

Backguard Front WPL 4337853 Contact Us For Availability

Bracket, Spark Module WPL 4332158 Contact Us For Availability

Screw, No.6-20x3/8 WPL 4337623 Contact Us For Availability

Levelers, Leg (4) WPL 4334800 Contact Us For Availability

Retainer WPL 4334788 Contact Us For Availability

Bracket, Backguard WPL 4337555 Contact Us For Availability

Seal, Valve WPL 4331665 Contact Us For Availability

Screw, No.10x1/2 WPL 4337678 Contact Us For Availability

Insulation WPL 4354748 Contact Us For Availability

Starter Base WPL 4337372 Contact Us For Availability

Valve, Shut Off WPL 4335080 Contact Us For Availability

Knob, Gas Valve (4) WPL 4337120 Contact Us For Availability

Spring, Door WPL 4337297 Contact Us For Availability

Lining WPL 4336593 Contact Us For Availability

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $55.41

Inverted Nut, 3/8 WPL 4351421 Contact Us For Availability

Side Panel (White) WPL 4337591 Contact Us For Availability

Side Panel (Almond) WPL 4337593 Contact Us For Availability

Washer WPL 4323694 Contact Us For Availability

WP285432 Whirlpool Terminal Backorder WPL WP285432 $4.82

Holder, Lamp WPL 4337139 Contact Us For Availability

Manifold WPL 4337088 Contact Us For Availability

Panel, Manifold WPL 4337486 Contact Us For Availability

Guide, Broiler Drawer (Inc 20,21) (Left) WPL 4327690 Contact Us For Availability

Guide, Broiler Drawer (Inc 20,21) (Right) WPL 4327691 Contact Us For Availability

Wire Harness (Flag Terminal 1/4`` Faston Term WPL 4325033 Contact Us For Availability

Wire Harness (3/16``) WPL 4325036 Contact Us For Availability

Washer, Felt WPL 4337618 Contact Us For Availability

Wire Harness (Backguard) WPL 4338188 Contact Us For Availability

Wire Harness (Main) WPL 4338189 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

Knob, Clock/Oven Control WPL 4338513 Contact Us For Availability

Seal (for No.18) WPL 4331164 Contact Us For Availability

Bottom, Burner Box WPL 4337004 Contact Us For Availability

Control Panel WPL 4337602 Contact Us For Availability

Screw (for No.33) WPL 4331097 Contact Us For Availability

Cooktop W/Trim (White) WPL 4338441 Contact Us For Availability

Cooktop W/Trim (Almond) WPL 4338442 Contact Us For Availability

Broiler Drawer (Inc. 20,21) WPL 4336583 Contact Us For Availability

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Cleat WPL 4337625 Contact Us For Availability

Pressure Regulator WPL 4334271 Contact Us For Availability

Control, Clock-Oven, w/Lens WPL 4342994 Contact Us For Availability

Air Shutter WPL 4335197 Contact Us For Availability

Trim (Right) WPL 4336763 Contact Us For Availability

Trim (Left) WPL 4336764 Contact Us For Availability

Roller WPL 4323378 Contact Us For Availability

21

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $95.08

21

Baffle, Burner WPL 4336021 Contact Us For Availability

21

Rivet WPL 4323405 Contact Us For Availability

22

Panel, Cover WPL 4337141 Contact Us For Availability

22

Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability

22

Spring, Drawer WPL 4335295 Contact Us For Availability

23

Igniter, Oven WPL 4338008 Contact Us For Availability

23

Bolt, Shoulder WPL 4335999 Contact Us For Availability

24

Burner Assembly, (Inc. 21,25,26) WPL 4336511 Contact Us For Availability

24

Hinge, Drawer (Right) WPL 4335296 Contact Us For Availability

24

Hinge, Drawer (Left) WPL 4335297 Contact Us For Availability

25

Screw, Adjustment WPL 4331502 Contact Us For Availability

25

Drawer Bottom WPL 4336575 Contact Us For Availability

26

Starter, Lamp WPL 4337125 Contact Us For Availability

26

Shutter, Air WPL 4331501 Contact Us For Availability

27

Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability

27

Hex Nut, No.6-32 WPL 4324855 Contact Us For Availability

27

Handle WPL 4336754 Contact Us For Availability

28

Bracket, Control Valve WPL 4327660 Contact Us For Availability

28

Broiler Door Panel (White) WPL 4336732 Contact Us For Availability

28

Broiler Door Panel (Almond) WPL 4336733 Contact Us For Availability

29

Control Valve WPL 4333470 Contact Us For Availability

29

Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability

30

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

30

Cover, Control Valve WPL 4335168 Contact Us For Availability

31

Tubing 3/8``, (Inc. No.15) WPL 4332282 Contact Us For Availability

31

Pan, Broiler WPL 4336603 Contact Us For Availability

32

WP4330739 Whirlpool Igniter Switch Backorder WPL WP4330739 $91.53

32

Lining, Broiler Door WPL 4336584 Contact Us For Availability

33

Gas Valve WPL 4336715 Contact Us For Availability

33

Grid, Broiler Pan WPL 4336598 Contact Us For Availability

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

36

W10856866 Whirlpool Light Socket In Stock WPL W10856866 $4.98

36

Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability

38

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

38

Bottom, Oven WPL 4335164 Contact Us For Availability

39

Burner, Rt Front, (Inc. 40, 41) WPL 4342927 Contact Us For Availability

39

Rack, Oven WPL 4354754 Contact Us For Availability

40

Screw, Adjustment WPL 4328513 Contact Us For Availability

40

Seal, Oven Door WPL 4354751 Contact Us For Availability

41

Air Shutter WPL 4342928 Contact Us For Availability

41

Retainer, Door Seal WPL 4335426 Contact Us For Availability

42

Gas Valve (Inc 18) WPL 4338399 Contact Us For Availability

42

Frame, Front WPL 4337112 Contact Us For Availability

43

Retainer, Insulation WPL 4335889 Contact Us For Availability

44

Eyelet WPL 4337565 Contact Us For Availability

44

Insulation, Top And Sides WPL 4354750 Contact Us For Availability

45

Oven WPL 4336910 Contact Us For Availability

46

Insulation WPL 4327653 Contact Us For Availability

47

Bushing WPL 4324656 Contact Us For Availability

48

Clip WPL 4323987 Contact Us For Availability

49

Power Cord WPL 4351709 Contact Us For Availability

50

Disconnect WPL 4324642 Contact Us For Availability

51

Cover, Wire WPL 4337219 Contact Us For Availability

52

Strike WPL 4337082 Contact Us For Availability

53

Insulation WPL 4336020 Contact Us For Availability

54

Sensor WPL 4338291 Contact Us For Availability

55

Screw WPL 4327216 Contact Us For Availability

A1

Griddle, Set-On WPL 4326773 Contact Us For Availability
