Whirlpool EV209NBTN00 VERTICAL FREEZER

1

W10164539 Whirlpool Freezer Evaporator Cover Backorder WPL W10164539 $203.66

View on Model

1

DOOR ASSY, LWR (INCLUDES INTERIOR DOOR LINER) WPL W10261371 Contact Us For Availability

View on Model

1

Liner (Not A Serviceable Part) WPL ARI56435A7 Contact Us For Availability

View on Model

2

3-82390-001 Whirlpool Freezer Thermostat Knob Backorder WPL 3-82390-001 $18.75

View on Model

2

WP4-81546 Whirlpool Refrigerator Evaporator Backorder WPL WP4-81546 $277.48

View on Model

2

Hinge, Center WPL W10164537 Contact Us For Availability

View on Model

2

Bushing, Hinge WPL W10207408 Contact Us For Availability

View on Model

3

WP3-60336-001 Whirlpool Refrigerator Evaporat In Stock WPL WP3-60336-001 $240.83

View on Model

3

Rail, Door (Wire) WPL W10164620 Contact Us For Availability

View on Model

3

Harness, Wire (Control Box) WPL W10164510 Contact Us For Availability

View on Model

4

WP4-65451-001 Whirlpool Freezer Rail Backorder WPL WP4-65451-001 $62.98

View on Model

4

WP4-83053-002 Whirlpool Freezer Thermostat Backorder WPL WP4-83053-002 $168.74

View on Model

4

WPW10445742 Whirlpool Refrigerator Fan Blade In Stock WPL WPW10445742 $6.99

View on Model

5

W10261374 Whirlpool Freezer Door Gasket Backorder WPL W10261374 $221.18

View on Model

5

WP3-80405-003 Whirlpool Refrigerator Heater In Stock WPL WP3-80405-003 $144.99

View on Model

5

Screw WPL 4390511 Contact Us For Availability

View on Model

6

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

View on Model

6

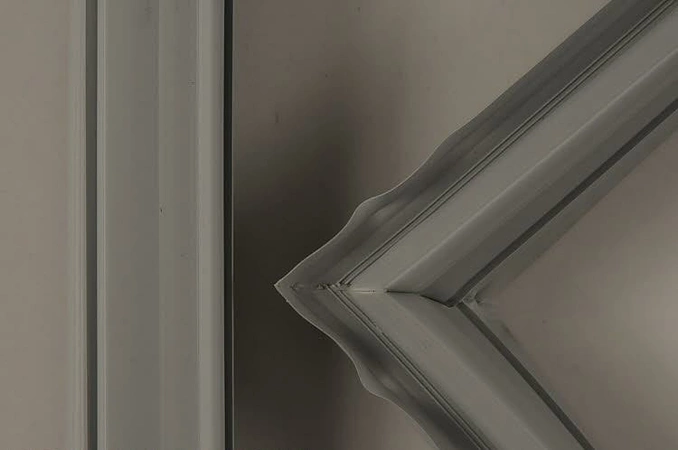

WP4-65151-008 Whirlpool Freezer Door Gasket Backorder WPL WP4-65151-008 $213.56

View on Model

6

Shield, Heater WPL W10164624 Contact Us For Availability

View on Model

7

WP4390675 Whirlpool Refrigerator Drip Pan Backorder WPL WP4390675 $204.50

View on Model

7

DOOR ASSY, UPR (INCLUDES INTERIOR DOOR LINER) WPL W10261370 Contact Us For Availability

View on Model

7

Basket, Large WPL W10164543 Contact Us For Availability

View on Model

8

4390663 Whirlpool Refrigerator Gasket Backorder WPL 4390663 $170.72

View on Model

8

4390664 Whirlpool Refrigerator Gasket Backorder WPL 4390664 $63.66

View on Model

8

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

View on Model

8

Alarm, Door Ajar WPL W10164512 Contact Us For Availability

View on Model

9

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $4.82

View on Model

9

WP1-81801-001 Whirlpool Refrigerator Bimetall In Stock WPL WP1-81801-001 $77.76

View on Model

9

Switch, Alarm WPL W10164530 Contact Us For Availability

View on Model

10

W10260541 Whirlpool Refrigerator Door Hinge Backorder WPL W10260541 $30.30

View on Model

10

Baffle, Short (2) WPL W10164560 Contact Us For Availability

View on Model

10

Cap, Icemaker Water Tube WPL W10164568 Contact Us For Availability

View on Model

11

2-80028-101 Whirlpool Refrigerator Motor Brac Backorder WPL 2-80028-101 $59.13

View on Model

11

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $147.56

View on Model

11

STOP, DOOR (2) WPL W10261375 Contact Us For Availability

View on Model

12

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $39.77

View on Model

12

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $24.72

View on Model

13

Lens, Light WPL 8210349 Contact Us For Availability

View on Model

14

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

View on Model

14

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

View on Model

15

WP3-82393-001 Whirlpool Refrigerator Socket Backorder WPL WP3-82393-001 $69.59

View on Model

15

Relay WPL 4356738 Contact Us For Availability

View on Model

16

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

View on Model

16

Shield, Light WPL 8210351 Contact Us For Availability

View on Model

17

4356777 Whirlpool Term Cover Backorder WPL 4356777 $93.27

View on Model

17

Box, Control WPL W10164503 Contact Us For Availability

View on Model

18

WP4-82634-001 Whirlpool Freezer Wire Shelf Backorder WPL WP4-82634-001 $96.94

View on Model

18

Harness, Fan WPL W10164626 Contact Us For Availability

View on Model

19

2-34286-021 Whirlpool Refrigerator Overload R Backorder WPL 2-34286-021 $91.71

View on Model

19

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

View on Model

19

Baffle, Long (1) WPL W10164558 Contact Us For Availability

View on Model

20

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $9.35

View on Model

20

WP4-82576-001 Whirlpool Freezer Cantilever Bi Backorder WPL WP4-82576-001 $52.23

View on Model

20

Shield, Drain Trough WPL W10164550 Contact Us For Availability

View on Model

21

Cover, Ice Bin WPL W10164622 Contact Us For Availability

View on Model

21

Compressor Grommet WPL 4356335 Contact Us For Availability

View on Model

22

Basket (Non-I/M Unit) WPL W10164565 Contact Us For Availability

View on Model

22

Washer WPL 4356847 Contact Us For Availability

View on Model

23

8210220 Whirlpool Bolt Backorder WPL 8210220 $86.80

View on Model

23

Basket, Divider (Non-Icemaker) WPL W10164583 Contact Us For Availability

View on Model

24

Cover (I/M Units) WPL W10164566 Contact Us For Availability

View on Model

25

Exchanger, Heat WPL 4357263 Contact Us For Availability

View on Model

25

Support, Basket WPL W10164584 Contact Us For Availability

View on Model

26

Slide, Basket WPL W10164570 Contact Us For Availability

View on Model

26

PAN, COMPRESSOR WPL W10261376 Contact Us For Availability

View on Model

27

4356491 Whirlpool Refrigerator Screw Backorder WPL 4356491 $8.98

View on Model

27

Clip, Thermostat WPL 4356952 Contact Us For Availability

View on Model

28

W10451951 Whirlpool Refrigerator Condenser Backorder WPL W10451951 $192.40

View on Model

28

Divider, Basket WPL W10183189 Contact Us For Availability

View on Model

29

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

View on Model

29

Arm, Shut-Off (I/M Model) WPL W10164580 Contact Us For Availability

View on Model

30

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

View on Model

30

Tube, Fill (I/M Model) WPL W10164581 Contact Us For Availability

View on Model

31

3-35956-013 Whirlpool Refrigerator Capacitor Backorder WPL 3-35956-013 $78.15

View on Model

31

Gasket, Fill Tube WPL W10164582 Contact Us For Availability

View on Model

32

Shelf, Half (I/M Units) WPL W10164564 Contact Us For Availability

View on Model

32

Grommet WPL 4357020 Contact Us For Availability

View on Model

33

Plate, Evaporator Mount WPL 4357123 Contact Us For Availability

View on Model

34

1-80252-101 Whirlpool Refrigerator Evaporator Backorder WPL 1-80252-101 $4.34

View on Model

35

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

View on Model

36

3-60315-001 Whirlpool Refrigerator CAB Roller Backorder WPL 3-60315-001 $18.89

View on Model

37

Axle WPL 4390755 Contact Us For Availability

View on Model

38

W10164629 Whirlpool Harness Backorder WPL W10164629 $151.21

View on Model

39

Clip, Harness WPL W10164630 Contact Us For Availability

View on Model

40

Screw WPL W10164633 Contact Us For Availability

View on Model

NI

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

View on Model

NI

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

View on Model

NI

W11700559 Whirlpool Ice Maker Assembly Backorder WPL W11700559 $164.56

View on Model

NI

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

View on Model

NI

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

View on Model

NI

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

View on Model

NI

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

View on Model

NI

REFRIGERANT CHARGE 6.2 oz. (R-134A) WPL ARI56436A3 Contact Us For Availability

View on Model

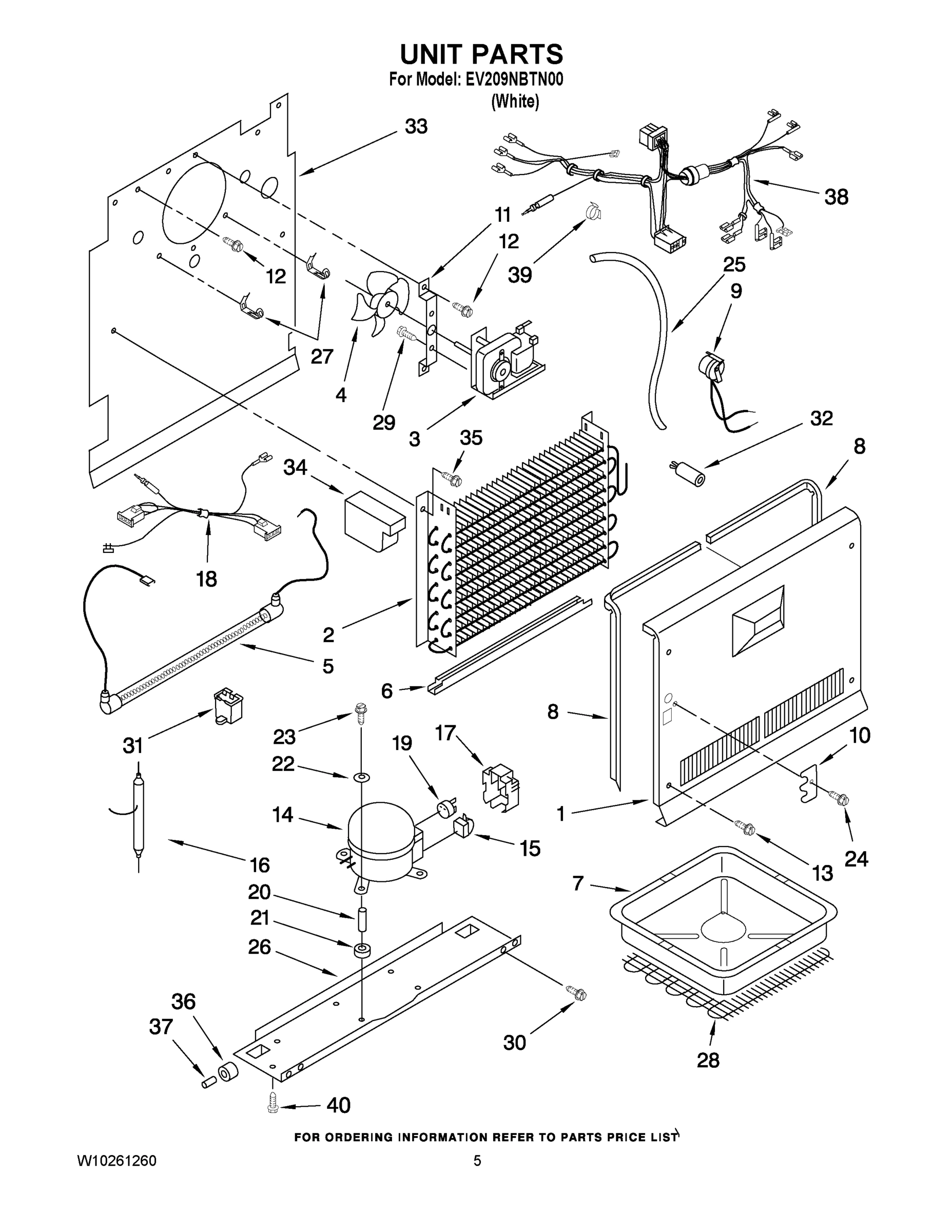

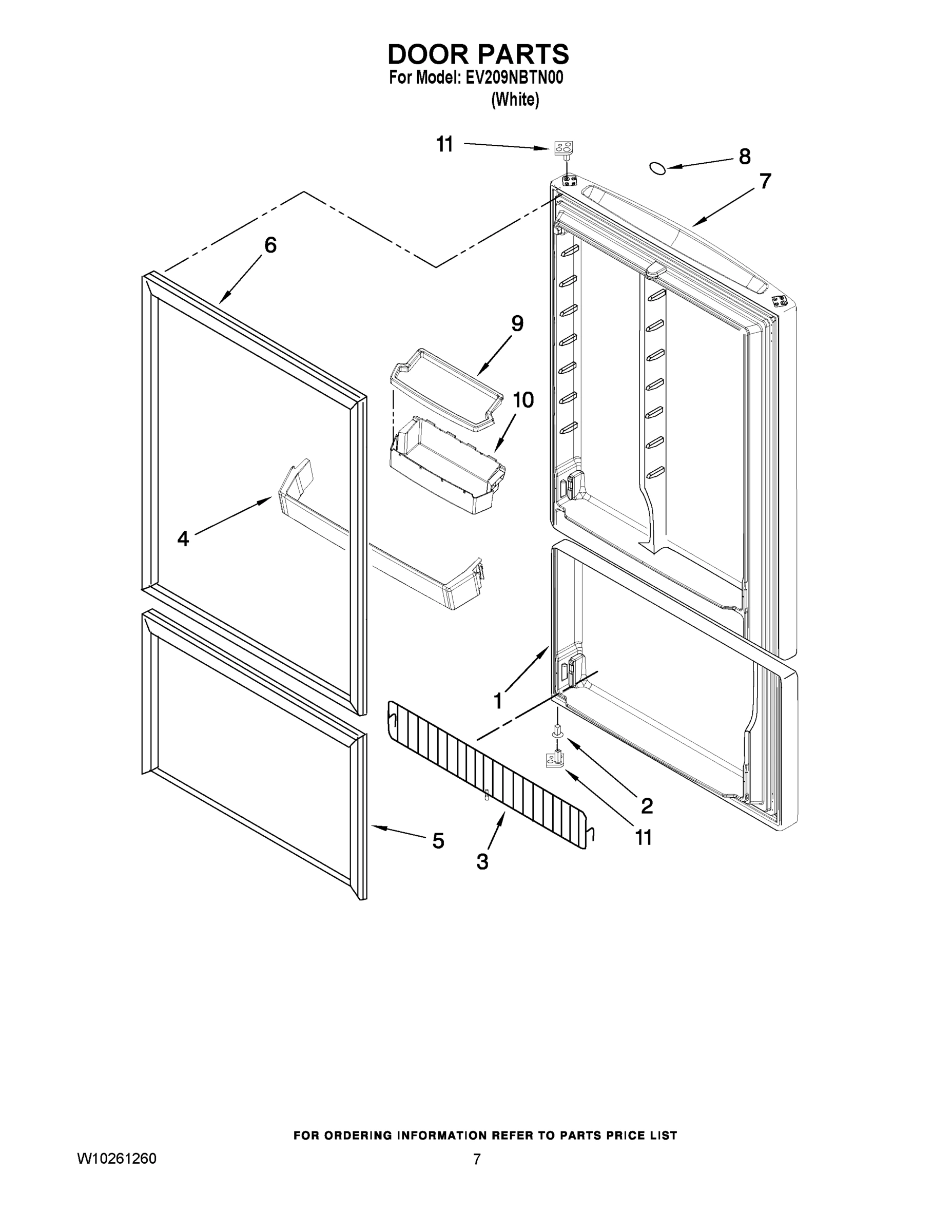

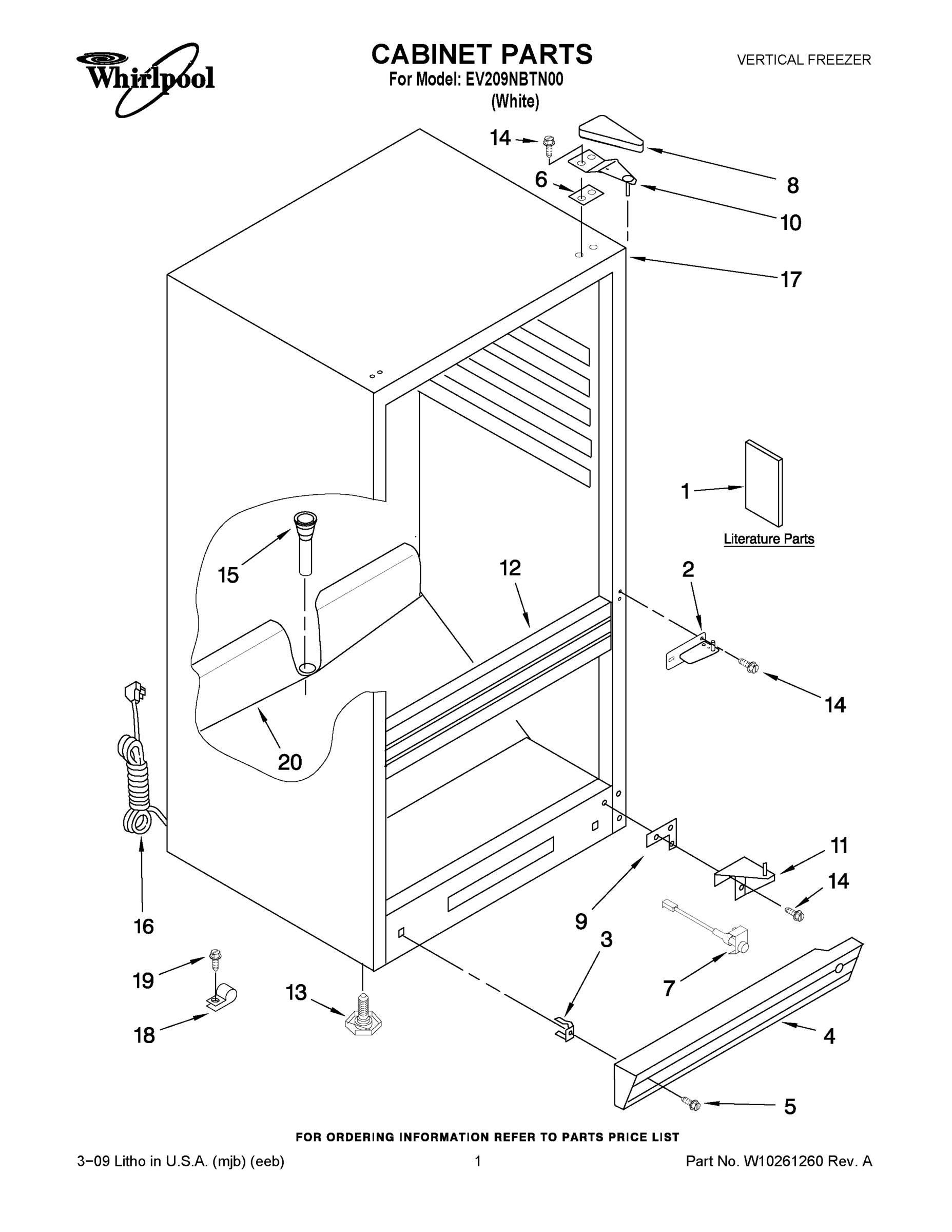

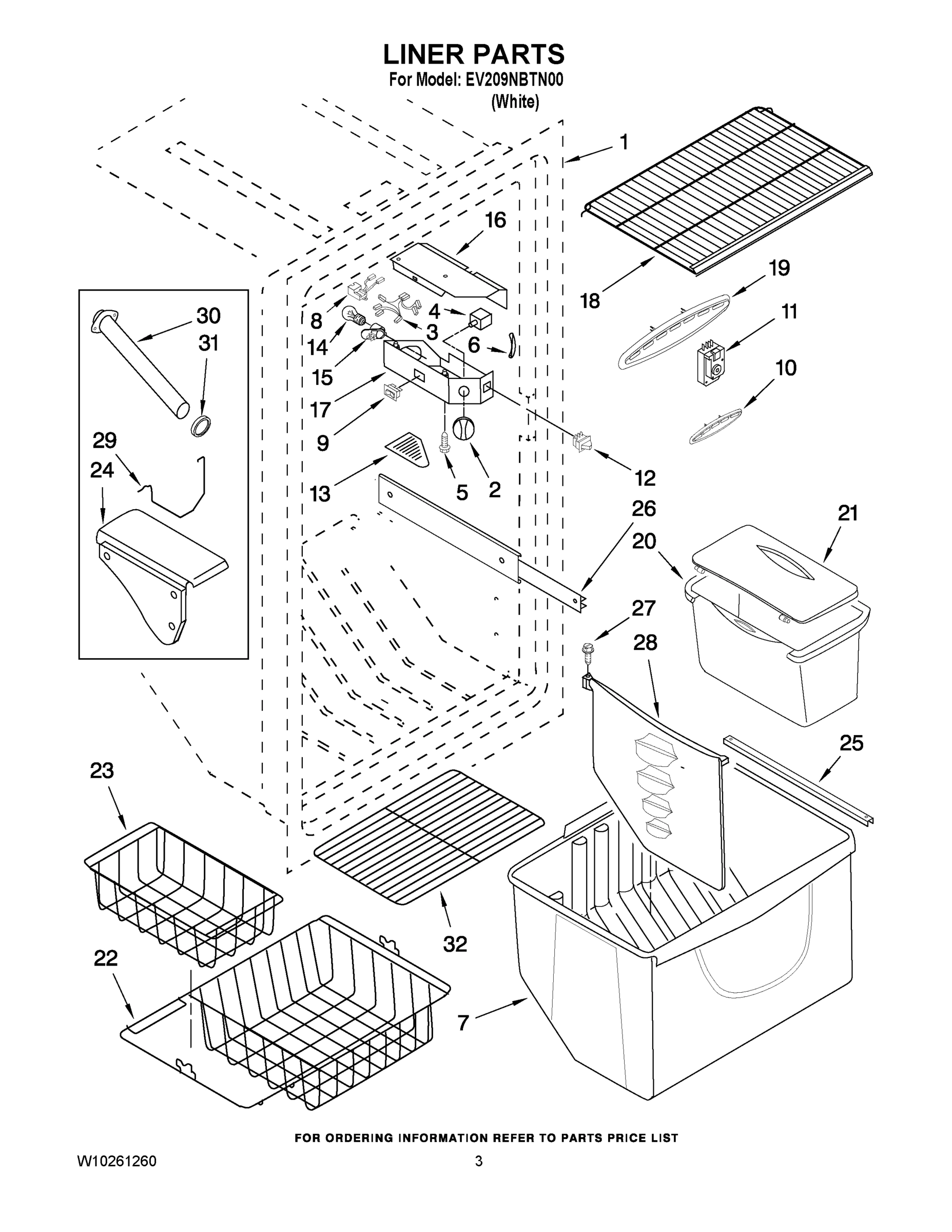

Model Whirlpool EV209NBTN00 VERTICAL FREEZER – Common Parts & Diagrams

Common parts from model Whirlpool EV209NBTN00 VERTICAL FREEZER
