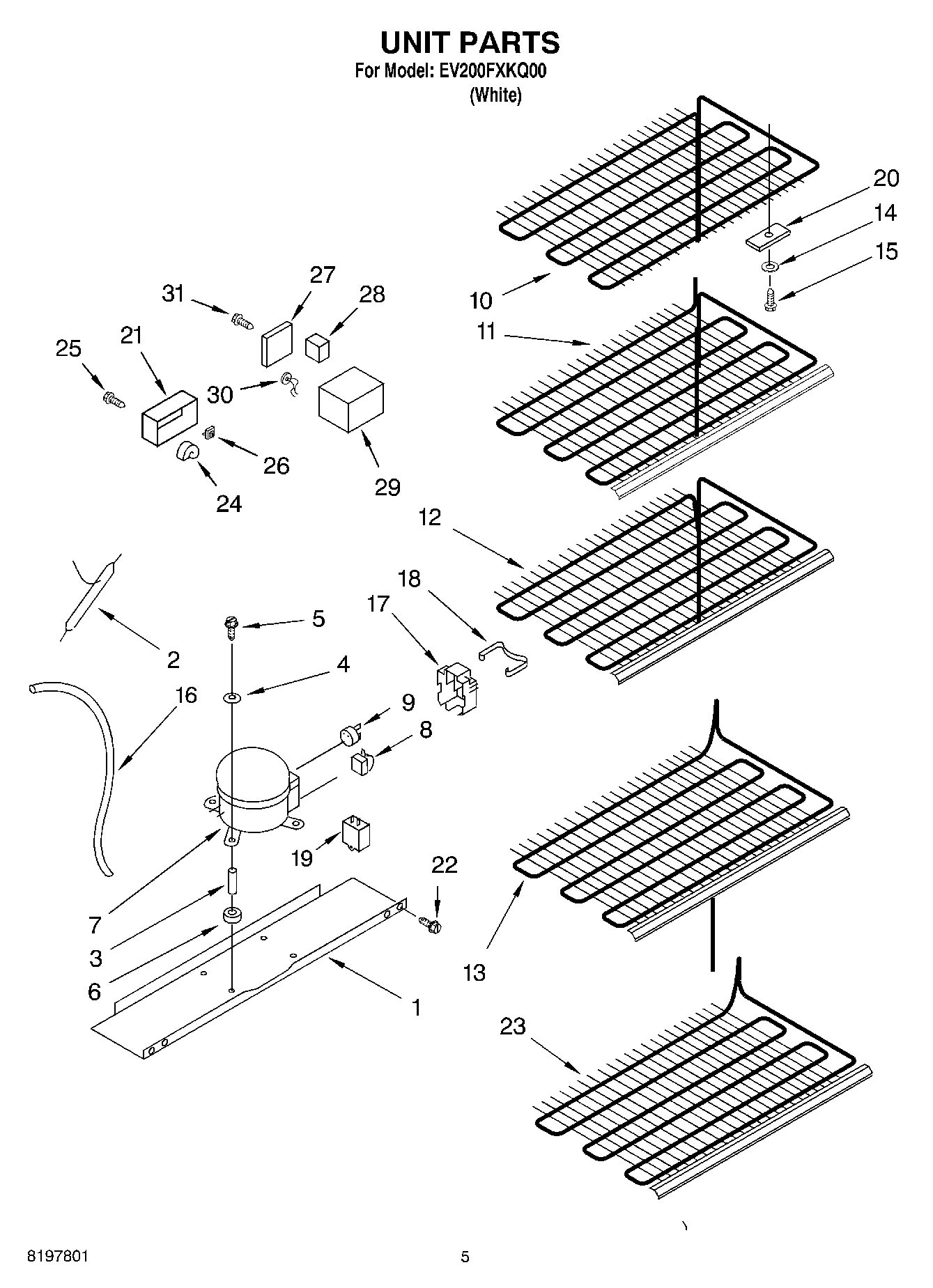

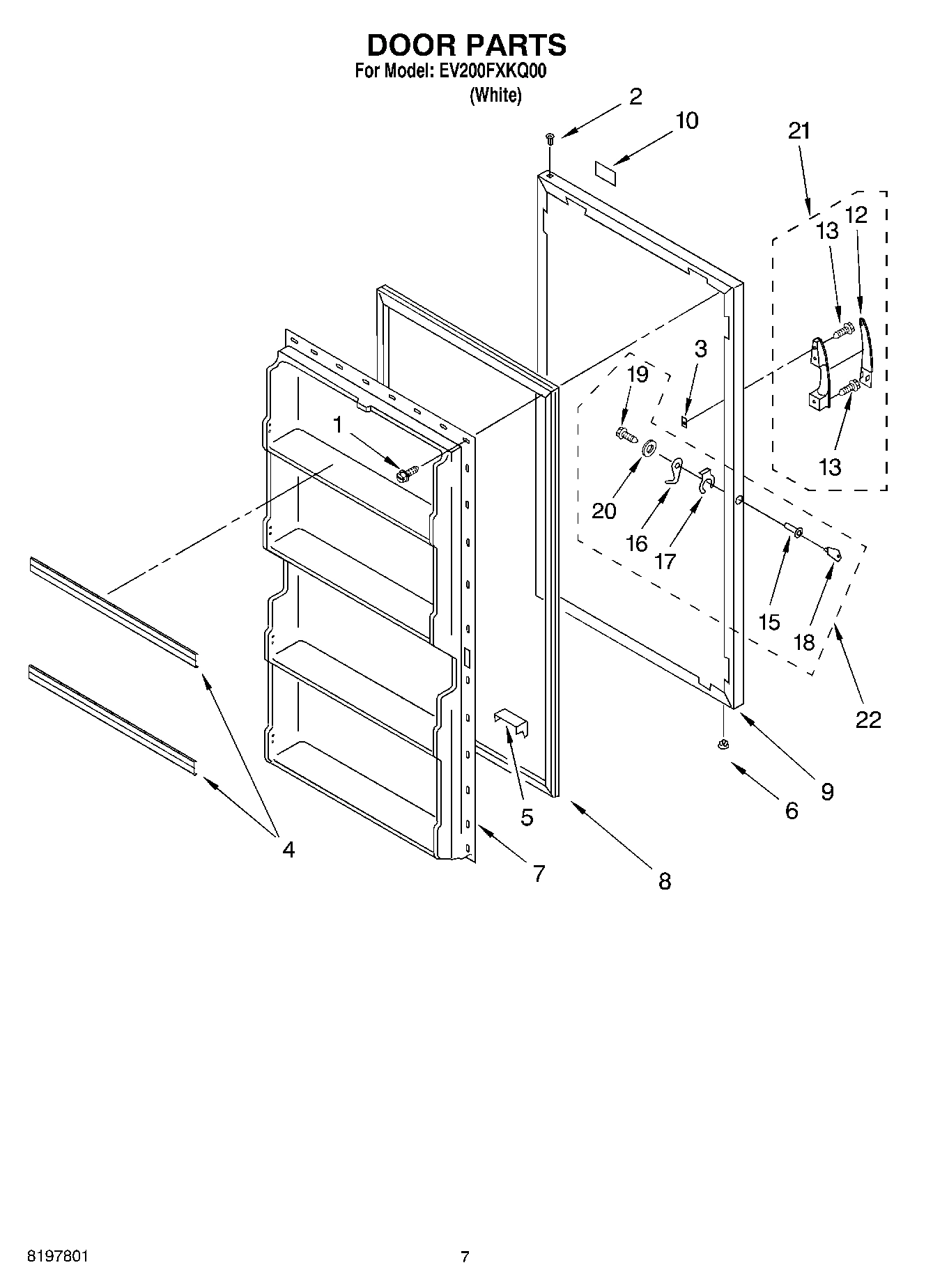

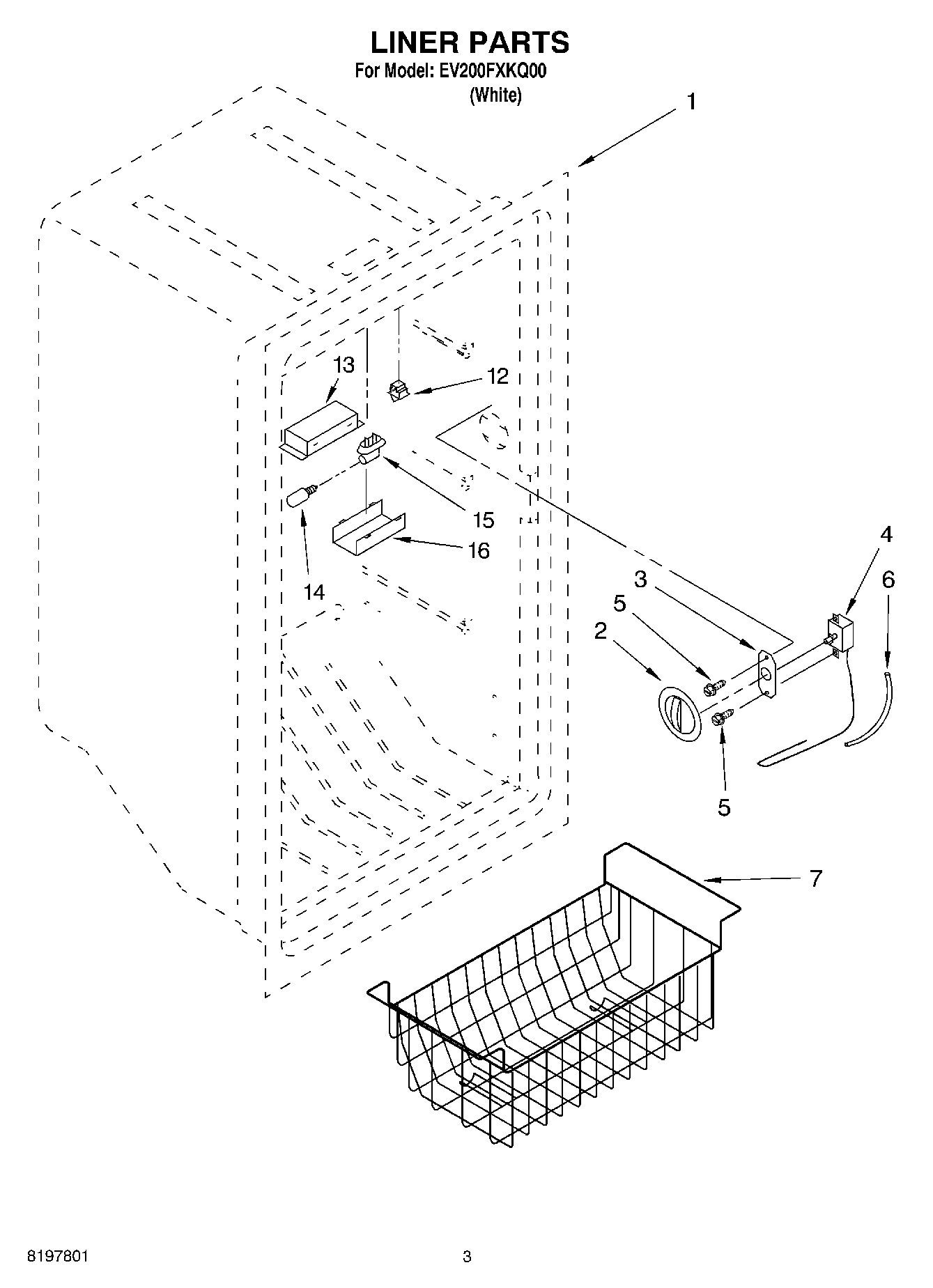

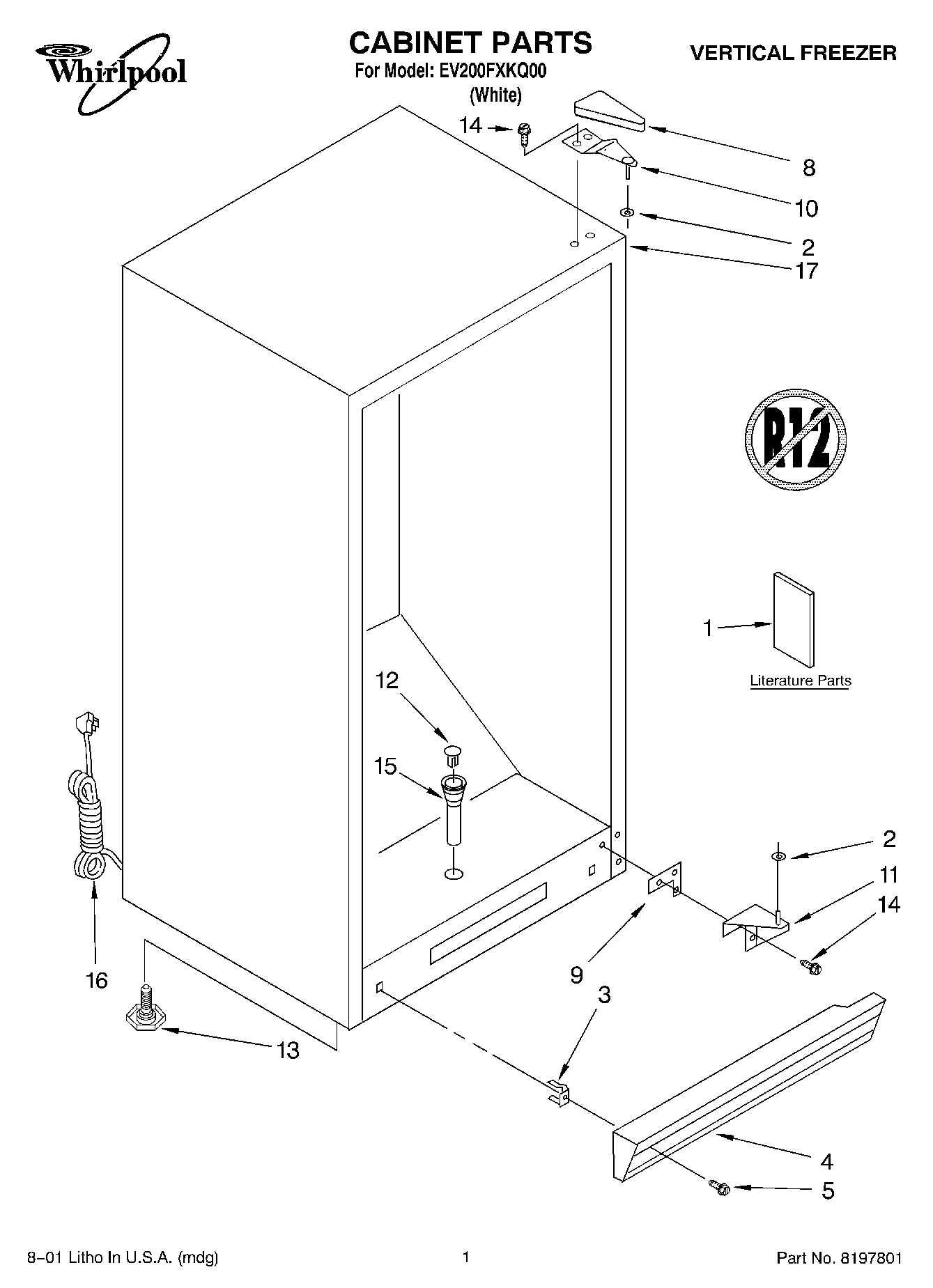

Model Whirlpool EV200FXKQ00 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Literature Parts (Owners Manual) WPL LIT4390678 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT4390699 Contact Us For Availability

1

Pan, Compressor Mounting WPL 4357095 Contact Us For Availability

2

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $14.53

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

2

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $6.79

3

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $6.94

3

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $9.35

3

Anchor, Screw WPL 4390680 Contact Us For Availability

4

Grille WPL 4357148 Contact Us For Availability

4

Washer WPL 4356847 Contact Us For Availability

4

Door Shelf Trim (4) WPL 4390702 Contact Us For Availability

5

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

5

Screw, Compressor Mounting WPL 4356852 Contact Us For Availability

5

Foam Block WPL 4356893 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $7.10

6

Grommet WPL 4356335 Contact Us For Availability

7

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

7

Interior Door WPL 4390701 Contact Us For Availability

8

WP4-81049-001 Whirlpool Freezer Door Gasket In Stock WPL WP4-81049-001 $241.52

8

Relay WPL 4356730 Contact Us For Availability

9

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $82.65

9

Shim, Bottom WPL 4356828 Contact Us For Availability

9

Door, Exterior WPL 4390845 Contact Us For Availability

10

Top, Hinge WPL 4357052 Contact Us For Availability

10

Evaporator Top WPL 4390703 Contact Us For Availability

10

Nameplate WPL 4390670 Contact Us For Availability

11

Bottom, Hinge WPL 4357050 Contact Us For Availability

11

Evaporator Shelf WPL 4390704 Contact Us For Availability

12

Drain Plug WPL 4357019 Contact Us For Availability

12

Evaporator Shelf WPL 4390705 Contact Us For Availability

12

Insert, Handle WPL 4390668 Contact Us For Availability

13

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $11.99

13

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

13

Evaporator Shelf WPL 4390706 Contact Us For Availability

14

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $9.65

14

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $10.90

14

Washer WPL 4357057 Contact Us For Availability

4357145 Whirlpool Freezer Door Lock Backorder WPL 4357145 $18.91

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Socket, Light WPL 4356874 Contact Us For Availability

Grommet, Drain WPL 4357269 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Shield, Light WPL 4390615 Contact Us For Availability

Power Cord WPL 4390693 Contact Us For Availability

Heat Exchanger WPL 4356956 Contact Us For Availability

Lock, Bolt WPL 4357224 Contact Us For Availability

17

Cabinet (Not A Serviceable Part) WPL ARI56244A2 Contact Us For Availability

17

Cover WPL 4390603 Contact Us For Availability

17

Spring Clip WPL 4356842 Contact Us For Availability

18

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $7.95

18

Clip WPL 4390604 Contact Us For Availability

19

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

20

1-80308-101 Whirlpool Refrigerator Bulb Clamp Backorder WPL 1-80308-101 $51.22

20

Washer WPL 4356992 Contact Us For Availability

21

Box, Alarm WPL 4390708 Contact Us For Availability

21

Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability

22

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

23

Evaporator Shelf, Bottom WPL 4390707 Contact Us For Availability

24

Buzzer, Alarm WPL 4390709 Contact Us For Availability

25

W10491985 Whirlpool Screw Backorder WPL W10491985 $6.99

26

Switch, Alarm WPL 4390711 Contact Us For Availability

27

Lid, Thermostat Box WPL 4390712 Contact Us For Availability

28

Block, Thermostat WPL 4390713 Contact Us For Availability

29

Box, Thermostat WPL 4390714 Contact Us For Availability

30

Thermodisc, Alarm WPL 4390715 Contact Us For Availability

31

Screw WPL 4390716 Contact Us For Availability
