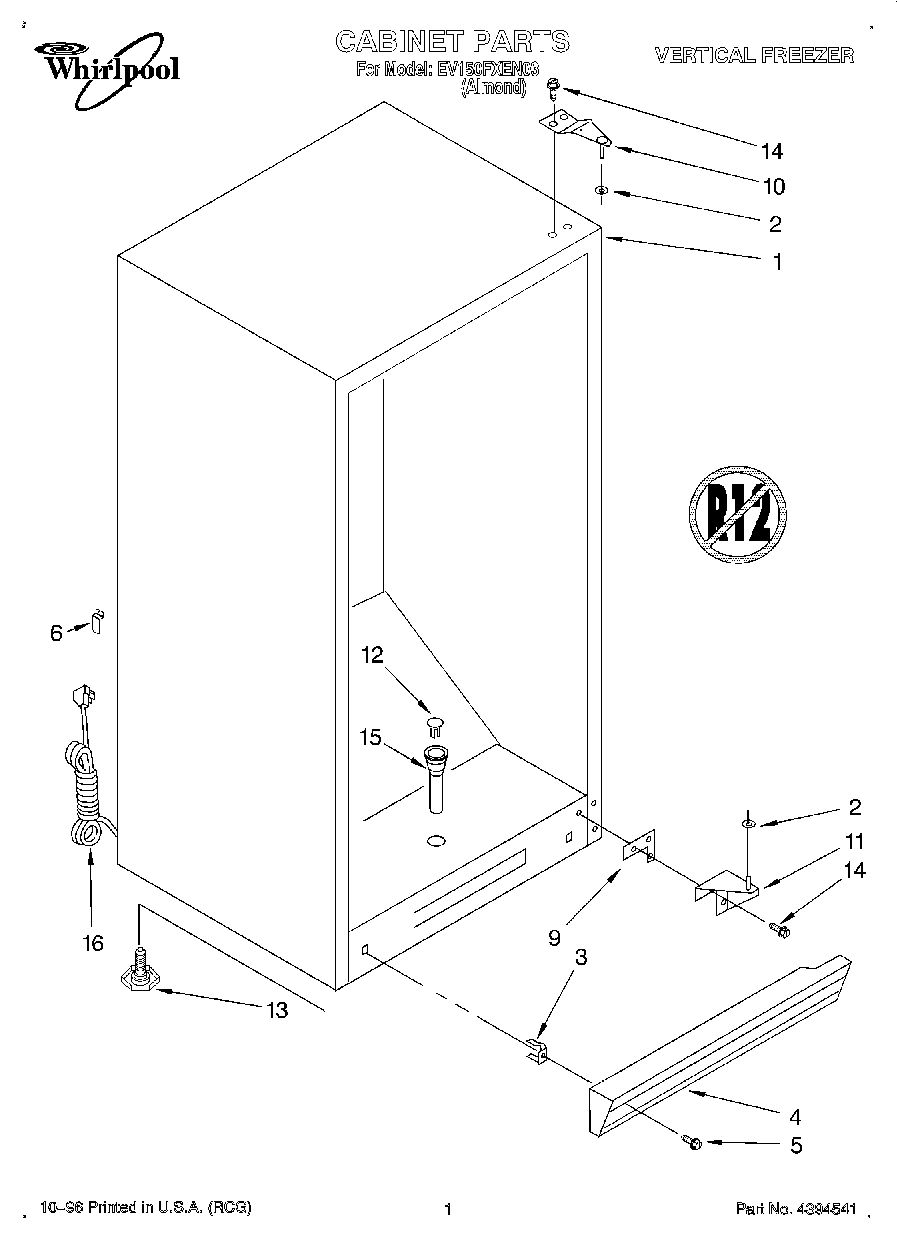

Model Whirlpool EV150FXEN03 VERTICAL FREEZER – Common Parts & Diagrams

Use & Care Guide
Use & Care Guide WPL LIT2165302 Contact Us For Availability
View on Model
Energy Label
Energy Label WPL LIT4357170 Contact Us For Availability
View on Model
1

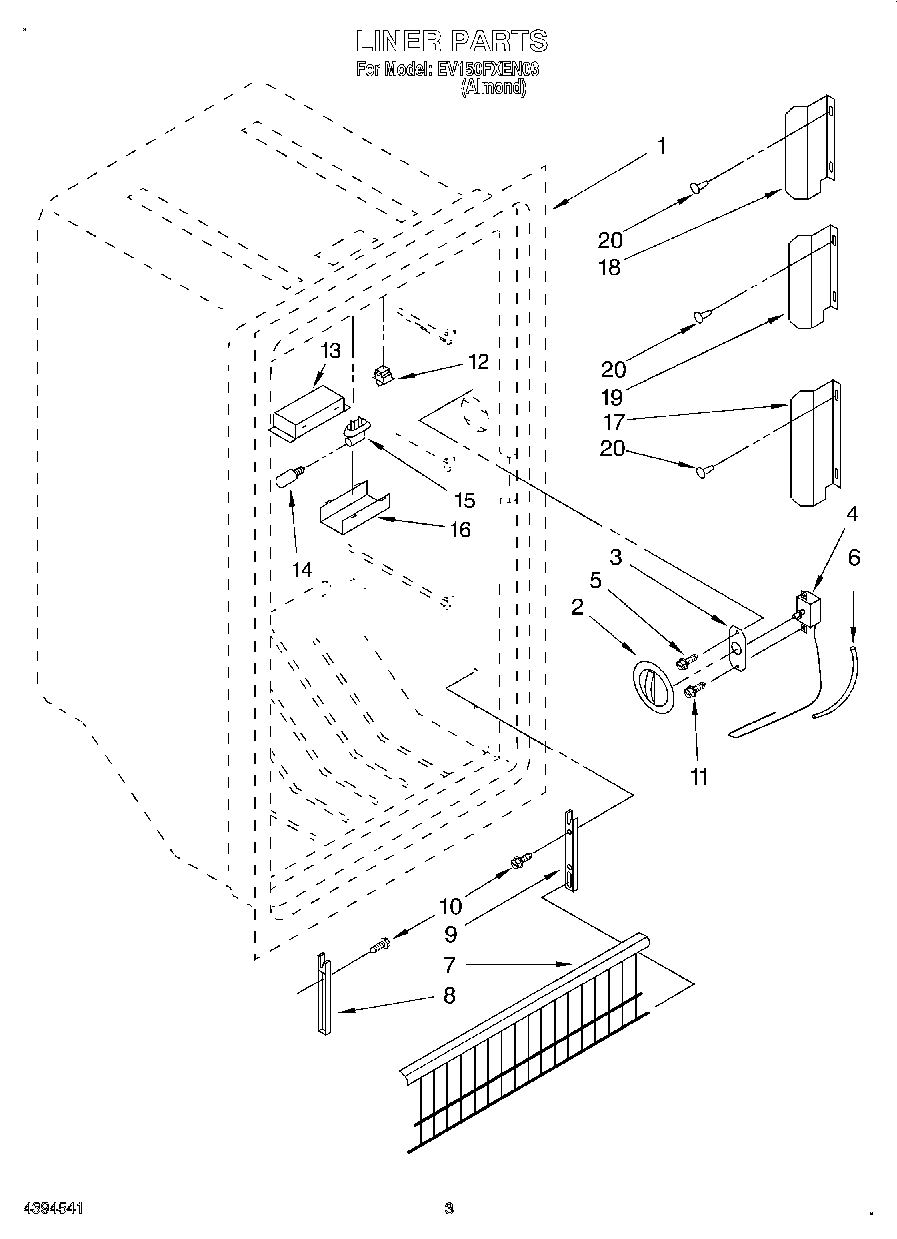

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI55753A7 Contact Us For Availability
View on Model
1

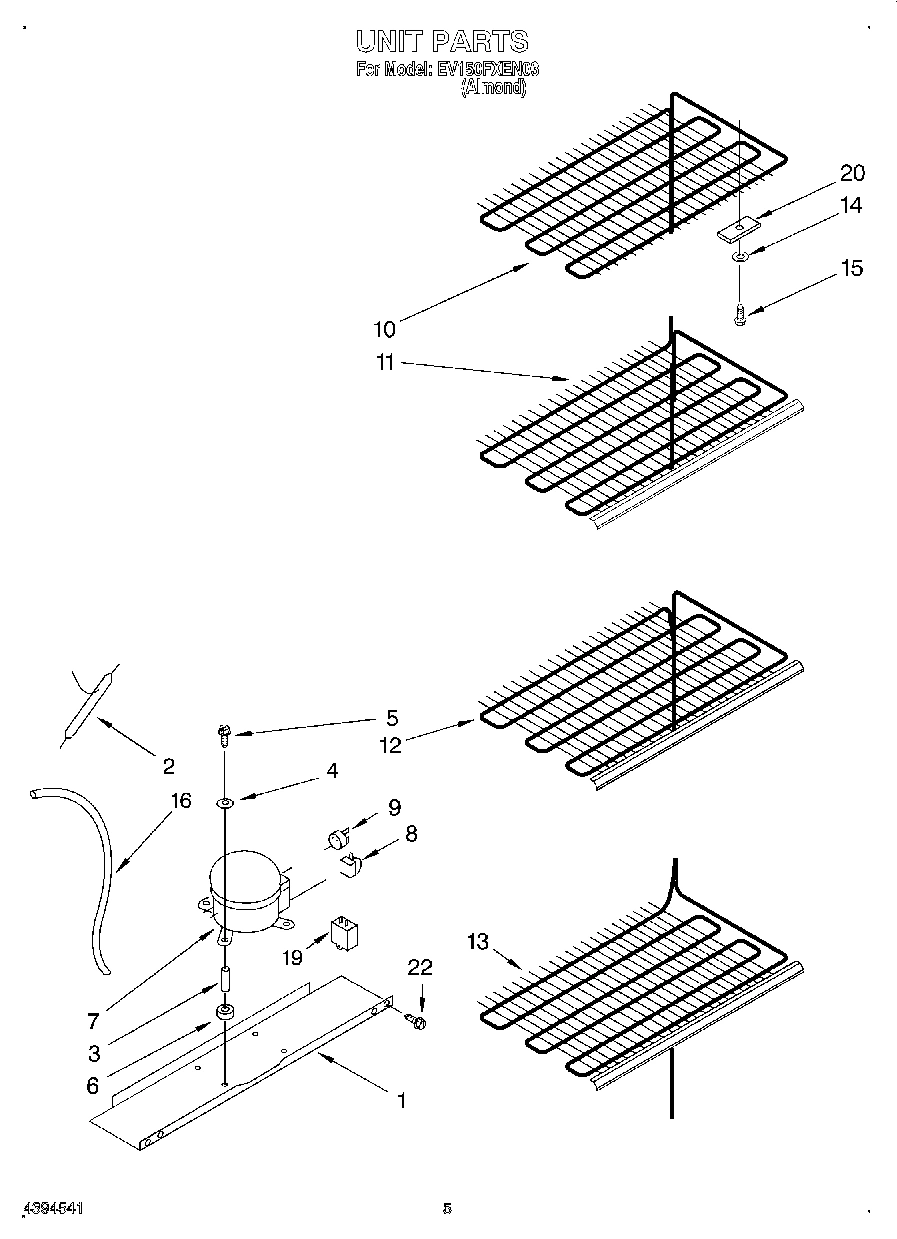

Compressor Mounting Pan
Compressor Mounting Pan WPL 4357109 Contact Us For Availability
View on Model
2
Control Knob
Control Knob WPL 4357040 Contact Us For Availability
View on Model
3
Anchor, Screw
Anchor, Screw WPL 4356812 Contact Us For Availability
View on Model
4
Door Shelf Trim (4)
Door Shelf Trim (4) WPL 4356813 Contact Us For Availability
View on Model
4
Thermostat
Thermostat WPL 4356808 Contact Us For Availability
View on Model
4
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
5
Foam Block
Foam Block WPL 4356893 Contact Us For Availability
View on Model
5
Compressor Mounting Screw
Compressor Mounting Screw WPL 4357054 Contact Us For Availability
View on Model
6
Compressor Grommet
Compressor Grommet WPL 4356335 Contact Us For Availability
View on Model
7
Gate
Gate WPL 4357163 Contact Us For Availability
View on Model
8
Support, Fence, (L.H.)
Support, Fence, (L.H.) WPL 4356889 Contact Us For Availability
View on Model
8
Relay
Relay WPL 4356994 Contact Us For Availability
View on Model
9

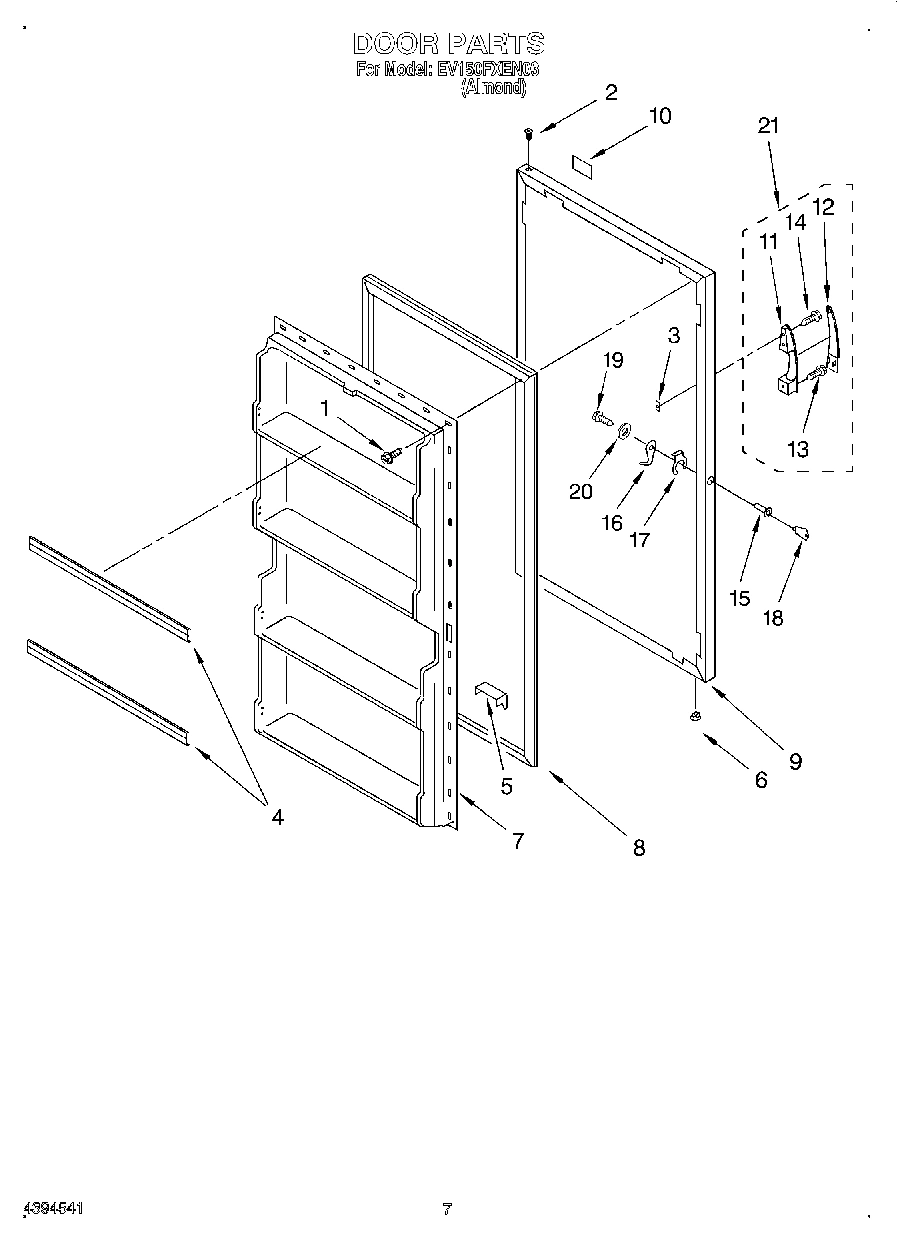

Exterior Door
Exterior Door WPL 4357164 Contact Us For Availability
View on Model
10
Nameplate
Nameplate WPL 4356940 Contact Us For Availability
View on Model
10
Screw
Screw WPL 4356891 Contact Us For Availability
View on Model
10
Evaporator Top
Evaporator Top WPL 4357232 Contact Us For Availability
View on Model
11
Bottom Hinge
Bottom Hinge WPL 4357102 Contact Us For Availability
View on Model
11
Handle
Handle WPL 4356895 Contact Us For Availability
View on Model
11
Evaporator Shelf
Evaporator Shelf WPL 4357167 Contact Us For Availability
View on Model
12
Drain Plug
Drain Plug WPL 4357019 Contact Us For Availability
View on Model
12
Insert, Handle
Insert, Handle WPL 4390553 Contact Us For Availability
View on Model
12
Evaporator Shelf
Evaporator Shelf WPL 4357168 Contact Us For Availability
View on Model
13
Bracket
Bracket WPL 4357089 Contact Us For Availability
View on Model
13
Evaporator Shelf
Evaporator Shelf WPL 4357169 Contact Us For Availability
View on Model
14
Screw (Short)
Screw (Short) WPL 4390511 Contact Us For Availability
View on Model
14
Washer
Washer WPL 4357057 Contact Us For Availability
View on Model
15
Grommet, Drain
Grommet, Drain WPL 4357147 Contact Us For Availability
View on Model
15
Socket, Lamp
Socket, Lamp WPL 4356874 Contact Us For Availability
View on Model
16
Power Cord
Power Cord WPL 4357096 Contact Us For Availability
View on Model
16
Light Shield
Light Shield WPL 4356934 Contact Us For Availability
View on Model
16
Heat Exchanger
Heat Exchanger WPL 4356990 Contact Us For Availability
View on Model
17
Spring Clip
Spring Clip WPL 4356842 Contact Us For Availability
View on Model
17
Tube Cover (13.25 Inches)
Tube Cover (13.25 Inches) WPL 4356867 Contact Us For Availability
View on Model
18
Tube Cover (9.62 Inches)
Tube Cover (9.62 Inches) WPL 4356868 Contact Us For Availability
View on Model
19
Tube Cover (10.25 Inches)
Tube Cover (10.25 Inches) WPL 4356897 Contact Us For Availability
View on Model
20
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
20
Washer
Washer WPL 4356992 Contact Us For Availability
View on Model
20
Clip
Clip WPL 4356317 Contact Us For Availability
View on Model
20
Enamel (Almond) (1 Qt. Uncut)
Enamel (Almond) (1 Qt. Uncut) WPL 798883 Contact Us For Availability
View on Model
21
Handle Assembly (Includes Items 11, 12, 13 &
Handle Assembly (Includes Items 11, 12, 13 & WPL 4357144 Contact Us For Availability
View on Model
