Model Whirlpool ET2GTKXKT00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

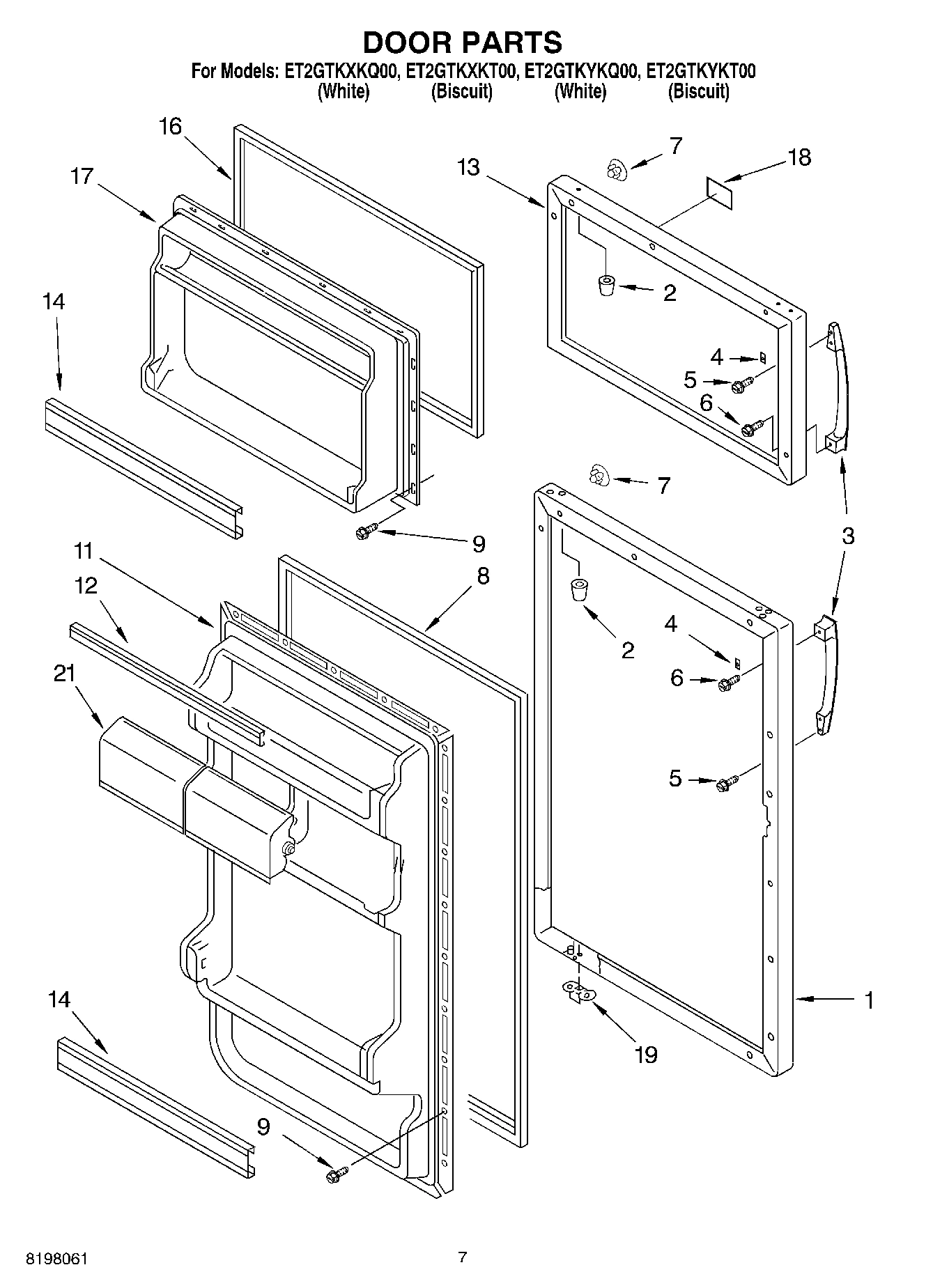

03 - DOOR

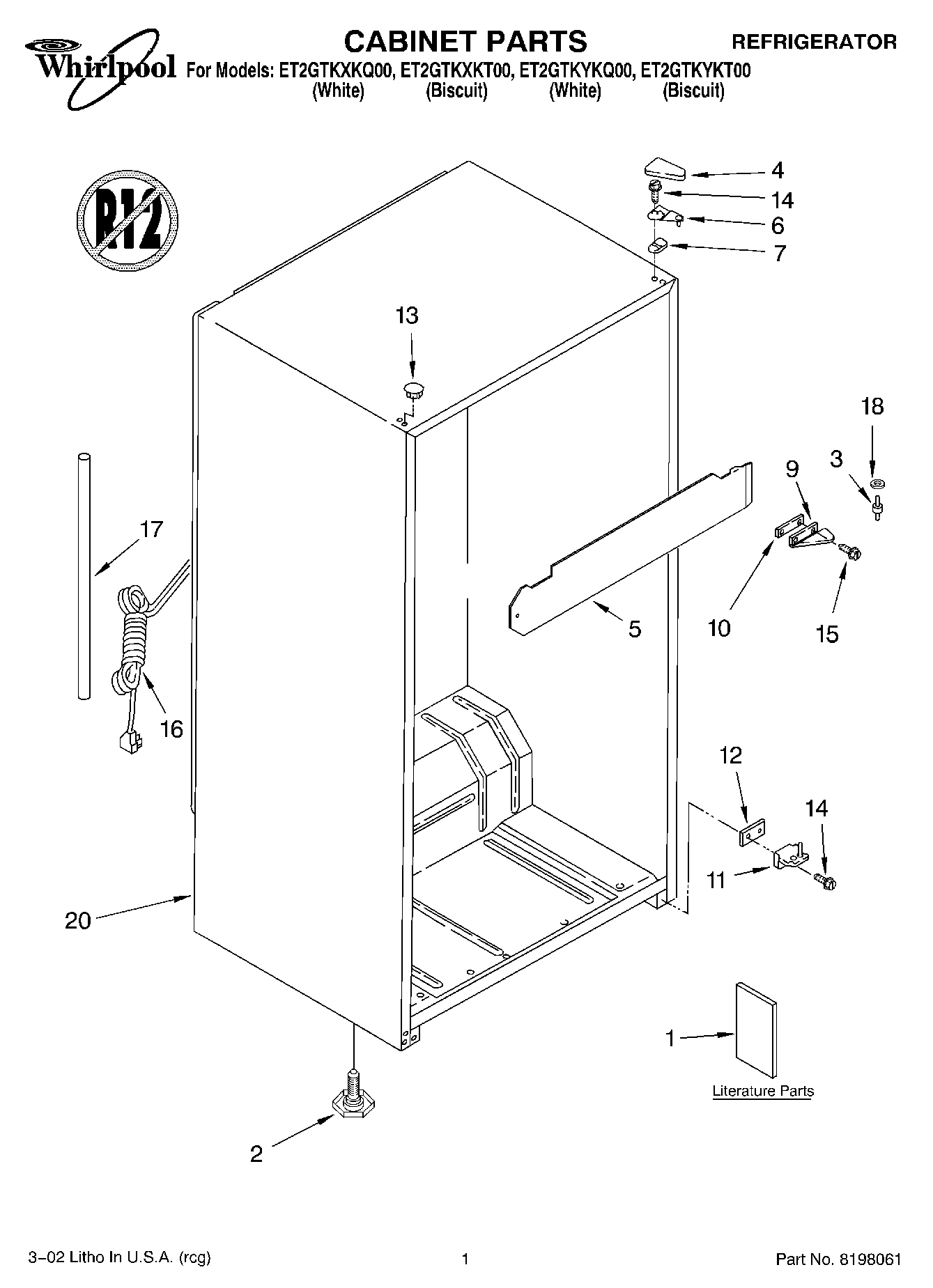

01 - CABINET, LITERATURE

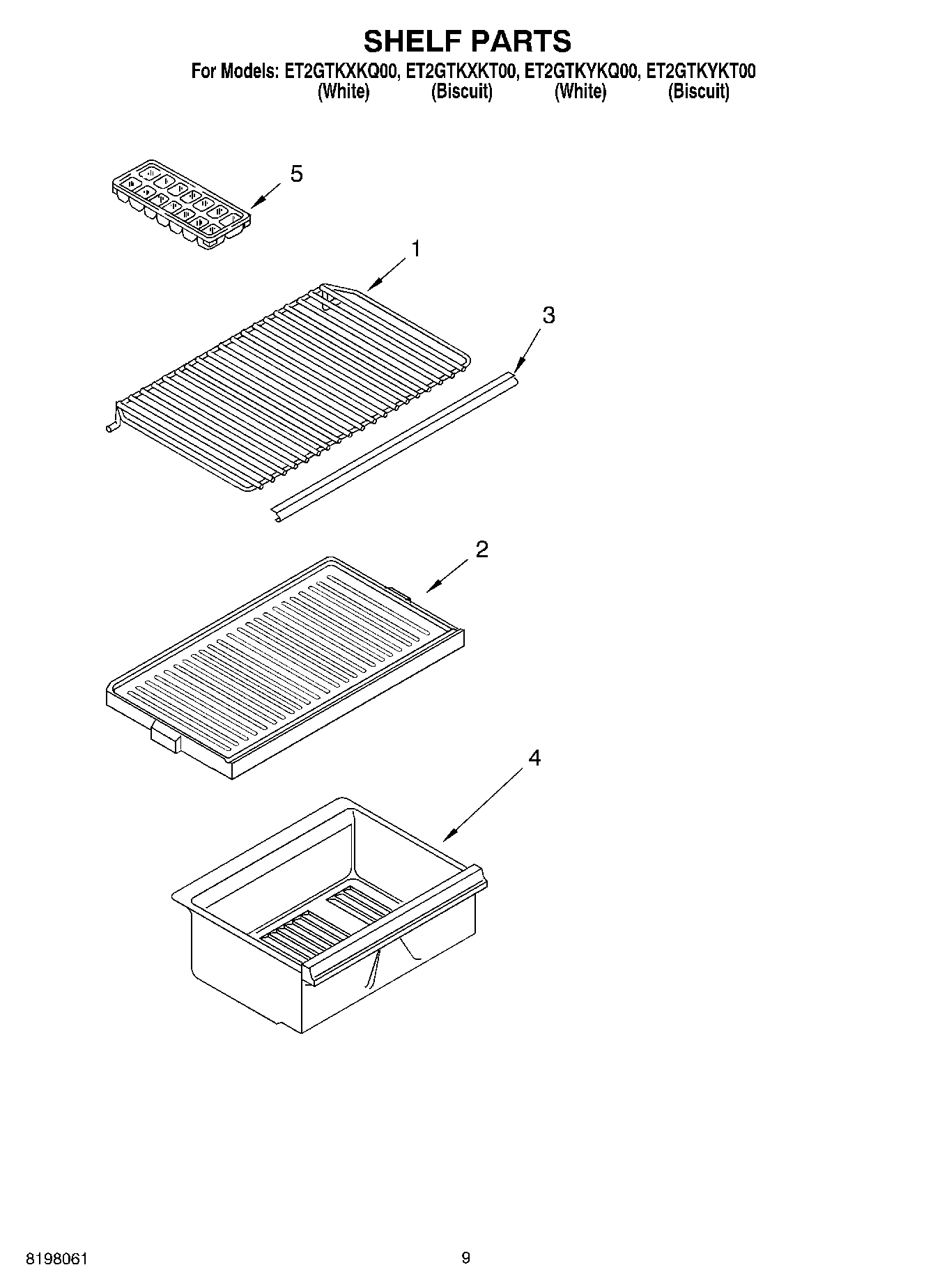

05 - SHELF, OPTIONAL

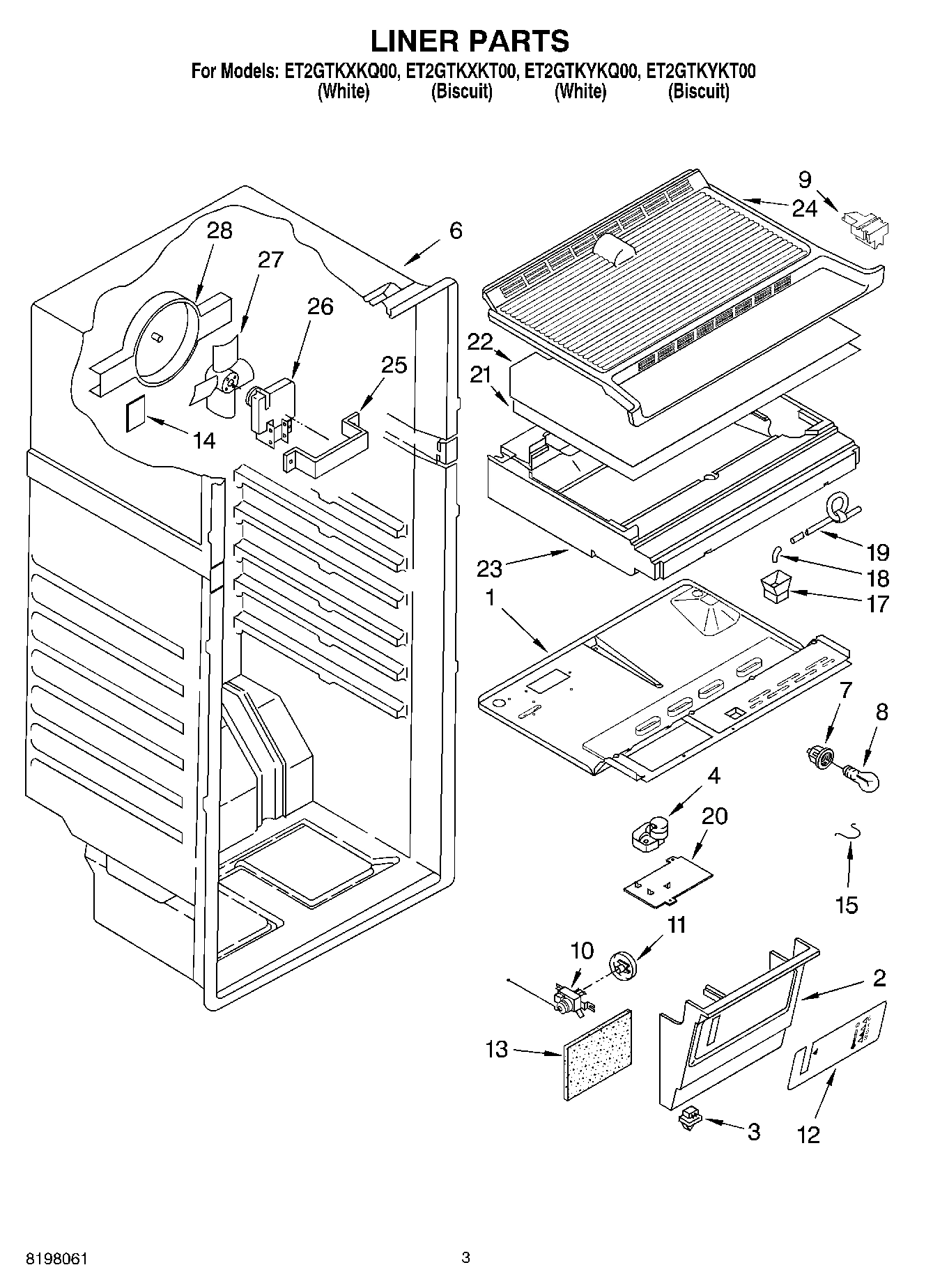

02 - LINER

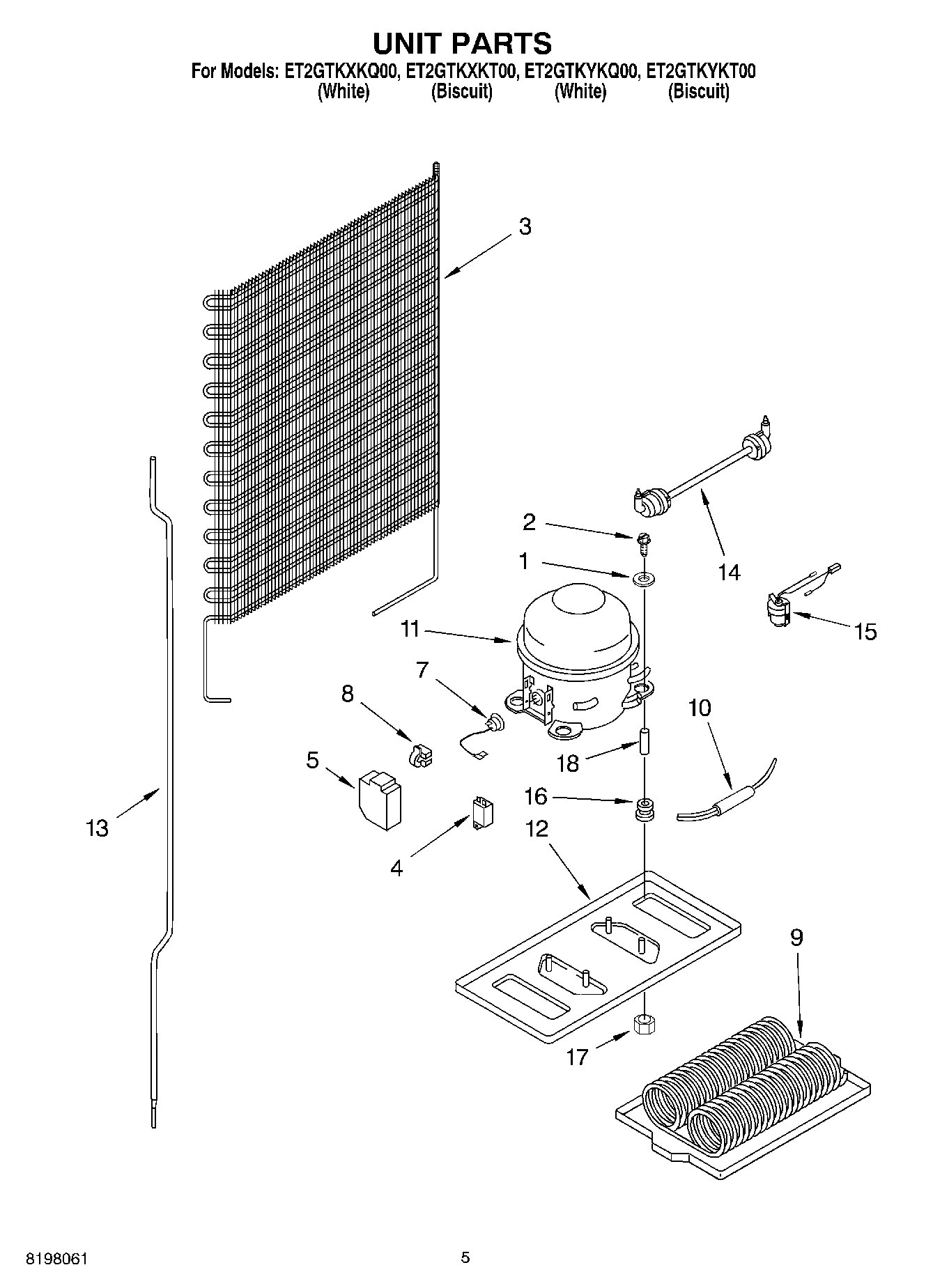

04 - UNIT
Common parts from model Whirlpool ET2GTKXKT00 TOP MOUNT REFRIGERATOR
1
Literature Parts (Owner`s Manual) WPL LIT4356798 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT4356799 Contact Us For Availability
1
Shelf, Wire (2) WPL 4390728 Contact Us For Availability
1
Bottom, Compartment Separator WPL 4390458 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4390837 Contact Us For Availability
1
Refrigerator Door Panel (Biscuit) WPL 4390840 Contact Us For Availability
2
Cover, Crisper WPL 4390472 Contact Us For Availability
2
Box, Control WPL 4390536 Contact Us For Availability
2
Cap, Hinge Sleeve (Biscuit) WPL 4390827 Contact Us For Availability
3
Pin, Center Hinge WPL 4390544 Contact Us For Availability
3
Trim, Shelf (2) WPL 4390729 Contact Us For Availability
3
Handle Kit (White) WPL 4390575 Contact Us For Availability
3
Handle Kit (Biscuit) WPL 4390841 Contact Us For Availability
4
Timer, Defrost WPL 4390515 Contact Us For Availability
4
Hinge Cover (White) WPL 4357279 Contact Us For Availability
4
Hinge Cover (Biscuit) WPL 4390826 Contact Us For Availability
4
Pan, Crisper WPL 4390835 Contact Us For Availability
4
Anchor, Screw WPL 4356306 Contact Us For Availability
5
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Center Rail WPL 4390723 Contact Us For Availability
5
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
6
Hinge, Top (White) WPL 4390673 Contact Us For Availability
6
Hinge, Top (Biscuit) WPL 4390825 Contact Us For Availability
6
Liner (Not A Servicable Part) WPL ARI50557A8 Contact Us For Availability
6
Screw WPL 4390511 Contact Us For Availability
7
Socket, Light WPL 4390644 Contact Us For Availability
7
Hole Plug (Biscuit) WPL 4390839 Contact Us For Availability
8
Relay WPL 4356738 Contact Us For Availability
8
Door Gasket, Magnetic WPL 4390727 Contact Us For Availability
9
Center Hinge (White) WPL 4390732 Contact Us For Availability
9
Center Hinge (Biscuit) WPL 4390828 Contact Us For Availability
9
Plug, Evaporator WPL 4390457 Contact Us For Availability
10
Thermostat WPL 4390730 Contact Us For Availability
10
Shim, Center Hinge WPL 4390646 Contact Us For Availability
11
Bottom Hinge (White) WPL 4390733 Contact Us For Availability
11
Bottom Hinge (Biscuit) WPL 4390829 Contact Us For Availability
11
Knob, Thermostat WPL 4390480 Contact Us For Availability
11
Interior Door Panel (Refrigerator) WPL 4390726 Contact Us For Availability
12
Shim, Bottom Hinge WPL 4390497 Contact Us For Availability
12
Insert WPL 4390476 Contact Us For Availability
12
Trim, Door Shelf WPL 4390467 Contact Us For Availability
13
Hole Plug (Biscuit) WPL 4390830 Contact Us For Availability
13
Hole Plug (White) WPL 4390836 Contact Us For Availability
13
Insulation WPL 4390477 Contact Us For Availability
13
Freezer Door Panel (White) WPL 4390838 Contact Us For Availability
13
Freezer Door Panel (Biscuit) WPL 4390842 Contact Us For Availability
14
Trim, Door Shelf WPL 4390464 Contact Us For Availability
15
Clip WPL 4390481 Contact Us For Availability
16
Door Gasket, Magnetic WPL 4390724 Contact Us For Availability
16
Cord, Service WPL 4390591 Contact Us For Availability
17
Nut WPL 4390590 Contact Us For Availability
17
Tube Insulation, Heat Exchanger WPL 4390648 Contact Us For Availability
17
Drain Cup WPL 4390483 Contact Us For Availability
17
Interior Door Panel (Freezer) WPL 4390725 Contact Us For Availability
18
Washer, Door Adjust WPL 4390623 Contact Us For Availability
18
Elbow, Drain WPL 4390484 Contact Us For Availability
18
Nameplate (White) WPL 4390656 Contact Us For Availability
18
Nameplate (Biscuit) WPL 4390843 Contact Us For Availability
19
Drain Tube WPL 4390537 Contact Us For Availability
19
Bracket, Door Stop WPL 4390738 Contact Us For Availability
20
Cabinet (Not A Serviceable Part) WPL ARI50556A6 Contact Us For Availability
20
Plate, Defrost Timer WPL 4390514 Contact Us For Availability
21
Shield, Heater (Aluminum) WPL 4390556 Contact Us For Availability
21
Compartment Door WPL 4390779 Contact Us For Availability
22
Cover, Evaporator Housing WPL 4390517 Contact Us For Availability
23
Insulation, Compartment WPL 4390722 Contact Us For Availability
24
Separator, Compartment (Top) WPL 4390720 Contact Us For Availability
25
Bracket, Motor WPL 4390452 Contact Us For Availability
26
Motor, Fan WPL 4390451 Contact Us For Availability
27
Blade, Fan WPL 4390518 Contact Us For Availability
28
Scroll, Fan WPL 4390519 Contact Us For Availability
× ![]()
