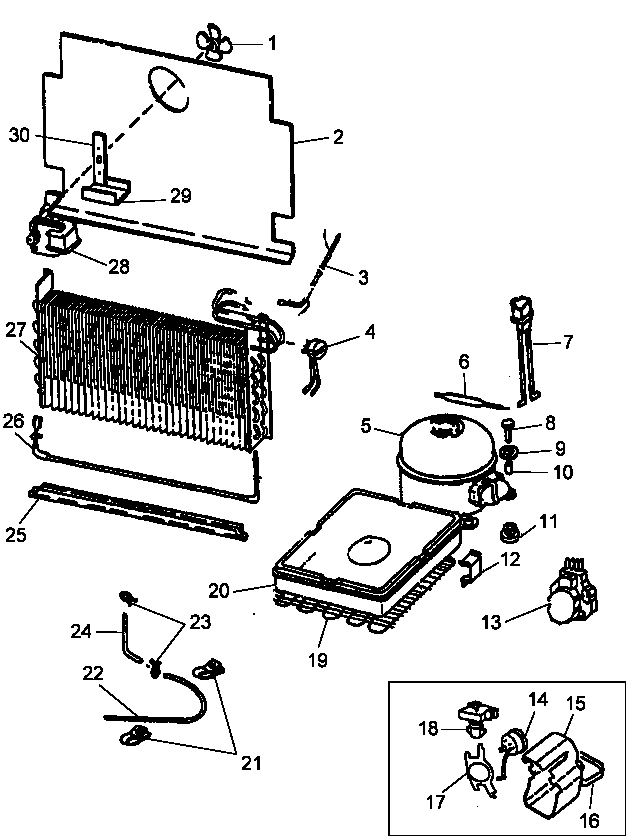

Whirlpool ESUF20HW FREEZER Parts List

FREEZERS WERE MANUFACTURED WITH INCORRECT MAN WPL NOTE Contact Us For Availability

View on Model

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

View on Model

1

BLADE, EVAP FAN (4 BLADES) WPL R0213210 Contact Us For Availability

View on Model

1

DOOR, OUTER ESU20 WPL R0213250 Contact Us For Availability

View on Model

2

BRACKET, LIGHT SWITCH WPL R0213160 Contact Us For Availability

View on Model

2

PLATE, EVAP MTG WPL R0213217 Contact Us For Availability

View on Model

2

KIT, HANDLE WPL R0213287 Contact Us For Availability

View on Model

3

WP4357245 Whirlpool Refrigerator Exchanger Backorder WPL WP4357245 $206.90

View on Model

3

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

View on Model

3

INSERT, HANDLE WPL R0213231 Contact Us For Availability

View on Model

4

WP1-81801-001 Whirlpool Refrigerator Bimetall In Stock WPL WP1-81801-001 $54.66

View on Model

4

SOCKET WPL R0213162 Contact Us For Availability

View on Model

4

NAMEPLATE, HANDLE WPL R0213114 Contact Us For Availability

View on Model

5

4357145 Whirlpool Freezer Door Lock Backorder WPL 4357145 $20.23

View on Model

5

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $301.93

View on Model

5

SHIELD, LIGHT WPL R0213163 Contact Us For Availability

View on Model

6

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

View on Model

6

KNOB, TEMP. CONTROL WPL R0213101 Contact Us For Availability

View on Model

6

LINER KIT WPL R0213253 Contact Us For Availability

View on Model

7

1-81154 Whirlpool Plate Backorder WPL 1-81154 $10.97

View on Model

7

WP4-81049-001 Whirlpool Freezer Door Gasket In Stock WPL WP4-81049-001 $168.62

View on Model

7

ASSY, CAPACITOR WPL R0213187 Contact Us For Availability

View on Model

8

WP4-83053-003 Whirlpool Freezer Thermostat Backorder WPL WP4-83053-003 $179.31

View on Model

8

SCREW, COMPRESSOR MTG WPL R0213137 Contact Us For Availability

View on Model

9

SLEEVE, TEMP CONT BULB WPL R0213106 Contact Us For Availability

View on Model

9

WASHER, COMPRESSOR MTG WPL R0213138 Contact Us For Availability

View on Model

10

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $9.35

View on Model

10

SHELF WPL R0213226 Contact Us For Availability

View on Model

10

KIT, LOWER HINGE WPL R0213258 Contact Us For Availability

View on Model

11

SHELF WPL R0213227 Contact Us For Availability

View on Model

11

GROMMET, COMPRESSOR MTG WPL R0213140 Contact Us For Availability

View on Model

11

SHIM, BOTTOM HINGE WPL R0213127 Contact Us For Availability

View on Model

12

COVER-SUCTION LINE WPL R0213196 Contact Us For Availability

View on Model

12

SEAL, AIR BLOCK WPL R0213218 Contact Us For Availability

View on Model

12

BRACKET, DRAIN PAN WPL R0213213 Contact Us For Availability

View on Model

13

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $6.94

View on Model

13

KIT, EVAP COVER WPL R0213266 Contact Us For Availability

View on Model

13

TIMER, DEFROST WPL R0213205 Contact Us For Availability

View on Model

14

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $80.93

View on Model

14

SUPPORT GATE FENCE (RT) WPL R0213109 Contact Us For Availability

View on Model

14

TRIM, DOOR SHELF WPL R0213185 Contact Us For Availability

View on Model

15

RACK, SMALL SPECIALTY WPL R0213235 Contact Us For Availability

View on Model

15

COVER, COMP TERM WPL R0213144 Contact Us For Availability

View on Model

15

BUSHING, LOWER HINGE MTG WPL R0213123 Contact Us For Availability

View on Model

16

RACK, LARGE SPECIALTY WPL R0213236 Contact Us For Availability

View on Model

16

CLAMP, TERM. COVER WPL R0213145 Contact Us For Availability

View on Model

17

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $12.02

View on Model

17

SPRING, OVERLOAD WPL R0213274 Contact Us For Availability

View on Model

17

HINGE, UPPER WPL R0213262 Contact Us For Availability

View on Model

18

2154436 Whirlpool Refrigerator Start Relay Backorder WPL 2154436 $98.28

View on Model

18

GATE, FENCE WPL R0213182 Contact Us For Availability

View on Model

19

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

View on Model

19

CONDENSER WPL R0213201 Contact Us For Availability

View on Model

20

DRAIN TUBE WPL R0213246 Contact Us For Availability

View on Model

20

KIT, DRAIN WPL R0213212 Contact Us For Availability

View on Model

20

SPRING CLIP, LOCK WPL R0213118 Contact Us For Availability

View on Model

21

CLIP, EVAP. COVER WPL R0213199 Contact Us For Availability

View on Model

21

CLAMP, DRAIN WPL R0213175 Contact Us For Availability

View on Model

21

BODY, LOCK WPL R0213116 Contact Us For Availability

View on Model

22

GASKET, EVAP. COVER WPL R0213198 Contact Us For Availability

View on Model

22

HOSE, DRAIN WPL R0213214 Contact Us For Availability

View on Model

22

BOLT, LOCK WPL R0213117 Contact Us For Availability

View on Model

23

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $7.52

View on Model

23

CLAMP, DRAIN WPL R0213215 Contact Us For Availability

View on Model

23

KIT, HANDLE WPL R0213259 Contact Us For Availability

View on Model

24

DRAIN TUBE WPL R0213174 Contact Us For Availability

View on Model

25

SHIELD, HEATER WPL R0213207 Contact Us For Availability

View on Model

26

W11175809 Whirlpool Refrigerator Heater In Stock WPL W11175809 $114.06

View on Model

27

WP4-81546 Whirlpool Refrigerator Evaporator Backorder WPL WP4-81546 $296.91

View on Model

28

MOTOR, EVAP FAN WPL R0213209 Contact Us For Availability

View on Model

29

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $83.13

View on Model

30

2-80028-101 Whirlpool Refrigerator Motor Brac Backorder WPL 2-80028-101 $63.26

View on Model

NI

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $7.10

View on Model

NI

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $4.82

View on Model

NI

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $42.56

View on Model

NI

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

View on Model

NI

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

View on Model

NI

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

View on Model

NI

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

View on Model

NI

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $10.90

View on Model

NI

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

View on Model

NI

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

View on Model

NI

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

View on Model

NI

SCREW, SUPPORT GATE MTG WPL R0213107 Contact Us For Availability

View on Model

NI

CLIP, LINER WPL R0213192 Contact Us For Availability

View on Model

NI

TUNNEL-SUCTION LINE WPL R0213152 Contact Us For Availability

View on Model

NI

RETAINER, TUNNEL (SUCTION LINE WPL R0213153 Contact Us For Availability

View on Model

NI

TUBE, OIL COOLER WPL R0213156 Contact Us For Availability

View on Model

NI

SCREW, COMPRESSOR MTG PAN WPL R0213157 Contact Us For Availability

View on Model

NI

CORD WPL R0213277 Contact Us For Availability

View on Model

NI

GROMMET, EVAP MTG WPL R0213278 Contact Us For Availability

View on Model

NI

SCREW-FAN BRKT MT WPL R0213281 Contact Us For Availability

View on Model

NI

KIT, COMP MTG WPL R0213282 Contact Us For Availability

View on Model

NI

CLIP, CONT BULB WPL R0213283 Contact Us For Availability

View on Model

NI

WIRE, GROUND WPL R0213284 Contact Us For Availability

View on Model

NI

KEY, LOCK WPL R0213120 Contact Us For Availability

View on Model

NI

SCREW, 2`` (HANDLE MOUNT) WPL R0213234 Contact Us For Availability

View on Model

NI

WASHER, LOCK WPL R0213263 Contact Us For Availability

View on Model
