Model Whirlpool ESU12HW FREEZER – Common Parts & Diagrams
03 - Unit Compartment and System

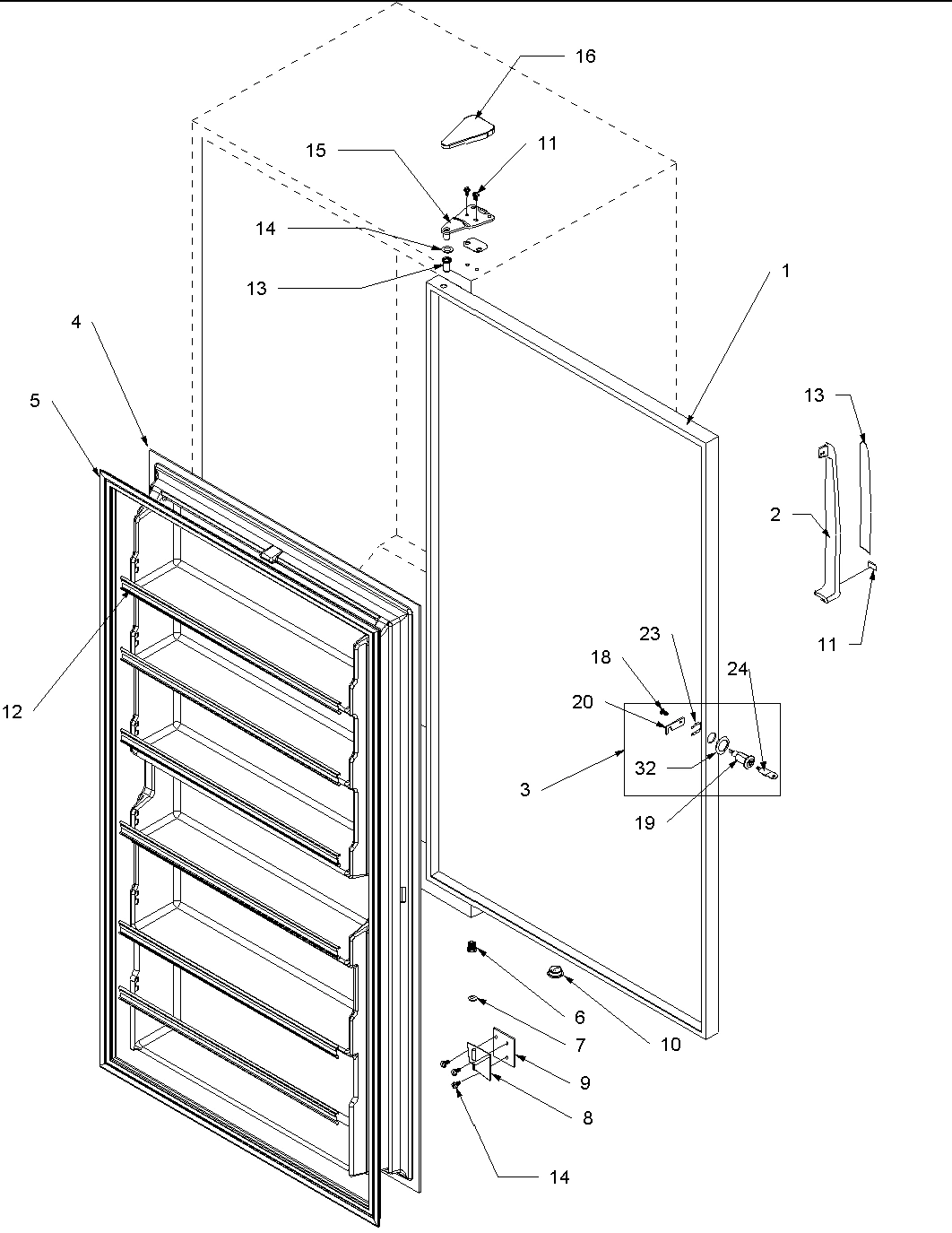

02 - Freezer Door

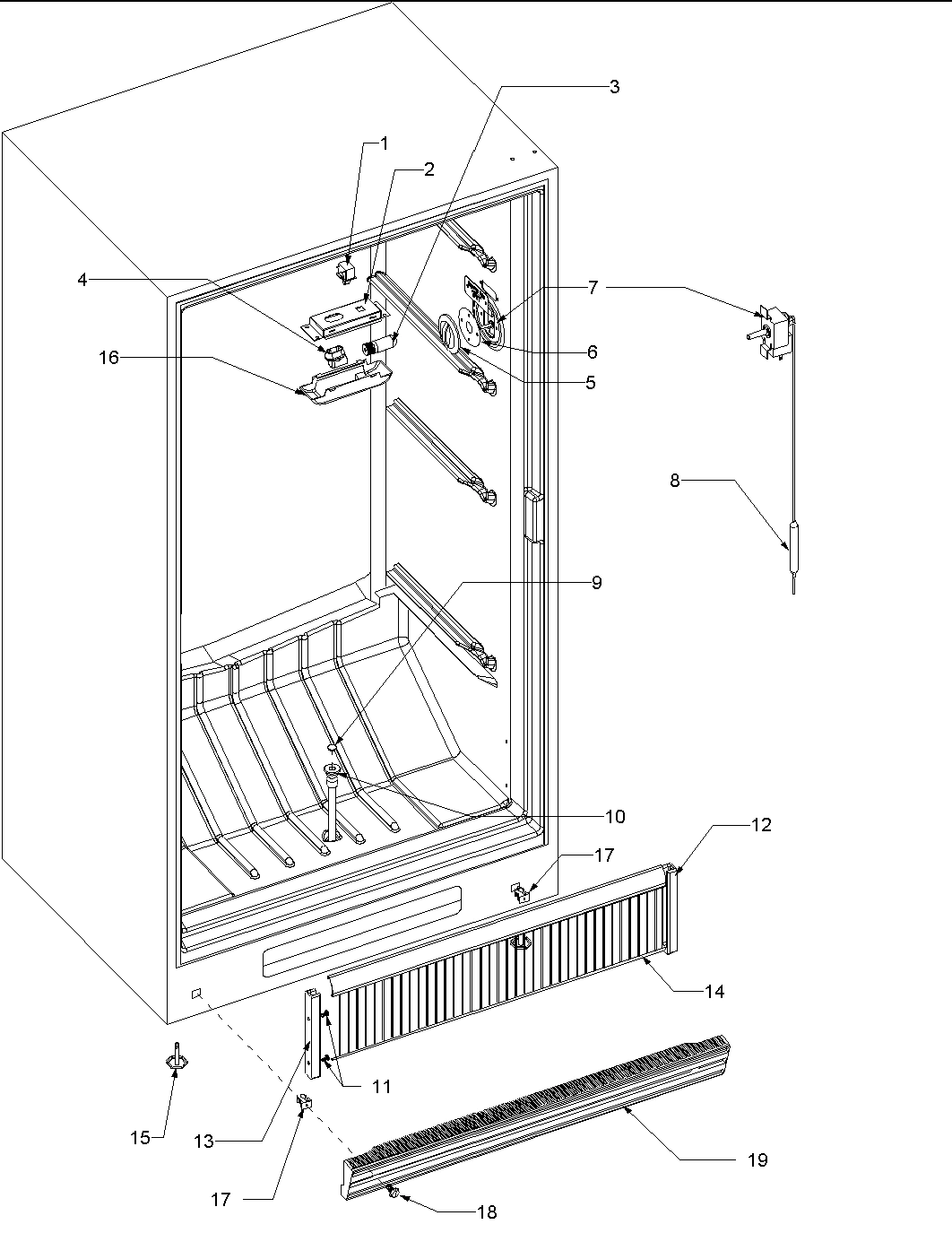

01 - Freezer Compartment
Common parts from model Whirlpool ESU12HW FREEZER
1
COMPRESSOR KIT WPL R0213295 Contact Us For Availability
1
DOOR, OUTER 12 WPL R0213289 Contact Us For Availability
2
SCREW, COMPRESSOR MTG WPL R0213137 Contact Us For Availability
2
KIT, HANDLE WPL R0213287 Contact Us For Availability
3
WASHER, COMPRESSOR MTG WPL R0213138 Contact Us For Availability
4
KIT, DOOR LINER WPL R0213285 Contact Us For Availability
5
GROMMET, COMPRESSOR MTG WPL R0213140 Contact Us For Availability
5
KIT, GASKET SEAL 12 WPL R0213292 Contact Us For Availability
5
KNOB, TEMP. CONTROL WPL R0213101 Contact Us For Availability
6
BUSHING, LOWER HINGE MTG WPL R0213123 Contact Us For Availability
7
OVERLOAD PROTECTOR WPL R0213142 Contact Us For Availability
7
CONTROL,TEMP.CFC12 WPL R0213103 Contact Us For Availability
8
KIT, LOWER HINGE WPL R0213258 Contact Us For Availability
8
SLEEVE, TEMP CONT BULB WPL R0213106 Contact Us For Availability
9
CAPACITOR, RUN (W/WIRES) WPL R0213143 Contact Us For Availability
9
SHIM, BOTTOM HINGE WPL R0213127 Contact Us For Availability
10
COVER, COMP TERM WPL R0213144 Contact Us For Availability
11
CLAMP, TERM. COVER WPL R0213145 Contact Us For Availability
11
NAMEPLATE, HANDLE WPL R0213114 Contact Us For Availability
11
SCREW, SUPPORT GATE MTG WPL R0213107 Contact Us For Availability
12
TRIM, DOOR SHELF WPL R0213130 Contact Us For Availability
12
SUPPORT GATE FENCE (RT) WPL R0213109 Contact Us For Availability
13
HEAT EXCHANGER WPL R0213147 Contact Us For Availability
13
INSERT, HANDLE WPL R0213231 Contact Us For Availability
14
GATE, FENCE WPL R0213110 Contact Us For Availability
15
HINGE, UPPER WPL R0213262 Contact Us For Availability
17
ASSY, EVAPORATOR WPL R0213148 Contact Us For Availability
19
BODY, LOCK WPL R0213116 Contact Us For Availability
19
KIT, KICKPLATE 12 WPL R0213293 Contact Us For Availability
20
BOLT, LOCK WPL R0213117 Contact Us For Availability
23
SPRING CLIP, LOCK WPL R0213118 Contact Us For Availability
24
KEY, LOCK WPL R0213120 Contact Us For Availability
32
WASHER, LOCK WPL R0213263 Contact Us For Availability
NI
WASHER, EVAP ASS`Y MTG WPL R0213151 Contact Us For Availability
NI
TUNNEL-SUCTION LINE WPL R0213152 Contact Us For Availability
NI
RETAINER, TUNNEL (SUCTION LINE WPL R0213153 Contact Us For Availability
NI
GROMMET, SUCTION LINE WPL R0213155 Contact Us For Availability
NI
TUBE, OIL COOLER WPL R0213156 Contact Us For Availability
NI
SCREW, COMPRESSOR MTG PAN WPL R0213157 Contact Us For Availability
NI
SPRING, OVERLOAD WPL R0213274 Contact Us For Availability
NI
KIT, COMP MTG 12 WPL R0213296 Contact Us For Availability
NI
CORD (15,17,20) WPL R0213298 Contact Us For Availability
NI
SCREW, 2`` (HANDLE MOUNT) WPL R0213234 Contact Us For Availability
× ![]()
