Model Whirlpool ESS307 ELECTRIC RANGE – Common Parts & Diagrams
01 - CONTROL PANEL PARTS

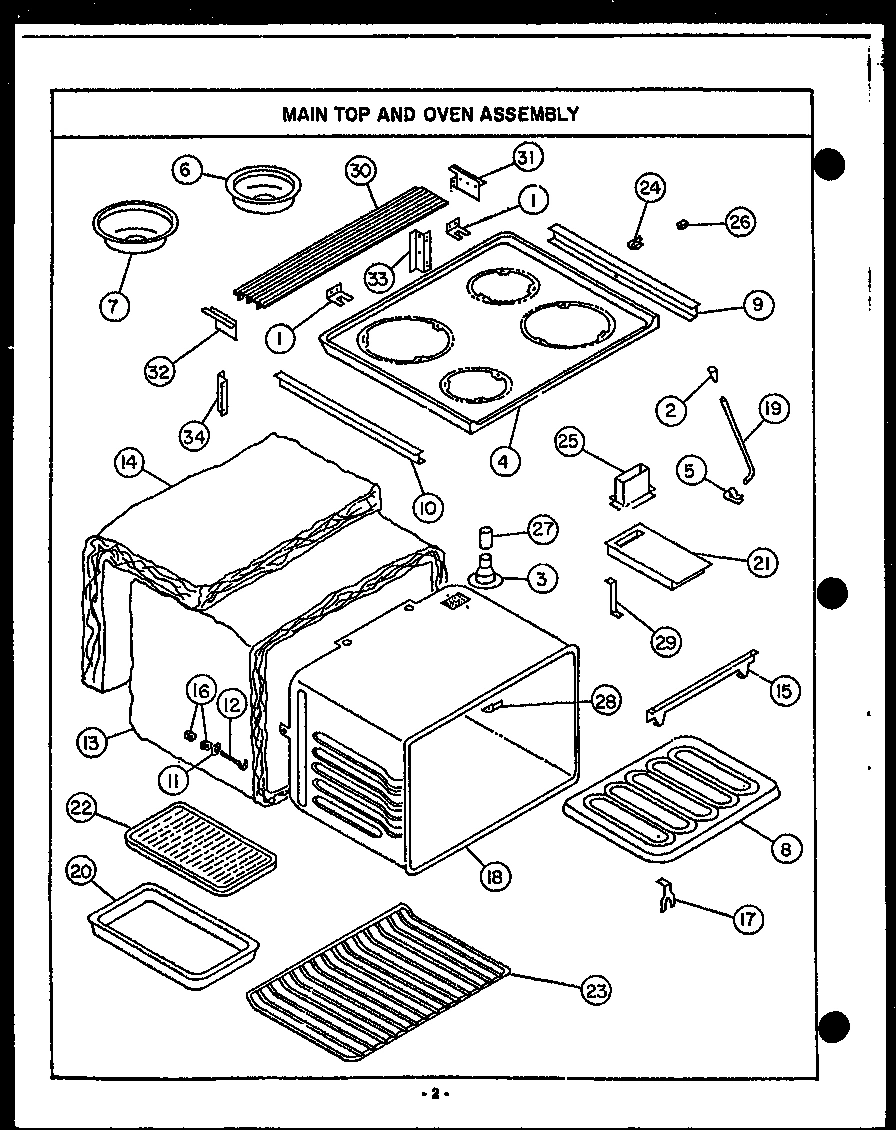

05 - Page 1

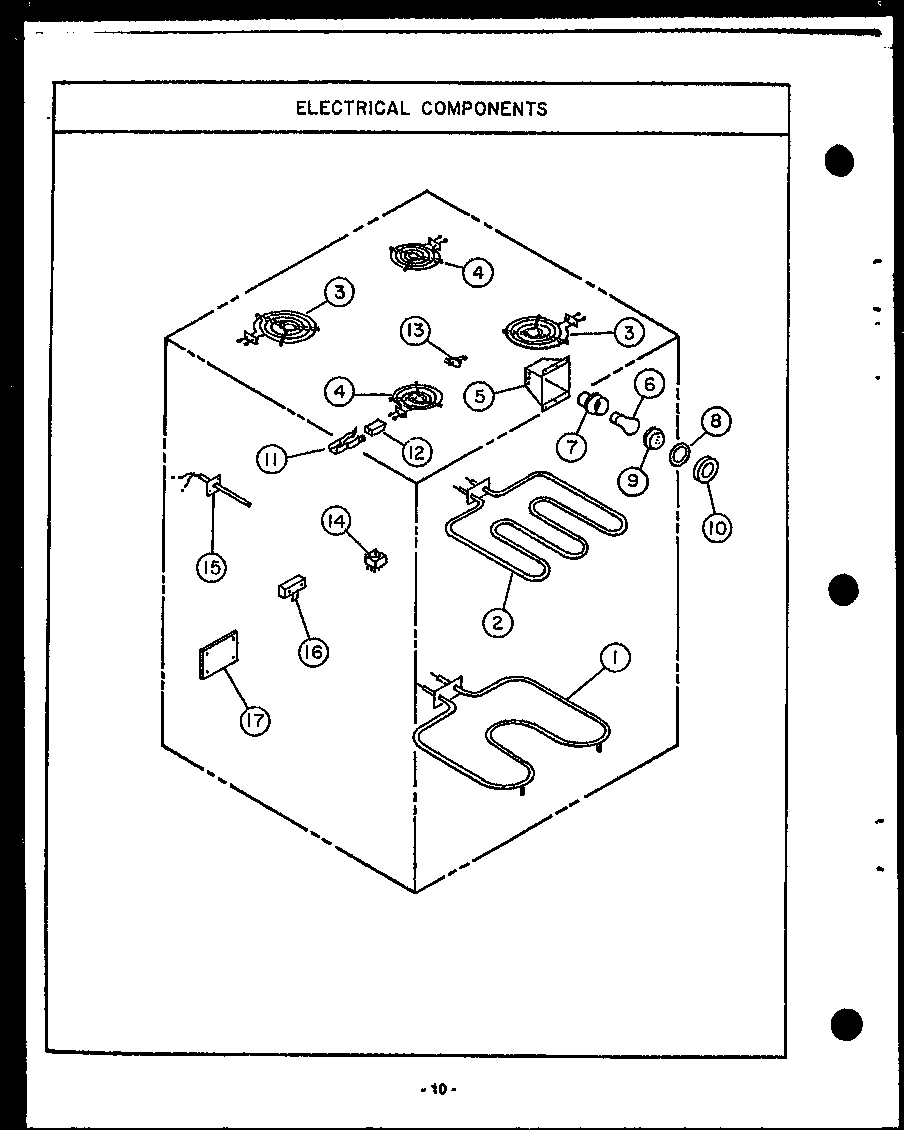

02 - ELECTRICAL COMPONENTS

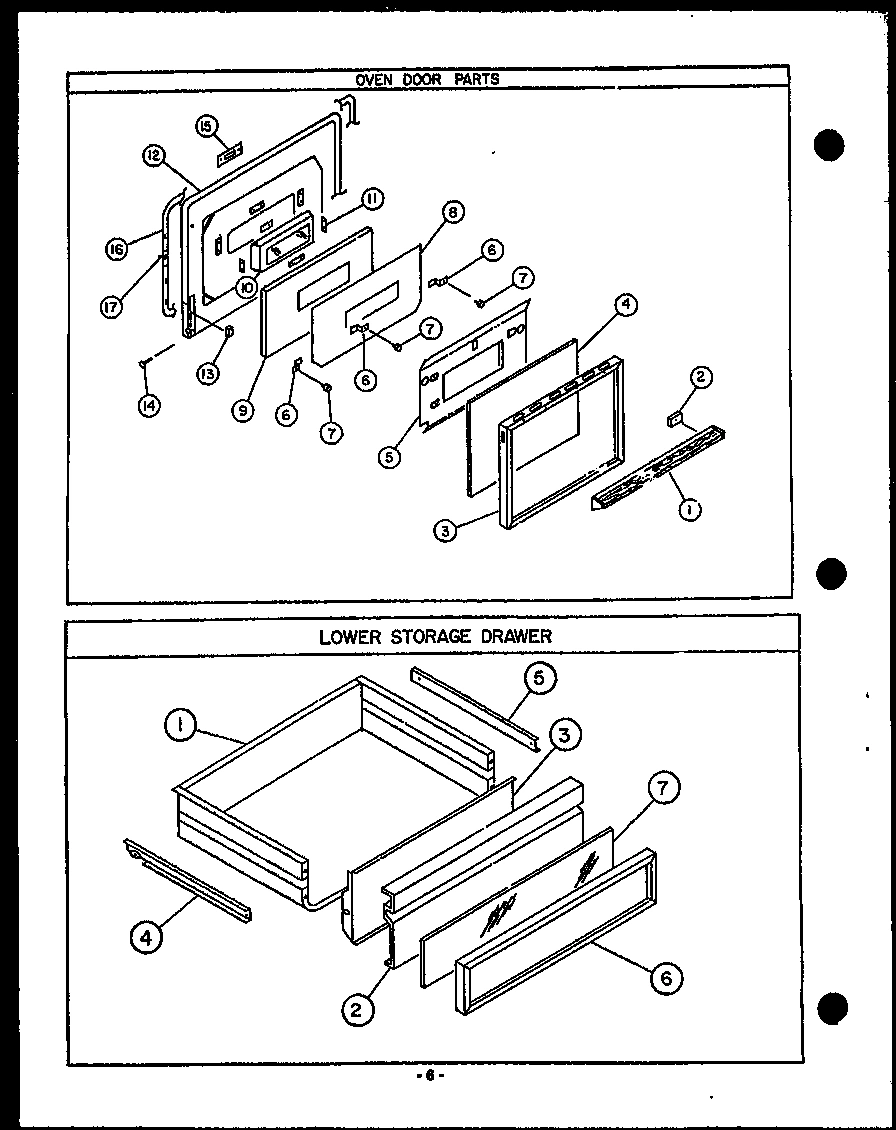

04 - OVEN DOOR PARTS

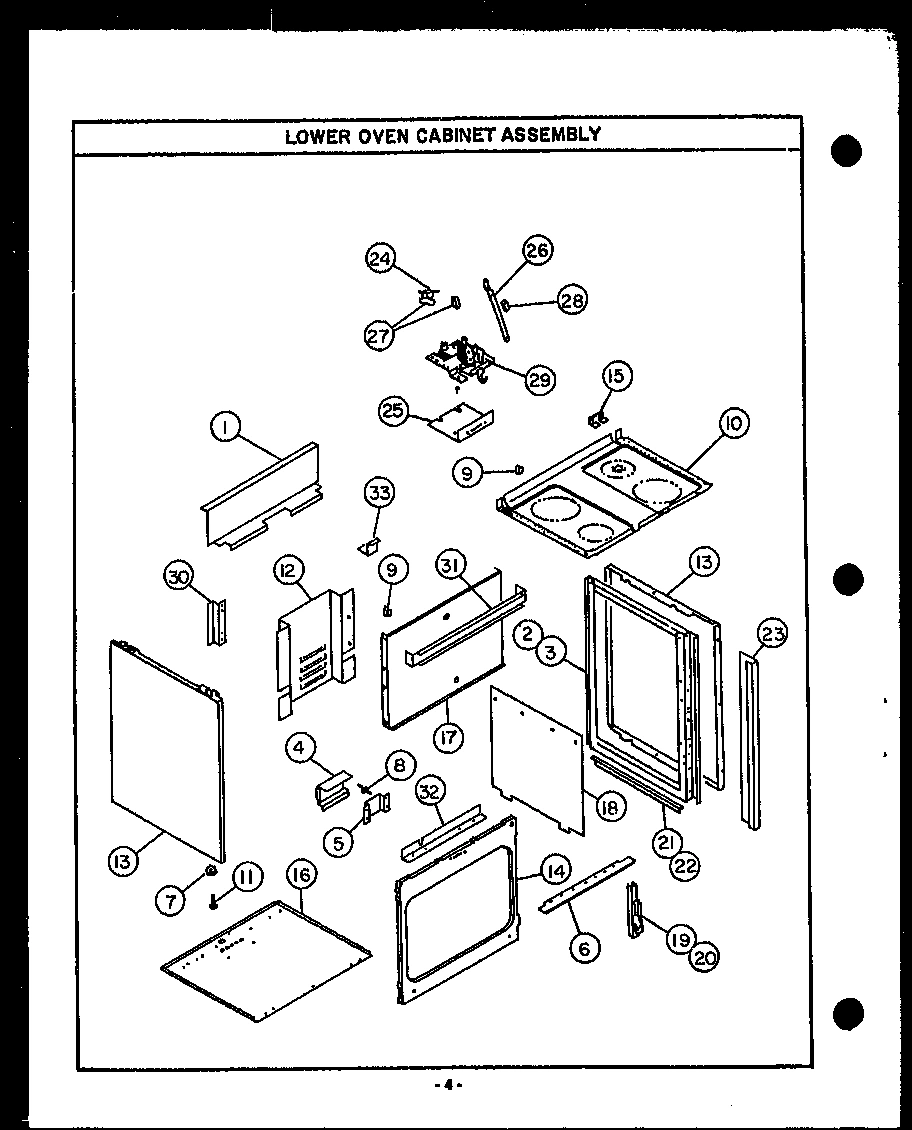

03 - LOWER OVEN CABINET ASSY
Common parts from model Whirlpool ESS307 ELECTRIC RANGE
1
CONTROL PANEL WPL 0058689 Contact Us For Availability
1
HINGE, UPPER MAIN TOP WPL 0059260 Contact Us For Availability
1
DRAWER ASSEMBLY WPL 0061234 Contact Us For Availability
1
HANDLE, DOOR WPL 0068150 Contact Us For Availability
1
COVER PLATE, REAR WPL 0059435 Contact Us For Availability
2
END CAP, RH (CHROME) WPL 0063192 Contact Us For Availability
2
ROD TIP, RUBBER WPL Y0042002 Contact Us For Availability
2
PANEL, DRAWER WPL 059499B Contact Us For Availability
2
SPACER DOOR HANDLE WPL Y0079978 Contact Us For Availability
2
SUB 61231CG FRAME SIDE PNL R H WPL Y0061231 Contact Us For Availability
3
END CAP, LH (CHROME) WPL 0063191 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0063337 Contact Us For Availability
3
SUB 57441CG, DRAWER PANEL WPL 0061930 Contact Us For Availability
3
FRAME, DOOR, BLACK WPL 0063804 Contact Us For Availability
3
SIDE FRAME-L.H. WPL 0061230 Contact Us For Availability
4
CLOCK, AUTOMATIC WPL 0061535 Contact Us For Availability
4
MAIN TOP WPL 059490K Contact Us For Availability
4
MAIN TOP ALMOND WPL W10124572 Contact Us For Availability
4
MAIN TOP WHITE WPL W10124573 Contact Us For Availability
4
PANEL, BLACK GLASS WPL Y0063650 Contact Us For Availability
4
RUNNER, STORAGE DRAWER, L.H. WPL Y0561254030 Contact Us For Availability
4
COVER, CONTROL BOARD WPL Y0060245 Contact Us For Availability
5
MTG. BRACKET, CLOCK WPL 0061534 Contact Us For Availability
5
TIMERMAN WPL Y0041869 Contact Us For Availability
5
LAMP, CUP WPL 0060778 Contact Us For Availability
5
DRAWER TRACK RH WPL 0061255 Contact Us For Availability
5
AIR BAFFLE WPL W10125477 Contact Us For Availability
5
MTG BRACKET, CONTROL BOARD WPL Y0060246 Contact Us For Availability
6
KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability
6
BULB, LIGHT WPL Y0042175 Contact Us For Availability
6
DOOR PANEL FRAME, BLACK WPL 0059498 Contact Us For Availability
6
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
6
SUB 62750CG, FILLER FRONT FRAM WPL 0062750 Contact Us For Availability
7
BUSHING, SHAFT,BLACK NYLON WPL Y0061484 Contact Us For Availability
7
PKG. 160, B.B. 8`` WPL X042142 Contact Us For Availability
7
SOCKET, OVEN LIGHT WPL Y0062365 Contact Us For Availability
7
PANEL, BLACK GLASS WPL Y0063501 Contact Us For Availability
7
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
7
RETAINER NUT WPL 0076204 Contact Us For Availability
8
INDICATOR LIGHT WPL Y0058453 Contact Us For Availability
8
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
8
GASKET, OVEN LIGHT WPL 0063763 Contact Us For Availability
8
PLATE, INSULATION WPL Y0063656 Contact Us For Availability
8
SUPPORT, CIRC BOARD WPL 0060237 Contact Us For Availability
9
CONTROL, ELEC THERMOSTAT WPL 0060524 Contact Us For Availability
9
TOP TRIM R.H WPL Y0061499 Contact Us For Availability
9
LENS, OVEN LIGHT WPL Y0064875 Contact Us For Availability
9
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
9
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
10
TERMINAL ADAPTOR RING TO MAKE WPL Y0042124 Contact Us For Availability
10
TRIM MAIN TOP, L.H., BRIGHT FI WPL 0061498 Contact Us For Availability
10
RETAINER, OVEN LIGHT LENS WPL 0063764 Contact Us For Availability
10
WINDOW ASSY WPL 0041491 Contact Us For Availability
10
SUB 59456CG, DRIP BAFFLE WPL 059456Y Contact Us For Availability
11
LIGHT INDICATOR WPL 0065822 Contact Us For Availability
11
WASHER WPL Y0071876 Contact Us For Availability
11
MOUNTING BRKT. PLUG BLOCK WPL Y0053131 Contact Us For Availability
11
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
11
LEG, LEVELING WPL Y0062362 Contact Us For Availability
12
SWITCH, INFINITE WPL 0071745 Contact Us For Availability
12
HOOK BOLT WPL Y0091536 Contact Us For Availability
12
SUB 63517Y, DOOR BACKER WPL 0063517 Contact Us For Availability
12
COVER BOX, WIRING WPL Y0059434 Contact Us For Availability
13
SWITCH, SELECTOR WPL Y0063008 Contact Us For Availability
13
SUB 41966, INSULATION WPL Y0062781 Contact Us For Availability
13
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
13
PANEL, MAIN END - R.H. - ALMON WPL W10124846 Contact Us For Availability
13
PANEL, MAIN END - R.H. - ALMON WPL W10124847 Contact Us For Availability
14
SWITCH, ROCKER WPL Y0063997 Contact Us For Availability
14
SUB 41966, INSULATION WPL Y0062780 Contact Us For Availability
14
INFINITE SWITCH WPL Y0061389 Contact Us For Availability
14
RIVET WPL 0091632 Contact Us For Availability
14
SEE NOTE FRONT FRAME -- (NOT REPLACEABLE) WPL Y00000000 Contact Us For Availability
15
KNOB, OVEN CONTROL WPL 0059193 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
E.T.S. SENSOR WPL Y0060711 Contact Us For Availability
15
LATCH PLATE WPL Y0052039 Contact Us For Availability
15
HINGE, LOWER, MAIN TOP WPL Y0066374 Contact Us For Availability
16
KNOB, TOP ELEMENT WPL 0058471 Contact Us For Availability
16
SUB 41847, HEX NUT WPL 0071881 Contact Us For Availability
16
TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability
16
DR. GASKET WPL 0071637 Contact Us For Availability
16
RETAINER WPL 0091309 Contact Us For Availability
17
KNOB, SELECTOR ASSY WPL 0060181 Contact Us For Availability
17
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
17
CIRCUIT BOARD WPL Y0059213 Contact Us For Availability
17
CLIP, TINNERMAN WPL 0068429 Contact Us For Availability
17
REAR PANEL WPL Y0058786 Contact Us For Availability
18
OVENSHELL ASSEMBLY, GRAY WPL W10124602 Contact Us For Availability
18
INSULATION RETAINER, SIDE WPL Y0058952 Contact Us For Availability
19
PROP ROD GT-483-583 WPL Y0042737 Contact Us For Availability
19
KIT, DOOR HINGE (RH-SS) WPL Y0066954 Contact Us For Availability
20
SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability
20
KIT, DOOR HINGE (LH-HS) WPL Y0066952 Contact Us For Availability
21
FLUE BOX WPL Y0060627 Contact Us For Availability
21
DRAWER TRACK, RH. WPL 0061252 Contact Us For Availability
22
TRACK, STORAGE DRAWER, LH WPL 0061253 Contact Us For Availability
23
TRIM, SIDE PANEL WPL Y0058636 Contact Us For Availability
24
WIRE CLAMP WPL 0071203 Contact Us For Availability
24
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
25
FLUE BOX, REAR WPL Y0059431 Contact Us For Availability
25
BRACKET, LATCH MOUNTING WPL 0068101 Contact Us For Availability
26
NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability
26
LATCH ARM (CHROME) WPL Y0063141 Contact Us For Availability
27
TUBE, VENT EXTENSION WPL 0060633 Contact Us For Availability
27
INSULATION, ESM WPL Y0091523 Contact Us For Availability
28
CHIP COVER WPL 0060939 Contact Us For Availability
28
KNOB, LATCH - BLACK WPL Y0067844 Contact Us For Availability
29
BRACKET, SUPPORT WPL Y0060312 Contact Us For Availability
29
LATCH, OVEN DOOR WPL 0059073 Contact Us For Availability
30
LO BACK RAIL WPL Y0059423 Contact Us For Availability
30
COVER, SENSOR HARNESS WPL Y0058785 Contact Us For Availability
31
END CAP R.H. BK. RAIL WPL 0059425 Contact Us For Availability
31
MOUNTING CHANNEL WPL Y0071273 Contact Us For Availability
32
END CAP, LH, BK.RAIL WPL Y0059424 Contact Us For Availability
32
HEAT SHIELD, CLOCK WPL Y0058943 Contact Us For Availability
33
SUPPORT, BACKGUARD, RH WPL 0061542 Contact Us For Availability
33
BRACKET, SWITCH MTG. WPL 0061384 Contact Us For Availability
34
SUPPORT, BACKGUARD, LH WPL 0061541 Contact Us For Availability
NI
WIRE HARNESS, MAIN WPL Y0300130 Contact Us For Availability
NI
LO BACKRAIL 4`` WPL Y0301219 Contact Us For Availability
NI
WIRE HARNESS WPL 0059872 Contact Us For Availability
NI
PLUG BUTTON WPL 0059798 Contact Us For Availability
NI
BRACKET, SWITCH MOUNTING WPL Y0068091 Contact Us For Availability
× ![]()
