Model Whirlpool ESD397 ELECTRIC RANGE – Common Parts & Diagrams

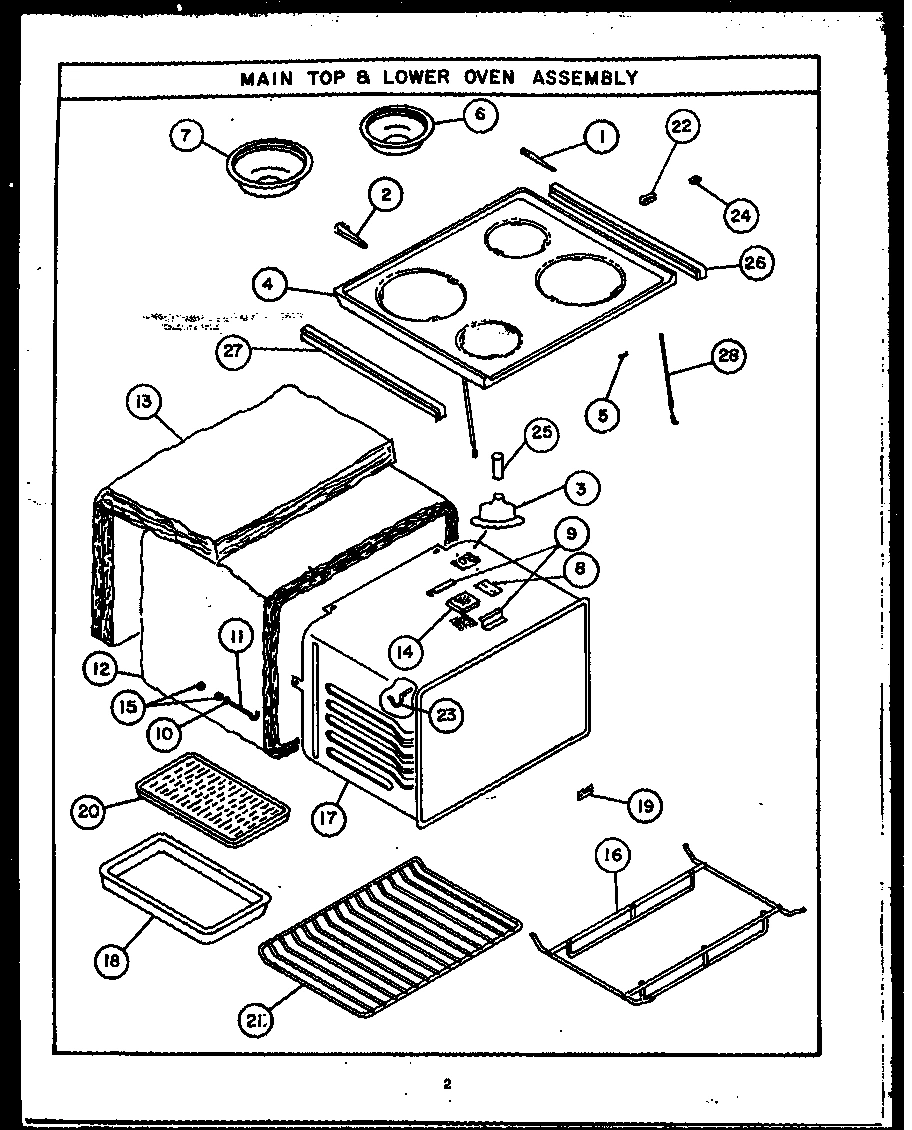

03 - Page 1

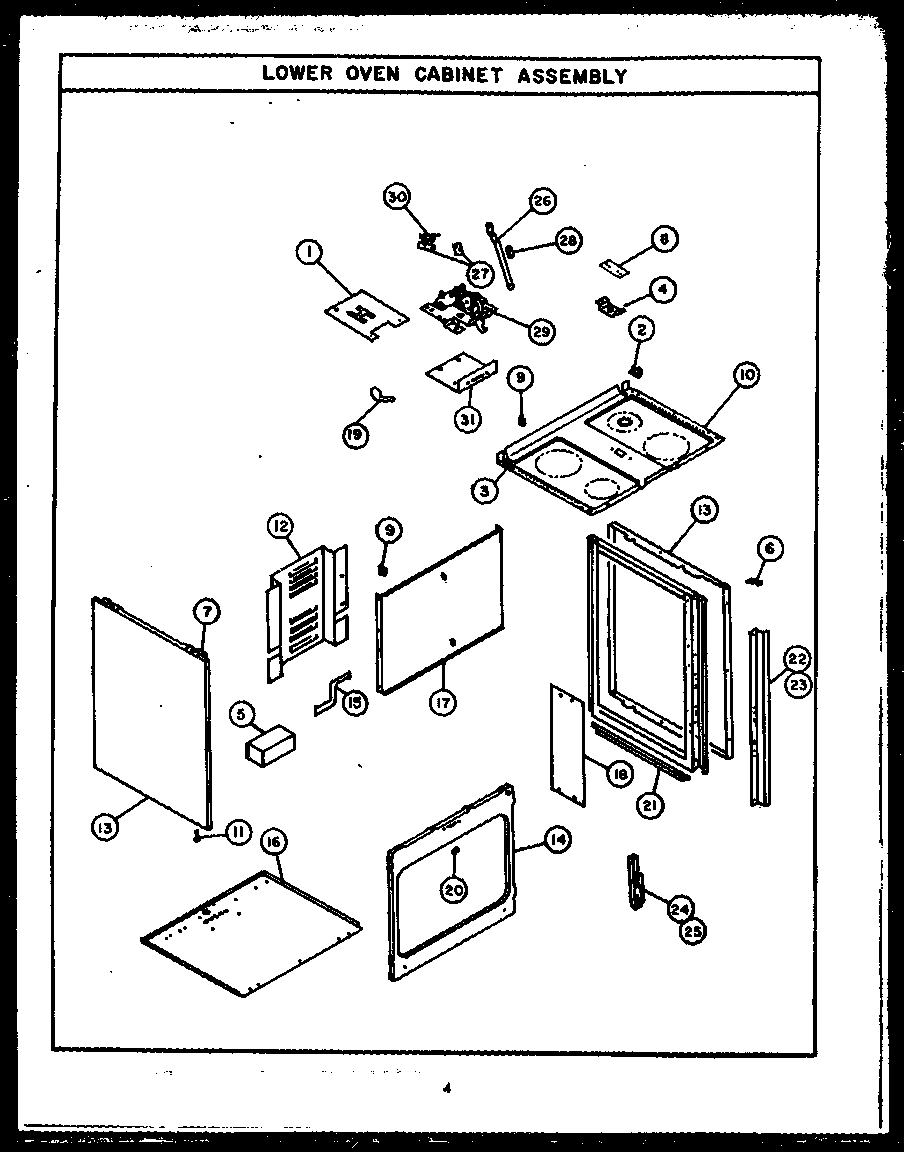

01 - LOWER OVEN CABINET ASSY

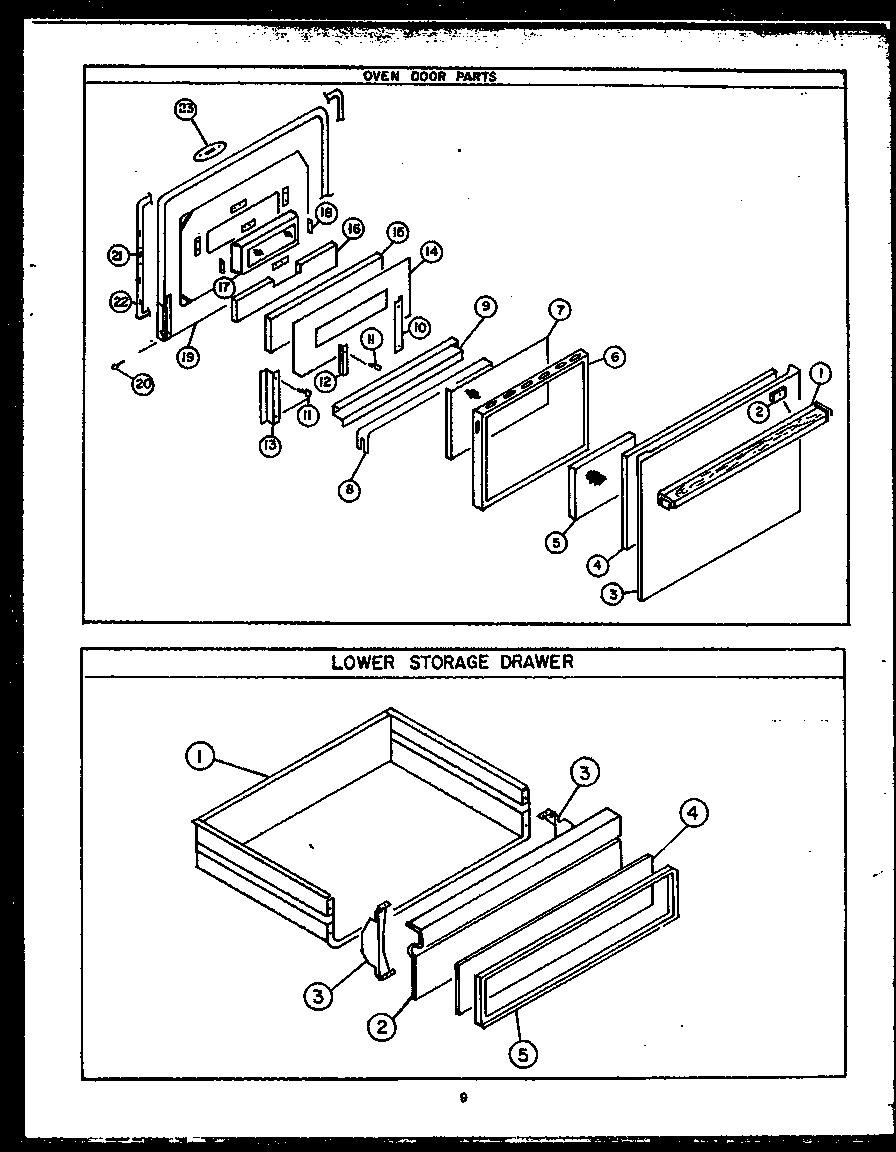

02 - OVEN DOOR PARTS

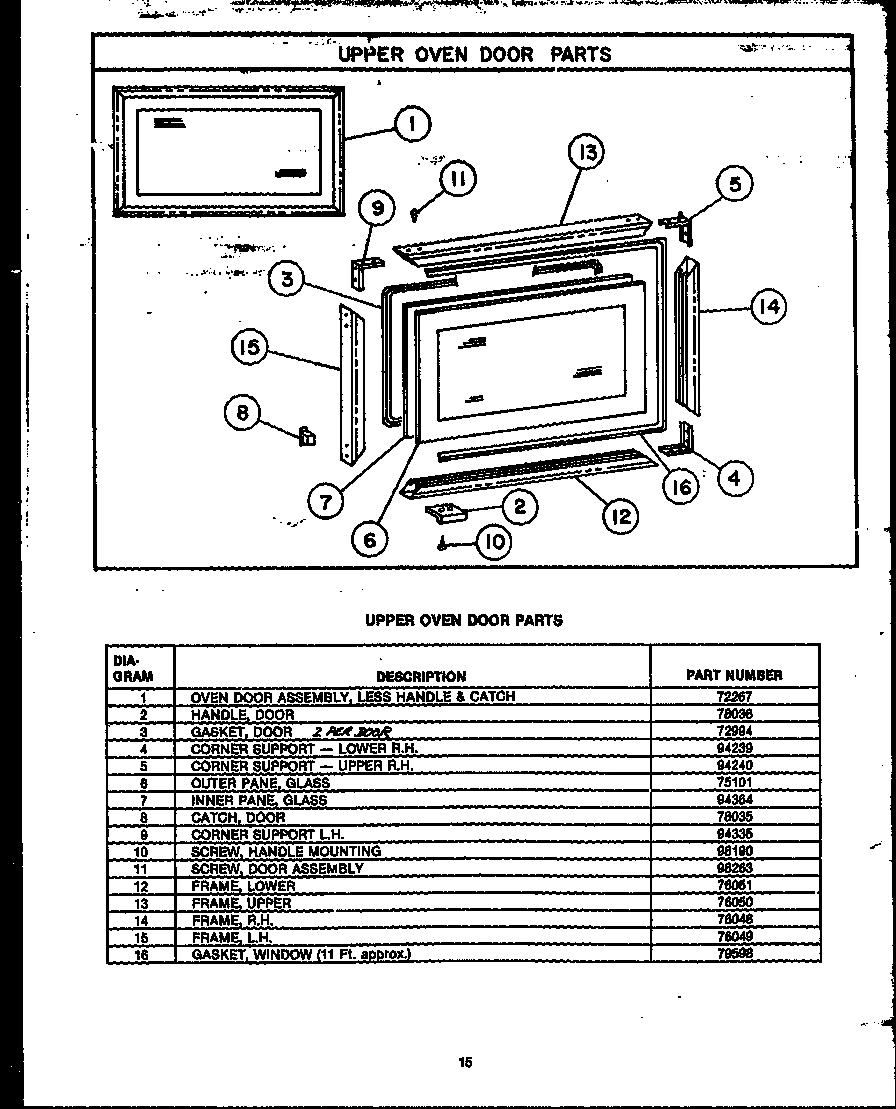

04 - UPPER OVEN DOOR
Common parts from model Whirlpool ESD397 ELECTRIC RANGE
ESD359 FEATURE AN ``ULTRA RAY`` BROILER PN FO WPL NOTE Contact Us For Availability
1
BRACKET ASSEMBLY WPL 0091517 Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y63353 Contact Us For Availability
1
HANDLE, OVEN DOOR WPL 68150 Contact Us For Availability
1
OVEN DOOR ASSEMBLY, LESS HANDL WPL 72267 Contact Us For Availability
2
BRACKET ASSEMBLY WPL 0091518 Contact Us For Availability
2
SPACER WPL 79978 Contact Us For Availability
2
HANDLE, DOOR WPL 78036 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y63337 Contact Us For Availability
3
BRACKET WPL Y0091520 Contact Us For Availability
3
GASKET, DOOR (2 PER DOOR) WPL Y72994 Contact Us For Availability
4
MAIN TOP - COFFEE WPL 71077C Contact Us For Availability
4
MAIN TOP - HARVEST WPL 71077H Contact Us For Availability
4
MAIN TOP - ALMOND WPL 71077L Contact Us For Availability
4
MAIN TOP - AVOCADO WPL 71077V Contact Us For Availability
4
MAIN TOP - WHITE WPL 71077W Contact Us For Availability
4
HOUSING, OVEN LAMP WPL 67880 Contact Us For Availability
4
CORNER SUPPORT LOWER, R.H. WPL 0094239 Contact Us For Availability
5
HAIR PIN CLIP WPL Y71668 Contact Us For Availability
5
ELECTRICAL BOX WPL 0095790 Contact Us For Availability
5
CORNER SUPPORT UPPER, R.H. WPL Y0094240 Contact Us For Availability
6
USED IN 0091231 WPL 0091473 Contact Us For Availability
6
FRAME, OVEN DOOR WPL Y63703 Contact Us For Availability
6
HOUSING WPL 75101 Contact Us For Availability
7
HARNESS WPL 75482 Contact Us For Availability
7
SUB 91231 CAP TRIM KIT WPL 0091474 Contact Us For Availability
7
BLACK GLASS PANEL WPL Y63652 Contact Us For Availability
7
INNER GLASS PANE-UPPER DOOR WPL Y0094364 Contact Us For Availability
8
COVER PLATE, OVEN LAMP WPL Y67879 Contact Us For Availability
8
GLASS, TRIM WPL Y63195 Contact Us For Availability
8
CATCH, DOOR WPL 78035 Contact Us For Availability
9
CLIP, LENS WPL 67972 Contact Us For Availability
9
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
9
AIR BAFFLE WPL Y63193 Contact Us For Availability
9
CORNER SUPPORT, L.H. WPL 0094335 Contact Us For Availability
10
WASHER WPL Y71876 Contact Us For Availability
10
DRIP BAFFLE, GRAY WPL 67871 Contact Us For Availability
10
SCREW, OVEN DOOR WPL 0098190 Contact Us For Availability
11
HOOK BOLT WPL Y0091536 Contact Us For Availability
11
LEVELING LEG WPL 76205 Contact Us For Availability
11
RUBBER BUMPER WPL Y63661 Contact Us For Availability
11
MTG SCREW UPPER DOOR WPL Y0098263 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL Y63423 Contact Us For Availability
12
COVER BOX, WIRING WPL Y63689 Contact Us For Availability
12
SUPPORT BRACKET WPL Y63196 Contact Us For Availability
12
FRAME, LOWER WPL 76051 Contact Us For Availability
13
SUB 41966, INSULATION WPL Y0091356 Contact Us For Availability
13
MAIN END - COFFEE WPL 63260C Contact Us For Availability
13
MAIN END - HARVEST WPL 63260H Contact Us For Availability
13
MAIN END - ALMOND WPL 63260L Contact Us For Availability
13
MAIN END - AVOCADO WPL 63260V Contact Us For Availability
13
MAIN END - WHITE WPL 63260W Contact Us For Availability
13
SUPPORT BRACKET WPL 63658 Contact Us For Availability
13
FRAME, UPPER WPL 76050 Contact Us For Availability
14
LENS, OVEN LIGHT WPL 67985 Contact Us For Availability
14
SEE NOTE FRONT FRAME -- (NOT REPLACEABLE) WPL Y00000000 Contact Us For Availability
14
INSULATION RETAINER WPL Y63656 Contact Us For Availability
14
FRAME - R.H. WPL 76048 Contact Us For Availability
15
NUT, HEX 10-32 WPL Y71881 Contact Us For Availability
15
TUBING ASSY. BALLAST WPL Y63173 Contact Us For Availability
15
INSULATION WPL 63664 Contact Us For Availability
15
FRAME - L.H. WPL 76049 Contact Us For Availability
16
INSULATION RETAINER WPL 91309 Contact Us For Availability
16
GASKET, WINDOW WPL 79598 Contact Us For Availability
17
OVEN SHELL ASSEMBLY, GRAY WPL 63498 Contact Us For Availability
17
REAR PANEL WPL 62950 Contact Us For Availability
17
WINDOW ASSY WPL 0041491 Contact Us For Availability
18
SUB 11161CG, BROILER PAN WPL 111613 Contact Us For Availability
18
INSULATION RETAINER SIDES WPL Y63168 Contact Us For Availability
18
SUB 52629, RETAINER, GLASS WPL Y0040992 Contact Us For Availability
19
CAPILLARY HOLE COVER WPL Y63351 Contact Us For Availability
19
CLAMP, POWER CORD WPL 68513 Contact Us For Availability
19
OVEN DOOR BACKER WPL Y63579 Contact Us For Availability
20
WASHER, LATCH PLATE WPL 76733 Contact Us For Availability
20
RIVET WPL 0091632 Contact Us For Availability
21
STORAGE DRAWER TRACK LH WPL Y0092747 Contact Us For Availability
21
TRACK - STORAGE DRAWER - R.H. WPL Y92746 Contact Us For Availability
21
GASKET ASSEMBLY WPL 71637 Contact Us For Availability
22
WIRE CLAMP WPL 71203 Contact Us For Availability
22
FRONT TRIM, R.H. - AFTER SERIA WPL Y67950 Contact Us For Availability
22
SPEED CLIP WPL Y68429 Contact Us For Availability
23
CLIP, THERMOSTAT BULB WPL 67053 Contact Us For Availability
23
FRONT TRIM, L.H. - AFTER SERIA WPL Y67949 Contact Us For Availability
23
SUB 52039, LATCH PLATE WPL Y0040748 Contact Us For Availability
24
NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability
25
VENT TUBE EXTENSION WPL Y63336 Contact Us For Availability
26
TRIM, MAIN TOP - R.H. WPL Y63458 Contact Us For Availability
26
LATCH HANDLE WPL Y65779 Contact Us For Availability
27
TRIM, MAIN TOP - L.H. WPL Y63457 Contact Us For Availability
27
INSULATION, ESM WPL Y0091523 Contact Us For Availability
28
SUPPORT, MAINTOP WPL Y0091542 Contact Us For Availability
28
KNOB, DOOR LATCH WPL 67844 Contact Us For Availability
29
LATCH ASSEMBLY - OVEN DOOR WPL Y68102 Contact Us For Availability
30
SWITCH, OVEN DOOR LATCH WPL 65780 Contact Us For Availability
31
BRACKET, SWITCH WPL 68101 Contact Us For Availability
NI
BRACKET - CLEAN SWITCH MFG. WPL Y68091 Contact Us For Availability
× ![]()
