Model Whirlpool EHD363 ELECTRIC RANGE – Common Parts & Diagrams

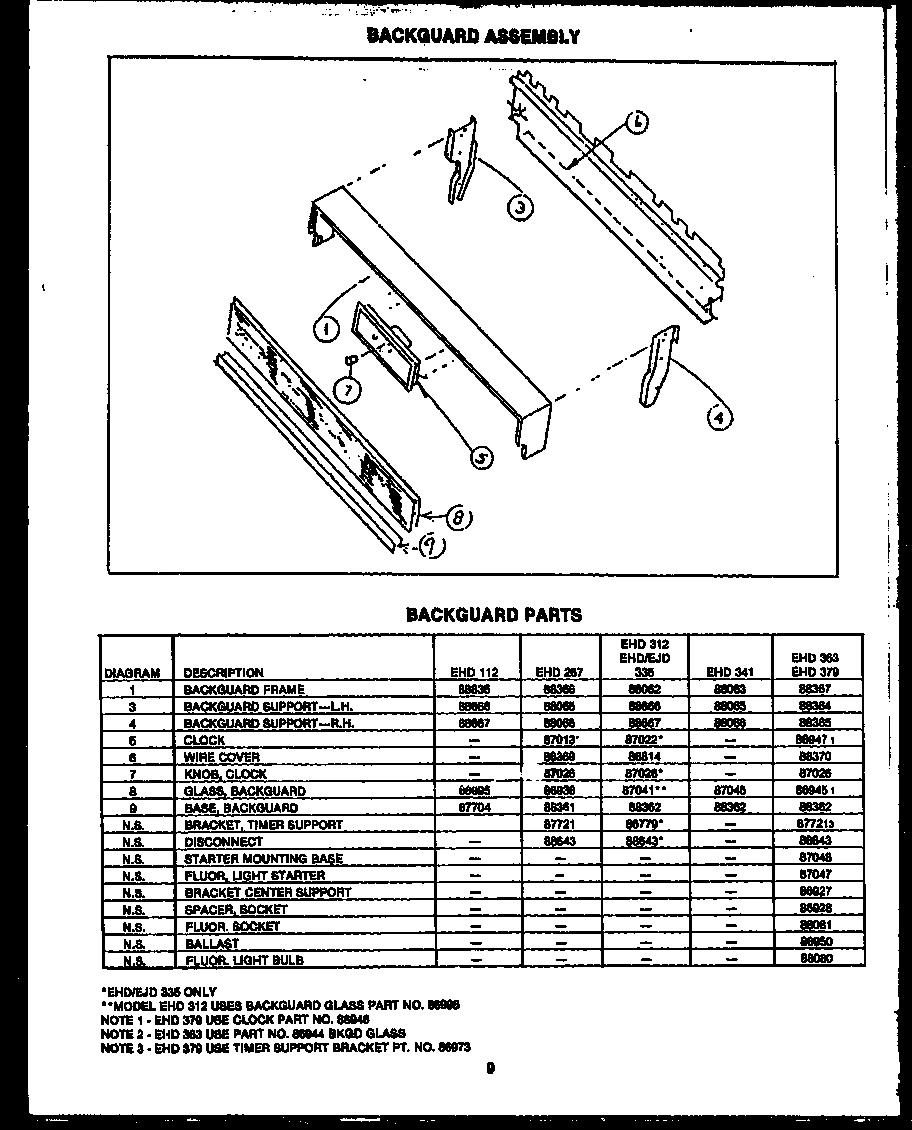

02 - BACKGUARD ASSY

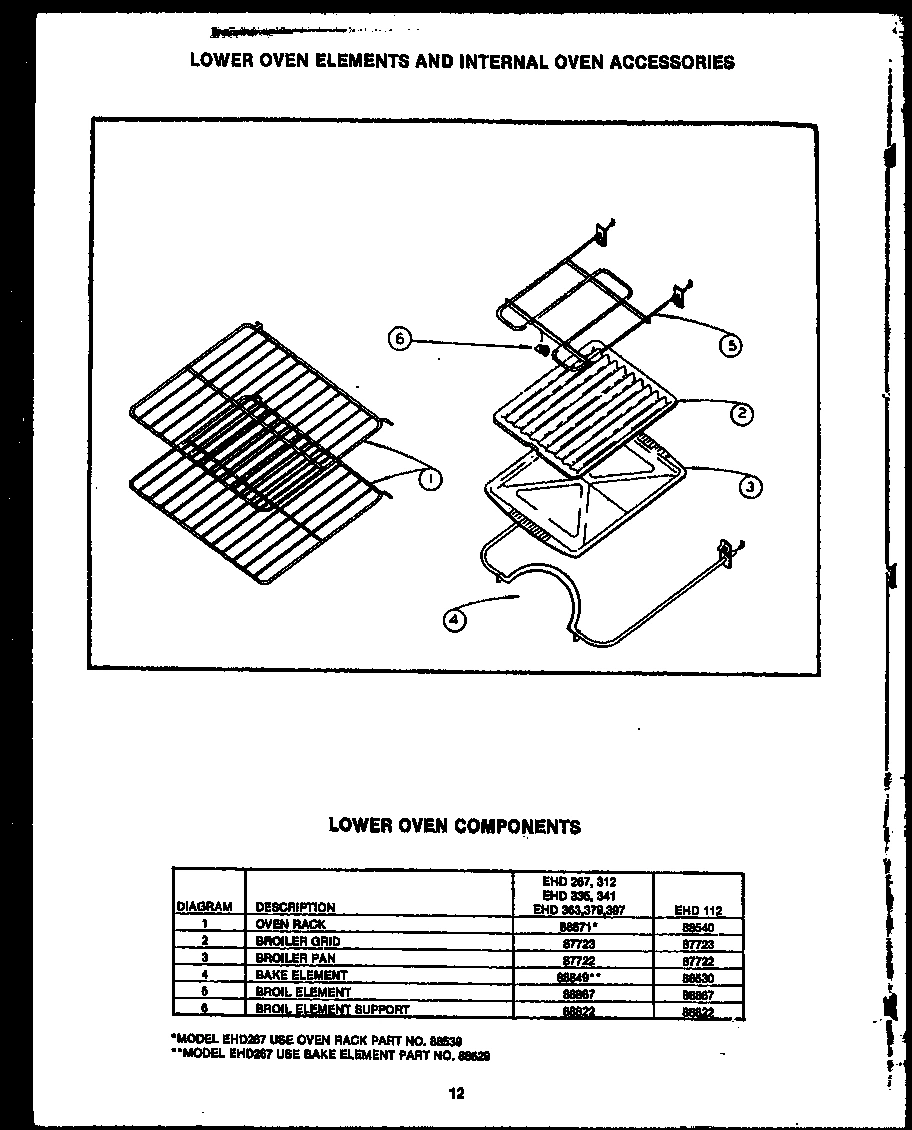

04 - LW OVEN ELEMENTS & INTERNAL OVEN ACS

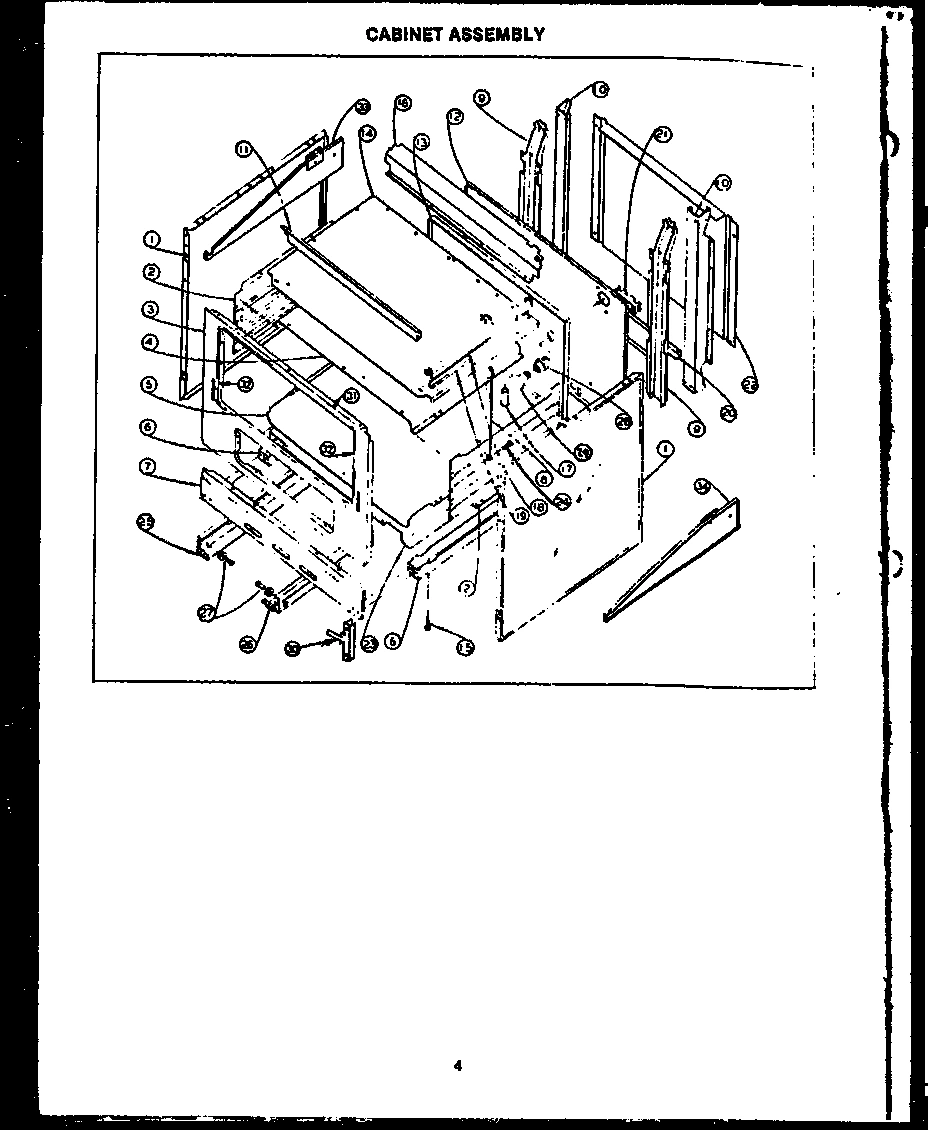

03 - CABINET ASSY

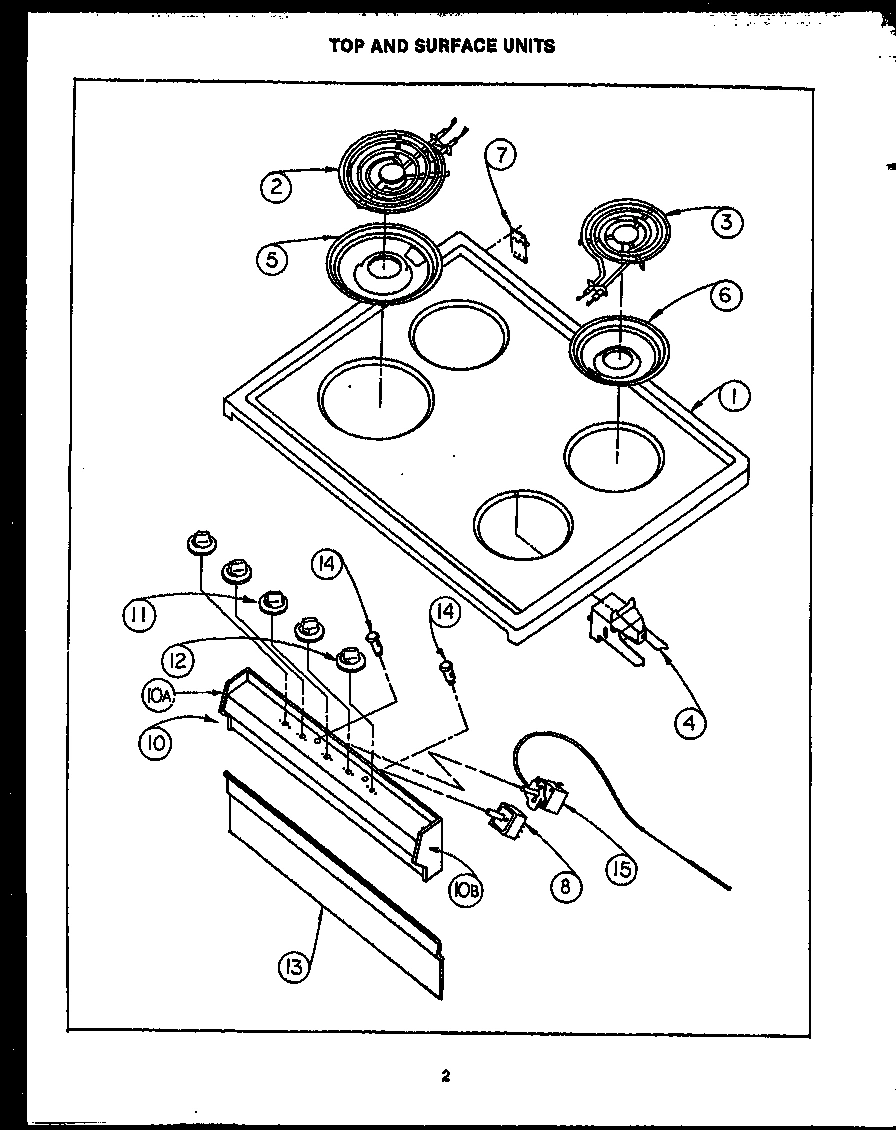

05 - Page 1

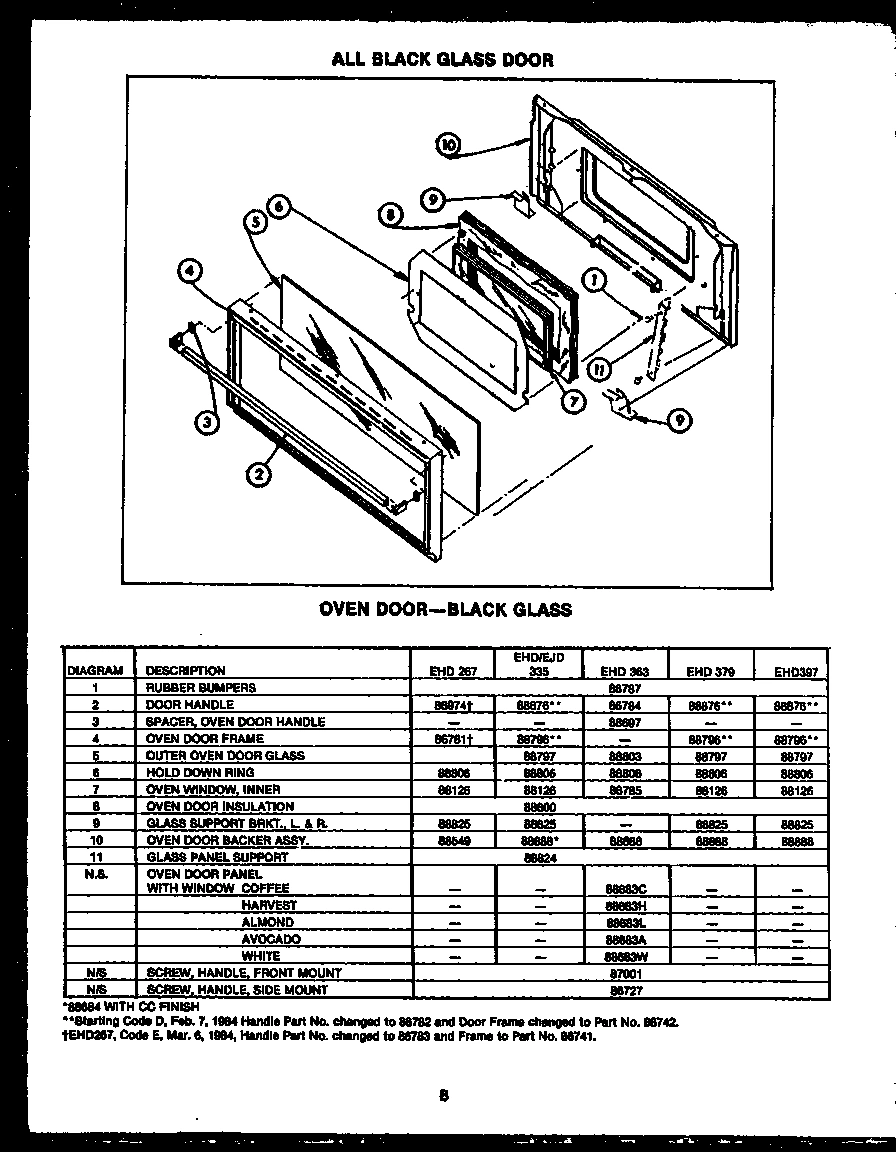

01 - ALL BLACK GLASS DOOR

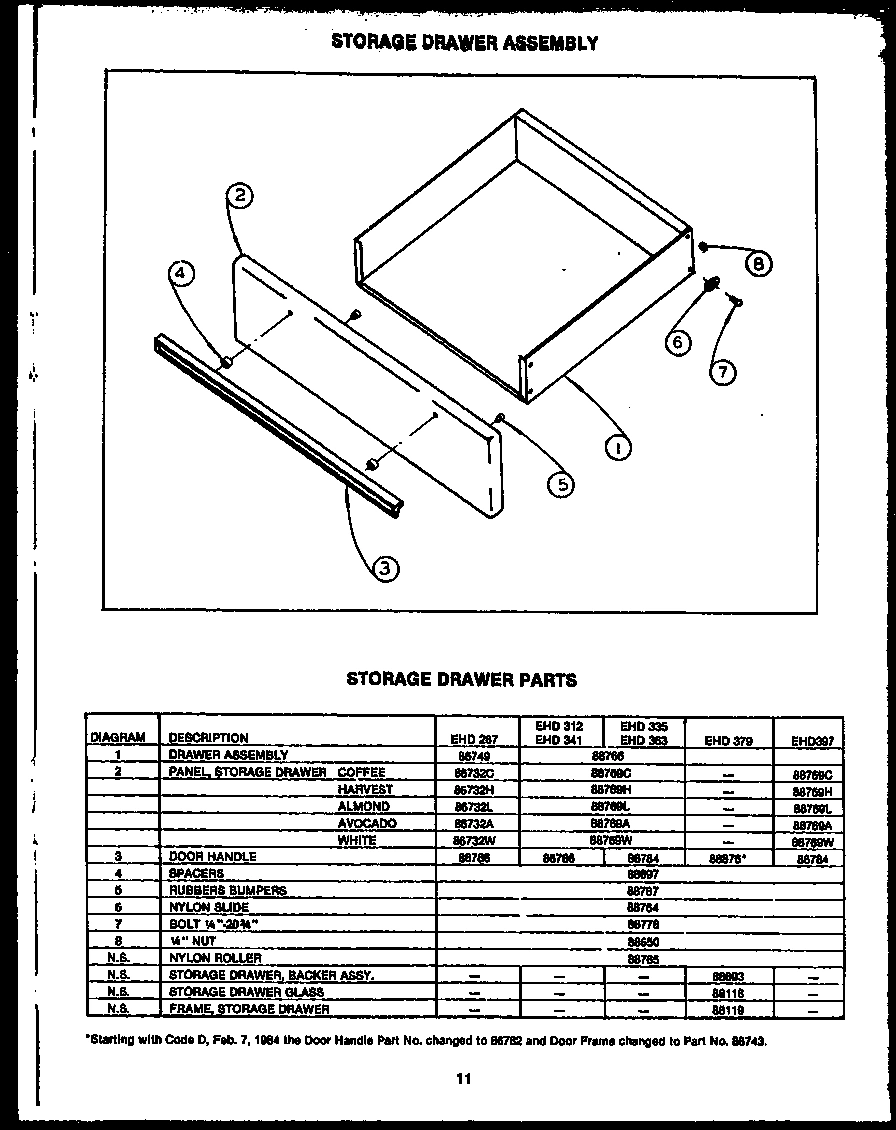

06 - STORAGE DRAWER ASSY
Common parts from model Whirlpool EHD363 ELECTRIC RANGE
1
SUB 57325, FRAME, BACKGUARD WPL 0088367 Contact Us For Availability
1
SUB 311003N, SIDE PANEL WPL 088652L Contact Us For Availability
1
BODY SIDE AVOCADO WPL 88652A Contact Us For Availability
1
BODY SIDE HARVEST WPL 88652H Contact Us For Availability
1
BODY SIDE, DARK COPPER WPL Y088652C Contact Us For Availability
1
SUB 311003W, PANEL-SIDE, WHITE WPL Y088652W Contact Us For Availability
1
MAIN TOP, COFFEE WPL 086931C Contact Us For Availability
1
MAIN TOP, ALMOND WPL 086931L Contact Us For Availability
1
MAIN TOP, AVOCADO WPL Y086931A Contact Us For Availability
1
MAIN TOP, HARVEST WPL Y086931H Contact Us For Availability
1
MAIN TOP, 30`` (WHITE) WPL Y086931W Contact Us For Availability
1
SUB 310537, STORAGE DRAWER WPL Y0088766 Contact Us For Availability
2
SUB 310535W, STORAGE DRAWER WPL 088769W Contact Us For Availability
2
PANEL, STORAGE DRAWER AVOCADO WPL 88769A Contact Us For Availability
2
PANEL, STORAGE DRAWER COFFEE WPL 88769C Contact Us For Availability
2
PANEL, STORAGE DRAWER COFFEE WPL 88769H Contact Us For Availability
2
PANEL, STORAGE DRAWER ALMOND WPL 88769L Contact Us For Availability
3
SUPPORT, BACKGUARD, L.H. WPL 0088364 Contact Us For Availability
3
SUB 56139, HANDLE DOOR WPL Y0086784 Contact Us For Availability
4
SUPPORT, BACKGUARD, R.H. WPL 0088365 Contact Us For Availability
4
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
BOWL, BURNER 8`` (CHROME) WPL Y0088810 Contact Us For Availability
5
SUB 88788, RUBBER BUMPER WPL Y0088787 Contact Us For Availability
5
GLASS-WINDOW,OV DR WPL Y0088803 Contact Us For Availability
6
SUB 310989, COVER, BACKGUARD WPL 0088370 Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
RAIL, BASE WPL 0088654 Contact Us For Availability
6
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
6
NYLON SLIDE WPL 0088764 Contact Us For Availability
7
KNOB, CLOCK WPL 0087026 Contact Us For Availability
7
BASE, FRONT FRAME WPL 88655 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
7
WINDOW, OV.DR.(2)PANE WPL Y0086785 Contact Us For Availability
7
BOLT WPL 0088778 Contact Us For Availability
8
GLASS, BACKGUARD WPL 86944 Contact Us For Availability
8
SUPPORT ROD WPL 0087023 Contact Us For Availability
8
SWITCH, INFINITE WPL 0088872 Contact Us For Availability
8
SQUARE NUT {J} WPL 0088650 Contact Us For Availability
9
SUB 86956, PORC BKGD BASE WPL Y0088362 Contact Us For Availability
9
SUB 52742, VERTICAL SUPPORT WPL 0088657 Contact Us For Availability
10
REAR SUPPORT WPL 0088658 Contact Us For Availability
10
MANIFOLD PANEL WPL 0086940 Contact Us For Availability
10
END CAP, LH WPL 0086975 Contact Us For Availability
10
END CAP, RH WPL 0086976 Contact Us For Availability
10
BACKER, OVEN DOOR WPL Y0088888 Contact Us For Availability
11
KNOB, ELEMENT WPL Y0086942 Contact Us For Availability
12
MAIN BACK WPL 88656 Contact Us For Availability
12
KNOB, THERMOSTAT WPL 0086943 Contact Us For Availability
13
SWITCH COVER WPL Y0086935 Contact Us For Availability
13
SEE NOTE OVEN BACKLINER -- (NOT FIELD REPLACE WPL Y00000000 Contact Us For Availability
14
BURNER BOX WPL 0086736 Contact Us For Availability
14
LIGHT, PILOT WPL 0088640 Contact Us For Availability
14
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
15
SUB 62362, LEG, LEVELING WPL Y0088651 Contact Us For Availability
15
THERMO-ELECT. WPL 0088758 Contact Us For Availability
16
BURNER BOX REAR COVER WPL Y0088819 Contact Us For Availability
17
OVEN VENT WPL 0088761 Contact Us For Availability
18
WIRE CHANNEL WPL Y0088816 Contact Us For Availability
19
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
20
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
22
COVER WIRE WPL Y0088833 Contact Us For Availability
23
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
24
SHOULDER SCREW WPL 0088779 Contact Us For Availability
26
DRAWER TRACK, R.H. WPL 88565 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
30
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
31
SUB 56091, TOP SEAL, DOOR WPL Y0088848 Contact Us For Availability
32
SUB 56090, GASKET, DOOR WPL Y0088847 Contact Us For Availability
NI
SPACER, SOCKET WPL 0086928 Contact Us For Availability
NI
STARTER, FLOURESCENT WPL 0087047 Contact Us For Availability
NI
BASE, FLUOR. LIGHT STARTER WPL 0087048 Contact Us For Availability
NI
SUB 89316, KIT, FLUOR. LIGHT WPL 0088081 Contact Us For Availability
NI
BRACKET, CENTER SUPPORT WPL Y0086927 Contact Us For Availability
NI
SUB 88129 BALLAST WPL Y0086950 Contact Us For Availability
NI
CONNECTOR WPL Y0088643 Contact Us For Availability
NI
ROLLER WPL 0088765 Contact Us For Availability
NI
TRIM, MAIN TOP WPL 0086983 Contact Us For Availability
NI
SUB 63997, SWITCH, ROCKER WPL Y0087020 Contact Us For Availability
NI
SCREW WPL 0087001 Contact Us For Availability
NI
OVEN DOOR PNL. W/WINDOW WPL 088683W Contact Us For Availability
NI
PANEL, OVEN DOOR AVOCADO WPL 88683A Contact Us For Availability
NI
PANEL, OVEN DOOR HARVEST WPL 88683H Contact Us For Availability
NI
PANEL, OVEN DOOR ALMOND WPL 88683L Contact Us For Availability
NI
OVEN DOOR PNL. W/WINDOW WPL Y088683C Contact Us For Availability
× ![]()
