Model Whirlpool EHD344 ELECTRIC RANGE – Common Parts & Diagrams
01 - CONTROL PANEL PARTS

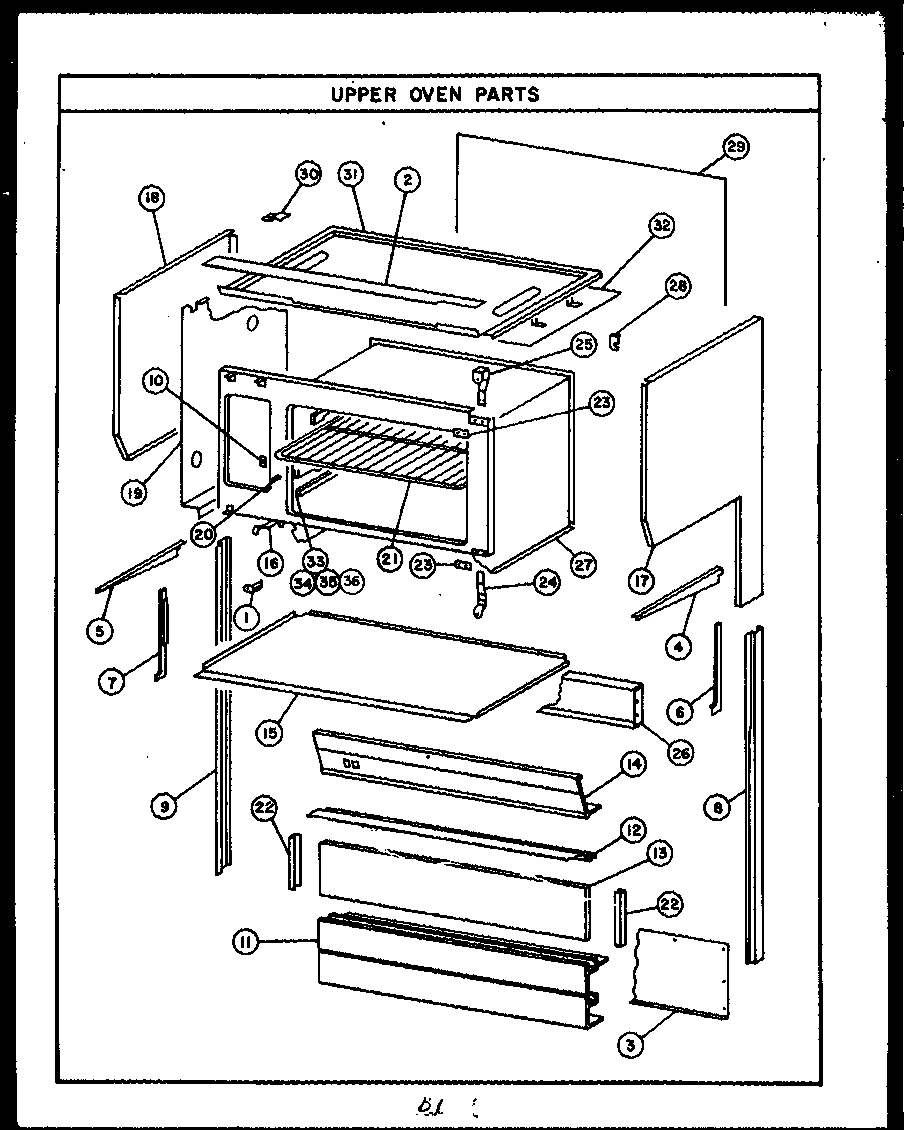

05 - UPPER OVEN PARTS

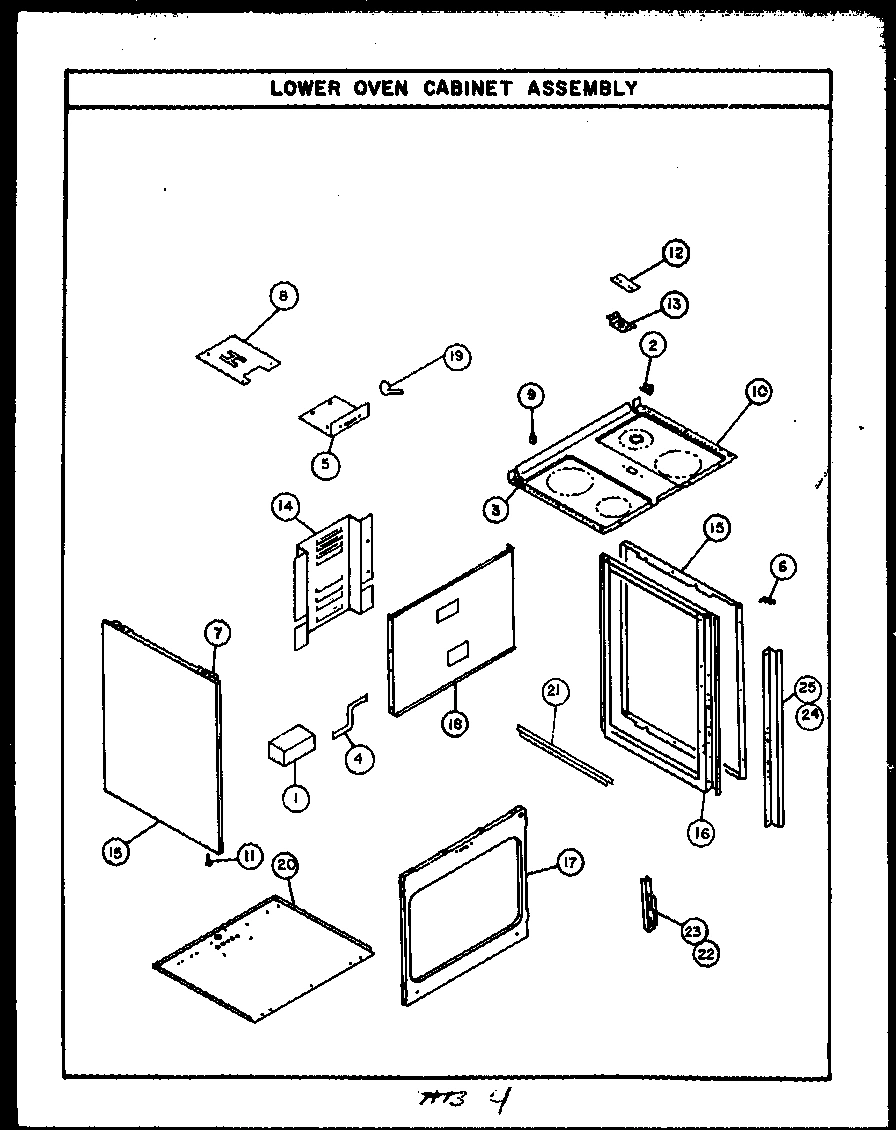

02 - LOWER OVEN CABINETASSY

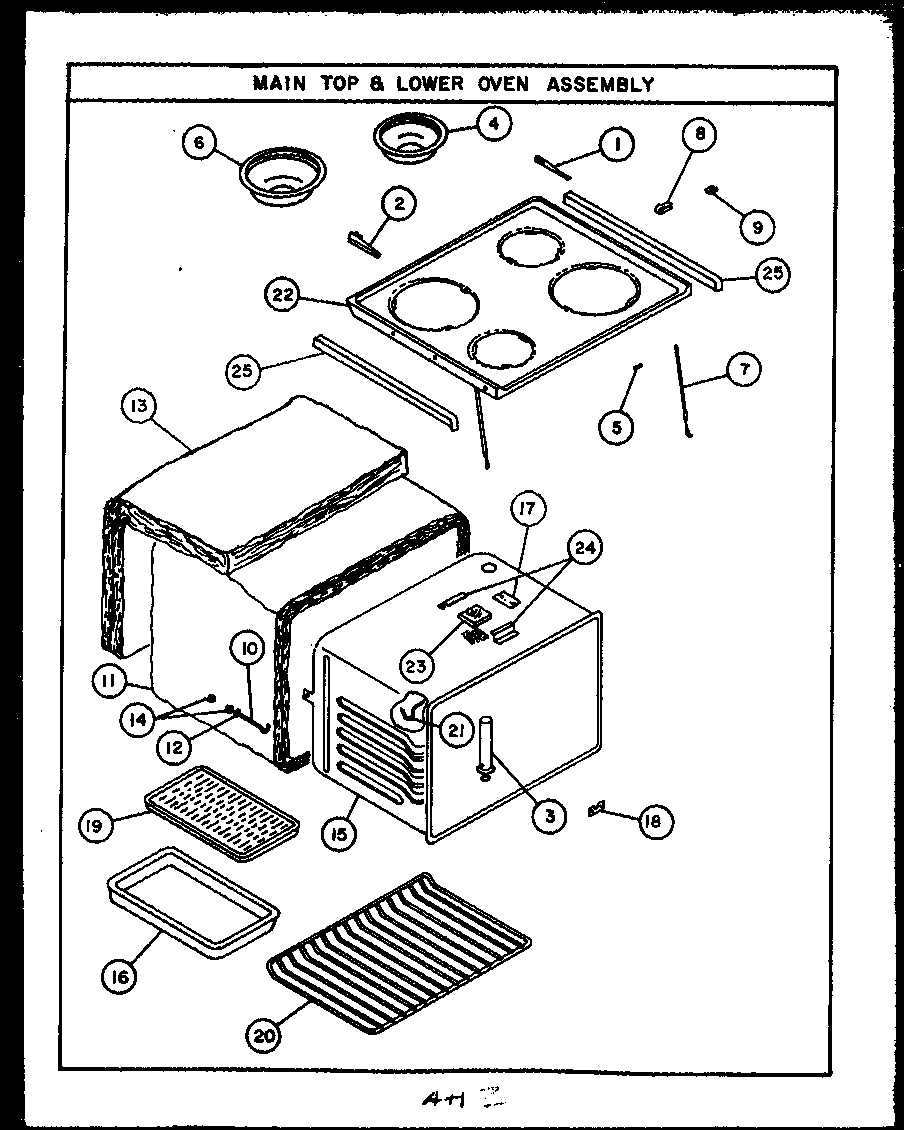

04 - Page 1

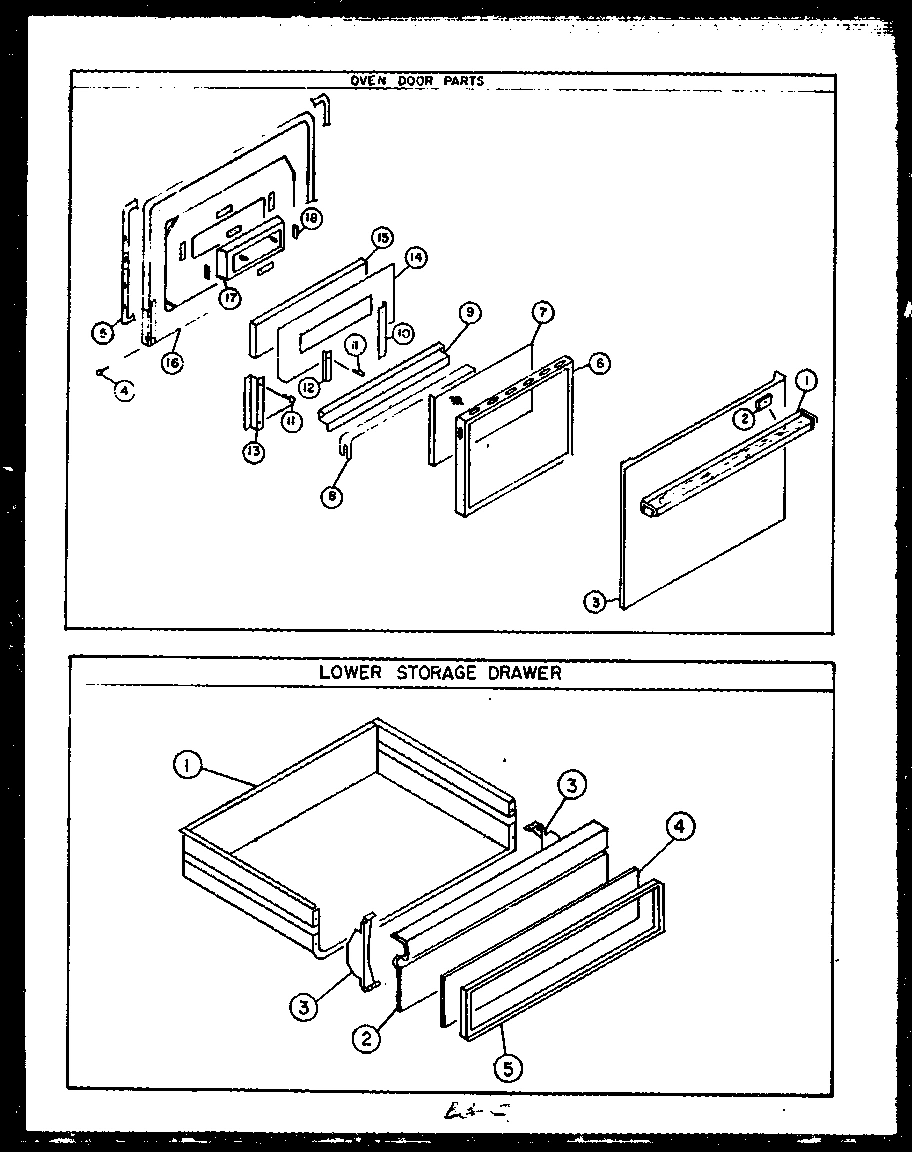

03 - OVEN DOOR PARTS
Common parts from model Whirlpool EHD344 ELECTRIC RANGE
EJD 346 AND EJD 395 NOTE 3 - ON MODELS EHD 34 WPL NOTE Contact Us For Availability
1
FRAME WPL Y63683 Contact Us For Availability
1
BRACKET WPL Y0099913 Contact Us For Availability
1
ELECTRICAL BOX WPL 0095790 Contact Us For Availability
1
BRACKET ASSEMBLY WPL 0091517 Contact Us For Availability
1
HANDLE, OVEN DOOR WPL 70637 Contact Us For Availability
2
SELECTOR SWITCH WPL Y63417 Contact Us For Availability
2
CATCH WPL 73061 Contact Us For Availability
2
BRACKET WPL Y0091519 Contact Us For Availability
2
BRACKET ASSEMBLY WPL 0091518 Contact Us For Availability
2
SPACER, HANDLE WPL Y68285 Contact Us For Availability
3
KNOB, SELECTOR WPL Y63434 Contact Us For Availability
3
COVER, WIRE WPL Y63359 Contact Us For Availability
3
BRACKET WPL Y0091520 Contact Us For Availability
3
TUBE, OVEN VENT WPL Y91504 Contact Us For Availability
3
OVEN DOOR PANEL NOTE 1 WPL Y63699 Contact Us For Availability
4
DECORATIVE PANEL WPL Y63512 Contact Us For Availability
4
TRIM STRIP, R.H. WPL Y71972 Contact Us For Availability
4
RIVET WPL 0091632 Contact Us For Availability
5
CONTROL PANEL, AVOCADO WPL 63680A Contact Us For Availability
5
CONTROL PANEL COFFEE WPL 63680C Contact Us For Availability
5
CONTROL PANEL HARVEST WPL 63680H Contact Us For Availability
5
CONTROL PANEL ALMOND WPL 63680L Contact Us For Availability
5
CONTROL PANEL WHITE WPL 63680W Contact Us For Availability
5
TRIM STRIP, L.H. WPL Y71973 Contact Us For Availability
5
BRACKET, SWITCH WPL 68101 Contact Us For Availability
5
HAIR PIN CLIP WPL Y71668 Contact Us For Availability
5
SEAL, OVEN DOOR WPL 0091629 Contact Us For Availability
6
BRACKET, CLOCK MTG. WPL Y63344 Contact Us For Availability
6
TRIM SUPPORT WPL Y0091477 Contact Us For Availability
6
USED IN 0091231 WPL 0091473 Contact Us For Availability
6
HARNESS WPL 75482 Contact Us For Availability
7
GLASS, TIMER WPL Y63342 Contact Us For Availability
7
TRIM SUPPORT WPL Y0091478 Contact Us For Availability
7
SUB 91231 CAP TRIM KIT WPL 0091474 Contact Us For Availability
7
SUPPORT, MAINTOP WPL Y0091542 Contact Us For Availability
8
CLOCK, AUTOMATIC WPL 63446 Contact Us For Availability
8
SUPPORT CHANNEL - R.H. WPL 71096 Contact Us For Availability
8
WIRE CLAMP WPL 71203 Contact Us For Availability
9
SWITCH, INFINITE, 8-INCH WPL 67443 Contact Us For Availability
9
SUPPORT CHANNEL - L.H. WPL 71095 Contact Us For Availability
9
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
9
NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL Y63691 Contact Us For Availability
10
PLATE, DOOR STRIKE WPL Y75826 Contact Us For Availability
10
DRIP BAFFLE, GRAY WPL 67871 Contact Us For Availability
10
HOOK BOLT WPL Y0091536 Contact Us For Availability
11
SWITCH, INFINITE, 6-INCH WPL 67442 Contact Us For Availability
11
LOWER TRIM, SPLASH PLATE WPL Y71553 Contact Us For Availability
11
LEVELING LEG WPL 76205 Contact Us For Availability
11
INSULATION, OVEN WRAP WPL 66913 Contact Us For Availability
12
KNOB - OVEN CONTROL WPL Y63433 Contact Us For Availability
12
REAR TRIM WPL Y71971 Contact Us For Availability
12
WASHER WPL Y71876 Contact Us For Availability
13
KNOB - TOP ELEMENT WPL Y63436 Contact Us For Availability
13
GLASS, SPLASH PLATE WPL Y71554 Contact Us For Availability
13
HOUSING, OVEN LAMP WPL 67880 Contact Us For Availability
13
INSULATION, OVEN BACK & TOP WPL 66912 Contact Us For Availability
14
KNOB - CLOCK WPL Y63441 Contact Us For Availability
14
DECORATIVE PANEL WPL Y62975 Contact Us For Availability
14
COVER BOX, WIRING WPL Y63689 Contact Us For Availability
14
NUT, HEX 10-32 WPL Y71881 Contact Us For Availability
14
INSULATION RETAINER WPL Y63656 Contact Us For Availability
15
INDICATOR LIGHT, CLEAN WPL 65822 Contact Us For Availability
15
JACKET BOTTOM, GRAY WPL 713173 Contact Us For Availability
15
MAIN END - AVOCADO WPL 63260A Contact Us For Availability
15
MAIN END - COFFEE WPL 63260C Contact Us For Availability
15
MAIN END - HARVEST WPL 63260H Contact Us For Availability
15
MAIN END - ALMOND WPL 63260L Contact Us For Availability
15
MAIN END - WHITE WPL 63260W Contact Us For Availability
15
OVEN SHELL ASSEMBLY, GRAY WPL 63498 Contact Us For Availability
15
INSULATION WPL Y63662 Contact Us For Availability
16
THERMOSTAT, OVEN WPL Y63415 Contact Us For Availability
16
DOOR GUIDE WPL 71092 Contact Us For Availability
16
SUB 11161CG, BROILER PAN WPL 111613 Contact Us For Availability
16
OVEN DOOR BACKER, NOTE 3 WPL Y63576 Contact Us For Availability
17
REAR COVER PLATE WPL Y63690 Contact Us For Availability
17
JACKET END - R.H., COFFEE WPL 71087C Contact Us For Availability
17
JACKET END - R.H., HARVEST WPL 71087H Contact Us For Availability
17
JACKET END - R.H., ALMOND WPL 71087L Contact Us For Availability
17
JACKET END - R.H., AVOCADO WPL 71087V Contact Us For Availability
17
JACKET END - R.H., WHITE WPL 71087W Contact Us For Availability
17
SEE NOTE FRONT FRAME -- (NOT REPLACEABLE) WPL Y00000000 Contact Us For Availability
17
COVER PLATE, OVEN LAMP WPL Y67879 Contact Us For Availability
17
WINDOW ASSEMBLY WPL Y63185 Contact Us For Availability
18
SWITCH, OVEN LIGHT WPL Y63997 Contact Us For Availability
18
JACKET END - L.H., COFFEE WPL 71086C Contact Us For Availability
18
JACKET END - L.H., HARVEST WPL 71086H Contact Us For Availability
18
JACKET END - L.H., ALMOND WPL 71086L Contact Us For Availability
18
JACKET END - L.H., AVOCADO WPL 71086V Contact Us For Availability
18
JACKET END - L.H., WHITE WPL 71086W Contact Us For Availability
18
REAR PANEL WPL 62950 Contact Us For Availability
18
CAPILLARY HOLE COVER WPL Y63351 Contact Us For Availability
19
SUB 60714, RETAINER, INSUL. WPL Y0094391 Contact Us For Availability
19
CLAMP, POWER CORD WPL 68513 Contact Us For Availability
20
STRIKE, OVEN DOOR WPL Y78034 Contact Us For Availability
20
INSULATION RETAINER WPL 91309 Contact Us For Availability
21
OVEN RACK WPL 78001 Contact Us For Availability
21
STORAGE DRAWER TRACK LH WPL Y0092747 Contact Us For Availability
21
TRACK - STORAGE DRAWER - R.H. WPL Y92746 Contact Us For Availability
21
CLIP, THERMOSTAT BULB WPL 67053 Contact Us For Availability
22
TRIM, SPLASHPLATE WPL Y71954 Contact Us For Availability
22
OVEN HINGE, R.H. WPL 67795 Contact Us For Availability
22
MAIN TOP, AVOCADO WPL 71077A Contact Us For Availability
22
MAIN TOP - COFFEE WPL 71077C Contact Us For Availability
22
MAIN TOP - HARVEST WPL 71077H Contact Us For Availability
22
MAIN TOP - ALMOND WPL 71077L Contact Us For Availability
22
MAIN TOP - WHITE WPL 71077W Contact Us For Availability
23
COVER PLATE FRONT FRAME WPL 0093625 Contact Us For Availability
23
OVEN DOOR HINGE - L.H. WPL Y66953 Contact Us For Availability
24
HINGE, BOTTOM WPL Y0094356 Contact Us For Availability
24
ASSY,WIRING HARNESS-UP WPL Y61812 Contact Us For Availability
25
HINGE, TOP WPL Y0094357 Contact Us For Availability
25
FRONT TRIM, L.H. WPL 61811 Contact Us For Availability
25
TRIM, MAIN TOP - L.H. WPL Y63457 Contact Us For Availability
25
TRIM, MAIN TOP - R.H. WPL Y63458 Contact Us For Availability
26
PANEL, SURFACE LIGHT WPL 71064 Contact Us For Availability
28
SWITCH WPL 73057 Contact Us For Availability
29
BACKPLATE WPL 71097 Contact Us For Availability
30
OVEN VENT WPL 73060 Contact Us For Availability
31
JACKET TOP WPL 74091 Contact Us For Availability
32
INSULATION RETAINER, JACKET TO WPL 78701 Contact Us For Availability
33
PANEL, SIDE RH WPL 711463 Contact Us For Availability
34
LH PANEL, UPPER OVEN, REMOVBLE WPL 711473 Contact Us For Availability
35
SUB 78172CG REAR PANEL WPL 781723 Contact Us For Availability
36
OVEN BOTTOM WPL 78002 Contact Us For Availability
NI
COVER PLATE, OV WPL Y71556 Contact Us For Availability
NI
WPL Y79740 WPL Y79740 Contact Us For Availability
× ![]()
