Model Whirlpool EHA395 ELECTRIC RANGE – Common Parts & Diagrams
08 - UPPER OVEN CABINET ASSY

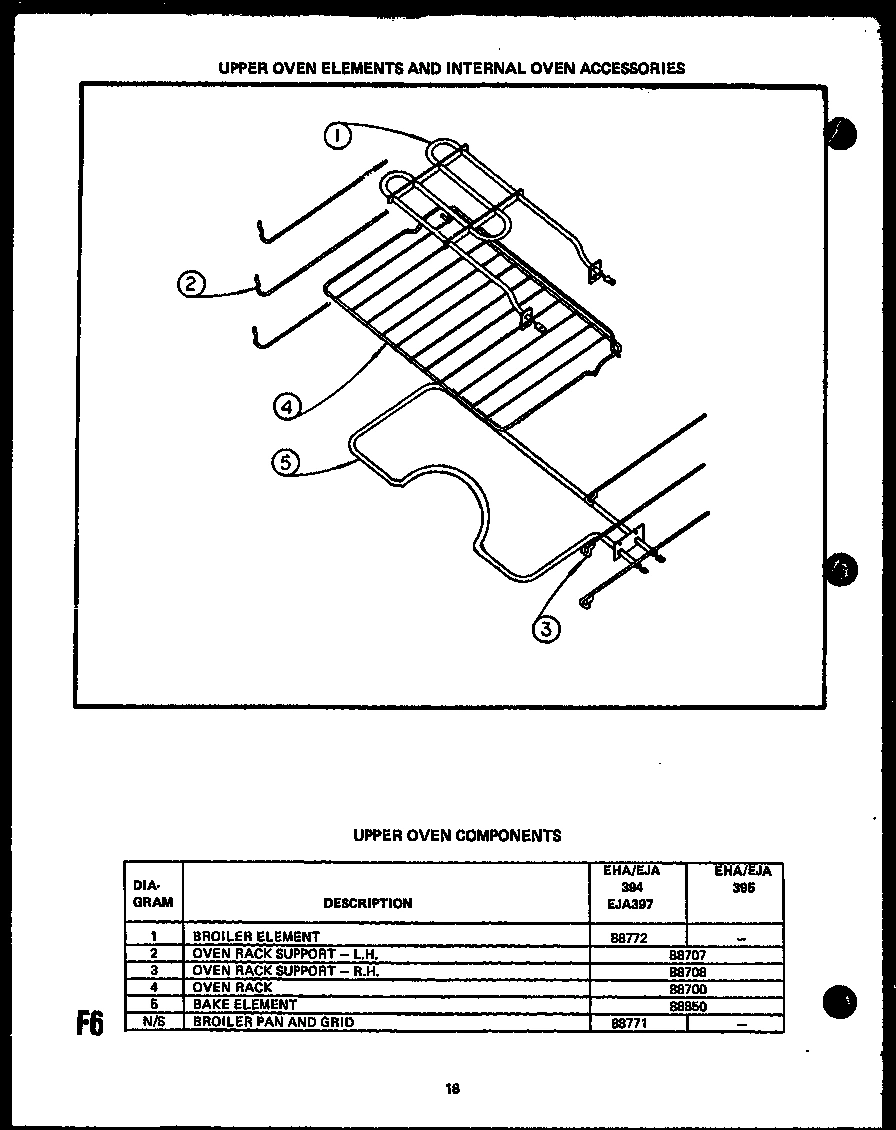

07 - UP OVEN ELEMENTS & INTERNAL OVEN ACS

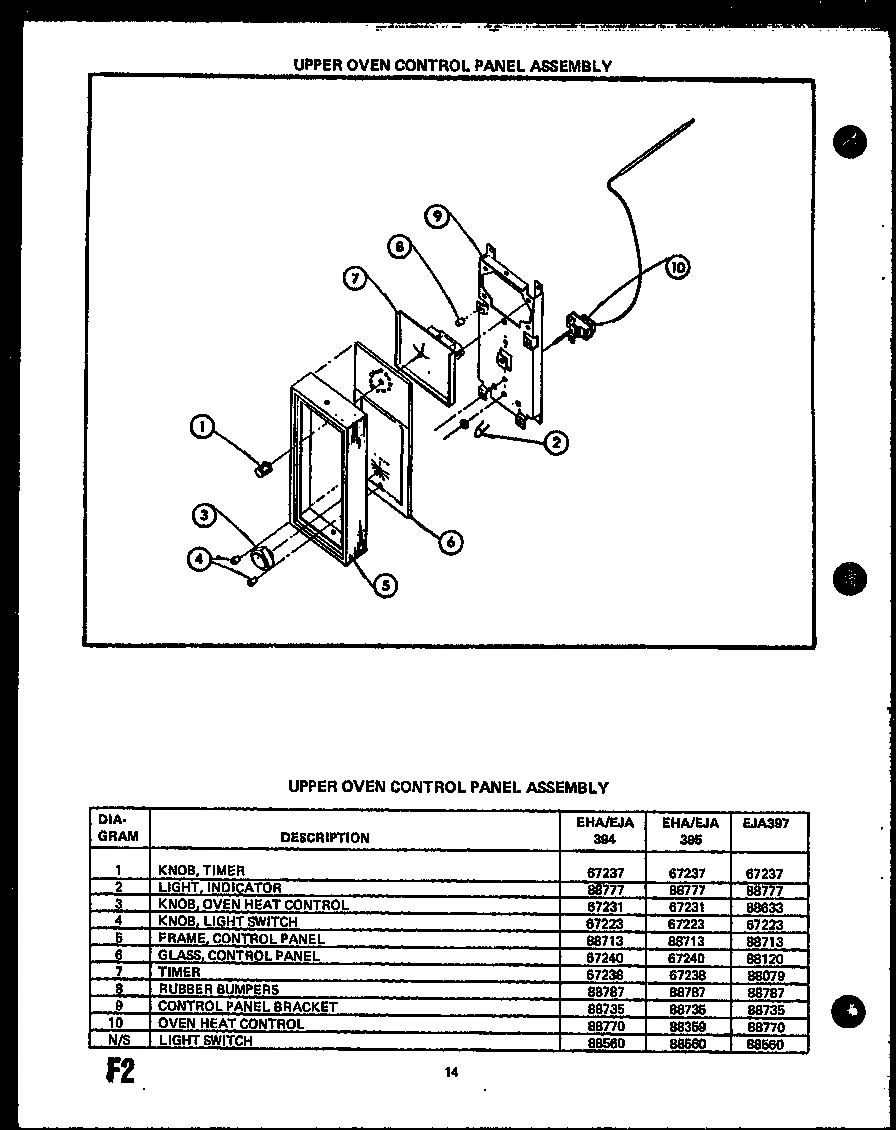

09 - UPPER OVEN CONTROL PANEL ASSY

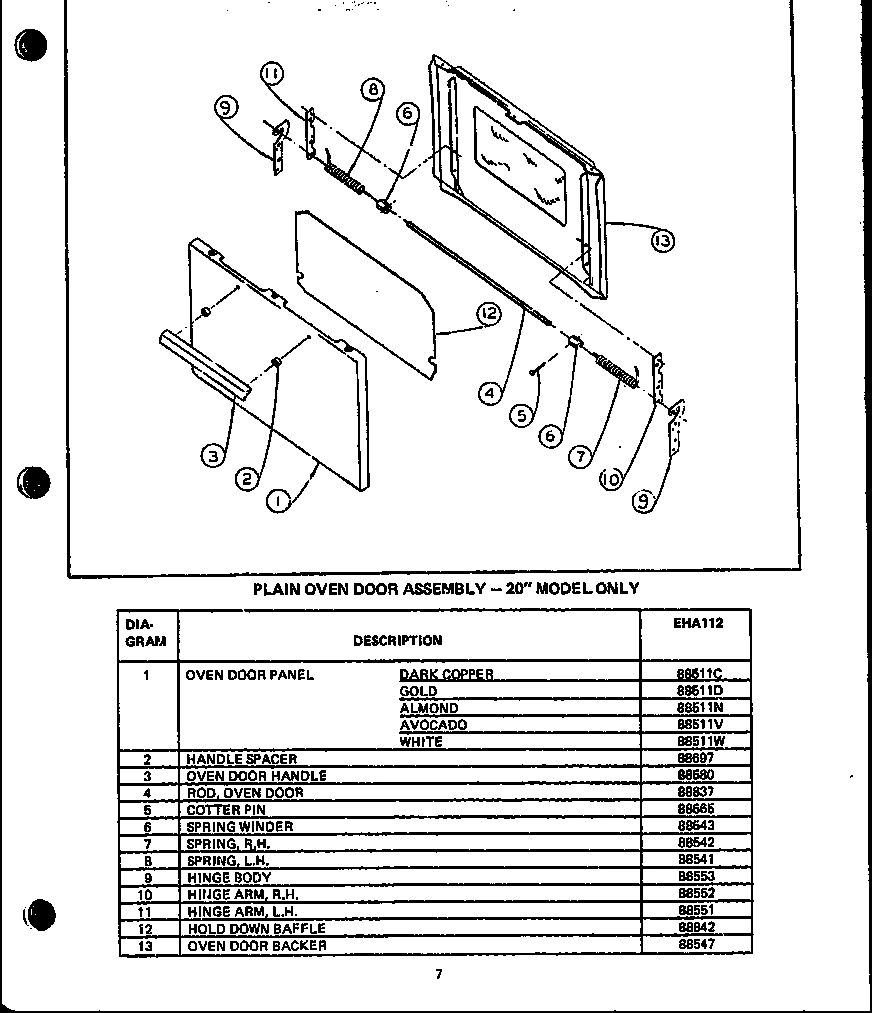

05 - Page 4

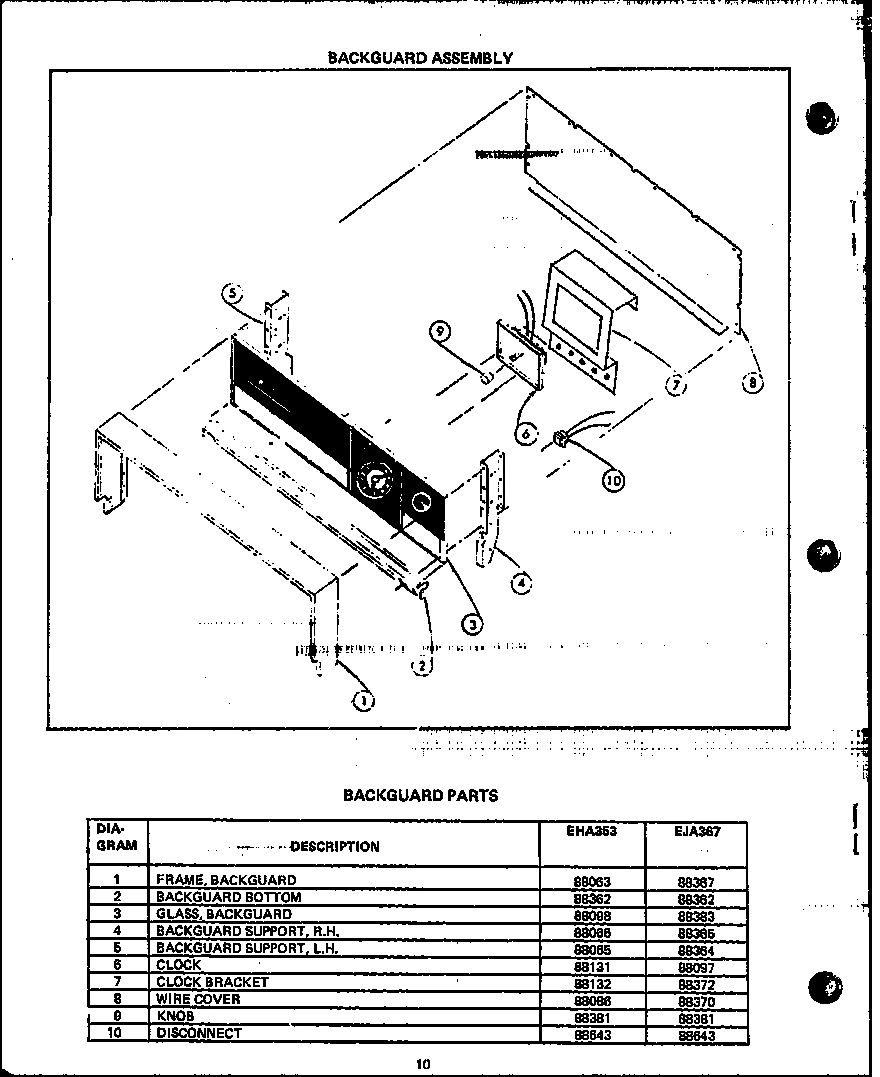

01 - BACKGUARD ASSY

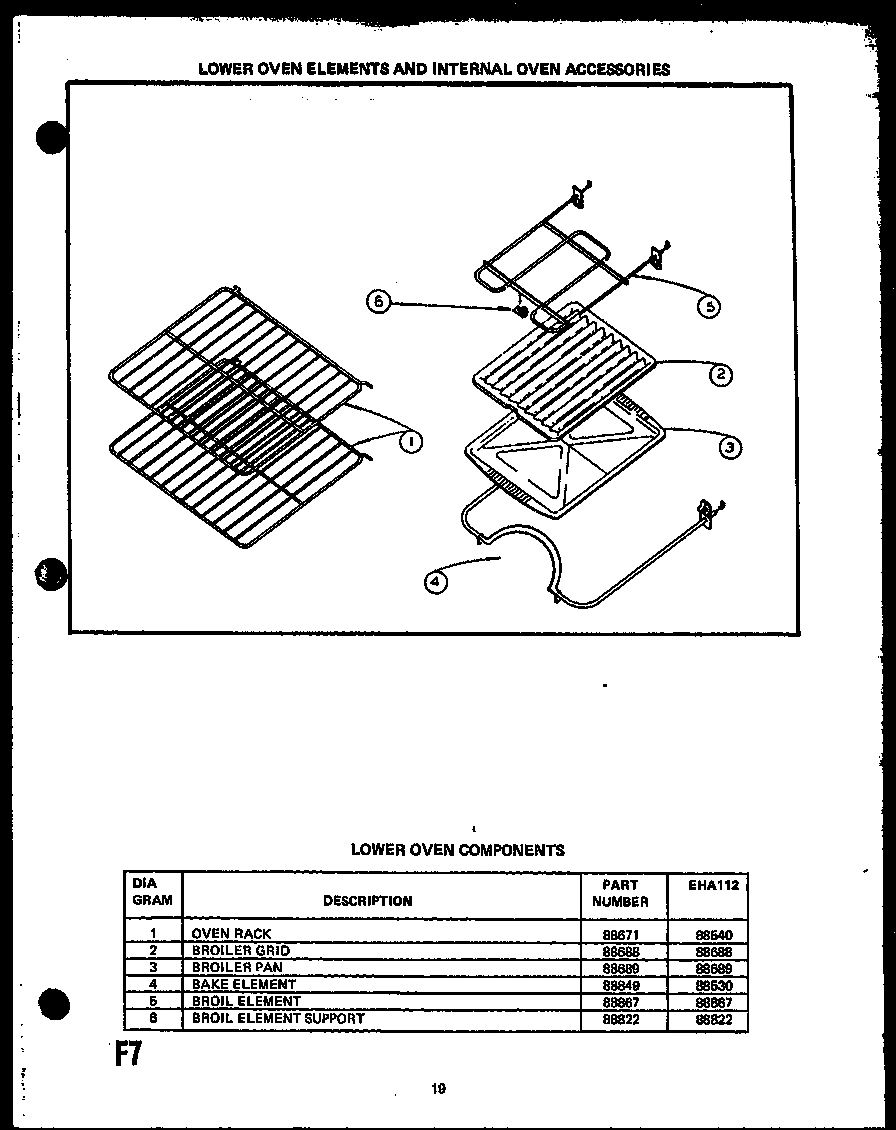

02 - LW OVEN ELEMENTS & INTERNAL OVEN ACS

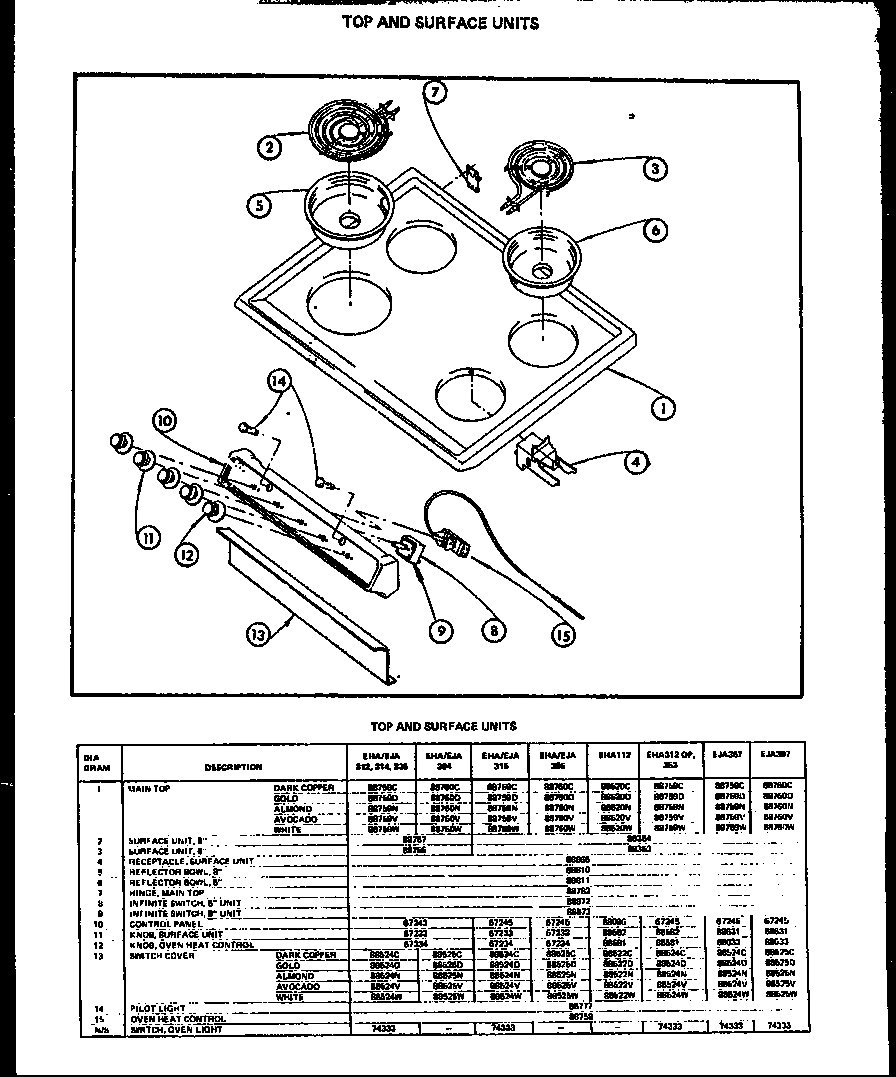

04 - Page 1

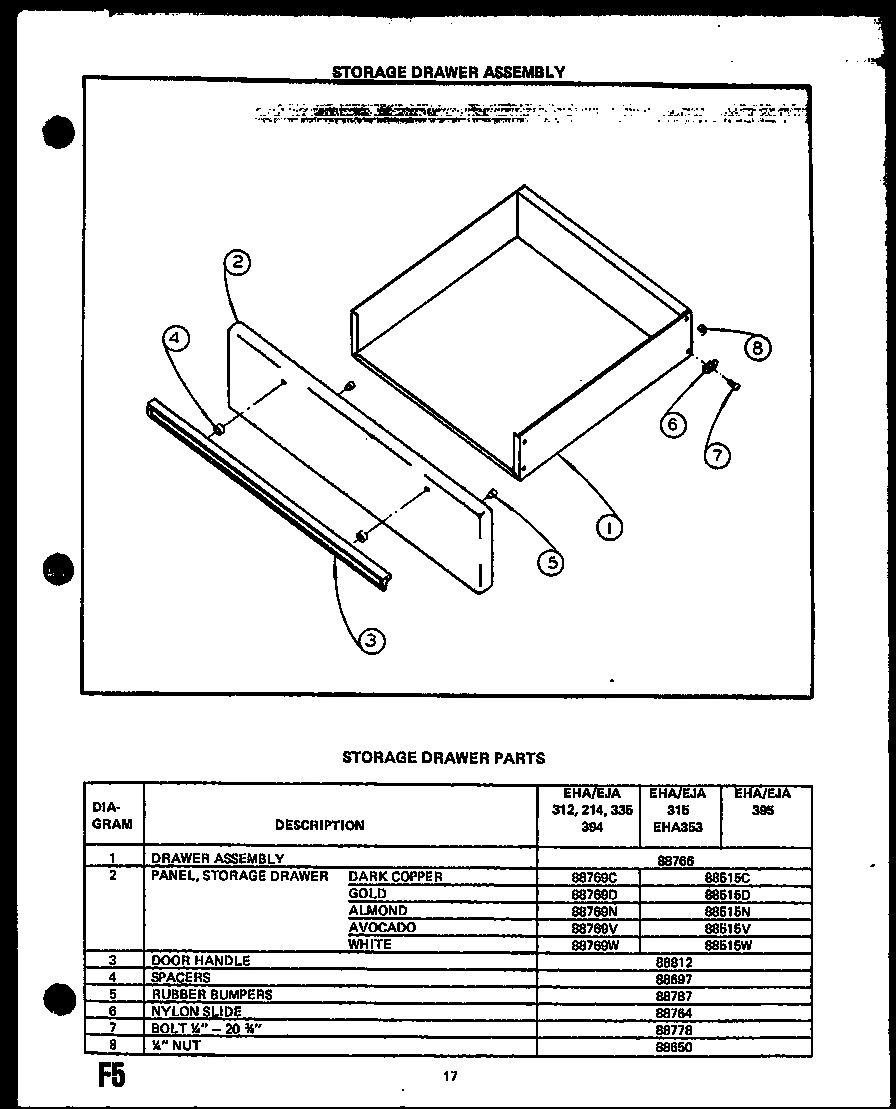

06 - STORAGE DRAWER ASSY

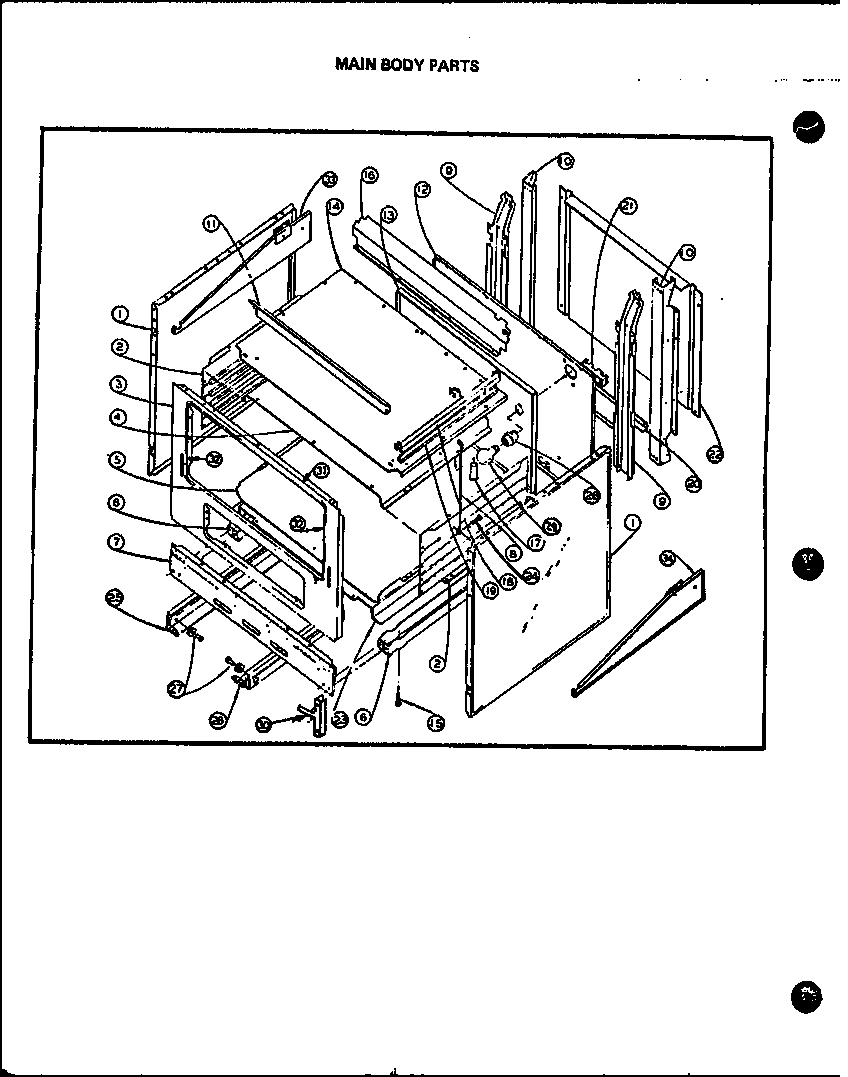

03 - MAIN BODY PARTS
Common parts from model Whirlpool EHA395 ELECTRIC RANGE
EJA315 BLACK GLASS, NON SEE-THRU DOOR WPL NOTE Contact Us For Availability
1
TOP PANEL, ALMOND WPL 088733N Contact Us For Availability
1
TOP PANEL, DARK COPPER WPL 88733C Contact Us For Availability
1
TOP PANEL, AVOCADO WPL 88733V Contact Us For Availability
1
TOP PANEL, GOLD WPL Y088733D Contact Us For Availability
1
TOP PANEL, WHITE WPL Y088733W Contact Us For Availability
1
KNOB, CLOCK WPL Y67237 Contact Us For Availability
1
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
1
FRAME, UPPER OVEN DOOR WPL 0088716 Contact Us For Availability
1
OVEN RACK WPL Y0088671 Contact Us For Availability
1
MAIN TOP AVOCADO WPL 88760V Contact Us For Availability
1
MAIN TOP, DARK COPPER WPL Y088760C Contact Us For Availability
1
MAIN TOP WPL Y088760D Contact Us For Availability
1
MAIN TOP, ALMOND WPL Y088760N Contact Us For Availability
1
MAIN TOP, WHITE WPL Y088760W Contact Us For Availability
1
SUB 310537, STORAGE DRAWER WPL Y0088766 Contact Us For Availability
2
TOP TRIM WPL Y0088715 Contact Us For Availability
2
OVEN RACK SUPPORT, L.H. WPL 0088707 Contact Us For Availability
2
HANDLE, DOOR WPL 0088876 Contact Us For Availability
2
OUTER GLASS WPL Y67239 Contact Us For Availability
2
SUB 87899N, PANEL, FIXED WPL 088515N Contact Us For Availability
2
SUB 87899W, PANEL, FIXED WPL 088515W Contact Us For Availability
2
SUB 87899C, PANEL, FIXED WPL Y088515C Contact Us For Availability
2
PANEL, STORAGE DOOR, GOLD WPL Y088515D Contact Us For Availability
2
PANEL STOR. D, AVOCAD WPL Y088515V Contact Us For Availability
3
TOP BAFFLE WPL 88748 Contact Us For Availability
3
OVEN RACK SUPPORT, R.H. WPL 0088708 Contact Us For Availability
3
KNOB, OVEN HEAT CONTROL WPL Y67231 Contact Us For Availability
3
HANDLE SPACER WPL 0088781 Contact Us For Availability
3
INNER DOOR GLASS ASSEMBLY WPL 0088804 Contact Us For Availability
3
OVEN DOOR HANDLE, 18`` WPL Y0088812 Contact Us For Availability
4
BURNER BOX SIDE-L.H. WPL Y88747 Contact Us For Availability
4
OVEN RACK WPL Y88700 Contact Us For Availability
4
KNOB, LIGHT SWITCH WPL Y67223 Contact Us For Availability
4
OVEN DOOR FRAME WPL Y88796 Contact Us For Availability
4
DOOR CATCH WPL 0088808 Contact Us For Availability
4
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
5
BURNER BOX SIDE, R.H. WPL Y0088746 Contact Us For Availability
5
BAKE ELEMENT, UPPER OVEN WPL 0088850 Contact Us For Availability
5
FRAME, CONTROL PANEL WPL 0088713 Contact Us For Availability
5
SUB 88788, RUBBER BUMPER WPL Y0088787 Contact Us For Availability
5
GLASS,OVEN DR 29``X 14 13/16`` WPL Y0088797 Contact Us For Availability
5
DOOR HANDLE WPL 88717 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
BOWL, BURNER 8`` (CHROME) WPL Y0088810 Contact Us For Availability
6
SIDE PANEL-L.H., AVOCADO WPL 88731V Contact Us For Availability
6
SIDE PANEL, L.H., DARK COPPER WPL Y088731C Contact Us For Availability
6
SIDE PANEL, L.H., GOLD WPL Y088731D Contact Us For Availability
6
SIDE PANEL, L.H., ALMOND WPL Y088731N Contact Us For Availability
6
SIDE PANEL, L.H., WHITE WPL Y088731W Contact Us For Availability
6
GLASS, CONTROL PANEL WPL Y67240 Contact Us For Availability
6
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
6
SLIDE BAR WPL Y88742 Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
NYLON SLIDE WPL 0088764 Contact Us For Availability
7
SIDE PANEL-R.H., DARK COPPER WPL 88732C Contact Us For Availability
7
SIDE PANEL GOLD WPL Y088732D Contact Us For Availability
7
SIDE PANEL, R.H., ALMOND WPL Y088732N Contact Us For Availability
7
SIDE PANEL, R.H., AVOCADO WPL Y088732V Contact Us For Availability
7
SIDE PANELWHITE WPL Y088732W Contact Us For Availability
7
TIMER WPL Y67238 Contact Us For Availability
7
SUB 86785, WINDOW, OV. DR. WPL Y0088805 Contact Us For Availability
7
SPACER WPL 0088723 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
7
BOLT WPL 0088778 Contact Us For Availability
8
OVEN SUPPORT-L.H. WPL 88698 Contact Us For Availability
8
SUB 41966, INSULATION WPL Y0088800 Contact Us For Availability
8
HINGE STUD WPL 0088722 Contact Us For Availability
8
SWITCH, INFINITE WPL 0088872 Contact Us For Availability
8
SQUARE NUT {J} WPL 0088650 Contact Us For Availability
9
OVEN SUPPORT, R.H. WPL Y0088699 Contact Us For Availability
9
HINGE, OVEN DOOR WPL 88740 Contact Us For Availability
9
CONTROL PANEL BRACKET WPL Y0088735 Contact Us For Availability
9
GLASS SUPPORT BRKT., L & R WPL 88825 Contact Us For Availability
10
OVEN THERMOSTAT WPL Y0088359 Contact Us For Availability
10
SUB 88070 BACKER, O.D. CC WPL 0088684 Contact Us For Availability
10
BACKER, OVEN DOOR WPL Y0088888 Contact Us For Availability
10
NYLON WASHER WPL 0088719 Contact Us For Availability
10
CONTROL PANEL WPL 67245 Contact Us For Availability
10
REAR SUPPORT WPL Y0088659 Contact Us For Availability
11
SUPPORT, GLASS PANEL{J} WPL 0088824 Contact Us For Availability
11
BUMPER ``L`` SHAPED WPL Y0088710 Contact Us For Availability
11
KNOB, SURFACE UNIT WPL Y67233 Contact Us For Availability
11
SWITCH COVER WPL 88525C Contact Us For Availability
11
SWITCH COVER WPL 88525D Contact Us For Availability
11
SWITCH COVER WPL 88525N Contact Us For Availability
11
SWITCH COVER WPL 88525V Contact Us For Availability
11
SWITCH COVER WPL 88525W Contact Us For Availability
12
SEE NOTE FRONT FRAME WPL Y00000000 Contact Us For Availability
12
OVEN DOOR BACKER, REGULAR PORC WPL 88899 Contact Us For Availability
12
DOOR BACKER, C/C WPL Y0088823 Contact Us For Availability
12
KNOB, OVEN HEAT CONTROL WPL Y67234 Contact Us For Availability
13
OVEN DOOR SEAL WPL Y0088709 Contact Us For Availability
13
GROMMET WPL 0088853 Contact Us For Availability
14
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
15
DOOR STRIKE WPL 0088809 Contact Us For Availability
15
THERMO-ELECT. WPL 0088758 Contact Us For Availability
16
DOOR SUPPORT WPL Y88720 Contact Us For Availability
17
BOTTOM UNIT WRAPPER WPL Y88726 Contact Us For Availability
18
LIGHT SHIELD WPL Y0088714 Contact Us For Availability
19
LIGHT DEFLECTOR WPL Y0088727 Contact Us For Availability
20
OVEN LIGHT REFLECTOR WPL Y0088745 Contact Us For Availability
20
BOTTOM WIRE COVER SUPPORT WPL Y0088755 Contact Us For Availability
22
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
23
BACKSPLASH PANEL, DARK COPPER WPL Y088725C Contact Us For Availability
23
BACKSPLASH PANEL, GOLD WPL Y088725D Contact Us For Availability
23
BACKSPLASH PANEL, ALMOND WPL Y088725N Contact Us For Availability
23
BACKSPLASH PANEL, AVOCADO WPL Y088725V Contact Us For Availability
23
BACKSPLASH PANEL, WHITE WPL Y088725W Contact Us For Availability
24
OVEN LIGHT BRACKET WPL Y0088744 Contact Us For Availability
25
HI-OVEN BK S WPL Y0088730 Contact Us For Availability
26
UPPER BACK COVER WPL Y0088743 Contact Us For Availability
27
SUB 42176, LAMP WPL 0088672 Contact Us For Availability
28
SOCKET, LAMP WPL 0088882 Contact Us For Availability
30
SUB 86790, HINGE, OV. DR. WPL Y0088845 Contact Us For Availability
NI
KIT, HOOD INSTALLATION WPL Y0088502 Contact Us For Availability
NI
SWITCH, LIGHT WPL 0088560 Contact Us For Availability
× ![]()
