Model Whirlpool EHA335 ELECTRIC RANGE – Common Parts & Diagrams

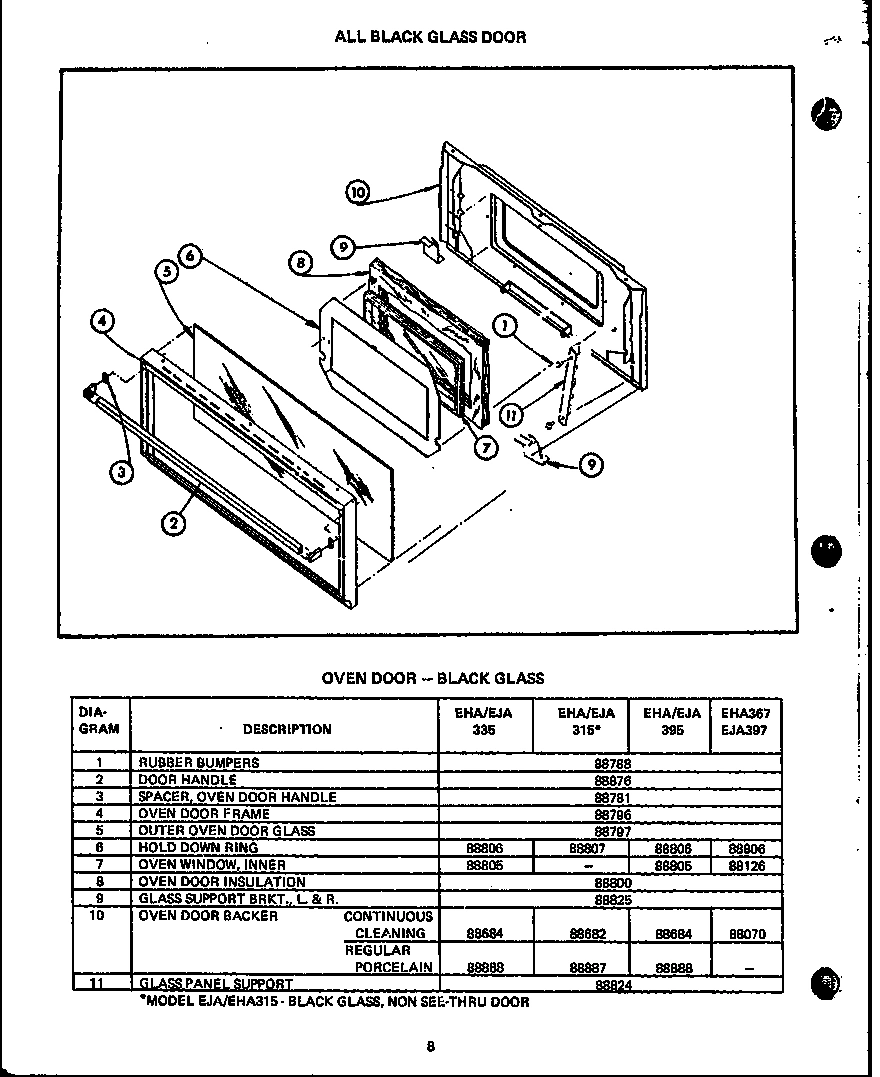

01 - ALL BLACK GLASS DOOR

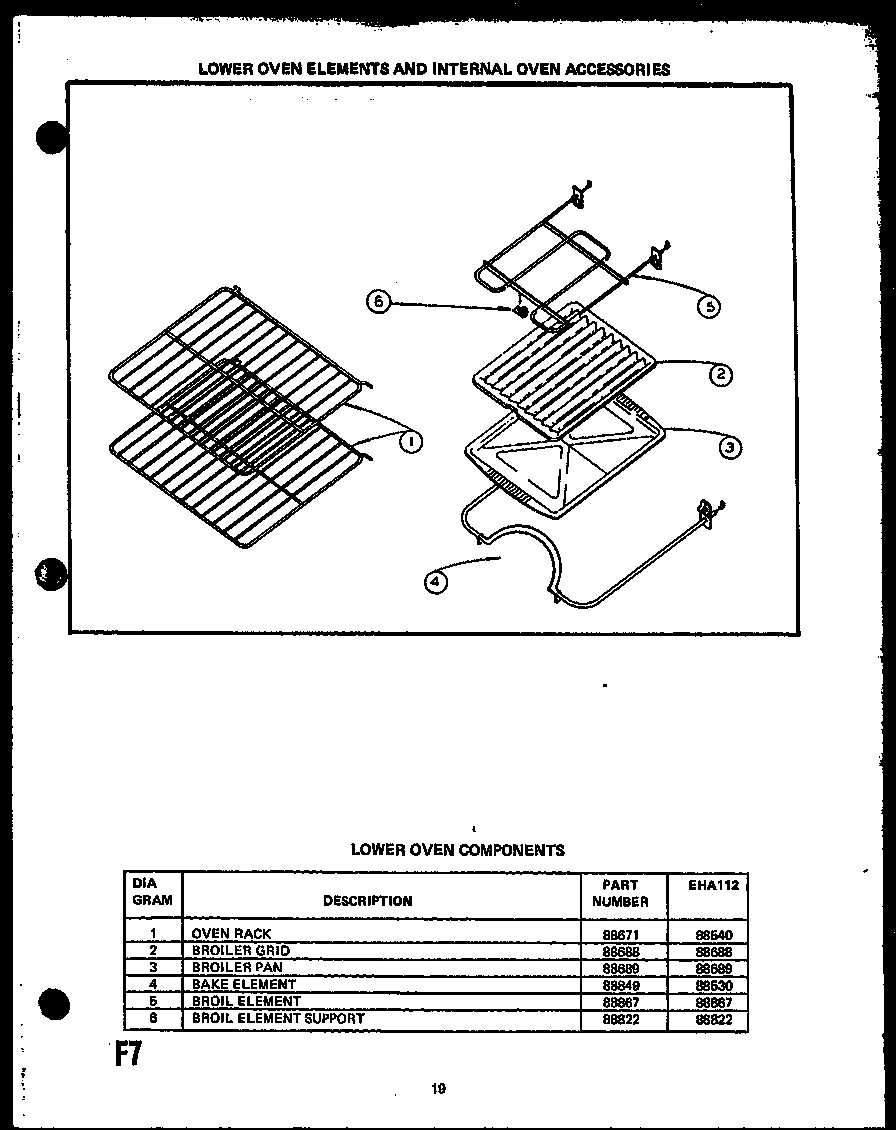

02 - LW OVEN ELEMENTS & INTERNAL OVEN ACS

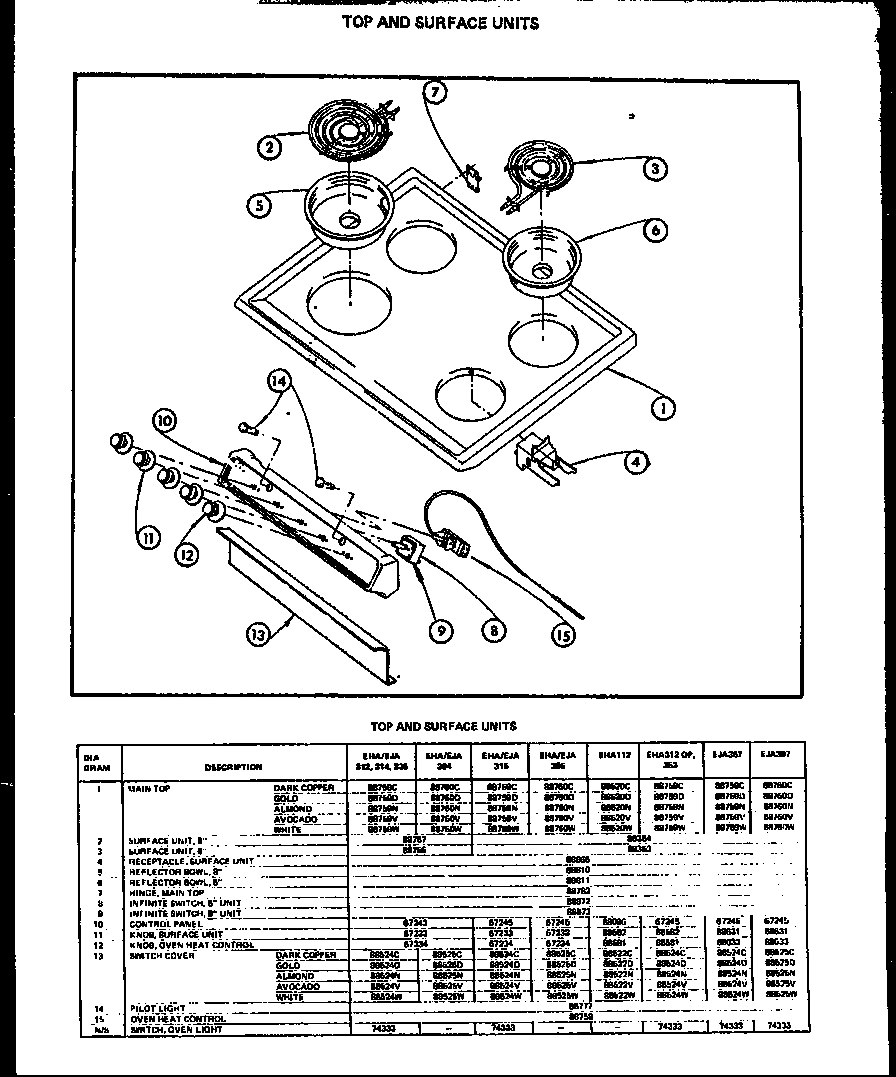

04 - Page 1

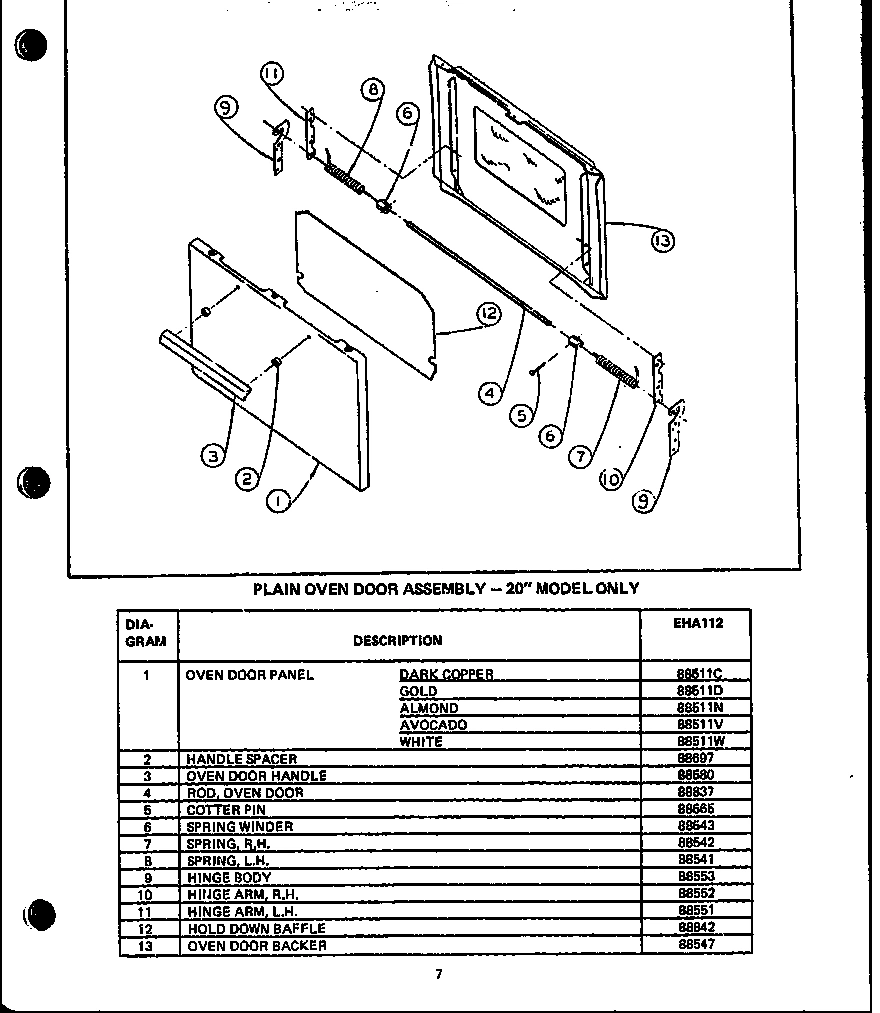

05 - Page 4

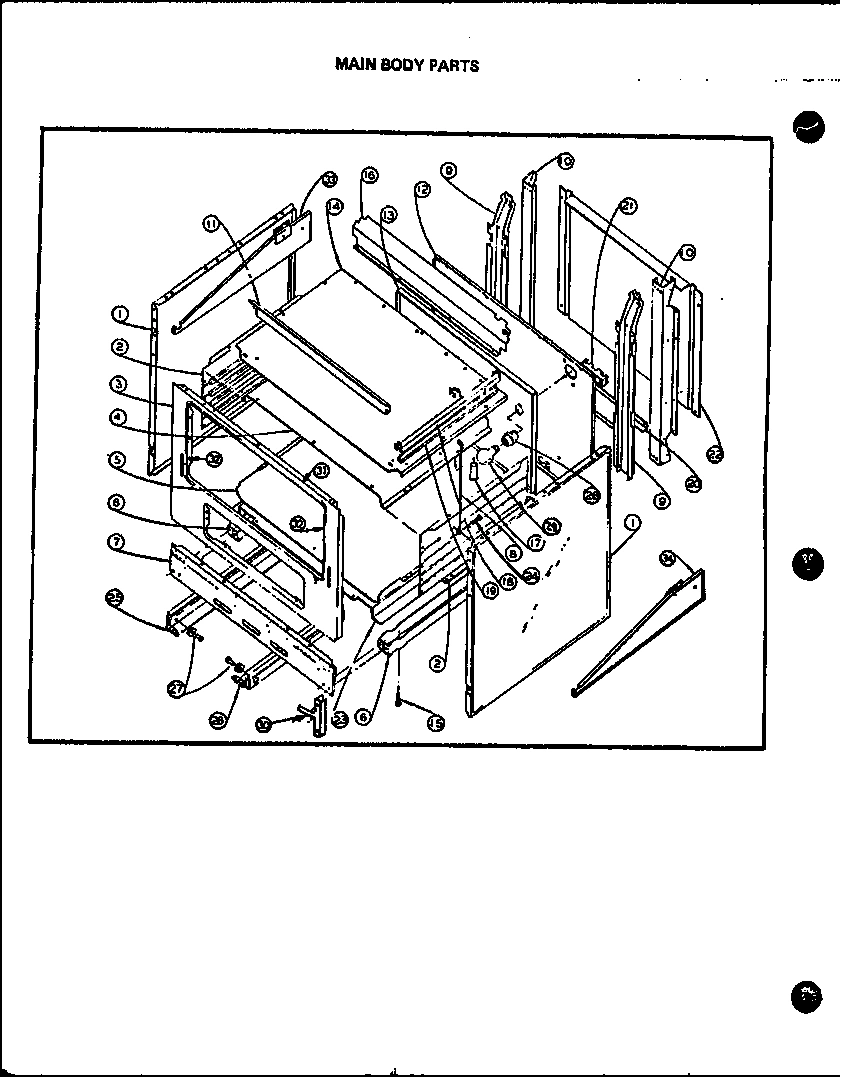

03 - MAIN BODY PARTS

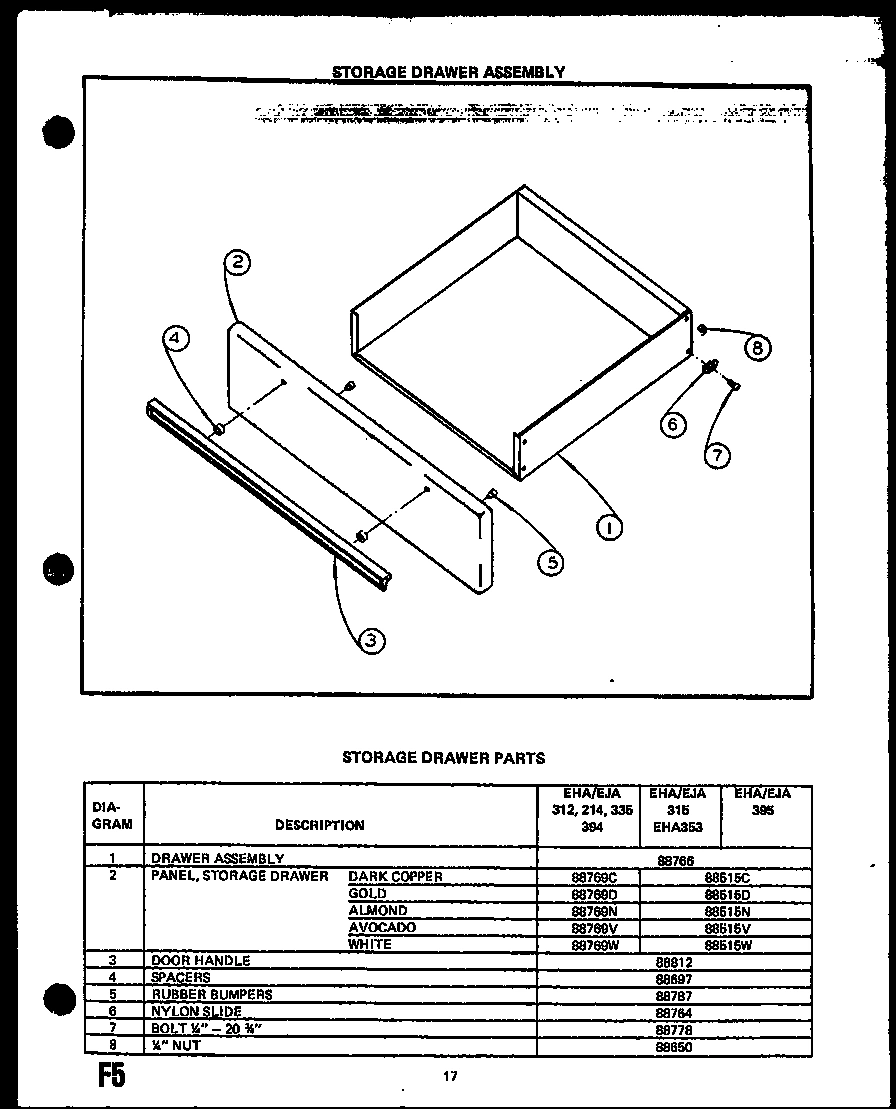

06 - STORAGE DRAWER ASSY
Common parts from model Whirlpool EHA335 ELECTRIC RANGE
EJA315 BLACK GLASS, NON SEE-THRU DOOR WPL NOTE Contact Us For Availability
1
SUB 57319,FRAME BACKGUARD WPL 0088663 Contact Us For Availability
1
OVEN RACK WPL Y0088671 Contact Us For Availability
1
MAIN TOP ALMOND WPL 88759N Contact Us For Availability
1
MAIN TOP AVOCADO WPL 88759V Contact Us For Availability
1
MAIN TOP WHITE WPL 88759W Contact Us For Availability
1
MAIN TOP, DARK COPPER WPL Y088759C Contact Us For Availability
1
MAIN TOP, GOLD WPL Y088759D Contact Us For Availability
1
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
1
SUB 311003H, SIDE PANEL, GOLD WPL 088652D Contact Us For Availability
1
SUB 311003N, SIDE PANEL, ALMON WPL 088652N Contact Us For Availability
1
BODY SIDE, AVOCADO WPL 88652V Contact Us For Availability
1
BODY SIDE, DARK COPPER WPL Y088652C Contact Us For Availability
1
SUB 311003W, PANEL-SIDE, WHITE WPL Y088652W Contact Us For Availability
1
SUB 310537, STORAGE DRAWER WPL Y0088766 Contact Us For Availability
2
PANEL, BACKGUARD WPL 67249C Contact Us For Availability
2
PANEL BACKGUARD, GOLD WPL 67249D Contact Us For Availability
2
PANEL BACKGUARD, ALMOND WPL 67249N Contact Us For Availability
2
PANEL BACKGUARD, AVOCADO WPL 67249V Contact Us For Availability
2
HANDLE, DOOR WPL 0088876 Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 088769N Contact Us For Availability
2
SUB 310535W, STORAGE DRAWER WPL 088769W Contact Us For Availability
2
PANEL, STORAGE DRAWER COFFEE WPL 88769C Contact Us For Availability
2
PANEL, STORAGE DRAWER, GOLD WPL Y088769D Contact Us For Availability
2
PANEL, STORAGE DRAWER, AVOCADO WPL Y088769V Contact Us For Availability
3
SUPPORT, BACKGUARD, L.H. WPL 0088666 Contact Us For Availability
3
HANDLE SPACER WPL 0088781 Contact Us For Availability
3
OVEN DOOR HANDLE, 18`` WPL Y0088812 Contact Us For Availability
4
SUPPORT, BACKGUARD, R.H. WPL 0088667 Contact Us For Availability
4
OVEN DOOR FRAME WPL Y88796 Contact Us For Availability
4
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
5
CLOCK W/KNOB WPL Y67230 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
BOWL, BURNER 8`` (CHROME) WPL Y0088810 Contact Us For Availability
5
GLASS,OVEN DR 29``X 14 13/16`` WPL Y0088797 Contact Us For Availability
5
SUB 88788, RUBBER BUMPER WPL Y0088787 Contact Us For Availability
6
WIRE COVER WPL 88814 Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
6
RAIL, BASE WPL 0088654 Contact Us For Availability
6
NYLON SLIDE WPL 0088764 Contact Us For Availability
7
SUB 42605 KNOB, CLOCK WPL Y0093780 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
7
SUB 86785, WINDOW, OV. DR. WPL Y0088805 Contact Us For Availability
7
BASE, FRONT FRAME WPL 88655 Contact Us For Availability
7
BOLT WPL 0088778 Contact Us For Availability
8
SWITCH, INFINITE WPL 0088872 Contact Us For Availability
8
SUB 41966, INSULATION WPL Y0088800 Contact Us For Availability
8
SUB 87023, SUPPORT ROD WPL 0088790 Contact Us For Availability
8
SQUARE NUT {J} WPL 0088650 Contact Us For Availability
9
GLASS SUPPORT BRKT., L & R WPL 88825 Contact Us For Availability
9
SUB 52742, VERTICAL SUPPORT WPL 0088657 Contact Us For Availability
10
CONTROL PANEL WPL Y67243 Contact Us For Availability
10
SUB 88070 BACKER, O.D. CC WPL 0088684 Contact Us For Availability
10
BACKER, OVEN DOOR WPL Y0088888 Contact Us For Availability
10
REAR SUPPORT WPL 0088658 Contact Us For Availability
11
KNOB, SURFACE UNIT WPL Y67233 Contact Us For Availability
11
SWITCH COVER WPL 88524C Contact Us For Availability
11
SWITCH COVER WPL 88524D Contact Us For Availability
11
SWITCH COVER WPL 88524N Contact Us For Availability
11
SWITCH COVER WPL 88524V Contact Us For Availability
11
SWITCH COVER WPL 88524W Contact Us For Availability
11
SUPPORT, GLASS PANEL{J} WPL 0088824 Contact Us For Availability
12
KNOB, OVEN HEAT CONTROL WPL Y67234 Contact Us For Availability
12
MAIN BACK WPL Y0088752 Contact Us For Availability
13
SEE NOTE OVEN BACKLINER, CONTINUOUS CLEANING WPL Y00000000 Contact Us For Availability
14
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
14
BOX, BURNER WPL Y0088753 Contact Us For Availability
15
THERMO-ELECT. WPL 0088758 Contact Us For Availability
15
SUB 62362, LEG, LEVELING WPL Y0088651 Contact Us For Availability
16
BURNER BOX REAR COVER WPL Y0088819 Contact Us For Availability
17
OVEN VENT WPL 0088761 Contact Us For Availability
18
WIRE CHANNEL WPL Y0088816 Contact Us For Availability
19
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
20
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
22
WIRE COVER, MAIN BACK WPL Y0088754 Contact Us For Availability
23
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
24
SHOULDER SCREW WPL 0088779 Contact Us For Availability
25
DRAWER TRACK, L.H. WPL Y0088767 Contact Us For Availability
26
DRAWER TRACK, R.H. WPL Y0088768 Contact Us For Availability
27
ROLLER WPL 0088765 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
30
SUB 86790, HINGE, OV. DR. WPL Y0088845 Contact Us For Availability
31
SUB 56091, TOP SEAL, DOOR WPL Y0088848 Contact Us For Availability
32
SUB 56090, GASKET, DOOR WPL Y0088847 Contact Us For Availability
NI
SWITCH, OVEN LICHT WPL Y74333 Contact Us For Availability
× ![]()
