Model Whirlpool DUS31419 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL DETAILS

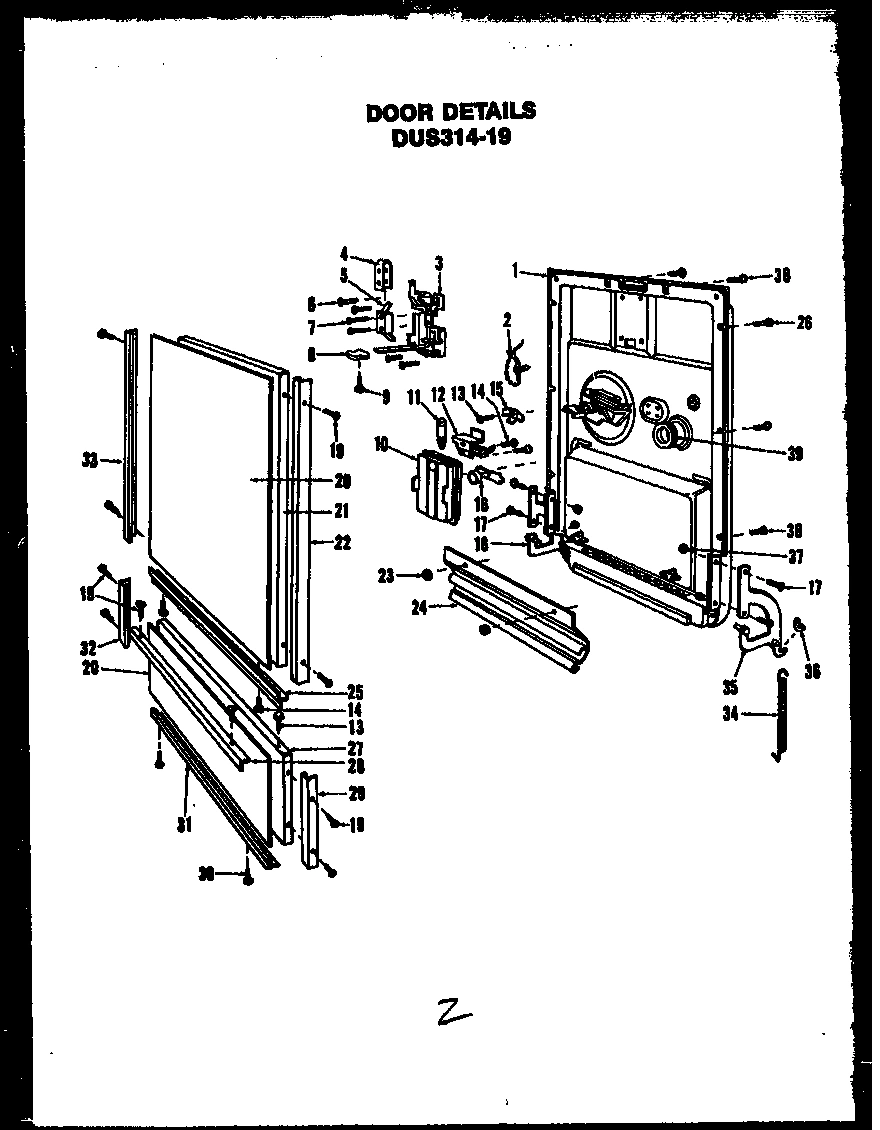

03 - DOOR DETAILS

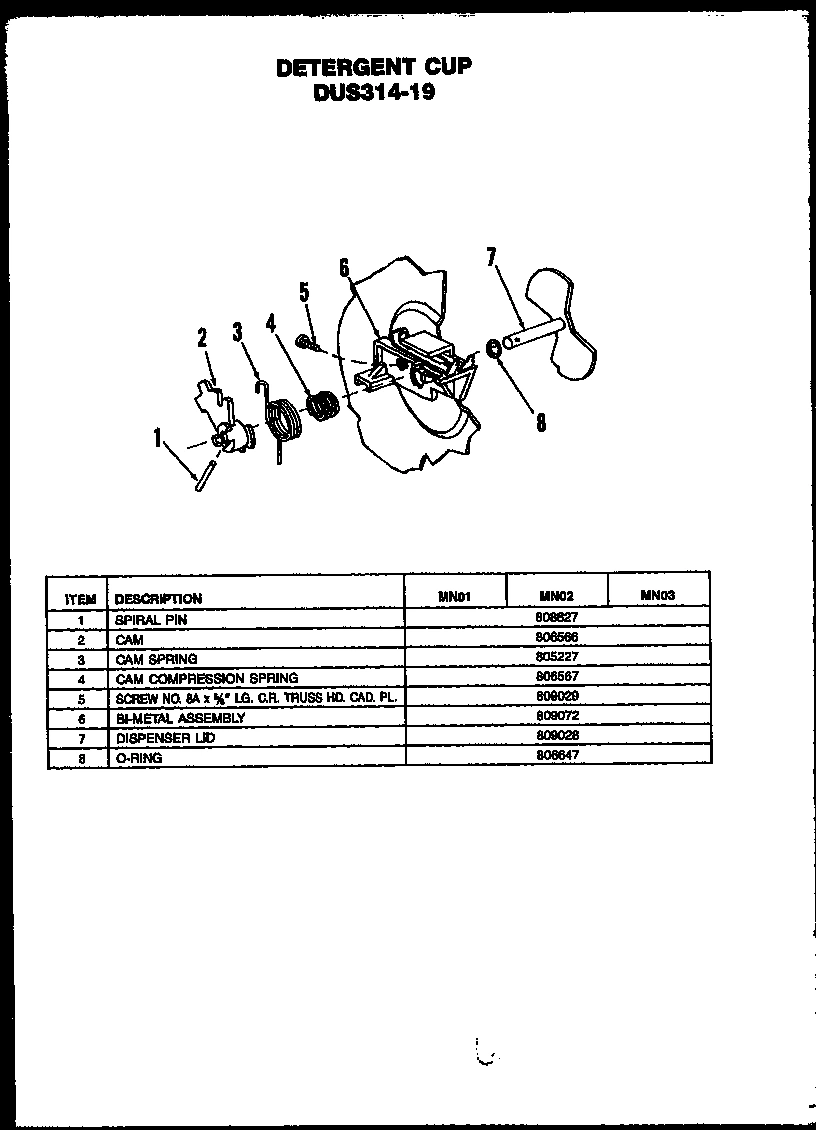

02 - DETERGENT CUP

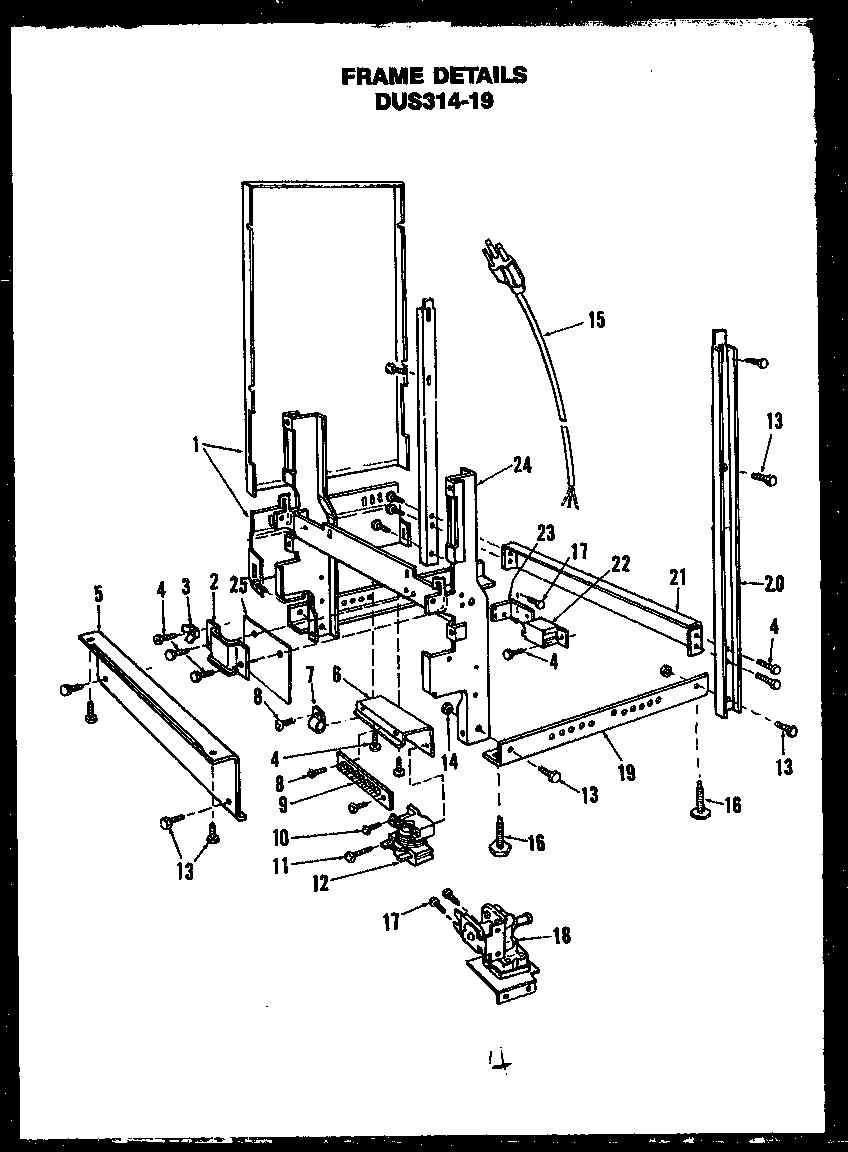

04 - FRAME DETAILS

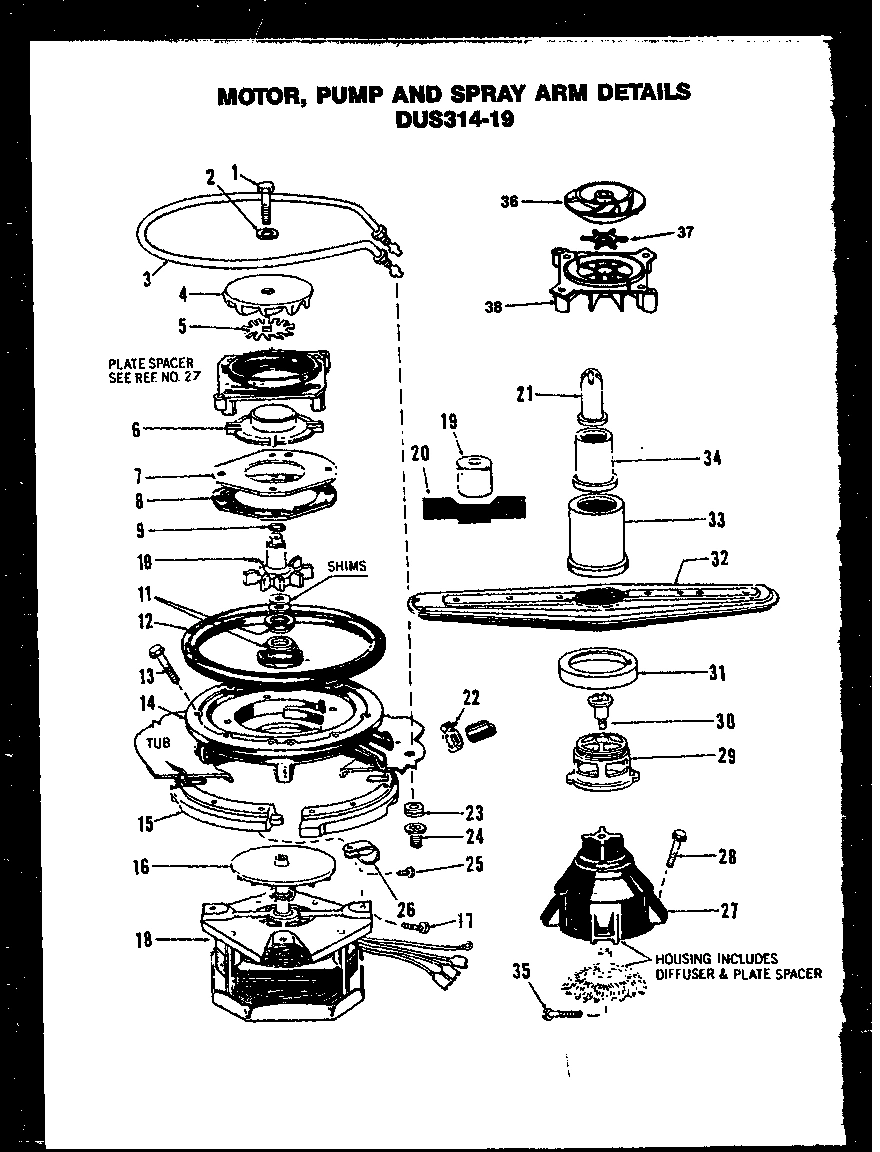

05 - MOTOR

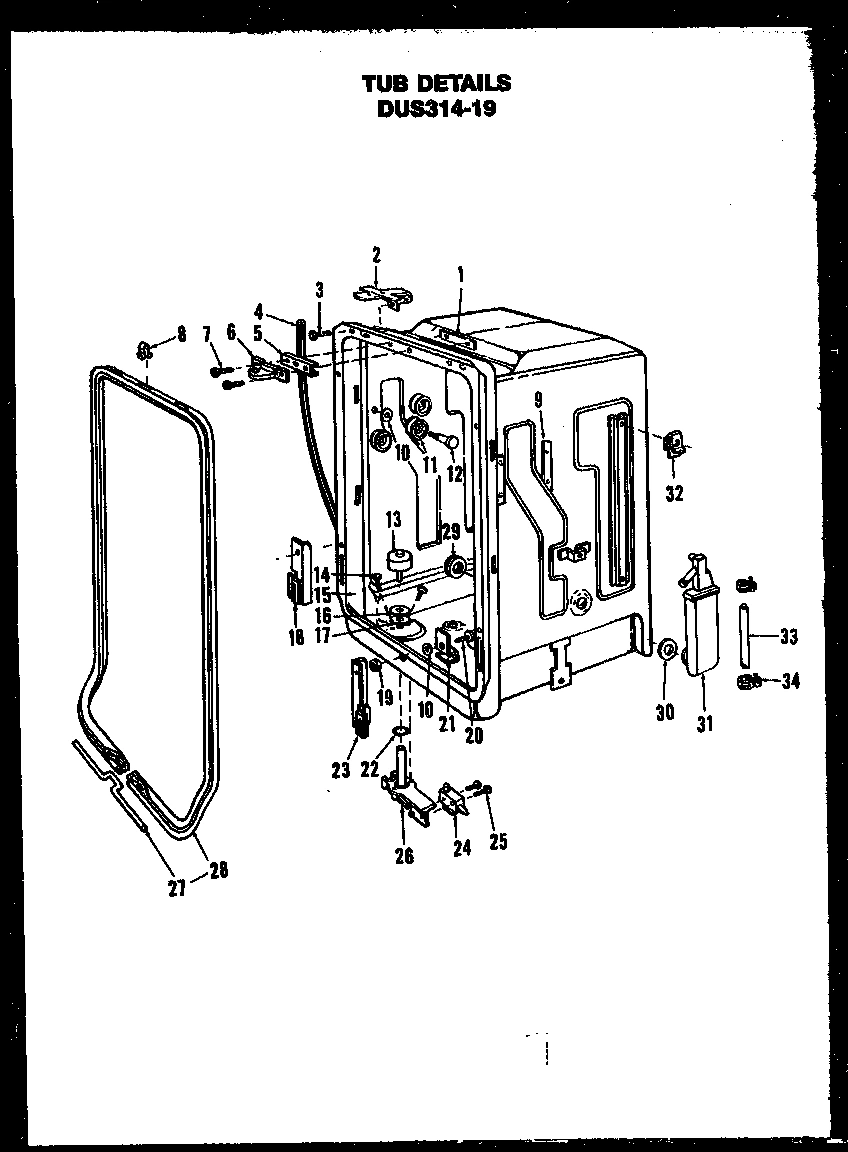

07 - TUB DETAILS

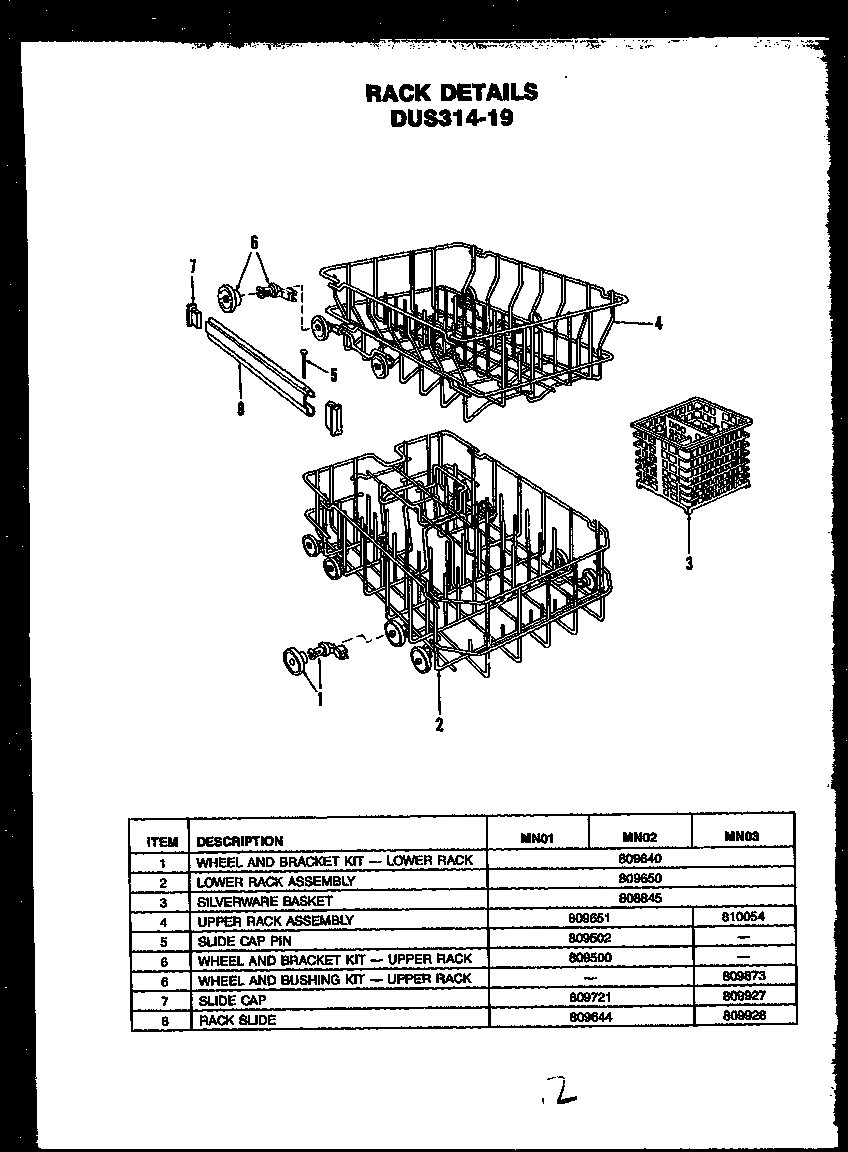

06 - RACK DETAILS
Common parts from model Whirlpool DUS31419 DISHWASHER
1
SCREW WPL 0809175 Contact Us For Availability
1
DOOR ASSY. INNER WPL 0809635 Contact Us For Availability
1
SPIROL PIN WPL Y0808827 Contact Us For Availability
1
SIDE PANEL KIT, ALMOND WPL 0808889 Contact Us For Availability
1
SIDE PANEL WPL 808885 Contact Us For Availability
1
PANEL, SIDE WPL 808887 Contact Us For Availability
1
PANEL, SIDE WPL 808888 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
SINGLE WHEEL & BRKT. WPL 0809640 Contact Us For Availability
2
END CAP, LH WPL 0808694 Contact Us For Availability
2
TIE WIRE WPL Y0809075 Contact Us For Availability
2
CAM WPL Y0806566 Contact Us For Availability
2
WIRING CLAMP WPL 0806723 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
CLIP WPL 0809677 Contact Us For Availability
2
LOWER RACK ASSY WPL Y0809650 Contact Us For Availability
3
PUSHBUTTON WPL Y0807091 Contact Us For Availability
3
SCREW WPL 0806894 Contact Us For Availability
3
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
3
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
3
SPRING WPL Y0805227 Contact Us For Availability
3
HEATER SERVICE KIT WPL Y0806864 Contact Us For Availability
3
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
4
LENS WPL 0809036 Contact Us For Availability
4
SWITCH COVER WPL 0807450 Contact Us For Availability
4
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
DRAIN HOSE WPL Y0809112 Contact Us For Availability
4
SUB 809872, UPPER RACK ASSY WPL 0809651 Contact Us For Availability
5
VENT GRILLE WPL Y0808477 Contact Us For Availability
5
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
5
TOEPLATE WPL 0807559 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
SHIM WPL 0809214 Contact Us For Availability
5
CAP PIN WPL 0809502 Contact Us For Availability
6
SPEED NUT WPL Y0808475 Contact Us For Availability
6
BI-METAL ASSY. WPL Y0809072 Contact Us For Availability
6
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
WHEEL ASSY. WPL Y0809500 Contact Us For Availability
7
KNOB WPL 0809469 Contact Us For Availability
7
SCREW WPL 0808618 Contact Us For Availability
7
LID, DISPENSER WPL Y0809028 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
SLIDE CAP WPL 0809721 Contact Us For Availability
8
CONTROL PANEL WPL 0809654 Contact Us For Availability
8
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
8
``O`` RING WPL Y0806647 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
USE 0809213 WPL 0809644 Contact Us For Availability
9
END CAP, RH WPL 0808693 Contact Us For Availability
9
USE 0806830 WPL 0809163 Contact Us For Availability
9
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
10
LIGHT, ASSY. WPL 0809317 Contact Us For Availability
10
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809116 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
11
VENT SLOT SHIELD WPL 0808574 Contact Us For Availability
11
PLUNGER WPL 0806757 Contact Us For Availability
11
SCREW WPL 0804672 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
12
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
12
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
12
RELAY WPL 0805255 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
13
TIMER, DDW155-CO WPL Y0809771 Contact Us For Availability
13
SCREW WPL 0807001 Contact Us For Availability
13
FLOAT WPL Y0809861 Contact Us For Availability
14
SCREW WPL Y0807268 Contact Us For Availability
14
PUMP HOUSING WPL Y0809059 Contact Us For Availability
15
SPLASH PAN WPL 0807425 Contact Us For Availability
15
POWER CORD WPL Y0808395 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
15
TUB & GASKET ASSY. WPL 0809716 Contact Us For Availability
16
SWITCH WPL 0809328 Contact Us For Availability
16
FILL PLUG WPL Y0807673 Contact Us For Availability
16
LEVELING LEG WPL 0809422 Contact Us For Availability
16
WATER SHIELD ASSY WPL Y0809366 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
SCREW WPL 0803311 Contact Us For Availability
17
SCREW WPL Y0807950 Contact Us For Availability
17
SCREW WPL Y0809022 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
ARM, L.H. WPL Y0807539 Contact Us For Availability
18
VALVE ASSY. WPL 0809241 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
COUNTERBALANCE ARM GUIDE, LH WPL 0807599 Contact Us For Availability
19
BRACKET, SWITCH MOUNTING WPL 0806594 Contact Us For Availability
19
SIDE BASE ANGLE KIT WPL 0809543 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
USE M0281003 WPL 0803346 Contact Us For Availability
20
SCREW WPL 0807141 Contact Us For Availability
20
DOOR & ACCESS PNL INSERTS ALM WPL 0808919 Contact Us For Availability
20
DOOR & ACCESS PNL INSERTS HARV WPL 0808920 Contact Us For Availability
20
DOOR & ACCESS PNL INSERTS COFF WPL 0808921 Contact Us For Availability
20
DOOR & ACCESS PNL INSERTS AVOC WPL 0808922 Contact Us For Availability
20
DOOR & ACCESS PNL INSERTS BLK WPL 0808923 Contact Us For Availability
20
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
21
DOOR PANEL, WHITE WPL Y0808298 Contact Us For Availability
21
REAR BRACE WPL 0807566 Contact Us For Availability
21
TOWER TIP WPL 0808849 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
DOOR PANEL TRIM, RH WPL 0808990 Contact Us For Availability
22
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
22
CLAMP, HOSE WPL 0806090 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
SPEEDNUT WPL 0809026 Contact Us For Availability
23
COVER BRACKET WPL 0807019 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
COUNTERBALANCE ARM GUIDE, RH WPL 0807600 Contact Us For Availability
24
VENT PLATE WPL Y0809636 Contact Us For Availability
24
HINGE, FRAME WPL 0809212 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
FLOAT SWITCH WPL Y0809863 Contact Us For Availability
25
BOTTOM TRIM, DOOR WPL 0809637 Contact Us For Availability
25
WIRE SHIELD WPL 0809144 Contact Us For Availability
25
SCREW WPL 0807270 Contact Us For Availability
25
SCREW WPL 0809864 Contact Us For Availability
26
CLAMP WPL Y0808442 Contact Us For Availability
26
SCREW WPL Y0808749 Contact Us For Availability
26
FLOAT ASSY WPL Y0809859 Contact Us For Availability
27
ACCESS PANEL, WHITE WPL Y0808304 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
27
GASKET JUNCTION WIRE WPL 0809634 Contact Us For Availability
28
ACCESS PANEL TRIM, TOP WPL Y0808471 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
TUB GASKET & WIRE ASM. WPL Y0809633 Contact Us For Availability
29
TRIM, ACC SIDE WPL 0808103 Contact Us For Availability
29
BEARING WPL Y0809046 Contact Us For Availability
29
NUT PLASTIC WPL 0805669 Contact Us For Availability
30
USE M0217224 WPL Y0803416 Contact Us For Availability
30
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
30
WASHER WPL Y0803573 Contact Us For Availability
31
ACCESS PANEL TRIM, BOTTOM WPL 0808303 Contact Us For Availability
31
SHIELD, BEARING WPL Y0808924 Contact Us For Availability
31
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
32
TRIM, ACC SIDE WPL 0808104 Contact Us For Availability
32
SPRAY ARM WPL Y0808848 Contact Us For Availability
32
NUT, CAGE WPL 0806291 Contact Us For Availability
33
DOOR PANEL TRIM, LH WPL 0808991 Contact Us For Availability
33
TOWER BASE WPL Y0808178 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
DOOR SPRING WPL Y0807601 Contact Us For Availability
34
TOWER SECTION WPL Y0808179 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
ARM, R.H. WPL 0807538 Contact Us For Availability
36
SPRING PAD WPL 0805884 Contact Us For Availability
39
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
NI
WOOD DOOR FRAME KIT WPL 0808935 Contact Us For Availability
× ![]()
