Model Whirlpool DG906 GAS DRYER – Common Parts & Diagrams
05 - EXHAUST & BLOWER ASSEMBLY

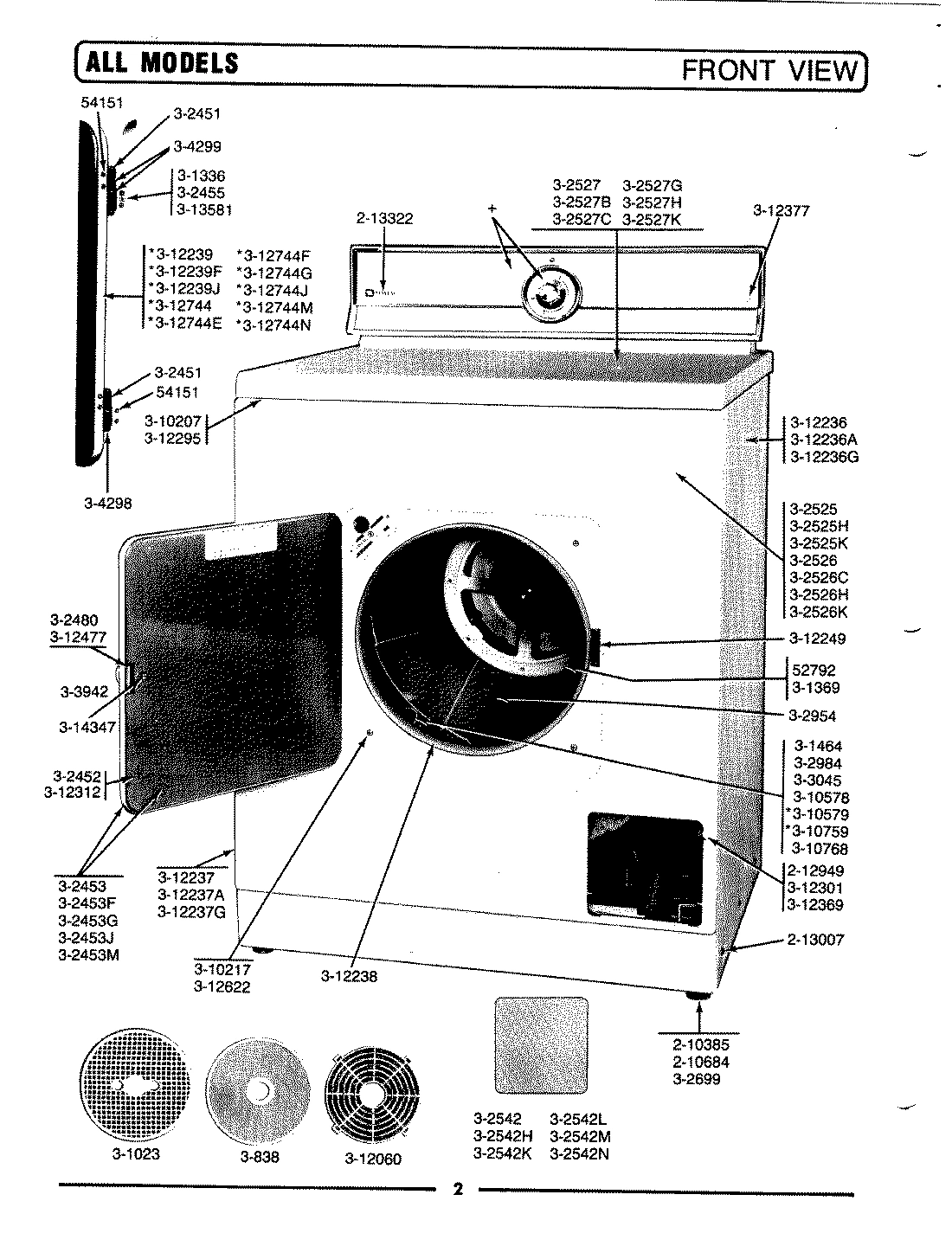

07 - FRONT VIEW

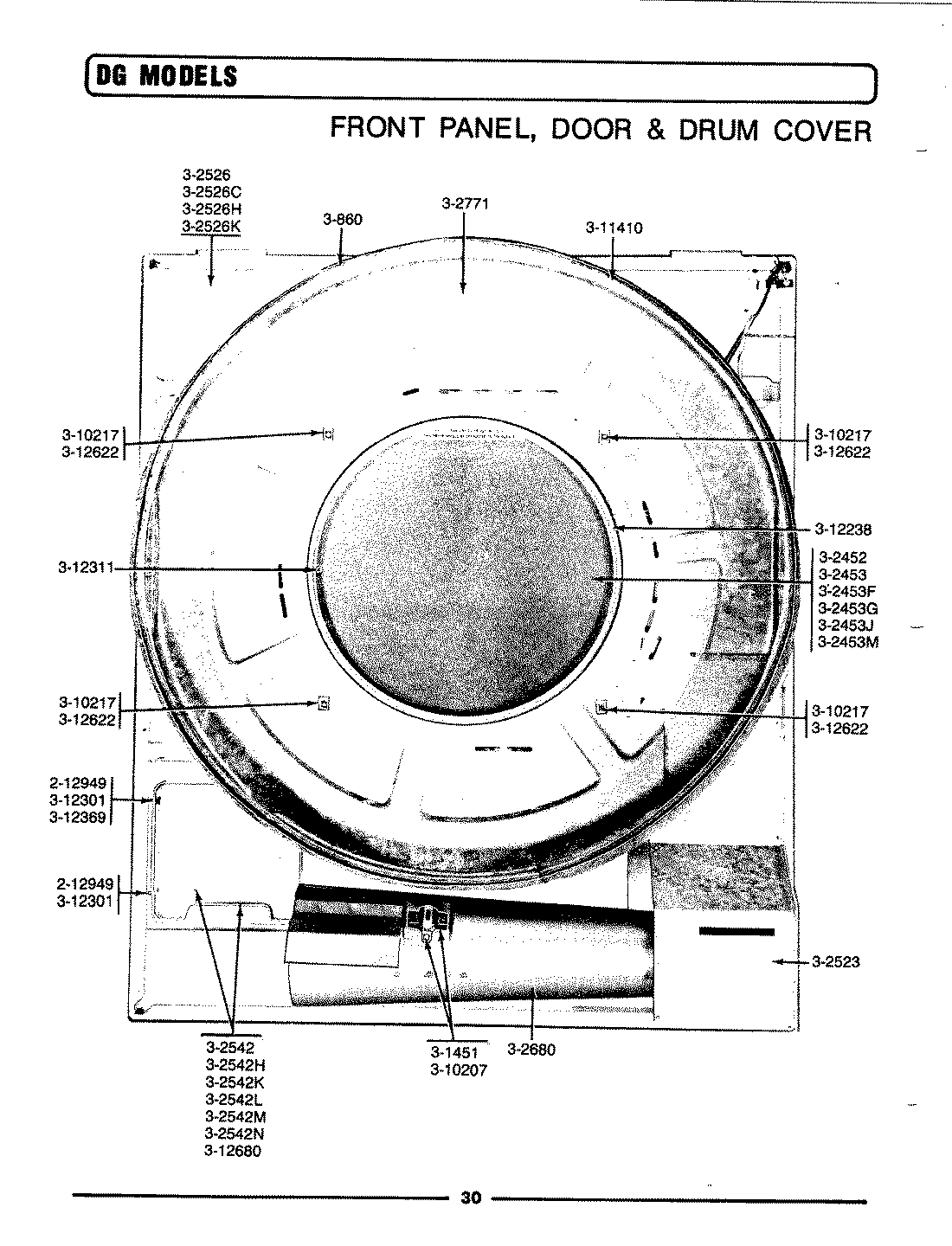

06 - FRONT PANEL, DOOR & DRUM COVER
08 - GAS VALVE (AFTER 8-9-67)

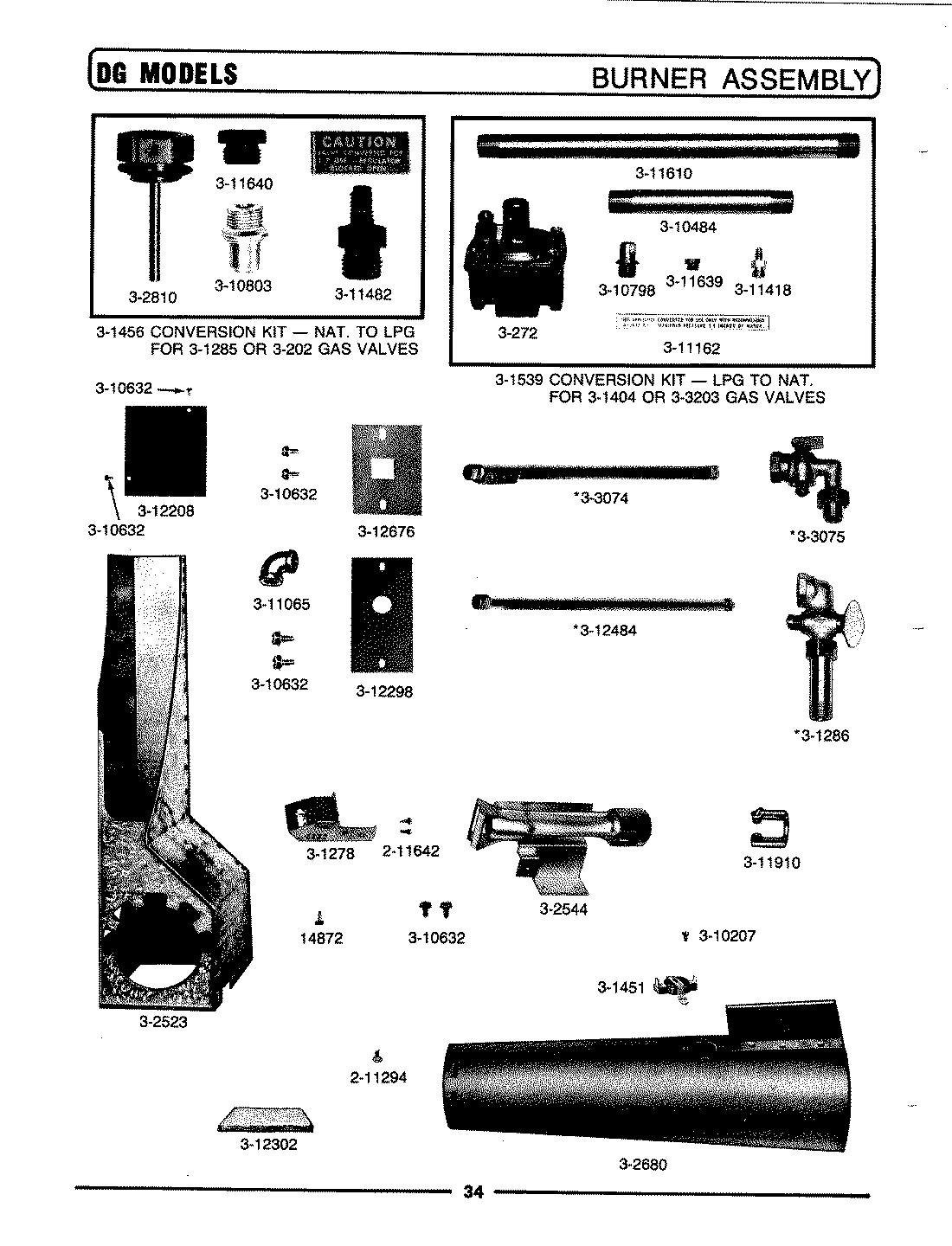

01 - BURNER ASSEMBLY

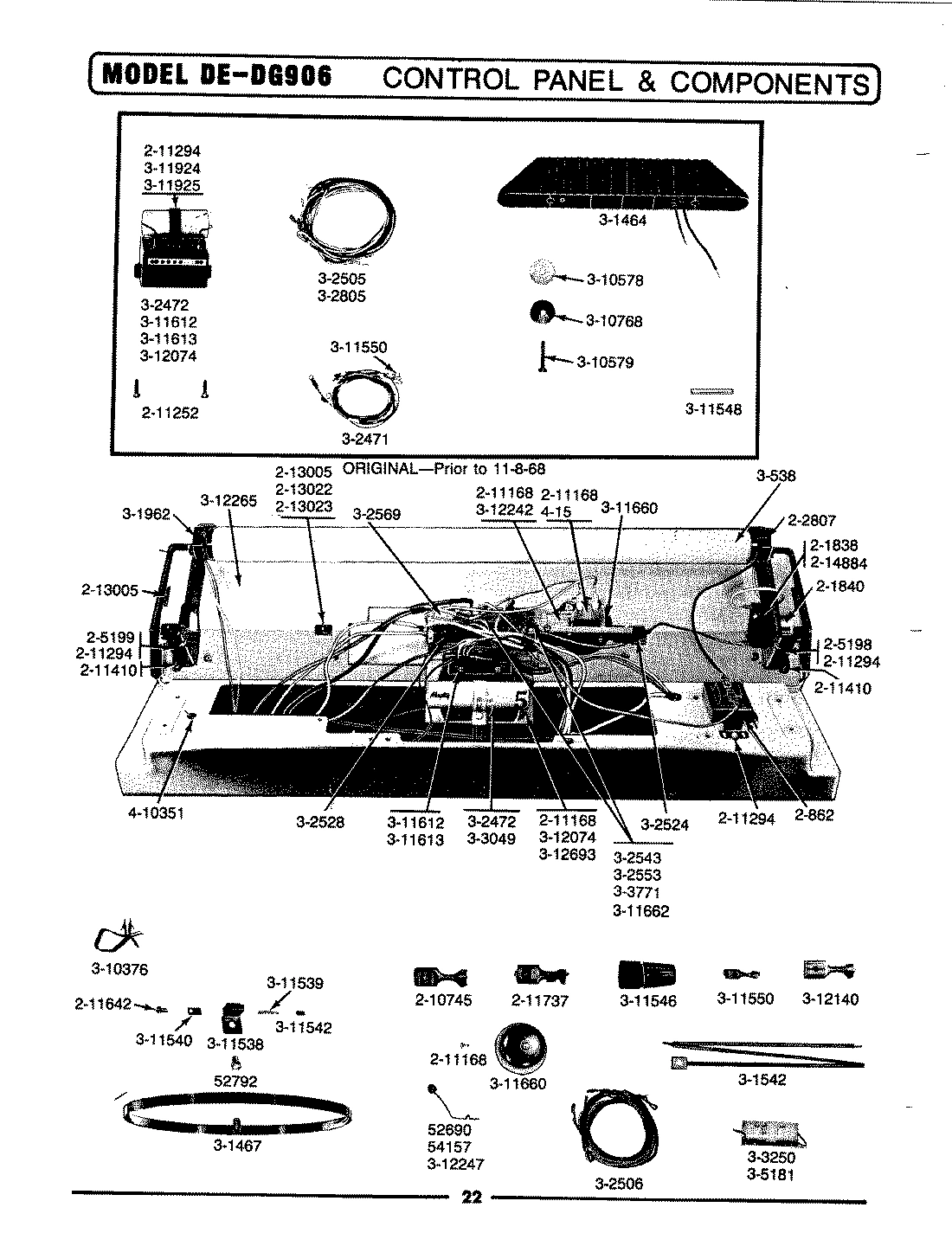

03 - CONTROL PANEL & COMPONENTS

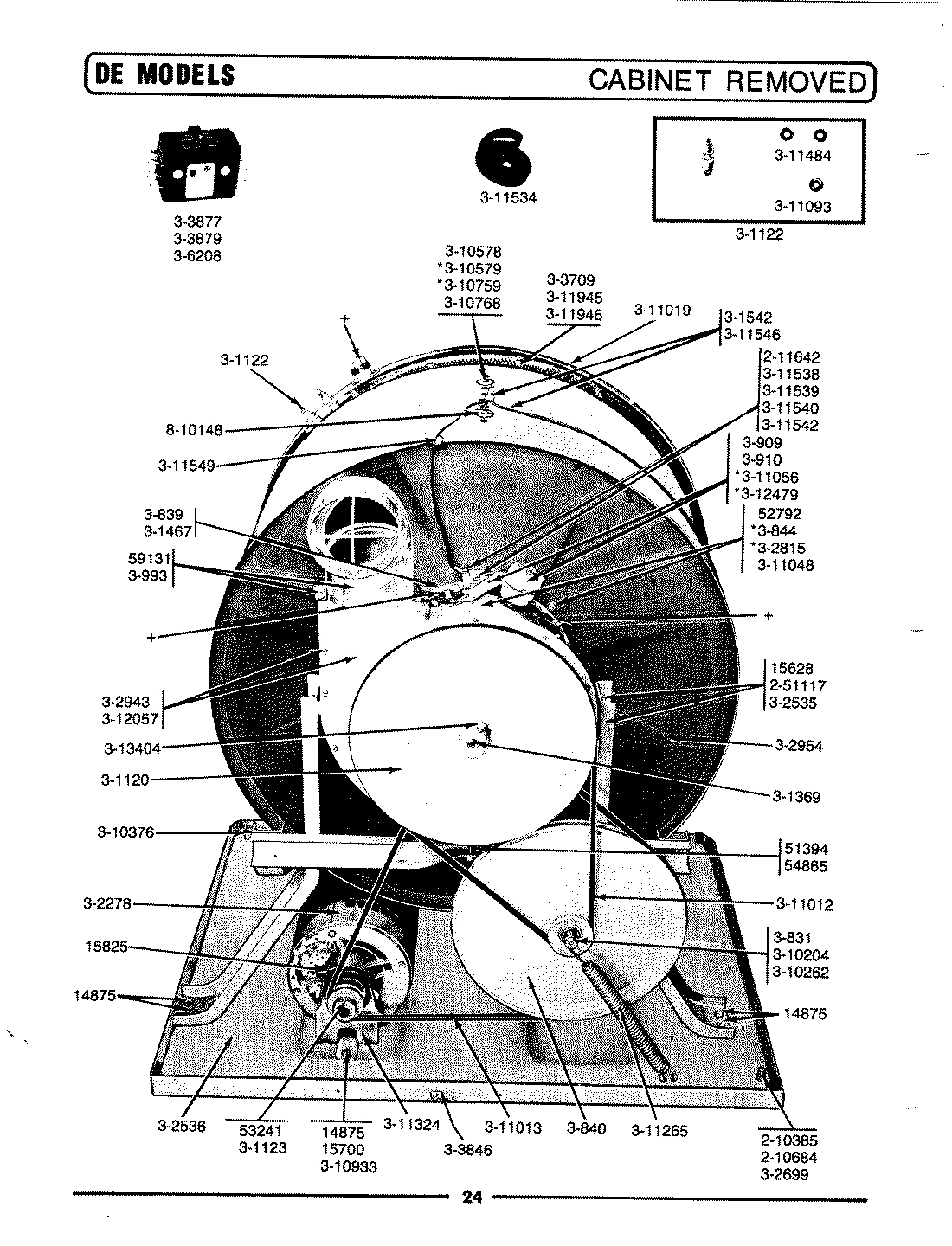

02 - CABINET REMOVED

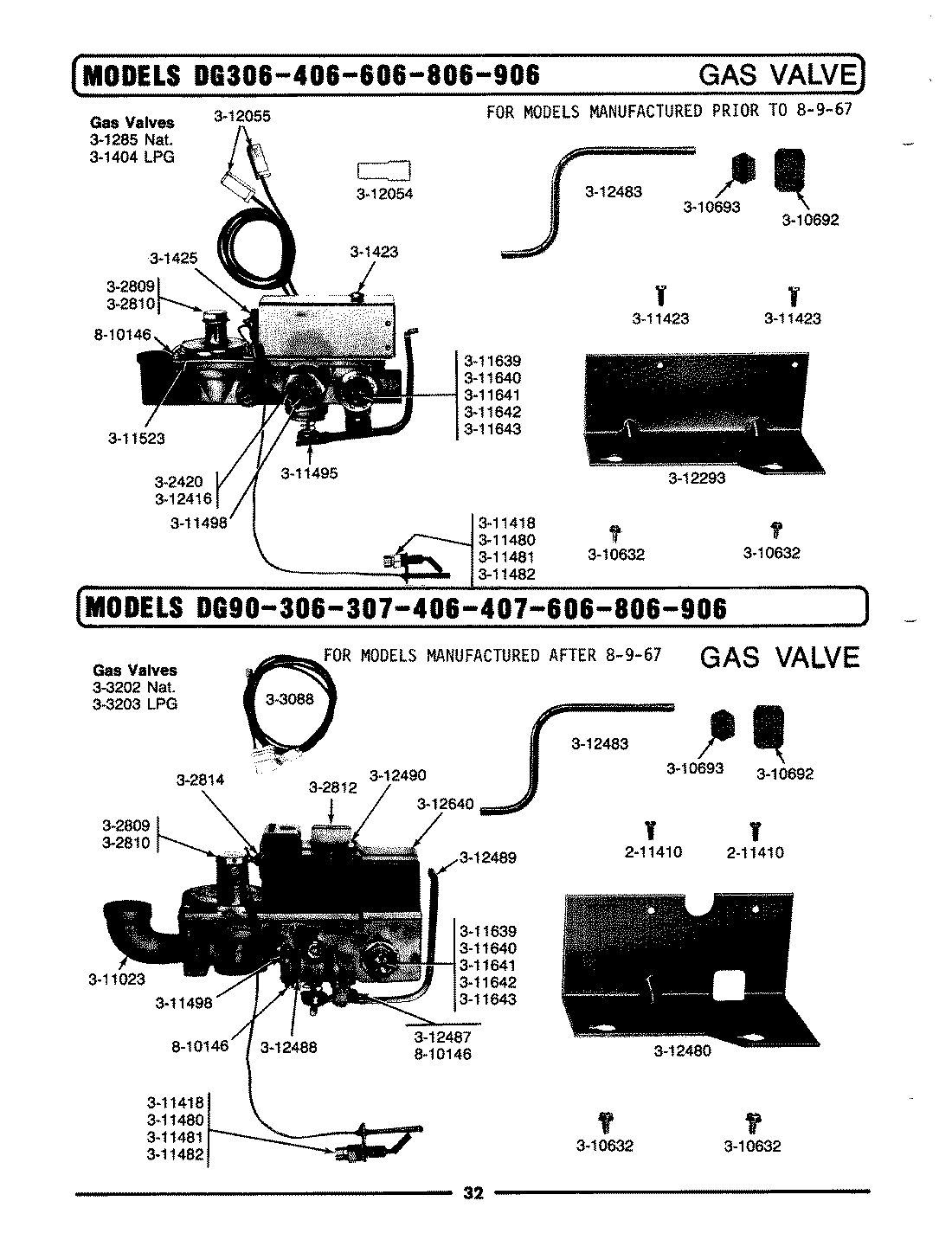

09 - GAS VALVE (PRIOR TO 8-9-67)

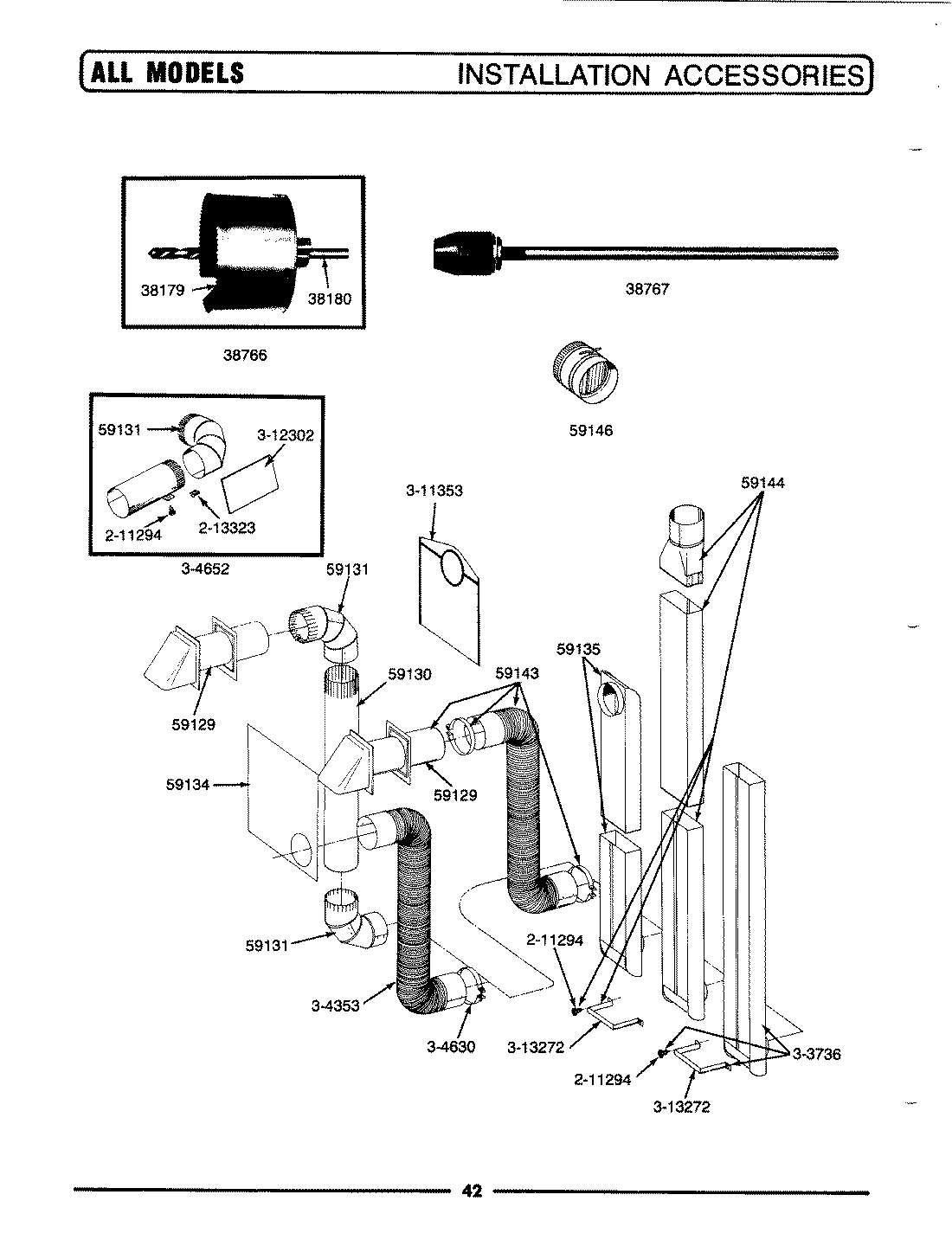

10 - INSTALLATION ACCESSORIES

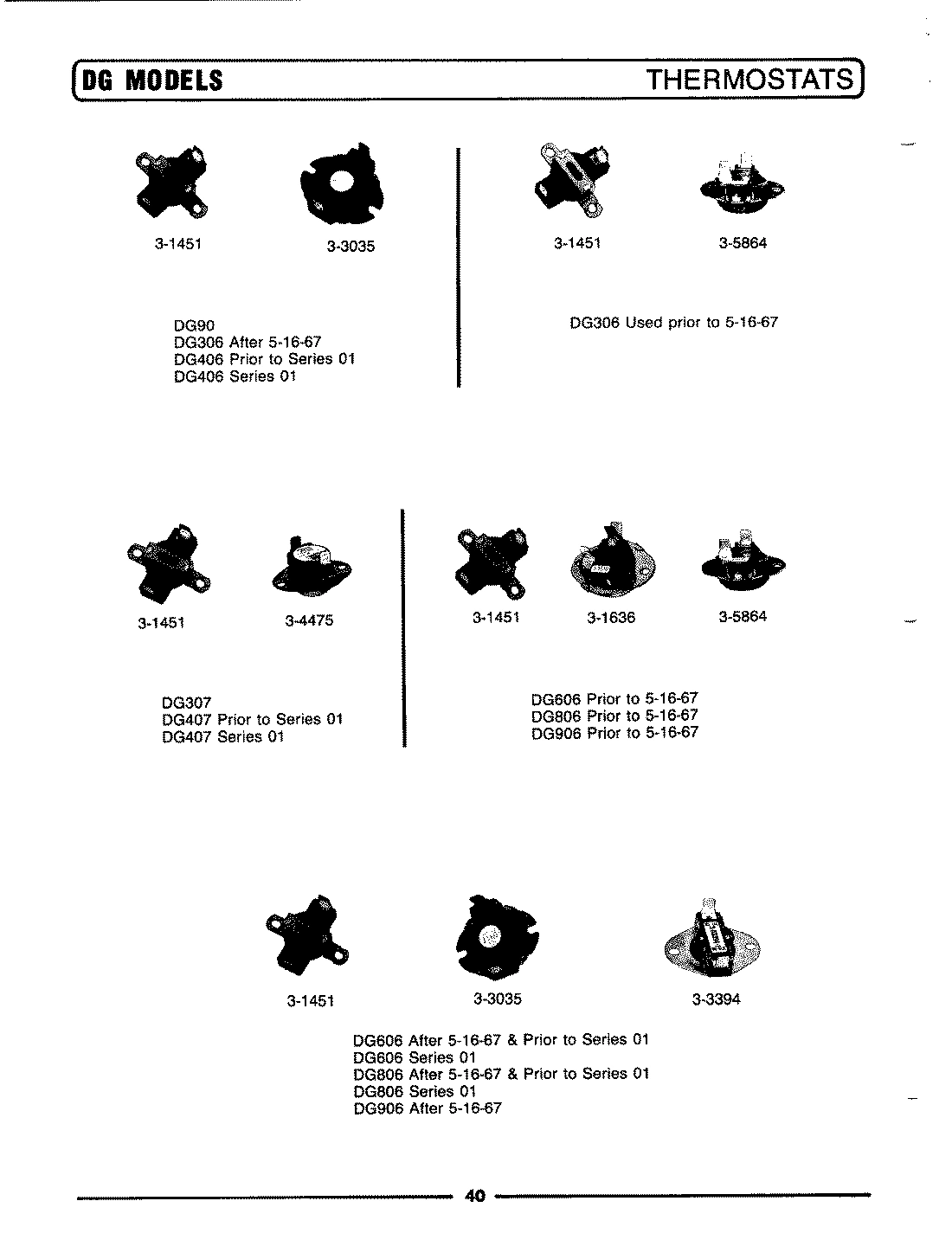

12 - THERMOSTATS
04 - CONVERSION KIT

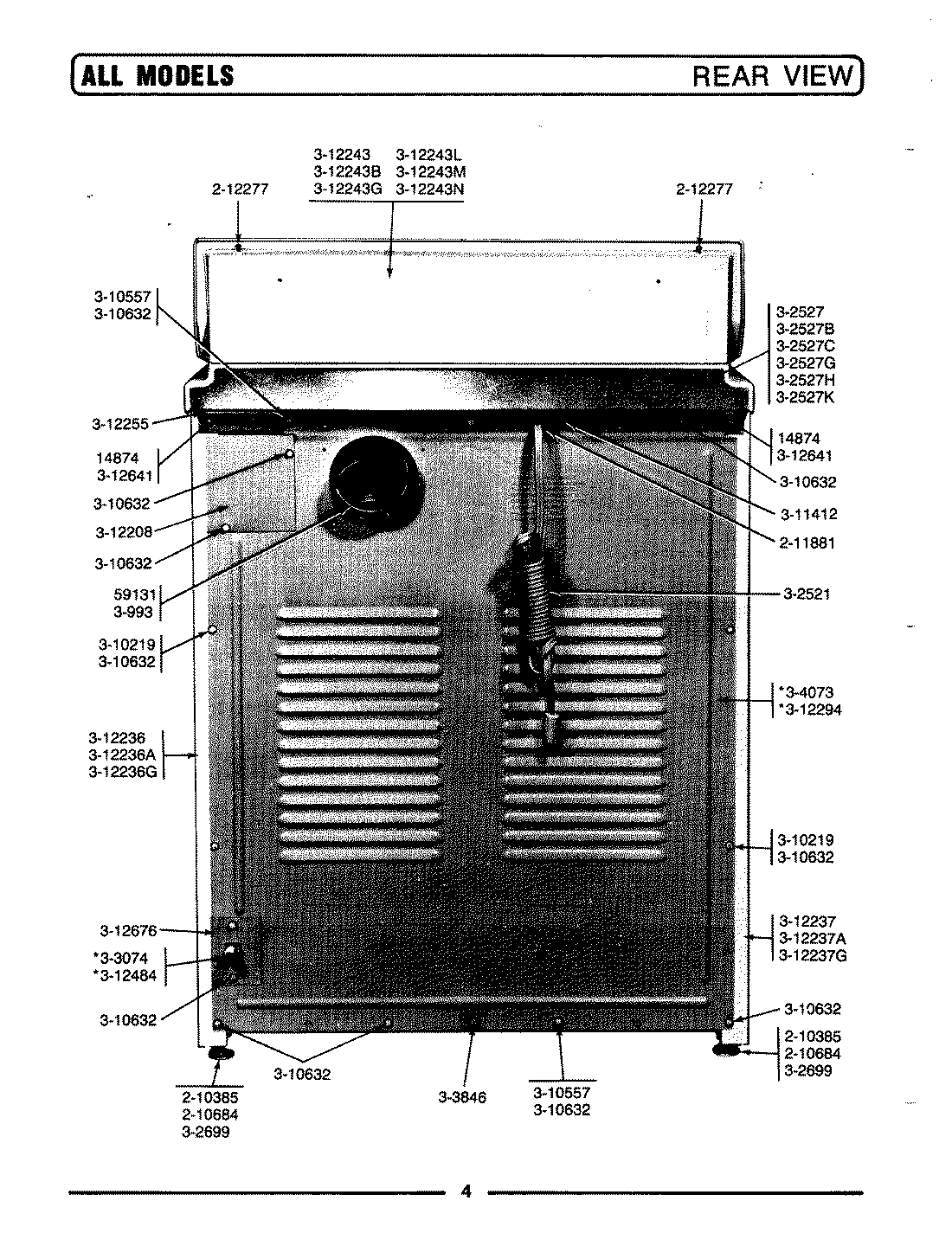

11 - REAR VIEW
Common parts from model Whirlpool DG906 GAS DRYER
1
SCREW WPL 212949 Contact Us For Availability
1
HIGH LIMIT THERMOSTAT WPL Y301451 Contact Us For Availability
1
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
1
HEX. NUT, No.10-32 WPL 052690 Contact Us For Availability
1
CAP SCREW, No.14 X 1/2 WPL 014875 Contact Us For Availability
1
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
1
GAS VALVE - NATURAL WPL 301285 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
MOTOR 120-50 WPL 301573 Contact Us For Availability
2
SCREW, No.4-40 X 1/4 WPL 054151 Contact Us For Availability
2
SEAL, DRUM COVER WPL 300860 Contact Us For Availability
2
BOLT, 5/16 X 3/4 HEX WPL 015628 Contact Us For Availability
2
GAS VALVE - LP WPL 301404 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
THERMOSTAT WPL Y301636 Contact Us For Availability
2
CONVERTER WPL Y201808 Contact Us For Availability
3
SCREW, No.10-32 X 1/4 WPL 054157 Contact Us For Availability
3
CAP SCREW, 1/4-20 X 1/2 WPL 015700 Contact Us For Availability
3
SOLENOID NLA IN PROCESS 051591 WPL 301423 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
4
COOL-DOWN THERMOSTAT WPL Y303394 Contact Us For Availability
4
DOOR LINER WPL 302452 Contact Us For Availability
4
MAIN BURNER SOLENOID WPL Y302812 Contact Us For Availability
4
PRESSURE REGULATOR WPL 300272 Contact Us For Availability
4
BALLAST WPL 200862 Contact Us For Availability
4
PILOT WITH PRESSURE SWITCH WPL 301425 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
5
DOOR-WHITE WPL 302453 Contact Us For Availability
5
PILOT WITH PRESSURE SWITCH WPL 302814 Contact Us For Availability
5
PILOT SHIELD WPL 301278 Contact Us For Availability
5
STARTER SOCKET WPL 201838 Contact Us For Availability
5
BOLT, 5/16 X 2-1/8 WPL 051394 Contact Us For Availability
5
PILOT FILTER WPL 302420 Contact Us For Availability
5
TIMER 120-50 WPL 302578 Contact Us For Availability
5
GROMMET, CORD WPL 211881 Contact Us For Availability
6
THERMOSTAT KIT WPL 305864 Contact Us For Availability
6
SCREW, 1 1/4-20 X 5/16 WPL 052792 Contact Us For Availability
6
DOOR-LIGHT GOLD WPL 302453F Contact Us For Availability
6
SCREW ASSEMBLY - LEAK LIMIT WPL 302809 Contact Us For Availability
6
GAS VALVE WIRES WITH PLUG WPL 303088 Contact Us For Availability
6
STARTER WPL 201840 Contact Us For Availability
6
PIPE, VENTING WPL Y059130 Contact Us For Availability
6
MOTOR 240-50 WPL 301577 Contact Us For Availability
7
IMPELLER WPL 300843 Contact Us For Availability
7
MAYTAG DECAL WPL 213322 Contact Us For Availability
7
DOOR-DARK GOLD WPL 302453G Contact Us For Availability
7
SCREW ASSM - BLUE BLOCK OPE WPL 302810 Contact Us For Availability
7
GAS VALVE W/ELBOW - NATURAL WPL Y303202 Contact Us For Availability
7
RECEPT FOR FLUORESCENT LAMP WPL 202807 Contact Us For Availability
7
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
7
MOTOR EXTERNAL START SWITCH WPL 304386 Contact Us For Availability
7
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
8
EASY-GRIP KNOB WPL 214697 Contact Us For Availability
8
DOOR-LIGHT AVOCADO WPL 302453J Contact Us For Availability
8
GAS VALVE WITH ELBOW - LP WPL Y303203 Contact Us For Availability
8
CONVERSION KIT-NAT. TO LPG WPL 301456 Contact Us For Availability
8
BRACKET KIT - LEFT HAND WPL 205198 Contact Us For Availability
8
LOCK WASHER, 5/16 X 3/32 WPL 054865 Contact Us For Availability
8
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
8
PULLEY - 50 CYCLE WPL 311648 Contact Us For Availability
8
POWER CORD WPL 302521 Contact Us For Availability
9
LINT SCREEN WPL 300838 Contact Us For Availability
9
DOOR-HARVEST WHEAT WPL 302453M Contact Us For Availability
9
TOP COVER-WHITE WPL 302527 Contact Us For Availability
9
COMPRESSION NUT WPL 310692 Contact Us For Availability
9
CONVERSION KIT-LPG TO NAT. WPL 301539 Contact Us For Availability
9
BRACKET KIT - RIGHT HAND WPL 205199 Contact Us For Availability
9
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
9
V BELT - 50 CYCLE WPL 311649 Contact Us For Availability
10
LINT SCREEN RETAINER WPL 301023 Contact Us For Availability
10
TOP COVER-DARK COPPERTONE WPL 302527B Contact Us For Availability
10
MIXING CHAMBER WPL 302523 Contact Us For Availability
10
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
10
WIRE TERMINAL WPL 210745 Contact Us For Availability
10
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
10
TIMER 240-50 WPL 302579 Contact Us For Availability
11
DOOR SWITCH WPL Y301336 Contact Us For Availability
11
FRONT PANEL-WHITE WPL 302526 Contact Us For Availability
11
TOP COVER-SHADED COPPERTONE WPL 302527C Contact Us For Availability
11
PILOT ORIFICE WPL Y311418 Contact Us For Availability
11
BURNER ASSEMBLY WPL Y302544 Contact Us For Availability
11
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
11
GAS VALVE SOLENOID WPL 301940 Contact Us For Availability
12
BEARING F/BAKELITE IMPELLER NA WPL 301568 Contact Us For Availability
12
FRONT PANEL-DARK COPPERTONE WPL 302526C Contact Us For Availability
12
COMBUSTION CONE WPL 302680 Contact Us For Availability
12
STREET ELBOW, 3/8 INCH WPL 311023 Contact Us For Availability
12
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
12
MAIN BURN. SOLENOID 230-50 WPL Y302813 Contact Us For Availability
13
FRONT PANEL-SHADED GOLD WPL 302526H Contact Us For Availability
13
TOP COVER-SHADED GOLD WPL 302527H Contact Us For Availability
13
PILOT ORIFICE (LP) WPL Y311480 Contact Us For Availability
13
SHAFT AND SLIDE WPL 300831 Contact Us For Availability
13
STEP DOWN TRANSFORMER WPL 202628 Contact Us For Availability
14
SEAL WPL 300839 Contact Us For Availability
14
BEARING KIT - DRUM WPL 302917 Contact Us For Availability
14
HINGE ASSEMBLY WPL 302451 Contact Us For Availability
14
FRONT PANEL-SHADED AVOCADO WPL 302526K Contact Us For Availability
14
TOP COVER-SHADED AVOCADO WPL 302527K Contact Us For Availability
14
SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability
14
PILOT ORIFICE-MFG. WPL 311481 Contact Us For Availability
14
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
14
UNBALANCE RELAY 240-50 WPL 202626 Contact Us For Availability
15
REDUCTION PULLEY WPL 300840 Contact Us For Availability
15
ACCESS DOOR-WHITE WPL 302542 Contact Us For Availability
15
PILOT ORIFICE-LPG WPL Y311482 Contact Us For Availability
15
SHUT-OFF VALVE WPL 303075 Contact Us For Availability
15
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
16
EXHAUST HOUSING WPL Y300844 Contact Us For Availability
16
ACCESS DOOR-SHADED GOLD WPL 302542H Contact Us For Availability
16
SCREW, No.6 X 1/4 INCH WPL 310207 Contact Us For Availability
16
PIPE AND BRACKET ASSEMBLY WPL 303074 Contact Us For Availability
16
GASKET WPL 311495 Contact Us For Availability
17
ACCESS DOOR-SHADED AVOCADO WPL 302542K Contact Us For Availability
17
COMPRESSION NUT WPL Y311498 Contact Us For Availability
17
MANIFOLD, LPG 5 INCH WPL 310484 Contact Us For Availability
17
CUSHION WPL 213005 Contact Us For Availability
17
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
RECEPTACLE WPL 300910 Contact Us For Availability
18
ACCESS DOOR-ALMOND WPL 302542L Contact Us For Availability
18
RETAINER WPL 213022 Contact Us For Availability
18
GASKET FOR REGULATOR WPL 311523 Contact Us For Availability
18
EXHAUST DEFLECTOR WPL 311147 Contact Us For Availability
19
DRUM PULLEY WPL Y301120 Contact Us For Availability
19
ACCESS DOOR-HARVEST WHEAT WPL 302542M Contact Us For Availability
19
ORIFICE FOR MAIN BURNER WPL Y311639 Contact Us For Availability
19
BURNER ORIFICE BRASS No.47 WPL Y310798 Contact Us For Availability
19
RETAINER WPL 213023 Contact Us For Availability
19
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
19
BACK PANEL WPL 304073 Contact Us For Availability
20
O RING SEAL WPL 310988 Contact Us For Availability
20
ACCESS DOOR-FRESH AVOCADO WPL 302542N Contact Us For Availability
20
ORIFICE FOR MAIN BURNER WPL 311640 Contact Us For Availability
20
BURNER ORIFICE BLACK No.57 WPL 310803 Contact Us For Availability
20
SCREW - LID SWITCH WPL 214884 Contact Us For Availability
20
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
20
No.10Z FASTENER WPL 310219 Contact Us For Availability
21
90 DEGREE ELBOW, 3/8 INCH WPL 311065 Contact Us For Availability
21
WASHER WPL 311000 Contact Us For Availability
21
ORIFICE FOR MAIN BURNER WPL 311641 Contact Us For Availability
21
FLUORESCENT LAMP WPL Y300538 Contact Us For Availability
21
MOTOR PULLEY WPL 301123 Contact Us For Availability
21
COUPLER FOR VENT DUCT WPL 313766 Contact Us For Availability
21
WASHER WPL 310557 Contact Us For Availability
22
SHAFT WITH SPIDER WPL 301369 Contact Us For Availability
22
LATCH WPL 302480 Contact Us For Availability
22
BAFFLE FOR DRUM WPL 301464 Contact Us For Availability
22
DRUM COVER WITH FELT WPL 302771 Contact Us For Availability
22
SCREW WPL Y310632 Contact Us For Availability
22
ORIFICE, MAIN BURNER (MFG) WPL 311642 Contact Us For Availability
22
LABEL-NATURAL WPL 311162 Contact Us For Availability
23
ORIFICE FOR MAIN BURNER WPL 311643 Contact Us For Availability
23
GAS CONTROL BRACKET WPL 312480 Contact Us For Availability
23
MOTOR WPL Y302278 Contact Us For Availability
24
RETAINER SPRING WPL Y311017 Contact Us For Availability
24
NO LONGER AVAILABLE WPL 310217 Contact Us For Availability
24
SUPPORT WPL 302535 Contact Us For Availability
24
TAB HOUSING WPL 312054 Contact Us For Availability
24
SCREW WPL 311412 Contact Us For Availability
25
BAND WPL 311410 Contact Us For Availability
25
BRACKET FOR LEVER WPL 312487 Contact Us For Availability
25
PIPE, 10-1/2 INCH WPL 311610 Contact Us For Availability
25
SOCKET FOR LAMP WPL 301962 Contact Us For Availability
25
BASE WPL 302536 Contact Us For Availability
25
RECEPTACLE HOUSING WPL Y312055 Contact Us For Availability
26
RETAINING RING WPL 311095 Contact Us For Availability
26
DOOR SEAL WPL 312238 Contact Us For Availability
26
GASKET FOR PILOT WPL 312488 Contact Us For Availability
26
HARNESS FOR SHROUD WPL 302469 Contact Us For Availability
26
BRACKET WPL 312293 Contact Us For Availability
26
TERMINAL BRACKET WPL 312206 Contact Us For Availability
27
BLOWER HOUSING WITH BEARING WPL Y302815 Contact Us For Availability
27
BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability
27
LEVER FOR PILOT WPL 312489 Contact Us For Availability
27
HARNESS WPL 302470 Contact Us For Availability
27
SCREW FOR FILTER WPL 312416 Contact Us For Availability
27
TERMINAL COVER WPL 312207 Contact Us For Availability
28
COVER WITH LINT SEAL-BLOWER WPL 302943 Contact Us For Availability
28
NYLON SPACER COLLAR WPL Y311429 Contact Us For Availability
28
SCREW----NA WPL 312311 Contact Us For Availability
28
PILOT TUBE WPL Y312483 Contact Us For Availability
28
SCREW FOR MAIN SOLENOID WPL 312490 Contact Us For Availability
28
AIR SHUTTER WPL 311910 Contact Us For Availability
28
COVER FOR TERMINAL OPENING WPL 312208 Contact Us For Availability
28
HARNESS WPL 302471 Contact Us For Availability
29
DRUM W/FELT - PORCELAIN WPL 302954 Contact Us For Availability
29
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
29
VALVE COVER FOR 3-3202 WPL 312640 Contact Us For Availability
29
SCREW WPL 810146 Contact Us For Availability
30
PANEL-WHITE WPL 312236 Contact Us For Availability
30
SUPPORT AND COVER WPL 312298 Contact Us For Availability
30
CLIP AND INSULATOR ASSEMBLY WPL 303709 Contact Us For Availability
31
PANEL-DARK AVOCADO WPL 312236A Contact Us For Availability
31
DECAL-LIGHTING INSTRUCTIONS WPL 312680 Contact Us For Availability
31
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
31
HARNESS WPL 302506 Contact Us For Availability
32
LINT SEAL - BLOWER COVERS WPL Y312623 Contact Us For Availability
32
PANEL-DARK GOLD WPL 312236G Contact Us For Availability
32
BRACKET WPL 302524 Contact Us For Availability
33
TOP COVER-DARK GOLD WPL 302527G Contact Us For Availability
33
PANEL-WHITE WPL 312237 Contact Us For Availability
33
CONTROL SWITCH WPL Y302528 Contact Us For Availability
33
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
34
WASHER WPL 310578 Contact Us For Availability
34
PANEL-DARK AVOCADO WPL 312237A Contact Us For Availability
34
SPRING ASSEMBLY WPL Y302543 Contact Us For Availability
35
PANEL-DARK GOLD WPL 312237G Contact Us For Availability
35
SHAFT WPL 302553 Contact Us For Availability
36
WASHER WPL 310768 Contact Us For Availability
36
CONTROL SWITCH WPL 302569 Contact Us For Availability
36
CONTROL COVER-WHITE WPL 312243 Contact Us For Availability
37
MAIN WIRE HARNESS WPL 302805 Contact Us For Availability
37
FASTENER WPL 310933 Contact Us For Availability
37
CONTROL COVER-DK COPPERTONE WPL 312243B Contact Us For Availability
38
DRIVE BELT WPL Y311012 Contact Us For Availability
38
CONTROL COVER-DARK GOLD WPL 312243G Contact Us For Availability
39
MOTOR BELT WPL Y311013 Contact Us For Availability
39
MAIN WIRE HARNESS WPL 303041 Contact Us For Availability
39
CONTROL COVER-ALMOND WPL 312243L Contact Us For Availability
40
BAFFLE GROUND WIRE WPL 303042 Contact Us For Availability
40
DRUM COVER WPL 311019 Contact Us For Availability
40
CONTROL COVER-HARVEST WHEAT WPL 312243M Contact Us For Availability
41
BAFFLE LEAD WIRE WPL 303043 Contact Us For Availability
41
CONTROL COVER-FRESH AVOCADO WPL 312243N Contact Us For Availability
42
SPRING WPL 311265 Contact Us For Availability
42
BAFFLE ASSEMBLY WPL Y303045 Contact Us For Availability
42
ANGLE FOR CABINET - DRYER WPL 312255 Contact Us For Availability
43
ELECTRONIC CONTROL WPL 303049 Contact Us For Availability
43
MOTOR BASE WPL 311324 Contact Us For Availability
43
BACK FOR CABINET WPL 312294 Contact Us For Availability
44
PIPE, 17-3/8 INCH WPL Y312484 Contact Us For Availability
44
CONTROL HARNESS WPL 303054 Contact Us For Availability
44
FELT SEAL WPL 311534 Contact Us For Availability
45
CAPACITOR 15.0 MICROFARADS WPL Y303250 Contact Us For Availability
45
CARBON BRUSH HOLDER WPL Y311538 Contact Us For Availability
45
GROUND CLIP SPEED NUT WPL Y312641 Contact Us For Availability
46
KNOB AND SCREW WPL 303942 Contact Us For Availability
46
PIPE SUPPORT PLATE-SQ HOLE WPL 312676 Contact Us For Availability
46
CHIME ACTUATOR ASSEMBLY WPL Y303771 Contact Us For Availability
47
LAMP SUPPORT FOR 3-2815 WPL 312479 Contact Us For Availability
47
HINGE - LOWER WPL Y304298 Contact Us For Availability
47
CAPACITOR WPL 305181 Contact Us For Availability
47
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
48
SET SCREW WPL Y313404 Contact Us For Availability
48
HINGE - UPPER WPL 304299 Contact Us For Availability
48
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
49
SCREW, No.6-20 X 3/8 INCH WPL 211642 Contact Us For Availability
50
LOCK WASHER WPL 251117 Contact Us For Availability
51
SLIP RING WPL 301467 Contact Us For Availability
52
WIRE HARNESS FOR DRUM WPL 301542 Contact Us For Availability
53
SCREW WPL Y310759 Contact Us For Availability
53
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
54
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
55
SHIELD FOR SPIDER WPL Y312060 Contact Us For Availability
55
SWITCH, MOTOR EXTERNAL START WPL 306208 Contact Us For Availability
56
SNAP RING WPL 310204 Contact Us For Availability
57
WASHER WPL 310262 Contact Us For Availability
57
INSULATION SLEEVE,1-1/4 INC WPL 311548 Contact Us For Availability
58
SCREW, No.10-24 X 11/16 INCH WPL 310579 Contact Us For Availability
58
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
59
WASHER, ALUMINUM WPL 311048 Contact Us For Availability
59
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
60
LAMP SUPPORT WPL 311056 Contact Us For Availability
60
CHIME WPL Y311660 Contact Us For Availability
61
LINK - SOLENOID TO SWITCH WPL 311662 Contact Us For Availability
62
SPRING FOR CARBON BRUSH WPL Y311539 Contact Us For Availability
62
CLAMP RETAINER WPL 311924 Contact Us For Availability
63
DOOR PANEL-WHITE WPL 312239 Contact Us For Availability
63
COVER FOR CARBON WPL 311540 Contact Us For Availability
63
CLAMP FOR CAPACITOR WPL 311925 Contact Us For Availability
64
DOOR PANEL-LIGHT GOLD WPL 312239F Contact Us For Availability
64
WPL Y311542 WPL Y311542 Contact Us For Availability
64
BRA WPL 312074 Contact Us For Availability
65
WPL 312239J WPL 312239J Contact Us For Availability
65
WPL 311546 WPL 311546 Contact Us For Availability
65
WPL Y312140 WPL Y312140 Contact Us For Availability
66
WPL 312249 WPL 312249 Contact Us For Availability
66
WPL 312242 WPL 312242 Contact Us For Availability
66
WPL 810148 WPL 810148 Contact Us For Availability
67
WPL 312295 WPL 312295 Contact Us For Availability
67
WPL Y312247 WPL Y312247 Contact Us For Availability
68
WPL 301286 WPL 301286 Contact Us For Availability
68
WPL 312265 WPL 312265 Contact Us For Availability
69
WPL 312312 WPL 312312 Contact Us For Availability
69
WPL 312693 WPL 312693 Contact Us For Availability
70
WPL 400015 WPL 400015 Contact Us For Availability
71
WPL 312377 WPL 312377 Contact Us For Availability
71
WPL 410351 WPL 410351 Contact Us For Availability
72
WPL 312477 WPL 312477 Contact Us For Availability
74
WPL Y312744 WPL Y312744 Contact Us For Availability
75
WPL 312744E WPL 312744E Contact Us For Availability
76
WPL 312744F WPL 312744F Contact Us For Availability
77
WPL 312744G WPL 312744G Contact Us For Availability
78
WPL 312744J WPL 312744J Contact Us For Availability
79
WPL 312744M WPL 312744M Contact Us For Availability
80
WPL 312744N WPL 312744N Contact Us For Availability
81
WPL 313581 WPL 313581 Contact Us For Availability
× ![]()
Login and Registration Form
