Model Whirlpool DG701 GAS DRYER – Common Parts & Diagrams

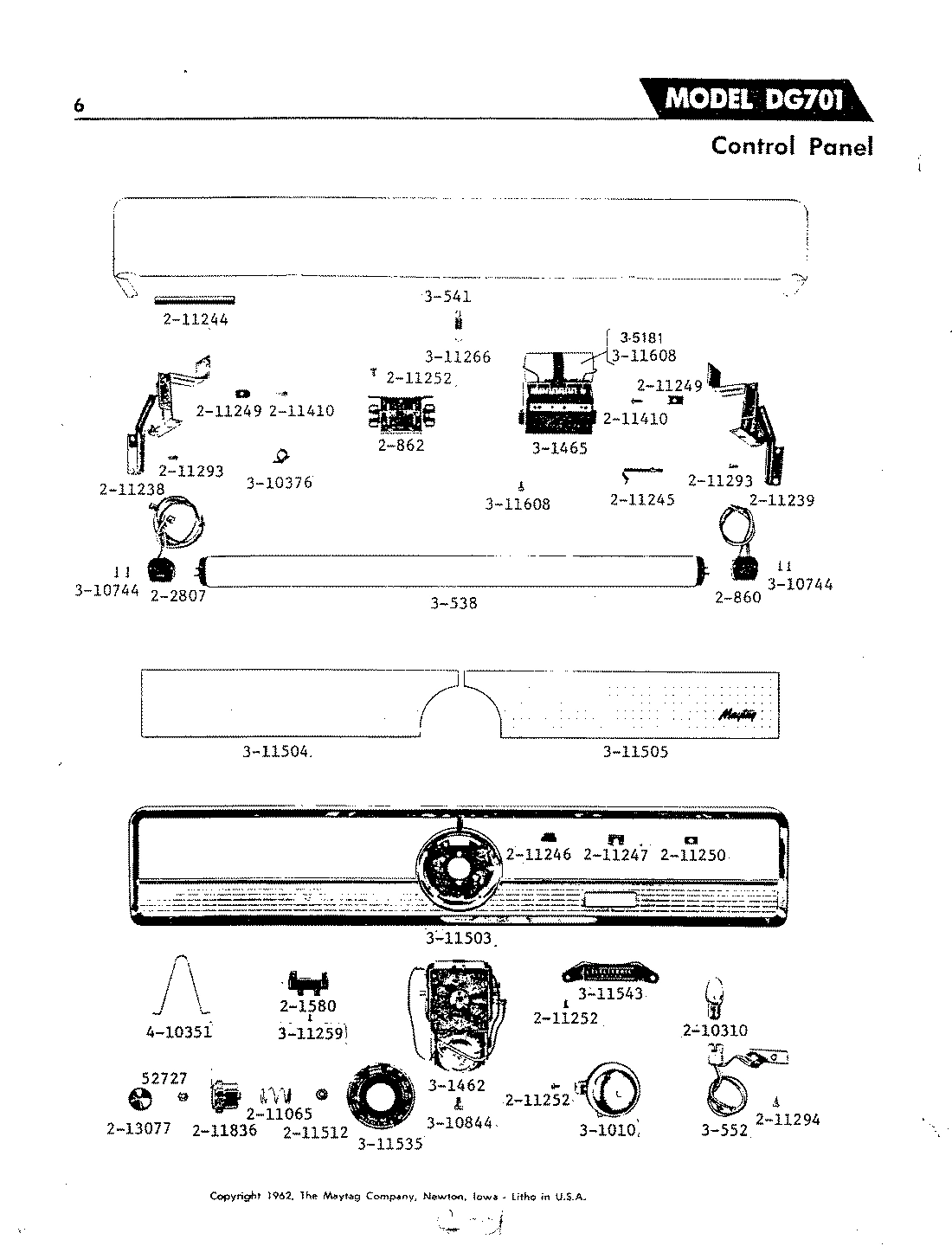

03 - CONTROL PANEL

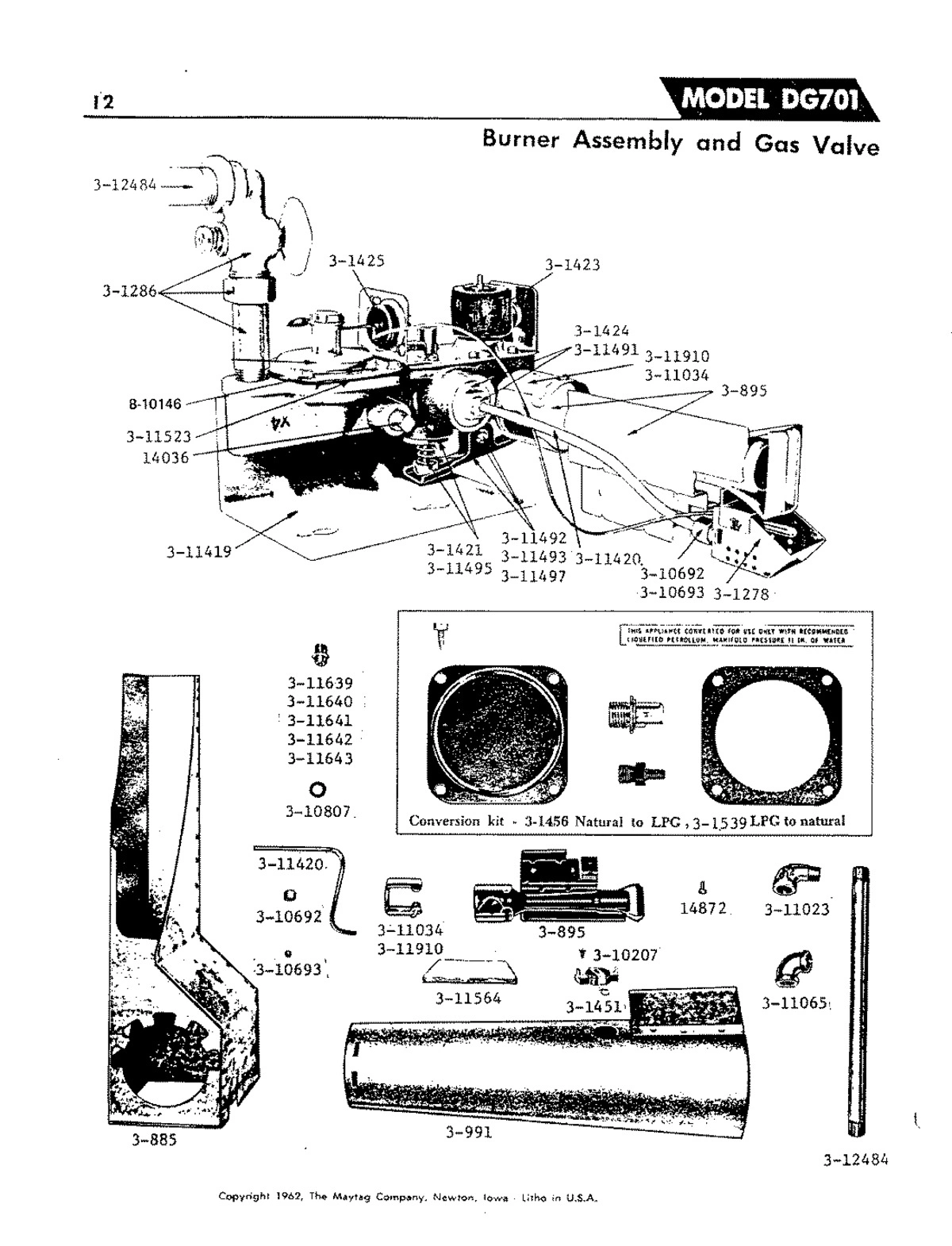

01 - BURNER ASSEMBLY & GAS VALVE

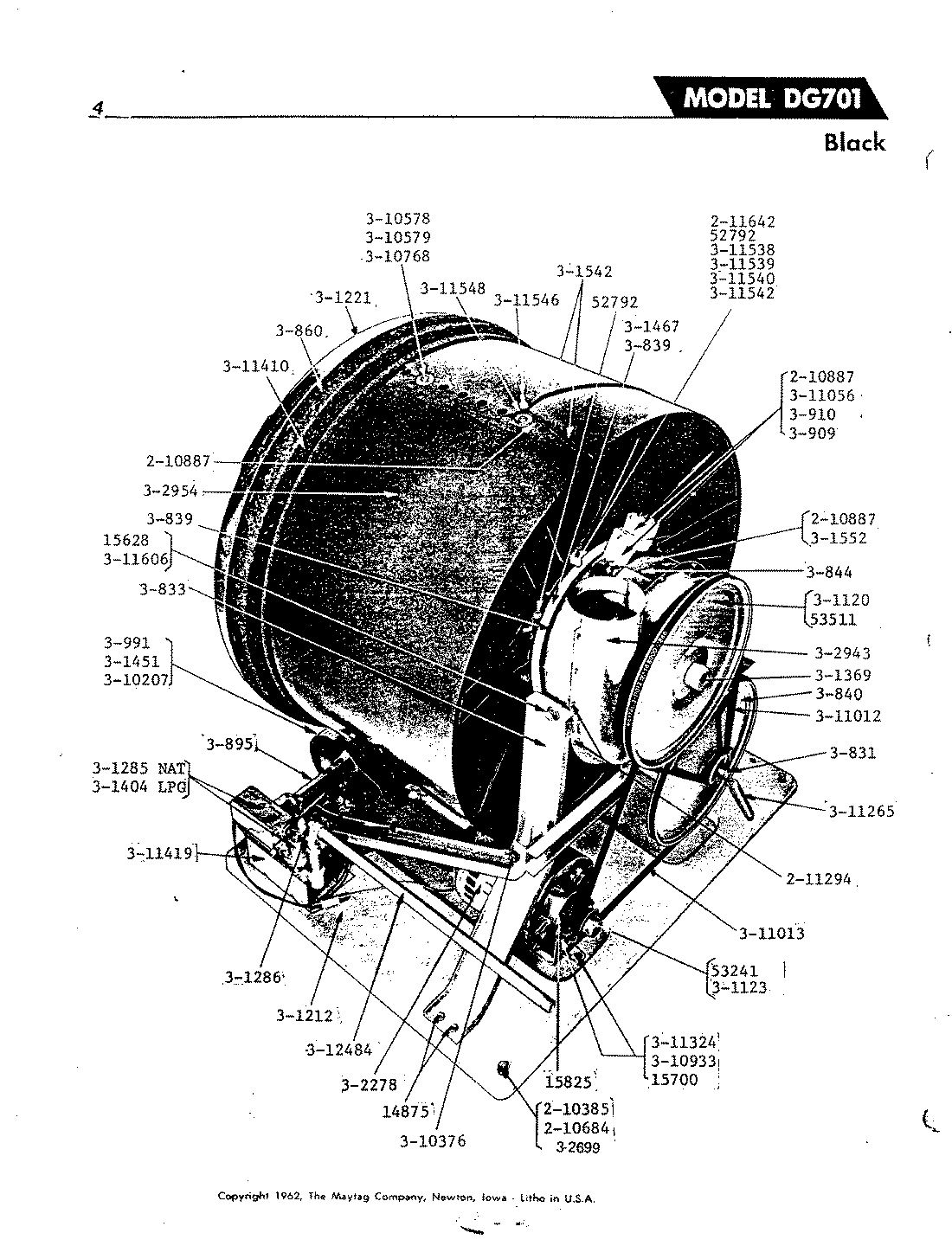

02 - CABINET REMOVED

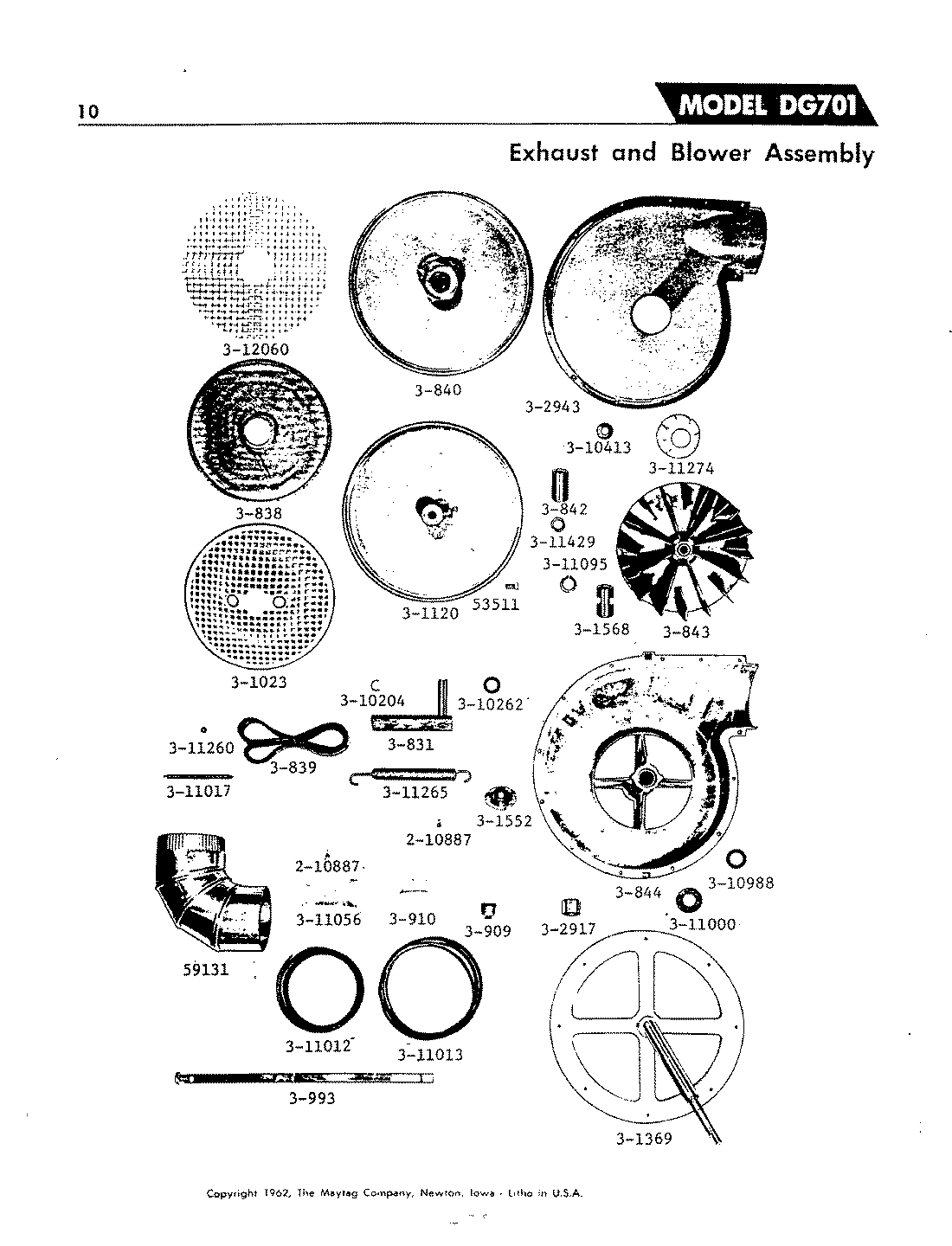

04 - EXHAUST & BLOWER ASSEMBLY
06 - WIRING & CONTROLS

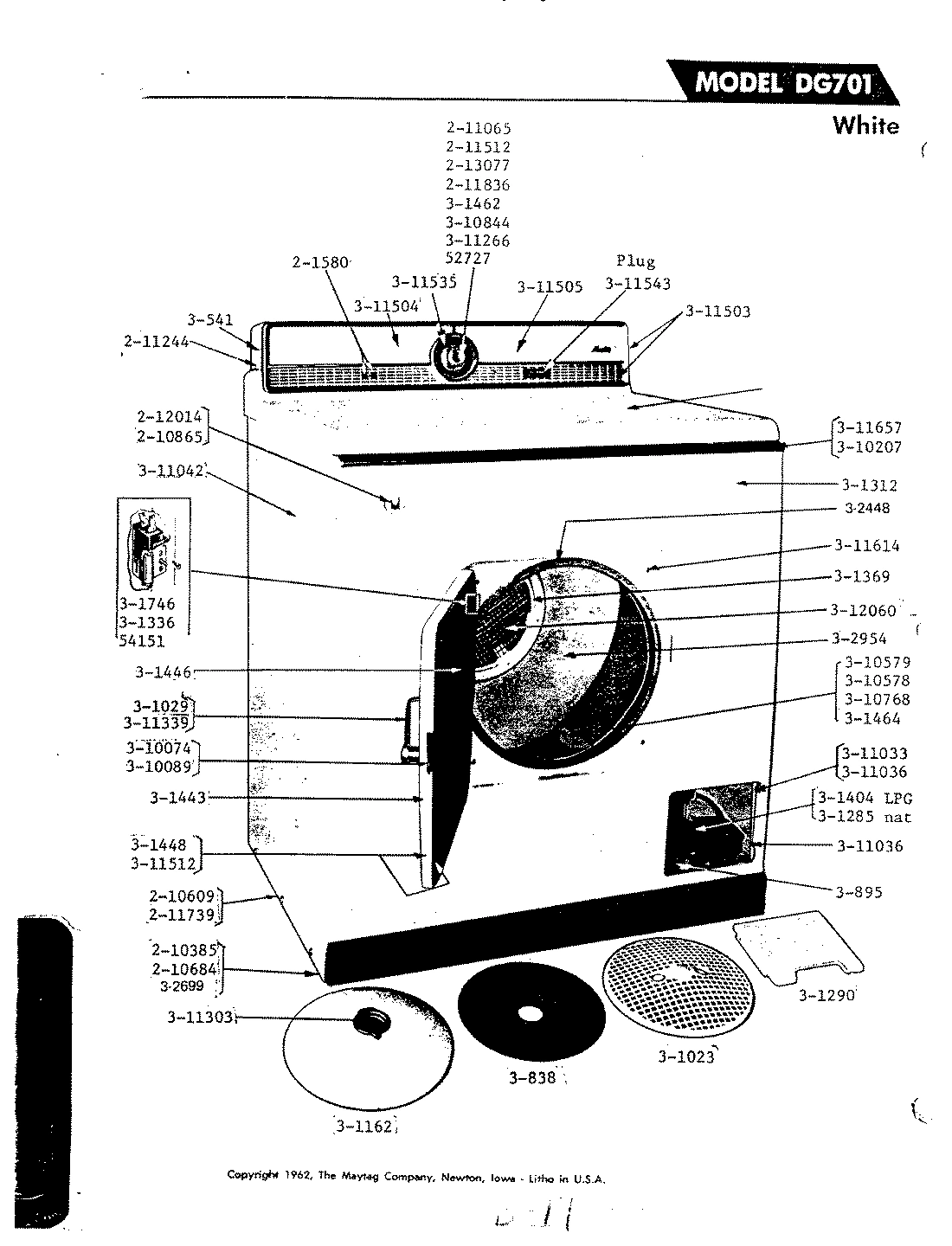

05 - FRONT VIEW
Common parts from model Whirlpool DG701 GAS DRYER
1
SHUT-OFF VALVE W/MALE OUTLET WPL 300368 Contact Us For Availability
1
SHAFT AND SLIDE WPL 300831 Contact Us For Availability
1
FLUORESCENT LAMP WPL Y300538 Contact Us For Availability
2
COVER FOR CONTROL PANEL WPL 300541 Contact Us For Availability
2
SUPPORT FOR EXHAUST FAN WPL 300833 Contact Us For Availability
3
LAMP SOCKET WPL 300552 Contact Us For Availability
3
SEAL WPL 300839 Contact Us For Availability
4
LINT SCREEN WPL 300838 Contact Us For Availability
5
CHIME WPL 301010 Contact Us For Availability
5
REDUCTION PULLEY WPL 300840 Contact Us For Availability
5
RECEPTACLE WPL 300910 Contact Us For Availability
6
BEARING WPL 300842 Contact Us For Availability
6
No.4 WIRE WITH TERMINAL WPL 300966 Contact Us For Availability
6
LINT SCREEN RETAINER WPL 301023 Contact Us For Availability
7
IMPELLER WPL 300843 Contact Us For Availability
7
DOOR HANDLE WPL 301029 Contact Us For Availability
8
EXHAUST HOUSING WPL Y300844 Contact Us For Availability
8
SPRINKLER WPL 301162 Contact Us For Availability
9
GAS VALVE - NATURAL WPL 301285 Contact Us For Availability
9
HIGH LIMIT THERMOSTAT WPL Y301451 Contact Us For Availability
10
SEAL, DRUM COVER WPL 300860 Contact Us For Availability
10
ACCESS DOOR WPL 301290 Contact Us For Availability
11
MIXER CHAMBER WPL 300885 Contact Us For Availability
11
PLUNGER WPL 301422 Contact Us For Availability
11
DRUM PULLEY WPL Y301120 Contact Us For Availability
11
FRONT PANEL WPL 301312 Contact Us For Availability
12
SOLENOID NLA IN PROCESS 051591 WPL 301423 Contact Us For Availability
12
DOOR SWITCH WPL Y301336 Contact Us For Availability
13
SHAFT WITH SPIDER WPL 301369 Contact Us For Availability
13
SLIP RING WPL 301467 Contact Us For Availability
14
GAS VALVE - LP WPL 301404 Contact Us For Availability
15
CIRCUIT BOARD HARNESS WPL 301487 Contact Us For Availability
15
BEARING F/BAKELITE IMPELLER NA WPL 301568 Contact Us For Availability
15
OUTER DOOR PANEL WPL 301443 Contact Us For Availability
16
COMBUSTION CONE WPL 300991 Contact Us For Availability
16
WIRE HARNESS FOR DRUM WPL 301542 Contact Us For Availability
16
BEARING KIT - DRUM WPL 302917 Contact Us For Availability
16
INNER DOOR PANEL WPL 301446 Contact Us For Availability
17
COVER WITH LINT SEAL-BLOWER WPL 302943 Contact Us For Availability
17
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
17
DOOR COMPLETE WPL 301448 Contact Us For Availability
18
TIMER WPL 301462 Contact Us For Availability
18
REGULATING THERMOSTAT WPL 301552 Contact Us For Availability
18
SNAP RING WPL 310204 Contact Us For Availability
19
MOTOR PULLEY WPL 301123 Contact Us For Availability
19
BAFFLE FOR DRUM WPL 301464 Contact Us For Availability
19
MAJOR WIRE HARNESS WPL 301554 Contact Us For Availability
19
WASHER WPL 310262 Contact Us For Availability
20
ELECTRONIC CONTROL WPL 301465 Contact Us For Availability
20
CAPACITOR WPL 305181 Contact Us For Availability
20
COMPRESSION NUT WPL 310692 Contact Us For Availability
20
BASE FRAME WPL 301212 Contact Us For Availability
21
STATIONARY SHROUD WPL 301221 Contact Us For Availability
21
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
21
WIRE HARNESS-DOOR SWITCH WPL 301486 Contact Us For Availability
22
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
22
PILOT SHIELD WPL 301278 Contact Us For Availability
22
ORIFICE GASKET WPL 310807 Contact Us For Availability
22
O RING SEAL WPL 310988 Contact Us For Availability
22
HINGE FOR DOOR WPL 301744 Contact Us For Availability
23
SPRING WPL 310862 Contact Us For Availability
23
WASHER WPL 311000 Contact Us For Availability
23
DOOR HINGE ON CABINET WPL 301746 Contact Us For Availability
24
PILOT VALVE WPL 301286 Contact Us For Availability
24
STREET ELBOW, 3/8 INCH WPL 311023 Contact Us For Availability
24
MOTOR WPL Y302278 Contact Us For Availability
24
DRIVE BELT WPL Y311012 Contact Us For Availability
25
DRUM W/FELT - PORCELAIN WPL 302954 Contact Us For Availability
25
MOTOR BELT WPL Y311013 Contact Us For Availability
26
RETAINER SPRING WPL Y311017 Contact Us For Availability
26
LATCH FOR DOOR WPL 310074 Contact Us For Availability
27
90 DEGREE ELBOW, 3/8 INCH WPL 311065 Contact Us For Availability
27
FILTER WPL 301424 Contact Us For Availability
27
WASHER, ALUMINUM WPL 311048 Contact Us For Availability
27
TENSION SPRING WPL 310089 Contact Us For Availability
28
PILOT WITH PRESSURE SWITCH WPL 301425 Contact Us For Availability
28
SCREW, No.6 X 1/4 INCH WPL 310207 Contact Us For Availability
29
LABEL-NATURAL WPL 311162 Contact Us For Availability
29
LAMP SUPPORT WPL 311056 Contact Us For Availability
29
RETAINING RING WPL 311095 Contact Us For Availability
29
NO LONGER AVAILABLE WPL 310217 Contact Us For Availability
30
CONVERSION STICKER WPL 311163 Contact Us For Availability
30
NYLON WASHER WPL 311260 Contact Us For Availability
30
No.10Z FASTENER WPL 310219 Contact Us For Availability
31
SCREW, No.4-36 X 1/2 INCH WPL 311259 Contact Us For Availability
31
CONVERSION STICKER (MIXED) WPL 311165 Contact Us For Availability
31
WASHER WPL 310578 Contact Us For Availability
31
SPRING WPL 311265 Contact Us For Availability
32
CONVERSION STICKER (MFG) WPL 311166 Contact Us For Availability
32
POWER CORD WPL 302521 Contact Us For Availability
32
SCREW, No.10-24 X 11/16 INCH WPL 310579 Contact Us For Availability
32
CAP FOR IMPELLER WPL 311274 Contact Us For Availability
33
SCREW WPL Y310632 Contact Us For Availability
34
SCREW-LAMP RECEPTACLE TO BRACK WPL 310744 Contact Us For Availability
34
PILOT ORIFICE WPL Y311418 Contact Us For Availability
34
CARBON BRUSH HOLDER WPL Y311538 Contact Us For Availability
35
FASTENER WPL 211249 Contact Us For Availability
35
CONVERSION KIT-LPG TO NAT. WPL 301539 Contact Us For Availability
35
WASHER WPL 310768 Contact Us For Availability
35
SPRING FOR CARBON BRUSH WPL Y311539 Contact Us For Availability
35
NYLON SPACER COLLAR WPL Y311429 Contact Us For Availability
36
COVER FOR CARBON BRUSH WPL 311540 Contact Us For Availability
36
PLUG BUTTON WPL 310841 Contact Us For Availability
37
CARBON BRUSH WPL Y311542 Contact Us For Availability
38
CONTROL PANEL PL WPL 311543 Contact Us For Availability
38
SCREW, No.8 X 1/2 INCH WPL 211293 Contact Us For Availability
38
PILOT ORIFICE (LP) WPL Y311480 Contact Us For Availability
39
PILOT ORIFICE-MFG. WPL 311481 Contact Us For Availability
39
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
39
BOLT, 5/16 X 3/4 HEX WPL 015628 Contact Us For Availability
39
RUBBER SLEEVE WPL 311033 Contact Us For Availability
40
SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability
40
PILOT ORIFICE-LPG WPL Y311482 Contact Us For Availability
40
INSULATION SLEEVE,1-1/4 INC WPL 311548 Contact Us For Availability
40
BOLT, 5/16 X 2-1/8 WPL 051394 Contact Us For Availability
40
NYLON STUD WPL 311036 Contact Us For Availability
41
GASKET FOR FILTER WPL 311491 Contact Us For Availability
41
WIRE CLIP WPL 311549 Contact Us For Availability
41
PANEL-RIGHT WITH KNOCKOUT SECT WPL 311041 Contact Us For Availability
42
CONVERSION KIT-NAT. TO LPG WPL 301456 Contact Us For Availability
42
SET SCREW WPL Y053511 Contact Us For Availability
42
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
42
PANEL-LEFT SIDE WPL 311042 Contact Us For Availability
43
EXHAUST DEFLECTOR WPL 311147 Contact Us For Availability
44
SPRING WPL 311266 Contact Us For Availability
44
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
44
GASKET WPL 311495 Contact Us For Availability
45
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
45
TENSION WASHER/MANUEL RESET LV WPL 311496 Contact Us For Availability
45
AIR FILTER WPL 311276 Contact Us For Availability
46
CLIP RING/MANUEL RESET LEVER WPL 311497 Contact Us For Availability
46
FILTER SPRING WPL 311277 Contact Us For Availability
47
BRACKET F/ELECTRONIC CONTRO WPL 312074 Contact Us For Availability
47
COMPRESSION NUT WPL Y311498 Contact Us For Availability
47
RUBBER CAP WPL 311303 Contact Us For Availability
48
SCREW, No.6-32 X 1/2 INCH WPL 311522 Contact Us For Availability
48
SET SCREW WPL 311339 Contact Us For Availability
49
GASKET FOR REGULATOR WPL 311523 Contact Us For Availability
49
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
50
SCREW WPL 810146 Contact Us For Availability
50
DOOR SEAL KIT WPL 302448 Contact Us For Availability
51
BACK PANEL WPL 311501 Contact Us For Availability
52
CONTROL PANEL WPL 311503 Contact Us For Availability
52
SCREW, PILOT SHIELD WPL 311618 Contact Us For Availability
53
GLASS PANEL-LEFT HAND, GOLD WPL 311504 Contact Us For Availability
53
ORIFICE FOR MAIN BURNER WPL Y311639 Contact Us For Availability
53
FASTENER WPL 310933 Contact Us For Availability
53
TURBINE OIL, 4 OZ. WPL Y055977 Contact Us For Availability
54
GLASS PANEL-RIGHT HAND, GOL WPL Y311505 Contact Us For Availability
54
ORIFICE FOR MAI WPL 311640 Contact Us For Availability
55
WPL 311641 WPL 311641 Contact Us For Availability
55
FASTENER WPL 311512 Contact Us For Availability
56
TIMER DIAL WPL 311535 Contact Us For Availability
56
WPL 311642 WPL 311642 Contact Us For Availability
57
WPL 311643 WPL 311643 Contact Us For Availability
57
CLIP FOR DOOR HARNESS WPL 311551 Contact Us For Availability
58
AIR SHUTTER FOR BURNER WPL 311034 Contact Us For Availability
58
WPL 311910 WPL 311910 Contact Us For Availability
58
SCREW, No.6-20 X 3/8 INCH WPL 211642 Contact Us For Availability
58
SCREW FOR DOOR RECESS WPL 311614 Contact Us For Availability
59
INSULATION WPL 311038 Contact Us For Availability
59
TRIM STRIP FOR FRONT PANEL WPL 311657 Contact Us For Availability
60
WPL 410351 WPL 410351 Contact Us For Availability
61
WPL Y014036 WPL Y014036 Contact Us For Availability
61
SHIELD FOR SPIDER WPL Y312060 Contact Us For Availability
62
COVER FOR TERMINAL OPENING WPL 312208 Contact Us For Availability
63
RECEPTACLE WPL 200860 Contact Us For Availability
63
HARNESS CLIP WPL 311104 Contact Us For Availability
64
WPL 200862 WPL 200862 Contact Us For Availability
65
WPL 201580 WPL 201580 Contact Us For Availability
66
WPL 202807 WPL 202807 Contact Us For Availability
67
WPL 210310 WPL 210310 Contact Us For Availability
68
WPL 311324 WPL 311324 Contact Us For Availability
69
WPL 311410 WPL 311410 Contact Us For Availability
69
WPL 210590 WPL 210590 Contact Us For Availability
70
WPL 311412 WPL 311412 Contact Us For Availability
70
WPL 210609 WPL 210609 Contact Us For Availability
71
WPL 311419 WPL 311419 Contact Us For Availability
72
WPL 311420 WPL 311420 Contact Us For Availability
72
WPL 210865 WPL 210865 Contact Us For Availability
73
WPL 311492 WPL 311492 Contact Us For Availability
74
WPL 211238 WPL 211238 Contact Us For Availability
74
WPL 311493 WPL 311493 Contact Us For Availability
75
WPL 211239 WPL 211239 Contact Us For Availability
75
WPL 311534 WPL 311534 Contact Us For Availability
76
WPL 211244 WPL 211244 Contact Us For Availability
77
WPL 211245 WPL 211245 Contact Us For Availability
78
WPL 211246 WPL 211246 Contact Us For Availability
79
WPL 211247 WPL 211247 Contact Us For Availability
80
WPL 211250 WPL 211250 Contact Us For Availability
82
WPL 311564 WPL 311564 Contact Us For Availability
83
WPL 211512 WPL 211512 Contact Us For Availability
83
WPL 311606 WPL 311606 Contact Us For Availability
84
WPL 211739 WPL 211739 Contact Us For Availability
85
WPL 211836 WPL 211836 Contact Us For Availability
86
WPL Y312484 WPL Y312484 Contact Us For Availability
86
WPL 212014 WPL 212014 Contact Us For Availability
87
WPL 213077 WPL 213077 Contact Us For Availability
88
WPL 052727 WPL 052727 Contact Us For Availability
89
WPL 052792 WPL 052792 Contact Us For Availability
90
WPL 054151 WPL 054151 Contact Us For Availability
91
WPL Y059128 WPL Y059128 Contact Us For Availability
93
WPL Y059130 WPL Y059130 Contact Us For Availability
94
WPL 211881 WPL 211881 Contact Us For Availability
94
WPL Y059131 WPL Y059131 Contact Us For Availability
95
WPL 059133 WPL 059133 Contact Us For Availability
96
WPL Y014872 WPL Y014872 Contact Us For Availability
96
WPL Y059134 WPL Y059134 Contact Us For Availability
97
WPL 014875 WPL 014875 Contact Us For Availability
97
WPL Y059135 WPL Y059135 Contact Us For Availability
98
WPL 059136 WPL 059136 Contact Us For Availability
99
WPL 015700 WPL 015700 Contact Us For Availability
103
WPL Y053241 WPL Y053241 Contact Us For Availability
× ![]()
Login and Registration Form
