Model Whirlpool DE406 ELECTRIC DRYER – Common Parts & Diagrams
03 - CONTROL PANEL & COMPONENTS

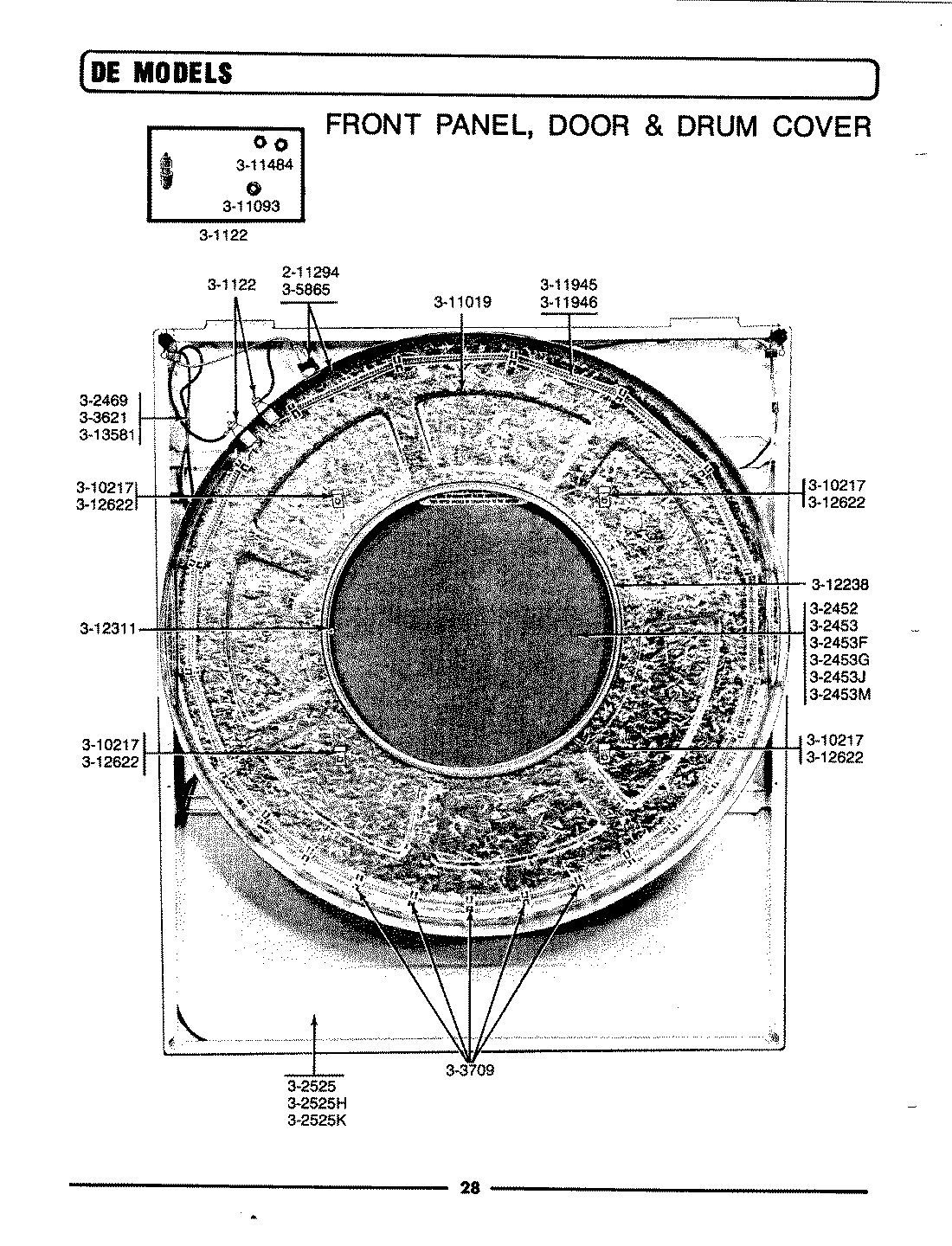

05 - FRONT PANEL, DOOR & DRUM COVER

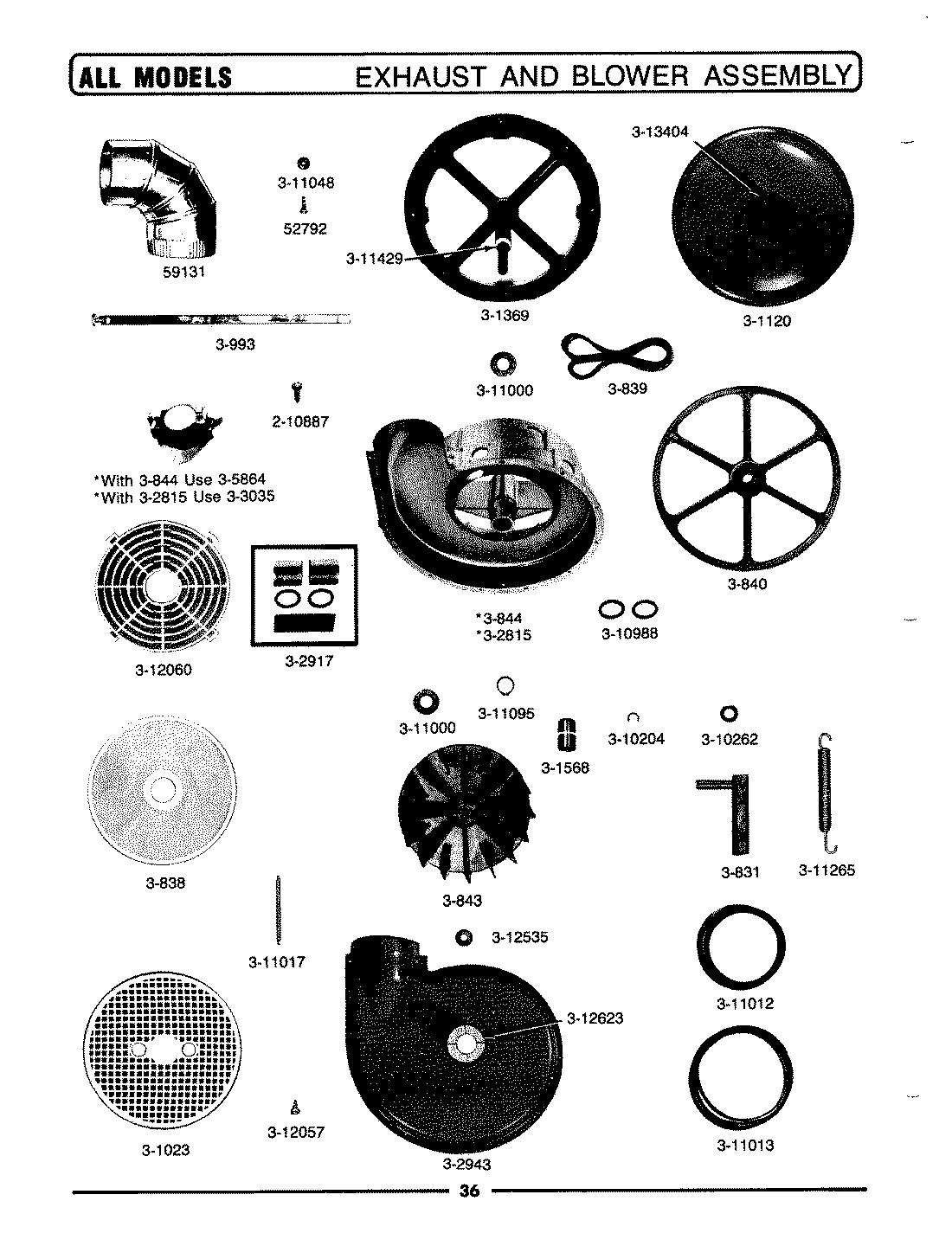

04 - EXHAUST & BLOWER ASSEMBLY

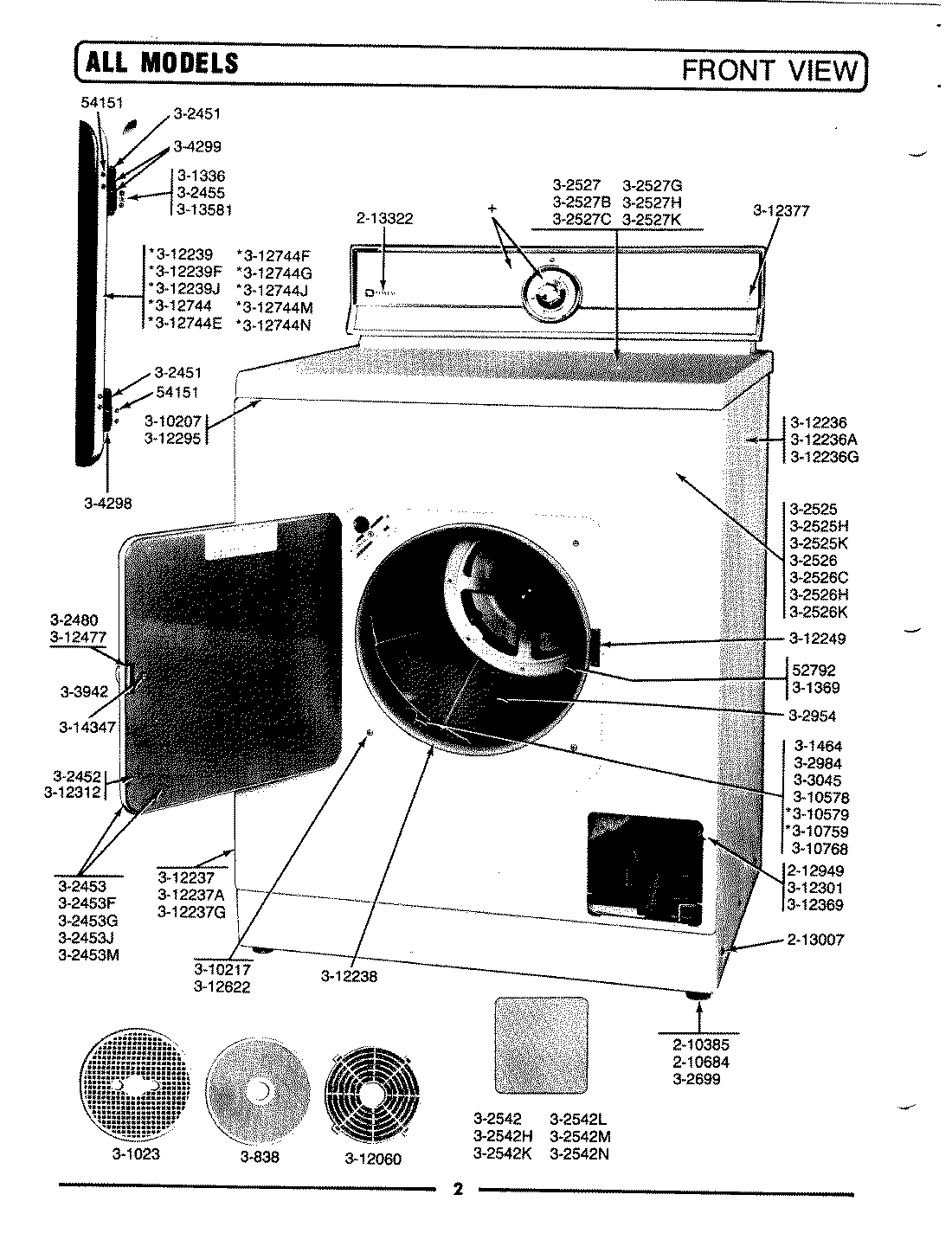

06 - FRONT VIEW
01 - 50 CYCLE CONVERSION LIST

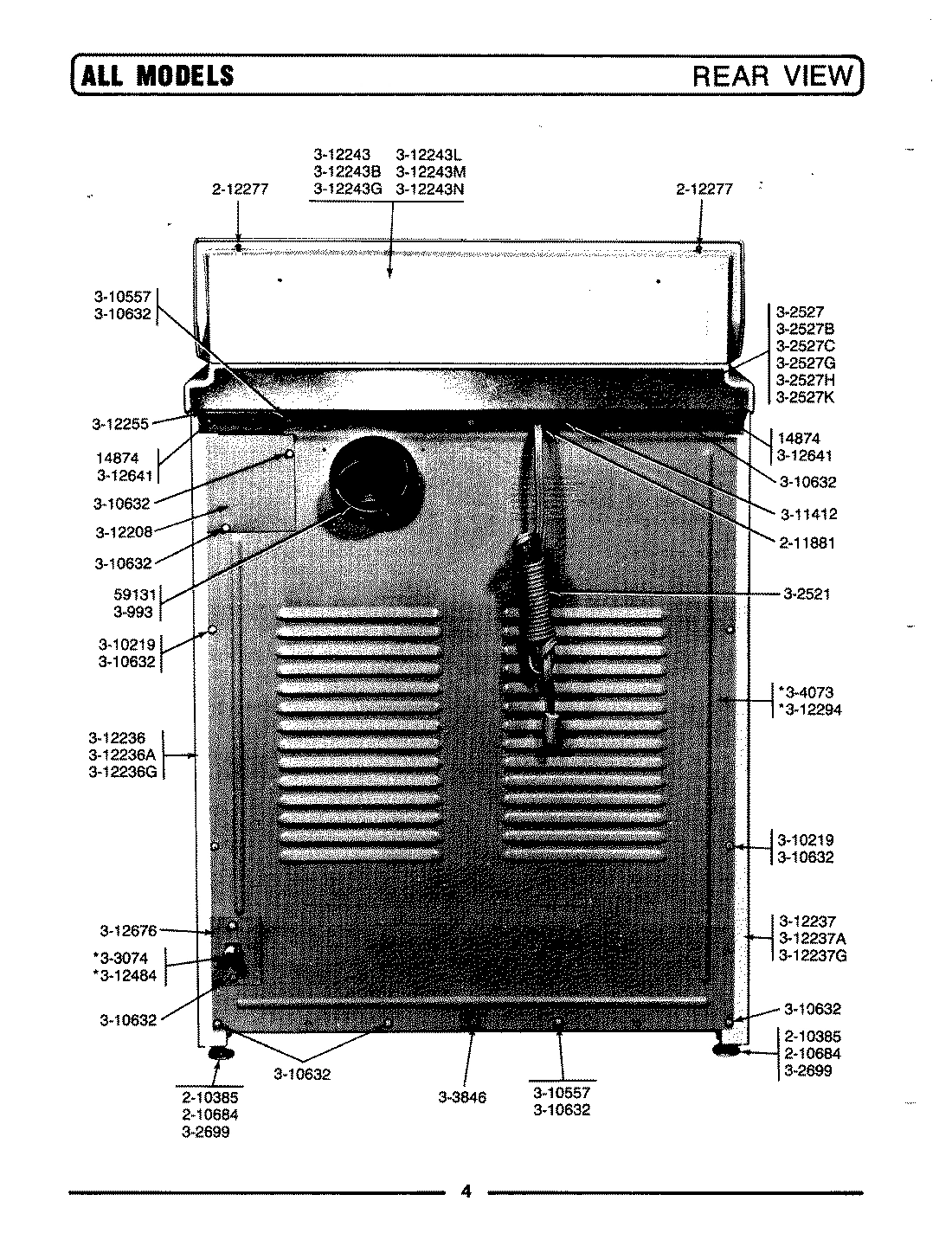

08 - REAR VIEW

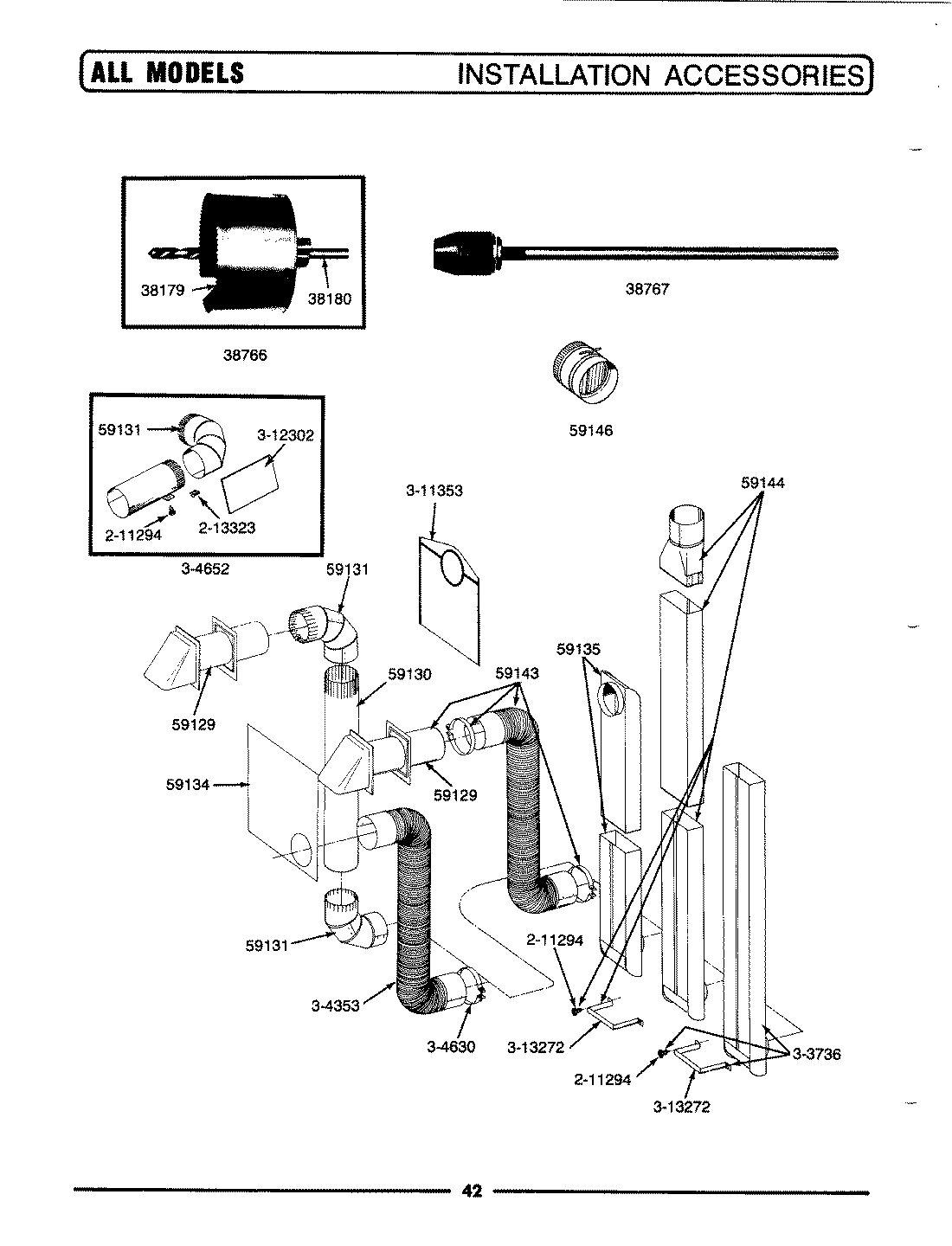

07 - INSTALLATION ACCESSORIES

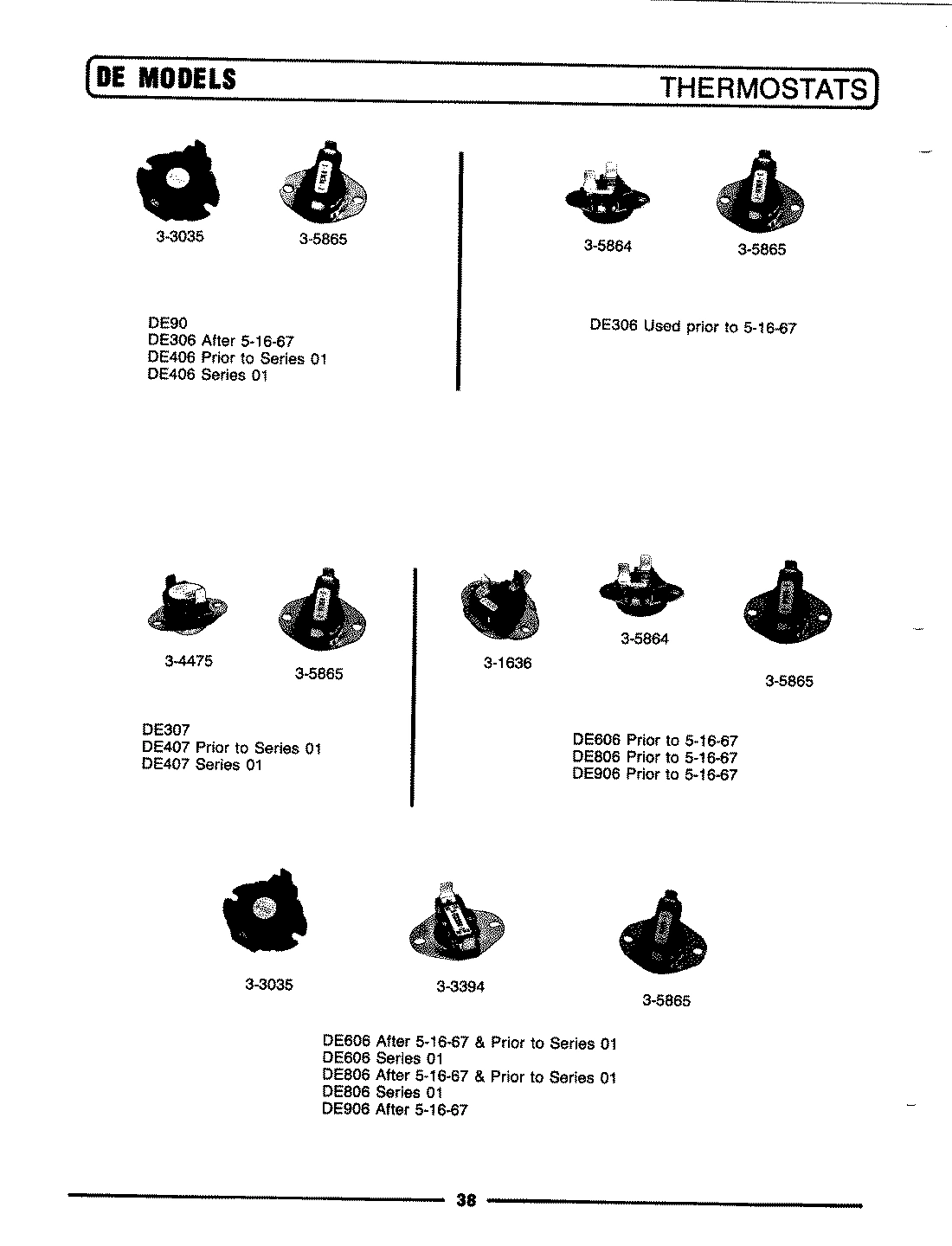

09 - THERMOSTATS

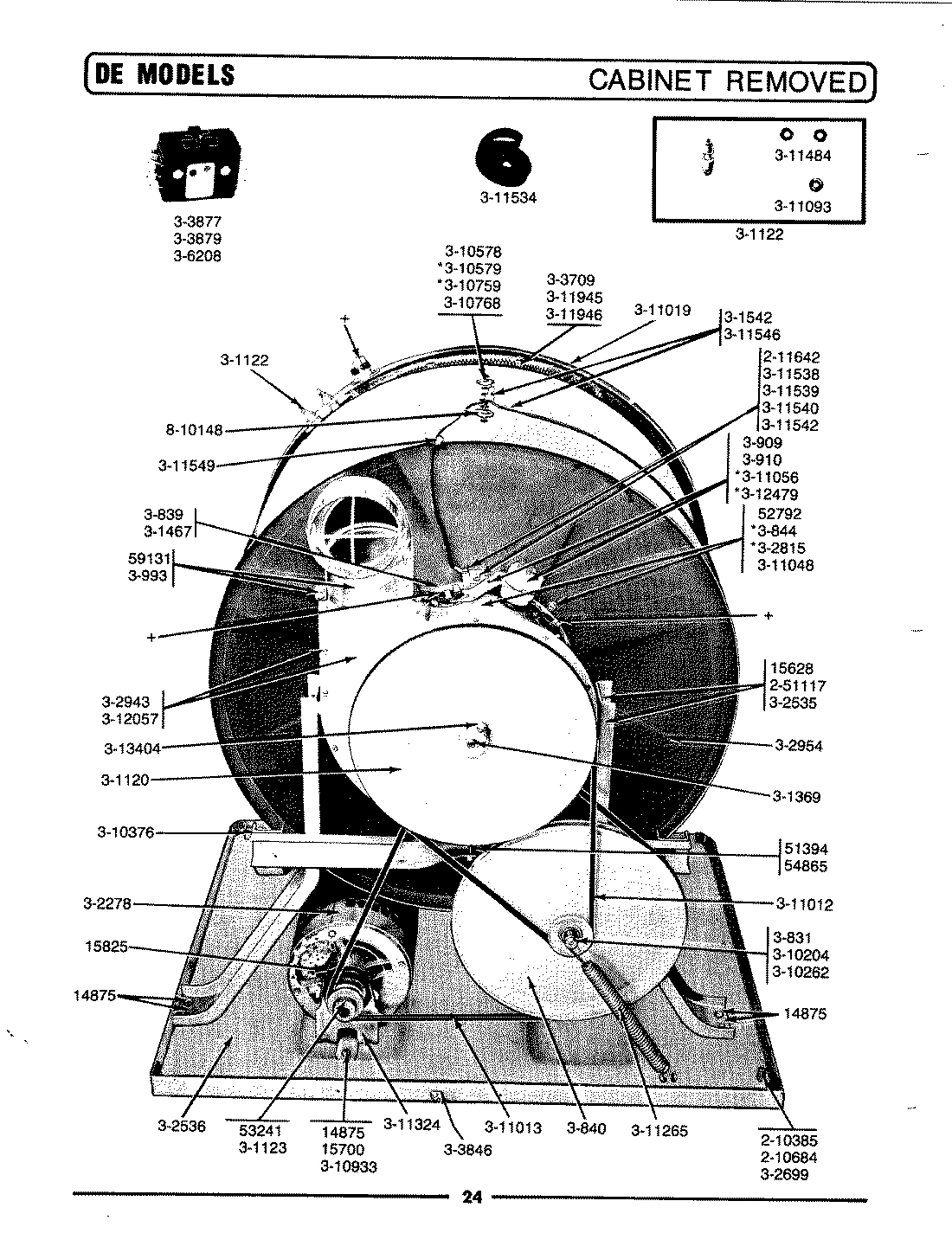

02 - CABINET REMOVED
Common parts from model Whirlpool DE406 ELECTRIC DRYER
1
MOTOR 120-50 WPL 301573 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
THERMOSTAT WPL Y301636 Contact Us For Availability
1
CAP SCREW, No.14 X 1/2 WPL 014875 Contact Us For Availability
2
SCREW, No.4-40 X 1/4 WPL 054151 Contact Us For Availability
2
CONVERTER WPL Y201808 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
BOLT, 5/16 X 3/4 HEX WPL 015628 Contact Us For Availability
3
COOL-DOWN THERMOSTAT WPL Y303394 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
3
CAP SCREW, 1/4-20 X 1/2 WPL 015700 Contact Us For Availability
4
WIRE TERMINAL WPL 210745 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
5
THERMOSTAT KIT WPL 305864 Contact Us For Availability
5
SCREW WPL 212949 Contact Us For Availability
5
TIMER 120-50 WPL 302578 Contact Us For Availability
5
BOLT, 5/16 X 2-1/8 WPL 051394 Contact Us For Availability
6
HIGH LIMIT THERMOSTAT WPL 305865 Contact Us For Availability
6
SCREW, 1 1/4-20 X 5/16 WPL 052792 Contact Us For Availability
6
MOTOR 240-50 WPL 301577 Contact Us For Availability
6
PIPE, VENTING WPL Y059130 Contact Us For Availability
7
IMPELLER WPL 300843 Contact Us For Availability
7
MAYTAG DECAL WPL 213322 Contact Us For Availability
7
MOTOR EXTERNAL START SWITCH WPL 304386 Contact Us For Availability
7
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
7
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
8
SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability
8
EASY-GRIP KNOB WPL 214697 Contact Us For Availability
8
PULLEY - 50 CYCLE WPL 311648 Contact Us For Availability
8
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
8
LOCK WASHER, 5/16 X 3/32 WPL 054865 Contact Us For Availability
9
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
9
HARNESS FOR SHROUD WPL 302469 Contact Us For Availability
9
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
9
LINT SCREEN WPL 300838 Contact Us For Availability
9
TOP COVER-WHITE WPL 302527 Contact Us For Availability
9
V BELT - 50 CYCLE WPL 311649 Contact Us For Availability
9
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
10
LINT SCREEN RETAINER WPL 301023 Contact Us For Availability
10
TOP COVER-DARK COPPERTONE WPL 302527B Contact Us For Availability
10
TIMER 240-50 WPL 302579 Contact Us For Availability
10
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
11
SCREW-HEX HD TYPE B No.6 X 15/16 WPL 212220 Contact Us For Availability
11
TOP COVER-SHADED COPPERTONE WPL 302527C Contact Us For Availability
11
STEP DOWN TRANSFORMER WPL 202628 Contact Us For Availability
11
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
12
CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability
12
BEARING F/BAKELITE IMPELLER NA WPL 301568 Contact Us For Availability
12
UNBALANCE RELAY 240-50 WPL 202626 Contact Us For Availability
12
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
13
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
13
SHAFT AND SLIDE WPL 300831 Contact Us For Availability
13
TOP COVER-SHADED GOLD WPL 302527H Contact Us For Availability
14
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
14
SEAL WPL 300839 Contact Us For Availability
14
BEARING KIT - DRUM WPL 302917 Contact Us For Availability
14
HINGE ASSEMBLY WPL 302451 Contact Us For Availability
14
TOP COVER-SHADED AVOCADO WPL 302527K Contact Us For Availability
15
TIMER WPL Y302454 Contact Us For Availability
15
DOOR LINER WPL 302452 Contact Us For Availability
15
REDUCTION PULLEY WPL 300840 Contact Us For Availability
15
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
16
DOOR-WHITE WPL 302453 Contact Us For Availability
16
EXHAUST HOUSING WPL Y300844 Contact Us For Availability
16
PIPE AND BRACKET ASSEMBLY WPL 303074 Contact Us For Availability
17
HARNESS WPL 302501 Contact Us For Availability
17
DOOR-LIGHT GOLD WPL 302453F Contact Us For Availability
17
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
DOOR-DARK GOLD WPL 302453G Contact Us For Availability
18
EXHAUST DEFLECTOR WPL 311147 Contact Us For Availability
19
TIMER DIAL & KNOB WPL Y302829 Contact Us For Availability
19
DOOR-LIGHT AVOCADO WPL 302453J Contact Us For Availability
19
DRUM PULLEY WPL Y301120 Contact Us For Availability
19
BACK PANEL WPL 304073 Contact Us For Availability
19
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
20
CONTROL PANEL WITH LENS WPL 302934 Contact Us For Availability
20
DOOR-HARVEST WHEAT WPL 302453M Contact Us For Availability
20
HEATER WIRE 208 VOLT WPL Y311945 Contact Us For Availability
20
O RING SEAL WPL 310988 Contact Us For Availability
20
No.10Z FASTENER WPL 310219 Contact Us For Availability
20
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
21
GAS VALVE WIRES WITH PLUG WPL 303088 Contact Us For Availability
21
HEATER WIRE 240 VOLT WPL Y311946 Contact Us For Availability
21
WASHER WPL 311000 Contact Us For Availability
21
SWITCH WPL Y302455 Contact Us For Availability
21
WASHER WPL 310557 Contact Us For Availability
21
COUPLER FOR VENT DUCT WPL 313766 Contact Us For Availability
21
MOTOR PULLEY WPL 301123 Contact Us For Availability
22
TIMER DIAL & KNOB, SUN-GLOW WPL Y304106 Contact Us For Availability
22
SHAFT WITH SPIDER WPL 301369 Contact Us For Availability
22
LATCH WPL 302480 Contact Us For Availability
22
SCREW WPL Y310632 Contact Us For Availability
23
CONTROL PANEL, SUN-GLOW WPL 304125 Contact Us For Availability
23
FRONT PANEL-WHITE WPL 302525 Contact Us For Availability
23
SCREW----NA WPL 312311 Contact Us For Availability
23
MOTOR WPL Y302278 Contact Us For Availability
24
CONTROL PANEL KIT, SEA-MIST WPL 304127 Contact Us For Availability
24
FRONT PANEL-SHADED GOLD WPL 302525H Contact Us For Availability
24
RETAINER SPRING WPL Y311017 Contact Us For Availability
24
SCREW WPL 311412 Contact Us For Availability
24
SUPPORT WPL 302535 Contact Us For Availability
25
CONTROL PANEL KIT, SUN-GLOW WPL 304128 Contact Us For Availability
25
FRONT PANEL-SHADED AVOCADO WPL 302525K Contact Us For Availability
25
BASE WPL 302536 Contact Us For Availability
26
TIMER MOTOR RPR WPL Y304585 Contact Us For Availability
26
RETAINING RING WPL 311095 Contact Us For Availability
26
FRONT PANEL-WHITE WPL 302526 Contact Us For Availability
26
TERMINAL BRACKET WPL 312206 Contact Us For Availability
27
BLOWER HOUSING WITH BEARING WPL Y302815 Contact Us For Availability
27
FRONT PANEL-DARK COPPERTONE WPL 302526C Contact Us For Availability
27
TERMINAL COVER WPL 312207 Contact Us For Availability
28
WIRE CONNECTOR WPL Y312140 Contact Us For Availability
28
COVER WITH LINT SEAL-BLOWER WPL 302943 Contact Us For Availability
28
NYLON SPACER COLLAR WPL Y311429 Contact Us For Availability
28
FRONT PANEL-SHADED GOLD WPL 302526H Contact Us For Availability
28
COVER FOR TERMINAL OPENING WPL 312208 Contact Us For Availability
29
BRACKET WPL 312257 Contact Us For Availability
29
FRONT PANEL-SHADED AVOCADO WPL 302526K Contact Us For Availability
29
DRUM W/FELT - PORCELAIN WPL 302954 Contact Us For Availability
30
ACTUATOR WPL 312258 Contact Us For Availability
30
CLIP AND INSULATOR ASSEMBLY WPL 303709 Contact Us For Availability
30
PANEL-WHITE WPL 312236 Contact Us For Availability
31
WASHER WPL 312261 Contact Us For Availability
31
PANEL-DARK AVOCADO WPL 312236A Contact Us For Availability
32
E CLIP WPL Y312270 Contact Us For Availability
32
LINT SEAL - BLOWER COVERS WPL Y312623 Contact Us For Availability
32
PANEL-DARK GOLD WPL 312236G Contact Us For Availability
33
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
33
SPRING WPL 312303 Contact Us For Availability
33
TOP COVER-DARK GOLD WPL 302527G Contact Us For Availability
33
PANEL-WHITE WPL 312237 Contact Us For Availability
34
BACK-UP PLATE WPL 313562 Contact Us For Availability
34
WASHER WPL 310578 Contact Us For Availability
34
PANEL-DARK AVOCADO WPL 312237A Contact Us For Availability
35
HARNESS RETAINER WPL 410351 Contact Us For Availability
35
PANEL-DARK GOLD WPL 312237G Contact Us For Availability
36
WASHER WPL 310768 Contact Us For Availability
36
CONTROL COVER-WHITE WPL 312243 Contact Us For Availability
37
CONTROL COVER-DK COPPERTONE WPL 312243B Contact Us For Availability
37
FASTENER WPL 310933 Contact Us For Availability
38
DRIVE BELT WPL Y311012 Contact Us For Availability
38
CONTROL COVER-DARK GOLD WPL 312243G Contact Us For Availability
39
MOTOR BELT WPL Y311013 Contact Us For Availability
39
LAMP SUPPORT WPL 311056 Contact Us For Availability
39
CONTROL COVER-ALMOND WPL 312243L Contact Us For Availability
40
DRUM COVER WPL 311019 Contact Us For Availability
40
CONTROL COVER-HARVEST WHEAT WPL 312243M Contact Us For Availability
41
CONTROL COVER-FRESH AVOCADO WPL 312243N Contact Us For Availability
42
SPRING WPL 311265 Contact Us For Availability
42
ANGLE FOR CABINET - DRYER WPL 312255 Contact Us For Availability
43
BACK FOR CABINET WPL 312294 Contact Us For Availability
43
MOTOR BASE WPL 311324 Contact Us For Availability
44
BAFFLE ASSEMBLY - POLY WPL 302984 Contact Us For Availability
44
PIPE, 17-3/8 INCH WPL Y312484 Contact Us For Availability
44
FELT SEAL WPL 311534 Contact Us For Availability
45
GROUND CLIP SPEED NUT WPL Y312641 Contact Us For Availability
45
CARBON BRUSH HOLDER WPL Y311538 Contact Us For Availability
46
KNOB AND SCREW WPL 303942 Contact Us For Availability
46
PIPE SUPPORT PLATE-SQ HOLE WPL 312676 Contact Us For Availability
47
HINGE - LOWER WPL Y304298 Contact Us For Availability
47
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
48
SET SCREW WPL Y313404 Contact Us For Availability
48
HINGE - UPPER WPL 304299 Contact Us For Availability
48
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
49
SCREW, No.6-20 X 3/8 INCH WPL 211642 Contact Us For Availability
50
NO LONGER AVAILABLE WPL 310217 Contact Us For Availability
50
LOCK WASHER WPL 251117 Contact Us For Availability
51
SLIP RING WPL 301467 Contact Us For Availability
52
WIRE HARNESS FOR DRUM WPL 301542 Contact Us For Availability
53
SCREW WPL Y310759 Contact Us For Availability
53
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
54
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
55
SHIELD FOR SPIDER WPL Y312060 Contact Us For Availability
55
SWITCH, MOTOR EXTERNAL START WPL 306208 Contact Us For Availability
56
SNAP RING WPL 310204 Contact Us For Availability
57
WASHER WPL 310262 Contact Us For Availability
58
SCREW, No.10-24 X 11/16 INCH WPL 310579 Contact Us For Availability
59
WASHER, ALUMINUM WPL 311048 Contact Us For Availability
62
DOOR SEAL WPL 312238 Contact Us For Availability
62
SPRING FOR CARBON BRUSH WPL Y311539 Contact Us For Availability
63
DOOR PANEL-WHITE WPL 312239 Contact Us For Availability
63
COVER FOR CARBON BRUSH WPL 311540 Contact Us For Availability
64
DOOR PANEL-LIGHT GOLD WPL 312239F Contact Us For Availability
64
CARBON BRUSH WPL Y311542 Contact Us For Availability
65
DOOR PANEL-LIGHT AVOCADO WPL 312239J Contact Us For Availability
65
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
66
STRIKE PLATE WPL 312249 Contact Us For Availability
66
SCREW WPL 810148 Contact Us For Availability
68
BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability
69
INSULATION - DOOR WPL 312312 Contact Us For Availability
70
SLEEVE-ACCE WPL 312369 Contact Us For Availability
72
WPL 312477 WPL 312477 Contact Us For Availability
74
WPL Y312744 WPL Y312744 Contact Us For Availability
75
WPL 312744E WPL 312744E Contact Us For Availability
76
WPL 312744F WPL 312744F Contact Us For Availability
77
WPL 312744G WPL 312744G Contact Us For Availability
78
WPL 312744J WPL 312744J Contact Us For Availability
79
WPL 312744M WPL 312744M Contact Us For Availability
80
WPL 312744N WPL 312744N Contact Us For Availability
81
WPL 313581 WPL 313581 Contact Us For Availability
× ![]()
Login and Registration Form
