Model Whirlpool DDW195-1W DISHWASHER – Common Parts & Diagrams

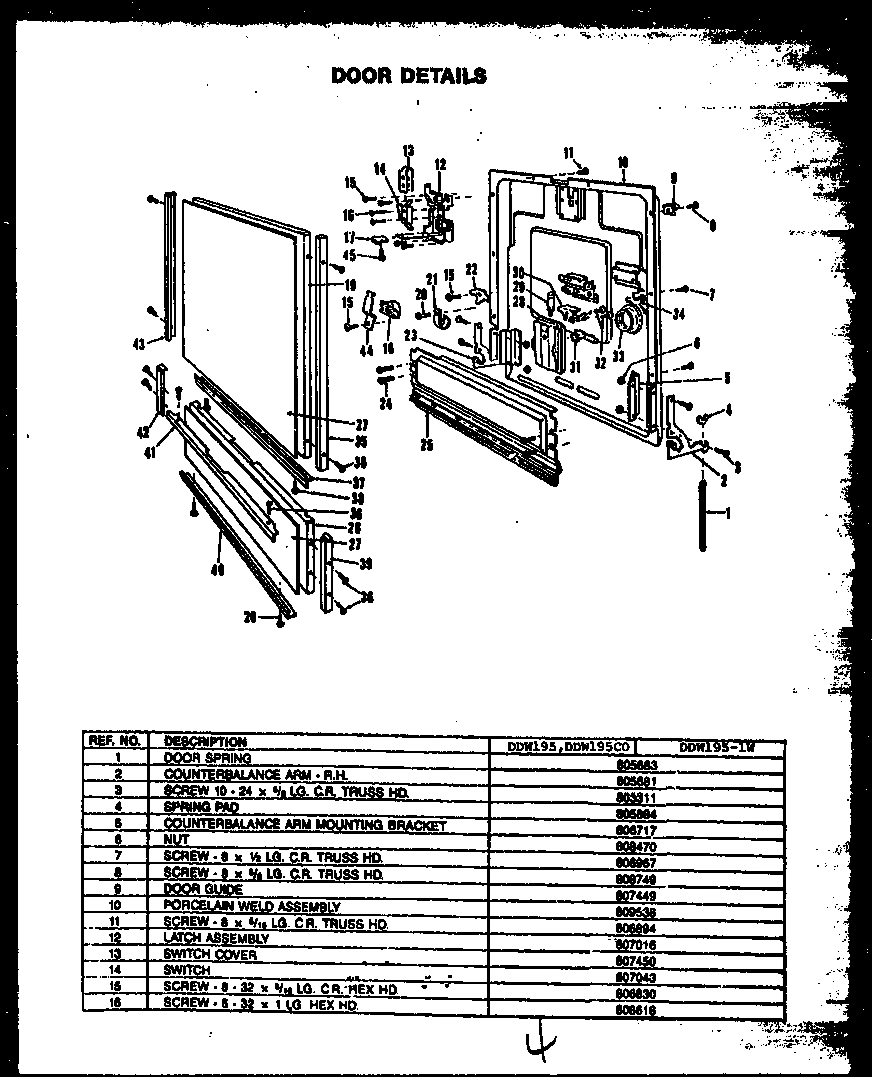

02 - DOOR DETAILS

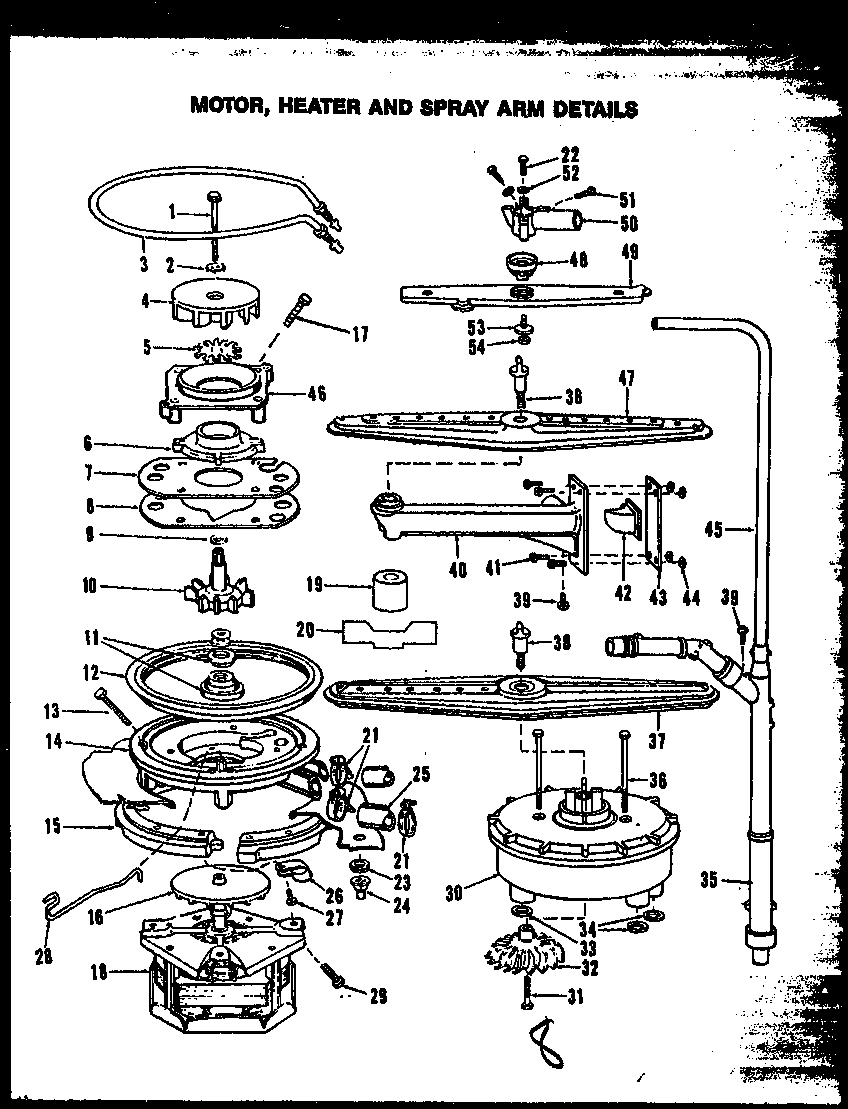

04 - MOTOR

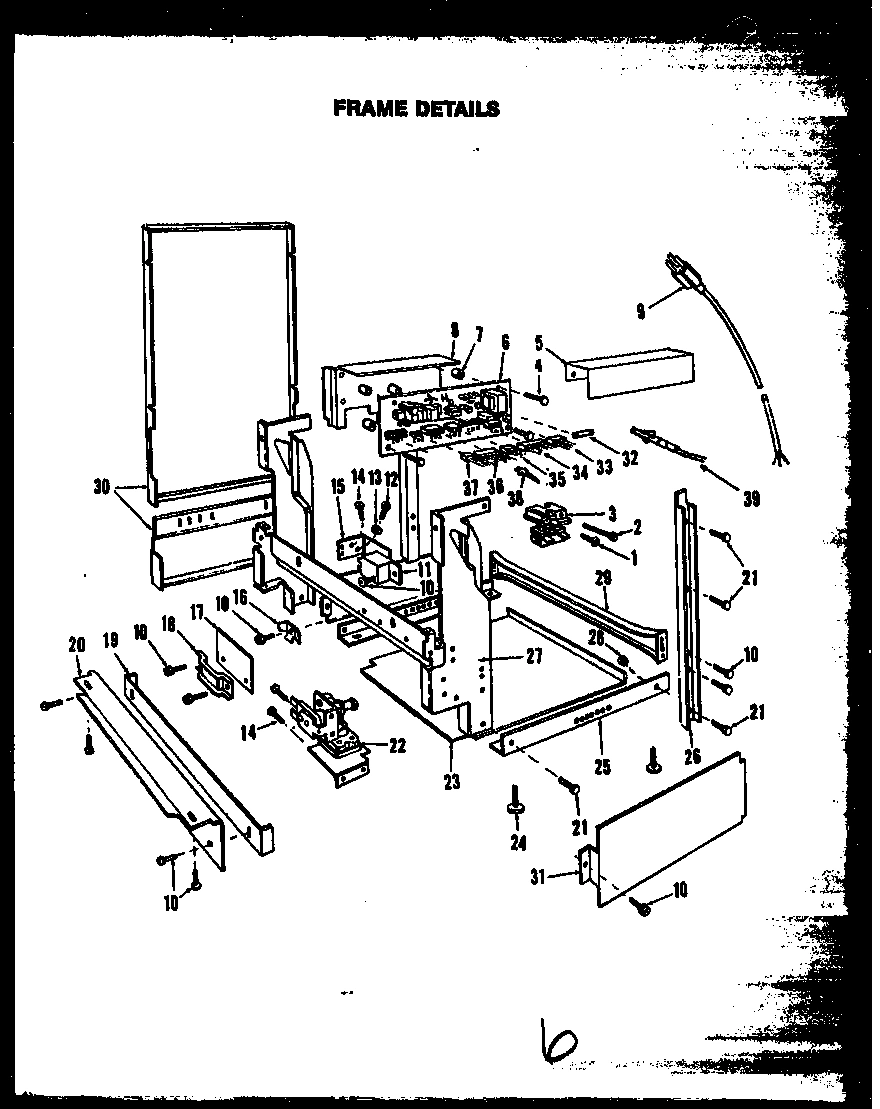

03 - FRAME DETAILS

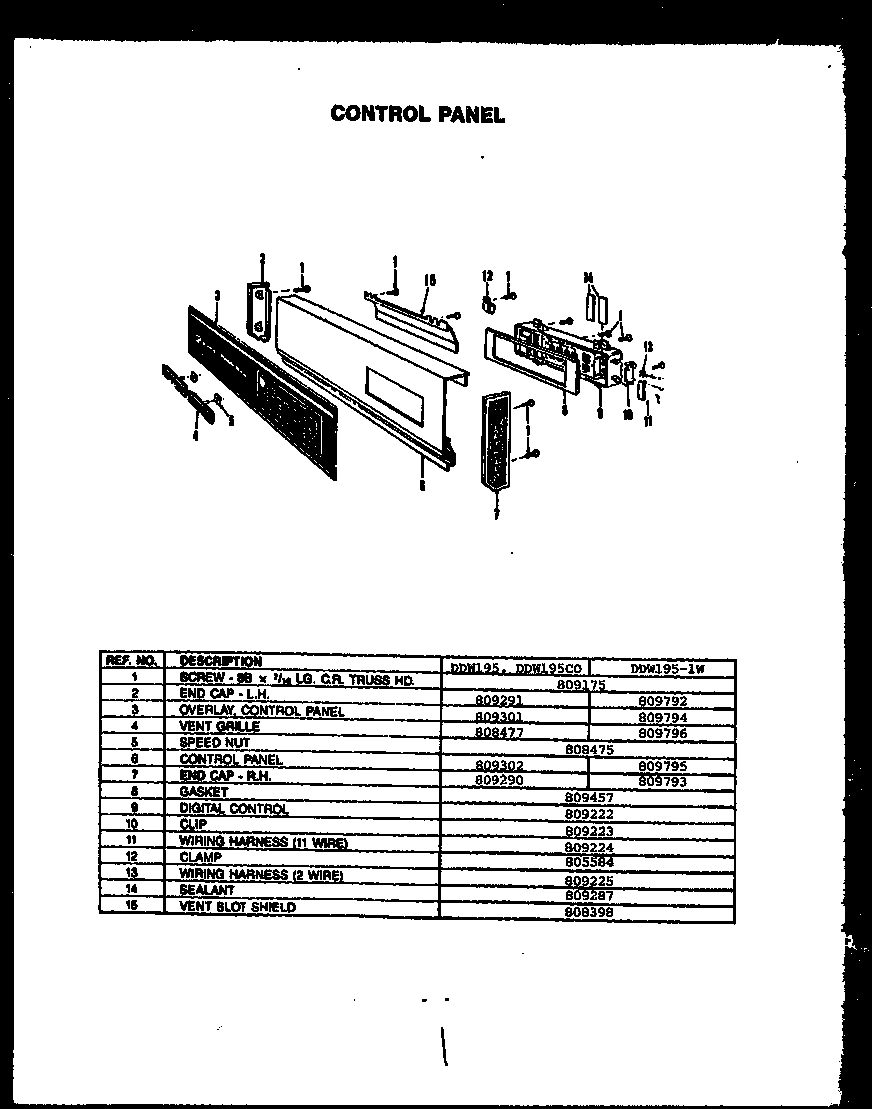

05 - Page 1

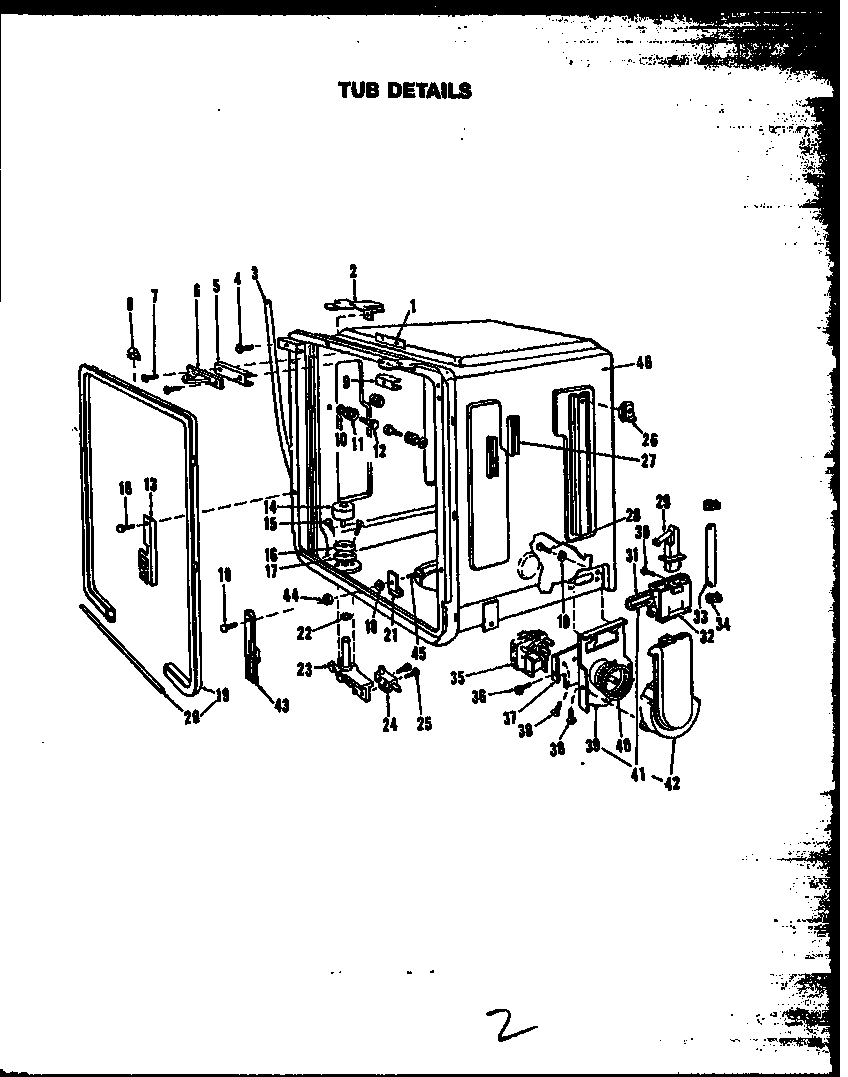

07 - TUB DETAILS

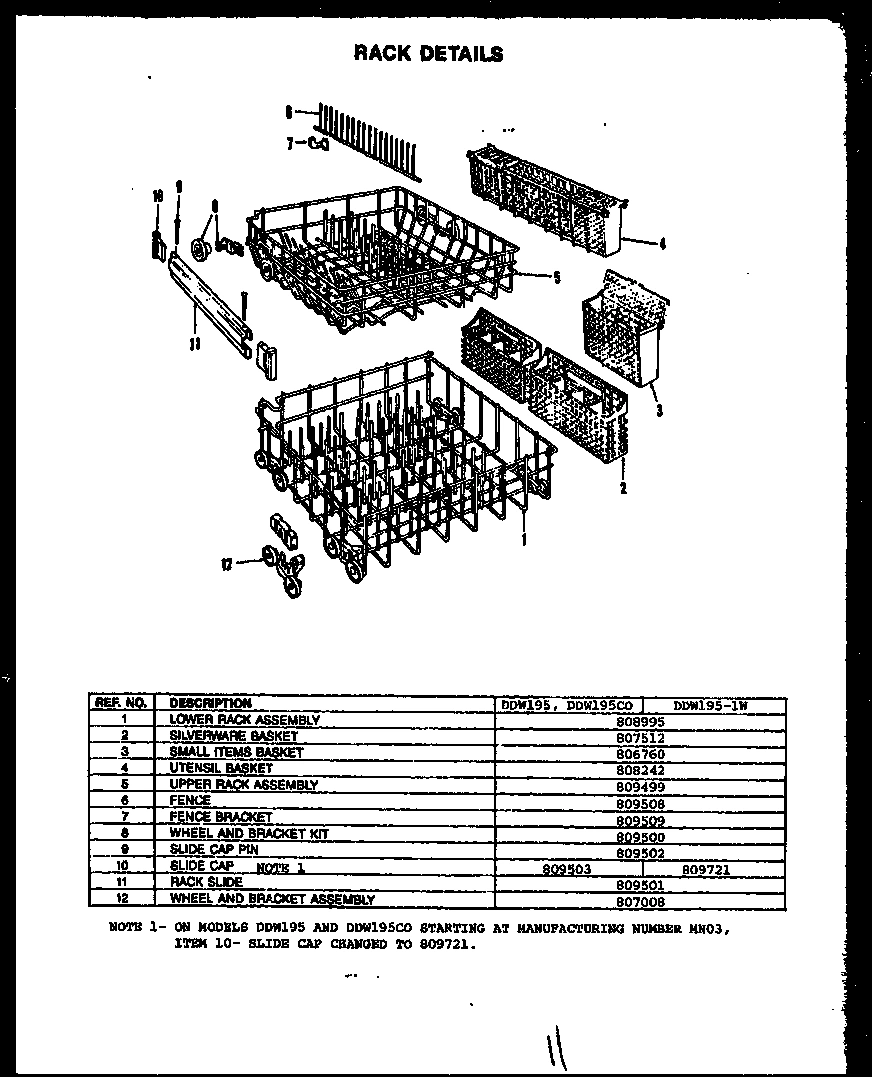

06 - RACK DETAILS

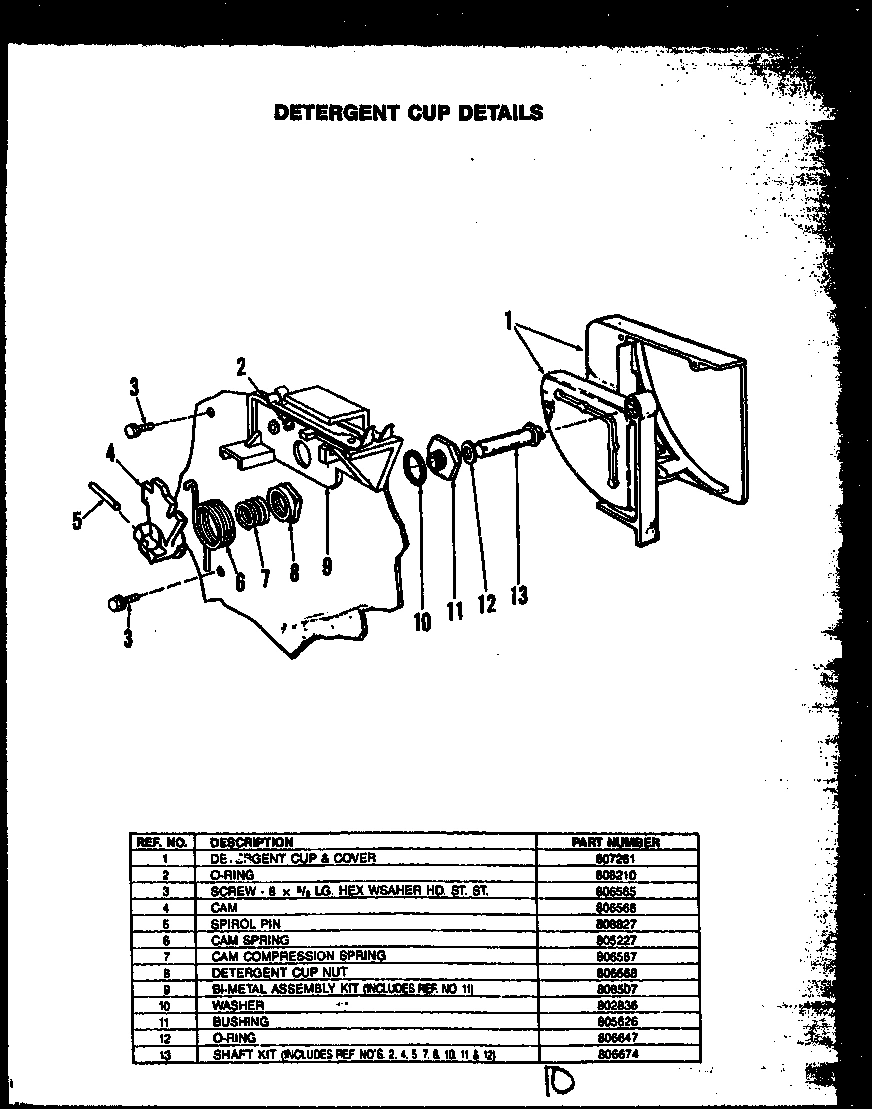

01 - DETERGENT CUP DETAILS
Common parts from model Whirlpool DDW195-1W DISHWASHER
1
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
SCREW WPL 0809175 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
UPPER RACK ASM WPL Y0808995 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
2
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
SCREW WPL 0804672 Contact Us For Availability
2
END CAP, LH, DDW195-1W WPL 0809792 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
3
SCREW WPL 0803311 Contact Us For Availability
3
HEATER WPL 0809004 Contact Us For Availability
3
RELAY WPL 0805255 Contact Us For Availability
3
OVERLAY, CONTROL PANEL, DDW195 WPL 0809794 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
3
SML ITEM BASKET WPL 806760 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
SCREW WPL 0806976 Contact Us For Availability
4
VENT GRILLE, DDW195-1W WPL Y0809796 Contact Us For Availability
4
BASKET, UTENSIL WPL 0808242 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
5
ARM BRACKET WPL Y0806717 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
SHIELD WPL 0809232 Contact Us For Availability
5
SPEED NUT WPL Y0808475 Contact Us For Availability
5
SHIM STRIKE WPL 0807073 Contact Us For Availability
5
UPPER RACK ASSY. WPL 0809499 Contact Us For Availability
5
SPIROL PIN WPL Y0808827 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
POWER SUPPLY WPL 809230 Contact Us For Availability
6
CONTROL PANEL, DDW195-1W WPL Y0809795 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
FENCE, RACK WPL 0809508 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
7
SCREW WPL 0806967 Contact Us For Availability
7
PUMP PLATE WPL 0809006 Contact Us For Availability
7
SPACER WPL 0805323 Contact Us For Availability
7
BRKT MTG WPL 809793 Contact Us For Availability
7
FENCE BRACKET WPL 0809509 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
PUMP GASKET WPL Y0809007 Contact Us For Availability
8
RELAY BRACKET WPL 0809233 Contact Us For Availability
8
CONTROL CASE GASKET WPL 0809457 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
WHEEL ASSY. WPL Y0809500 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
9
DOOR GUIDE WPL 0807449 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
POWER CORD WPL Y0808395 Contact Us For Availability
9
DIGITAL CONTROL WPL 0809222 Contact Us For Availability
9
SCREW WPL 0808368 Contact Us For Availability
9
CAP PIN WPL 0809502 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
10
PANEL,INNER DOOR 24`` WPL Y0809538 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809110 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
CLIP WPL 0809223 Contact Us For Availability
10
SLIDE CAP WPL 0809721 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
11
SCREW WPL 0806894 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
11
WIRING HARNESS WPL 0809224 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
RACK SLIDE WPL 0809501 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
12
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
SCREW WPL 0807951 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
WHEEL ASSY WPL Y0807008 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
13
SWITCH COVER WPL 0807450 Contact Us For Availability
13
WASHER WPL 0807373 Contact Us For Availability
13
WIRING HARNESS WPL 0809225 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
13
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
14
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
14
PUMP HOUSING, LOWER WPL Y0809009 Contact Us For Availability
14
SCREW WPL Y0807950 Contact Us For Availability
14
SEALANT WPL 0809287 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
15
SCREW WPL 0806830 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
15
COVER BRACKET WPL 0807019 Contact Us For Availability
15
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
16
SCREW WPL 0808618 Contact Us For Availability
16
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
16
WATER SHIELD ASSY WPL Y0809366 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
LATCH KNOB, DDW195-1W WPL 0809683 Contact Us For Availability
17
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
17
WIRE SHIELD WPL 0809144 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
THERMOSTAT WPL Y0808956 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
WIRING CLAMP WPL 0806723 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
19
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
TOE PLATE, ADJUSTABLE WPL 0809303 Contact Us For Availability
19
SUB 808959, GASKET & WIRE ASSY WPL Y0809034 Contact Us For Availability
20
USE M0217224 WPL Y0803416 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
TOE PLATE WPL 0809765 Contact Us For Availability
20
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
21
SCREW WPL 0807001 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
VALVE ASSY WPL Y0809240 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
BOTTOM PANEL WPL Y0808434 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
LEVELING LEG WPL 0809422 Contact Us For Availability
24
FLOAT SWITCH WPL Y0809863 Contact Us For Availability
25
SUB 809243, VENT PLATE ASSY. WPL Y0809122 Contact Us For Availability
25
HOSE SPRAY TUBE WPL 0805674 Contact Us For Availability
25
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
26
CLAMP WPL Y0808442 Contact Us For Availability
26
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
26
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
26
NUT, CAGE WPL 0806291 Contact Us For Availability
27
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
27
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
27
SUB 808804, DOOR&ACC. PANEL IN WPL 0808913 Contact Us For Availability
27
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
27
SCREW WPL 0807270 Contact Us For Availability
27
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
27
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
28
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
28
SCREW WPL Y0806901 Contact Us For Availability
28
WIRE RETAINER WPL 0809010 Contact Us For Availability
29
PLUNGER WPL 0806757 Contact Us For Availability
29
SCREW WPL Y0809022 Contact Us For Availability
29
BRACE, REAR WPL Y0807852 Contact Us For Availability
29
INLET NOZZLE WPL 0808707 Contact Us For Availability
30
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
30
FILTER BODY ASSY. WPL Y0809011 Contact Us For Availability
30
SIDE PANEL KIT, WHITE WPL 0808880 Contact Us For Availability
30
SIDE PANEL KIT, ALMOND WPL 0808884 Contact Us For Availability
30
SIDE PANEL KIT WPL 808883 Contact Us For Availability
30
SCREW WPL 0808818 Contact Us For Availability
31
SUB 807673, FILL PLUG WPL Y0806755 Contact Us For Availability
31
SCREW WPL 0809073 Contact Us For Availability
31
SIDE PANEL WPL Y0808433 Contact Us For Availability
31
GASKET WPL Y0806797 Contact Us For Availability
32
DIFFUSER WPL Y0809014 Contact Us For Availability
32
FUSE, 12 AMP WPL Y0809284 Contact Us For Availability
32
VENT STACK WPL 0808706 Contact Us For Availability
33
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
33
O RING WPL Y0809016 Contact Us For Availability
33
TERMINAL HOUSING CN6 WPL 0809385 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
SCREW WPL 0806863 Contact Us For Availability
34
O RING WPL 0809015 Contact Us For Availability
34
TERMINAL HOUSING CN4 WPL 0809388 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
DOOR PNL TRIM, RH WPL 0808976 Contact Us For Availability
35
DELIVERY TUBE ASSY. KIT WPL 0808805 Contact Us For Availability
35
TERMINAL HOUSING CN3 WPL 0809384 Contact Us For Availability
35
MOTOR WPL Y0807389 Contact Us For Availability
36
SCREW WPL 0809012 Contact Us For Availability
36
TERMINAL HOUSING CN2 WPL 0809386 Contact Us For Availability
36
KNOB SCREW WPL 0804164 Contact Us For Availability
37
DOOR PANEL, TRIM, BOTTOM WPL 0809682 Contact Us For Availability
37
LOWER SPRAY ARM ASSEMBLY WPL 809017 Contact Us For Availability
37
TERMINAL HOUSING CN5 WPL 0809387 Contact Us For Availability
37
PLATE, MOTOR WPL 0806793 Contact Us For Availability
38
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
38
TERMINAL (SMALL PRONG-CN4 CNS) WPL 0809383 Contact Us For Availability
38
SCREW WPL 803003 Contact Us For Availability
39
TRIM, R.H. WPL 0808028 Contact Us For Availability
39
TERMINAL WPL 808132 Contact Us For Availability
39
PLATE, BLOWER WPL 0806794 Contact Us For Availability
40
ACCESS PANEL TRIM, BOTTOM WPL Y0808105 Contact Us For Availability
40
DELIVERY ARM WPL 0809019 Contact Us For Availability
40
WHEEL & CLIP ASSEMBLY WPL 0806230 Contact Us For Availability
41
TRIM, TOP, ACCESS PANEL WPL 0809681 Contact Us For Availability
41
HOUSING ASSY. WPL 0808765 Contact Us For Availability
42
PLUG DELIVERY ARM WPL 0805781 Contact Us For Availability
42
HOUSING, BLOWER WPL 0808738 Contact Us For Availability
43
DOOR PNL TRIM, LH WPL 0808977 Contact Us For Availability
43
GASKET DELIVERY ARM WPL 0805782 Contact Us For Availability
43
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
44
THERMOSTAT RETAINER WPL 0809097 Contact Us For Availability
44
USE M0281003 WPL 0803346 Contact Us For Availability
45
USE 0806830 WPL 0809163 Contact Us For Availability
45
SUPPLY TUBE WPL 0807224 Contact Us For Availability
46
SPACER PLATE WPL Y0809020 Contact Us For Availability
46
TUB AND GASKET ASSEMBLY WPL 808762 Contact Us For Availability
47
SPRAY ARM WPL Y0809021 Contact Us For Availability
48
DISTRIBUTOR WPL 808462 Contact Us For Availability
49
SPRAY ARM & SEAL ASSY WPL Y0808463 Contact Us For Availability
50
DISTRIBUTOR WPL 0808464 Contact Us For Availability
53
WASHER WPL Y0808465 Contact Us For Availability
54
SCREW WPL Y0808466 Contact Us For Availability
NI
TUB INSULATION WPL 0809512 Contact Us For Availability
× ![]()
Login and Registration Form
