Model Maytag CWE5800ACS14 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS

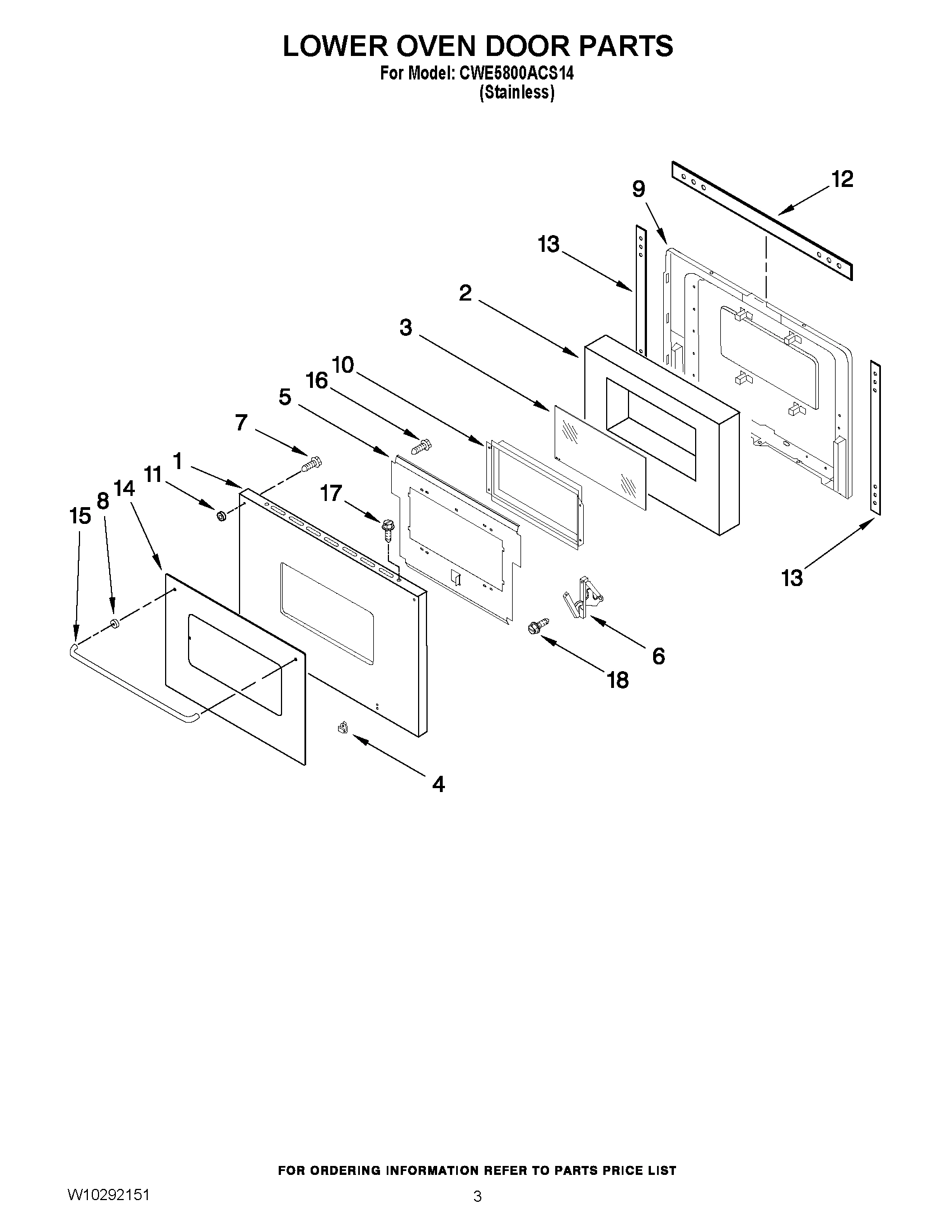

02 - LOWER OVEN DOOR PARTS

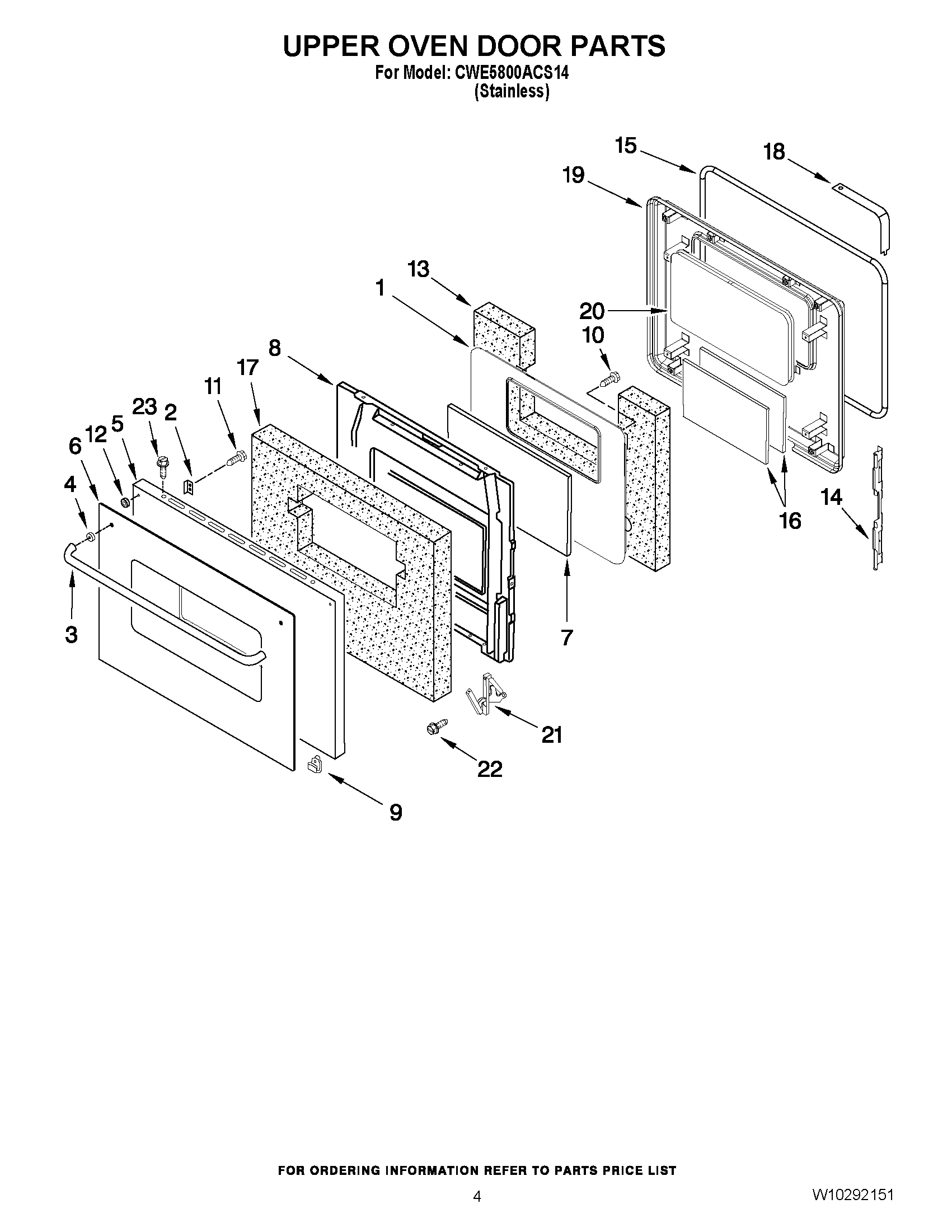

03 - UPPER OVEN DOOR PARTS

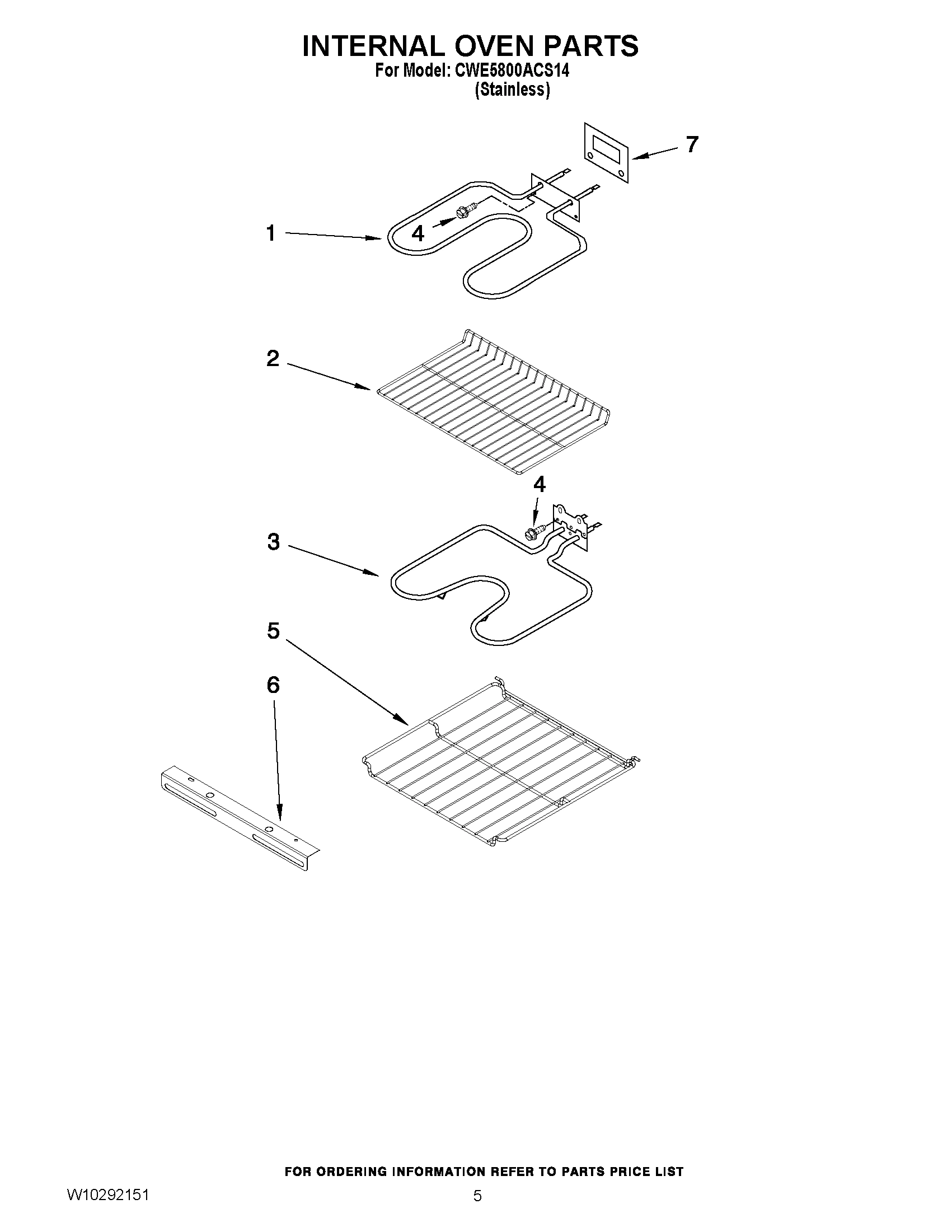

04 - INTERNAL OVEN PARTS

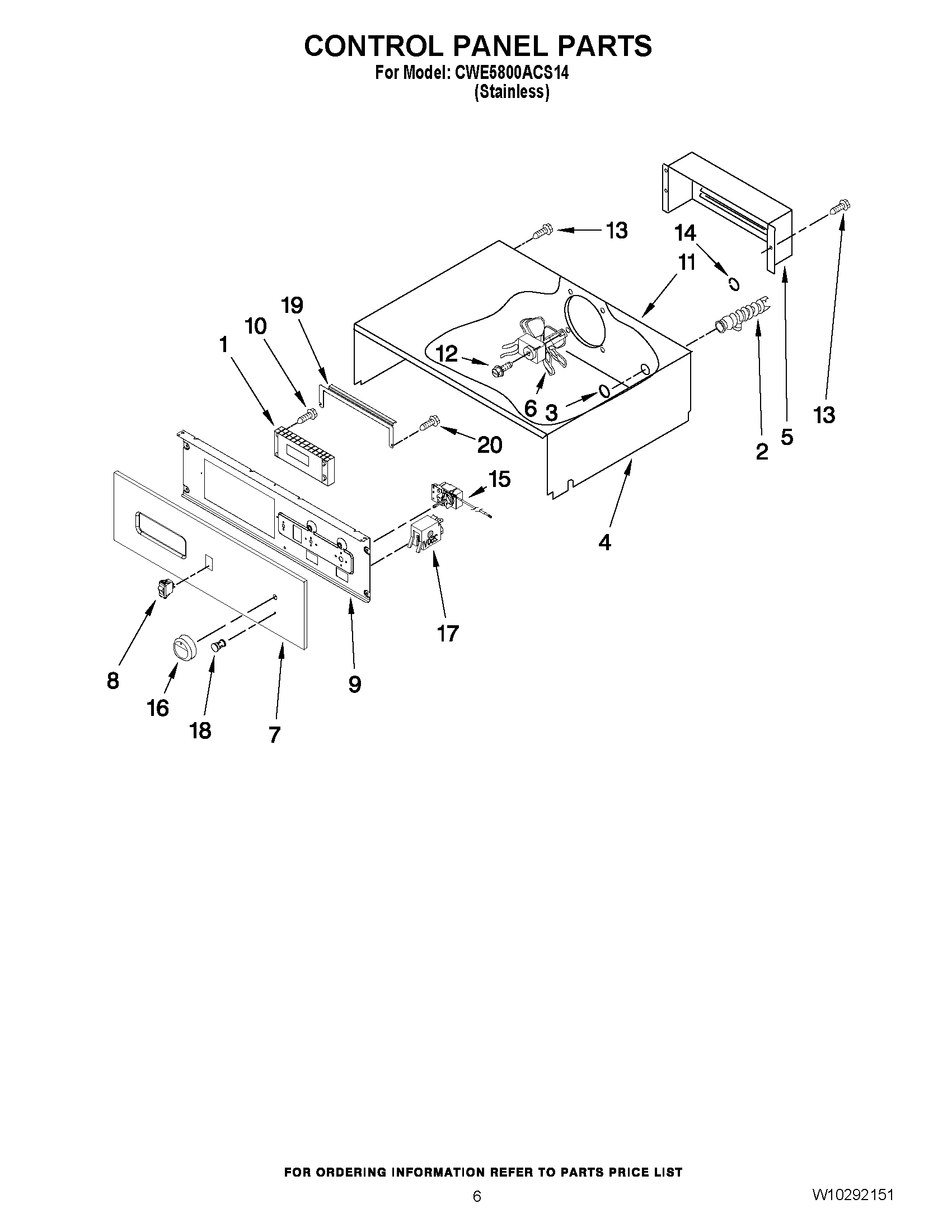

05 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag CWE5800ACS14 ELECTRIC WALL OVEN
1
MAY 2401F161-70 MAY 2401F161-70 Contact Us For Availability
1
MAY 3601F131-51 MAY 3601F131-51 Contact Us For Availability
1
MAY W10314683 MAY W10314683 Contact Us For Availability
1
MAY W10201915 MAY W10201915 Contact Us For Availability
2
INSULATION, DOOR MAY 7002P019-60 Contact Us For Availability
2
MAY 7112P011-60 MAY 7112P011-60 Contact Us For Availability
2
MAY 7801P153-60 MAY 7801P153-60 Contact Us For Availability
2
MAY 5700P365-60 MAY 5700P365-60 Contact Us For Availability
3
MAY 7902P715-60 MAY 7902P715-60 Contact Us For Availability
3
MAY 7701P495-60 MAY 7701P495-60 Contact Us For Availability
3
MAY W10310269 MAY W10310269 Contact Us For Availability
3
MAY 7417P017-60 MAY 7417P017-60 Contact Us For Availability
4
SPACER, DOOR HANDLE MAY 8010P127-60 Contact Us For Availability
4
MAY W10214294 MAY W10214294 Contact Us For Availability
5
PANEL, OVEN DOOR MAY 2401F103-70 Contact Us For Availability
5
MAY 3601F103-51 MAY 3601F103-51 Contact Us For Availability
5
MAY W10273818 MAY W10273818 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
6
MAY 7106P059-60 MAY 7106P059-60 Contact Us For Availability
6
MAY 7922P048-60 MAY 7922P048-60 Contact Us For Availability
6
SUPPORT, BROIL SUPPORT MAY 3807F749-45 Contact Us For Availability
6
MAY 7427P031-60 MAY 7427P031-60 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
GASKET, BROIL UNIT MAY 7201P003-60 Contact Us For Availability
7
EXTRUSION, BOTTOM MAY 7754P003-60 Contact Us For Availability
7
MAY W10196389 MAY W10196389 Contact Us For Availability
8
MAY 7750P148-60 MAY 7750P148-60 Contact Us For Availability
8
MAY 7750P149-60 MAY 7750P149-60 Contact Us For Availability
8
MAY 2402W218-19 MAY 2402W218-19 Contact Us For Availability
8
SWITCH, ROCKER MAY 7403P841-60 Contact Us For Availability
9
MAY 7002P163-60 MAY 7002P163-60 Contact Us For Availability
9
MAY 7112P159-60 MAY 7112P159-60 Contact Us For Availability
9
MAY 2402W231-19 MAY 2402W231-19 Contact Us For Availability
9
MAY W10196355 MAY W10196355 Contact Us For Availability
10
NUT, SNAP MAY 7103P039-60 Contact Us For Availability
10
FRAME, WINDOW MAY 3603F013-80 Contact Us For Availability
10
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
11
SCREW MAY 7101P326-60 Contact Us For Availability
11
MAY 3605F164-51 MAY 3605F164-51 Contact Us For Availability
12
MAY 2618F153-51 MAY 2618F153-51 Contact Us For Availability
12
MAY 2618F154-51 MAY 2618F154-51 Contact Us For Availability
12
MAY 8010P124-60 MAY 8010P124-60 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
MAY 7212P007-60 MAY 7212P007-60 Contact Us For Availability
13
MAY 3804F286-51 MAY 3804F286-51 Contact Us For Availability
13
INSULATION, DOOR PAD MAY 7002P021-60 Contact Us For Availability
14
MAY 3804F118-51 MAY 3804F118-51 Contact Us For Availability
14
MAY 7922P049-60 MAY 7922P049-60 Contact Us For Availability
14
RETAINER, GLASS DOOR MAY 3804F051-80 Contact Us For Availability
14
MAY 8008P004-60 MAY 8008P004-60 Contact Us For Availability
15
THERMOSTAT, LOWER OVEN MAY 7404P042-60 Contact Us For Availability
15
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
15
GASKET, OVEN DOOR MAY 7201P053-60 Contact Us For Availability
16
MAY 7902P349-60 MAY 7902P349-60 Contact Us For Availability
16
RETAINER, BOTTOM MAY 3804F104-51 Contact Us For Availability
16
KNOB, THERMOSTAT MAY 7735P049-60 Contact Us For Availability
17
BOTTOM, UPPER OVEN MAY 2205F003-19 Contact Us For Availability
17
INSULATION, DOOR MAY 7002P023-60 Contact Us For Availability
17
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
18
RECEPTACLE, LAMP MAY 7407P181-60 Contact Us For Availability
18
RETAINER, DOOR GASKET MAY 3804F021-45 Contact Us For Availability
19
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
19
PAD, OVEN DOOR MAY 2410W042-19 Contact Us For Availability
19
MAY W10249336 MAY W10249336 Contact Us For Availability
20
MAY 7112P020-60 MAY 7112P020-60 Contact Us For Availability
20
MAY 7101P060-60 MAY 7101P060-60 Contact Us For Availability
20
SPACER, WINDOW MAY 8002P011-60 Contact Us For Availability
21
HINGE, DOOR MAY 7106P063-60 Contact Us For Availability
22
MAY 3807F135-80 MAY 3807F135-80 Contact Us For Availability
22
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY 4003F049-80 MAY 4003F049-80 Contact Us For Availability
23
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
24
MAY 3601F244-51 MAY 3601F244-51 Contact Us For Availability
25
MAY 8026P070-60 MAY 8026P070-60 Contact Us For Availability
26
MAY W10218753 MAY W10218753 Contact Us For Availability
27
EXTRUSION, TOP FRONT MAY 7752P011-60 Contact Us For Availability
28
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
29
MAY 8002P072-60 MAY 8002P072-60 Contact Us For Availability
30
MAY 8009P055-60 MAY 8009P055-60 Contact Us For Availability
32
MAY W10105790 MAY W10105790 Contact Us For Availability
34
BRACKET, HIGH LIMIT SWITCH MAY 3801F128-45 Contact Us For Availability
35
MAY 8026P014-60 MAY 8026P014-60 Contact Us For Availability
37
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
38
BOTTOM, LOWER OVEN MAY 2205F004-19 Contact Us For Availability
39
MAY 3804F054-51 MAY 3804F054-51 Contact Us For Availability
40
RECEPTACLE, OVEN LIGHT MAY 7408P035-60 Contact Us For Availability
41
MAY W10132113 MAY W10132113 Contact Us For Availability
42
RELAY MAY 7428P088-60 Contact Us For Availability
43
GASKET, VENT HOUSING MAY 7201P016-60 Contact Us For Availability
44
MAY 7505P321-60 MAY 7505P321-60 Contact Us For Availability
NI
MAY 7002P154-60 MAY 7002P154-60 Contact Us For Availability
NI
INSULATION, WINDOW MAY 7002P050-60 Contact Us For Availability
NI
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
NI
MAY 7706P128-60 MAY 7706P128-60 Contact Us For Availability
NI
CLEANER & POLISH, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MAY 31552 MAY 31552 Contact Us For Availability
NI
MAY 31605 MAY 31605 Contact Us For Availability
NI
CLEANER, APPLIANCE MAY 31682 Contact Us For Availability
NI
PAINT, SPRAY (PRIMER, GRAY) MAY 350938 Contact Us For Availability
NI
STONE, BRICK BAKING MAY 4378577 Contact Us For Availability
NI
MAY 4396096RB MAY 4396096RB Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10196377 MAY W10196377 Contact Us For Availability
× ![]()
