Model Whirlpool CW20P8HSC WASHER – Common Parts & Diagrams
02 - CABINET (ORIG-CW20P8xSC)

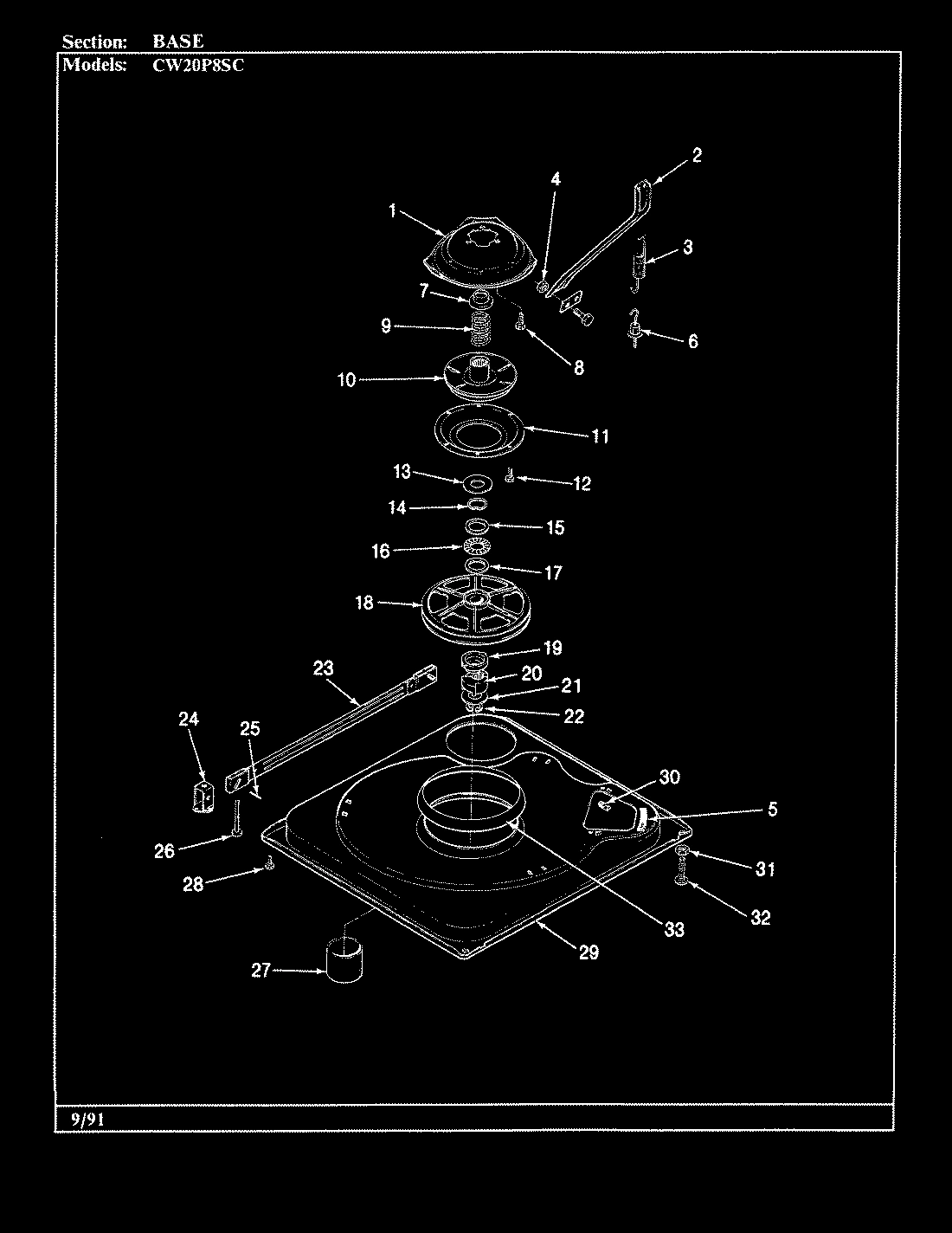

01 - BASE (ORIG-CW20P8xSC)

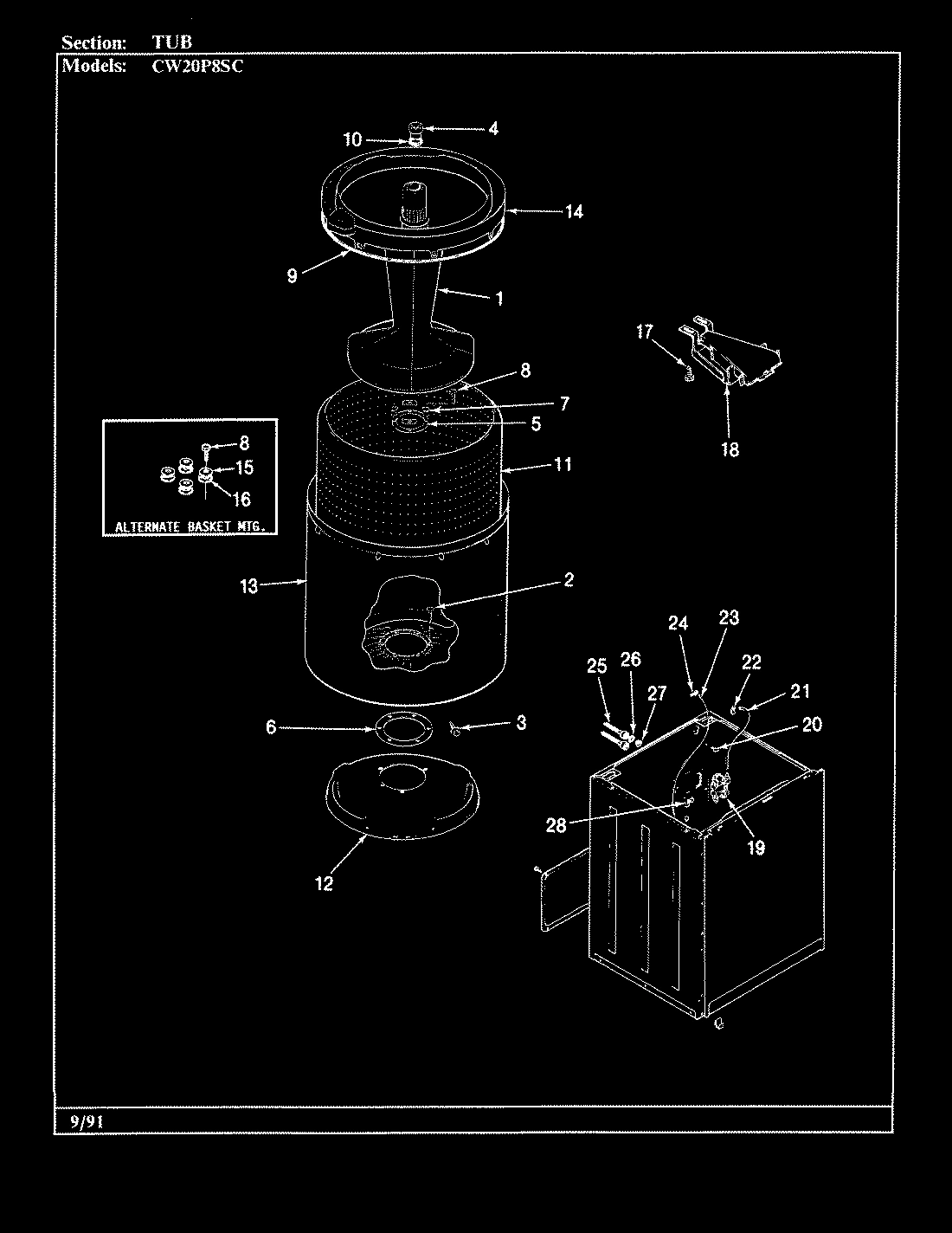

06 - TUB (ORIG-CW20P8xSC)

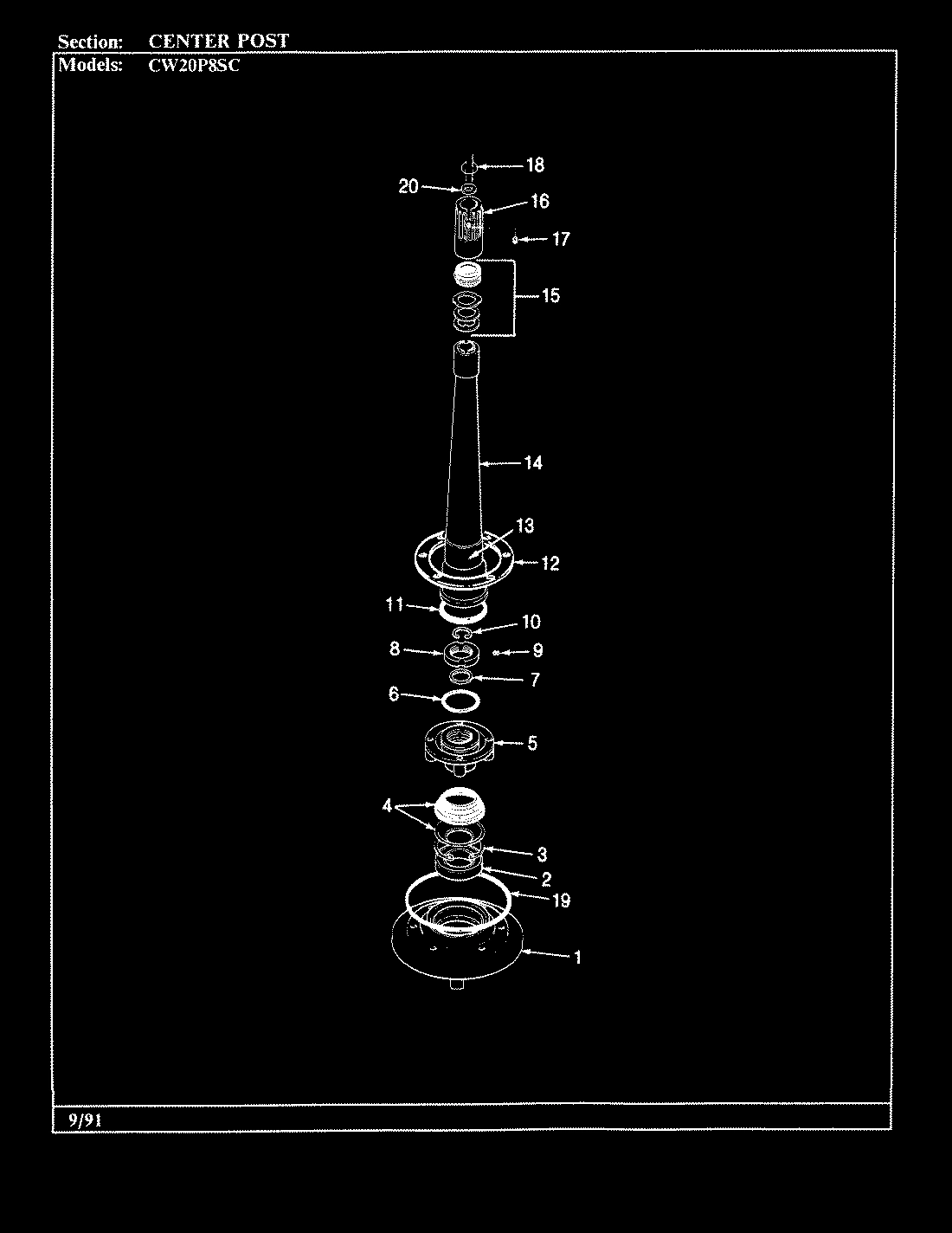

03 - CENTER POST (ORIG-CW20P8xSC)

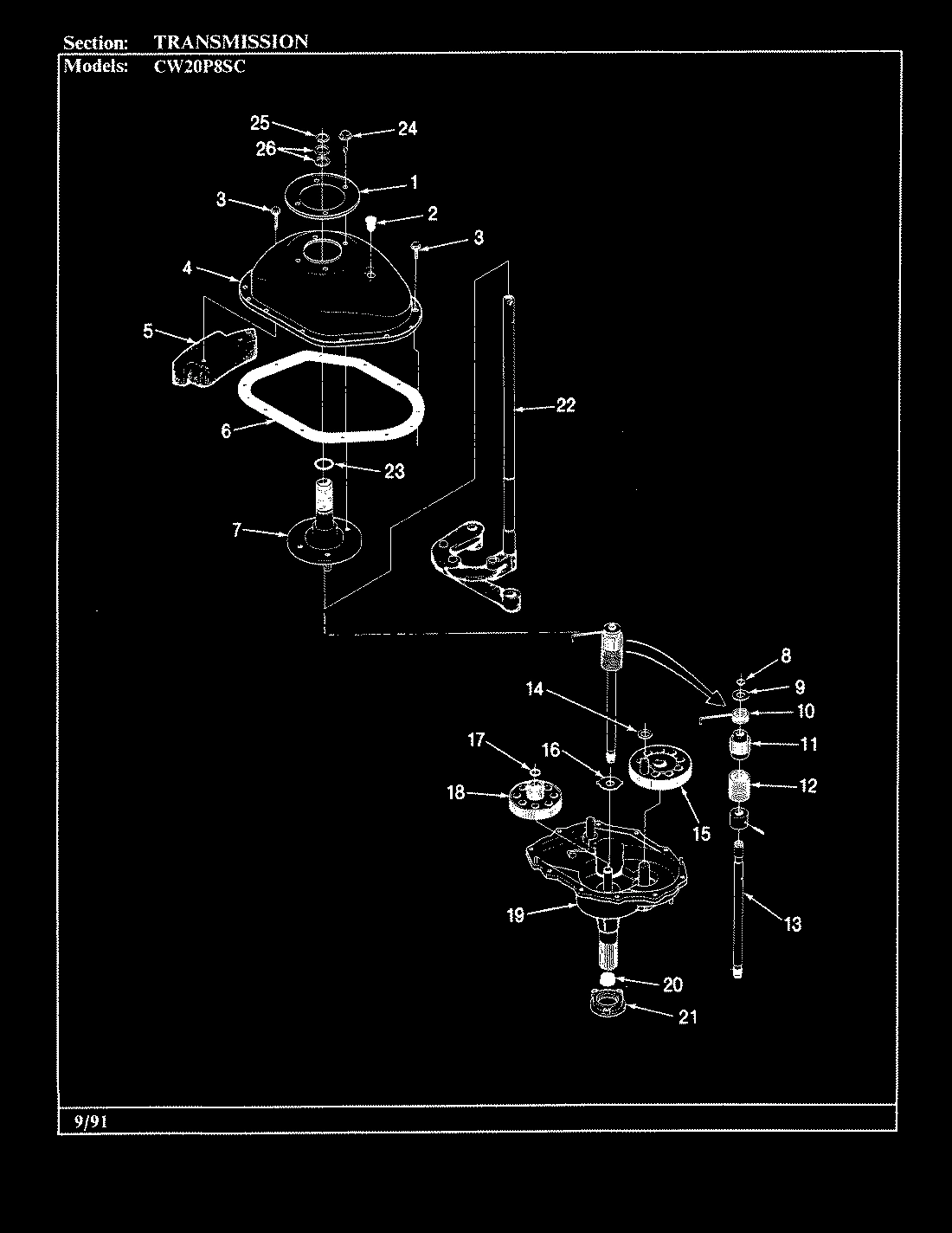

05 - TRANSMISSION (ORIG-CW20PxSC)

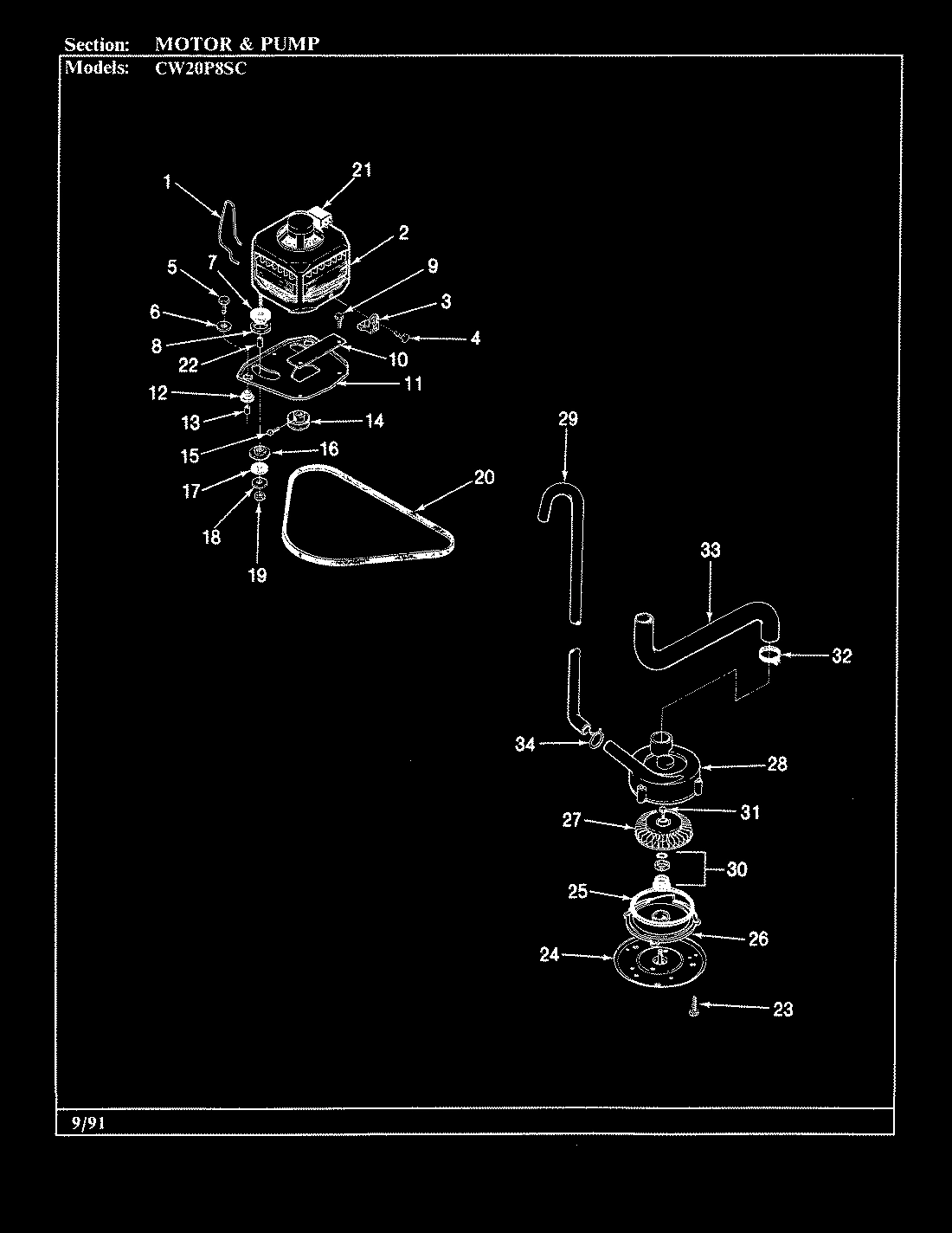

04 - MOTOR & PUMP (ORIG-CW20P8xSC)
Common parts from model Whirlpool CW20P8HSC WASHER
1
SUSPENSION HOUSING WPL 352015 Contact Us For Availability
1
AGITATOR WPL 352456 Contact Us For Availability
1
HOUSING, W/O BEARING & SEAL WPL 352059 Contact Us For Availability
1
REINFORCMT COVR WPL 339893 Contact Us For Availability
1
SPRING, MOTOR PIVOT WPL 350235 Contact Us For Availability
2
SCREW WPL 257893 Contact Us For Availability
2
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
2
BRACE, TUB WPL 352531 Contact Us For Availability
2
SCREW, SHOULDER TYPE WPL 352062 Contact Us For Availability
2
BEARING, SPIN WPL 352205 Contact Us For Availability
2
PLUG, OIL FILL WPL 352621 Contact Us For Availability
2
MOTOR WPL 352030 Contact Us For Availability
2
MOTOR KIT WPL LA2002 Contact Us For Availability
3
SUSPENSION SPRING WPL 352092 Contact Us For Availability
3
SCREW WPL 257914 Contact Us For Availability
3
RETAINING RING WPL 257849 Contact Us For Availability
3
BOLT WPL 257916 Contact Us For Availability
3
SLIDE, FOOT WPL 339945 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
HEX NUT WPL 250226 Contact Us For Availability
4
CAP WPL 336241 Contact Us For Availability
4
TUB SEAL ASM WPL 337224N Contact Us For Availability
4
COVER, TRANSMISSION WPL 352620 Contact Us For Availability
4
SCREW PURCHASE WPL 257418 Contact Us For Availability
5
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
5
GASKET WPL 338959 Contact Us For Availability
5
BASKET HUB ASM WPL 339987 Contact Us For Availability
5
COUNTERWEIGHT WPL 352642 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
6
EYE BOLT WPL 257365 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 352061 Contact Us For Availability
6
GASKET, TRANSMISSION HOUSING WPL 351030 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
7
SCREW WPL 256109 Contact Us For Availability
7
GUIDE, CABINET WPL 349701 Contact Us For Availability
7
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
7
REINFORCEMENT PLATE WPL 358799 Contact Us For Availability
7
DRIVE TUBE ASSY WPL 352654 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
8
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
8
SCREW, SUSP HSG TO LWR BRG ASY WPL 257895 Contact Us For Availability
8
SCREW WPL 257783 Contact Us For Availability
8
LOCKNUT ASSY WPL 339507 Contact Us For Availability
8
RING, RETAINING (CLUTCH ASSY.) WPL 257847 Contact Us For Availability
8
WASHER WPL 339944 Contact Us For Availability
9
PIN, LOCATOR WPL 530643 Contact Us For Availability
9
SPRING, BRAKE WPL 352112 Contact Us For Availability
9
SEAL, TUB TOP WPL 352328 Contact Us For Availability
9
SET SCREW WPL 257120 Contact Us For Availability
9
WASHER, FLAT WPL 257416 Contact Us For Availability
9
SCREW WPL 253083 Contact Us For Availability
10
PANEL, FRONT WPL 35208425 Contact Us For Availability
10
BRAKE ROTER & LINING ASSY WPL 352113 Contact Us For Availability
10
RUBBER WASHER WPL 257330 Contact Us For Availability
10
SPRING WPL 336114 Contact Us For Availability
10
DBL.PIVOT SLIDE WPL 339947 Contact Us For Availability
11
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
11
STATOR, BRAKE WPL 352018 Contact Us For Availability
11
BASKET WHITE WPL 352508 Contact Us For Availability
11
GASKET WPL 338718 Contact Us For Availability
11
PINION, DRIVE WPL 352001 Contact Us For Availability
11
PLATE, MOTOR WPL 352021 Contact Us For Availability
12
TUB SUPPORT WPL 352529 Contact Us For Availability
12
SPRING WPL 333195 Contact Us For Availability
13
CABINET ASSY. (HW) WPL 35210625 Contact Us For Availability
13
SPACER-BEARING WPL 352016 Contact Us For Availability
13
TUB WPL 352038 Contact Us For Availability
13
BEARING, AGITATOR WPL 336790 Contact Us For Availability
13
DRIVE SHAFT & HUB ASSY WPL 352116 Contact Us For Availability
13
CLUTCH ASSY KIT WPL LA2005 Contact Us For Availability
13
SPACER WPL 257831 Contact Us For Availability
14
BUMPER, CABINET WPL 332653 Contact Us For Availability
14
WASHER WPL 257909 Contact Us For Availability
14
TOP, TUB WPL 352034 Contact Us For Availability
14
SHIELD, TUB TOP WPL 352262 Contact Us For Availability
14
CENTERPOST KIT WPL 334283N Contact Us For Availability
14
THRUST WASHER WPL 257091 Contact Us For Availability
14
PULLEY, MOTOR (60HZ) WPL 352124 Contact Us For Availability
15
SHIELD,REAR(NLA,ORDER CAB KIT) WPL 352108 Contact Us For Availability
15
WASHER WPL 352318 Contact Us For Availability
15
STEEL WASHER WPL 257921 Contact Us For Availability
15
SEAL ASSEMBLY WPL 337806N Contact Us For Availability
15
GEAR, CRANK WPL 352631 Contact Us For Availability
15
SET SCREW WPL 257117 Contact Us For Availability
16
SCREW WPL 257733 Contact Us For Availability
16
THRUST BEARING WPL 352078 Contact Us For Availability
16
CORK WASHER WPL 257922 Contact Us For Availability
16
DRIVE BLOCK ASM WPL 339729 Contact Us For Availability
16
WASHER, STEEL WPL 257274 Contact Us For Availability
16
WASHER, STEEL W/TABS WPL 352070 Contact Us For Availability
16
THRUST WASHER WPL 352462 Contact Us For Availability
16
MOTOR SLIDE WPL 339943 Contact Us For Availability
17
WASHER WPL 352081 Contact Us For Availability
17
SCREW WPL 253092 Contact Us For Availability
17
SET SCREW WPL 257378 Contact Us For Availability
17
RETAINING RING WPL 257853 Contact Us For Availability
17
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
18
DRIVE PULLEY WPL 352683 Contact Us For Availability
18
FLUME, WATER INLET WPL 352051 Contact Us For Availability
18
STUD WPL 336817 Contact Us For Availability
18
GEAR, CLUSTER WPL 352527 Contact Us For Availability
18
WASHER, FLAT WPL 257047 Contact Us For Availability
19
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
19
VALVE, WATER MIXING (50 HZ) WPL 352377 Contact Us For Availability
19
SEAL, TUB TO HOUSING WPL 352060 Contact Us For Availability
19
TRANSMISSION HOUSING WPL 352640 Contact Us For Availability
19
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
20
CAM, LOWER WPL 352439 Contact Us For Availability
20
FLAT WASHER WPL 257316 Contact Us For Availability
20
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
20
BELT, DRIVE PULLEY WPL 352320 Contact Us For Availability
21
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
21
HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability
21
HOUSING & BEARING ASSY WPL 352111 Contact Us For Availability
21
SWITCH, MOTOR WPL 339765 Contact Us For Availability
22
RING, RETAINING WPL 257854 Contact Us For Availability
22
CLAMP WPL 257867 Contact Us For Availability
22
LINKAGE ASSY WPL 352637 Contact Us For Availability
22
SPACER WPL 257830 Contact Us For Availability
23
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
23
PAD, PRESSURE SWITCH HOSE WPL 352261 Contact Us For Availability
23
HOSE, PRESSURE SWITCH WPL 352321 Contact Us For Availability
23
``O`` RING, DRIVE TUBE WPL 257722 Contact Us For Availability
23
SCREW WPL 257405 Contact Us For Availability
24
SCREW WPL 257359 Contact Us For Availability
24
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
24
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
25
PIN, STABILIZER WPL 352052 Contact Us For Availability
25
HOSE, 5` INLET WPL 337046 Contact Us For Availability
25
HOSE, INLET WPL 350873 Contact Us For Availability
25
RETAINING RING WPL 257848 Contact Us For Availability
25
GASKET WPL 336032 Contact Us For Availability
26
PAD, FOOT WPL 352039 Contact Us For Availability
26
FOOT, SELF STABILIZER WPL 352050 Contact Us For Availability
26
WASHER WPL 257048 Contact Us For Availability
26
BASE, PUMP WPL 352058 Contact Us For Availability
27
CAP, DUST WPL 352007 Contact Us For Availability
27
STRAINER, HOSE WPL 337313 Contact Us For Availability
27
IMPELLER WPL 352057 Contact Us For Availability
28
CLAMP WPL 336099 Contact Us For Availability
28
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
28
HOUSING, PUMP WPL 352056 Contact Us For Availability
28
PUMP ASSY (COMPLETE) WPL 352099 Contact Us For Availability
29
BASE, WASHER WPL 352815 Contact Us For Availability
29
RUBBER HOSE WPL 339436 Contact Us For Availability
30
SPEEDNUT WPL 257838 Contact Us For Availability
30
SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability
31
HEX NUT WPL 257915 Contact Us For Availability
31
SCREW WPL 257894 Contact Us For Availability
32
FOOT, FRONT WPL 350772 Contact Us For Availability
32
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
32
CLAMP WPL 256099 Contact Us For Availability
33
SNUBBER WPL 352357 Contact Us For Availability
33
HOSE, SUMP TO PUMP WPL 352131 Contact Us For Availability
34
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
NI
TRANSMISSION REPLACEMENT KIT WPL LA2001 Contact Us For Availability
× ![]()
