Model Whirlpool CVEX4370W ELECTRIC COOK-TOP – Common Parts &amp; Diagrams

1

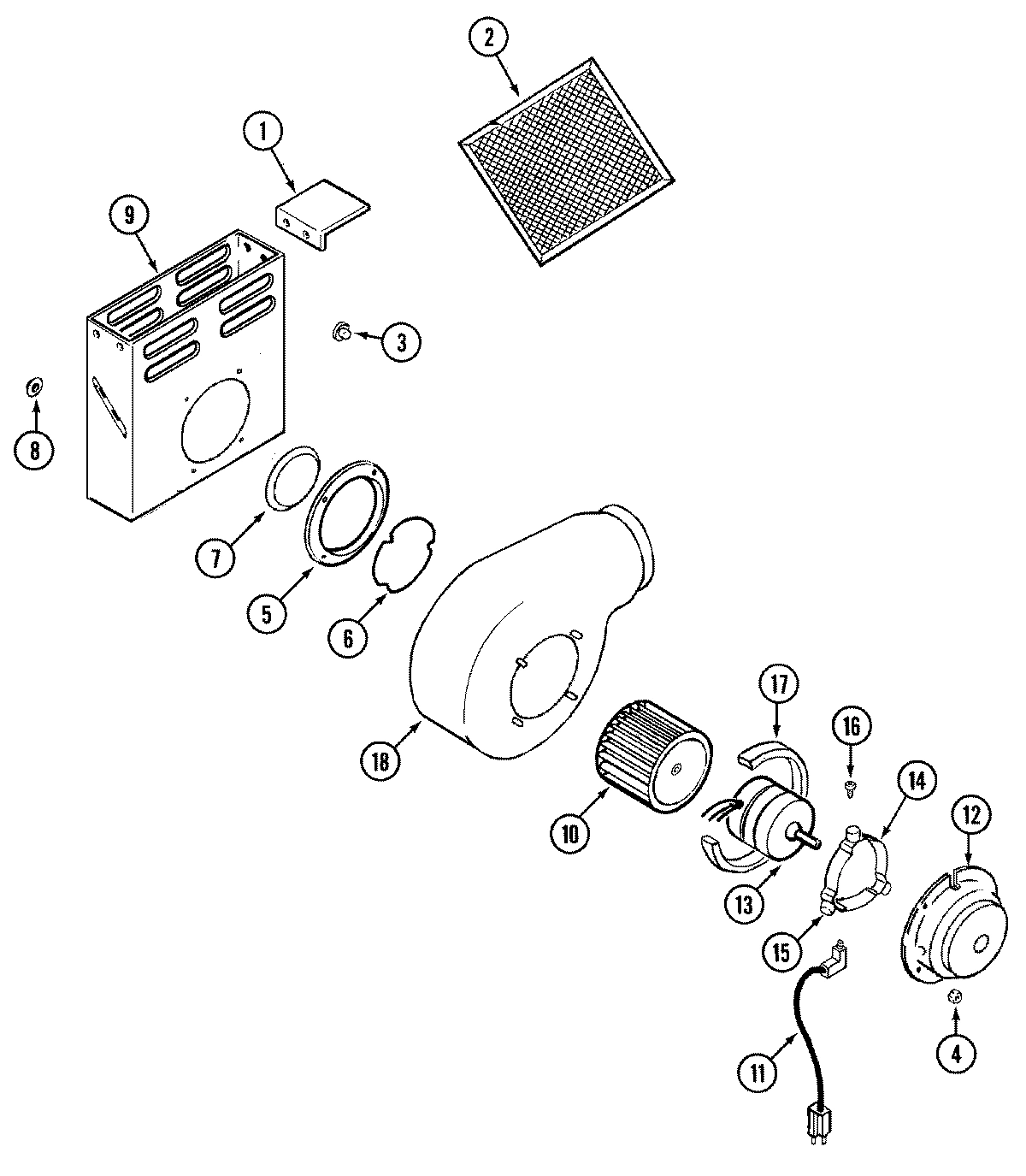

BRACKET, PLENUM WPL Y706011 Contact Us For Availability

1

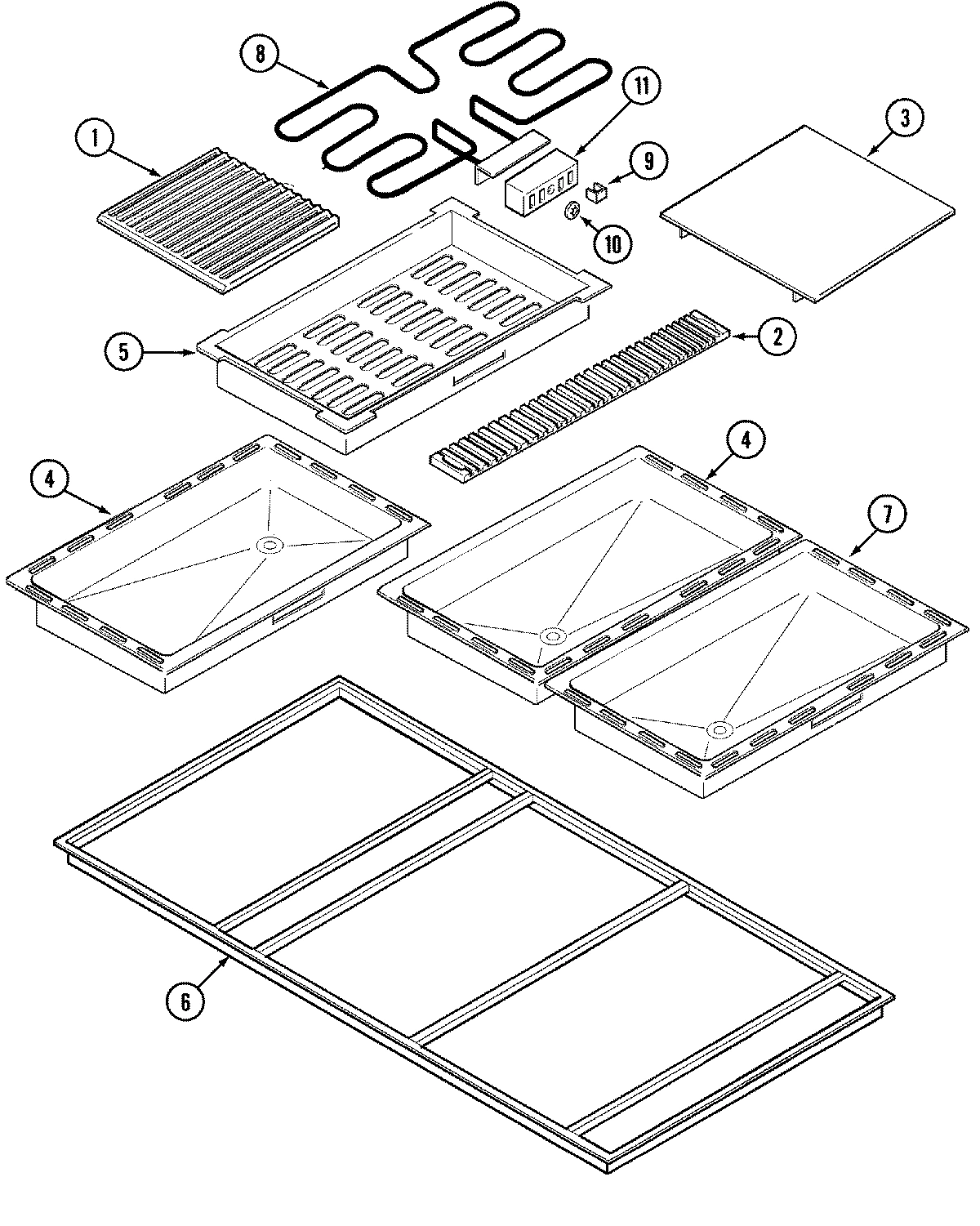

GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability

2

WPY706012 Whirlpool Filter In Stock WPL WPY706012 $44.36

2

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $48.41

2

KNOB, FAN SWITCH (GRY) WPL Y706097 Contact Us For Availability

2

GRILL, AIR (WHT) WPL 71001673 Contact Us For Availability

3

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

3

HARNESS, DOUBLE WPL Y706088 Contact Us For Availability

3

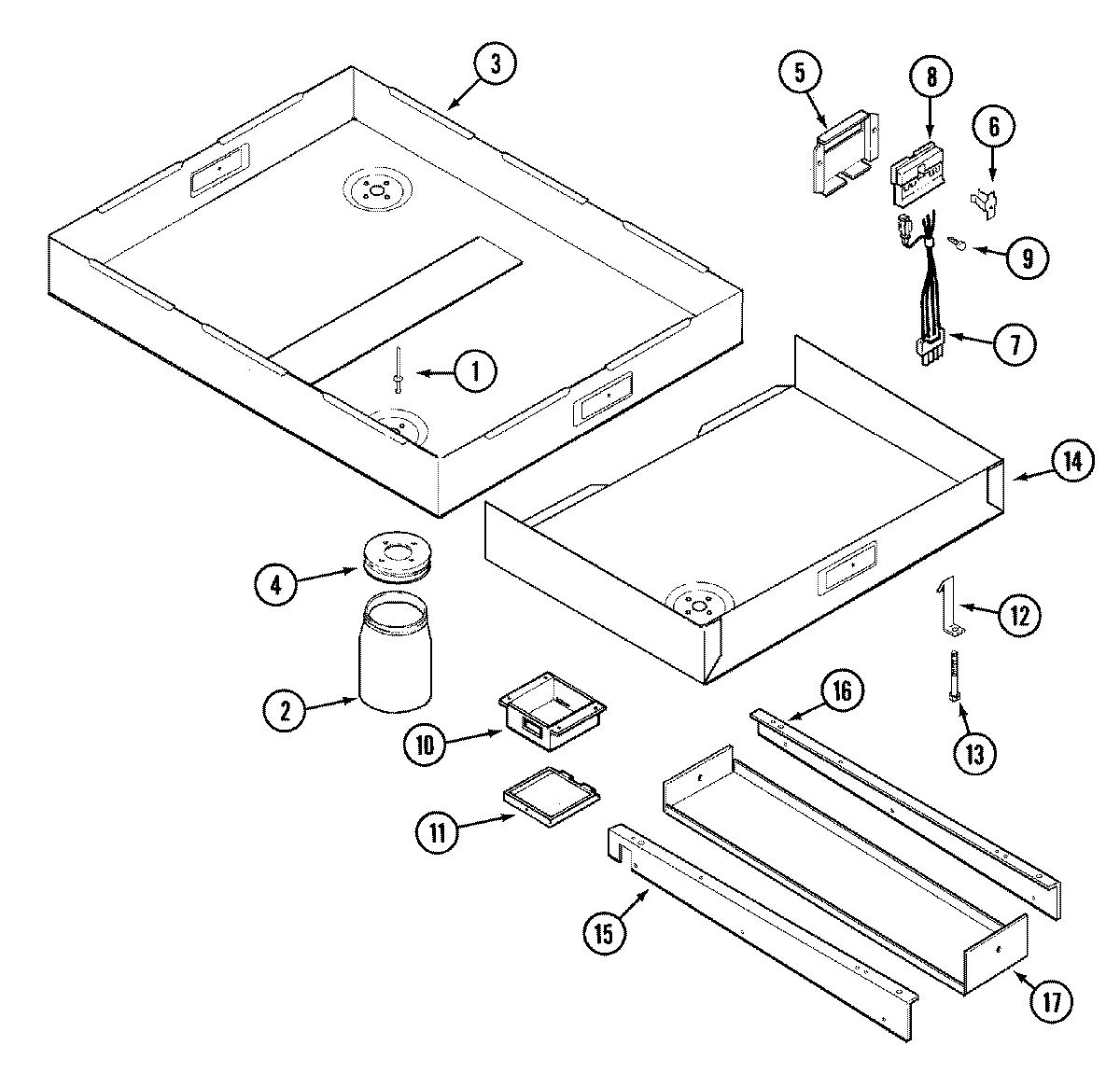

BOX, BURNER WPL Y706001 Contact Us For Availability

3

COVER, GRILL (GLASS/WHT) WPL Y706129 Contact Us For Availability

4

LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability

4

LID, JAR WPL Y707870 Contact Us For Availability

4

PAN, GRILL WPL Y706002 Contact Us For Availability

5

RING, INLET WPL Y704758 Contact Us For Availability

5

COVER, RECEPTACLE BLOCK WPL Y706008 Contact Us For Availability

5

LINER, PAN WPL Y706003 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

6

CLIP, GROUND WPL Y706064 Contact Us For Availability

6

TOP, MAIN WPL 71002560 Contact Us For Availability

7

BOX, LIGHT WPL Y706061 Contact Us For Availability

7

RECEPTACLE, RT (NON-GRILL) WPL 71002571 Contact Us For Availability

7

RECEPTACLE, R.H. WPL Y04100531 Contact Us For Availability

7

RECEPTABLE W/HARNESS (LT) WPL Y706122 Contact Us For Availability

7

PAN, GRILL (SINGLE) WPL 71002561 Contact Us For Availability

8

Y04100124 Whirlpool Range Grill Element In Stock WPL Y04100124 $82.50

8

GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability

8

PLUG, HOLE WPL Y706193 Contact Us For Availability

8

RECEPTACLE WPL Y04100182 Contact Us For Availability

9

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

9

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $9.78

9

PLENUM ASSY (DBL) WPL 04100334 Contact Us For Availability

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

HOUSING, CONTROL WPL 71002567 Contact Us For Availability

BOX, JUNCTION WPL Y706173 Contact Us For Availability

CLIP, SHUNT WPL Y700450 Contact Us For Availability

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $71.74

CORD, RECEPTACLE WPL 71002257 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability

12

RELIEF, STRAIN WPL Y04100503 Contact Us For Availability

12

COVER, MOTOR WPL Y704760 Contact Us For Availability

12

STRAP, HOLD DOWN WPL Y706186 Contact Us For Availability

13

WP3400202 Whirlpool Screw Backorder WPL WP3400202 $9.03

13

MOTOR, DOWNDRAFT WPL Y706132 Contact Us For Availability

13

PLATE, SWITCH WPL 71002568 Contact Us For Availability

14

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $70.11

14

BAND, MOTOR WPL Y707393 Contact Us For Availability

14

BOX, BURNER (TRIPLE) WPL 71002572 Contact Us For Availability

WP71002569 Whirlpool Gasket In Backorder WPL WP71002569 $6.31

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

PAD, SWITCH----NA WPL 71002575 Contact Us For Availability

COVER, WIRE (BACK) WPL 71002607 Contact Us For Availability

16

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

16

COVER, WIRE (FRT) WPL 71002608 Contact Us For Availability

17

URETHAN FOAM WPL 715957FT Contact Us For Availability

17

COVER, WIRE (BOTTOM) WPL 71002609 Contact Us For Availability

18

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

MANUAL, SERVICE WPL 16010241 Contact Us For Availability

WIRE, GROUND WPL 706188 Contact Us For Availability

WIRE, PILOT LIGHT WPL 71001714 Contact Us For Availability

HARNESS, WIRE WPL 71002564 Contact Us For Availability

HARNESS, WIRE WPL 71002565 Contact Us For Availability

MANUAL, USE & CARE WPL 74003045 Contact Us For Availability

MANUAL, USE & CARE WPL 8111P18160 Contact Us For Availability

HARNESS, CONTROL WPL Y04100119 Contact Us For Availability

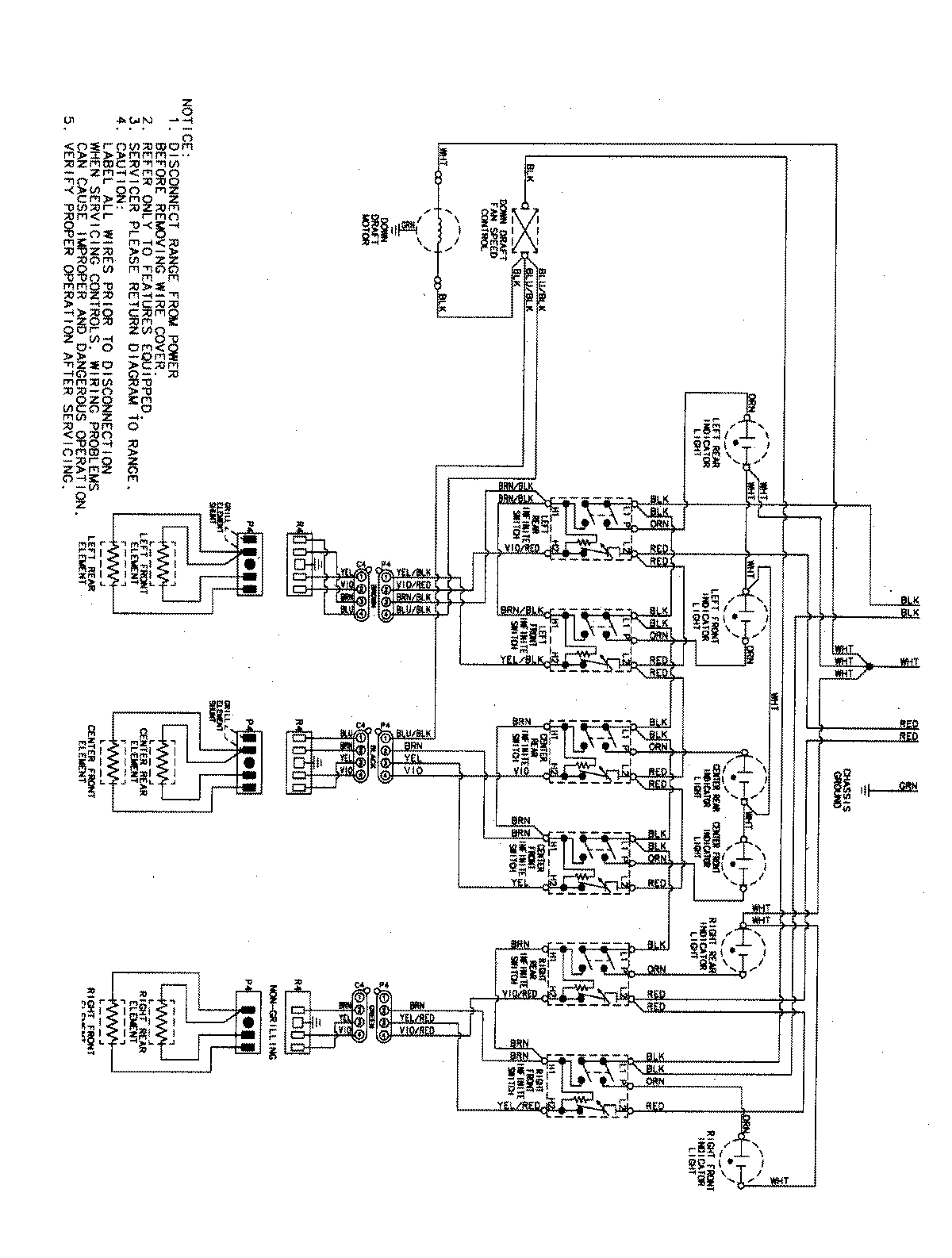

WIRING INFORMATION WPL 15002024 Contact Us For Availability

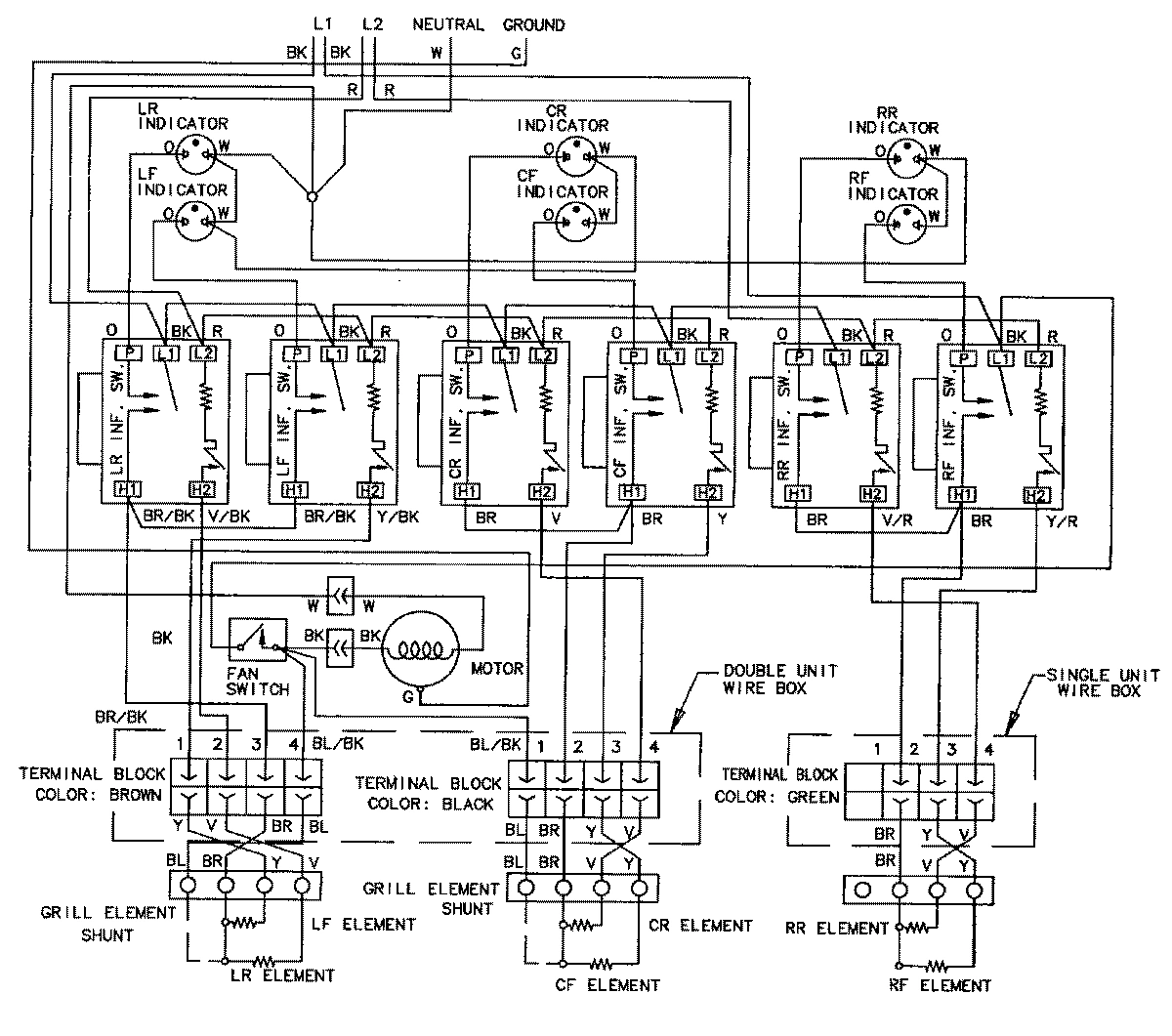

WIRING INFORMATION WPL 15003348 Contact Us For Availability
