Model Whirlpool CVEX4270W ELECTRIC COOK-TOP – Common Parts & Diagrams

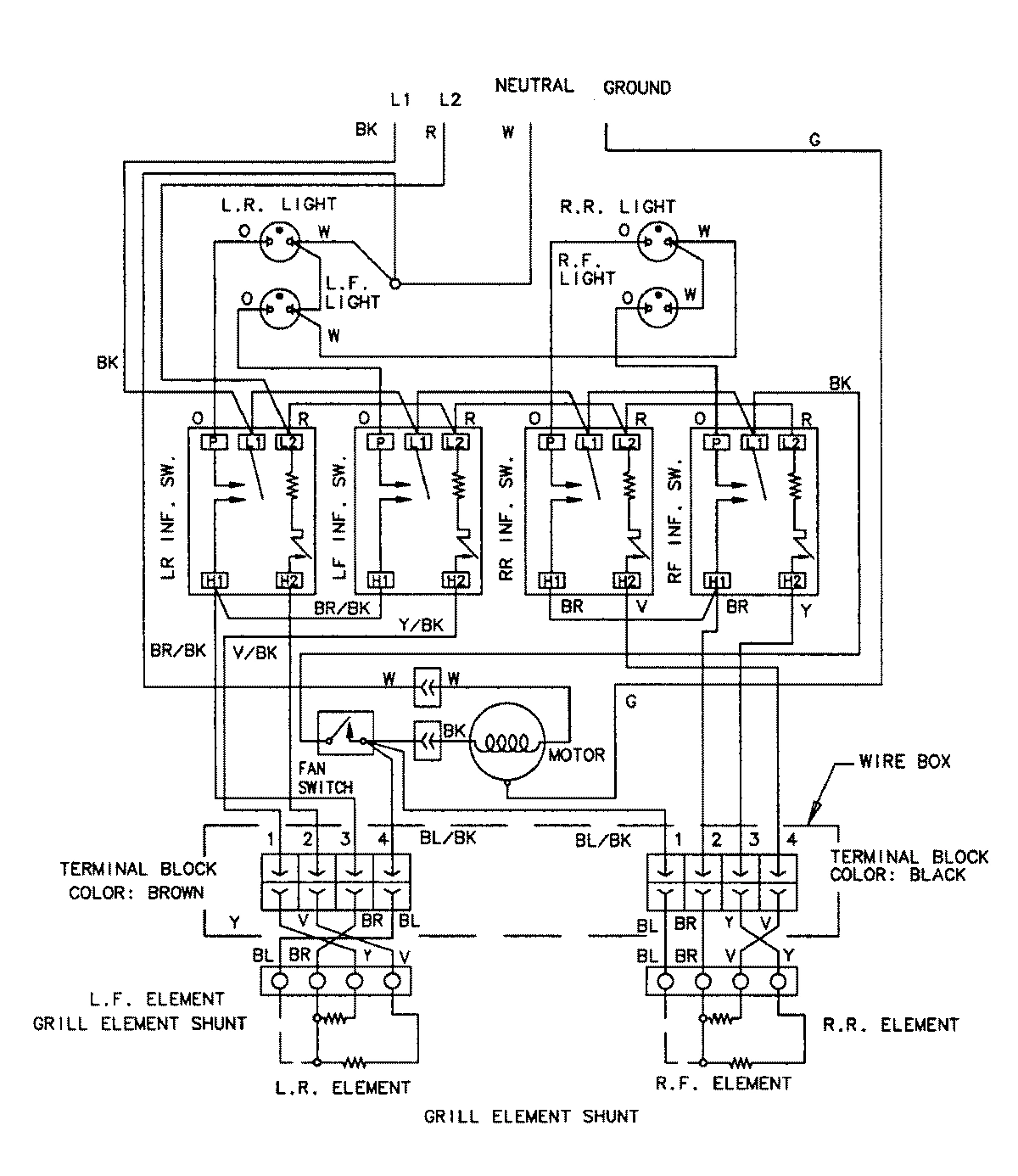

05 - WIRING INFORMATION

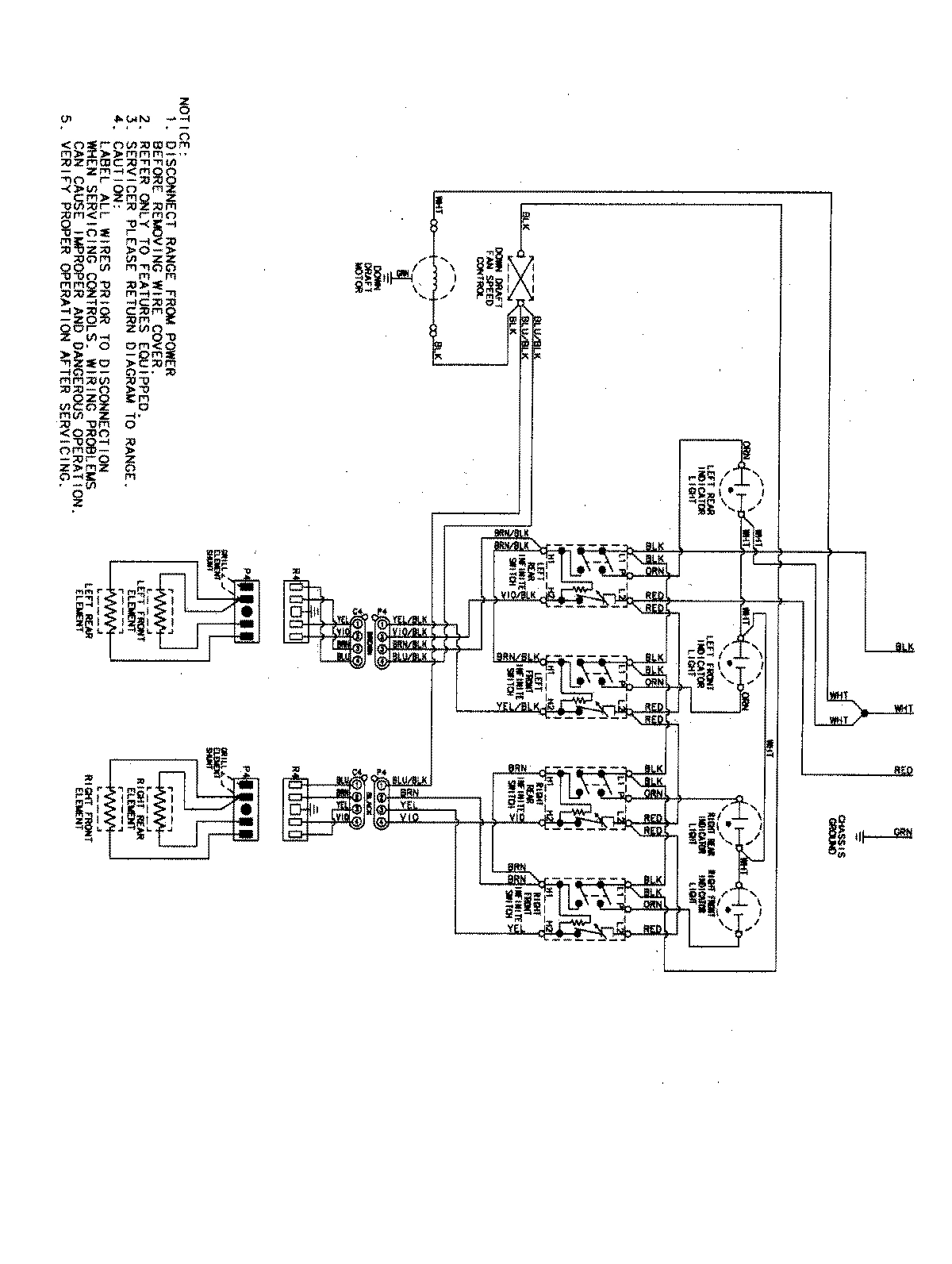

06 - WIRING INFORMATION

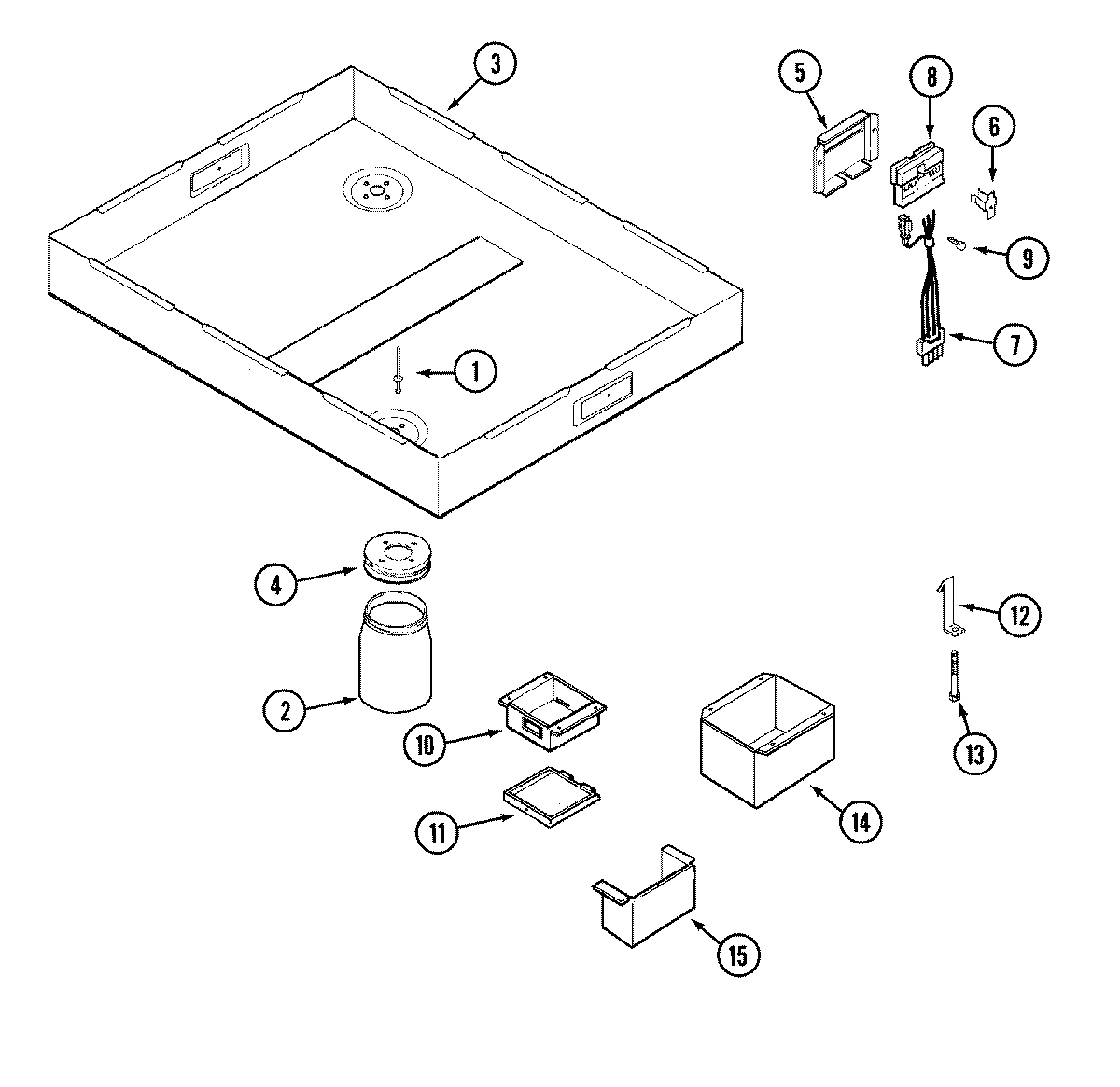

02 - BURNER BOX

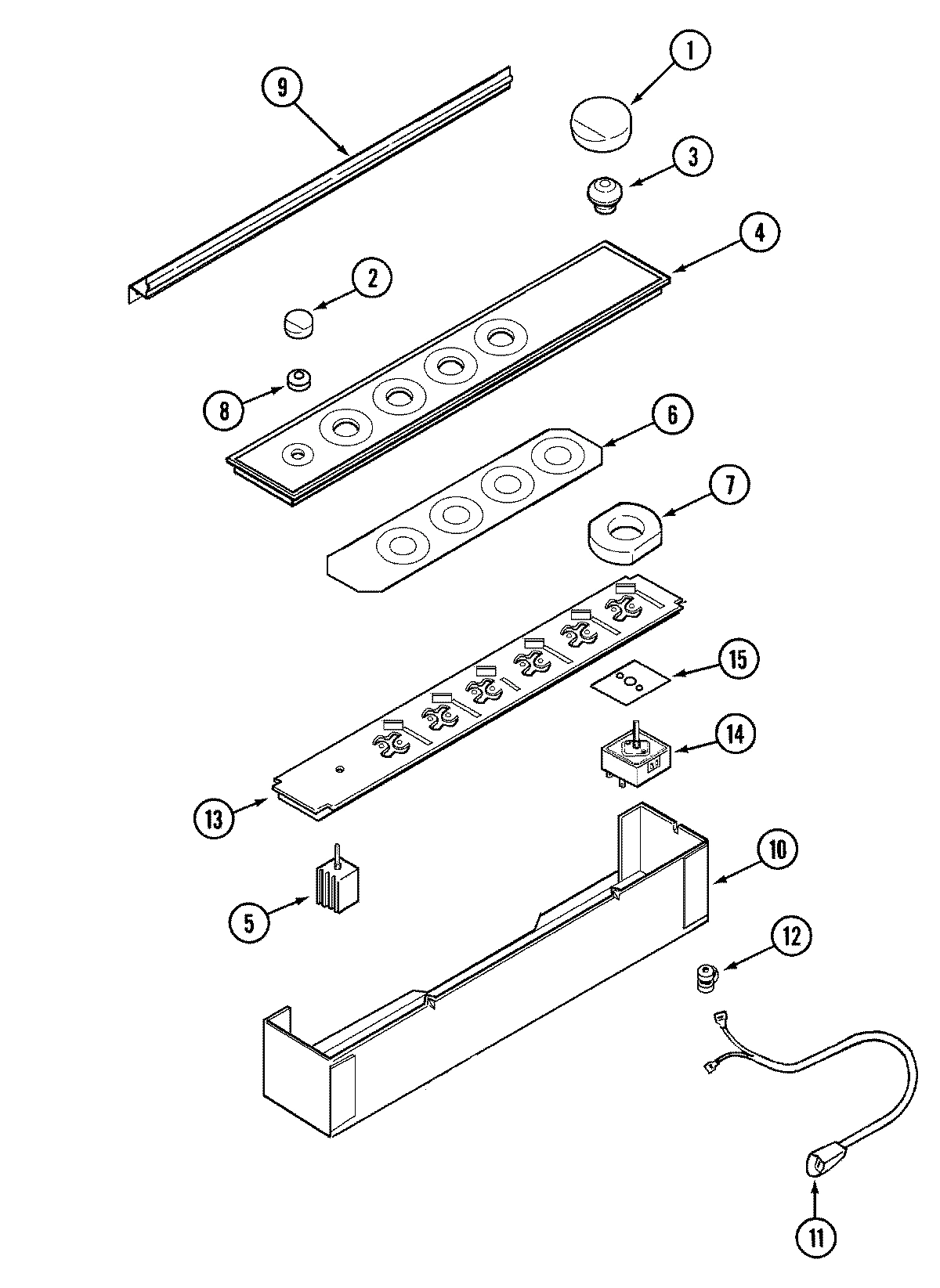

03 - CONTROL PANEL

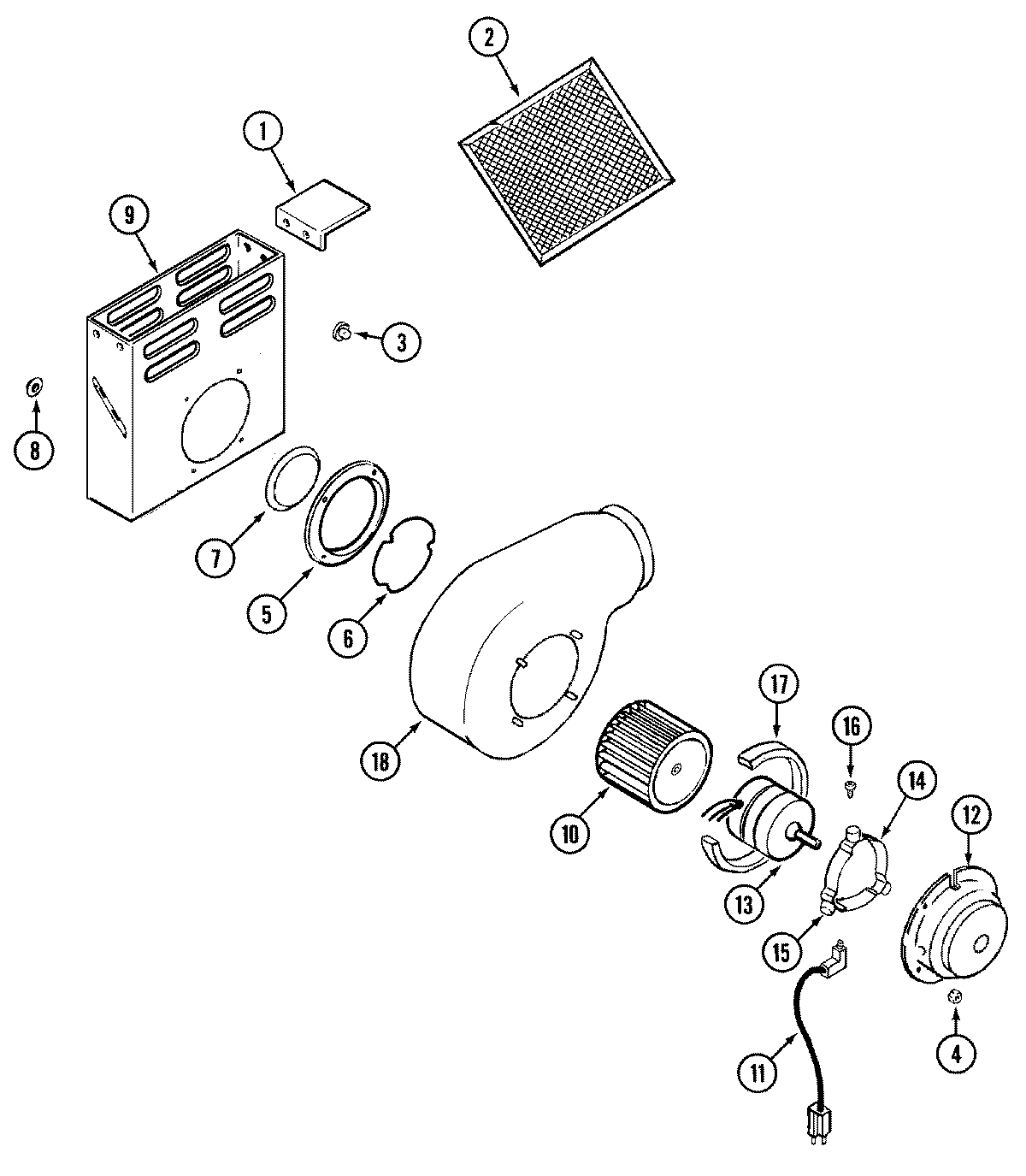

01 - BLOWER ASSEMBLY (PLENUM)

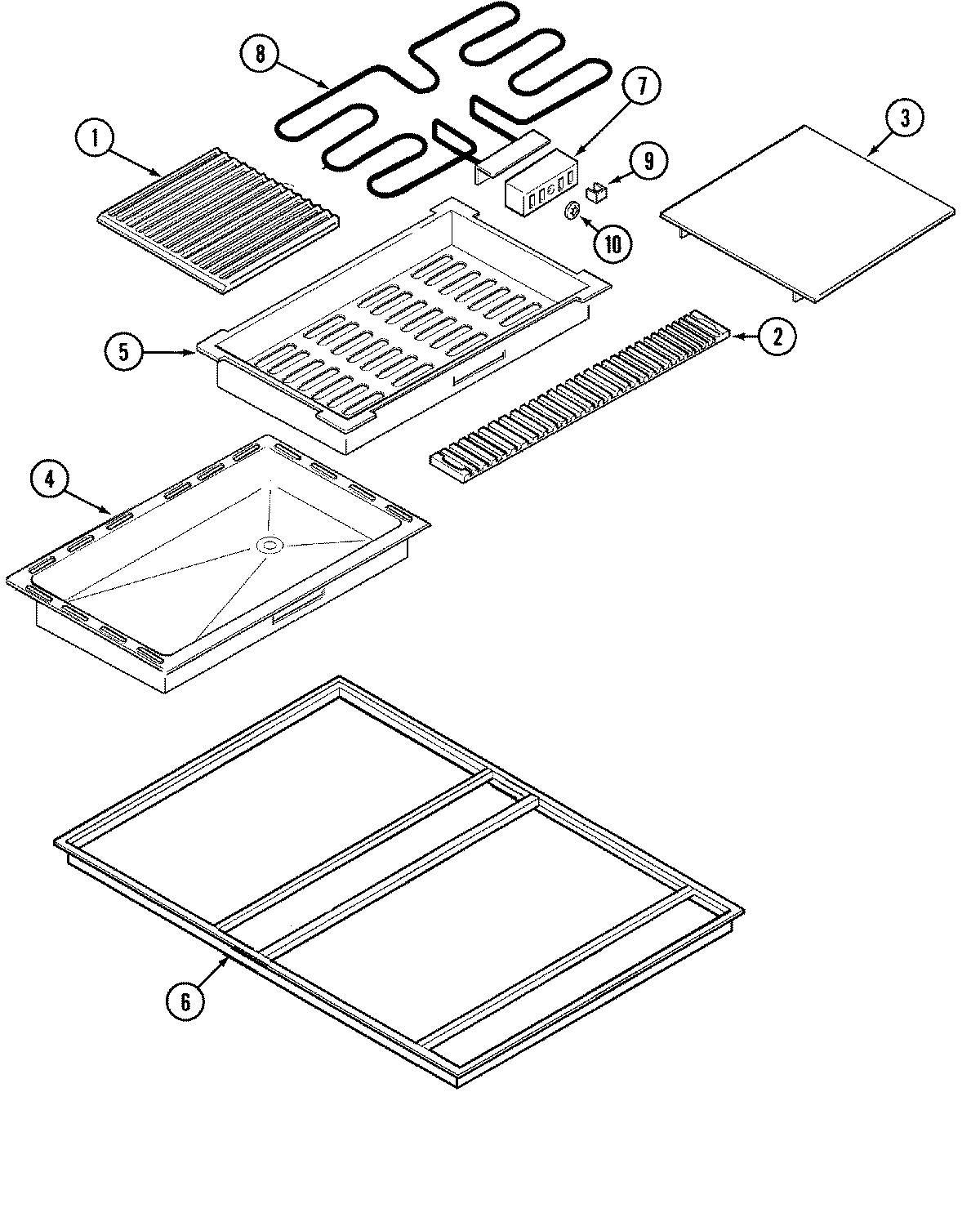

04 - TOP ASSEMBLY

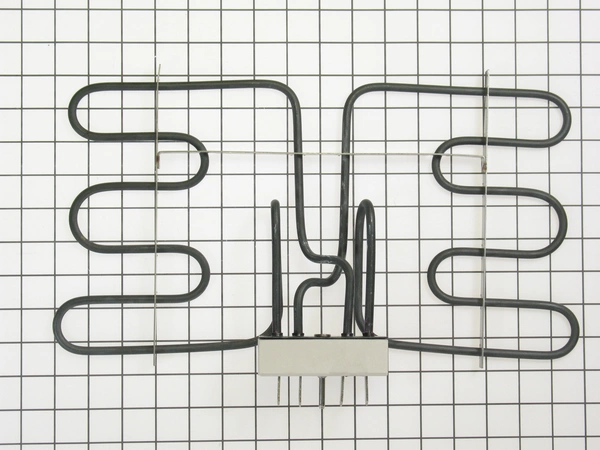

Common parts from model Whirlpool CVEX4270W ELECTRIC COOK-TOP
1
KNOB, INFINITE SWITCH (GRAY) WPL Y706096 Contact Us For Availability
1
BRACKET, PLENUM WPL Y706011 Contact Us For Availability
1
GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability
2
KNOB, FAN SWITCH (GRY) WPL Y706097 Contact Us For Availability
2
GRILL, AIR (WHT) WPL 71001673 Contact Us For Availability
3
GROMMET, SPILL (GRY) WPL 71002371 Contact Us For Availability
3
COVER, GRILL (WHITE) WPL 12200018 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 71002578 Contact Us For Availability
4
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
4
PAN, GRILL WPL Y706002 Contact Us For Availability
5
SWITCH, FAN WPL 04100193 Contact Us For Availability
5
RING, INLET WPL Y704758 Contact Us For Availability
5
LINER, PAN WPL Y706003 Contact Us For Availability
6
LENS, LIGHT WPL 71002580 Contact Us For Availability
6
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
6
TOP, MAIN (FRAME) WPL 71002581 Contact Us For Availability
7
BOX, LIGHT WPL Y706061 Contact Us For Availability
7
RECEPTABLE W/HARNESS (LT) WPL Y706122 Contact Us For Availability
8
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
8
RECEPTACLE WPL Y04100182 Contact Us For Availability
8
PLUG, HOLE WPL Y706193 Contact Us For Availability
9
BRACKET, CONTROL PANEL WPL 71002566 Contact Us For Availability
9
PLENUM ASSY (DBL) WPL 04100334 Contact Us For Availability
10
BOX, JUNCTION WPL Y706173 Contact Us For Availability
10
HOUSING, CONTROL WPL 71002567 Contact Us For Availability
10
CLIP, SHUNT WPL Y700450 Contact Us For Availability
11
COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability
11
CORD, RECEPTACLE WPL Y04100505 Contact Us For Availability
11
CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability
12
STRAP, HOLD DOWN WPL Y706186 Contact Us For Availability
12
RELIEF, STRAIN WPL Y04100503 Contact Us For Availability
12
COVER, MOTOR WPL Y704760 Contact Us For Availability
13
MOTOR, DOWNDRAFT WPL Y706132 Contact Us For Availability
13
PLATE, SWITCH WPL 71002568 Contact Us For Availability
14
COVER, WIRE BOX WPL 706010 Contact Us For Availability
14
BOX, WIRE WPL Y706009 Contact Us For Availability
14
BAND, MOTOR WPL Y707393 Contact Us For Availability
15
COVER, WIRE HARNESS WPL Y706118 Contact Us For Availability
15
PAD, SWITCH----NA WPL 71002575 Contact Us For Availability
17
URETHAN FOAM WPL 715957FT Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
NI
MANUAL, SERVICE WPL 16010241 Contact Us For Availability
NI
WIRE, GROUND WPL 706188 Contact Us For Availability
NI
WIRE, PILOT LIGHT WPL 71001714 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003045 Contact Us For Availability
NI
MANUAL, USE & CARE (ENG/FRCH) WPL 74003046 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P20760 Contact Us For Availability
NI
HARNESS, CONTROL WPL Y04100119 Contact Us For Availability
NI
HARNESS, DOUBLE WPL Y706088 Contact Us For Availability
× ![]()
