Model Whirlpool CTN1511GEW REFRIGERATOR – Common Parts & Diagrams

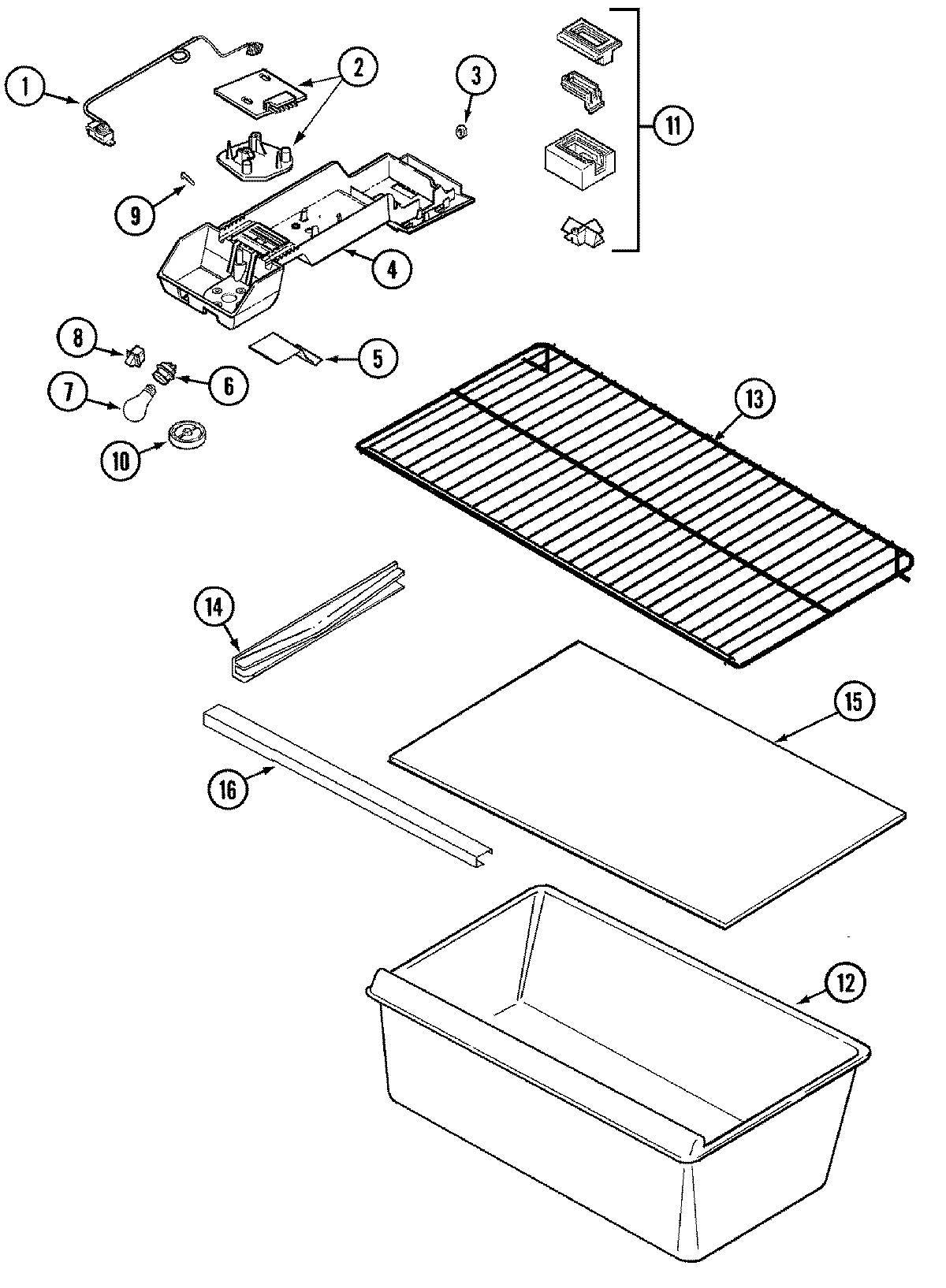

07 - FRESH FOOD COMPARTMENT (CTN REV.10-12)

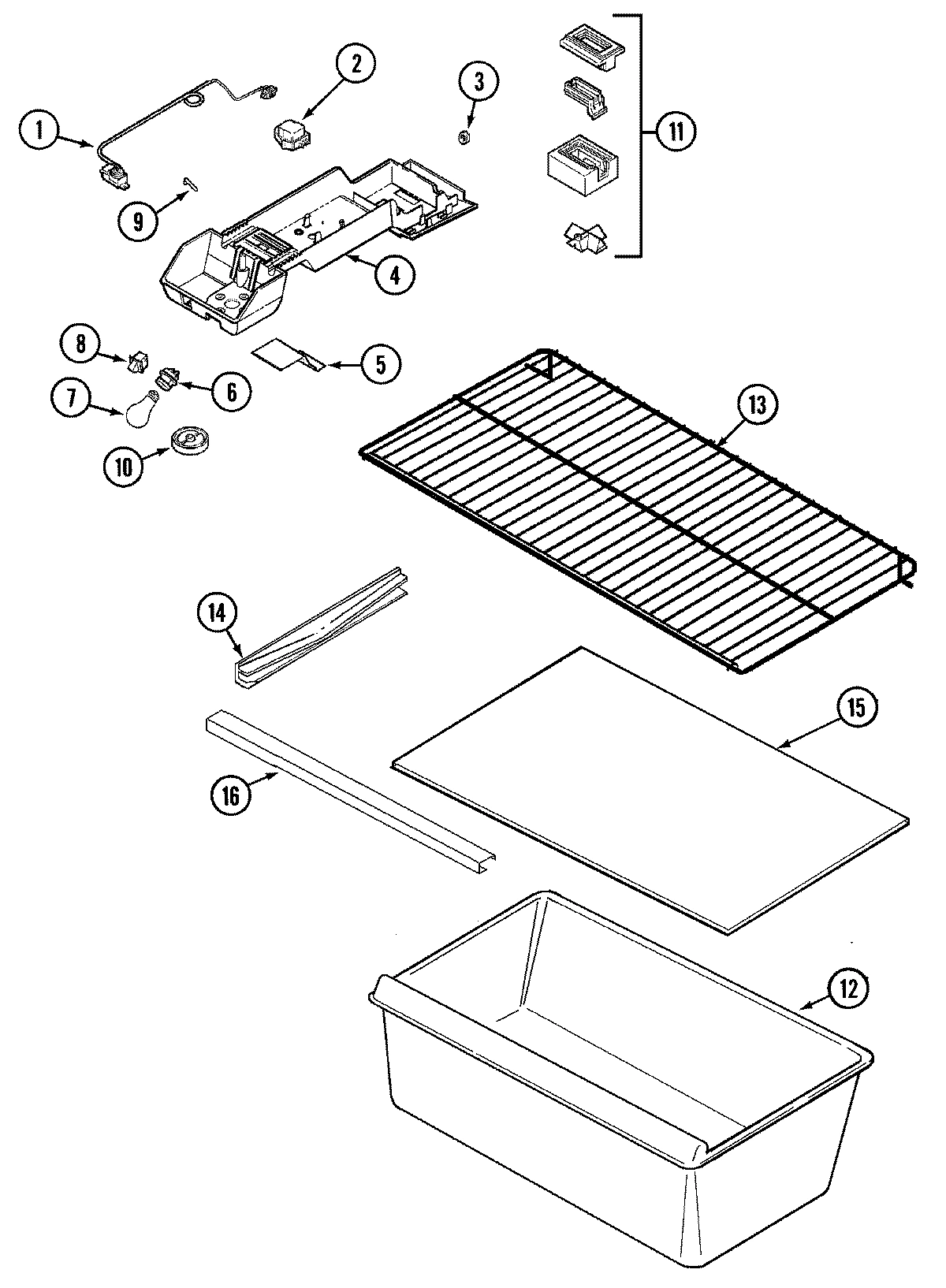

08 - FRESH FOOD COMPARTMENT (CTN REV.13)

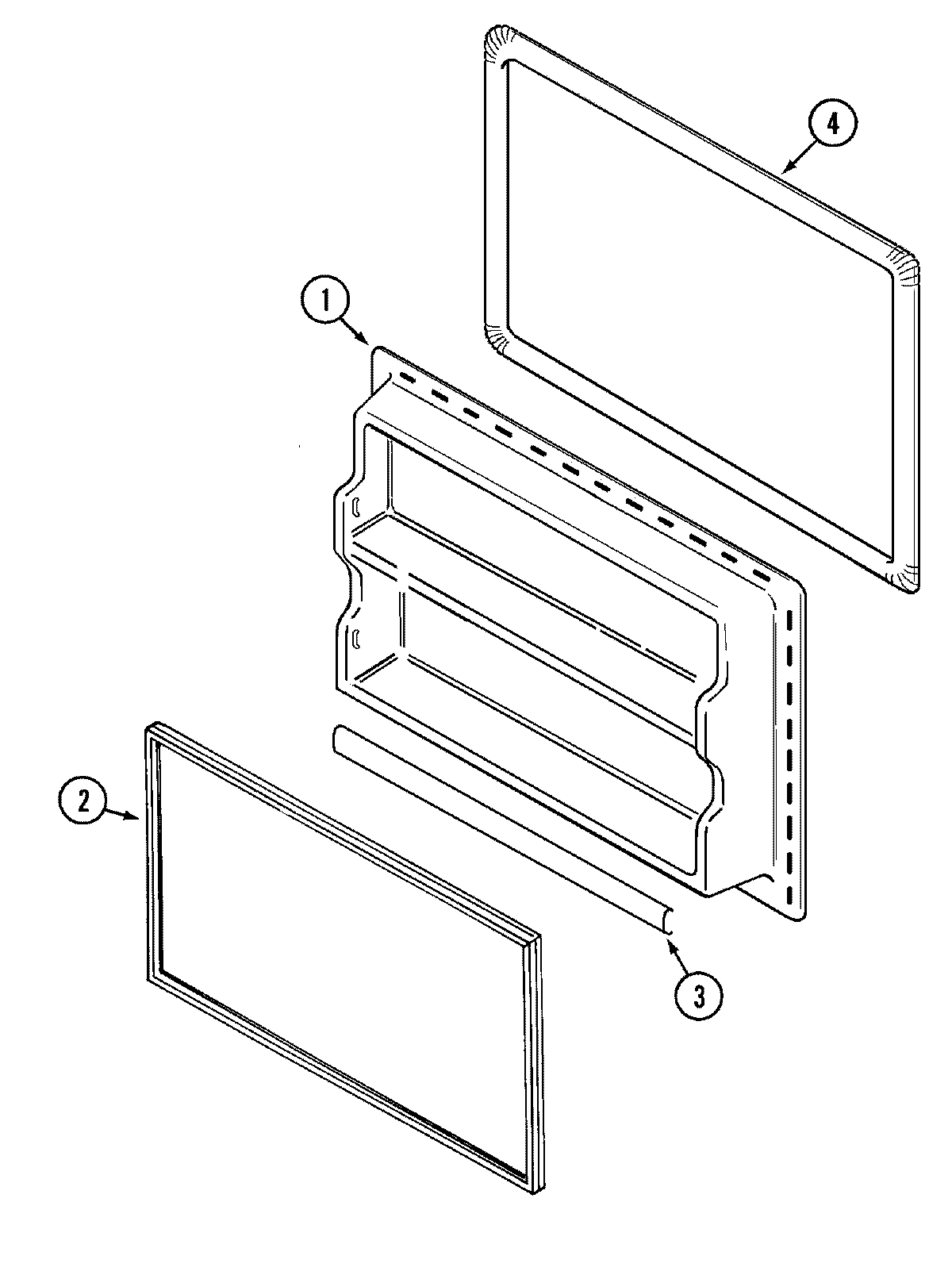

05 - FREEZER INNER DOOR

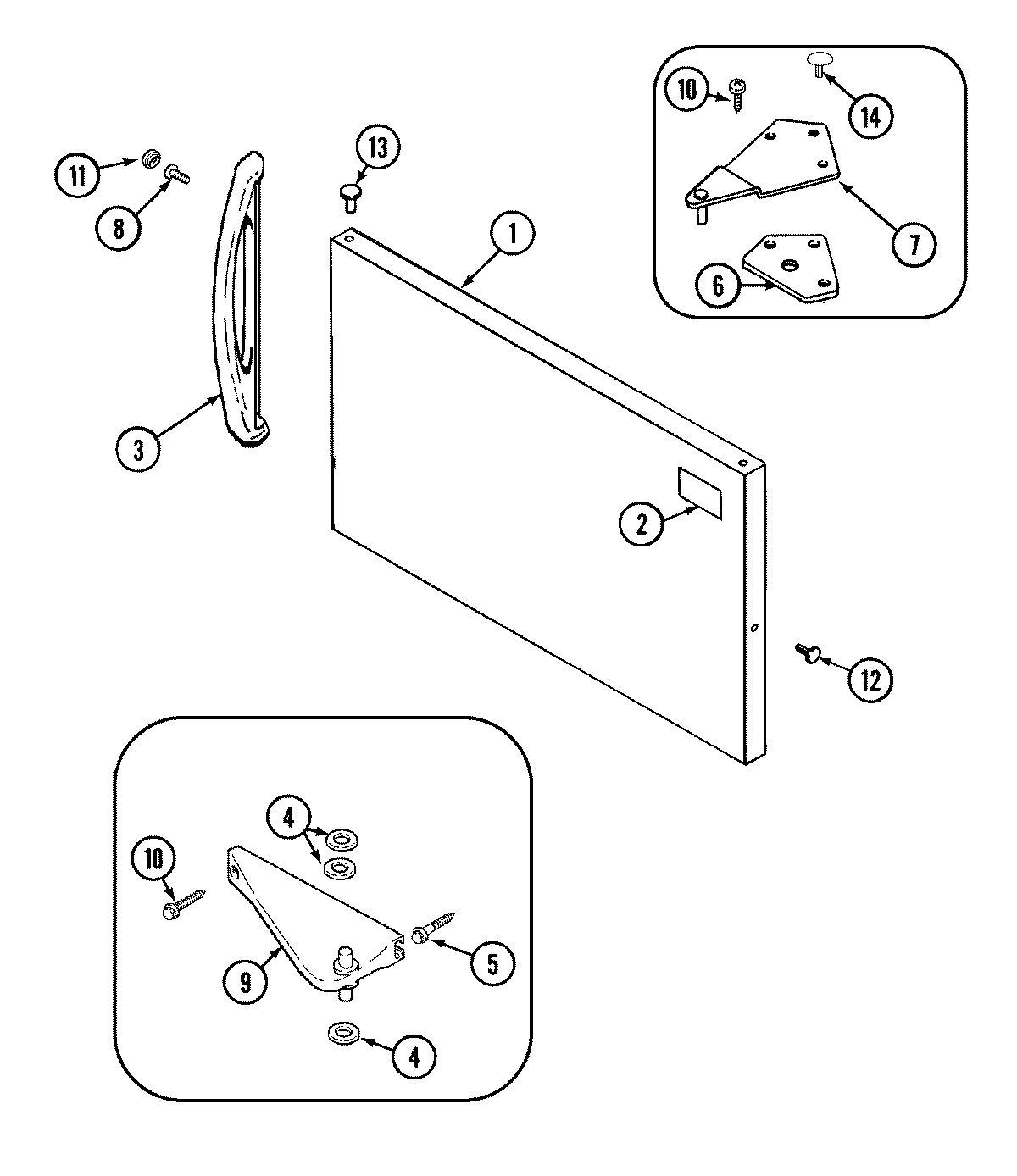

06 - FREEZER OUTER DOOR

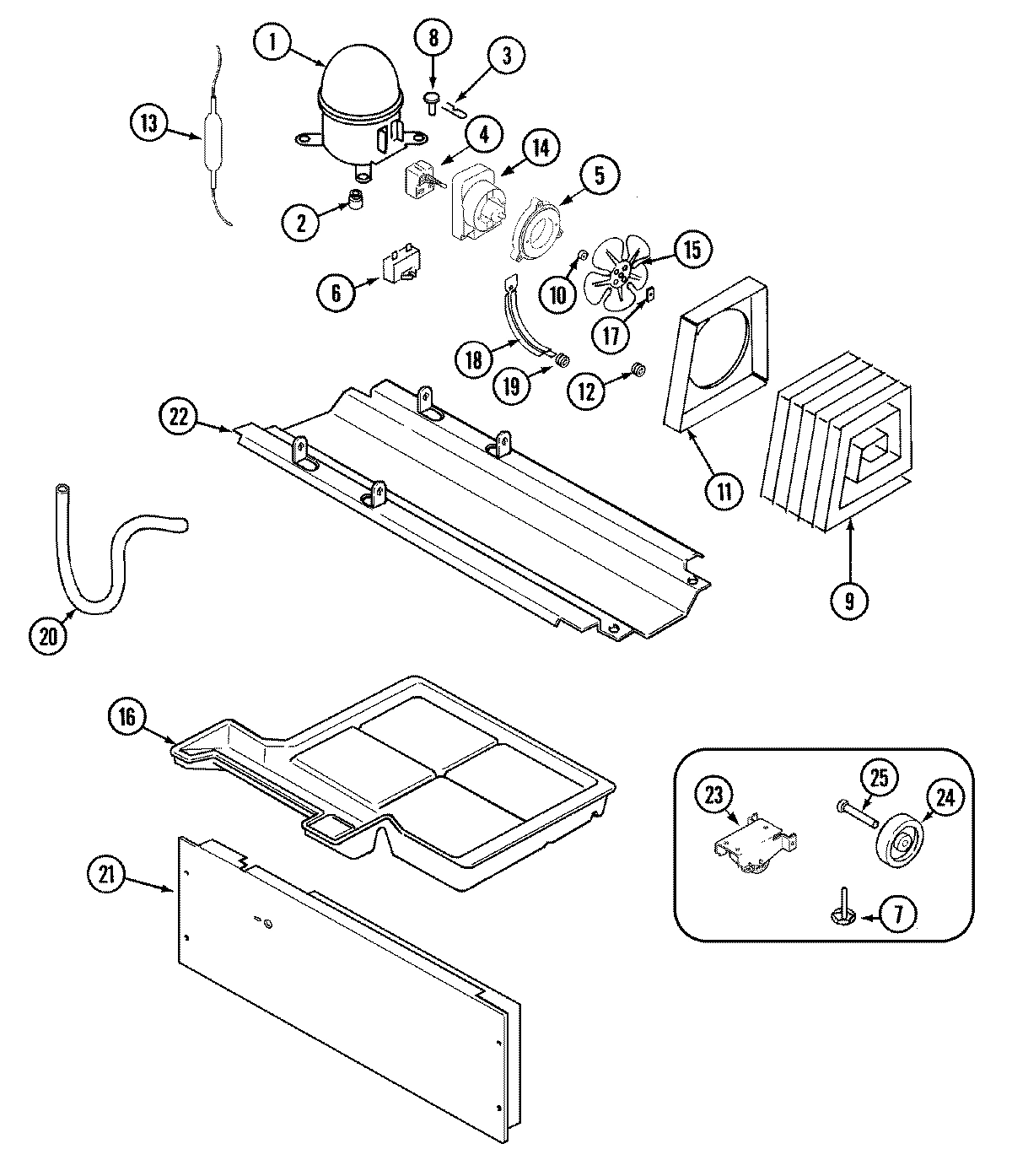

02 - COMPRESSOR (CTN1511GEW REV.15)

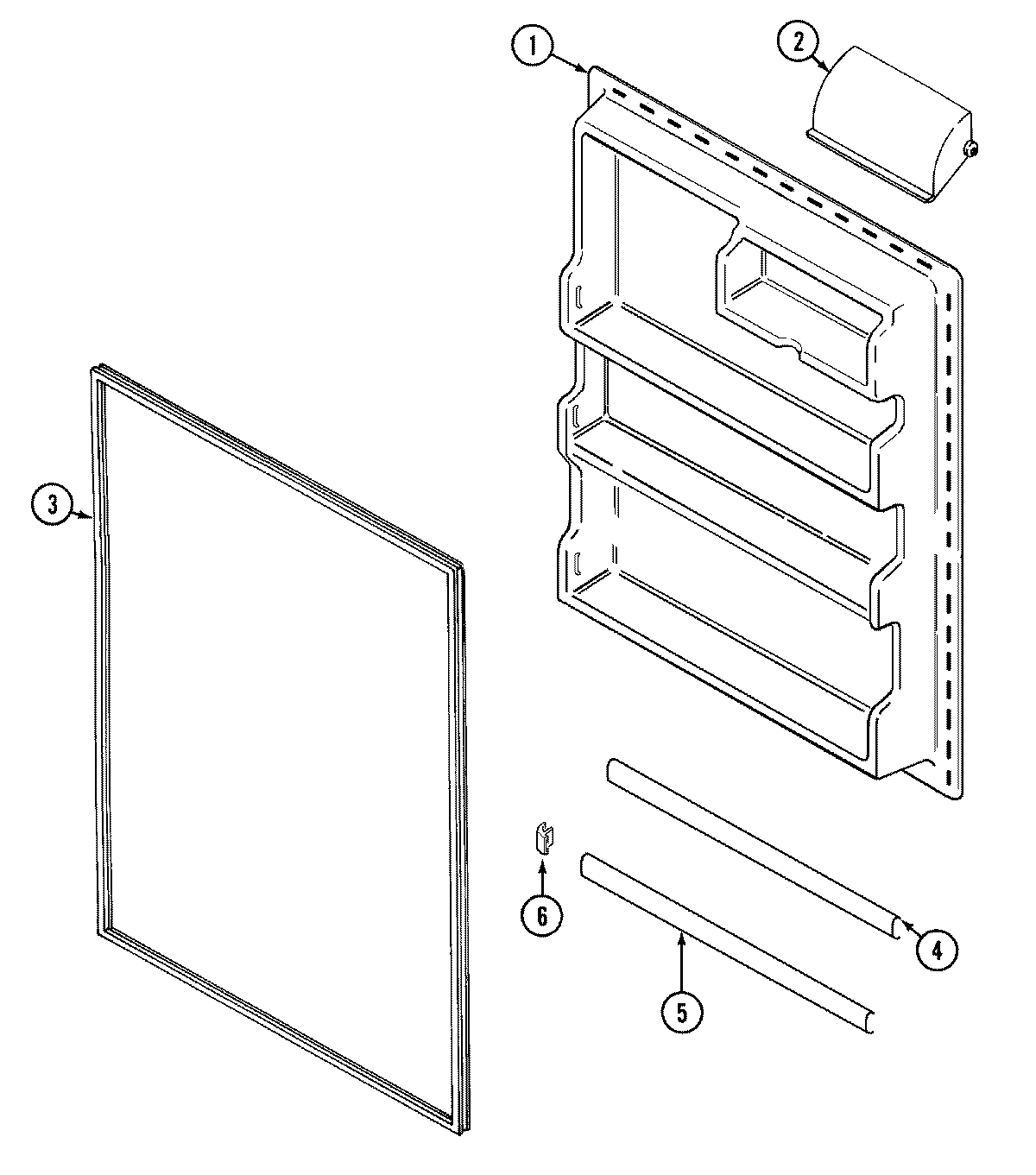

09 - FRESH FOOD INNER DOOR

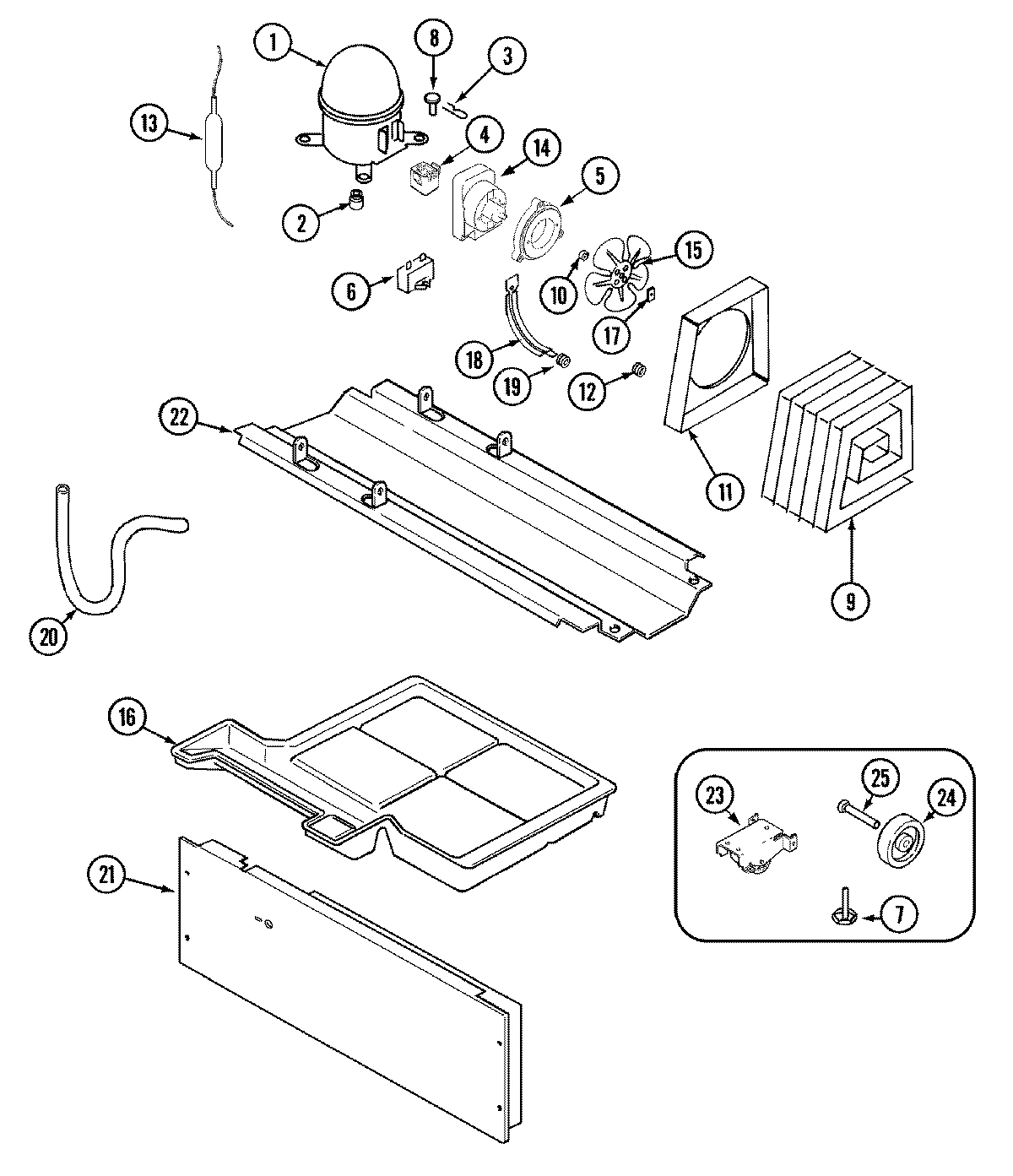

01 - COMPRESSOR (CTN1511GEW REV.10-14)
03 - COMPRESSOR (CTN1511GEW REV.16)

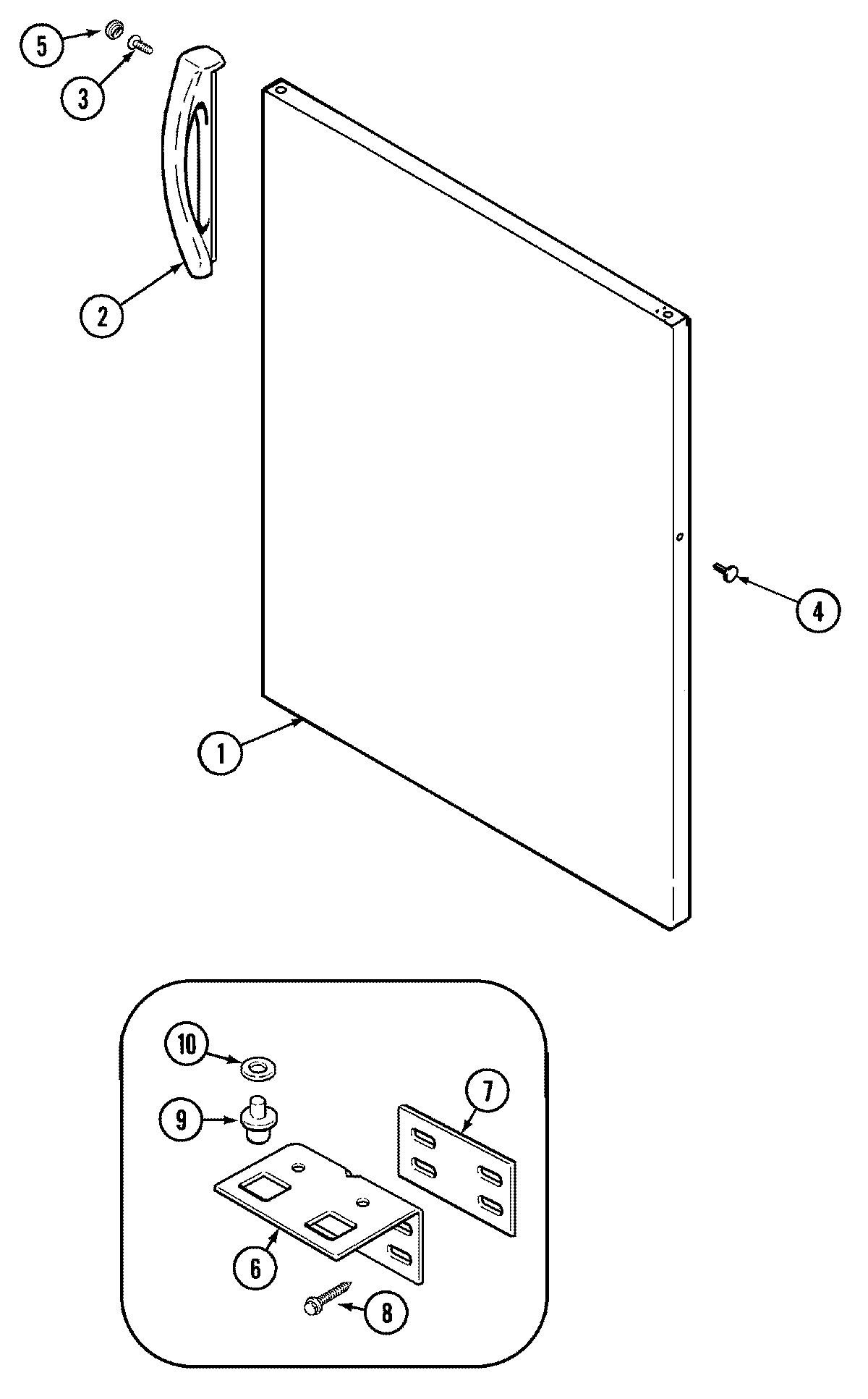

10 - FRESH FOOD OUTER DOOR

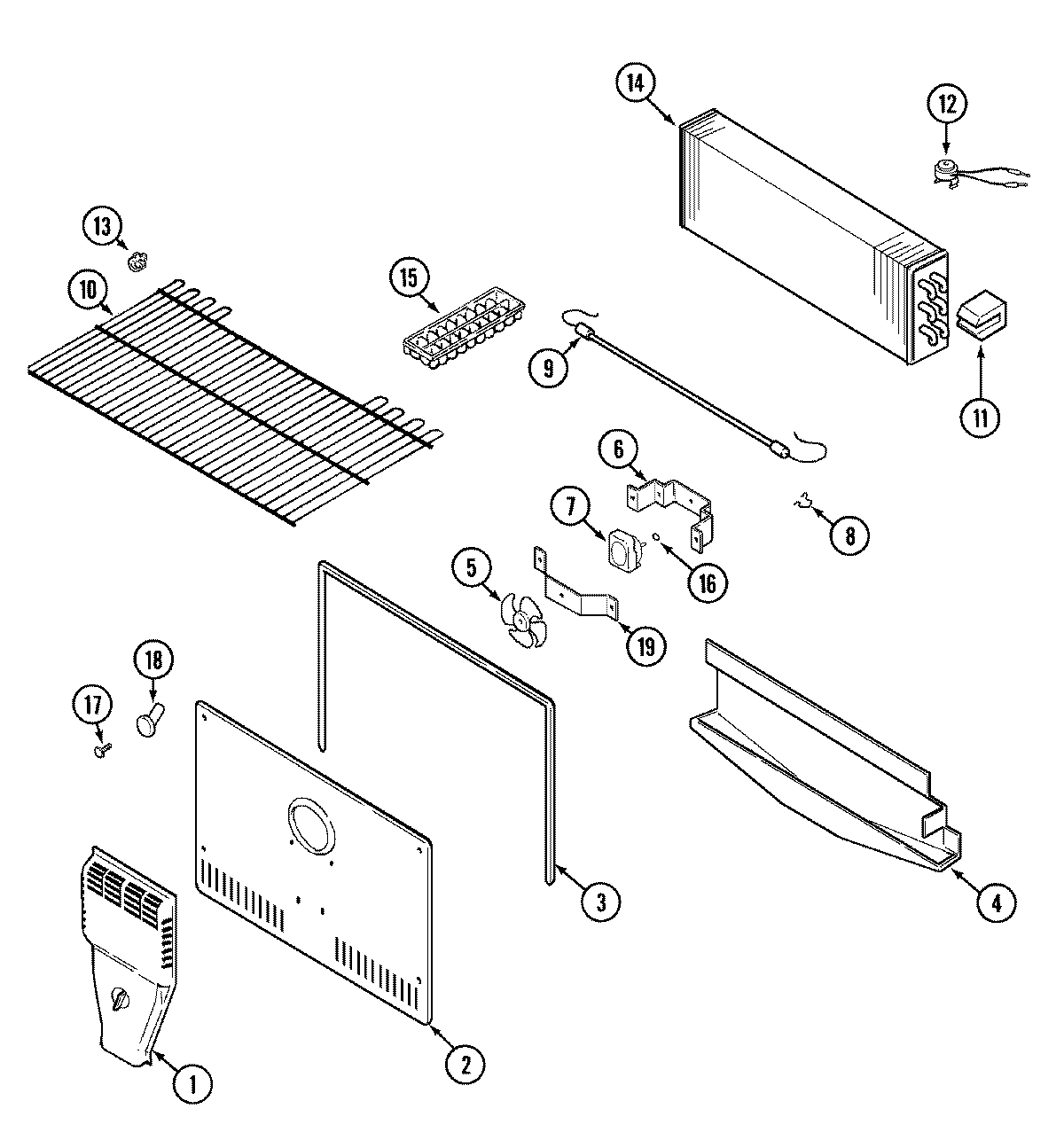

04 - FREEZER COMPARTMENT

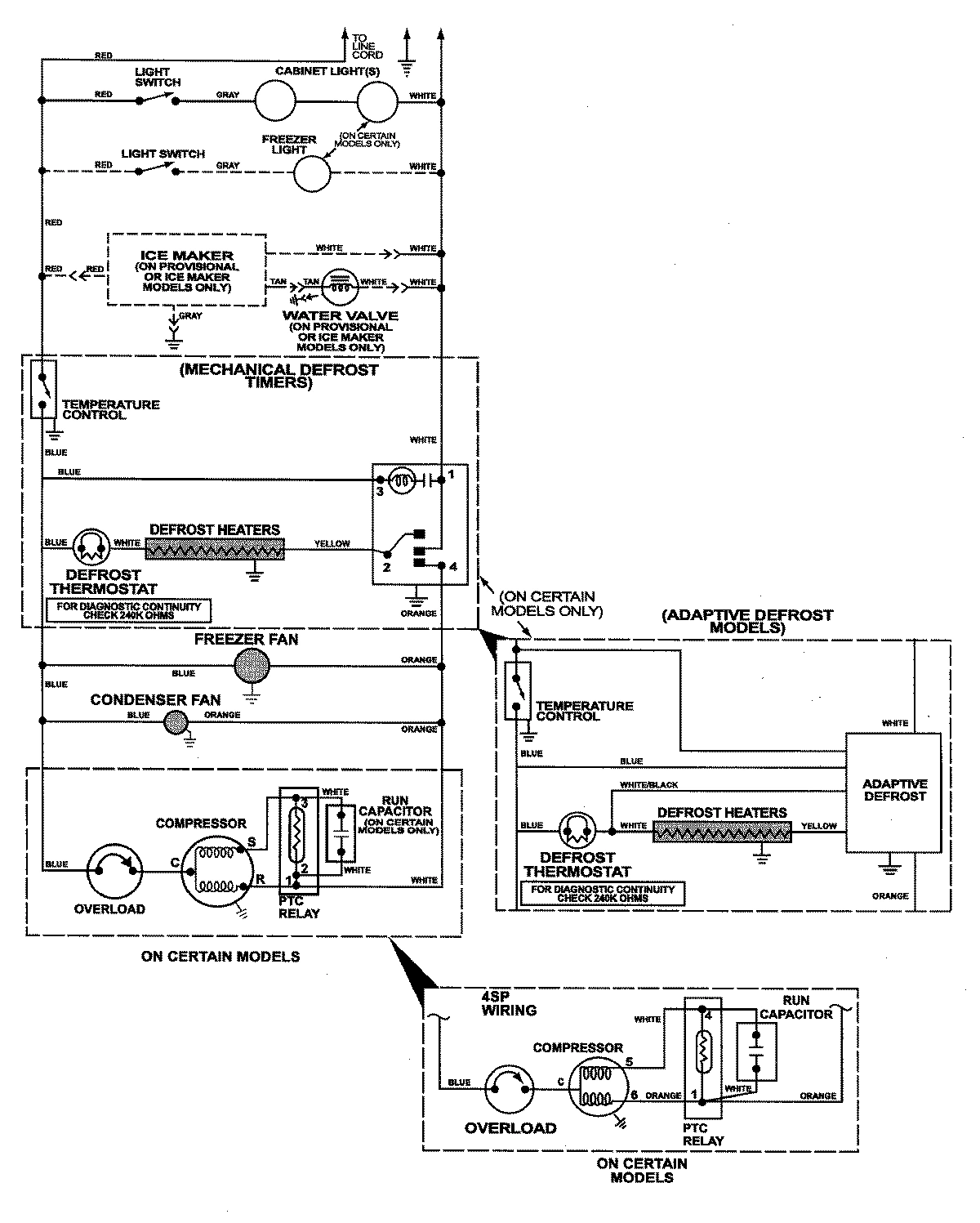

11 - WIRING INFORMATION
Common parts from model Whirlpool CTN1511GEW REFRIGERATOR
1
CONTROL ASSY., TEMPERATURE WPL 61005789 Contact Us For Availability
1
SCREW WPL 6527581 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002222 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002229 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61005522 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61002197 Contact Us For Availability
1
LABEL, DUAL ENERGY GUIDE WPL 61005735 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12002059 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61006023 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61001936 Contact Us For Availability
1
INSUL., F.F. LINER SUPPORT WPL 61002225 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002226 Contact Us For Availability
1
KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61002195 Contact Us For Availability
1
TUNNEL, AIR WPL 61001943 Contact Us For Availability
2
SCREW WPL 4050071 Contact Us For Availability
2
TIMER, DEFROST WPL 682332 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61004002 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
2
DOOR, DAIRY WPL 61002023 Contact Us For Availability
2
HANDLE, DOOR (WHT) WPL 61002017 Contact Us For Availability
2
PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002106 Contact Us For Availability
3
SEAL, DRAIN WPL 61001977 Contact Us For Availability
3
HANDLE, DOOR (WHT) WPL 61002016 Contact Us For Availability
3
ANCHOR, SCREW WPL 61002912 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
3
SEAL, F.F. DOOR (WHT) WPL 61004003 Contact Us For Availability
3
SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61004560 Contact Us For Availability
4
SCREW WPL 61004485 Contact Us For Availability
4
HOUSING, CONTROL WPL 61004946 Contact Us For Availability
4
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
4
SEAL, SECONDARY DOOR WPL 61005523 Contact Us For Availability
4
PLUG BUTTON, HANDLE HOLE (WHT) WPL 61001910 Contact Us For Availability
4
RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability
4
CLIP, RETAINER WPL 61006029 Contact Us For Availability
4
TRAY, DRIP WPL 61004830 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
5
FOIL, HEAT SHIELD WPL 61003861 Contact Us For Availability
5
SCREW WPL 61002025 Contact Us For Availability
5
PLUG BUTTON, HANDLE (WHT) WPL 699221 Contact Us For Availability
5
ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability
5
SCREW WPL 61005326 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
6
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
7
BULB, LIGHT WPL 319561 Contact Us For Availability
7
HINGE, UPPER WPL 61004896 Contact Us For Availability
7
LEG, LEVELING WPL 61002014 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
MOTOR, EVAPORATOR FAN (W/LEAD) WPL 61005935 Contact Us For Availability
8
SWITCH, LIGHT WPL 61006075 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
9
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
9
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
9
CONDENSER WPL 61005427 Contact Us For Availability
9
PIN, LOWER HINGE WPL 61002230 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SHELF, FREEZER WPL 61002141 Contact Us For Availability
11
DAMPER/INSULATION KIT WPL 12001838 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
12
PAN, CRISPER WPL 61001933 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
SHELF WPL 61001950 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
13
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
14
RAIL, CRISPER PAN (RT) WPL 61004887 Contact Us For Availability
14
RAIL, CRISPER PAN (LT) WPL 61004886 Contact Us For Availability
14
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability
15
KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
16
BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
TRIM, GLASS WPL 61001961 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
17
PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002109 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
19
RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability
20
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
21
SCREW WPL 61005388 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61004397 Contact Us For Availability
21
SCREW WPL 652751 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61005242 Contact Us For Availability
23
SCREW WPL 4000161 Contact Us For Availability
23
WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002988 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003420 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61005521 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61006025 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002787 Contact Us For Availability
× ![]()
