Model Whirlpool CTM1722ARA REFRIGERATOR – Common Parts & Diagrams

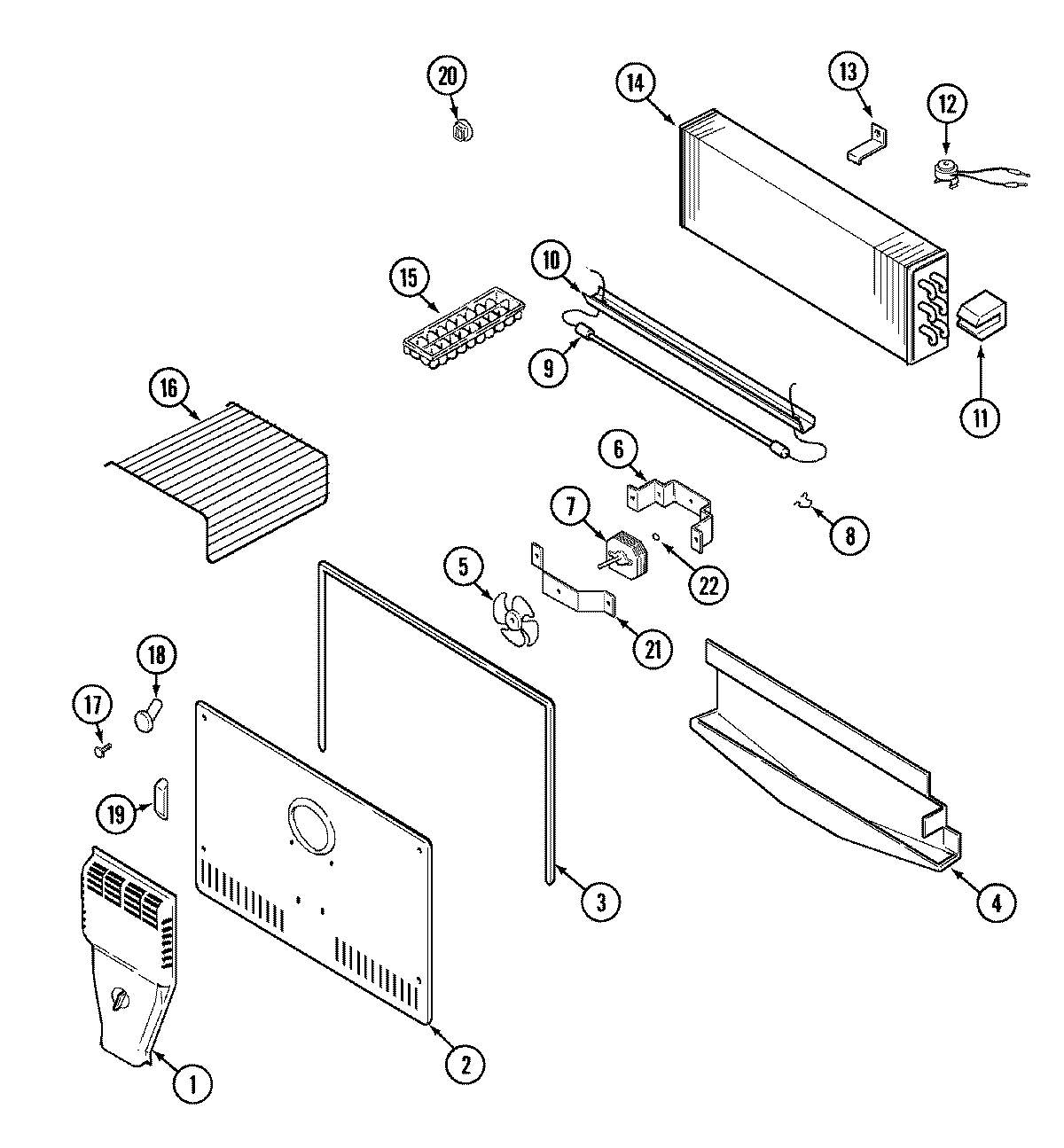

02 - FREEZER COMPARTMENT

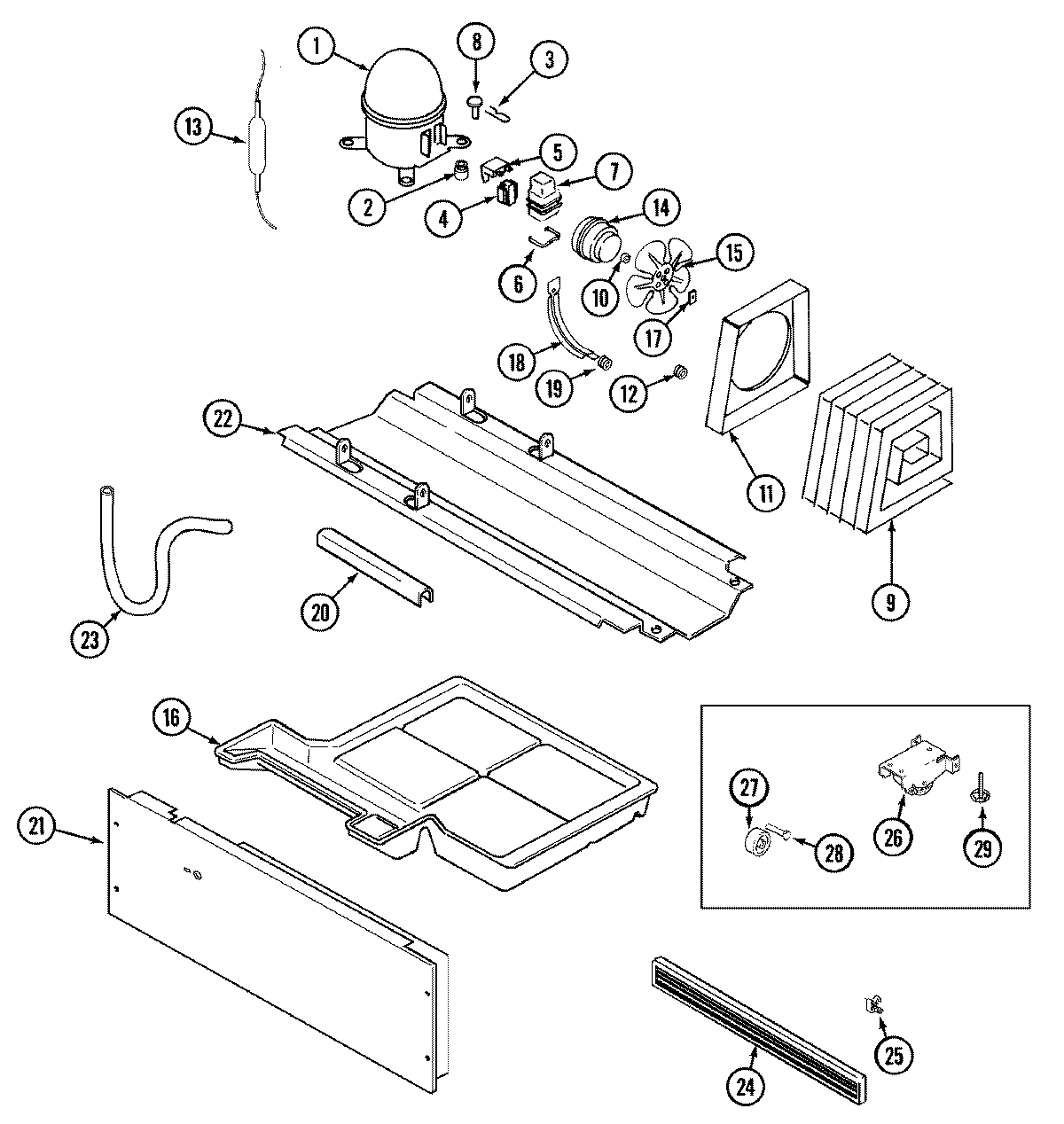

01 - COMPRESSOR

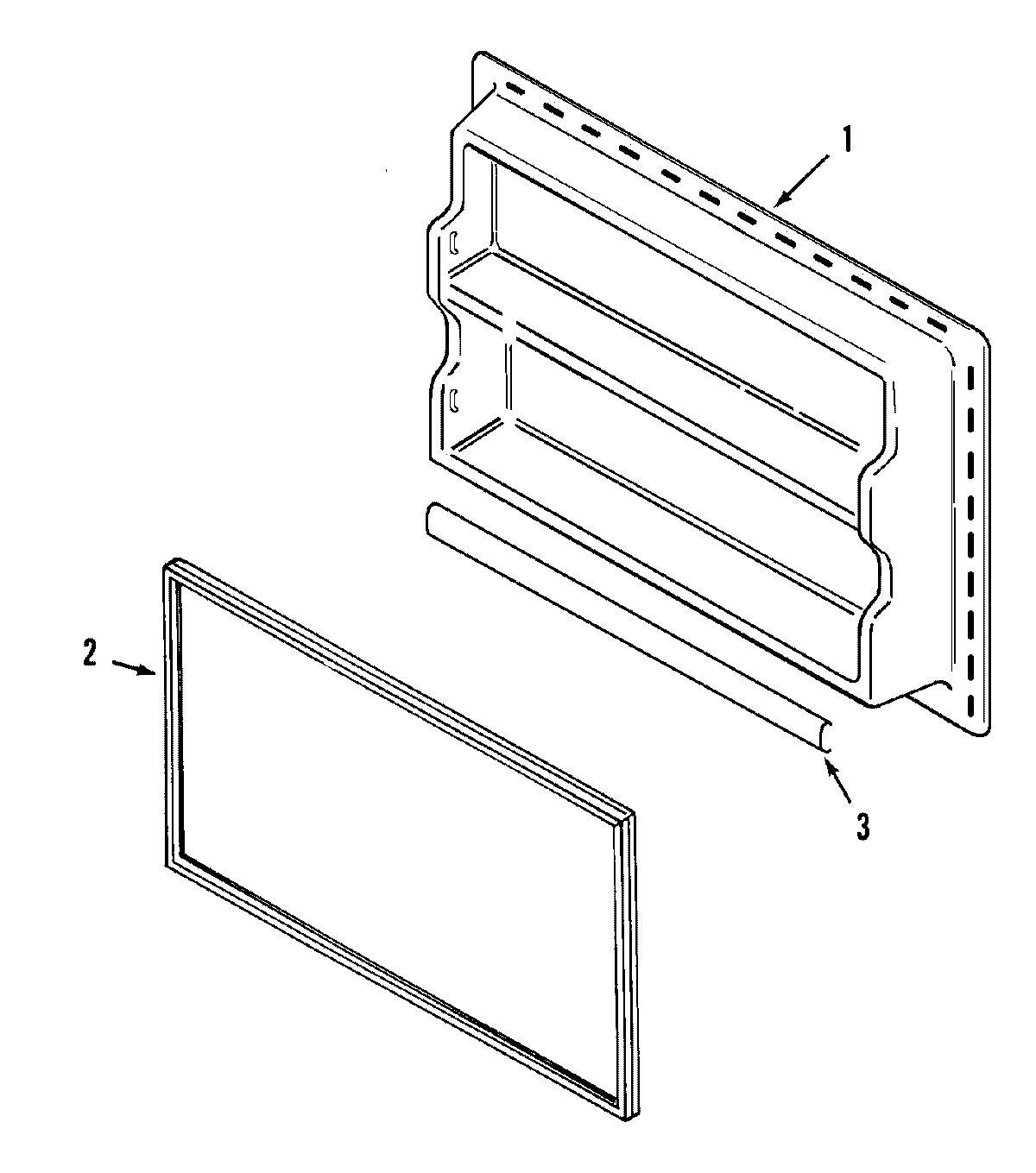

03 - FREEZER INNER DOOR

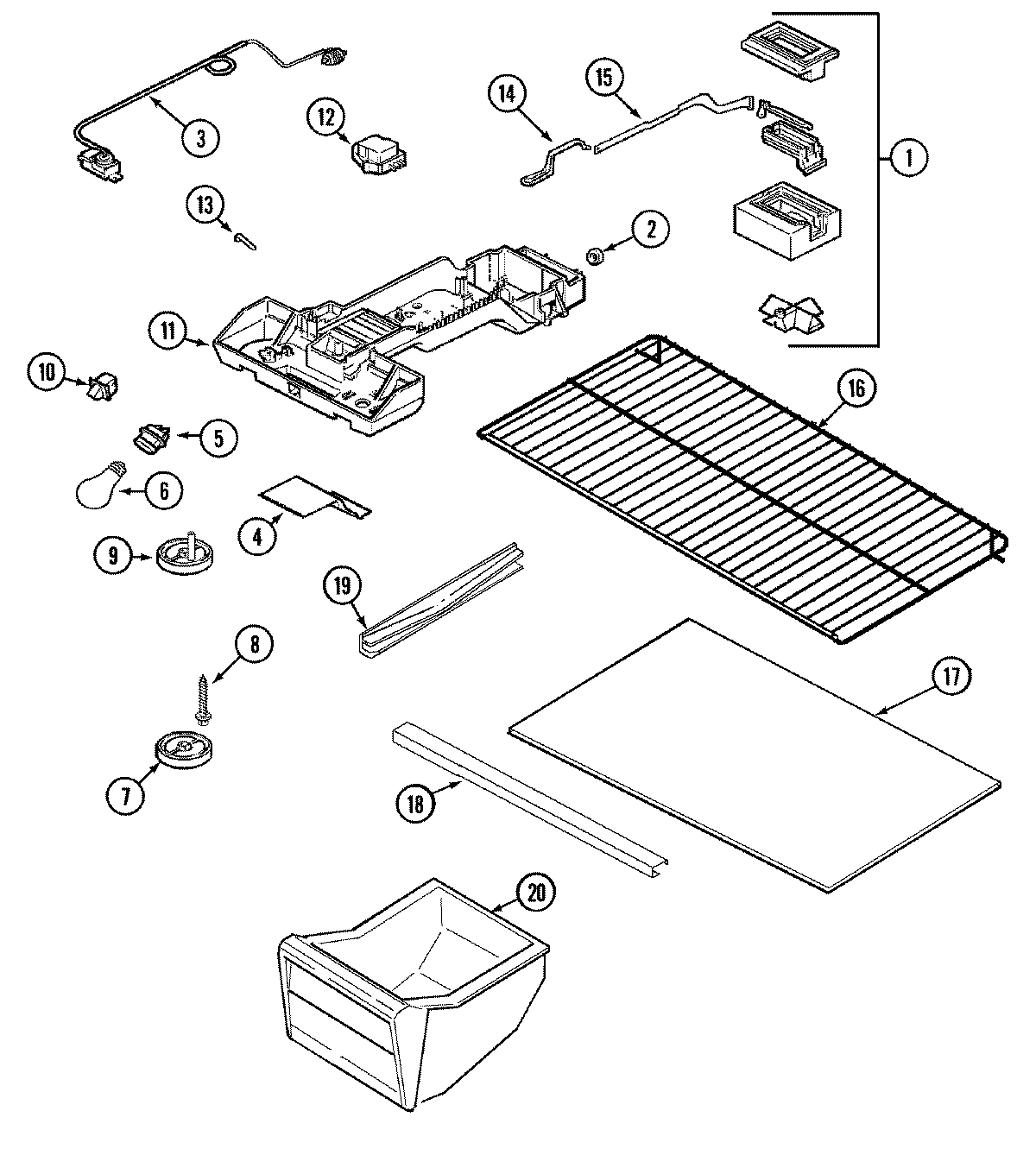

04 - FRESH FOOD COMPARTMENT
06 - OPTIONAL ICE MAKER KIT- UKI1000AXX

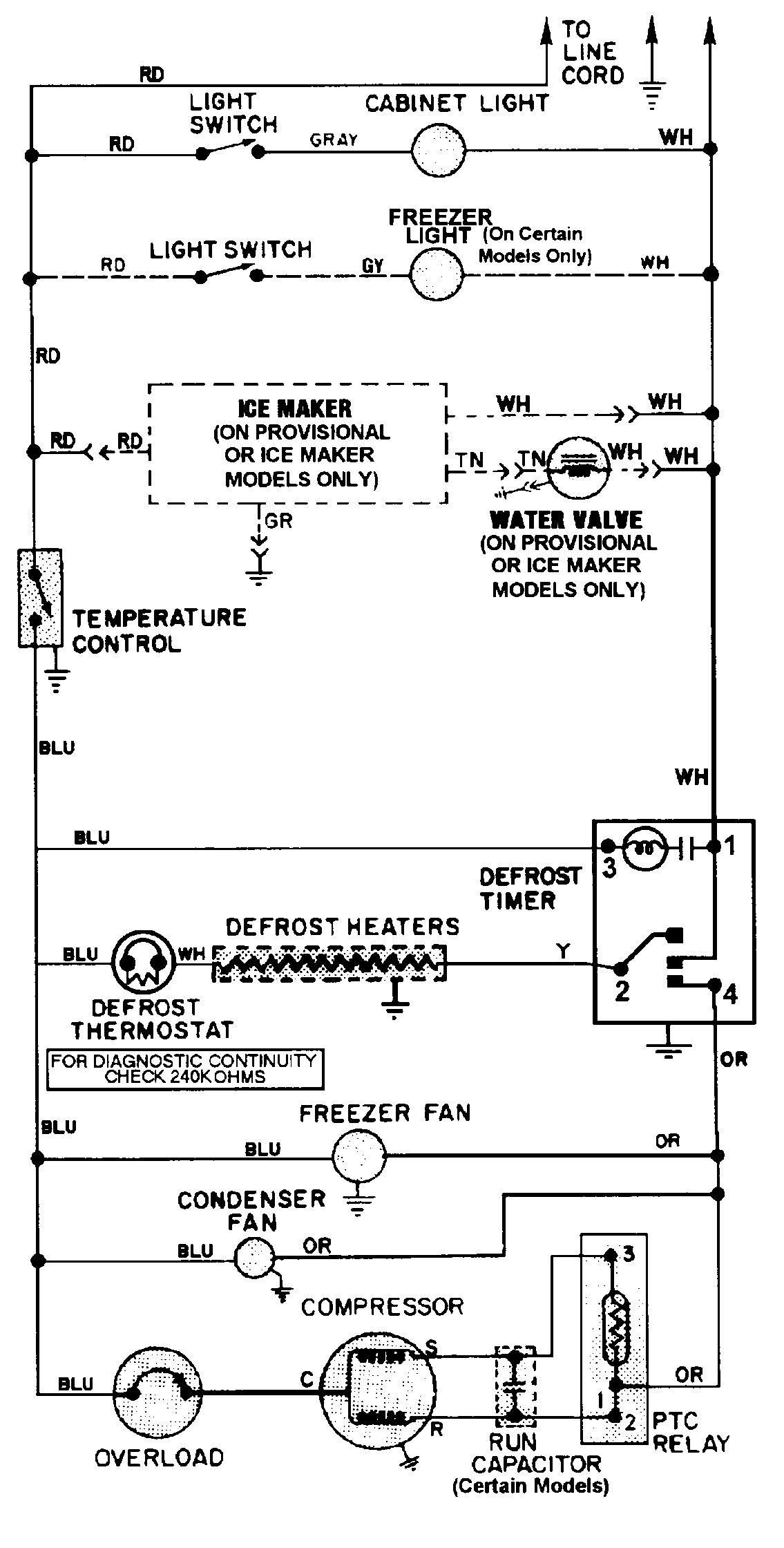

07 - WIRING INFORMATION

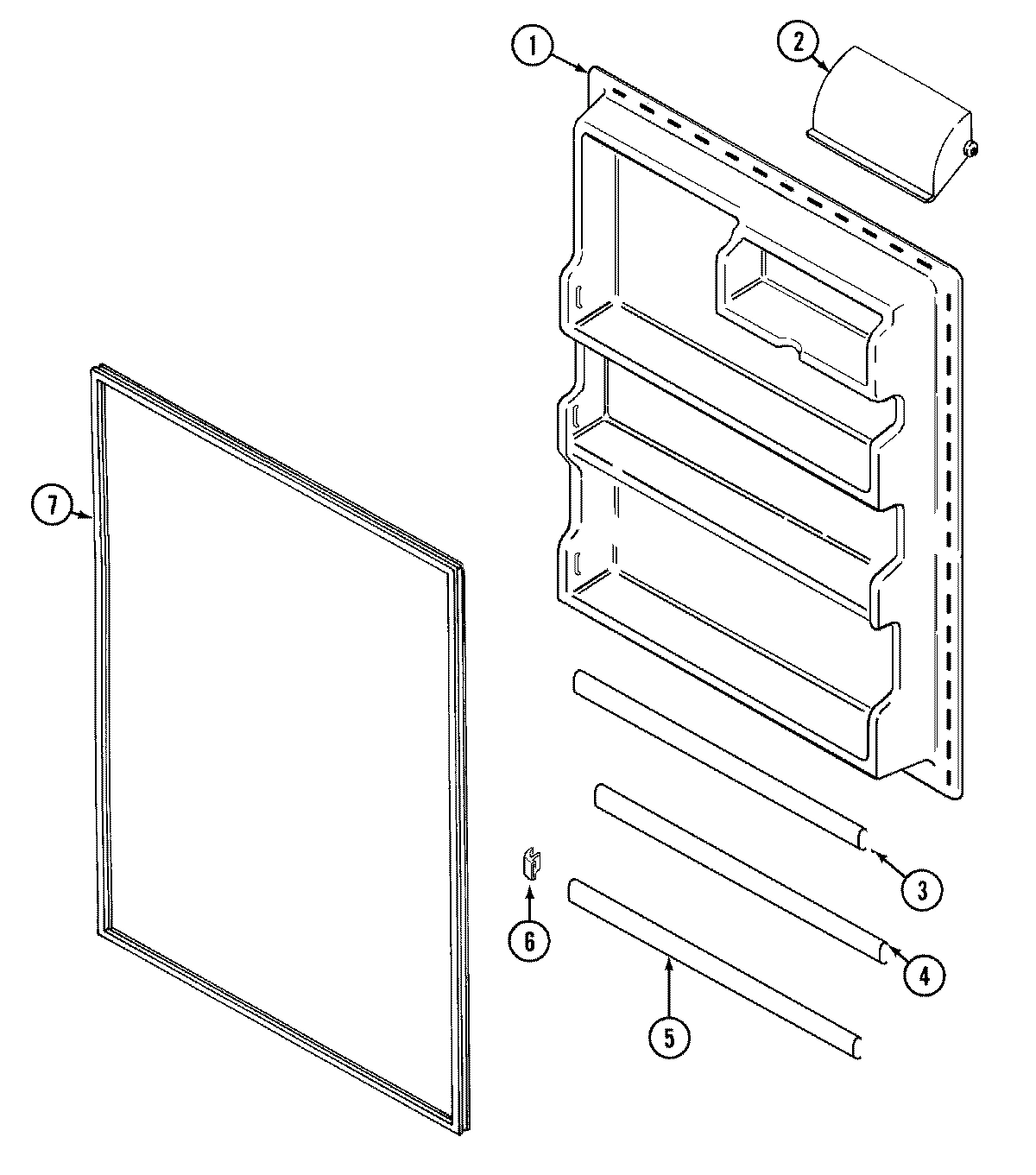

05 - FRESH FOOD INNER DOOR
Common parts from model Whirlpool CTM1722ARA REFRIGERATOR
1
COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61001990 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61001991 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61001993 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61002006 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
DOOR, DAIRY WPL 61002023 Contact Us For Availability
3
SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002002 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002517 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002087 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
TRAY, DRIP WPL 61001992 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004856 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
FOIL, BARRIER WPL 61001949 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
9
COIL, CONDENSER WPL 61001957 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61001956 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
HOUSING, CONTROL WPL 61001997 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682332 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
16
TRIVET WPL 61002001 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
SHELF WPL 61001950 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
17
KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
TRIM, GLASS WPL 61001961 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000171 Contact Us For Availability
19
RAIL, CRISPER PAN (LT) WPL 61001959 Contact Us For Availability
19
RAIL, CRISPER PAN (RT) WPL 61001960 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
PAN, CRISPER WPL 61001994 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61001973 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002032 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
24
KICKPLATE W/CLIPS (ALM) WPL 61002698 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
26
WHEEL ASSY. WPL 61001978 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
WIRE HARNESS, FREEZER WPL 61002236 Contact Us For Availability
NI
WIRE HARNESS, FREEZER WPL 61002321 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001981 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002173 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002064 Contact Us For Availability
× ![]()
