Model Whirlpool CTF2125GRQ REFRIGERATOR – Common Parts & Diagrams
13 - WIRING INFORMATION

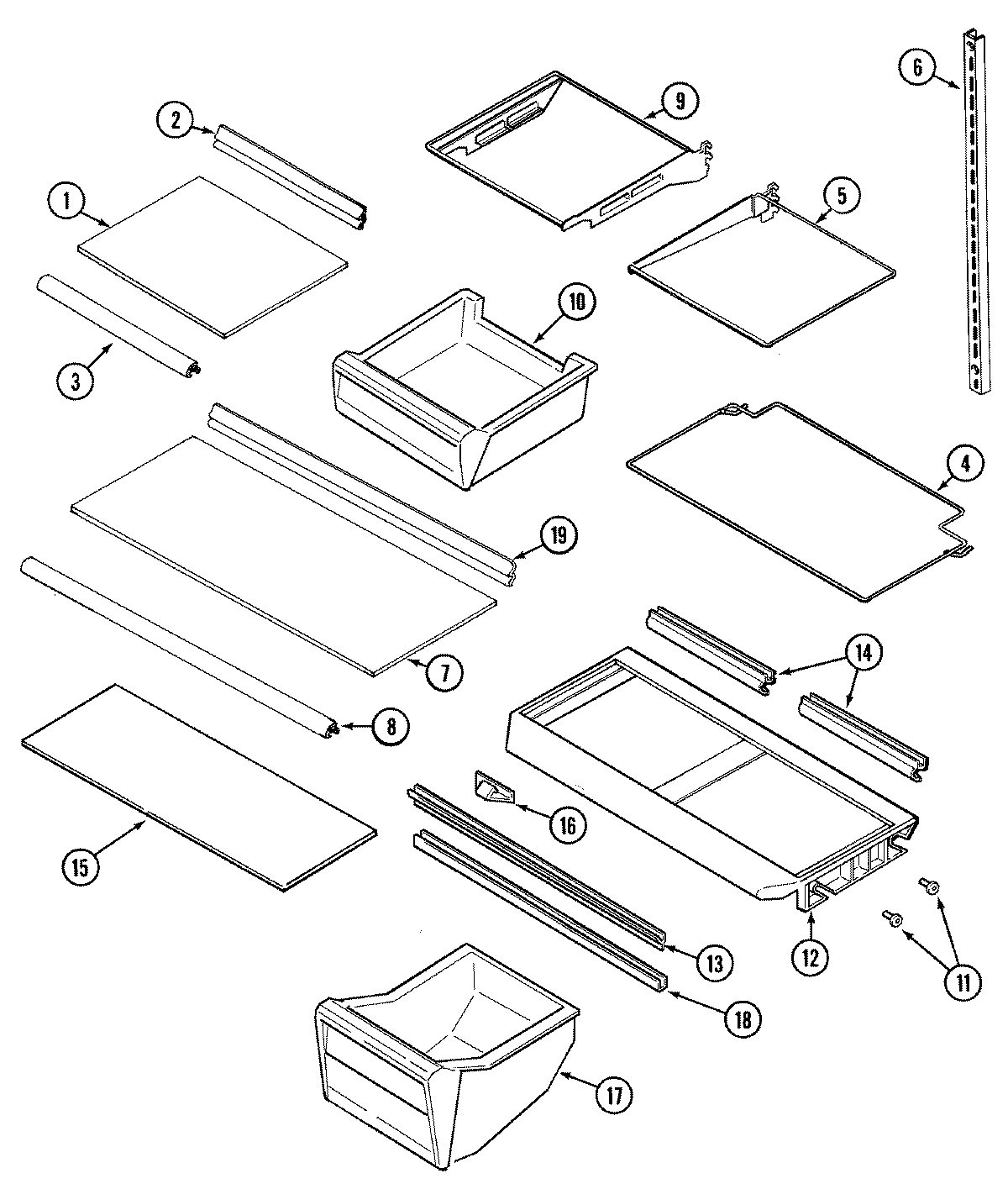

12 - SHELVES & ACCESSORIES

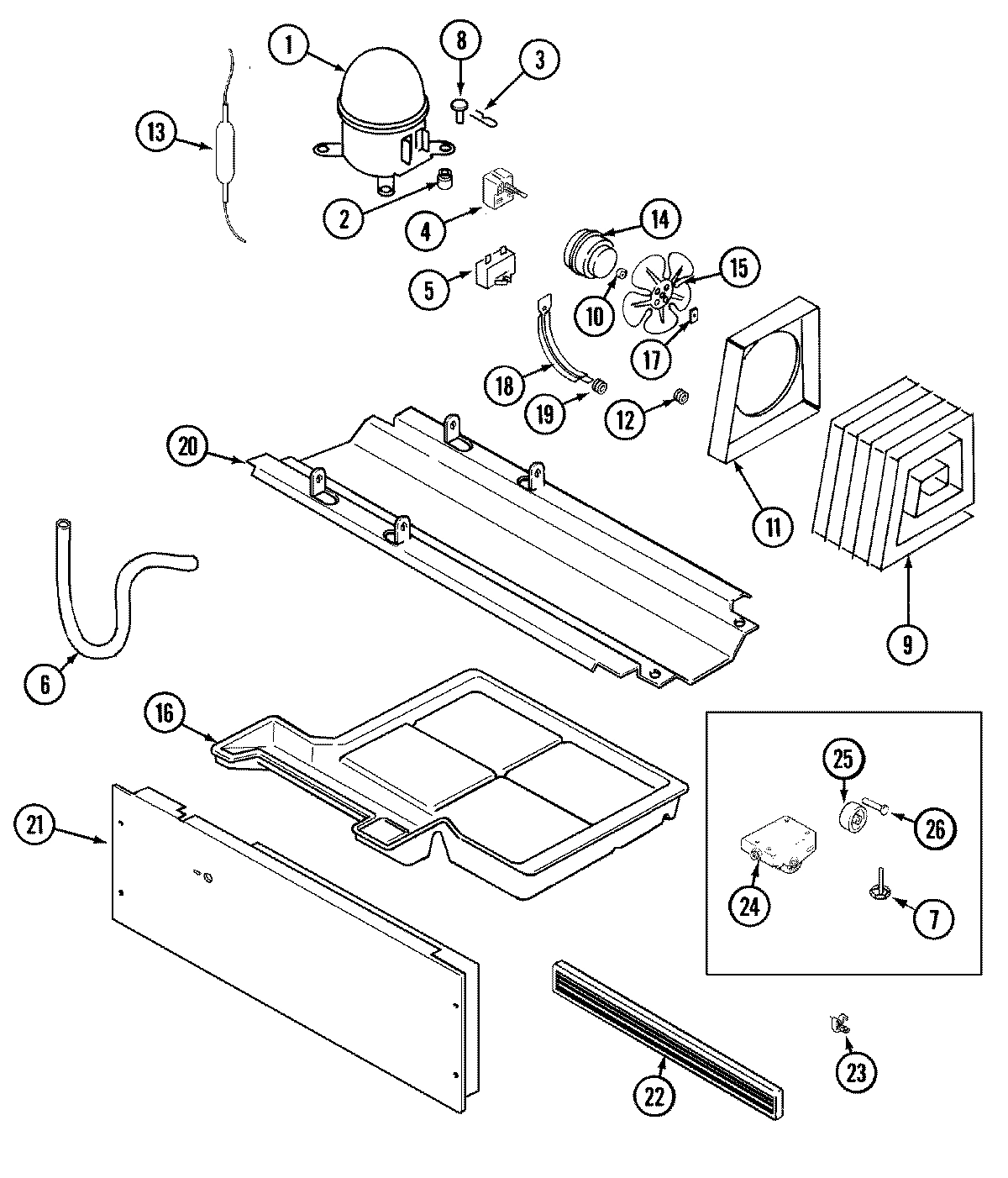

02 - COMPRESSOR (REV.13)

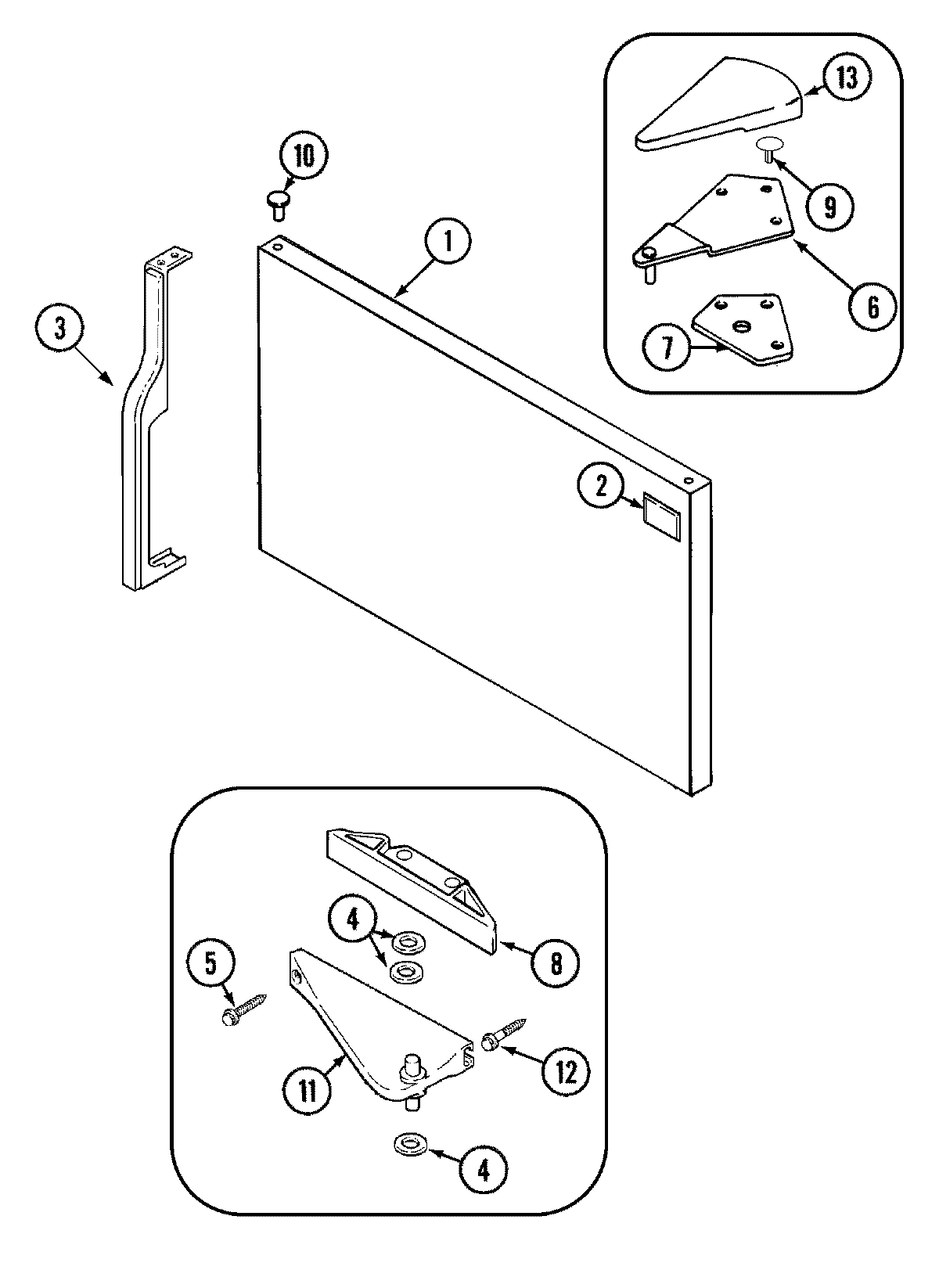

07 - FREEZER OUTER DOOR (REV.12)

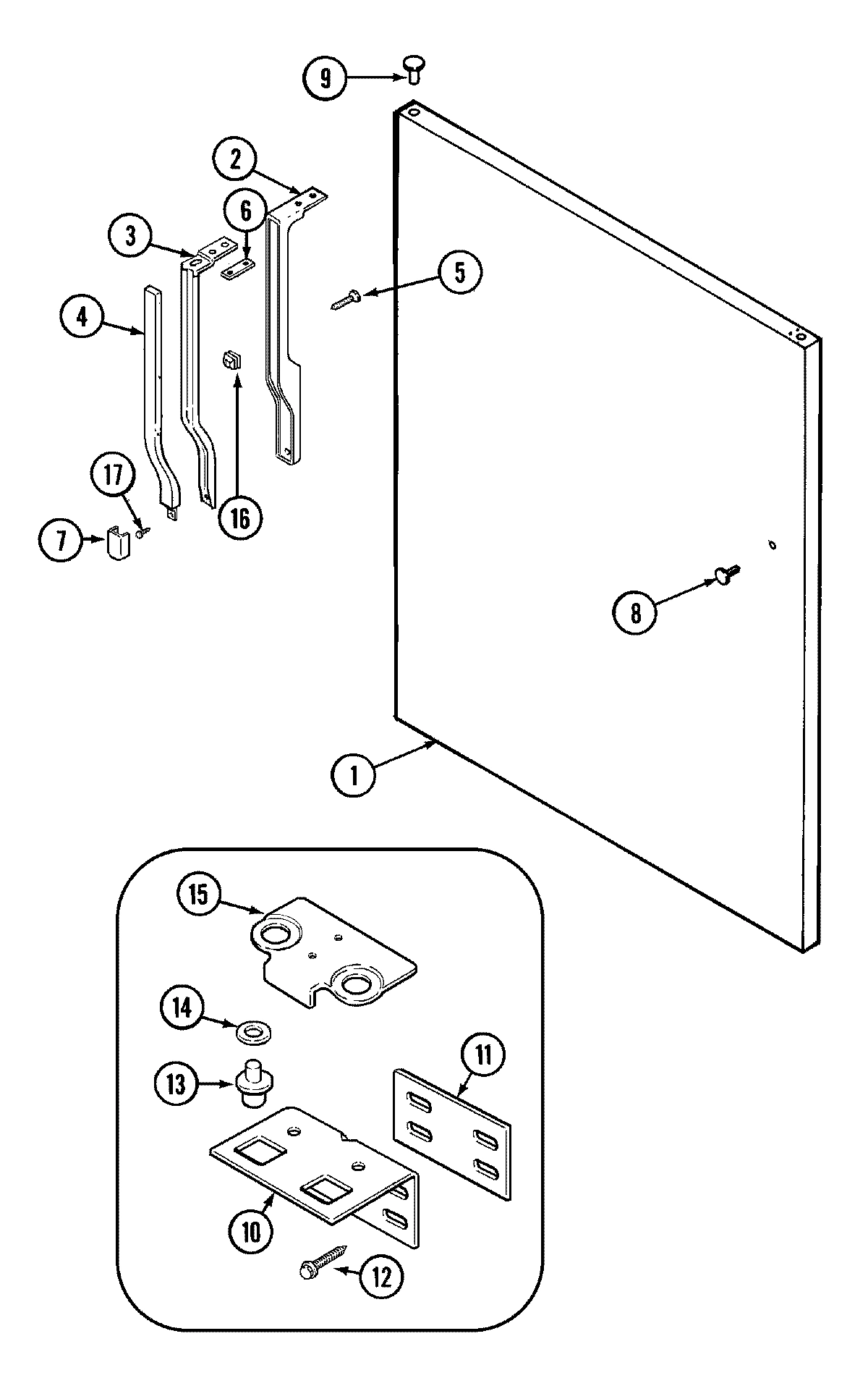

09 - FRESH FOOD OUTER DOOR (REV. 10-11)

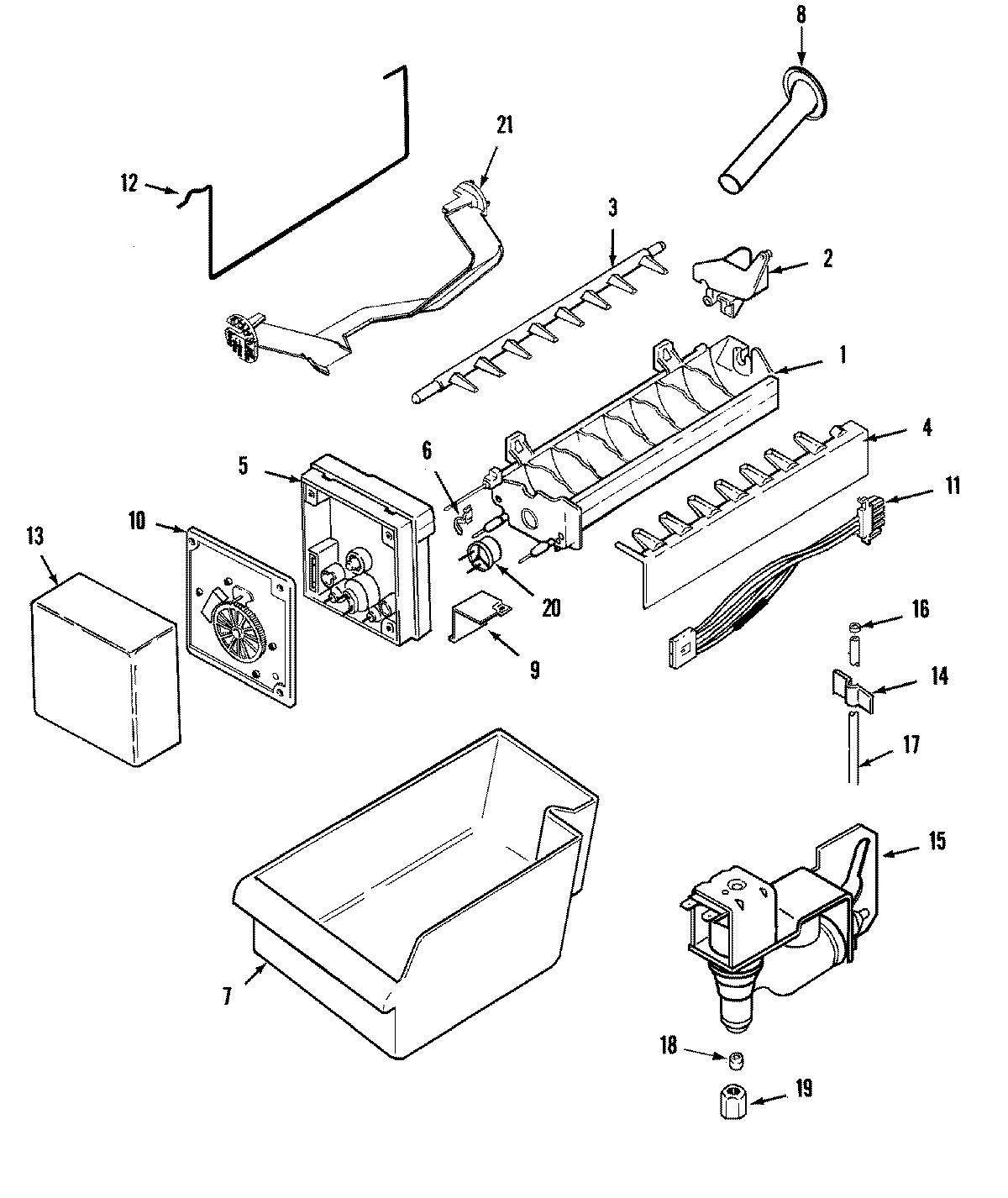

11 - ICE MAKER

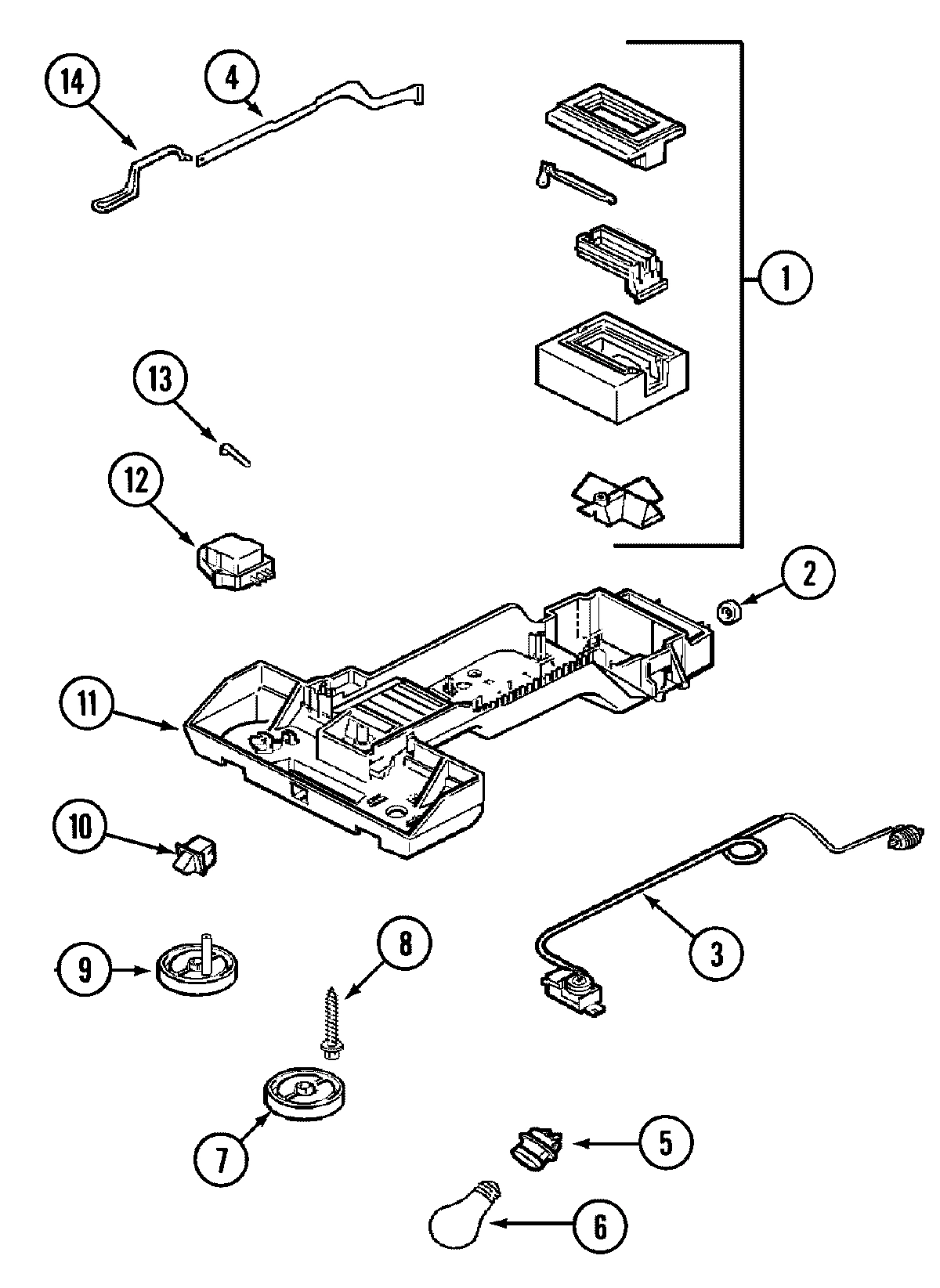

03 - CONTROLS

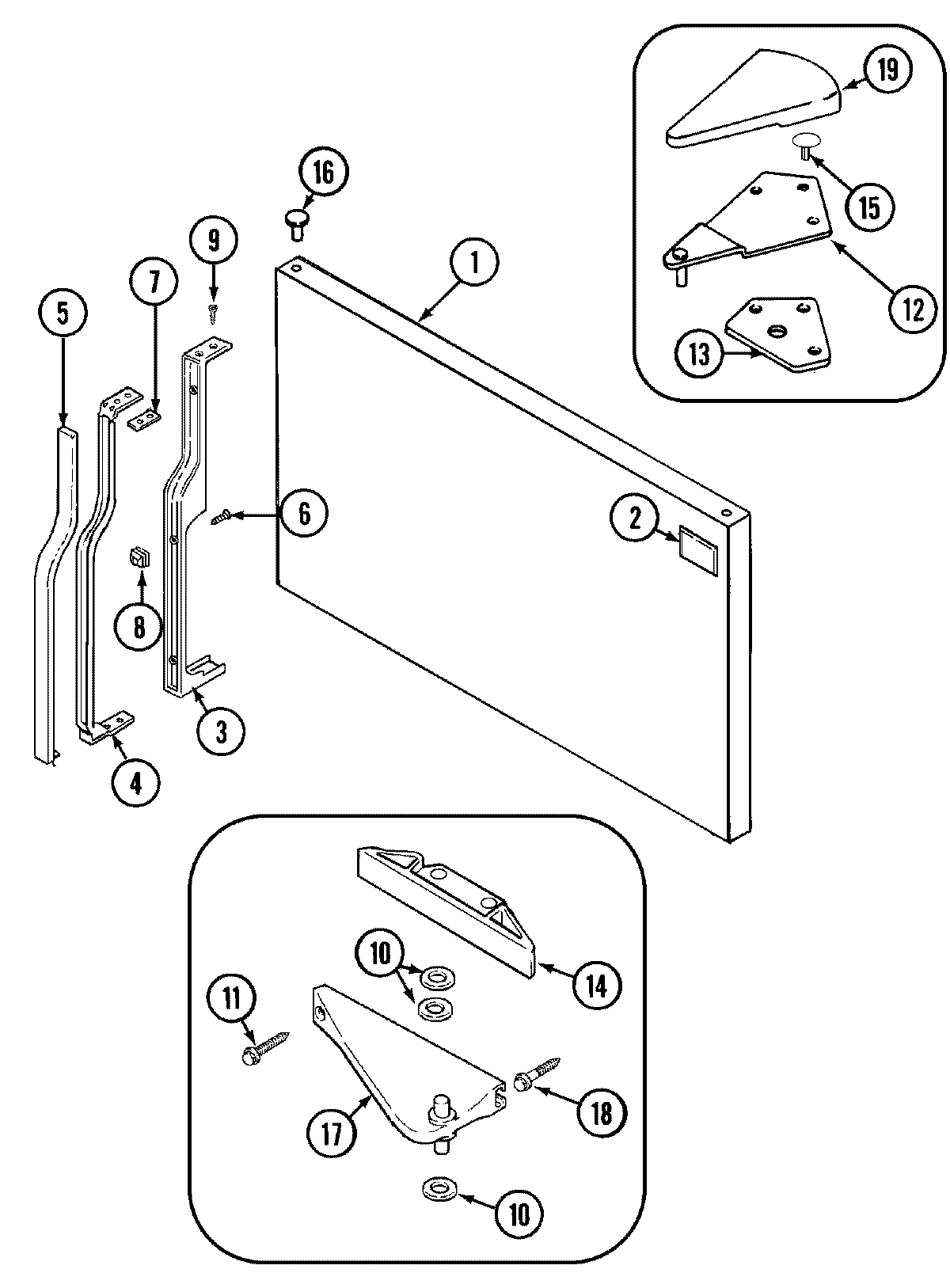

06 - FREEZER OUTER DOOR (REV. 10-11)

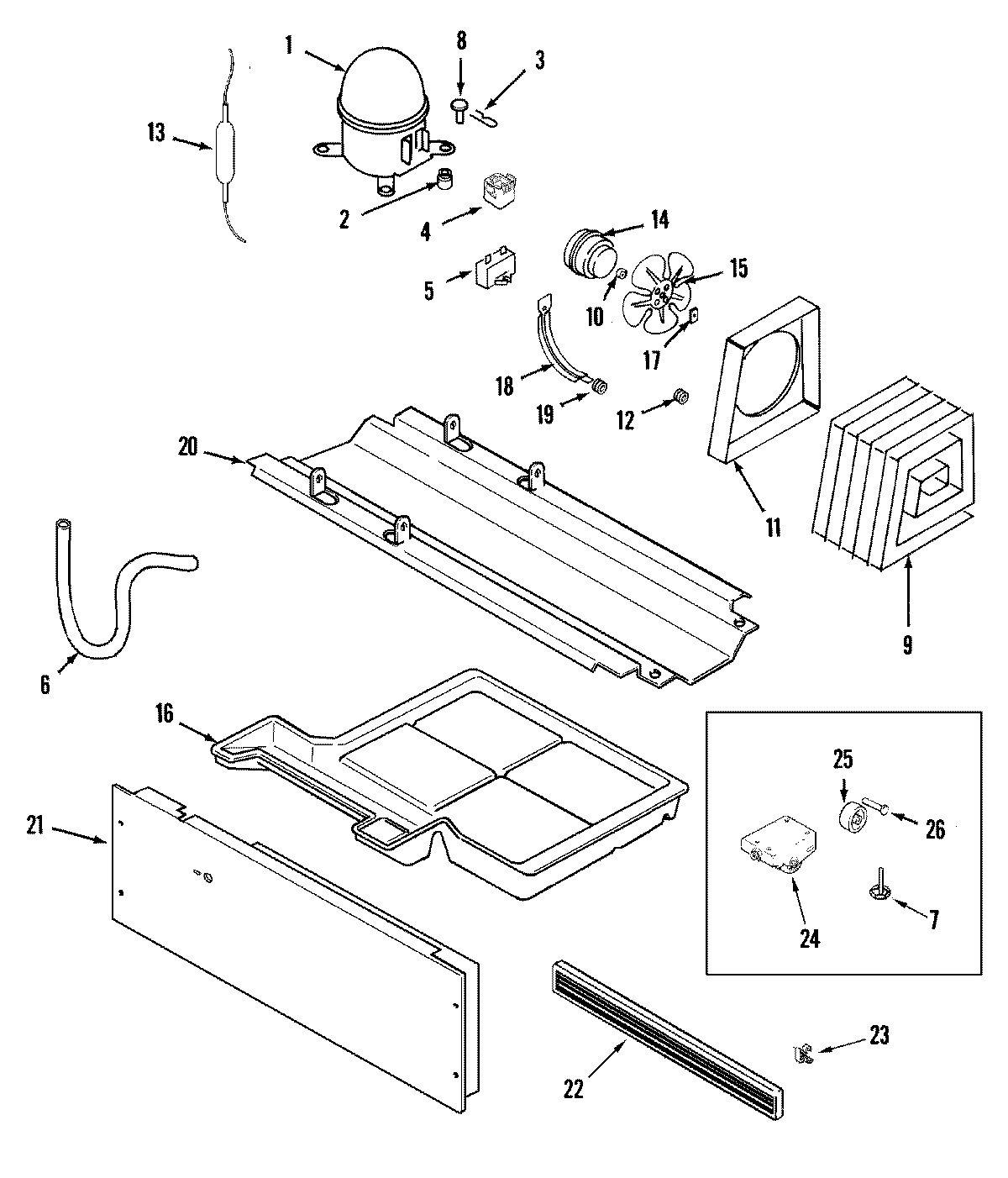

01 - COMPRESSOR (REV. 10-12)

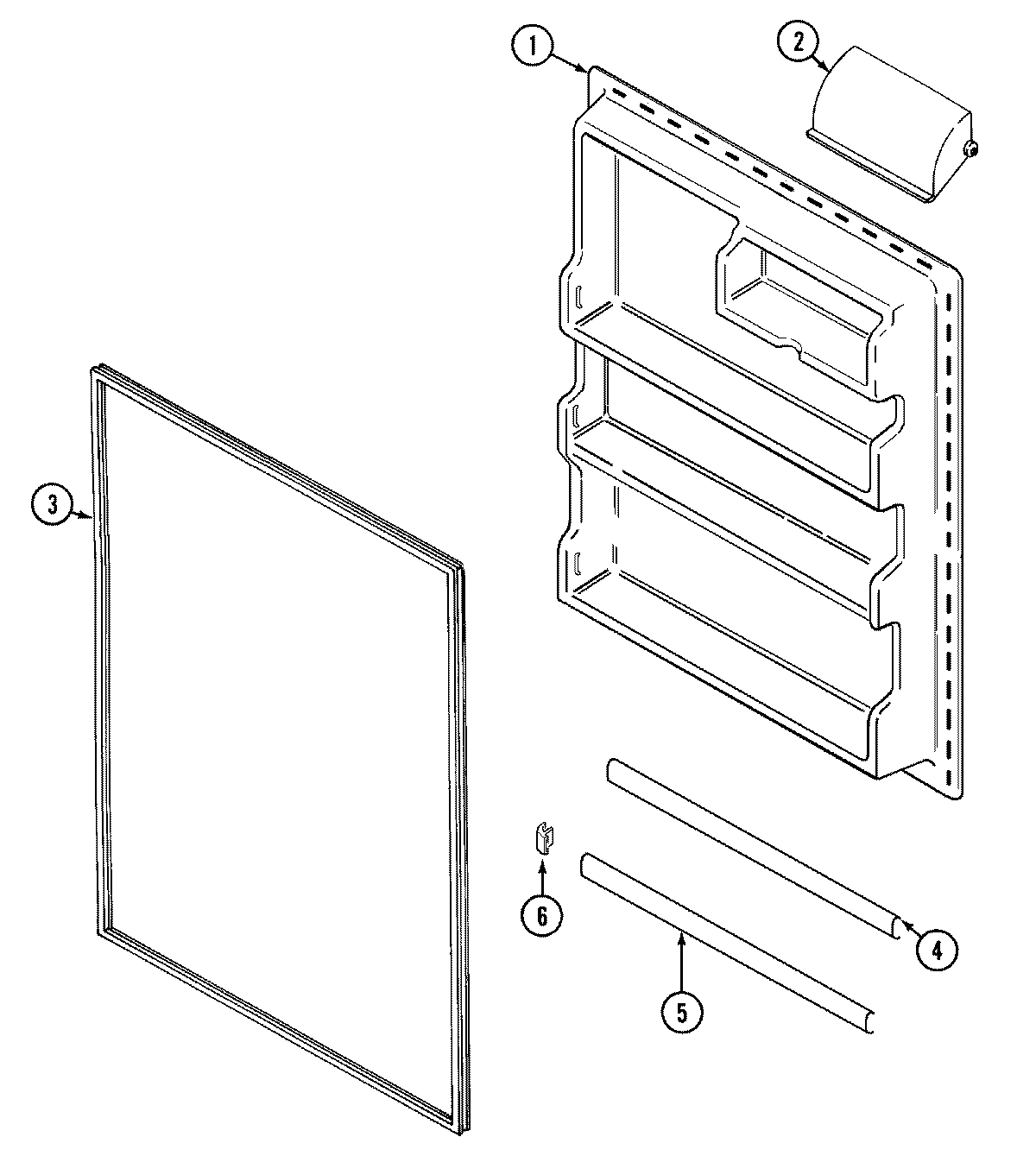

08 - FRESH FOOD INNER DOOR

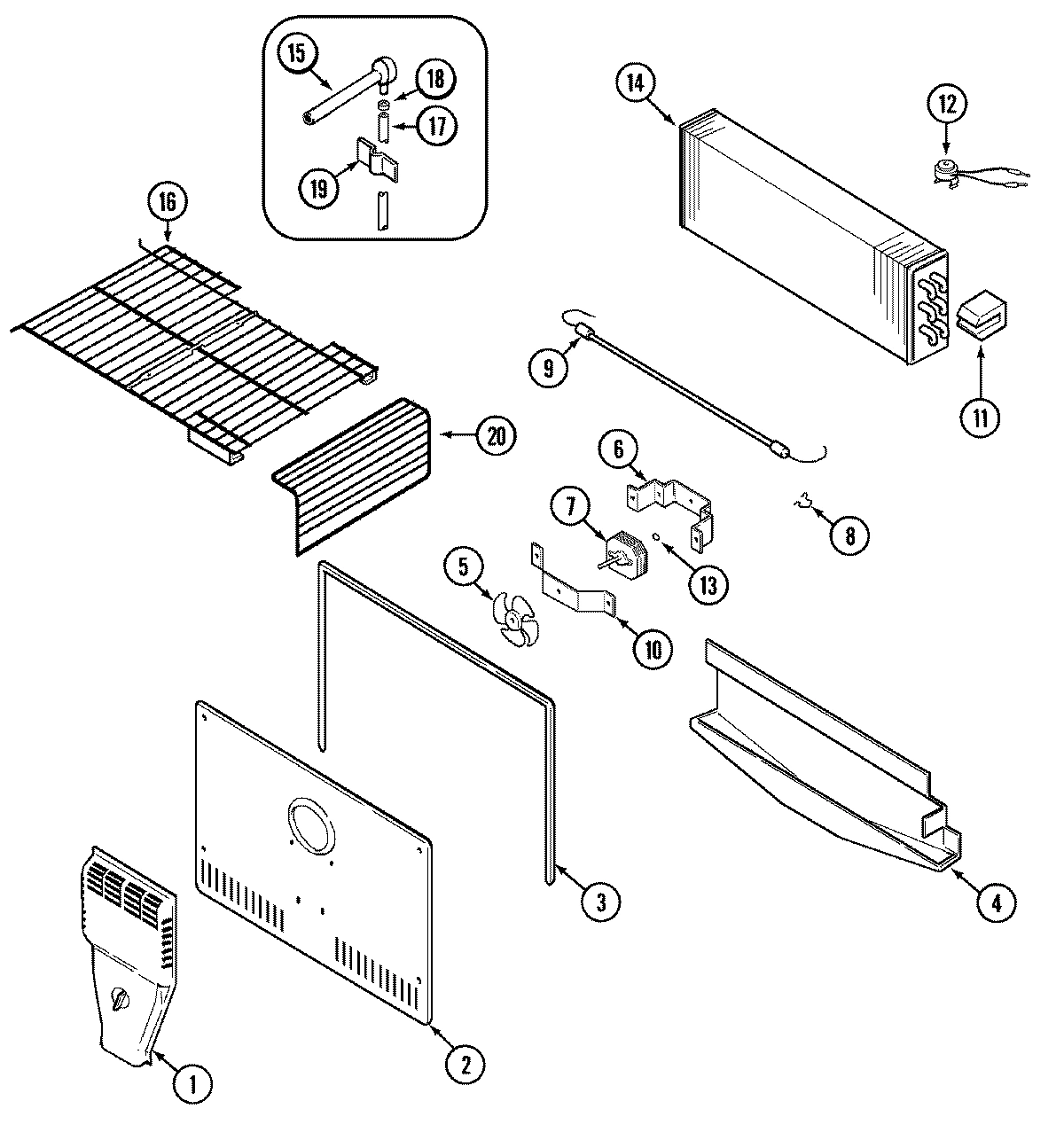

04 - FREEZER COMPARTMENT

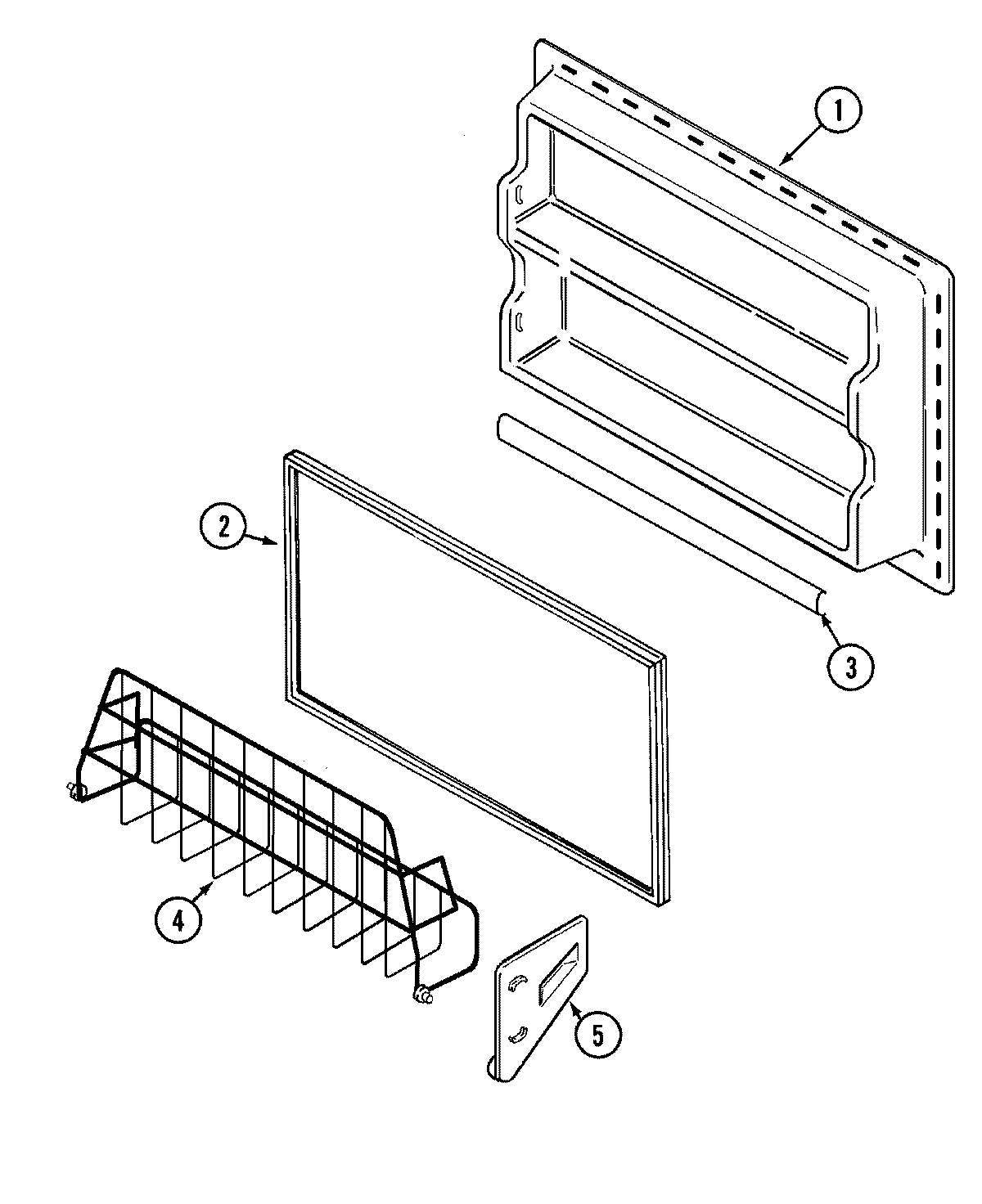

05 - FREEZER INNER DOOR

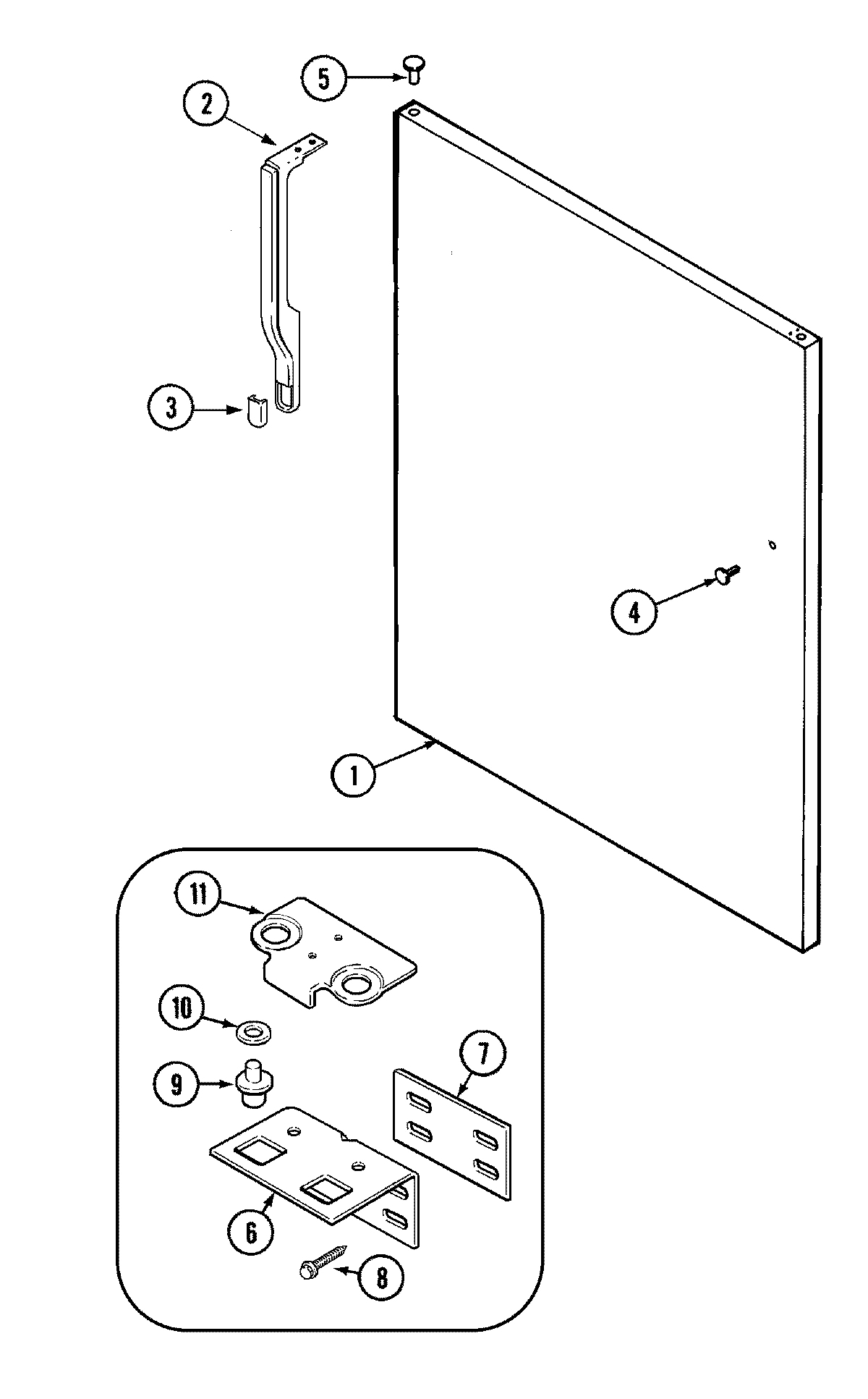

10 - FRESH FOOD OUTER DOOR (REV.12)
Common parts from model Whirlpool CTF2125GRQ REFRIGERATOR
1
KIT, COMPRESSOR WPL 12002059 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability
1
SCREW WPL 61005388 Contact Us For Availability
1
PANEL, FRZ. DOOR (BSQ) WPL 61004908 Contact Us For Availability
1
LABEL, DUAL ENERGY GUIDE WPL 61005741 Contact Us For Availability
1
PANEL, F.F. DOOR (BSQ) WPL 61004902 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002742 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61005195 Contact Us For Availability
1
TUNNEL, AIR WPL 61005596 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002566 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
NAMEPLATE (BSQ) WPL 61004909 Contact Us For Availability
2
SCREW WPL 61005394 Contact Us For Availability
2
HANDLE, F.F. DOOR (BSQ) WPL 61004903 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
DOOR, DAIRY WPL 61002549 Contact Us For Availability
2
PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002538 Contact Us For Availability
2
HANDLE, F.F. DOOR (BSQ) WPL 61006002 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability
3
HANDLE, FRZ. DOOR (BSQ) WPL 61006001 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
HANDLE, FRZ. DOOR (BSQ) WPL 61004910 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61004498 Contact Us For Availability
3
TRIM, DOOR SHELF (26 5/8``) WPL 61002555 Contact Us For Availability
3
CAP, HANDLE (BSQ) WPL 61006006 Contact Us For Availability
4
RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability
4
CLIP, RETAINER WPL 61006029 Contact Us For Availability
4
PLUG BUTTON, HANDLE TOP (BSQ) WPL 61004907 Contact Us For Availability
4
INSERT, HANDLE (BSQ) WPL 61004904 Contact Us For Availability
4
PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004906 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
4
FRAME, HANDLE WPL 61002247 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004861 Contact Us For Availability
4
BASKET, TILT-OUT WPL 61002567 Contact Us For Availability
5
FRAME, SPLIT SHELF WPL 61002558 Contact Us For Availability
5
CAPACITOR, RUN WPL 658894 Contact Us For Availability
5
PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
INSERT, HANDLE (BSQ) WPL 61004911 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
STOP, BASKET (RT) WPL 61002379 Contact Us For Availability
5
STOP, BASKET (LT) WPL 61002380 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
6
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
6
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
6
SCREW WPL 4150331 Contact Us For Availability
6
HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
7
GLASS, FULL SHELF WPL 61002526 Contact Us For Availability
7
LEG, LEVELING WPL 61002014 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
END CAP, HANDLE (BSQ) WPL 61004905 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
TRIM, FULL SHELF (FRT) WPL 61002528 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
GROMMET WPL 697431 Contact Us For Availability
8
SCREW WPL 61004485 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
9
FRAME, MEAT SHELF WPL 61002523 Contact Us For Availability
9
CONDENSER WPL 61005454 Contact Us For Availability
9
SCREW WPL 61002924 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
PAN, UTILITY WPL 61002605 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SCREW WPL 4000311 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
SWITCH, LIGHT WPL 61006075 Contact Us For Availability
10
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
11
HOUSING, CONTROL WPL 61004622 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
12
SHELF, CRISPER WPL 61002560 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
HINGE, UPPER WPL 61004896 Contact Us For Availability
12
ARM, SENSOR WPL 61005173 Contact Us For Availability
12
CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002530 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
13
COVER, ICE MAKER WPL 61005374 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
14
SEAL, CRISPER SHELF (REAR) WPL 61003416 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002532 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability
15
STOP, DOOR WPL 61005602 Contact Us For Availability
15
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
16
PAN, DRAIN WPL 61004095 Contact Us For Availability
16
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
SHELF, FRZ. WPL 61002628 Contact Us For Availability
17
PAN, CRISPER WPL 61004546 Contact Us For Availability
17
HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability
18
RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SCREW WPL 61002025 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
19
TRIM, FULL SHELF (REAR) WPL 61002527 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
19
COVER, UPPER HINGE (BSQ) WPL 61004786 Contact Us For Availability
19
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
20
PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
LEG, FRZ. SHELF WPL 61002270 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability
21
SCREW WPL 652751 Contact Us For Availability
21
ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability
22
KICKPLATE W/CLIPS (BSQ) WPL 61004901 Contact Us For Availability
23
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
24
SCREW WPL 4000161 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003420 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability
× ![]()
