Model Whirlpool CTF2120ARW REFRIGERATOR – Common Parts & Diagrams

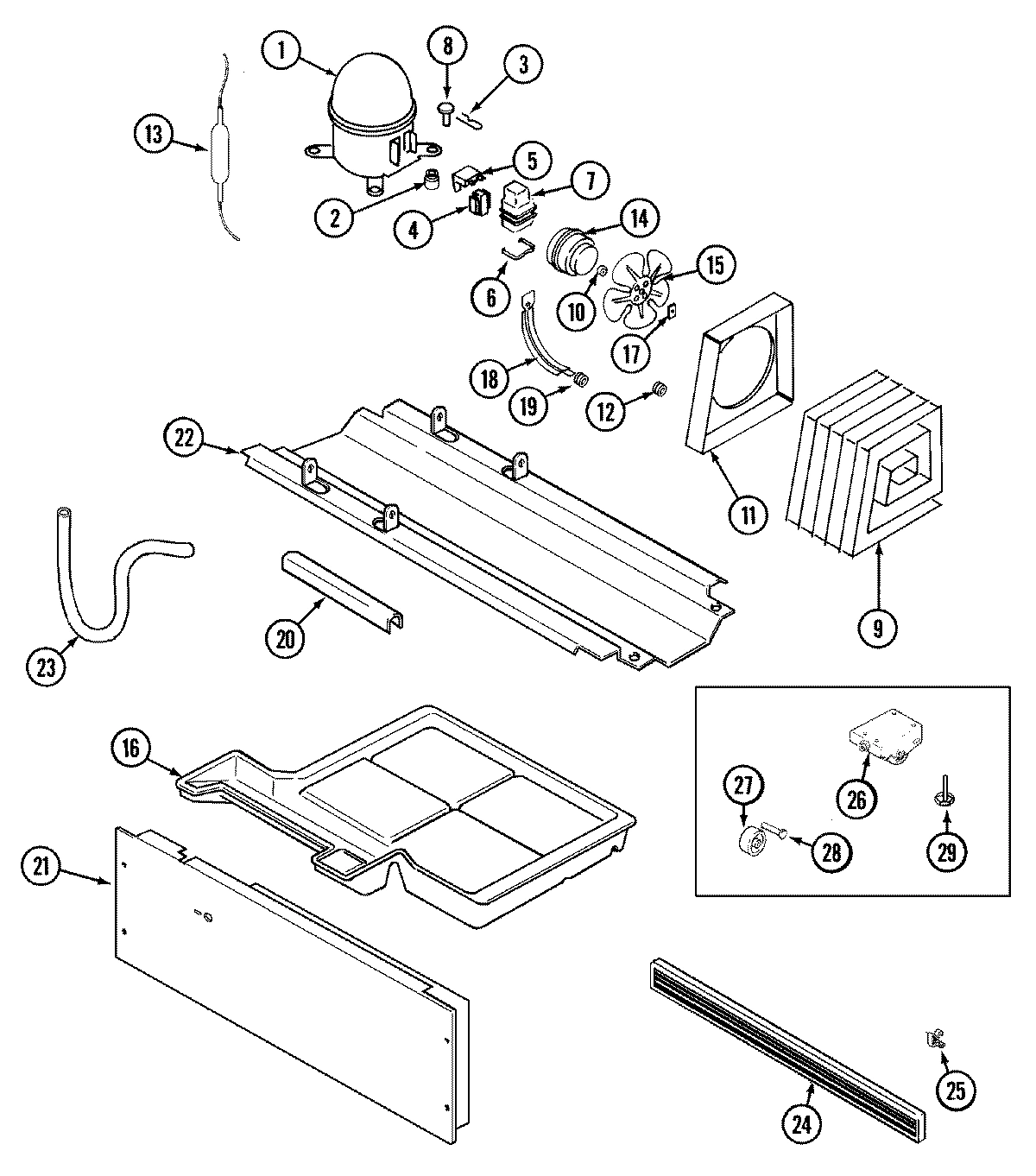

01 - COMPRESSOR

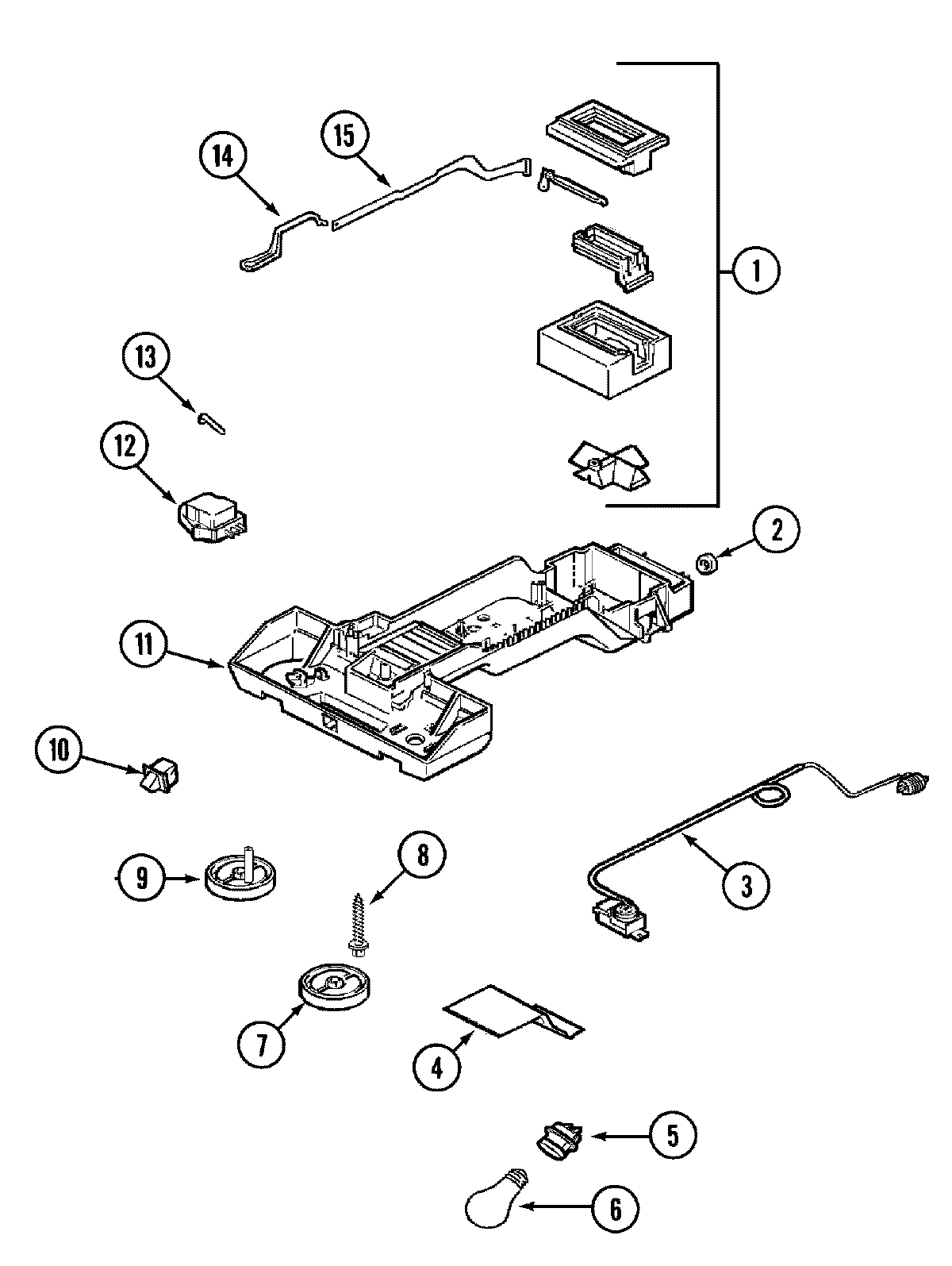

02 - CONTROLS

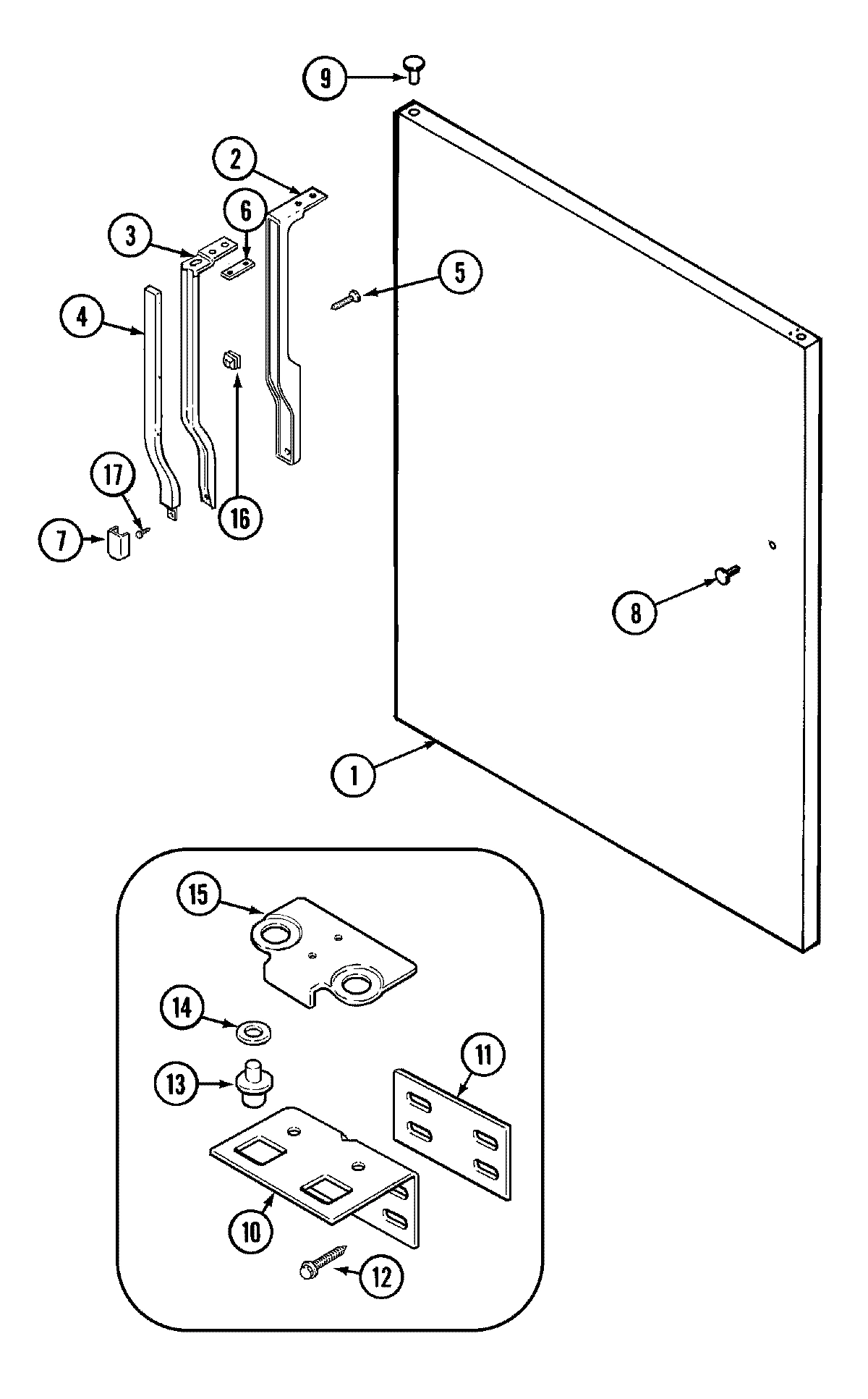

07 - FRESH FOOD OUTER DOOR

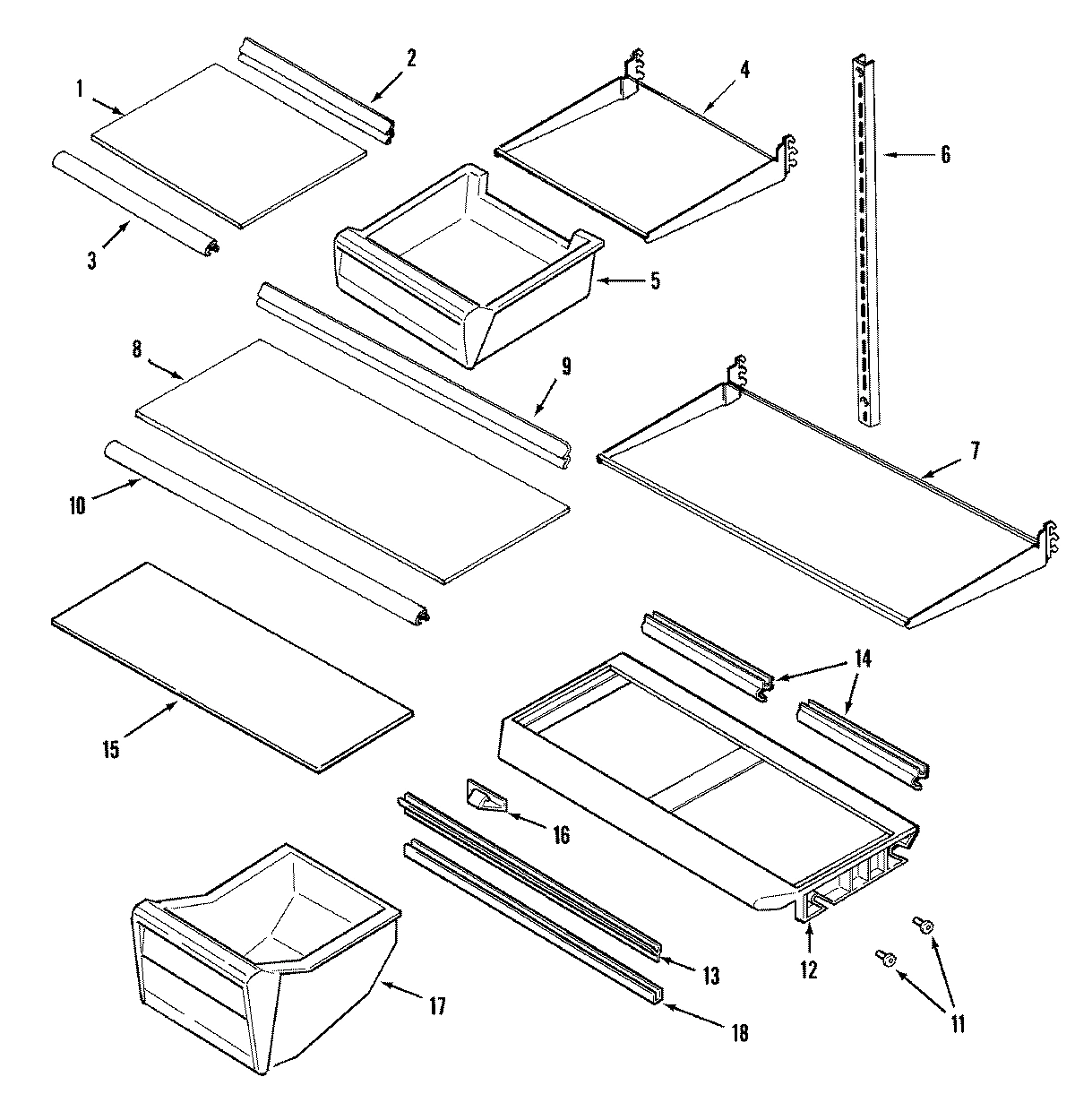

09 - SHELVES & ACCESSORIES
08 - ICE MAKER

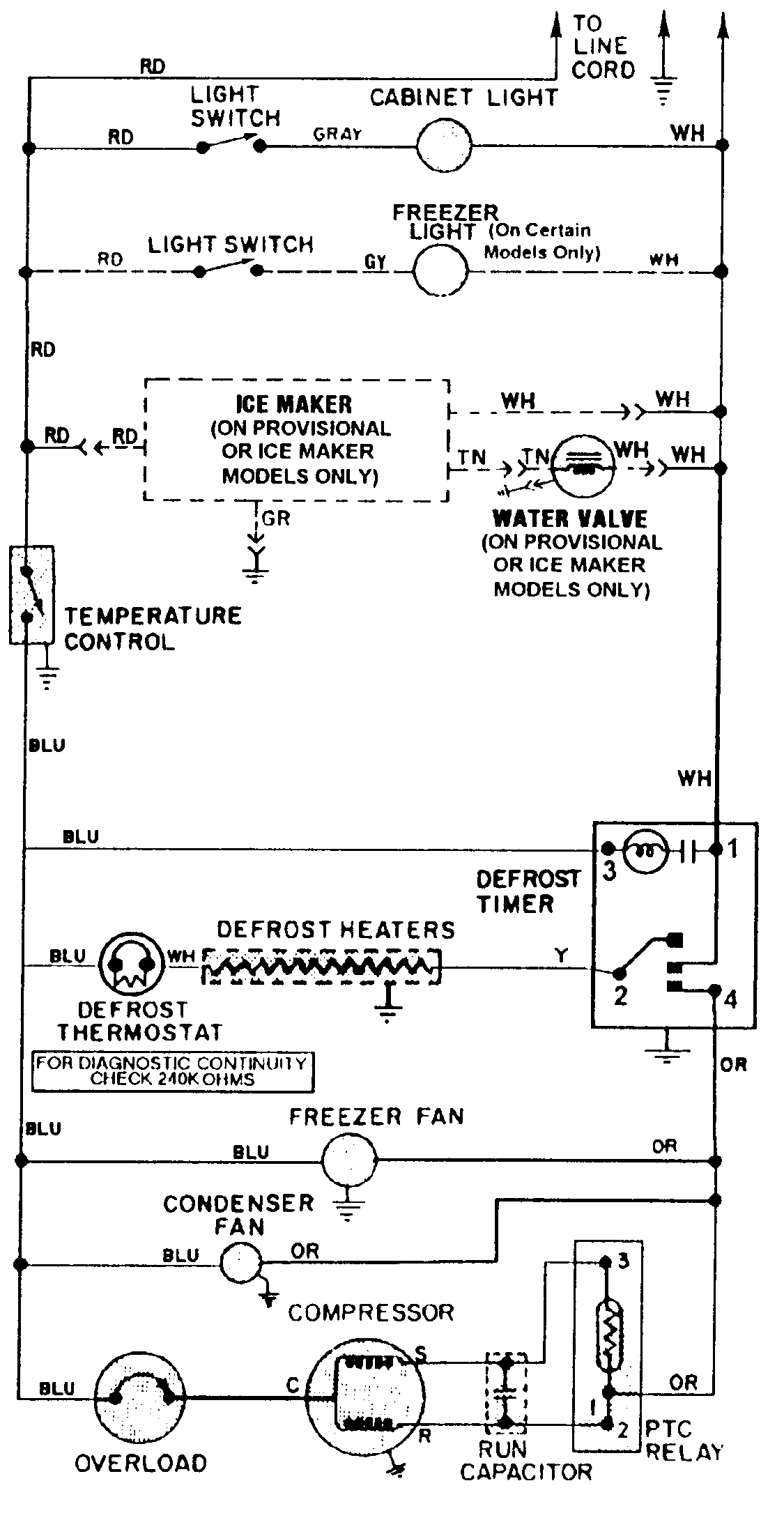

10 - WIRING INFORMATION

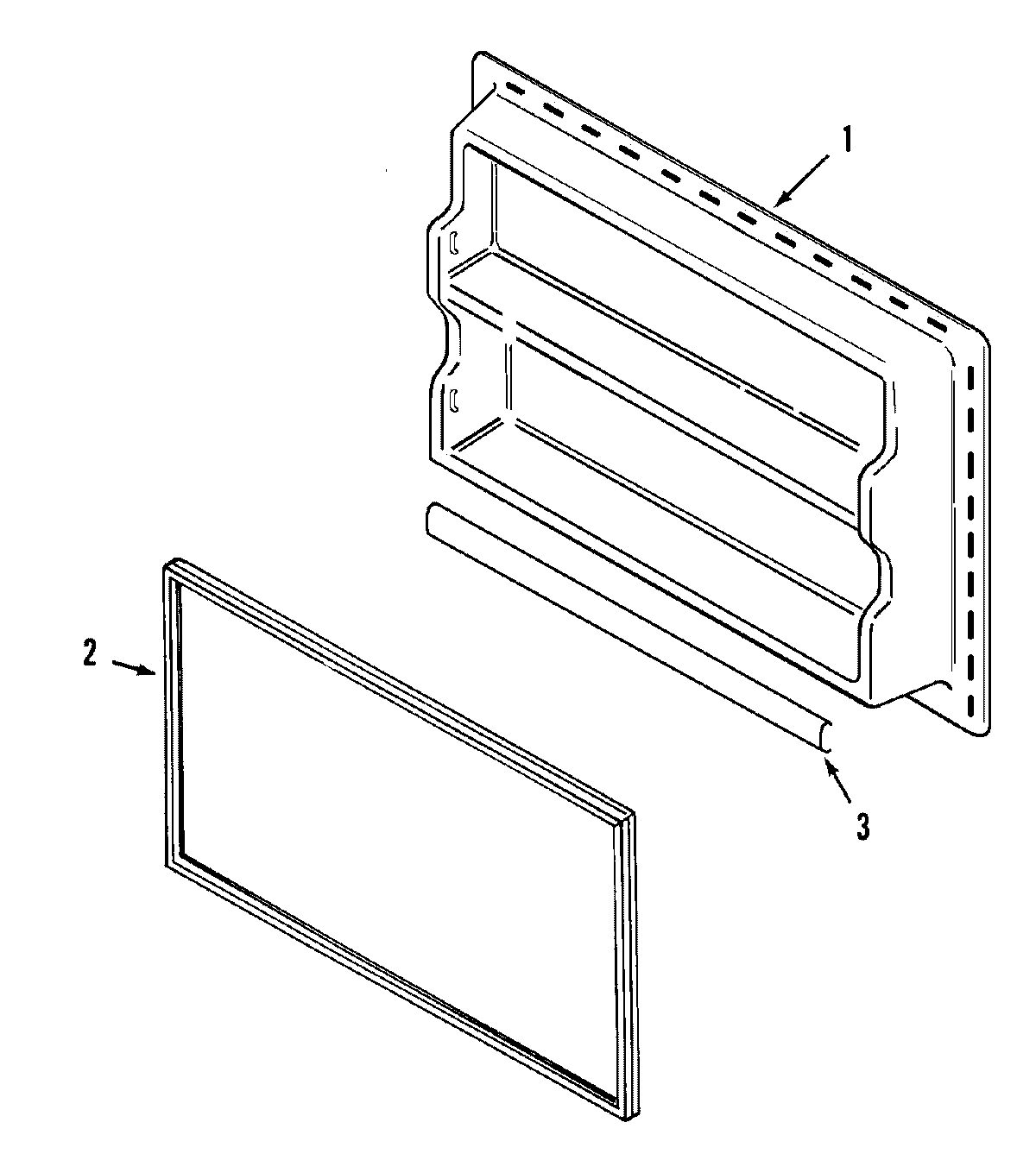

04 - FREEZER INNER DOOR

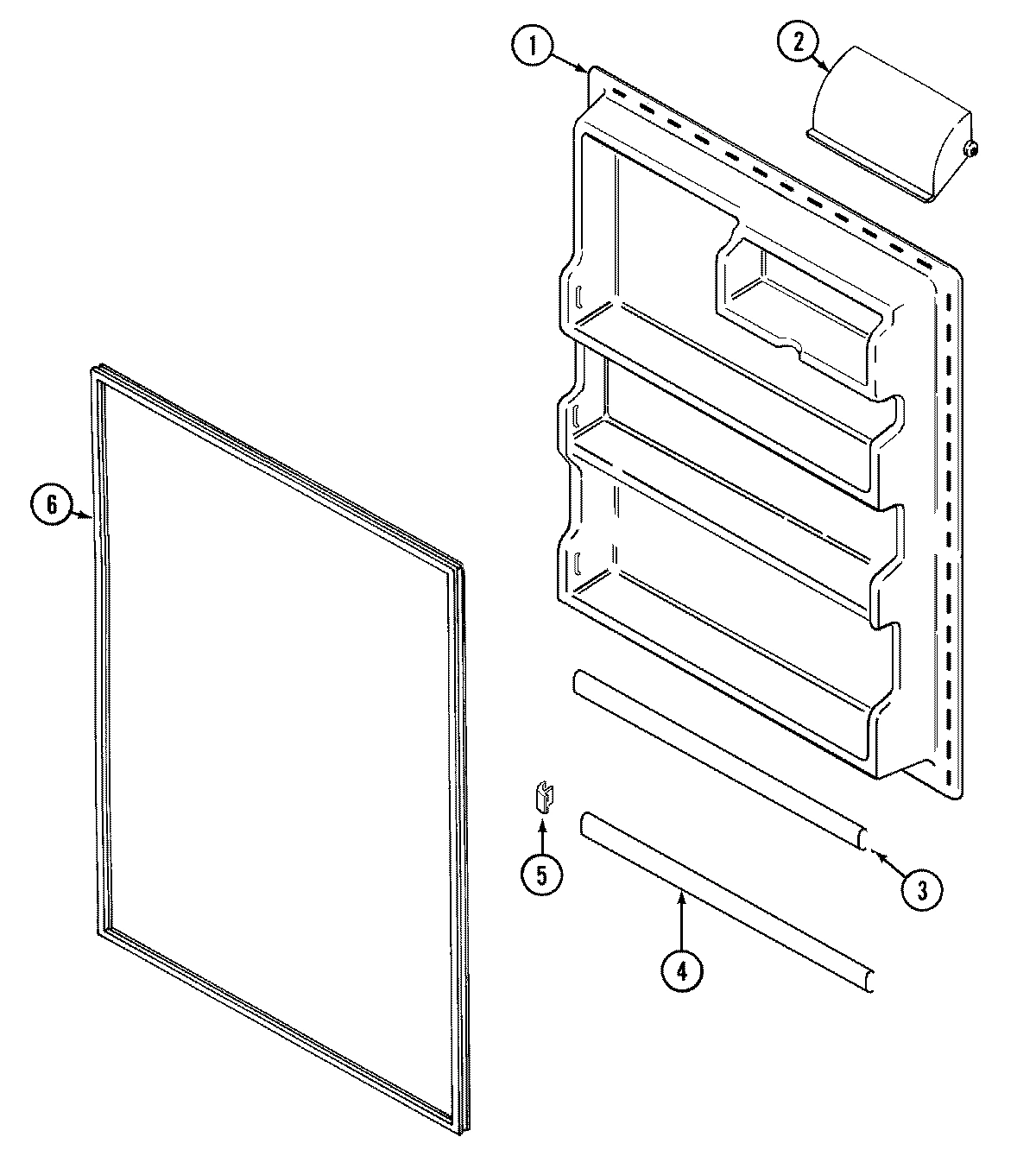

06 - FRESH FOOD INNER DOOR

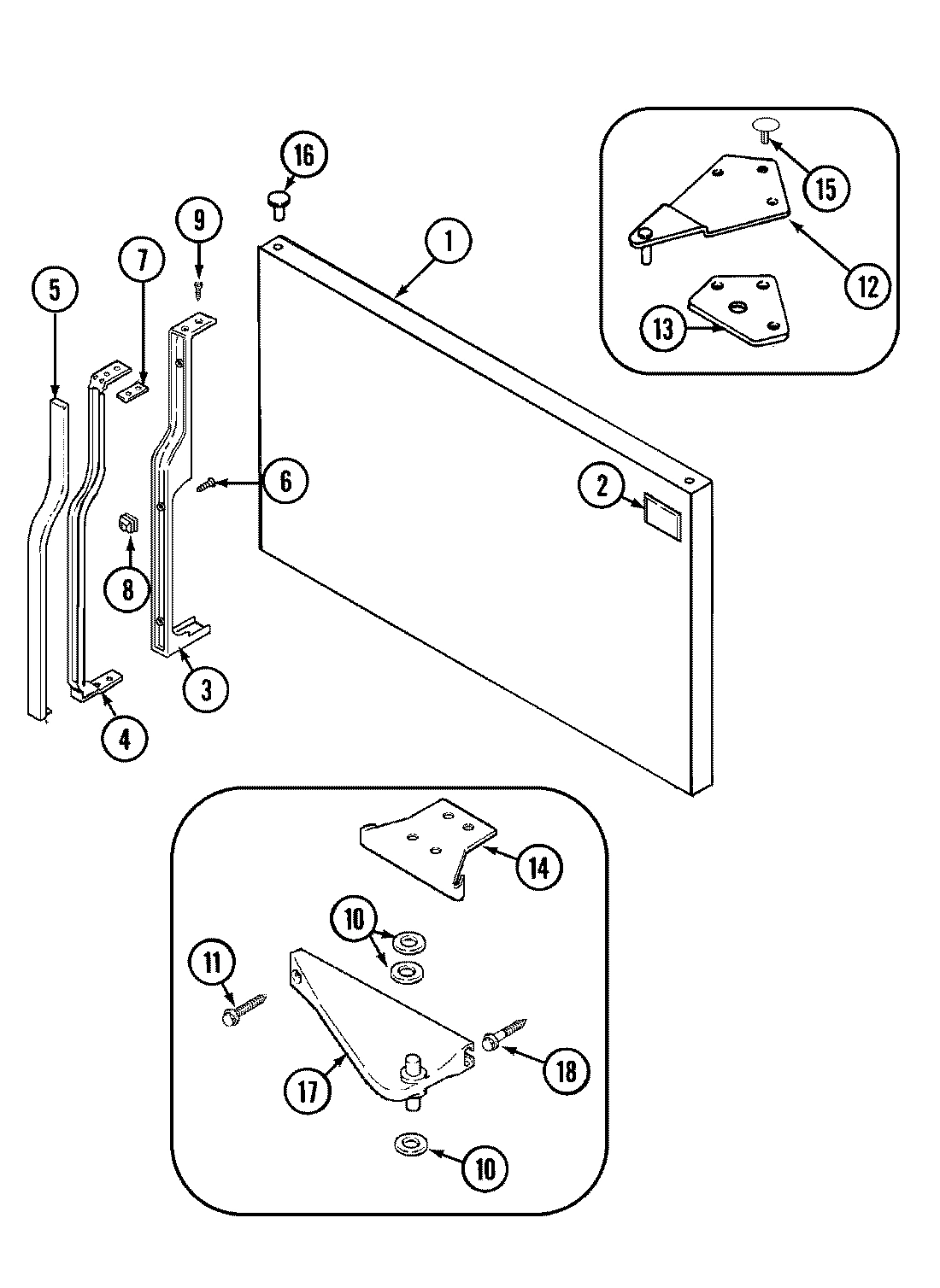

05 - FREEZER OUTER DOOR

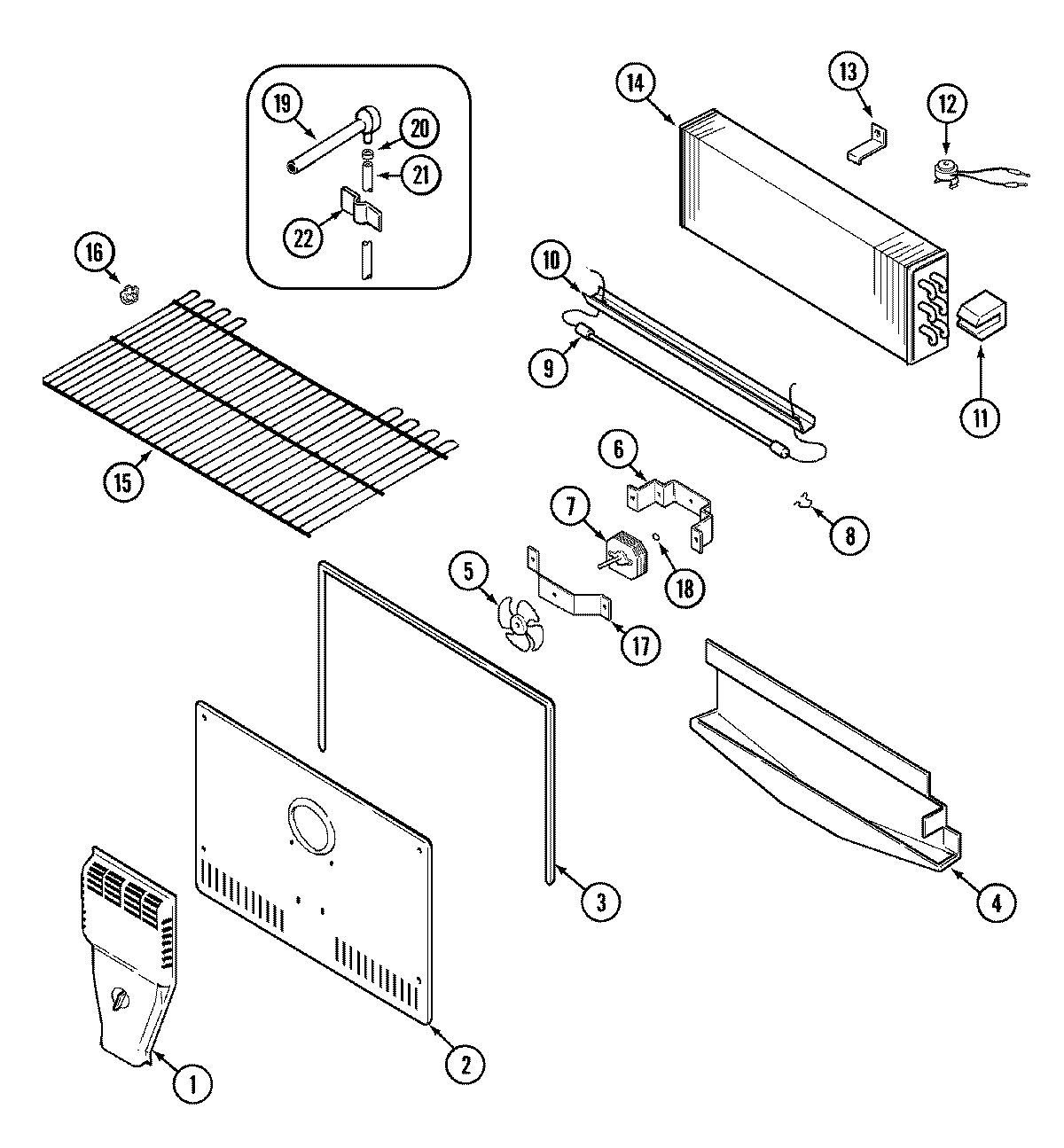

03 - FREEZER COMPARTMENT
Common parts from model Whirlpool CTF2120ARW REFRIGERATOR
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 61002546 Contact Us For Availability
1
GLASS, SPLIT/MEAT SHELF WPL 61002520 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002554 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61002556 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002548 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61002552 Contact Us For Availability
1
TUNNEL, AIR WPL 61002205 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HANDLE, F.F. DOOR (WHT) WPL 700513 Contact Us For Availability
2
TRIM, MEAT/SPLIT SHELF (REAR) WPL 61002521 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
DOOR, DAIRY WPL 61002549 Contact Us For Availability
2
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002538 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability
3
TRIM, MEAT/SPLIT SHELF (FRT) WPL 61002522 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
TRIM, DOOR SHELF (26 5/8``) WPL 61002555 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002419 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002539 Contact Us For Availability
4
FOIL, BARRIER WPL 61001949 Contact Us For Availability
4
INSERT, HANDLE (WHT) WPL 7005318 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 61002523 Contact Us For Availability
4
FRAME, SPLIT SHELF WPL 61002558 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
FRAME, HANDLE WPL 61002247 Contact Us For Availability
4
TRAY, DRIP WPL 61002541 Contact Us For Availability
5
PAN, UTILITY WPL 61002605 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
INSERT, HANDLE (WHT) WPL 61002248 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
SCREW WPL 4150331 Contact Us For Availability
6
SCREW WPL 4000221 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
6
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
END CAP, HANDLE (WHT) WPL 700582 Contact Us For Availability
7
FRAME, FULL SHELF WPL 61002533 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
8
GROMMET WPL 697431 Contact Us For Availability
8
GLASS, FULL SHELF WPL 61002526 Contact Us For Availability
9
COIL, CONDENSER WPL 61002048 Contact Us For Availability
9
SCREW WPL 61001875 Contact Us For Availability
9
TRIM, FULL SHELF (REAR) WPL 61002527 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
10
TRIM, FULL SHELF (FRT) WPL 61002528 Contact Us For Availability
10
SCREW WPL 4000311 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61002543 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
HOUSING, CONTROL WPL 61001997 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
11
SCREW WPL 4000171 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
SHELF, CRISPER WPL 61002560 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
HINGE, UPPER WPL 61001971 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002530 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
SCREW WPL 61001876 Contact Us For Availability
14
SEAL, CRISPER SHELF (REAR) WPL 61002531 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
15
STOP, DOOR WPL 61001969 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002532 Contact Us For Availability
15
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
15
SHELF, FRZ. WPL 61002544 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
16
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
16
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
16
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
17
PAN, CRISPER WPL 61002561 Contact Us For Availability
17
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
17
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SUPPORT, CRISPER PAN WPL 61002535 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
SCREW WPL 61002025 Contact Us For Availability
18
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61002518 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002519 Contact Us For Availability
22
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
24
KICKPLATE W/CLIPS (WHT) WPL 61002536 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
26
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001981 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002139 Contact Us For Availability
NI
WIRE HARNESS, FREEZER WPL 61002545 Contact Us For Availability
× ![]()
