Model Whirlpool CTB2424ARA REFRIGERATOR – Common Parts & Diagrams

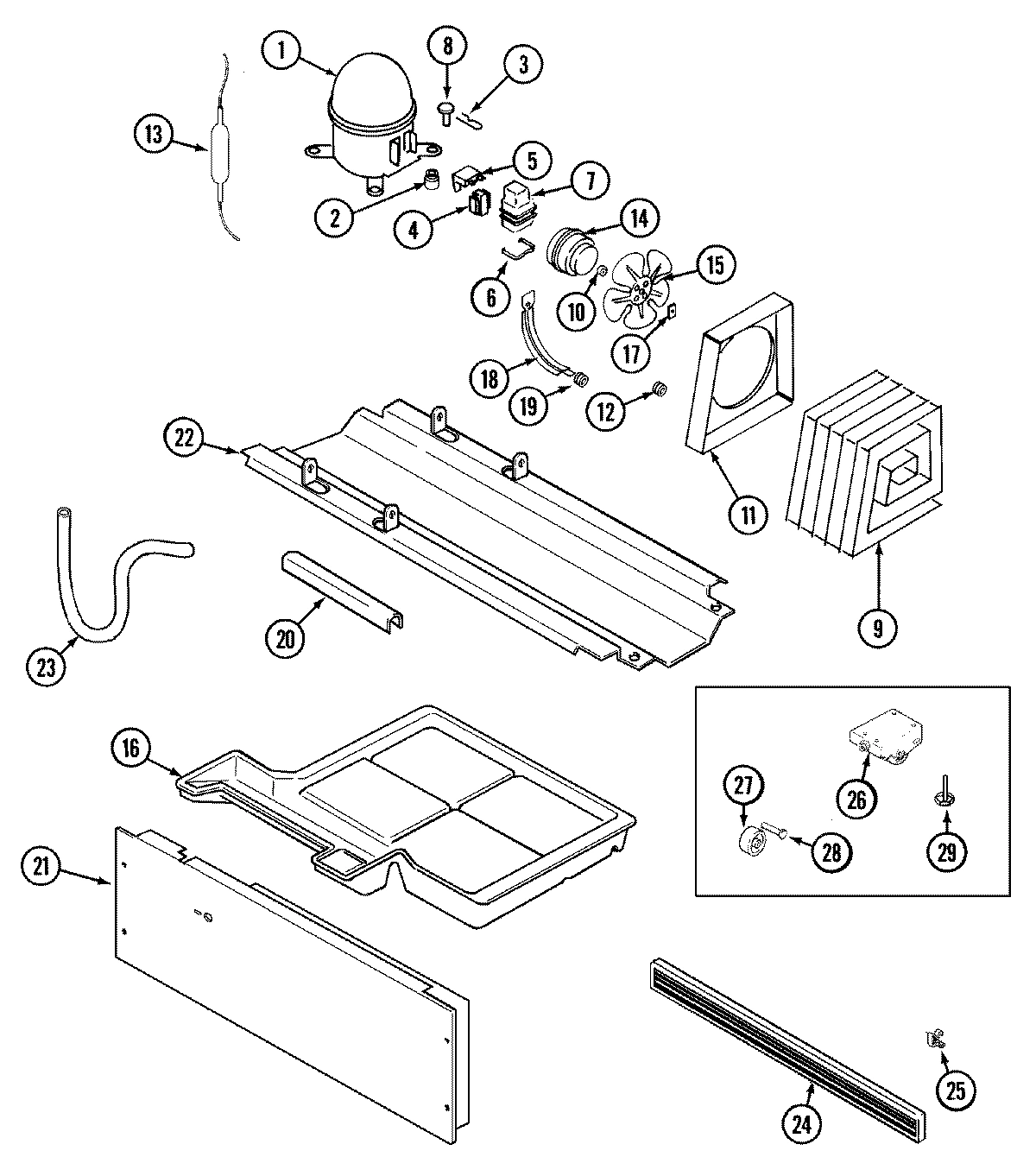

01 - COMPRESSOR
08 - OPTIONAL ICE MAKER KIT-UKI1000AXX

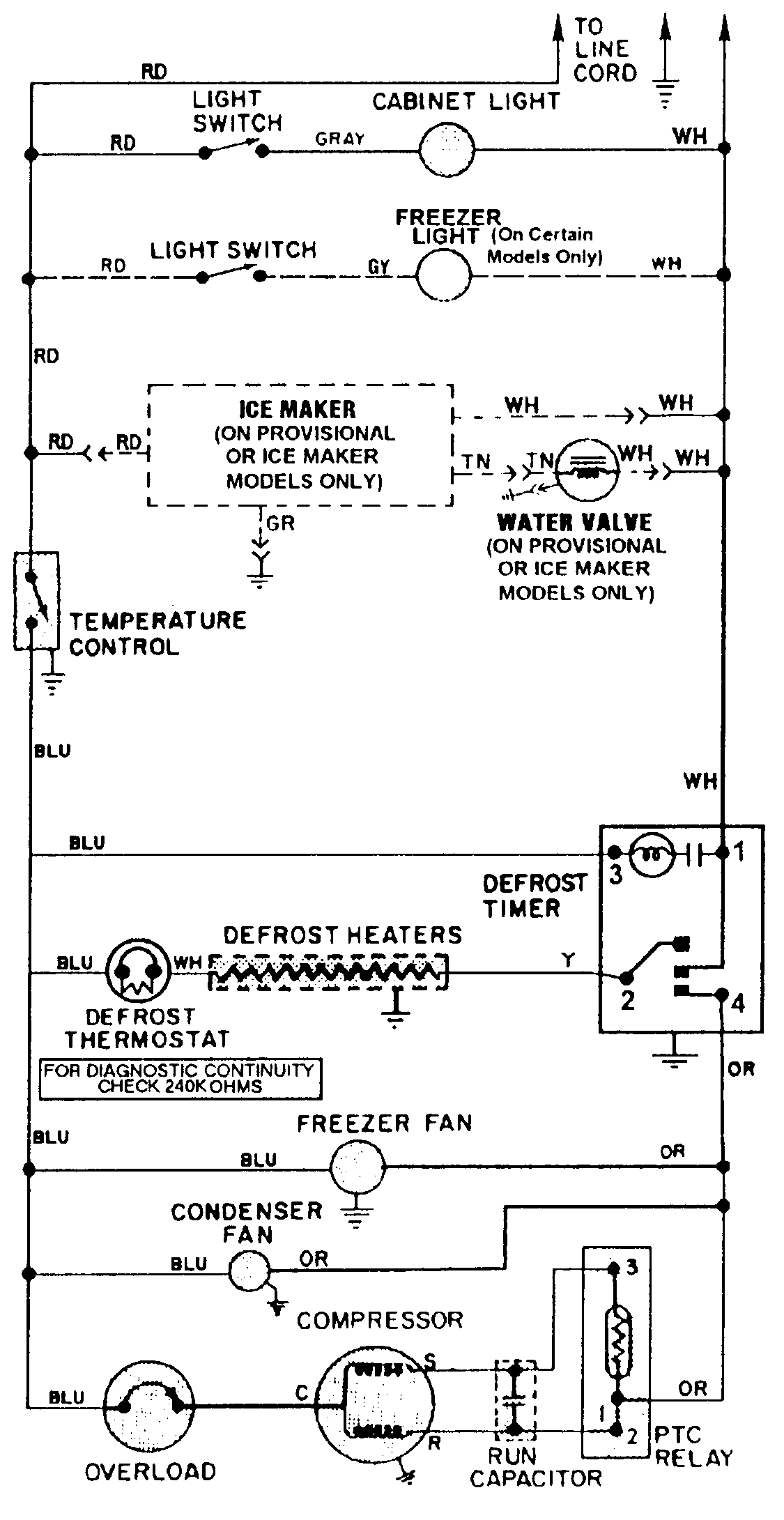

10 - WIRING INFORMATION

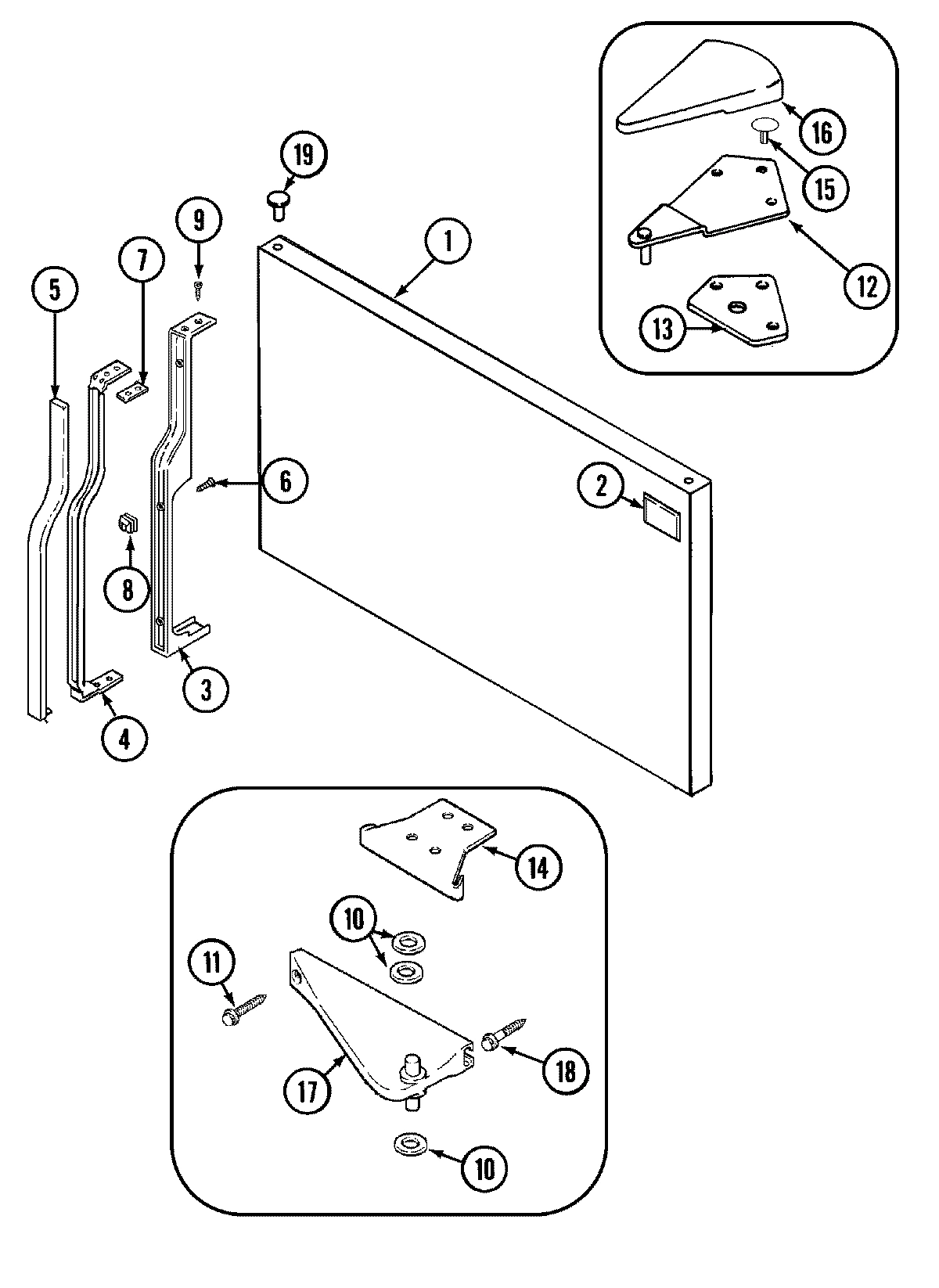

05 - FREEZER OUTER DOOR

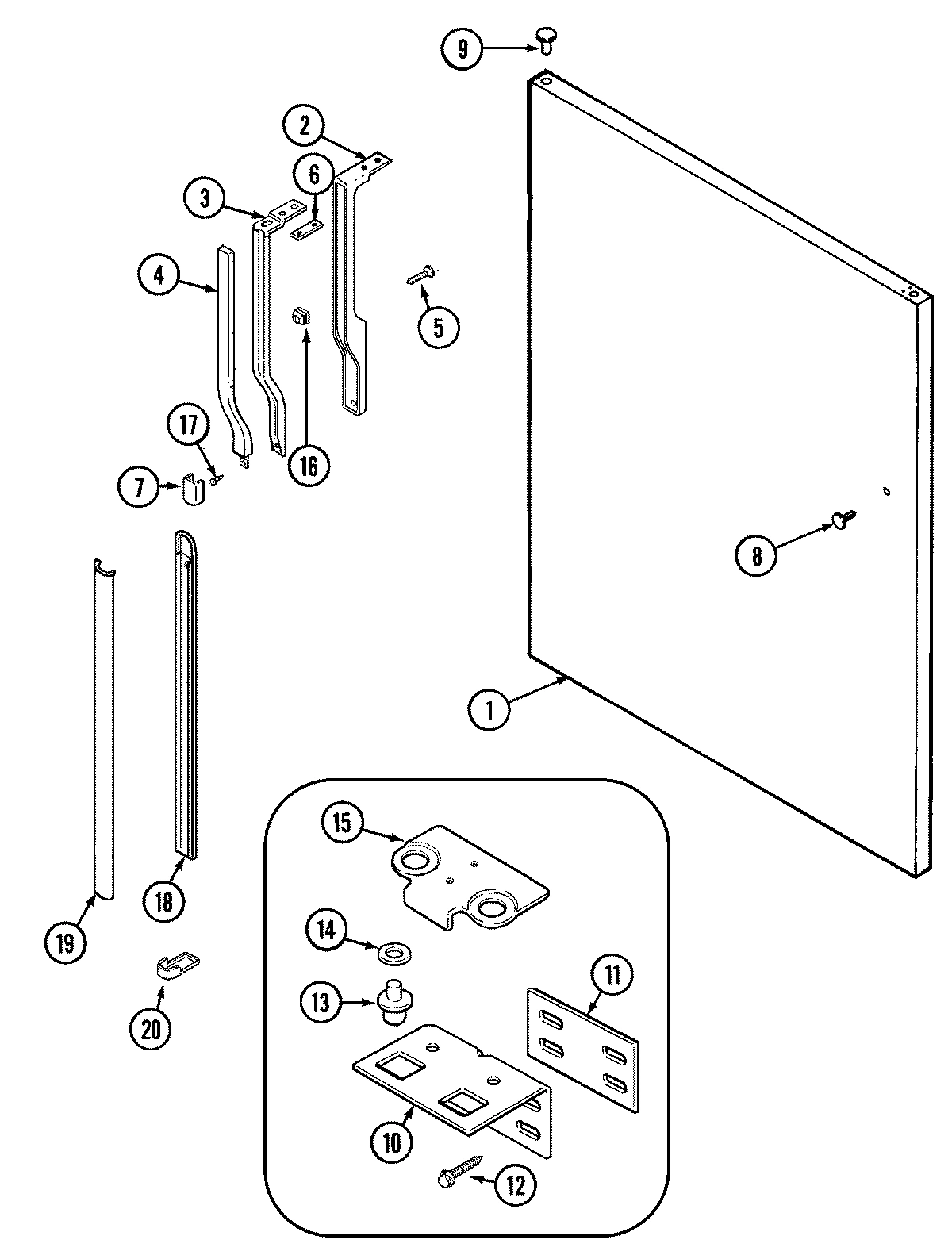

07 - FRESH FOOD OUTER DOOR

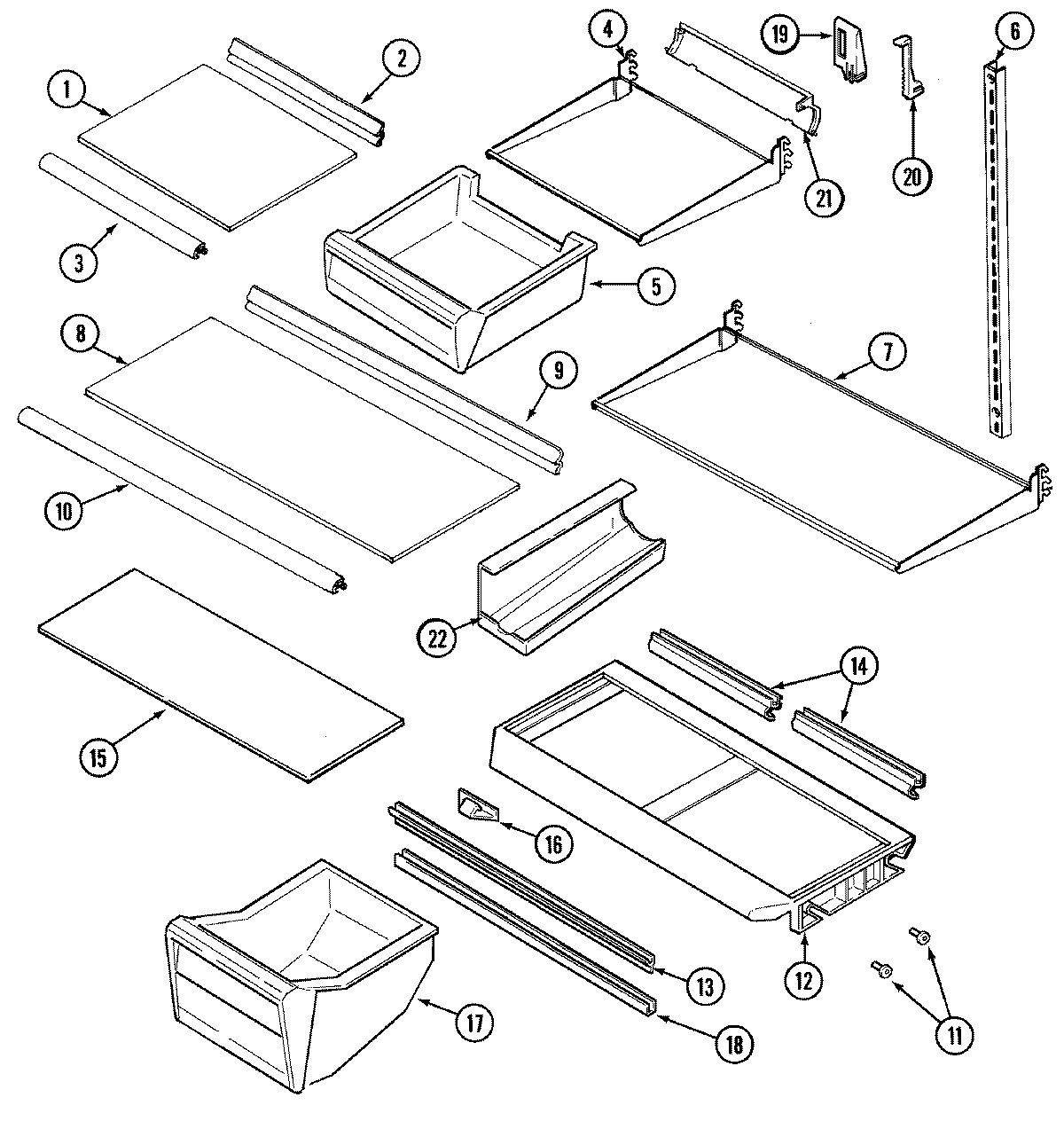

09 - SHELVES & ACCESSORIES

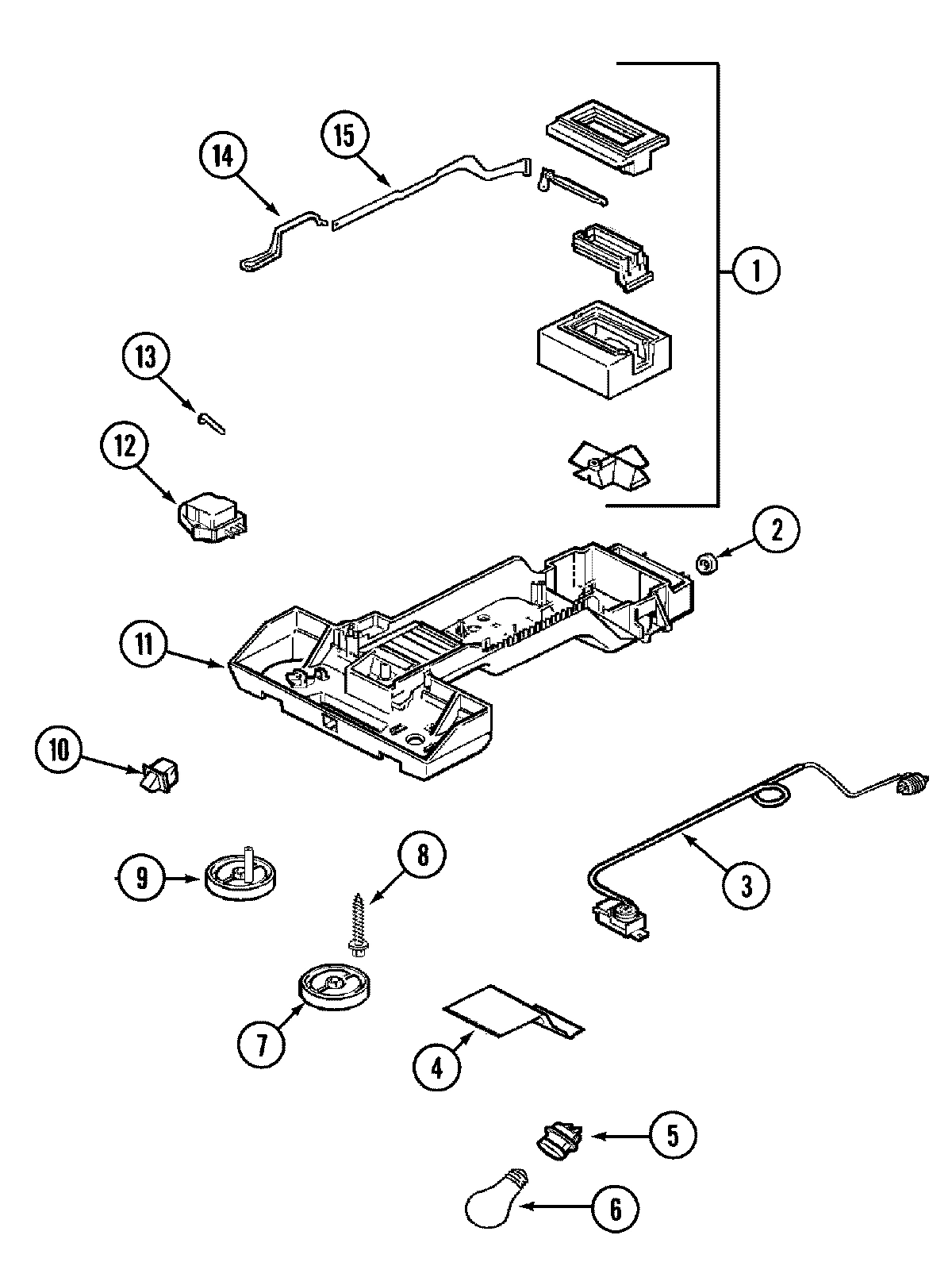

02 - CONTROLS

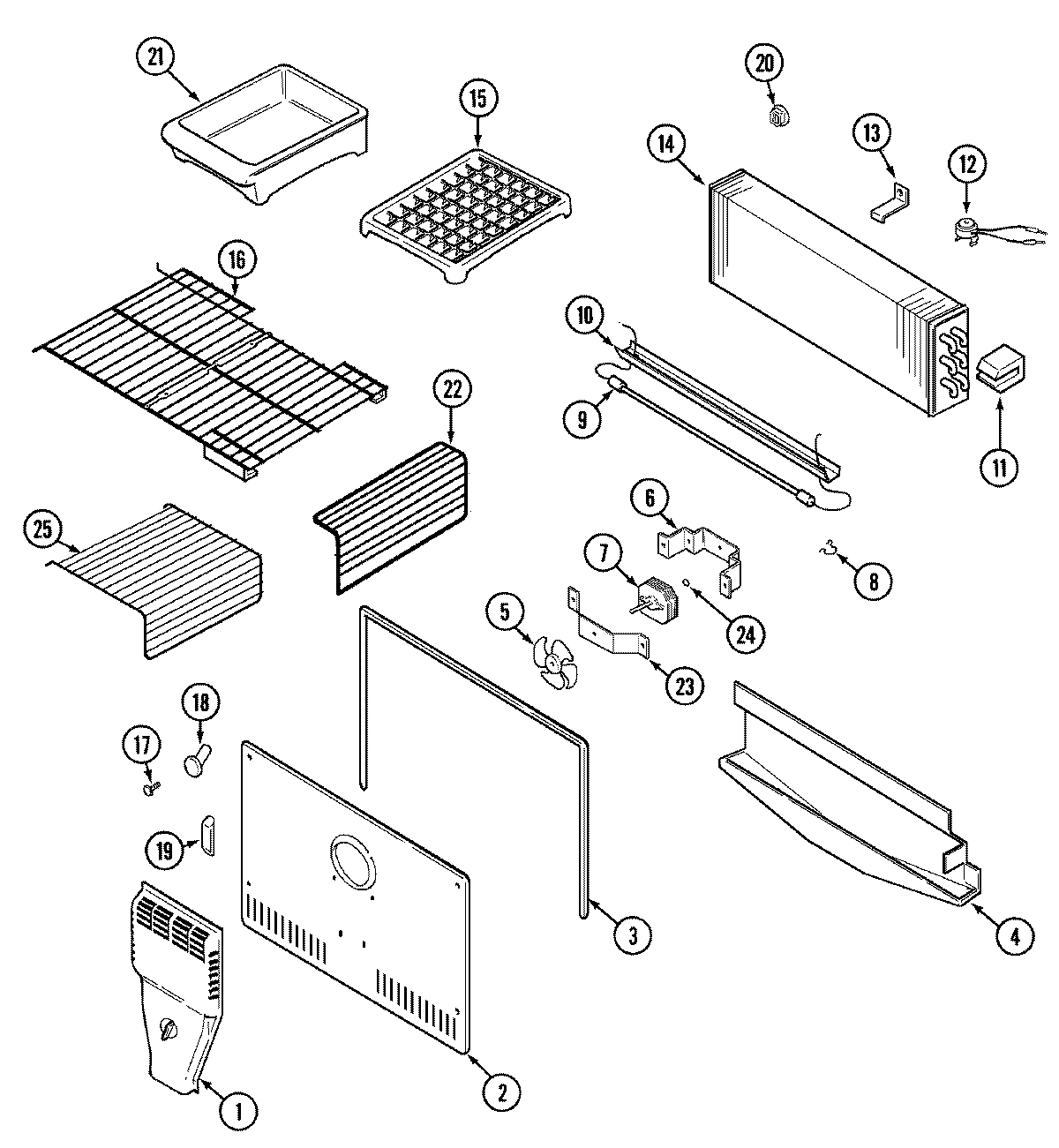

03 - FREEZER COMPARTMENT

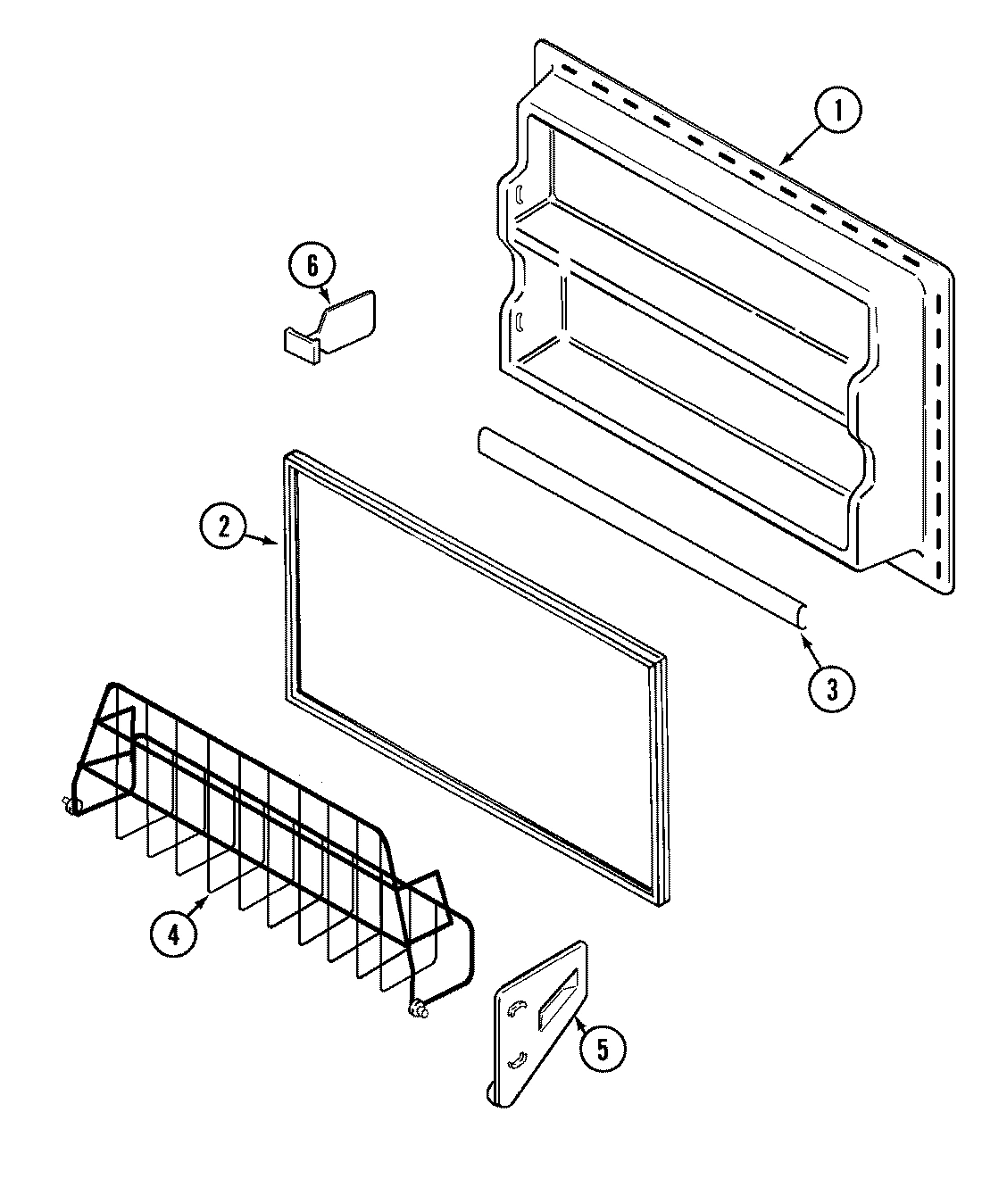

04 - FREEZER INNER DOOR

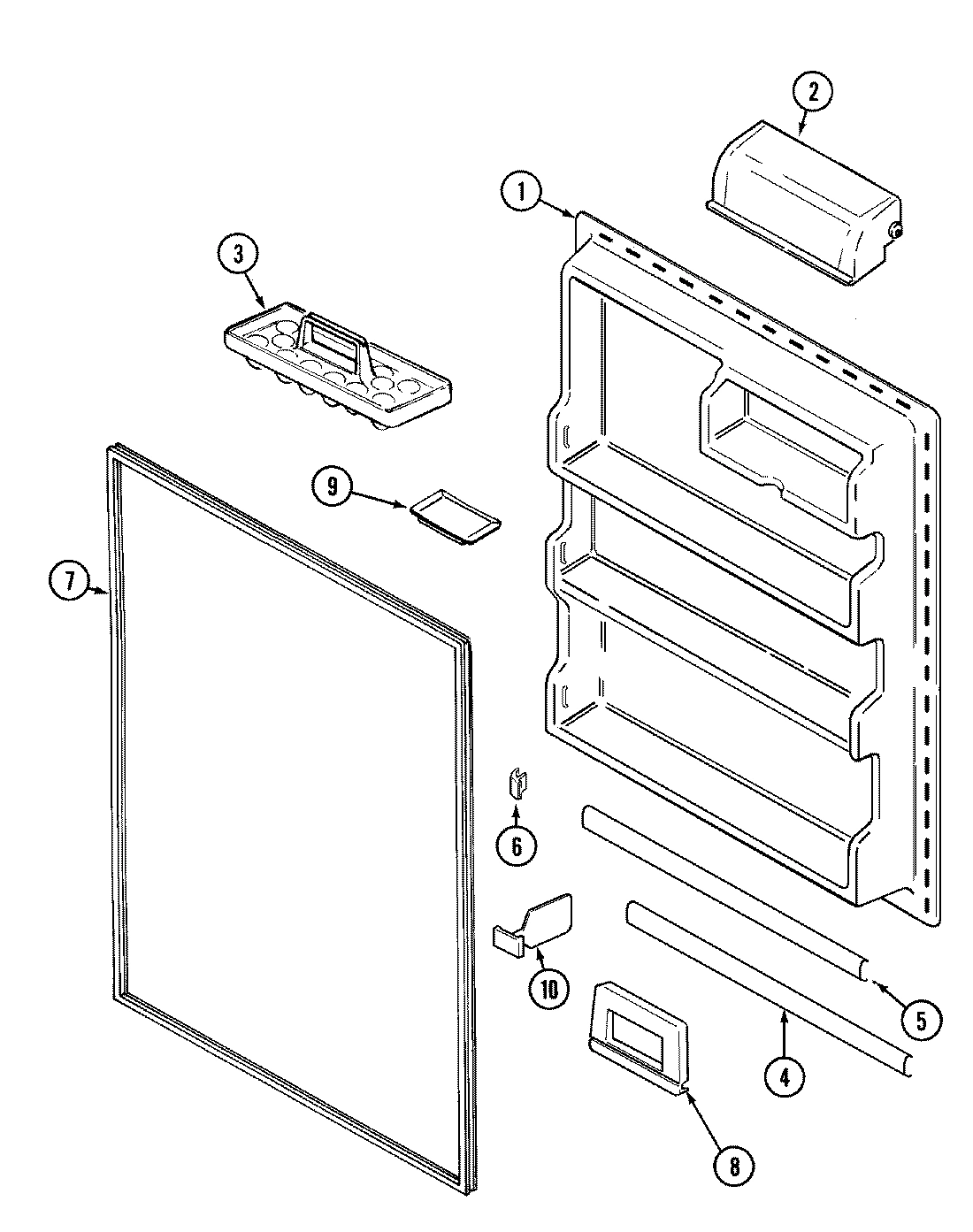

06 - FRESH FOOD INNER DOOR
Common parts from model Whirlpool CTB2424ARA REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 61002789 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 61002547 Contact Us For Availability
1
GLASS, SPLIT SHELF WPL 61002763 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
TUNNEL, AIR WPL 61002752 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61002674 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002724 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002788 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability
2
HANDLE, F.F. DOOR WPL 700512 Contact Us For Availability
2
TRIM, MEAT/SPLIT SHELF (REAR) WPL 61002521 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002765 Contact Us For Availability
2
DOOR, DAIRY WPL 61002549 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
HANDLE, FRZ. DOOR WPL 61002771 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
TRIM, MEAT/SPLIT SHELF (FRT) WPL 61002522 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002086 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002659 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002660 Contact Us For Availability
3
TRIM, DOOR SHELF (26 5/8``) WPL 61002555 Contact Us For Availability
3
TRAY, EGG WPL 600661 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
FRAME, FRZ. DOOR HANDLE WPL 61002772 Contact Us For Availability
4
INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability
4
FRAME, SPLIT SHELF WPL 61002767 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 61002769 Contact Us For Availability
4
FOIL, BARRIER WPL 61001949 Contact Us For Availability
4
TRAY, DRIP WPL 61002541 Contact Us For Availability
4
BASKET, TILT-OUT WPL 61002567 Contact Us For Availability
4
TRIM, DOOR SHELF (26 1/4``) WPL 61002774 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
INSERT, HANDLE (ALM) WPL 61002790 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
PAN, MEAT WPL 61002784 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
STOP, BASKET (RT) WPL 61002379 Contact Us For Availability
5
STOP, BASKET (LT) WPL 61002380 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 61002620 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SHIM, HANDLE WPL 679341 Contact Us For Availability
6
SCREW WPL 4000221 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
6
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
END CAP, HANDLE (ALM) WPL 61001128 Contact Us For Availability
7
FRAME, FULL SHELF WPL 61002768 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
8
PLUG BUTTON (ALM) WPL 61001796 Contact Us For Availability
8
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
GLASS, FULL SHELF WPL 61002764 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
RETAINER, BOTTLE WPL 61002333 Contact Us For Availability
9
COIL, CONDENSER WPL 61002048 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
PLUG BUTTON, HINGE CUP (ALM) WPL 61001909 Contact Us For Availability
9
TRIM, FULL SHELF (REAR) WPL 61002527 Contact Us For Availability
9
TRAY, BUTTER WPL 299362 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability
10
TRIM, FULL SHELF (FRT) WPL 61002528 Contact Us For Availability
10
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61002543 Contact Us For Availability
10
ORGANIZER, TRIM WPL 61002181 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
11
SCREW WPL 4000171 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
HOUSING, CONTROL WPL 61002782 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
HINGE, UPPER WPL 61001971 Contact Us For Availability
12
SHELF, CRISPER WPL 61002785 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002389 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
14
STOP, DOOR (ALM) WPL 61004486 Contact Us For Availability
14
SEAL, CRISPER (REAR) WPL 61002390 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
15
SCREW WPL 61001876 Contact Us For Availability
15
PLUG BUTTON, HINGE (ALM) WPL 61001924 Contact Us For Availability
15
STOP, DOOR WPL 61001969 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61002783 Contact Us For Availability
16
PAN, DRAIN WPL 61002649 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
GROMMET WPL 697431 Contact Us For Availability
16
COVER, UPPER HINGE (ALM) WPL 61002077 Contact Us For Availability
16
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
16
SHELF, FRZ. WPL 61002661 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
HINGE, CENTER (ALM) WPL 61001921 Contact Us For Availability
17
PAN, CRISPER WPL 61002787 Contact Us For Availability
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
SCREW WPL 61002025 Contact Us For Availability
18
SHIM, TRIM LOCK WPL 61002477 Contact Us For Availability
18
RAIL, CRISPER SUPPORT WPL 61002309 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, HANDLE EXT. (ALM) WPL 61002478 Contact Us For Availability
19
CONTROL, MEAT PAN WPL 61002562 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
SCREW WPL 61001875 Contact Us For Availability
20
END CAP WPL 700561 Contact Us For Availability
20
SLIDE, CONTROL (MEAT) WPL 61002563 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61002518 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
SC0OP, MEAT PAN WPL 61002564 Contact Us For Availability
21
PAN, ICE WPL 61002177 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002519 Contact Us For Availability
22
HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability
22
LEG, FRZ. SHELF WPL 61002662 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
23
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
24
KICKPLATE W/CLIPS (ALM) WPL 61002537 Contact Us For Availability
24
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
25
SHELF, FRZ. (UPPER) WPL 61002663 Contact Us For Availability
26
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61002135 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002140 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
WIRE HARNESS, FREEZER WPL 61002545 Contact Us For Availability
× ![]()
