Model Whirlpool CTB1521ARQ REFRIGERATOR – Common Parts &amp; Diagrams

1

CONTROL ASSY., TEMPERATURE WPL 61002088 Contact Us For Availability

1

SCREW WPL 6527581 Contact Us For Availability

1

WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

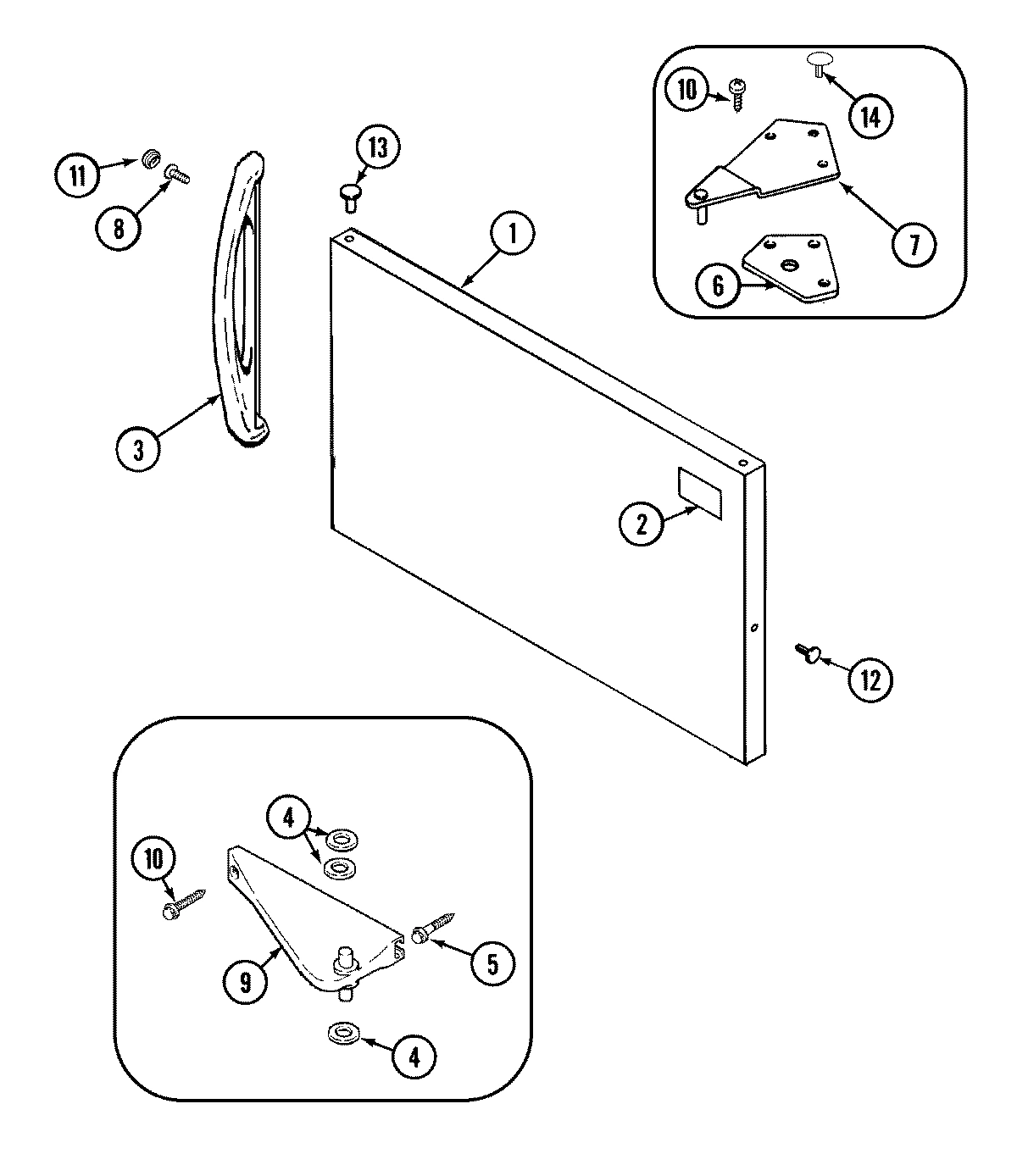

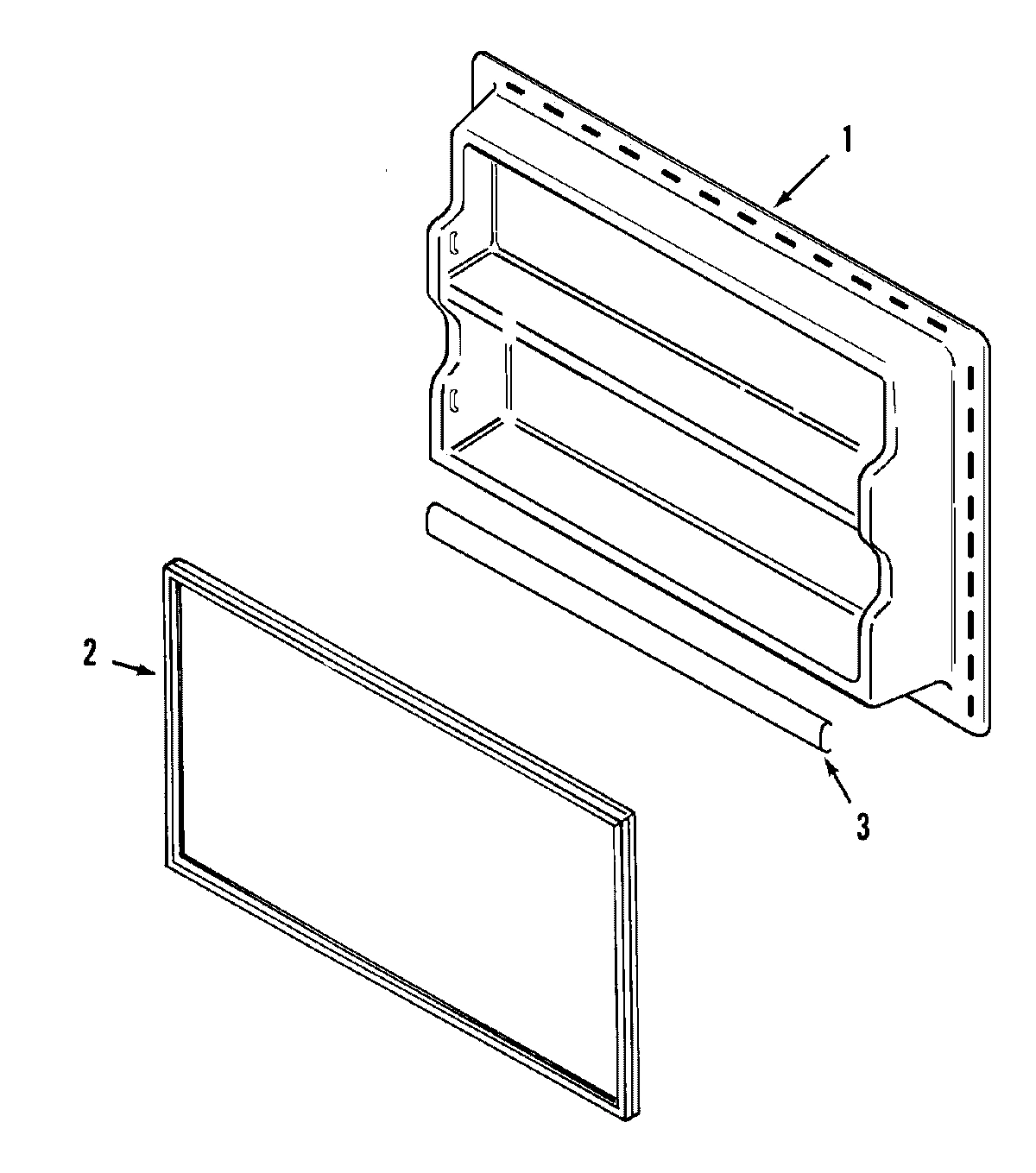

PANEL, FRZ. DOOR (BSQ) WPL 61004893 Contact Us For Availability

1

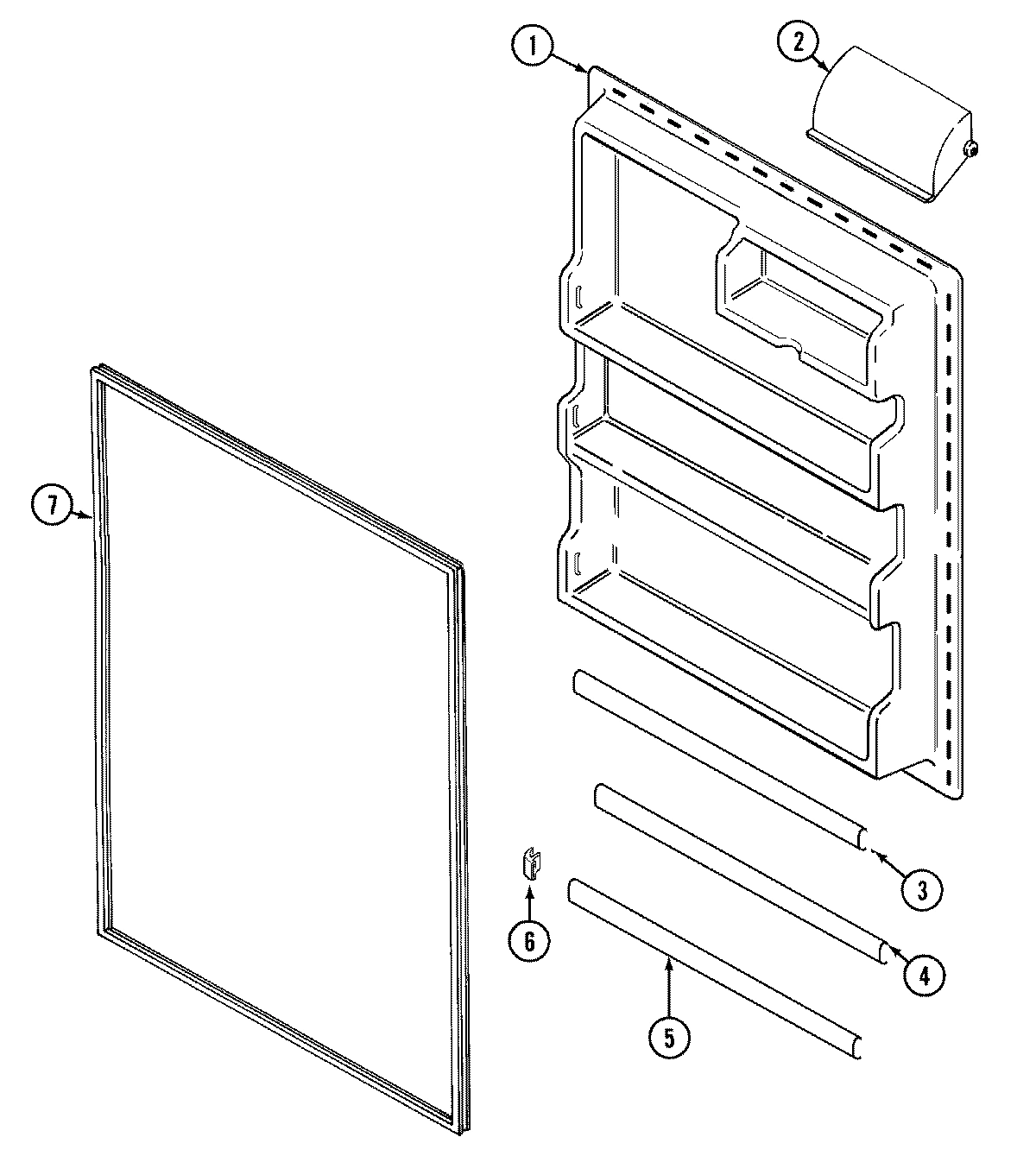

LINER, F.F. DOOR WPL 61001936 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability

1

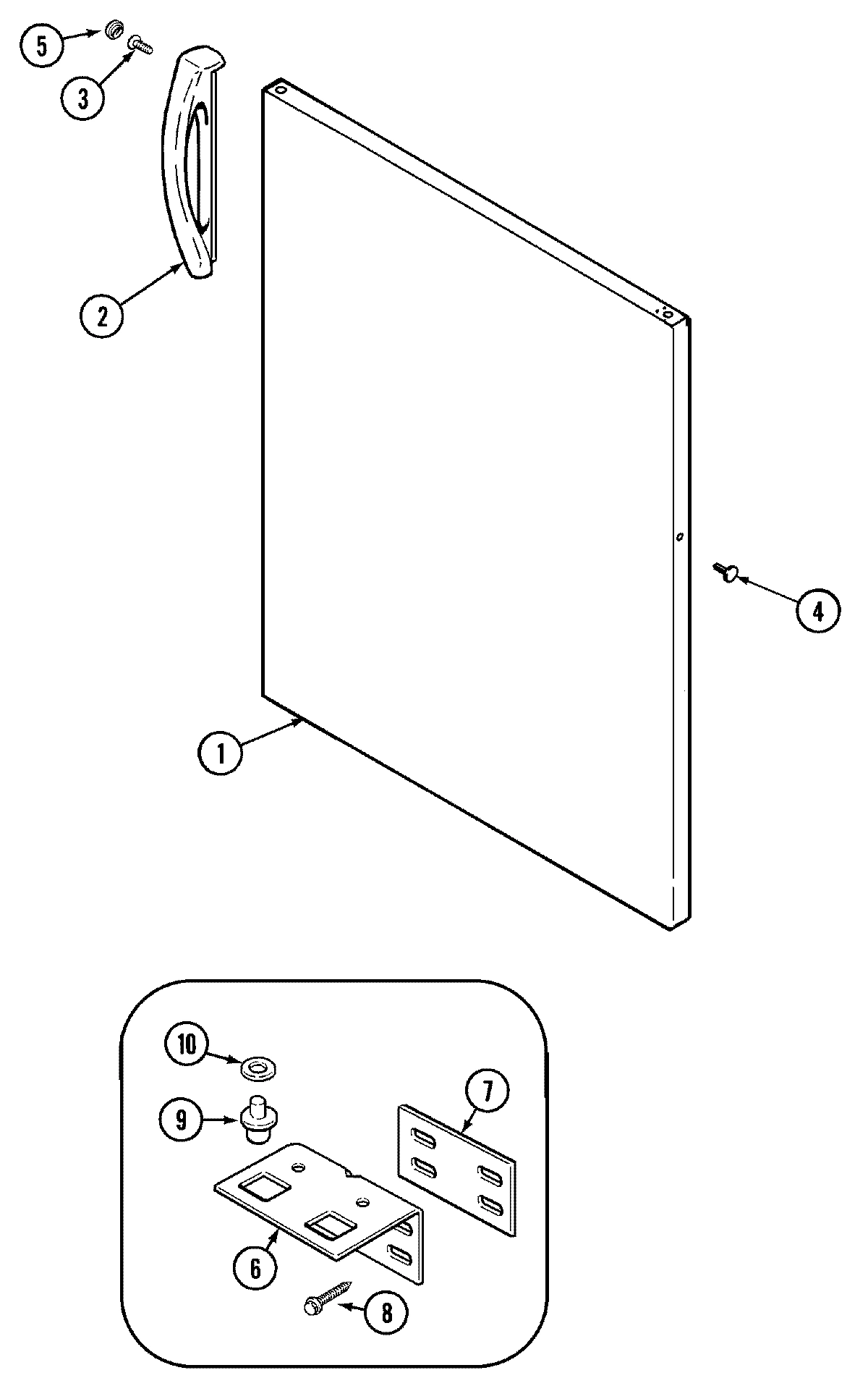

PANEL, F.F. DOOR (BSQ) WPL 61004889 Contact Us For Availability

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

TUNNEL, AIR WPL 61001943 Contact Us For Availability

2

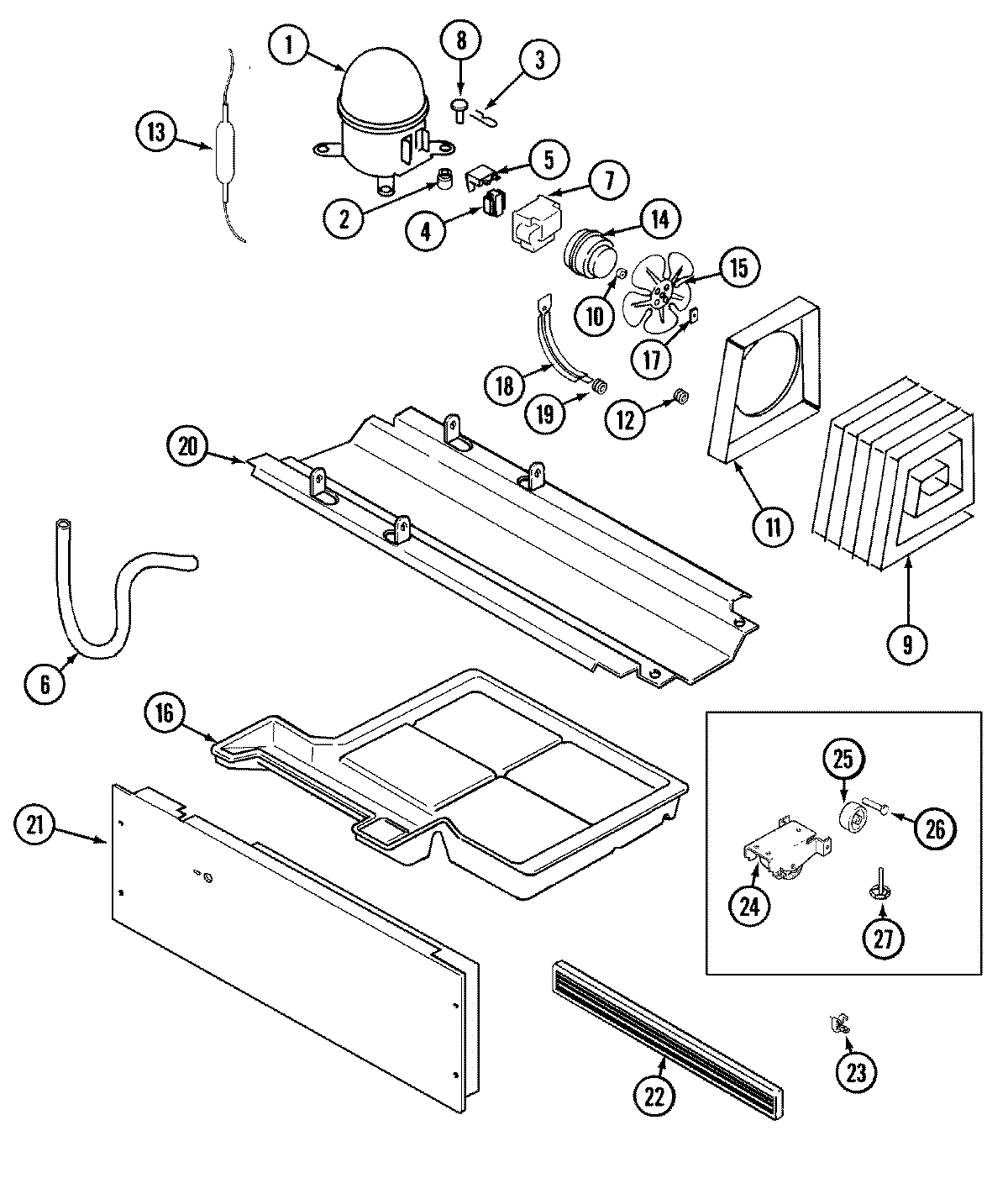

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

SCREW WPL 4050071 Contact Us For Availability

2

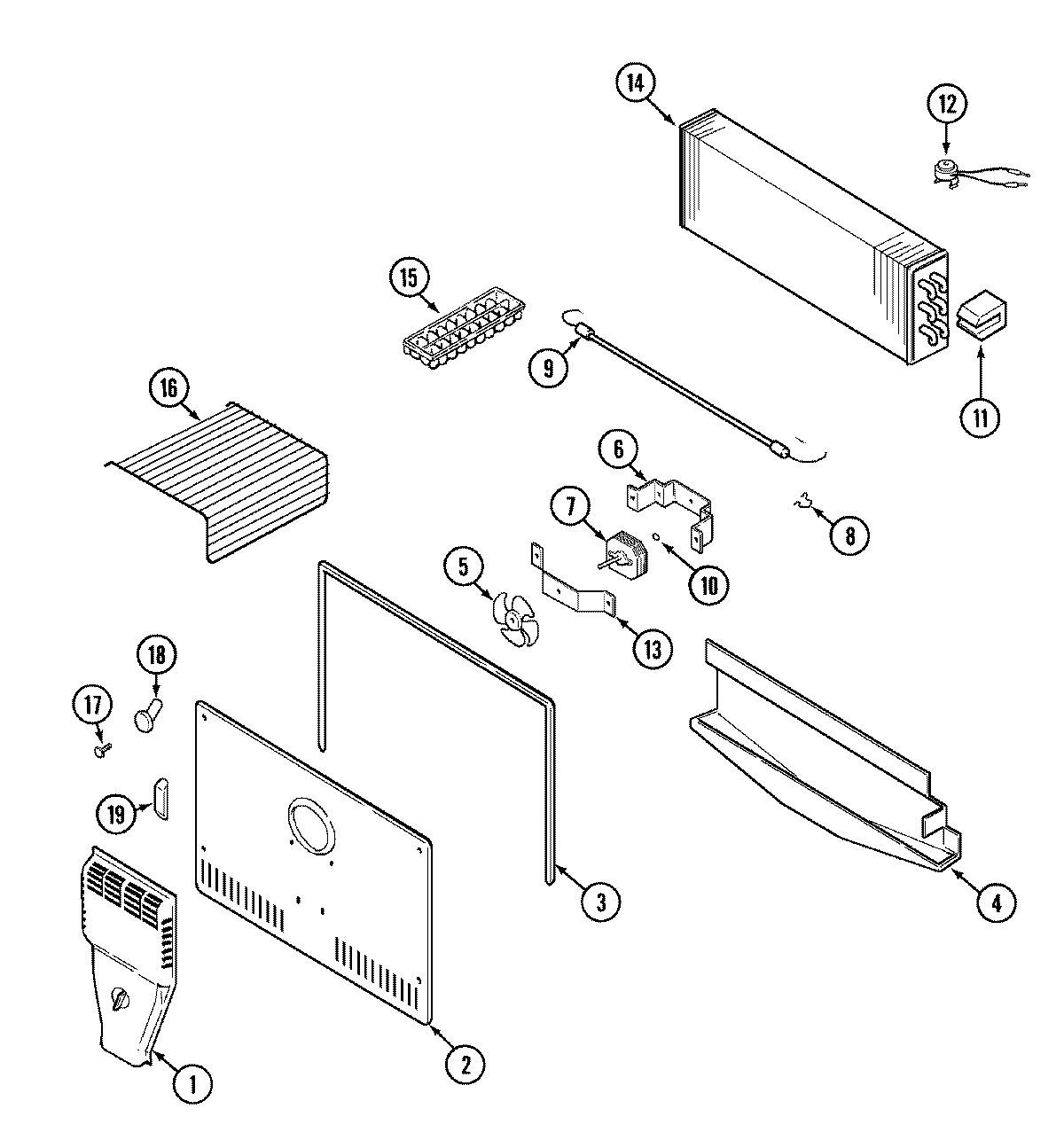

TIMER, DEFROST WPL 682332 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

NAMEPLATE (BSQ) WPL 61004909 Contact Us For Availability

2

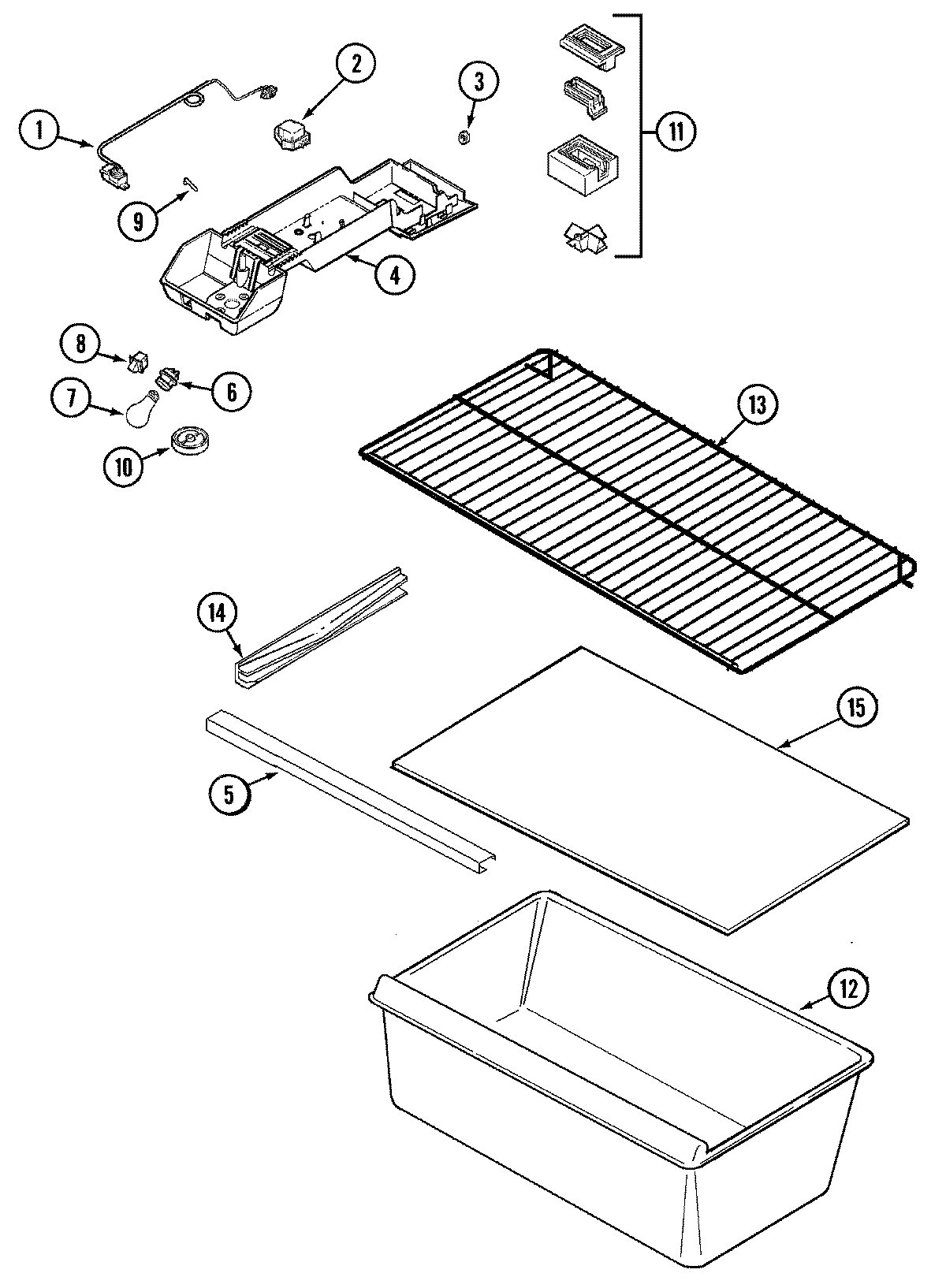

DOOR, DAIRY WPL 61002023 Contact Us For Availability

2

HANDLE, F.F. DOOR (BSQ) WPL 61004890 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61001938 Contact Us For Availability

3

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $33.53

3

W11045462 Whirlpool Door Trim In Stock WPL W11045462 $43.02

3

SEAL, DRAIN WPL 61001977 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

HANDLE, FRZ. DOOR (BSQ) WPL 61004895 Contact Us For Availability

3

ANCHOR, SCREW WPL 61002912 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004560 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

HOUSING, CONTROL WPL 61004946 Contact Us For Availability

4

RELAY, START WPL 61004837 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004892 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

TRAY, DRIP WPL 61004830 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

5

TRIM, GLASS WPL 61001961 Contact Us For Availability

5

OVERLOAD WPL 61003672 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HANDLE (BSQ) WPL 61004891 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

BLADE, FAN WPL 61002044 Contact Us For Availability

6

WP61002112 Whirlpool Refrigerator Shelf Retai In Stock WPL WP61002112 $10.19

6

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

6

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

BULB, LIGHT WPL 319561 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

SEAL, F.F. DOOR (WHT) WPL 61003999 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP61001946 Whirlpool Refrigerator Defrost Hea Backorder WPL WP61001946 $112.83

9

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

9

CONDENSER WPL 61002811 Contact Us For Availability

9

HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability

9

PIN, LOWER HINGE WPL 61002230 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

WP61006074 Whirlpool Control Knob Backorder WPL WP61006074 $46.51

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

PAN, CRISPER WPL 61001933 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

SHELF WPL 61001950 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

RAIL, CRISPER PAN (RT) WPL 61004887 Contact Us For Availability

RAIL, CRISPER PAN (LT) WPL 61004886 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

TRAY, ICE WPL 592812 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

PAN, DRAIN WPL 61001955 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

TRIVET WPL 61001966 Contact Us For Availability

17

TUBE WPL 675796 No Longer Available

17

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

17

PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

18

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

18

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

19

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

19

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

19

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

PAN, COMPRESSOR MTG. WPL 61002032 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005242 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

21

COVER, COMPRESSOR COMPARTMENT WPL 61004653 Contact Us For Availability

21

SCREW WPL 652751 Contact Us For Availability

21

SLEEVE, BRASS WPL 694311 Contact Us For Availability

22

KICKPLATE W/CLIPS (BSQ) WPL 61004885 Contact Us For Availability

23

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

24

WHEEL ASSY. WPL 61001978 Contact Us For Availability

24

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

25

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

27

LEG, LEVELING WPL 61002014 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

MANUAL, USE & CARE WPL 61003420 Contact Us For Availability

WIRE HARNESS, FREEZER WPL 61002321 Contact Us For Availability
