Model Whirlpool CT21G7B REFRIGERATOR – Common Parts & Diagrams
03 - FREEZER COMPARTMENT

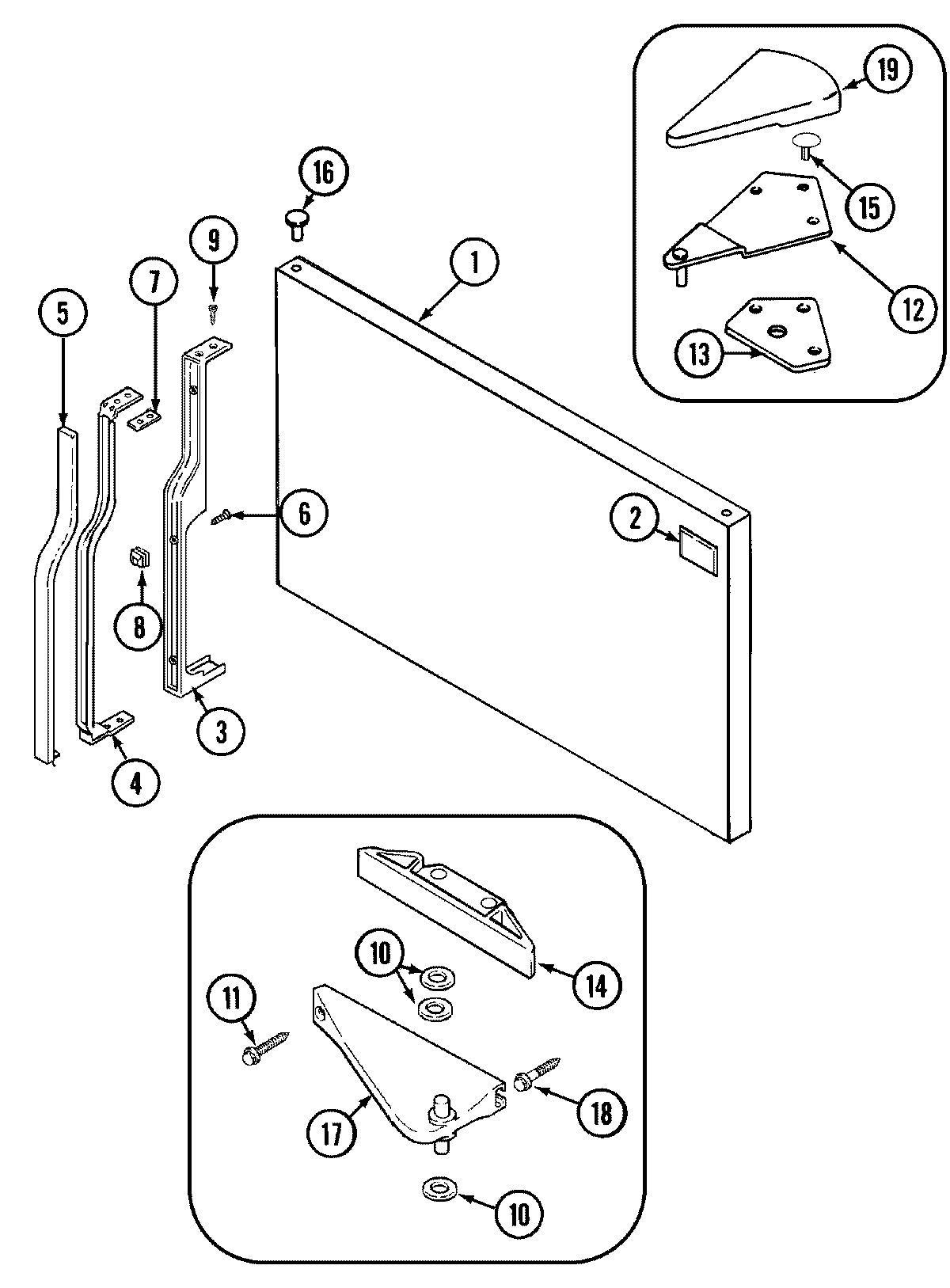

05 - FREEZER OUTER DOOR (REV 10)

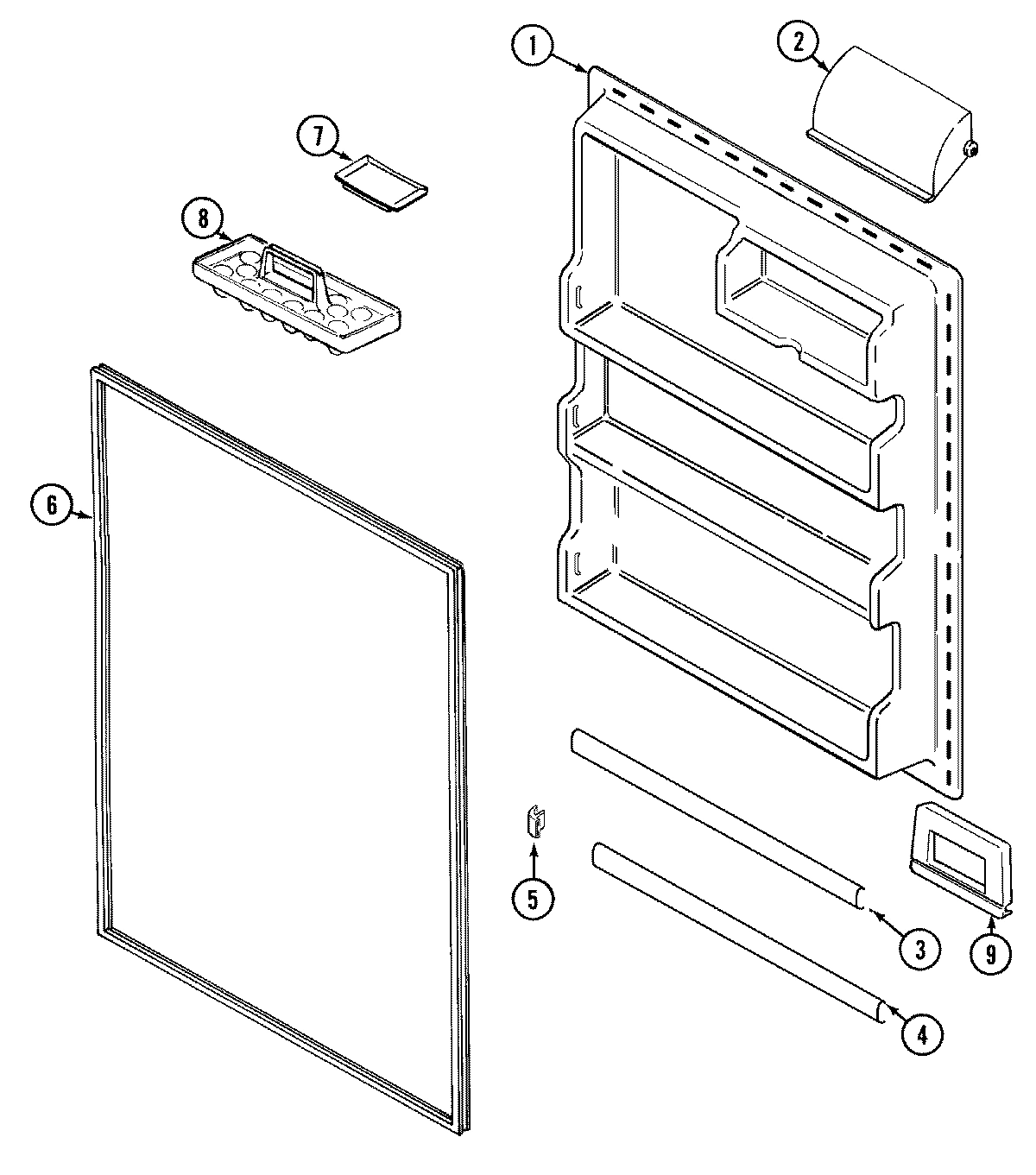

07 - FRESH FOOD INNER DOOR

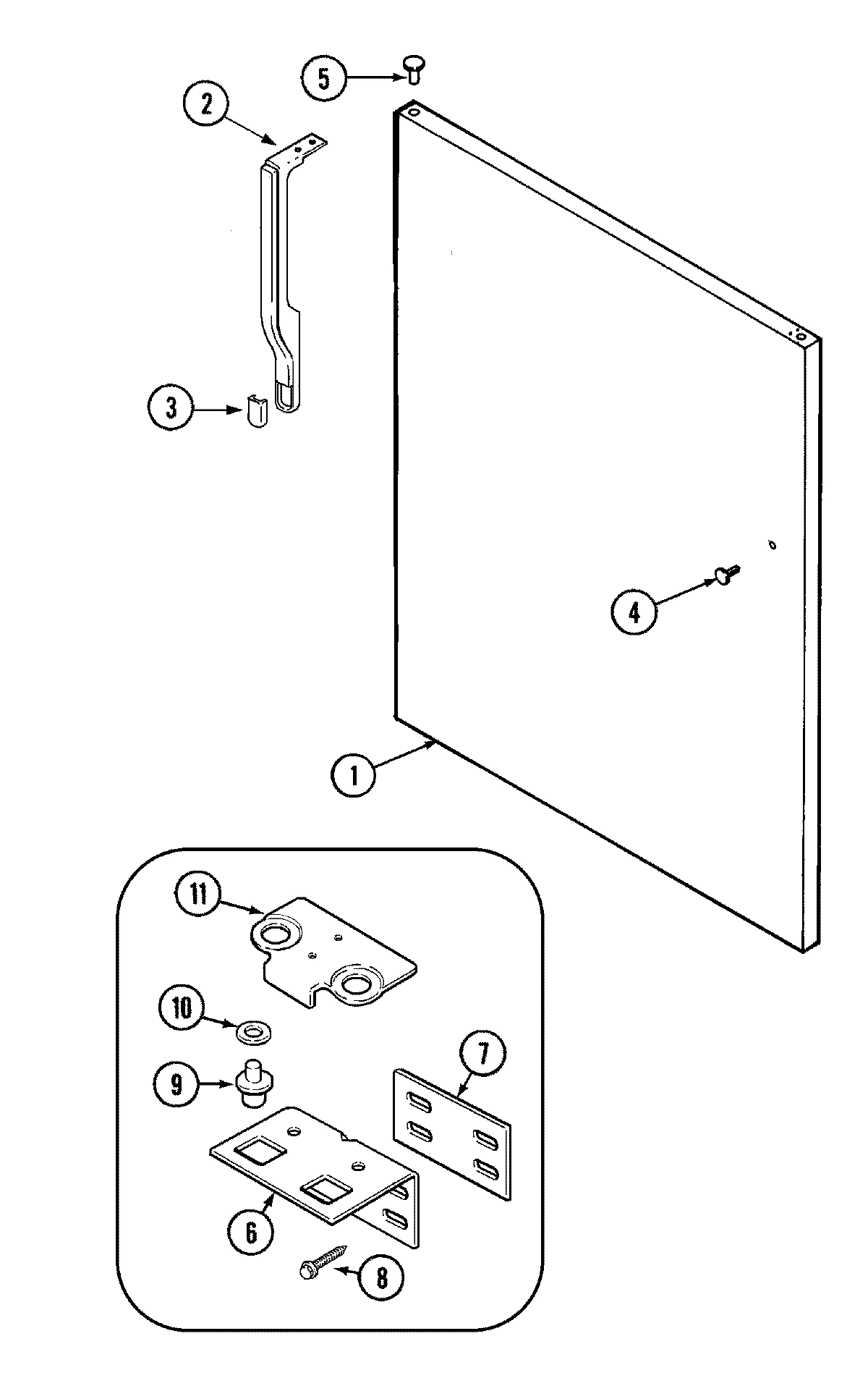

09 - FRESH FOOD OUTER DOOR (REV 13)

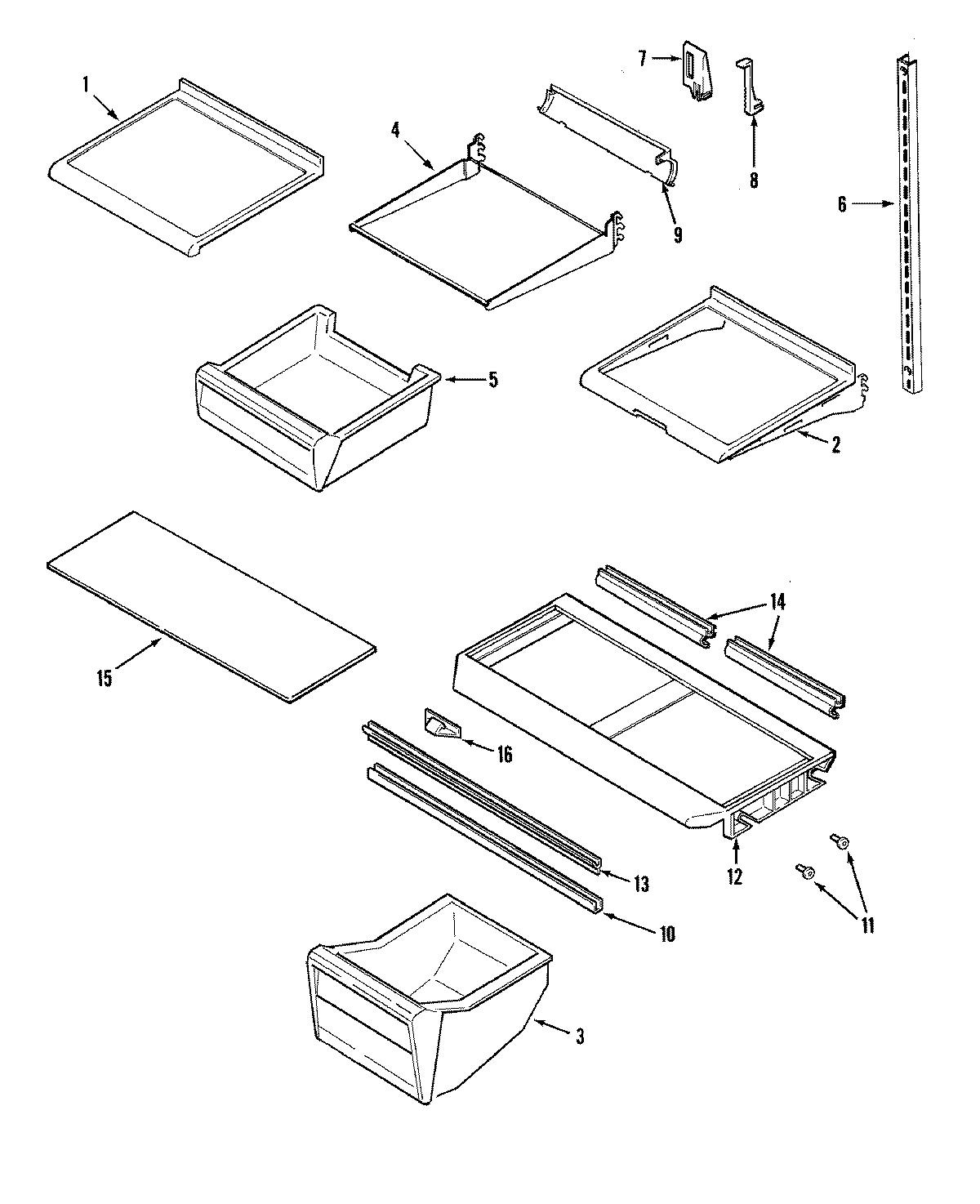

11 - SHELVES & ACCESSORIES

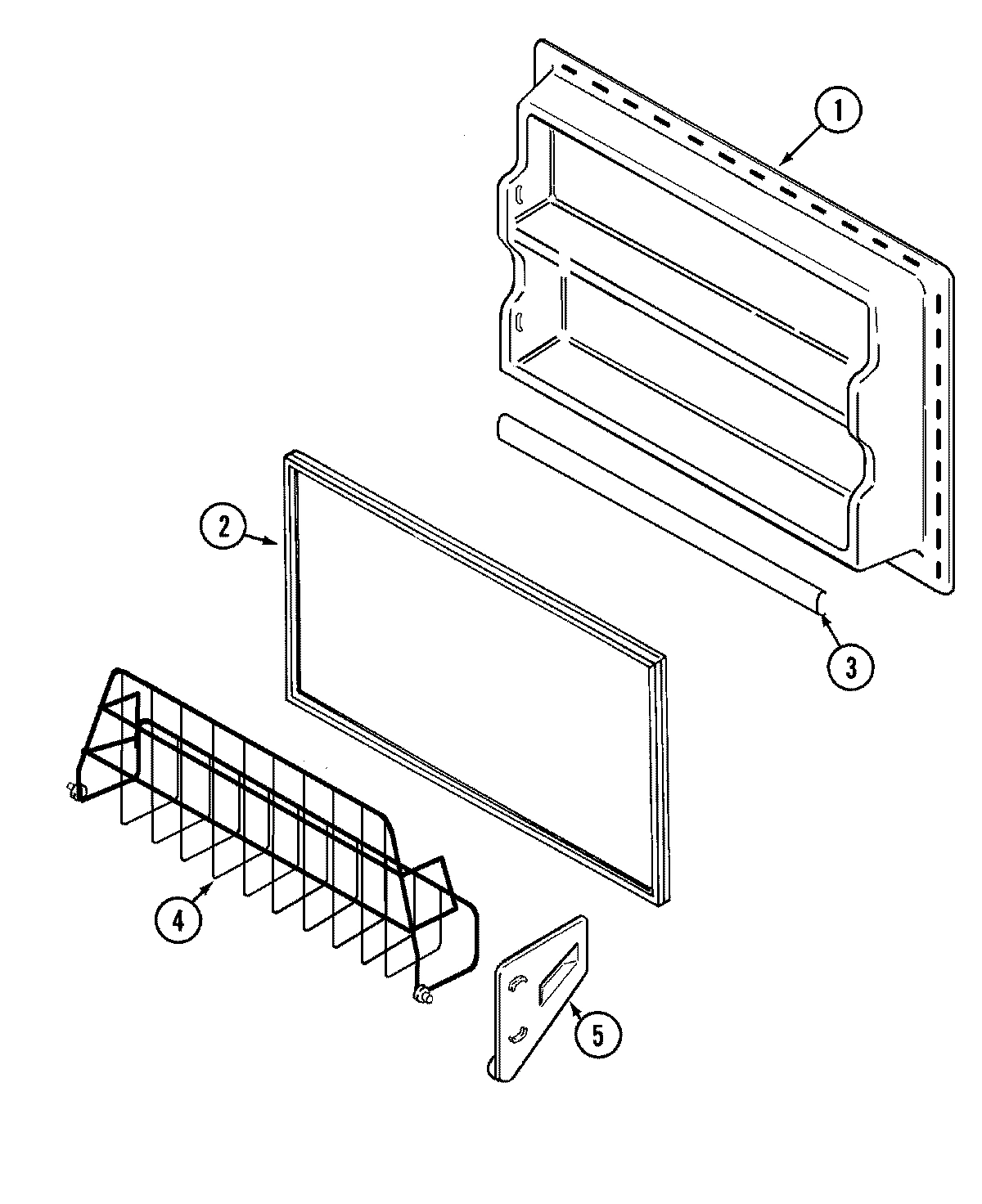

04 - FREEZER INNER DOOR

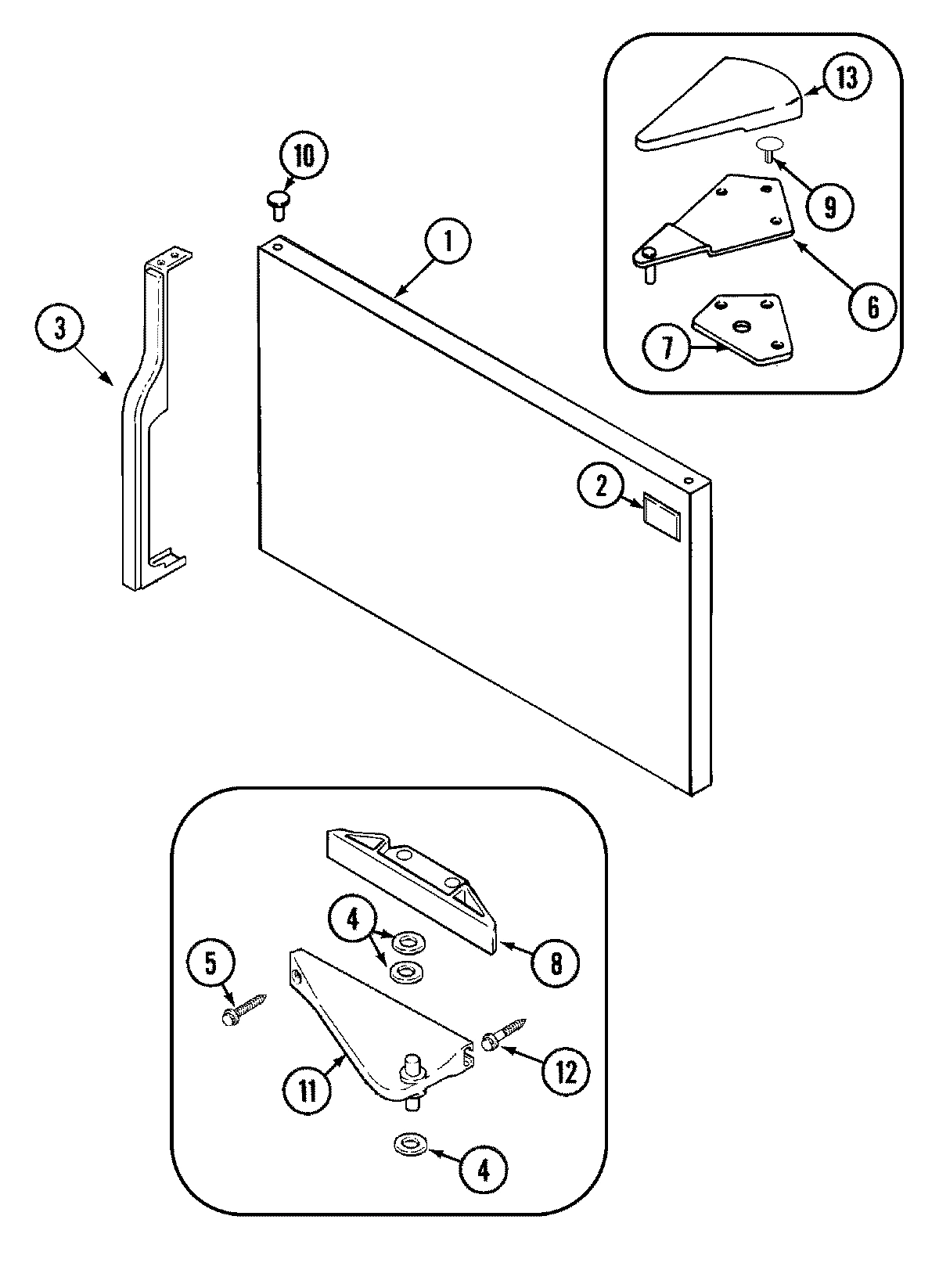

06 - FREEZER OUTER DOOR (REV 13)

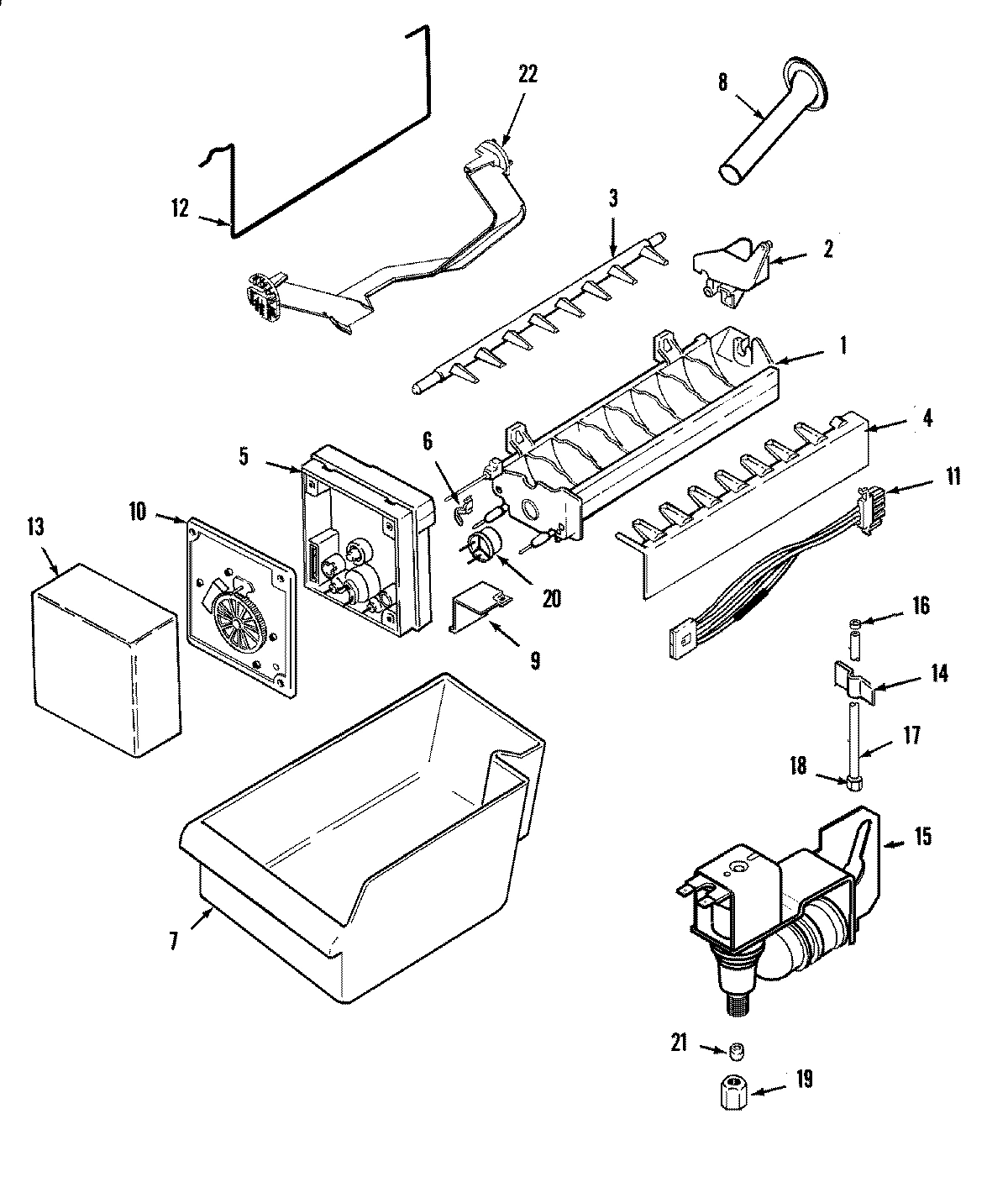

10 - OPTIONAL ICE MAKER KIT-UKI1500AXX

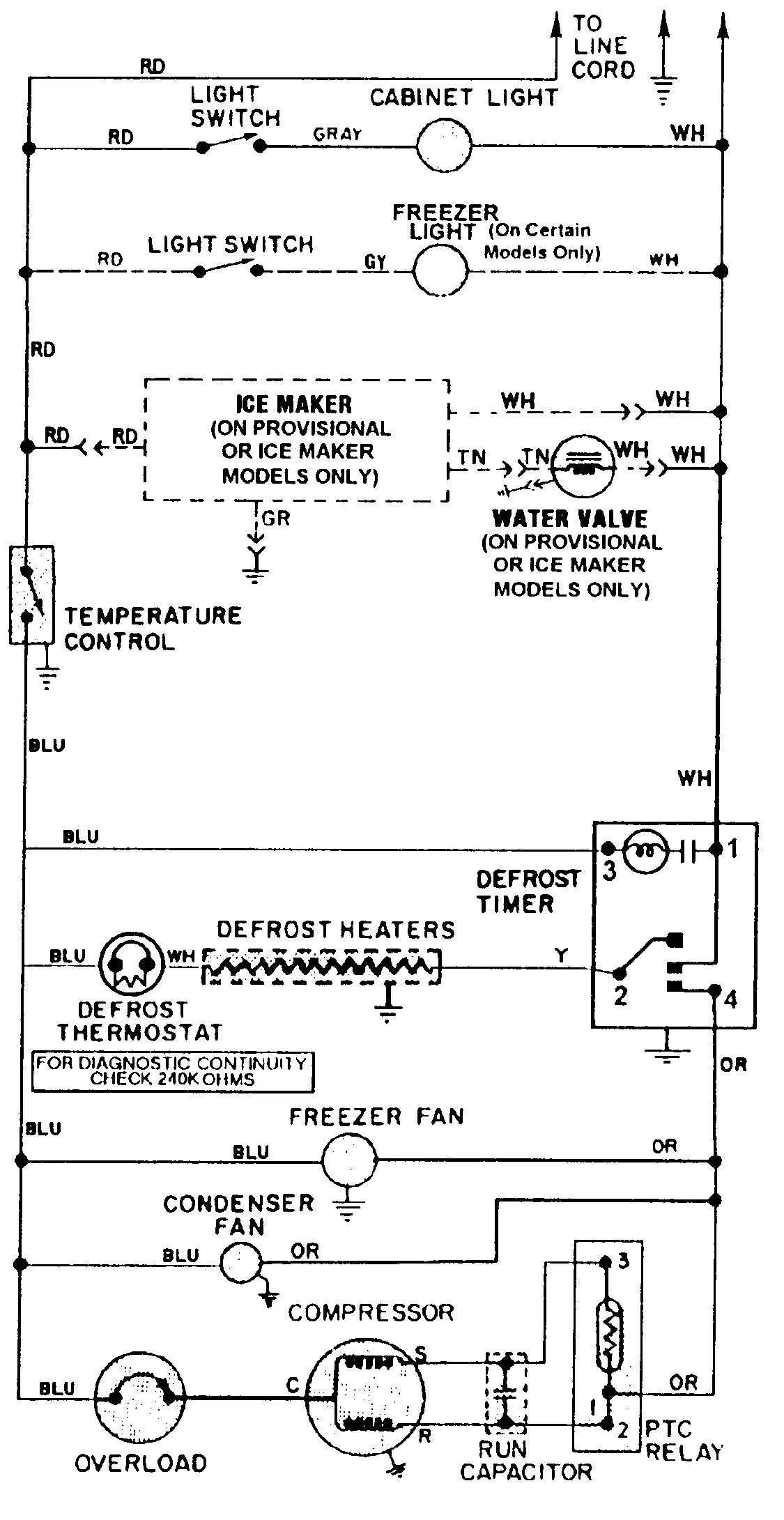

12 - WIRING INFORMATION
02 - CONTROLS

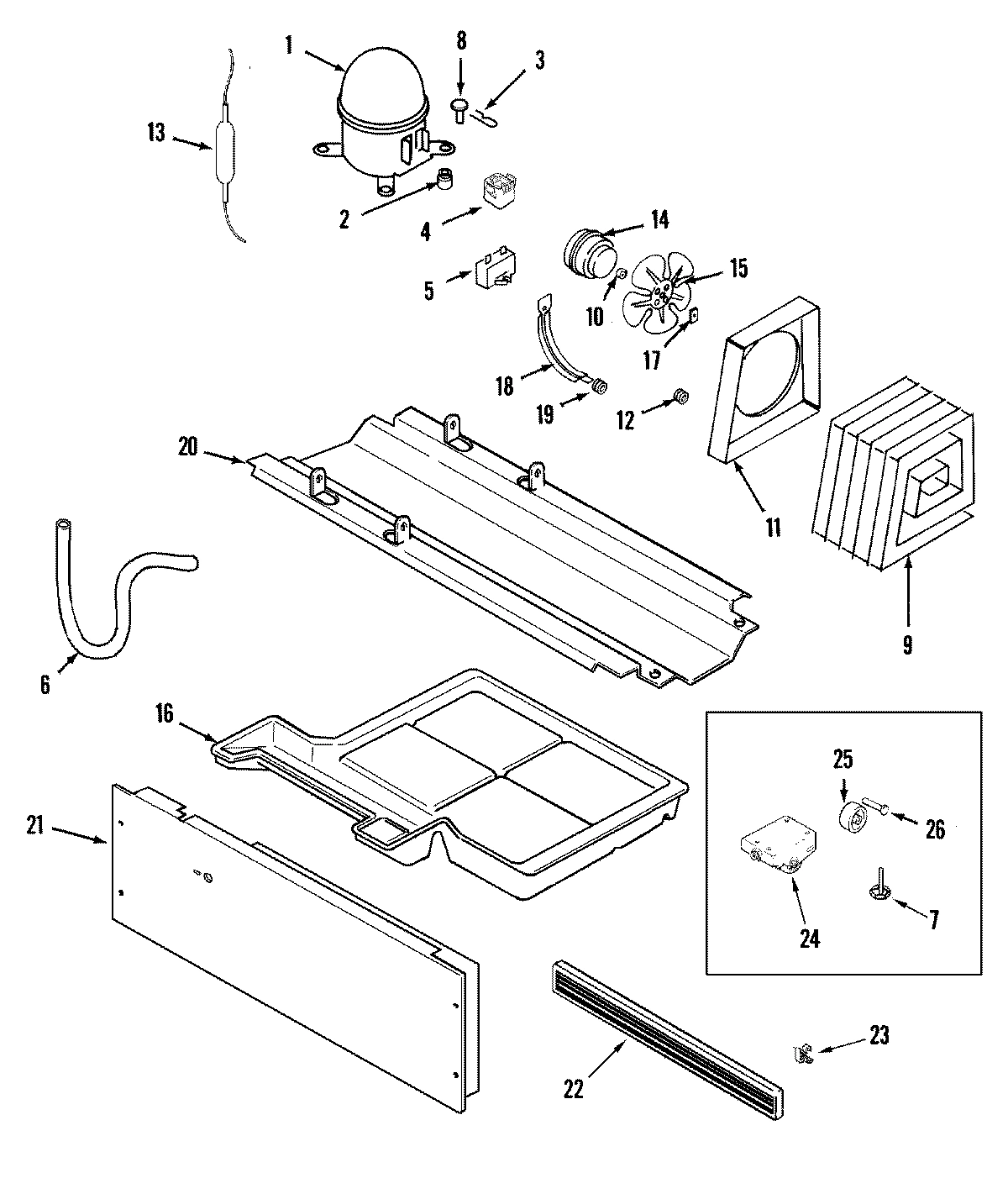

01 - COMPRESSOR

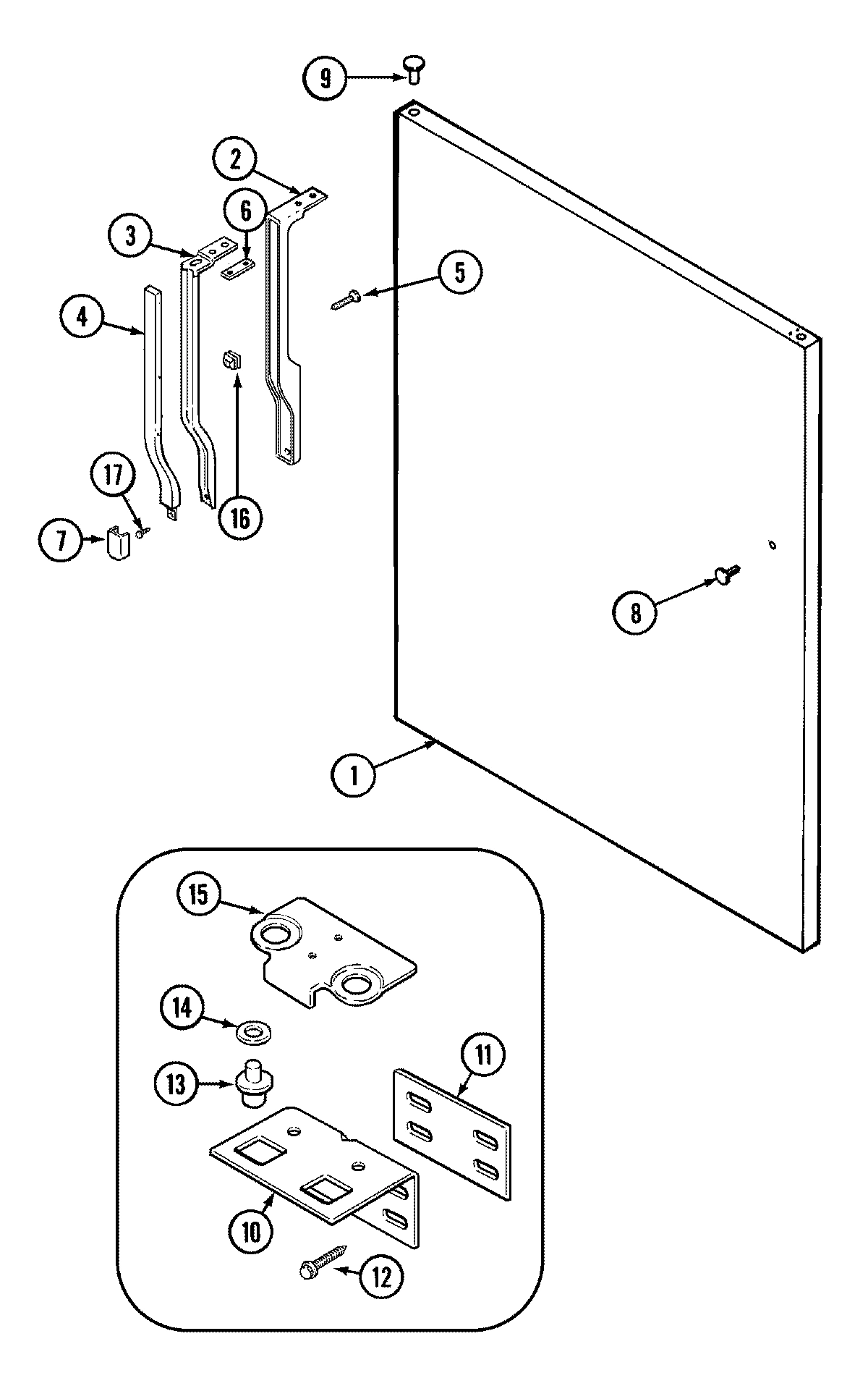

08 - FRESH FOOD OUTER DOOR (REV 10)
Common parts from model Whirlpool CT21G7B REFRIGERATOR
1
PANEL, FRZ. DOOR (BLK) WPL 61002797 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002741 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002742 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61005195 Contact Us For Availability
1
PANEL, F.F. DOOR (BLK) WPL 61002442 Contact Us For Availability
1
SHELF, MEAT WPL 61003009 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61002557 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002566 Contact Us For Availability
1
INSERT, LINER SUPPORT WPL 61004652 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability
1
PANEL, F.F. DOOR (BLK) WPL 61002825 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
NAMEPLATE (BLK) WPL 61002508 Contact Us For Availability
2
SCREW WPL 61002924 Contact Us For Availability
2
DOOR, DAIRY WPL 61002549 Contact Us For Availability
2
HANDLE, F.F. DOOR (BLK) WPL 61006039 Contact Us For Availability
2
SHELF, SPILLPROOF WPL 61002642 Contact Us For Availability
2
SEAL, FRZ. DOOR (BLK) WPL 61004016 Contact Us For Availability
2
NAMEPLATE (BLK) WPL 6698214 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
HANDLE, F.F. DOOR (BLK) WPL 61002753 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61004498 Contact Us For Availability
3
HANDLE, FRZ. DOOR (BLK) WPL 61002754 Contact Us For Availability
3
SCREW WPL 61005394 Contact Us For Availability
3
CAP, HANDLE (BLK) WPL 61006040 Contact Us For Availability
3
PAN, CRISPER WPL 61002561 Contact Us For Availability
3
TRIM, DOOR SHELF WPL 61002610 Contact Us For Availability
3
HANDLE, FRZ. DOOR (BLK) WPL 61006041 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004861 Contact Us For Availability
4
FRAME, HANDLE WPL 61002247 Contact Us For Availability
4
FRAME, SPILLPROOF SHELF WPL 61002643 Contact Us For Availability
4
BASKET, TILT-OUT WPL 61002567 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
4
CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability
4
INSERT, HANDLE (BLK) WPL 7005320 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
INSERT, HANDLE (BLK) WPL 61002507 Contact Us For Availability
5
SCREW WPL 4150331 Contact Us For Availability
5
PAN, MEAT WPL 61002824 Contact Us For Availability
5
STOP, BASKET (RT) WPL 61002379 Contact Us For Availability
5
STOP, BASKET (LT) WPL 61002380 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
SHIM, HANDLE WPL 679341 Contact Us For Availability
6
HINGE, UPPER WPL 61004896 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, CANT. SHELF WPL 61002253 Contact Us For Availability
6
RAIL, SHELF SUPPORT (LT/RT) WPL 61002254 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
7
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
CONTROL, MEAT PAN WPL 61002562 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
LEG, LEVELING WPL 61005612 Contact Us For Availability
7
END CAP, HANDLE (BLK) WPL 700583 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
8
PLUG BUTTON, HANDLE MTG. (BLK) WPL 61002443 Contact Us For Availability
8
STOP, DOOR (BLK) WPL 61004547 Contact Us For Availability
8
TRAY, EGG WPL 600661 Contact Us For Availability
8
PLUG BUTTON, HANDLE HOLE (BLK) WPL 676785 Contact Us For Availability
8
SLIDE, CONTROL (MEAT) WPL 61002563 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
8
SCREW WPL 61004485 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
9
PLUG BUTTON, HINGE (BLK) WPL 61002374 Contact Us For Availability
9
PLUG BUTTON, HINGE CUP (BLK) WPL 61002360 Contact Us For Availability
9
RETAINER, BOTTLE WPL 61002333 Contact Us For Availability
9
SC0OP, MEAT PAN WPL 61002564 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
CONDENSER WPL 61005454 Contact Us For Availability
10
SHIELD, LIGHT WPL 61002272 Contact Us For Availability
10
HINGE, LOWER (BLK) WPL 61002361 Contact Us For Availability
10
RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
11
HOUSING, CONTROL WPL 61004622 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
HINGE, CENTER (BLK) WPL 61002373 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
12
SCREW WPL 61002025 Contact Us For Availability
12
SHELF, CRISPER WPL 61002560 Contact Us For Availability
12
ARM, SENSOR WPL 61005173 Contact Us For Availability
12
CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
13
COVER, UPPER HINGE (BLK) WPL 61002375 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002530 Contact Us For Availability
13
COVER, ICE MAKER WPL 61004594 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability
14
SEAL, CRISPER SHELF (REAR) WPL 61003416 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
15
PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability
15
SCREW WPL 61001876 Contact Us For Availability
15
STOP, DOOR WPL 61001969 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002532 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
PAN, DRAIN WPL 61004095 Contact Us For Availability
16
SHELF, FRZ. WPL 61002628 Contact Us For Availability
16
GROMMET WPL 697431 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
20
LEG, FRZ. SHELF WPL 61002270 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability
21
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
21
SCREW WPL 61005388 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability
21
SCREW WPL 652751 Contact Us For Availability
22
SWITCH, LIGHT WPL 669871 Contact Us For Availability
22
ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability
22
KICKPLATE W/CLIPS (BLK) WPL 61002576 Contact Us For Availability
23
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
24
RECEPTACLE, BULB WPL 61005748 Contact Us For Availability
24
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
24
SCREW WPL 4000161 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002787 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE (CROSLEY) WPL 16008421 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003420 Contact Us For Availability
× ![]()
