Model Whirlpool CT19A6FQ REFRIGERATOR – Common Parts & Diagrams
03 - FREEZER COMPARTMENT (BISQUE)

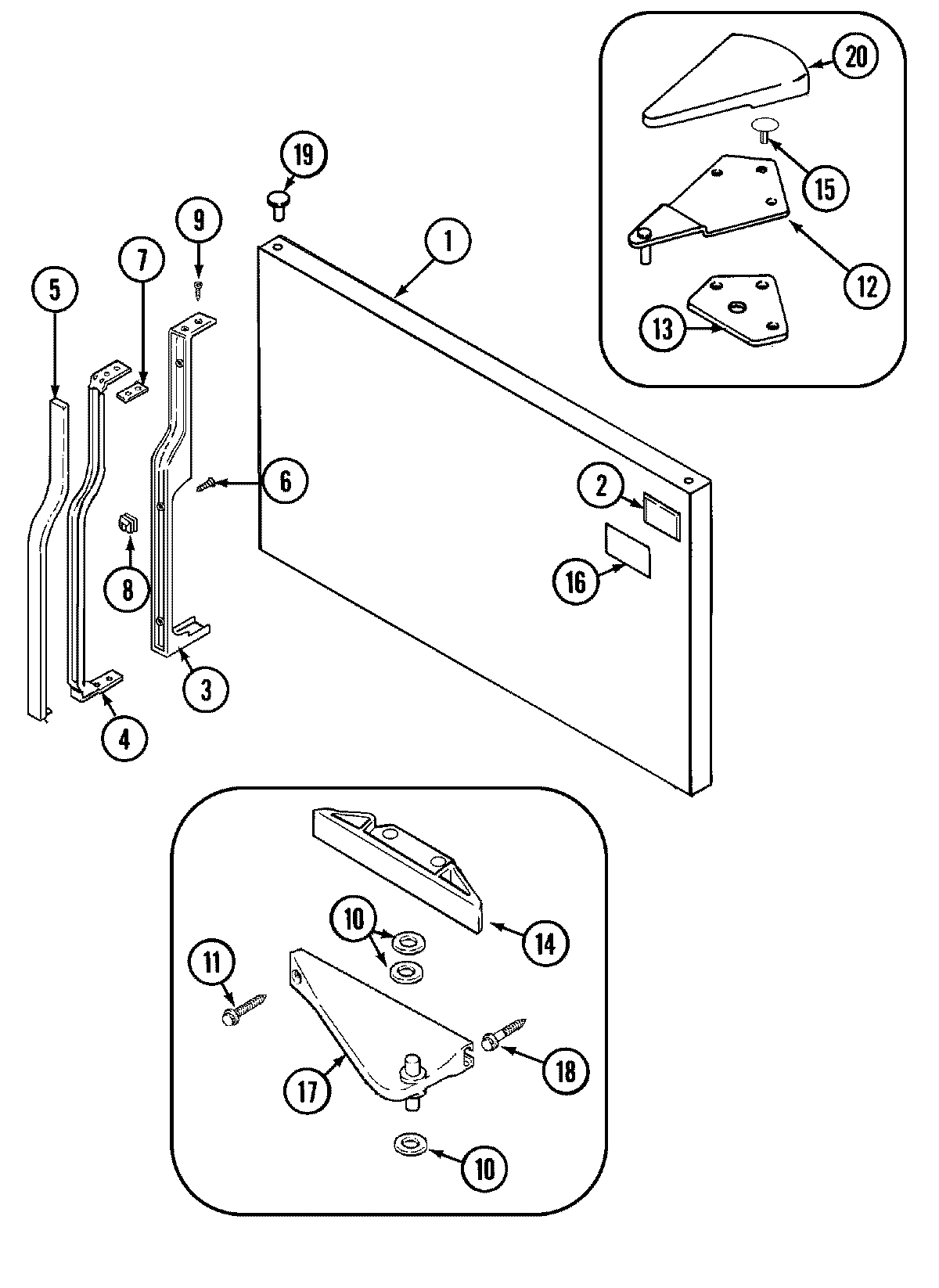

05 - FREEZER OUTER DOOR (BISQUE)

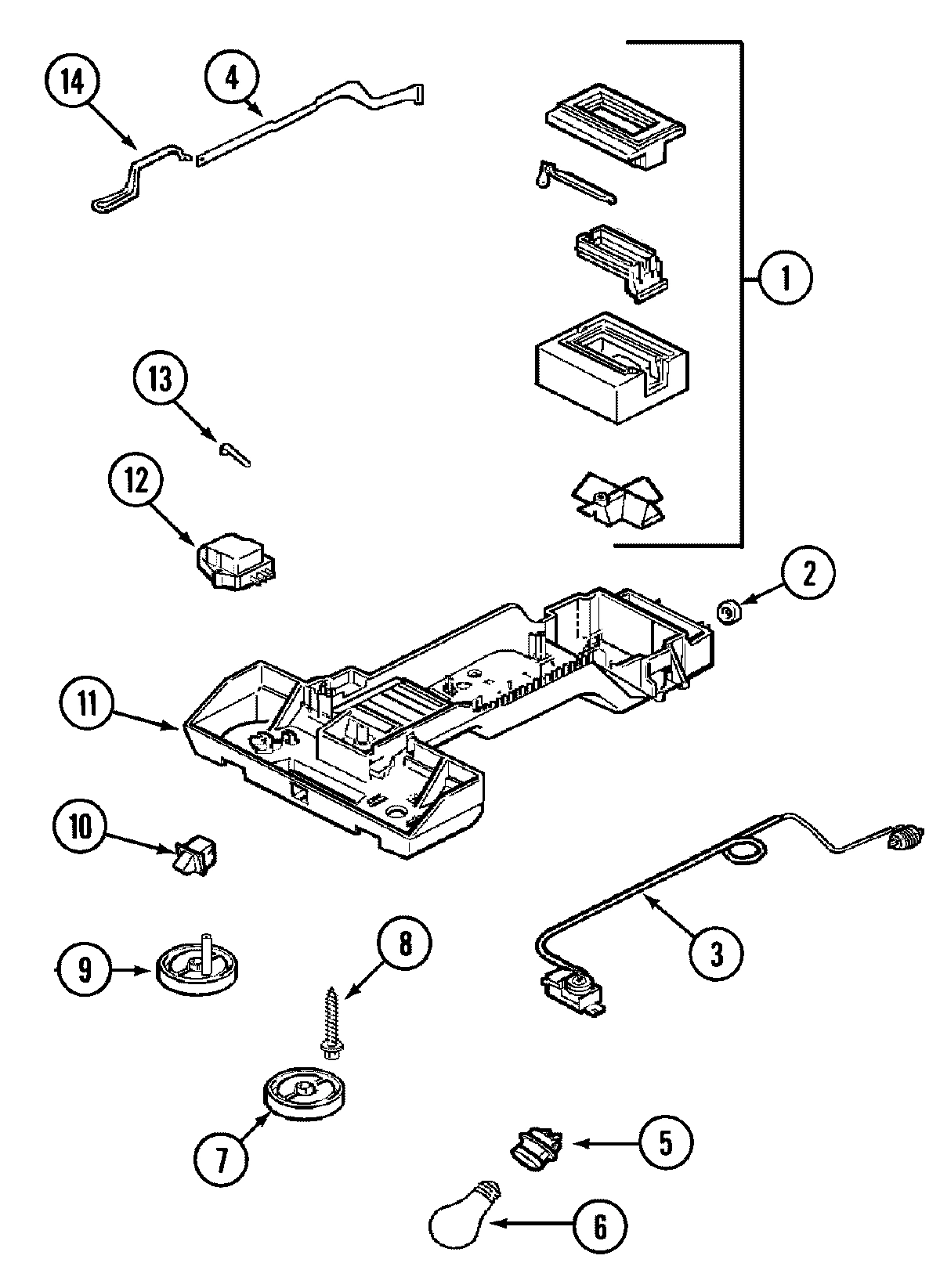

02 - CONTROLS (BISQUE)

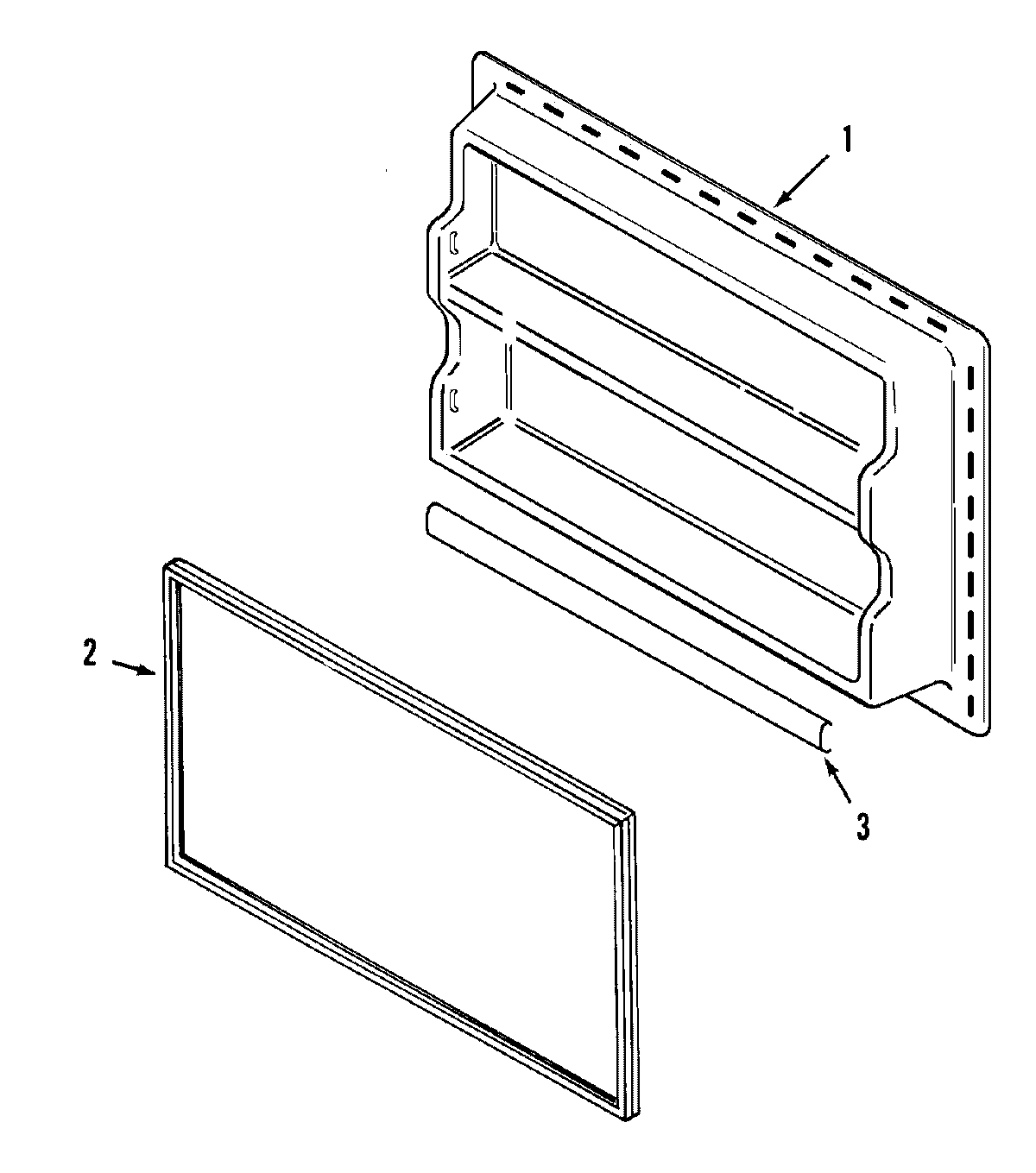

04 - FREEZER INNER DOOR (BISQUE)

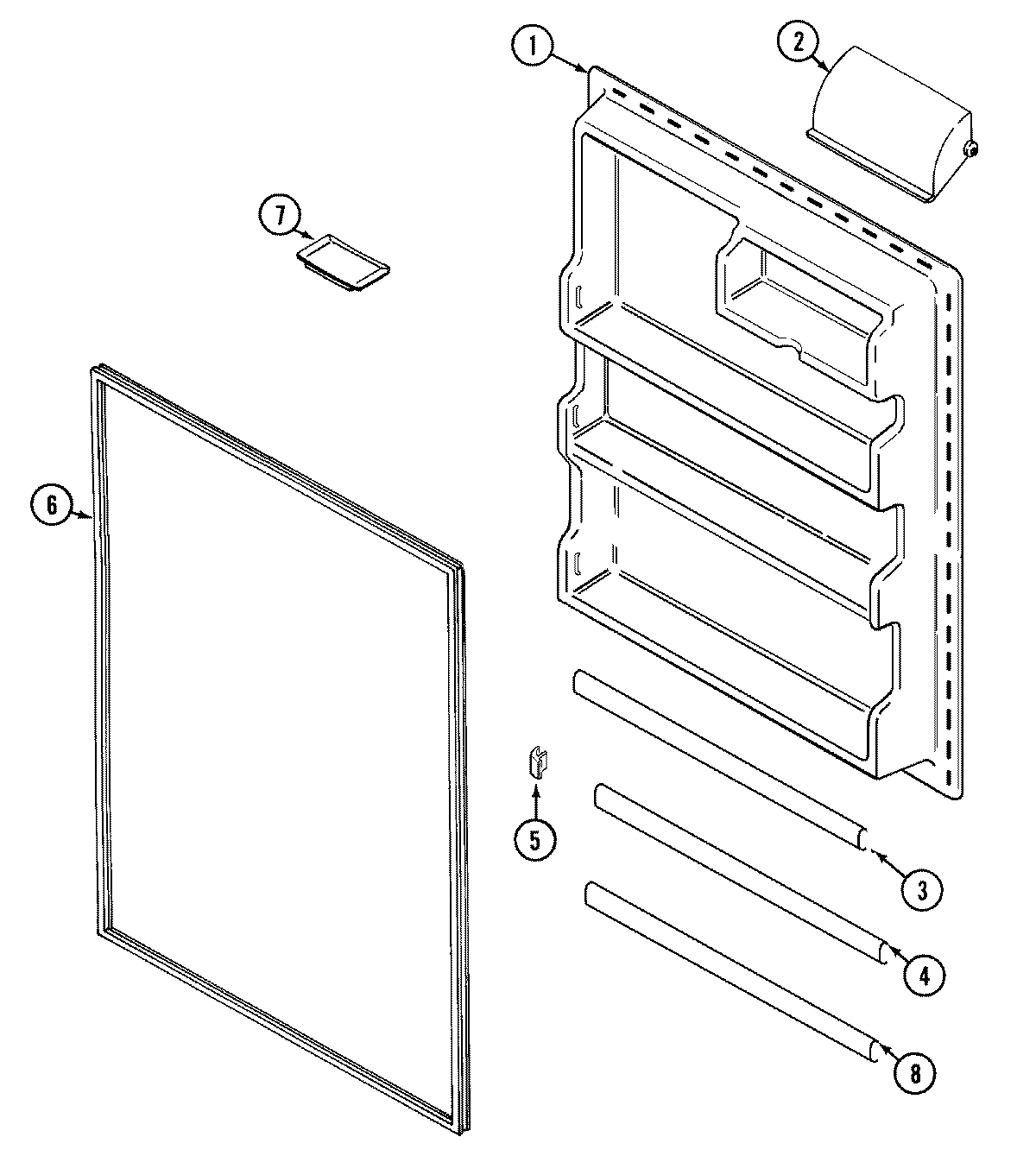

06 - FRESH FOOD INNER DOOR (BISQUE)

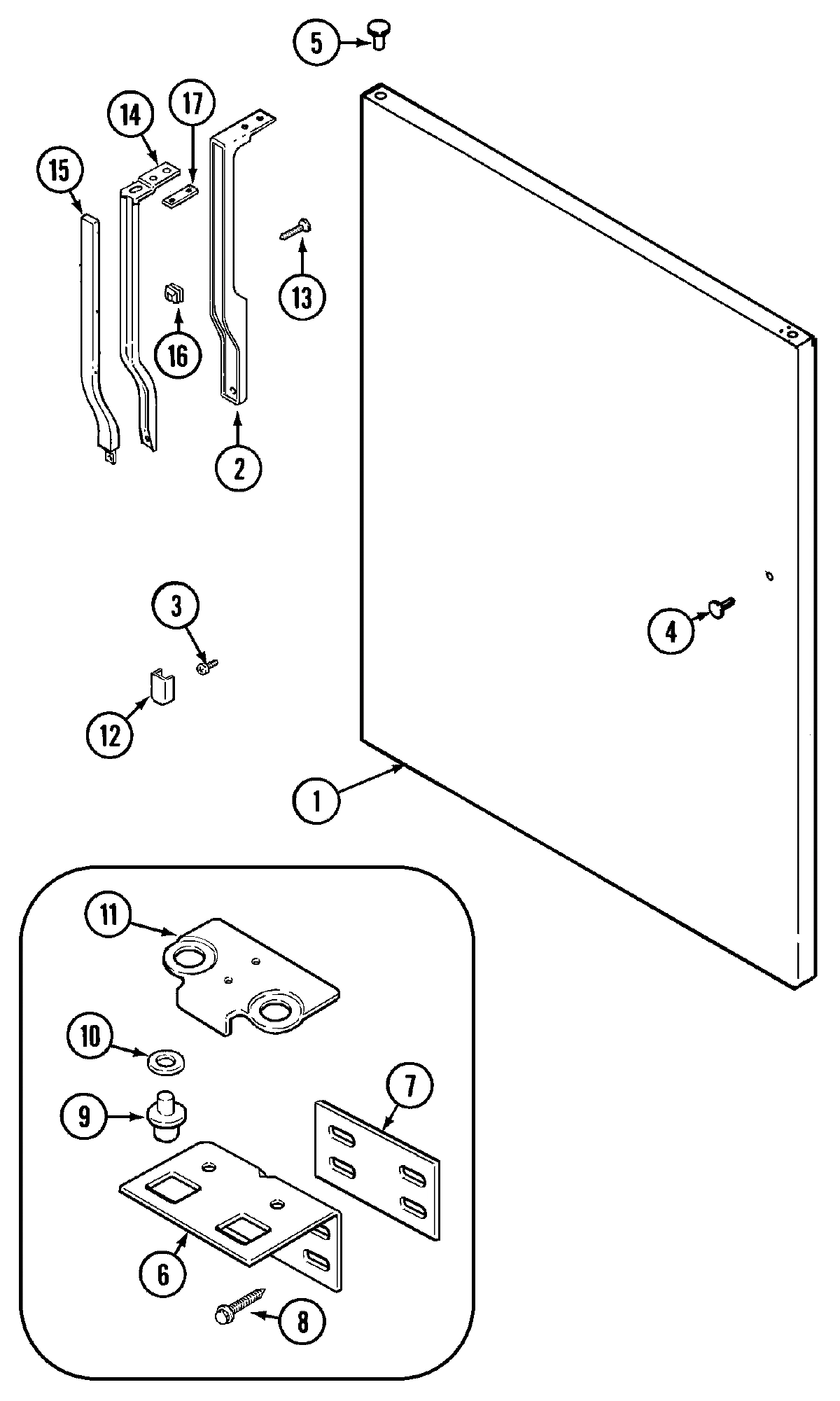

07 - FRESH FOOD OUTER DOOR (BISQUE)

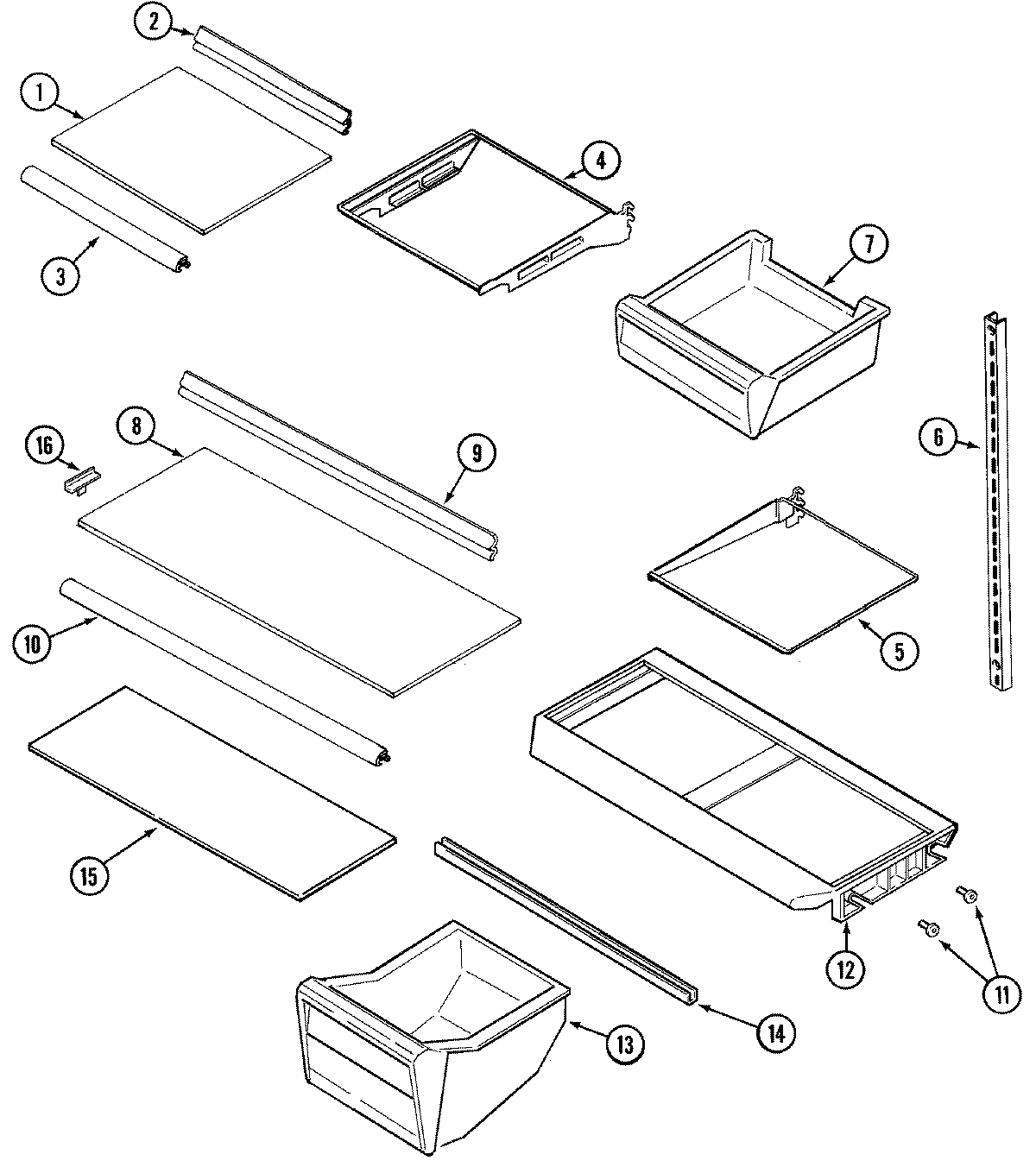

09 - SHELVES & ACCESSORIES (BISQUE)

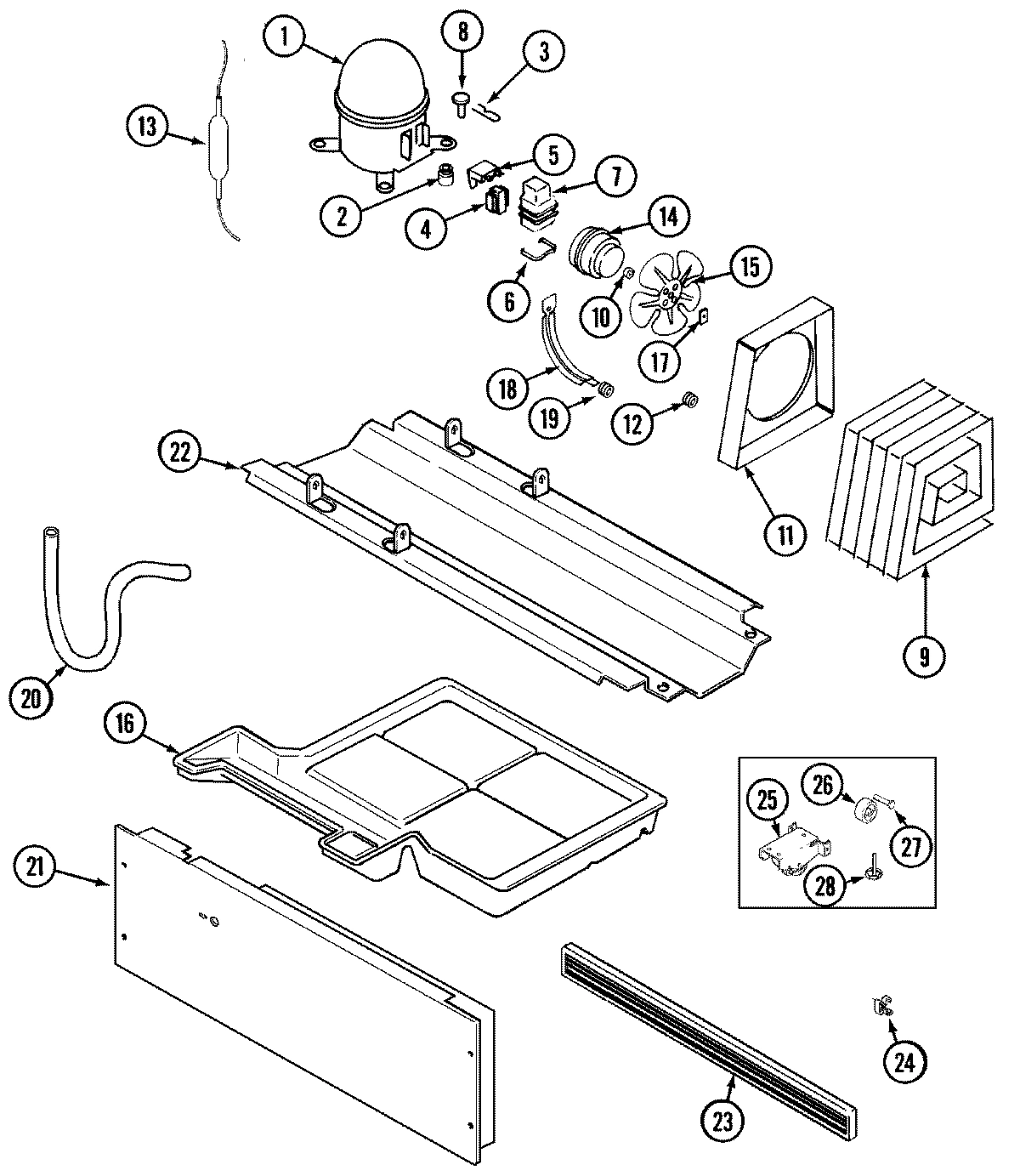

01 - COMPRESSOR (BISQUE)

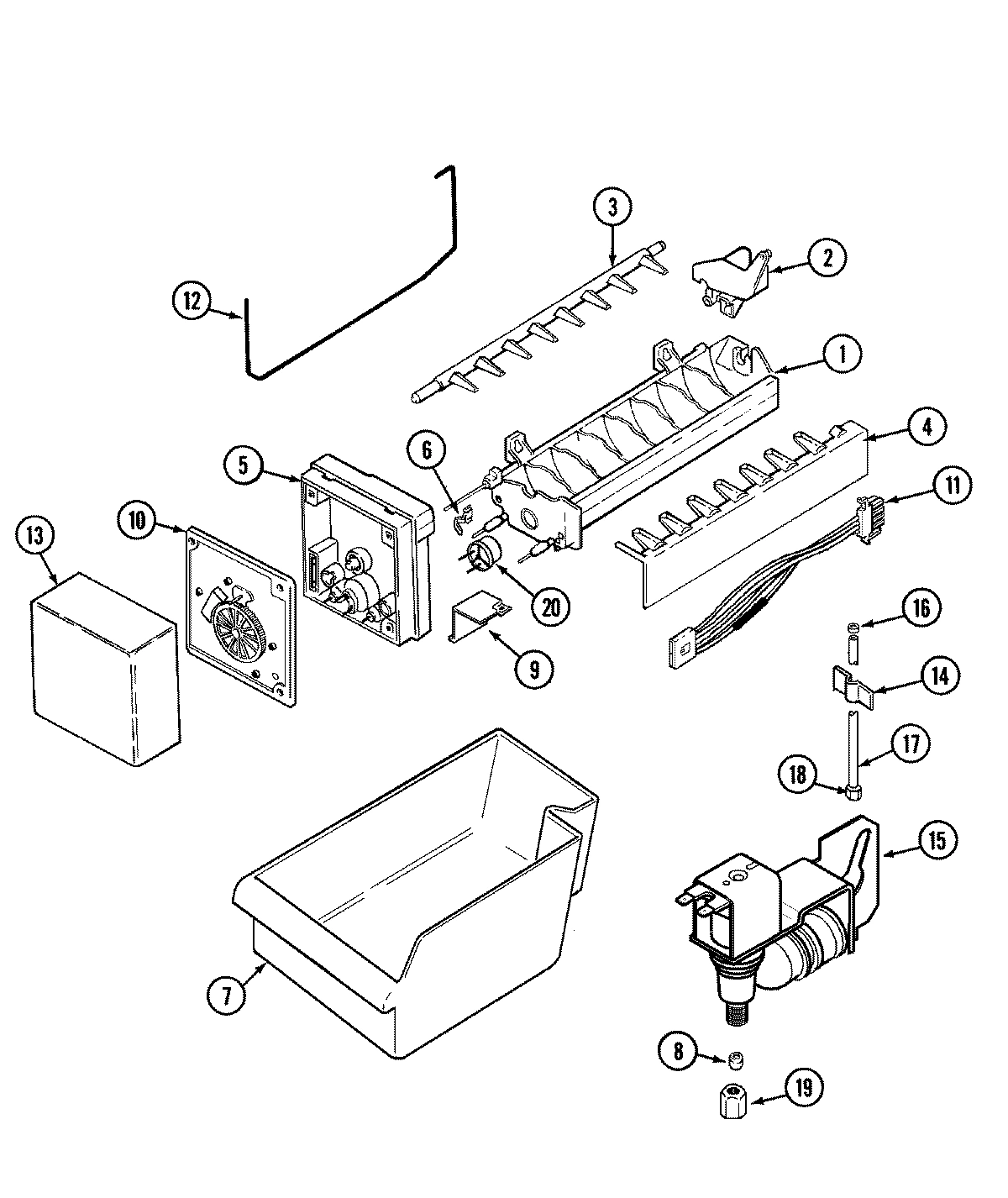

08 - ICE MAKER (BISQUE)
Common parts from model Whirlpool CT19A6FQ REFRIGERATOR
1
PANEL, FRZ. DOOR (BSQ) WPL 61005014 Contact Us For Availability
1
DAMPER/INSULATION KIT WPL 12001377 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002403 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002401 Contact Us For Availability
1
PANEL, F.F. DOOR (BSQ) WPL 61005013 Contact Us For Availability
1
GLASS, MEAT SHELF WPL 61002413 Contact Us For Availability
1
COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
BEZEL, NAMEPLATE (BSQ) WPL 61004894 Contact Us For Availability
2
SCREW WPL 61002924 Contact Us For Availability
2
DOOR, DAIRY WPL 61002023 Contact Us For Availability
2
HANDLE, F.F. DOOR WPL 700511 Contact Us For Availability
2
TRIM, MEAT SHELF (REAR) WPL 61002415 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61004625 Contact Us For Availability
3
HANDLE, FRZ. DOOR (CHRM) WPL 61002506 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
TRIM, DOOR SHELF (23.5``) WPL 61002463 Contact Us For Availability
3
TRIM, MEAT/SPLIT SHELF (FRT) WPL 61002466 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
BARRIER, FOIL WPL 61004832 Contact Us For Availability
4
TRAY, DRIP WPL 61004838 Contact Us For Availability
4
PLUG BUTTON, HANDLE TOP (BSQ) WPL 61004907 Contact Us For Availability
4
FRAME, HANDLE WPL 61002247 Contact Us For Availability
4
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
4
PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004906 Contact Us For Availability
4
FRAME, SHELF WPL 61003107 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
INSERT, HANDLE (BSQ) WPL 61004911 Contact Us For Availability
5
PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability
5
FRAME, SHELF WPL 61003108 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability
6
SCREW WPL 40003728 Contact Us For Availability
6
RAIL, CANT. SHELF WPL 61002188 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
7
PAN, UTILITY WPL 61002412 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability
8
SCREW WPL 61004485 Contact Us For Availability
8
KIT, GLASS SHELF (W/STOPS) WPL 12001440 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
SLEEVE, BRASS WPL 694311 Contact Us For Availability
9
TRIM, FULL SHELF (REAR) WPL 61003566 Contact Us For Availability
9
CONDENSER WPL 61002811 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
10
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
10
TRIM, FULL SHELF (FRT.) WPL 61002458 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SCREW WPL 4000311 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
11
HOUSING, CONTROL WPL 61004622 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability
11
SCREW WPL 61001876 Contact Us For Availability
11
STOP, DOOR WPL 61001969 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
12
HINGE, UPPER WPL 61004896 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
END CAP, HANDLE (BSQ) WPL 61005035 Contact Us For Availability
12
SHELF, CRISPER WPL 61002391 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
13
SCREW WPL 4150331 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
PAN, CRISPER WPL 61002417 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
COVER, ICE MAKER WPL 61004594 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
14
STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
FRAME, HANDLE WPL 700521 Contact Us For Availability
14
RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability
15
INSERT, HANDLE (BSQ) WPL 61004904 Contact Us For Availability
15
GLASS, CRISPER SHELF WPL 61002459 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
SHELF, FRZ. WPL 61002420 Contact Us For Availability
16
GROMMET WPL 697431 Contact Us For Availability
16
NAMEPLATE (BSQ) WPL 61004949 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
STOP, SHELF WPL 61002241 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
17
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
17
SHIM, HANDLE WPL 679341 Contact Us For Availability
17
HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability
18
SCREW WPL 61002025 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
20
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
20
COVER, UPPER HINGE (BSQ) WPL 61004786 Contact Us For Availability
20
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
SCREW WPL 652755 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61004654 Contact Us For Availability
21
SCREW WPL 652751 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002327 Contact Us For Availability
23
KICKPLATE W/CLIPS (BSQ) WPL 61005011 Contact Us For Availability
24
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
25
WHEEL ASSY. WPL 61001978 Contact Us For Availability
28
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE (CROSLEY) WPL 16008421 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003420 Contact Us For Availability
× ![]()
