Model Whirlpool CT19A4W REFRIGERATOR – Common Parts & Diagrams

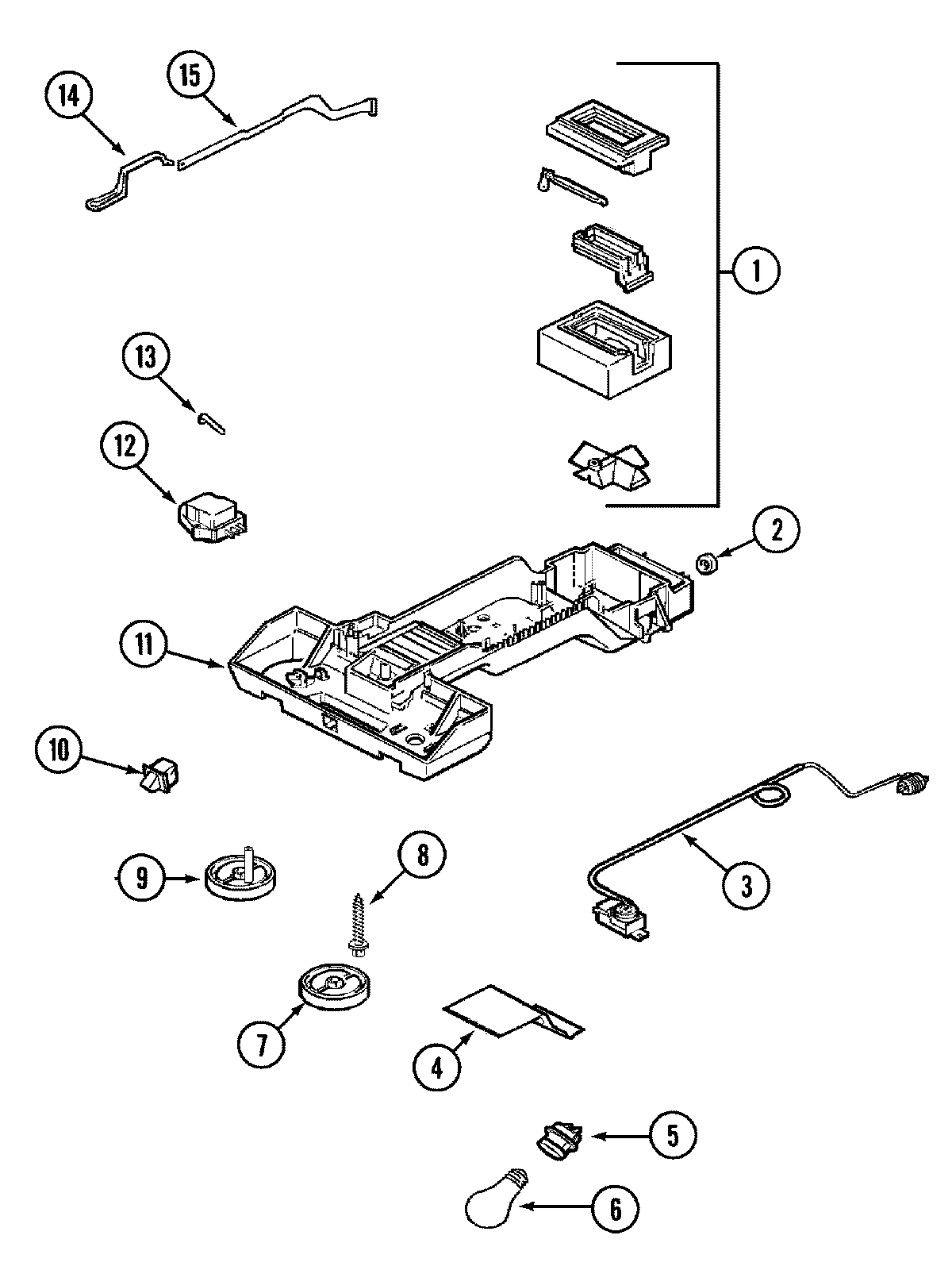

02 - CONTROLS

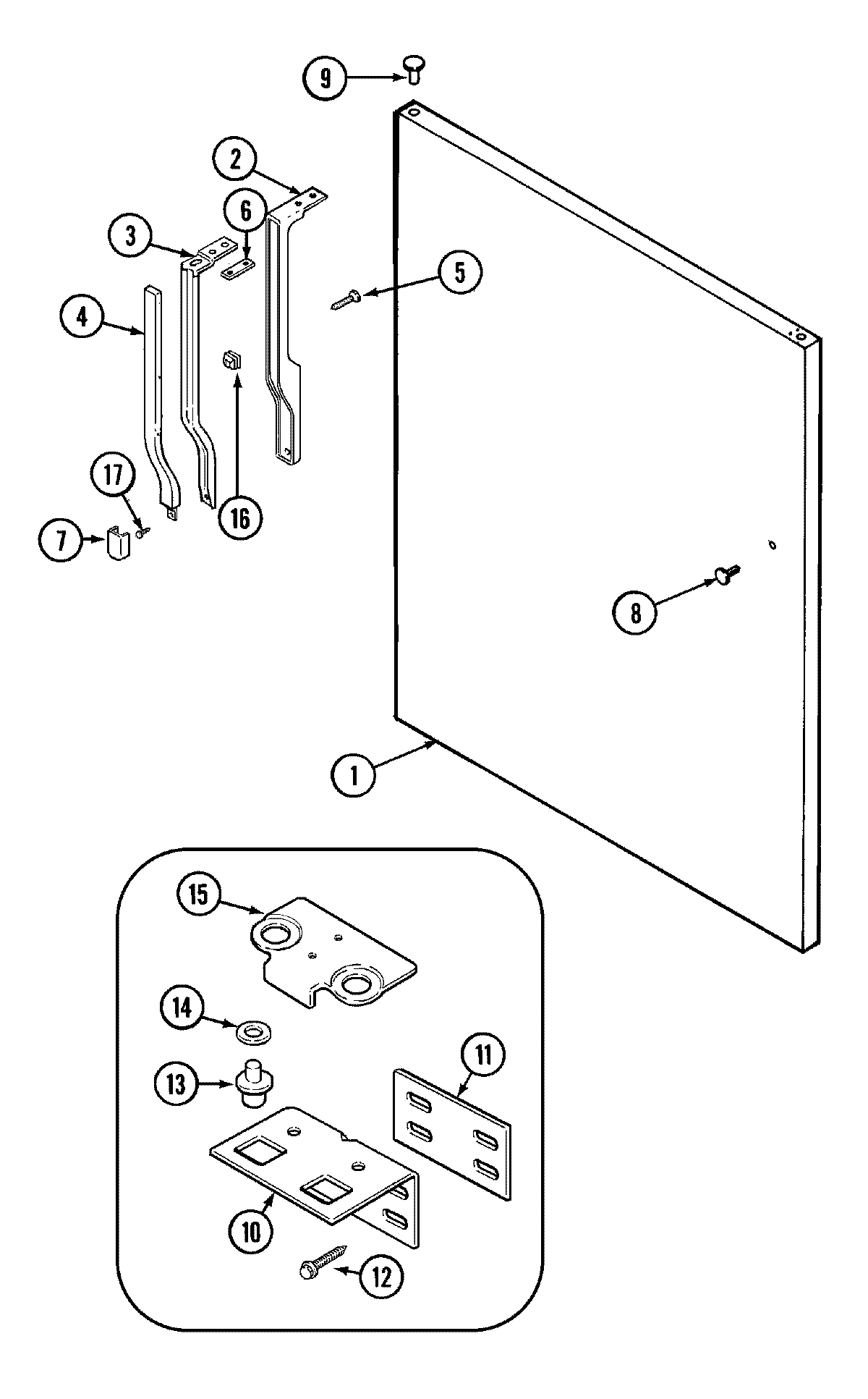

07 - FRESH FOOD OUTER DOOR

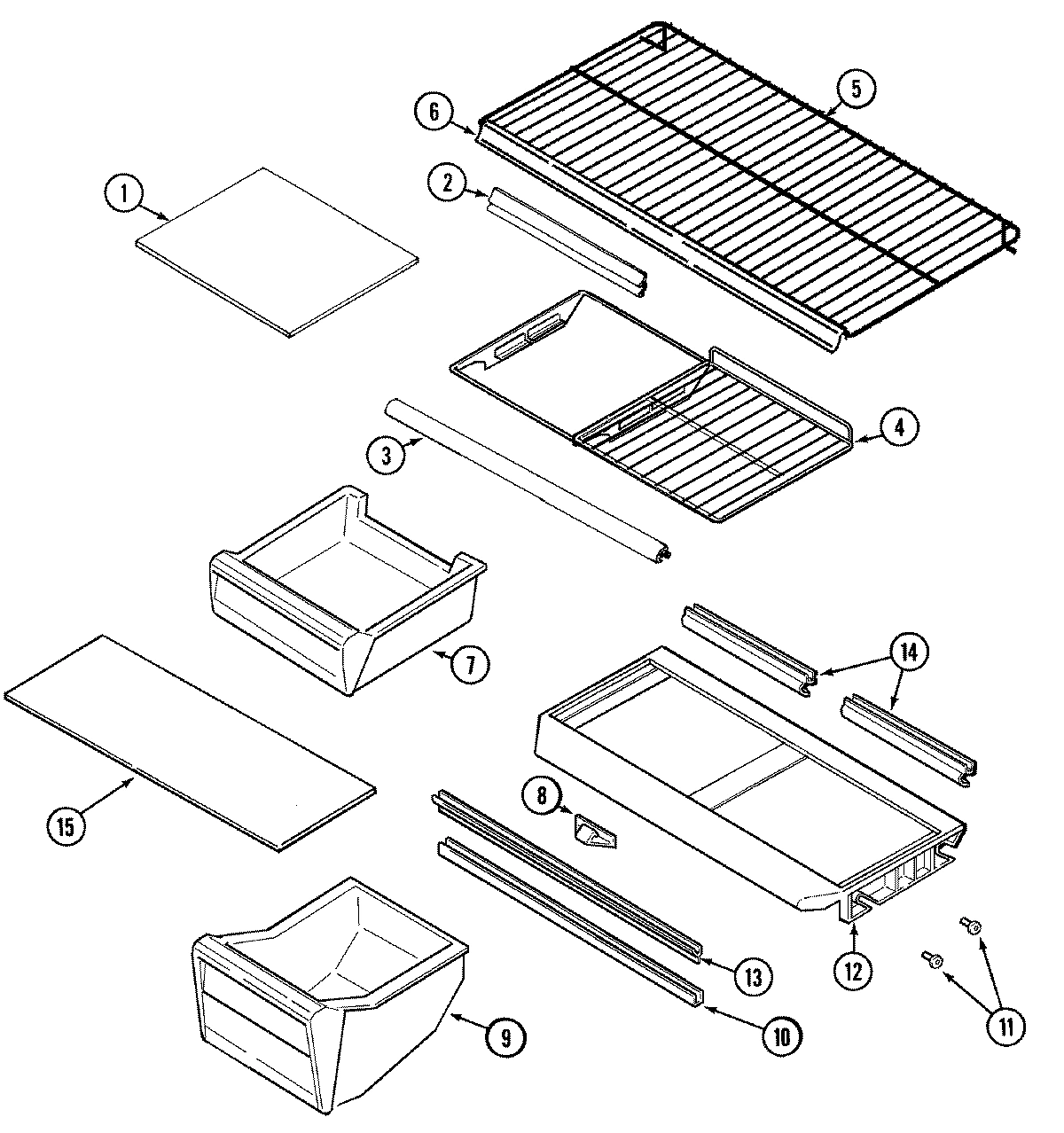

09 - SHELVES & ACCESSORIES

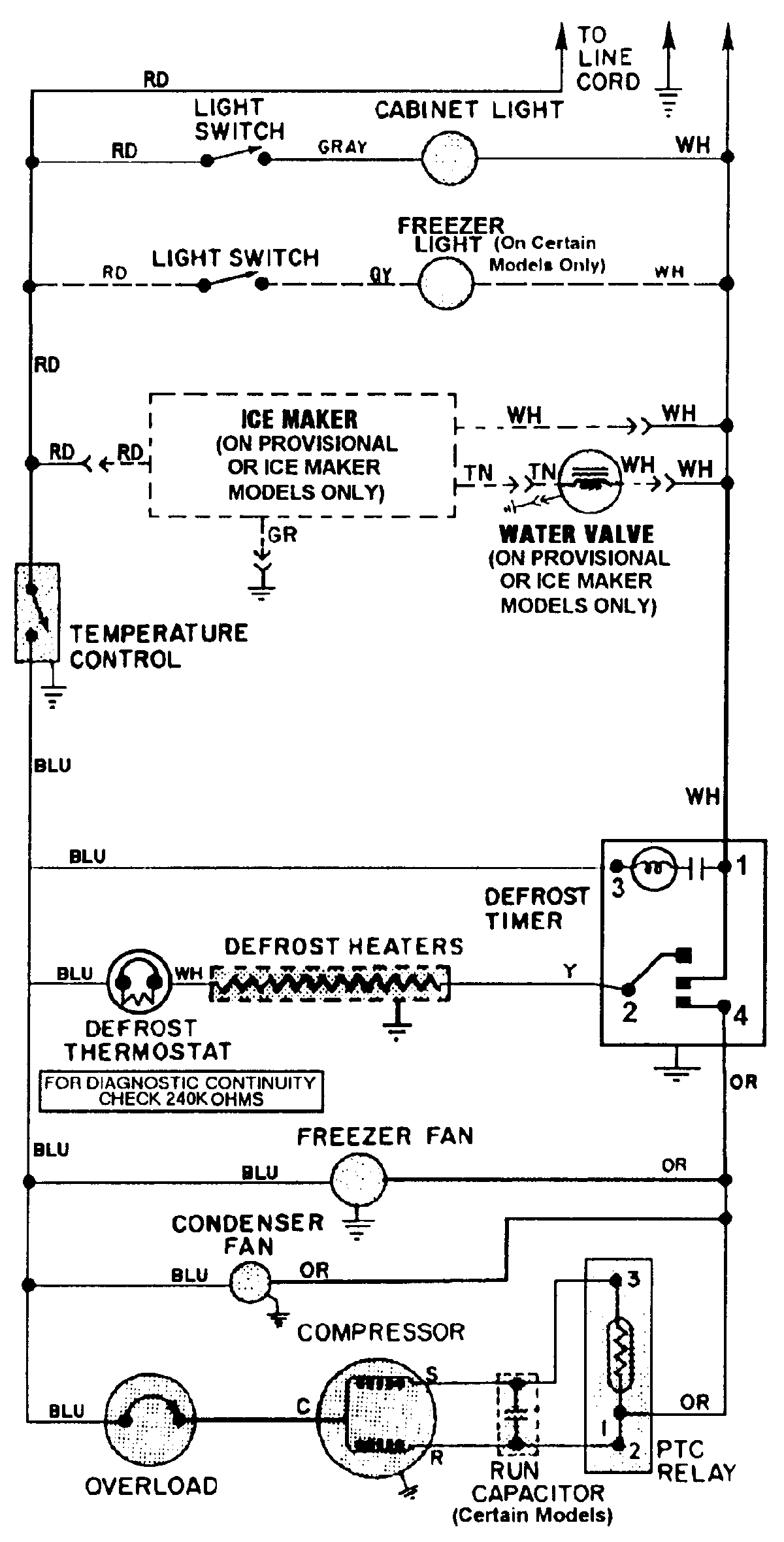

10 - WIRING INFORMATION

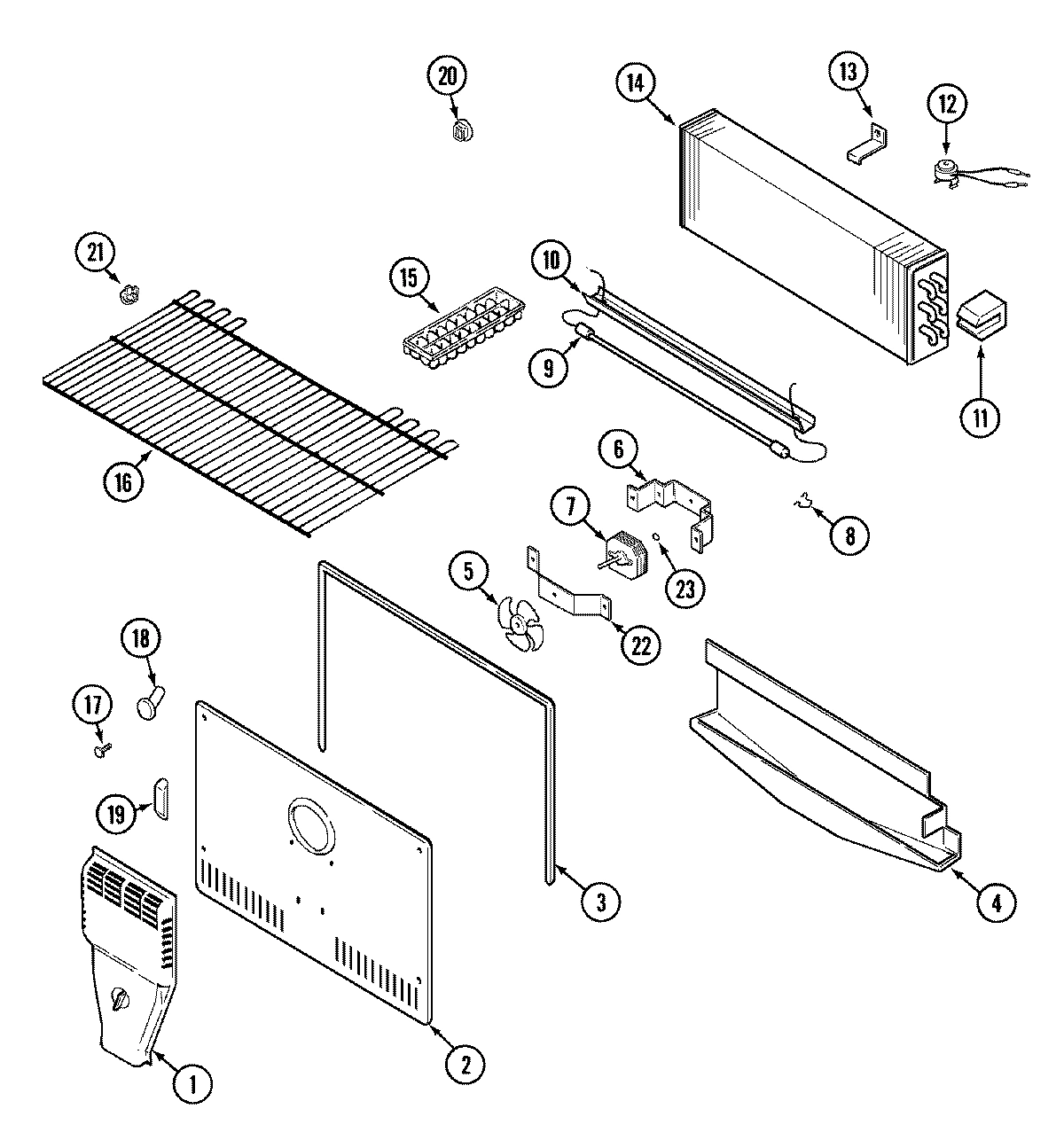

03 - FREEZER COMPARTMENT

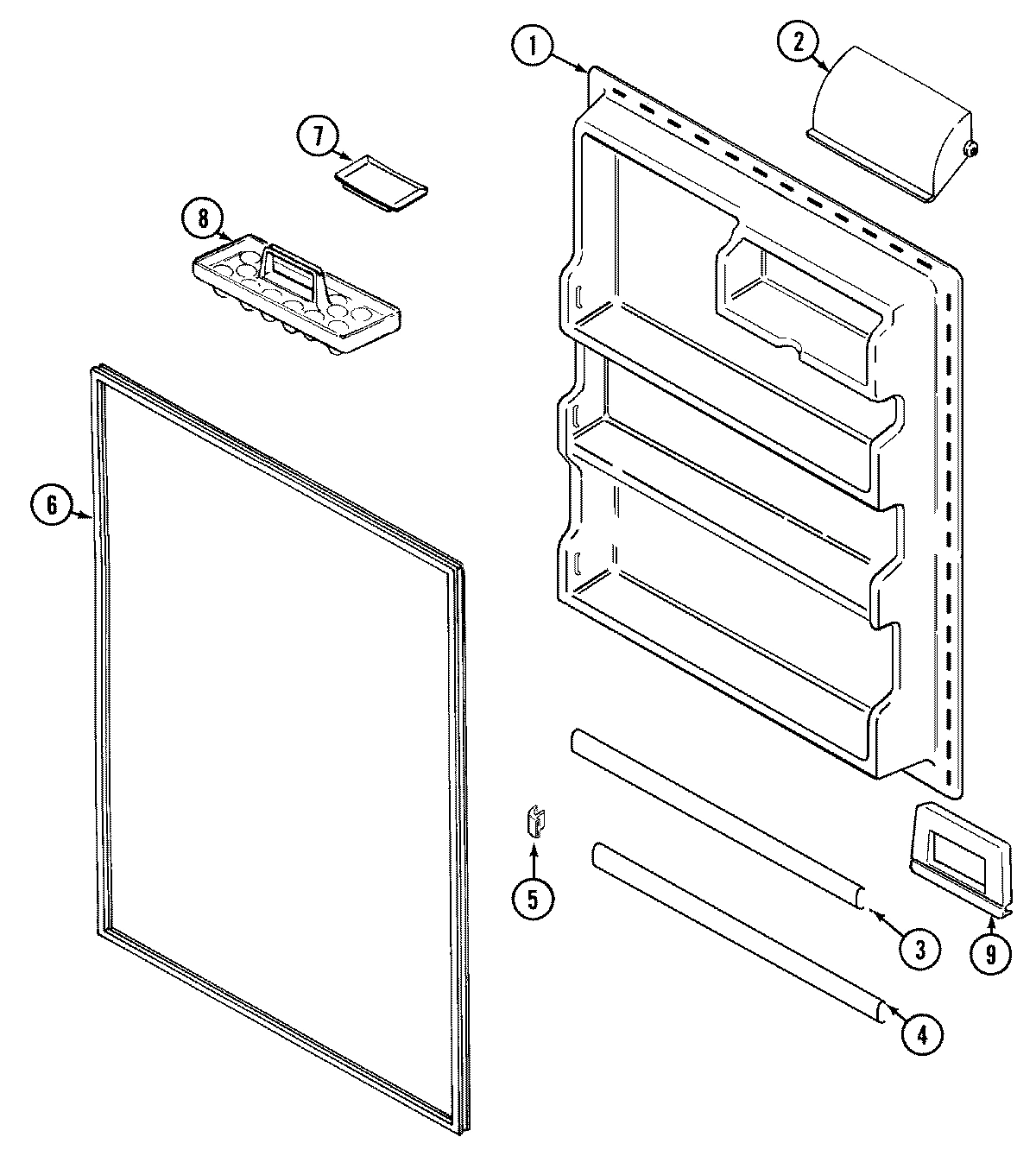

06 - FRESH FOOD INNER DOOR

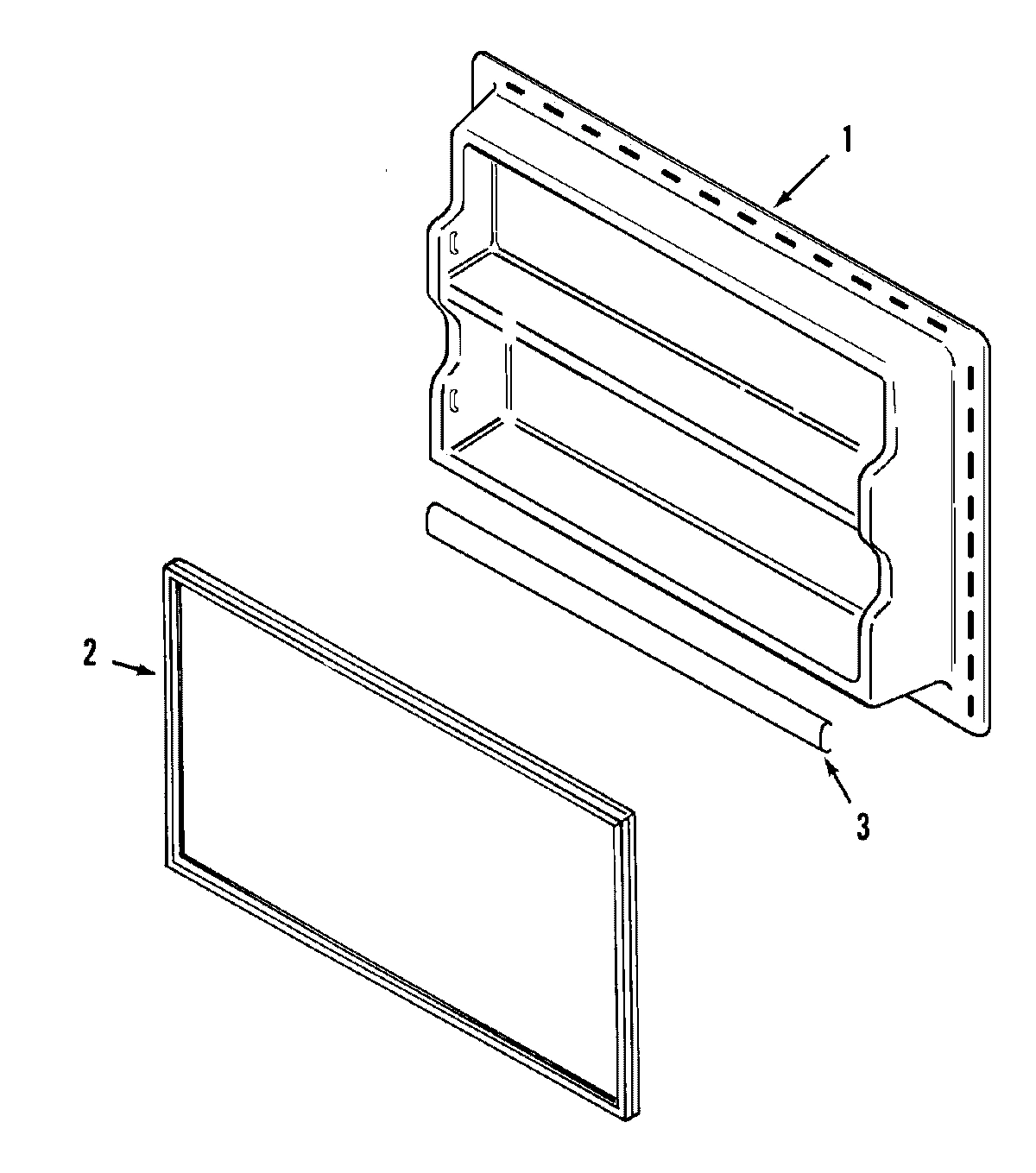

04 - FREEZER INNER DOOR

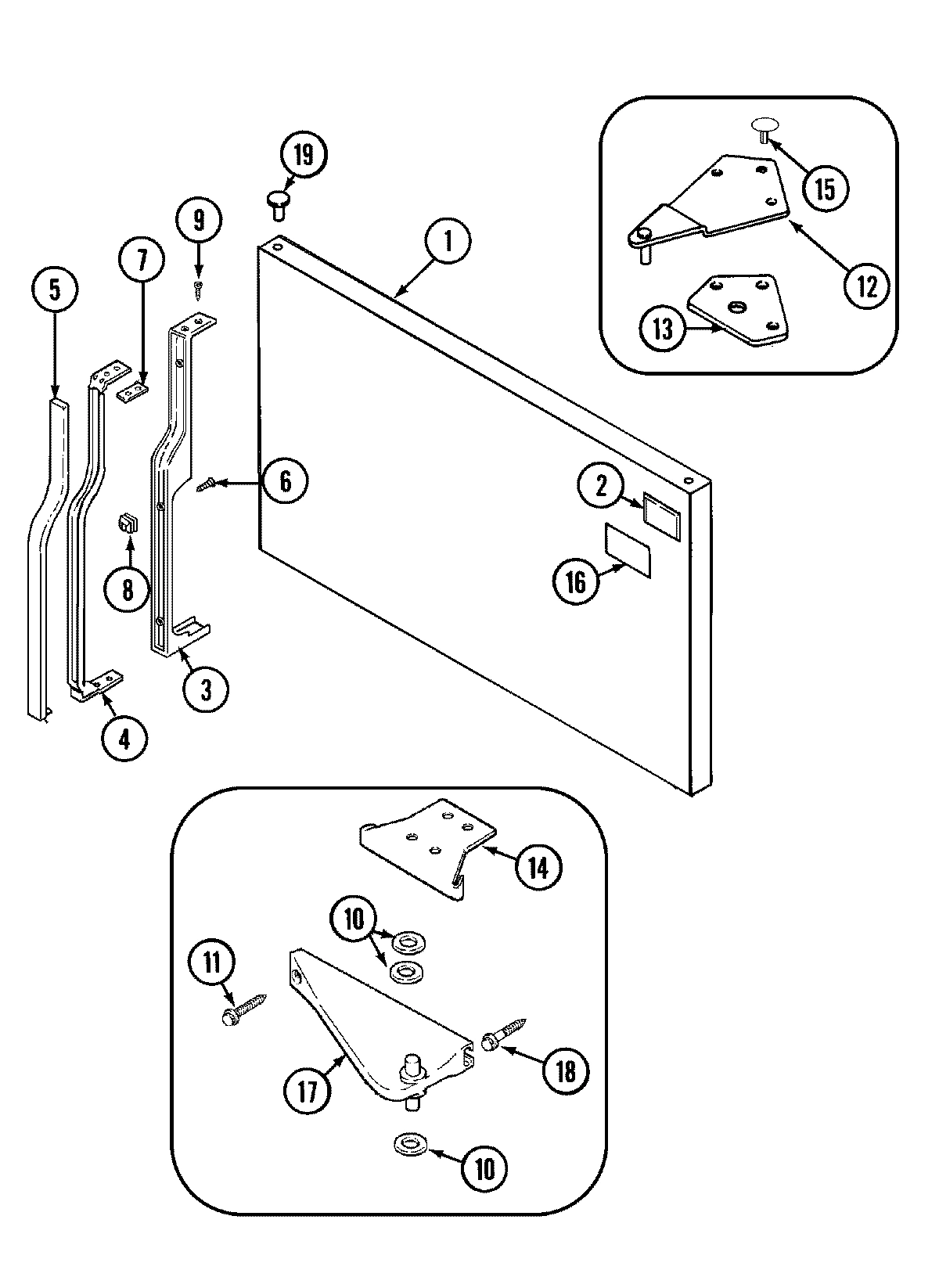

05 - FREEZER OUTER DOOR

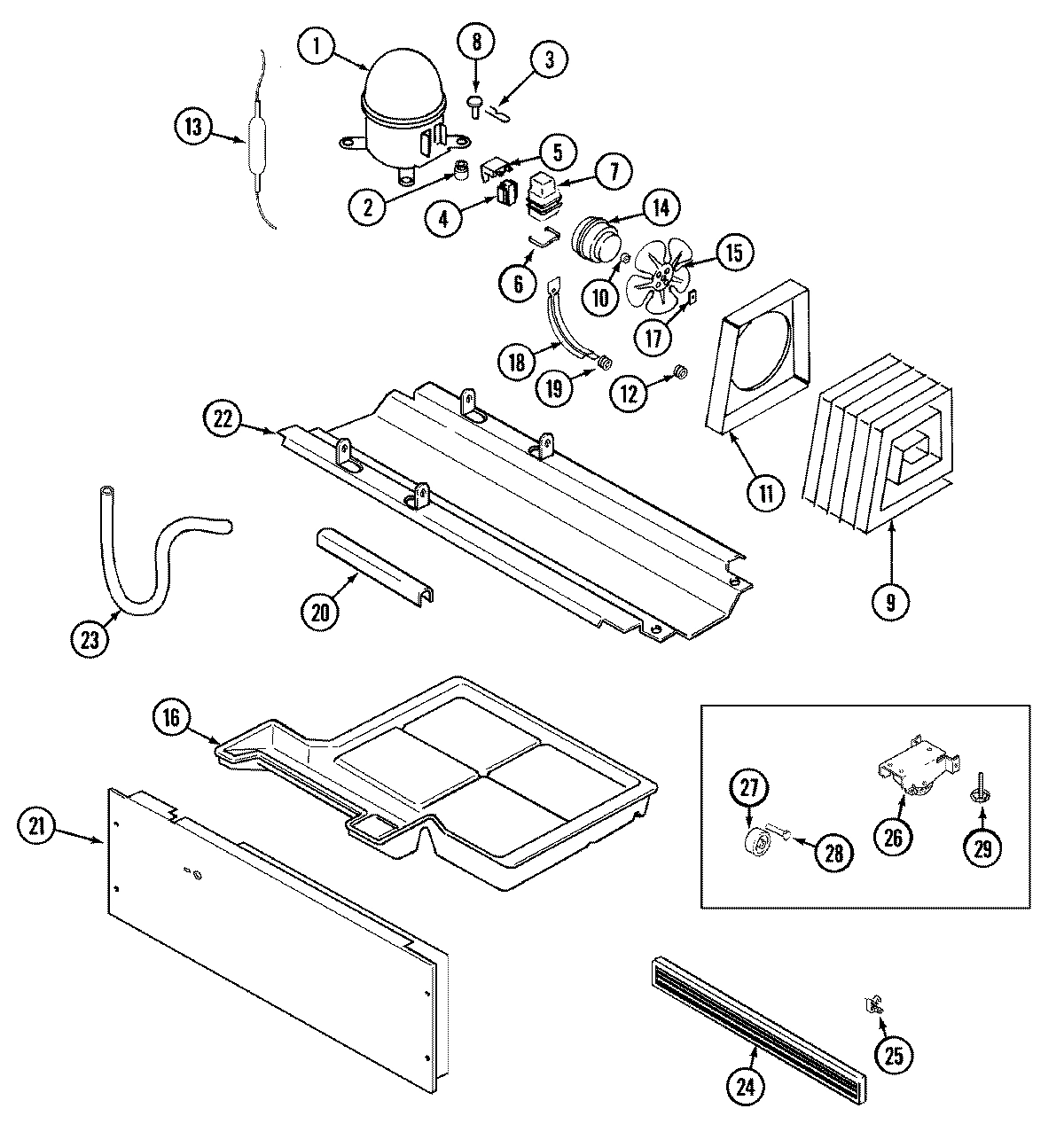

01 - COMPRESSOR
08 - OPTIONAL ICE MAKER KIT-UKI1000AXX
Common parts from model Whirlpool CT19A4W REFRIGERATOR
1
PANEL, F.F. DOOR (WHT) WPL 61002397 Contact Us For Availability
1
GLASS, MEAT SHELF WPL 61002413 Contact Us For Availability
1
TUNNEL, AIR WPL 61002021 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61002401 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61002403 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 61002402 Contact Us For Availability
1
COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability
1
WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SEAL, DRAIN WPL 61001977 Contact Us For Availability
2
HANDLE, F.F. DOOR (WHT) WPL 700513 Contact Us For Availability
2
TRIM, MEAT SHELF (REAR) WPL 61002415 Contact Us For Availability
2
COVER, EVAPORATOR WPL 61002418 Contact Us For Availability
2
DOOR, DAIRY WPL 61002023 Contact Us For Availability
2
BEZEL, NAMEPLATE (WHT) WPL 669815 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 61002085 Contact Us For Availability
3
FRAME, HANDLE WPL 700521 Contact Us For Availability
3
PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability
3
TRIM, MEAT SHELF (FRT) WPL 61002414 Contact Us For Availability
3
SEAL, FOAM (CTR) WPL 61002276 Contact Us For Availability
3
SEAL, EVAPORATOR COVER WPL 61002277 Contact Us For Availability
3
SEAL, FOAM (SOUND DAMPENING) WPL 61002419 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
INSERT, HANDLE (WHT) WPL 7005318 Contact Us For Availability
4
SHELF, MEAT WPL 61002411 Contact Us For Availability
4
SHELF, MEAT WPL 61003109 Contact Us For Availability
4
TRAY, DRIP WPL 61002319 Contact Us For Availability
4
FRAME, HANDLE WPL 61002247 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
SHELF, SLIDE-OUT WPL 61002410 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
INSERT, HANDLE (WHT) WPL 61002248 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
6
SCREW WPL 4150331 Contact Us For Availability
6
TRIM, SHELF WPL 61002385 Contact Us For Availability
6
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
END CAP, HANDLE (WHT) WPL 700582 Contact Us For Availability
7
PAN, UTILITY WPL 61002412 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
SCREW, HOUSING MTG. WPL 61002115 Contact Us For Availability
8
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
8
GROMMET WPL 697431 Contact Us For Availability
8
SLIDE, CONTROL WPL 61002331 Contact Us For Availability
8
TRAY, EGG WPL 600661 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
9
SCREW WPL 61001875 Contact Us For Availability
9
PAN, CRISPER WPL 61002417 Contact Us For Availability
9
RETAINER, BOTTLE WPL 61002333 Contact Us For Availability
9
COIL, CONDENSER WPL 61001957 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability
10
RAIL, CRISPER SUPPORT WPL 61002309 Contact Us For Availability
10
SHIELD, DEFROST HEATER WPL 61002320 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
11
HOUSING, CONTROL WPL 61001997 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability
11
SCREW WPL 4000171 Contact Us For Availability
11
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
11
SUPPORT, EVAPORATOR (LT) WPL 61001953 Contact Us For Availability
11
SUPPORT, EVAPORATOR (RT) WPL 61001954 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
12
SCREW WPL 4050071 Contact Us For Availability
12
TIMER, DEFROST WPL 682333 Contact Us For Availability
12
SHELF, CRISPER WPL 61002416 Contact Us For Availability
12
HINGE, UPPER WPL 61001971 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability
13
SEAL, CRISPER SHELF (FRT) WPL 61002389 Contact Us For Availability
13
SCREW WPL 40001735 Contact Us For Availability
13
BRACKET, EVAPORATOR WPL 61001951 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
14
EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability
14
ARM, ACTUATOR WPL 61002000 Contact Us For Availability
14
SCREW WPL 61001876 Contact Us For Availability
14
SEAL, CRISPER (REAR) WPL 61002390 Contact Us For Availability
14
STOP, DOOR (CHR) WPL 61001970 Contact Us For Availability
14
STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
15
TAPE, DAMPER ACTUATOR WPL 61001999 Contact Us For Availability
15
STOP, DOOR WPL 61001969 Contact Us For Availability
15
GLASS, CRISPER WPL 61002392 Contact Us For Availability
15
TRAY, ICE WPL 592812 Contact Us For Availability
15
PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability
16
SHELF, FRZ. WPL 61002420 Contact Us For Availability
16
NAMEPLATE (WHT) WPL 61002078 Contact Us For Availability
16
PAN, DRAIN WPL 61001955 Contact Us For Availability
16
FASTENER, DRAIN PAN WPL 61002958 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
17
HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability
18
CAP, FILL TUBE WPL 61002026 Contact Us For Availability
18
SCREW WPL 61002025 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability
19
CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CAP, WATER ENTRY WPL 61002028 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability
21
SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability
21
COVER, COMPRESSOR COMPT. WPL 61002275 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61002327 Contact Us For Availability
23
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
23
TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability
24
KICKPLATE (WHT) WPL 61002314 Contact Us For Availability
25
CLIP, KICKPLATE WPL 61001975 Contact Us For Availability
26
WHEEL ASSY. WPL 61001978 Contact Us For Availability
29
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002127 Contact Us For Availability
NI
WIRE HARNESS, FREEZER WPL 61002321 Contact Us For Availability
NI
YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability
NI
MANUAL, SERVICE (CROSLEY) WPL 16008421 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001981 Contact Us For Availability
× ![]()
