Model Whirlpool CT18G6U REFRIGERATOR – Common Parts & Diagrams
11 - WIRING INFORMATION

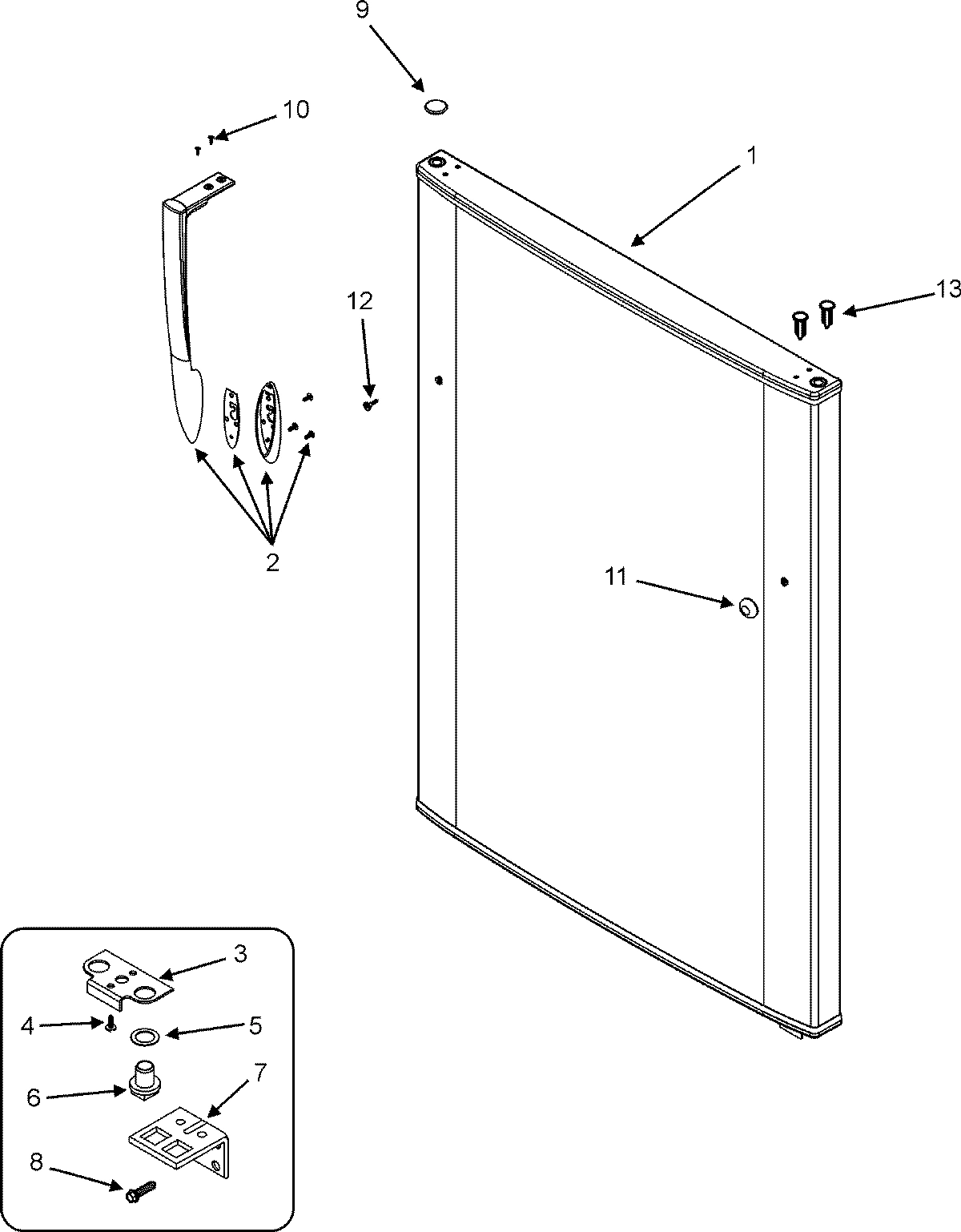

07 - FRESH FOOD OUTER DOOR

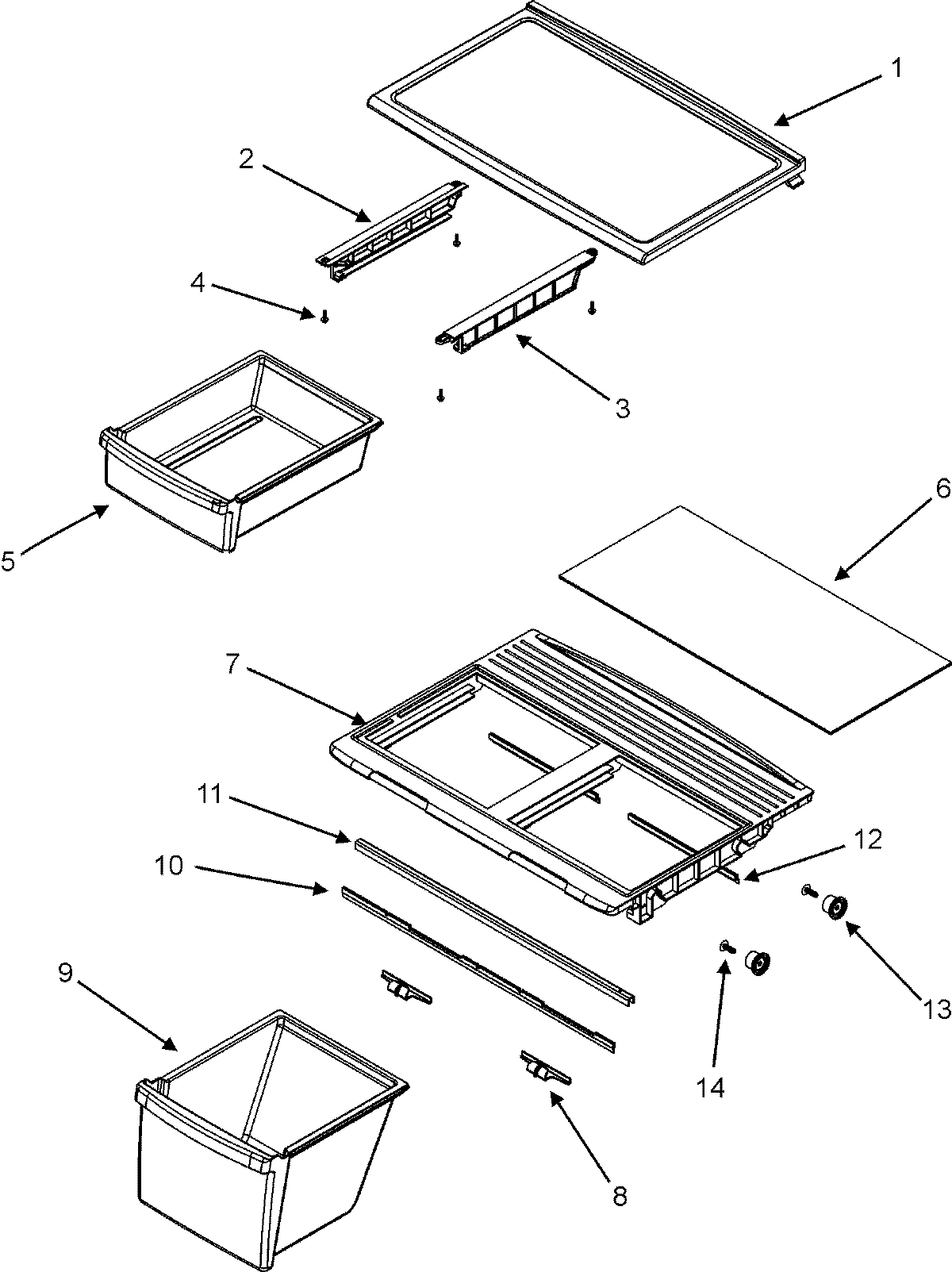

09 - SHELVES & ACCESSORIES
10 - SUPPLEMENTAL INFORMATION

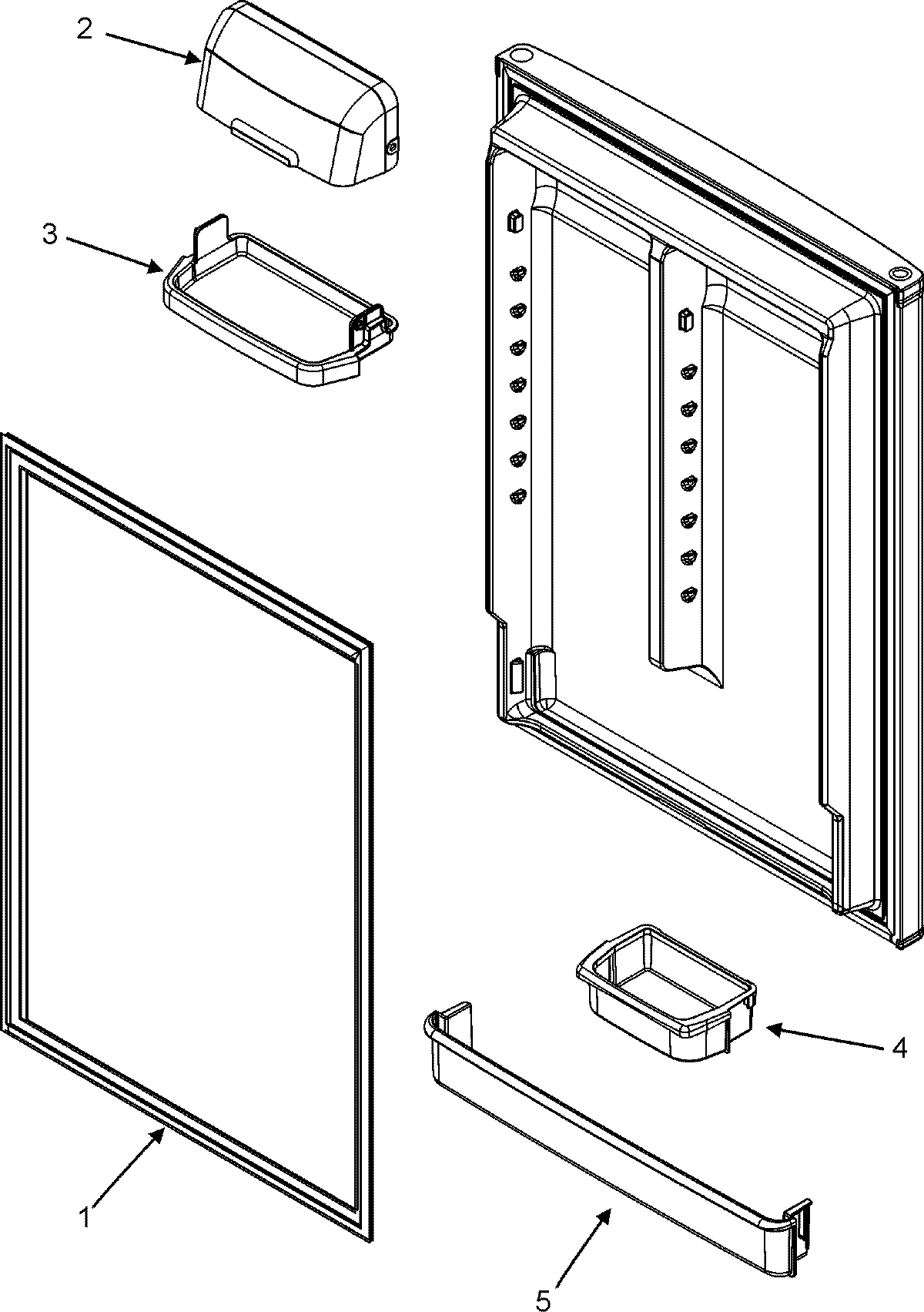

06 - FRESH FOOD INNER DOOR

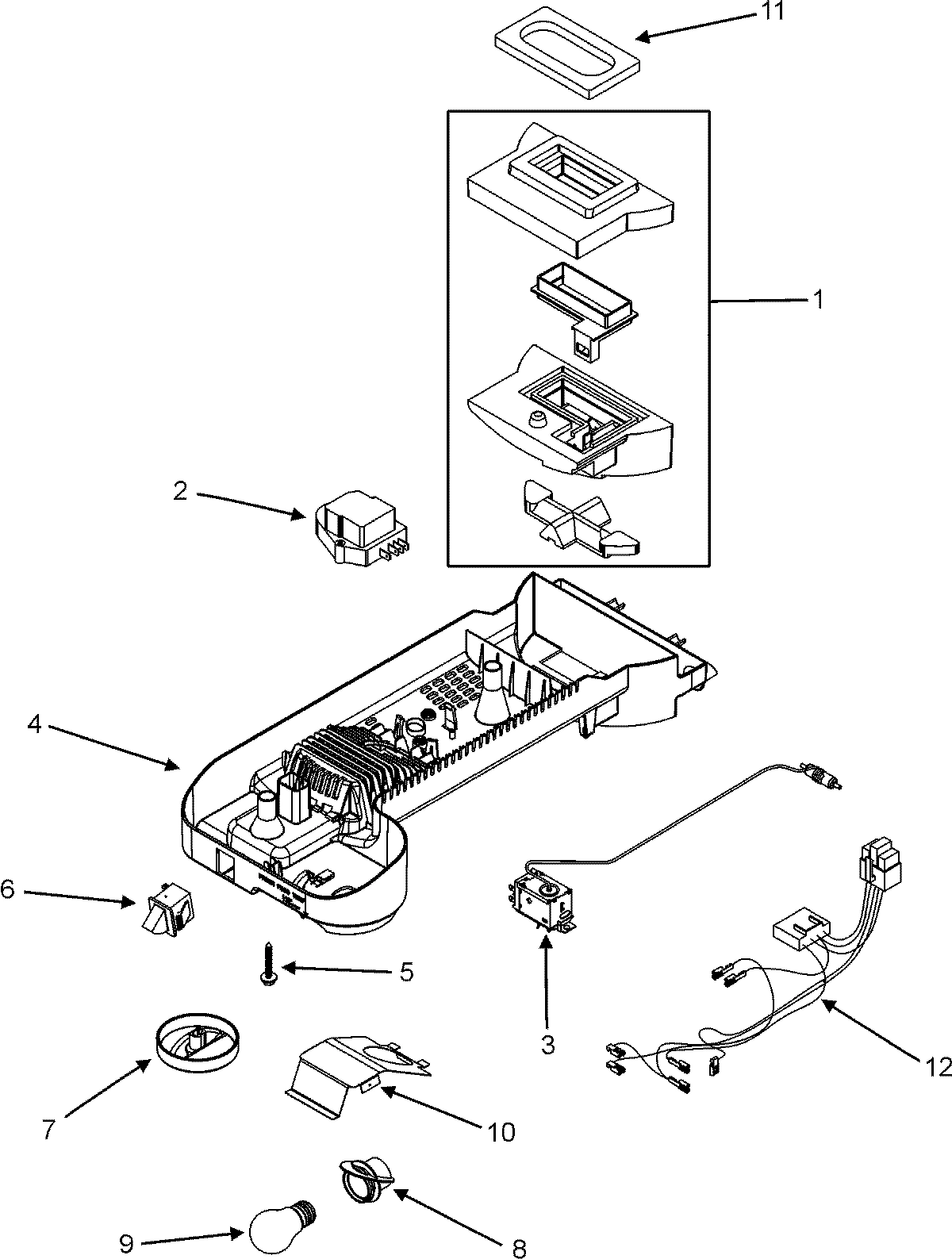

02 - CONTROLS

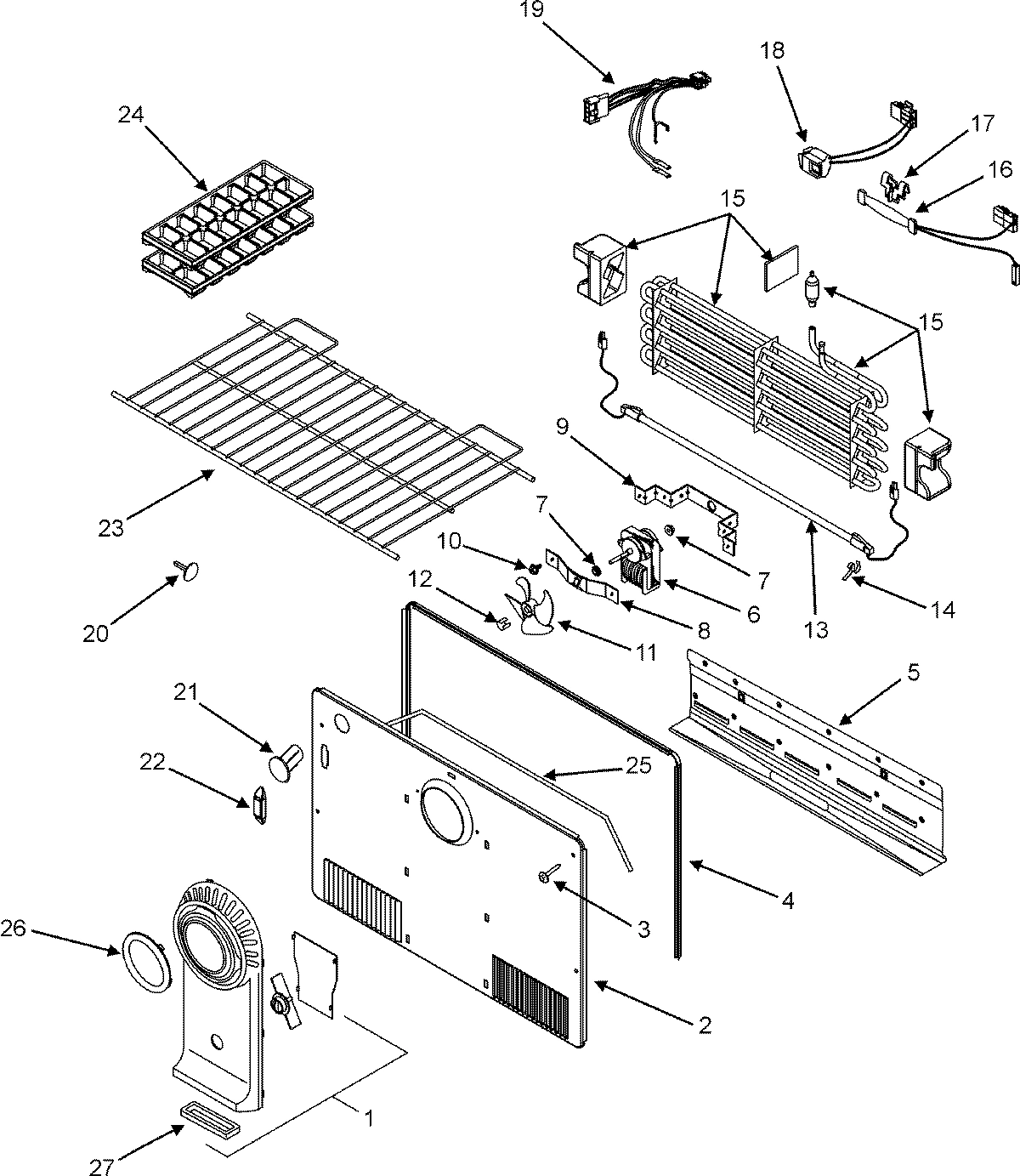

03 - FREEZER COMPARTMENT

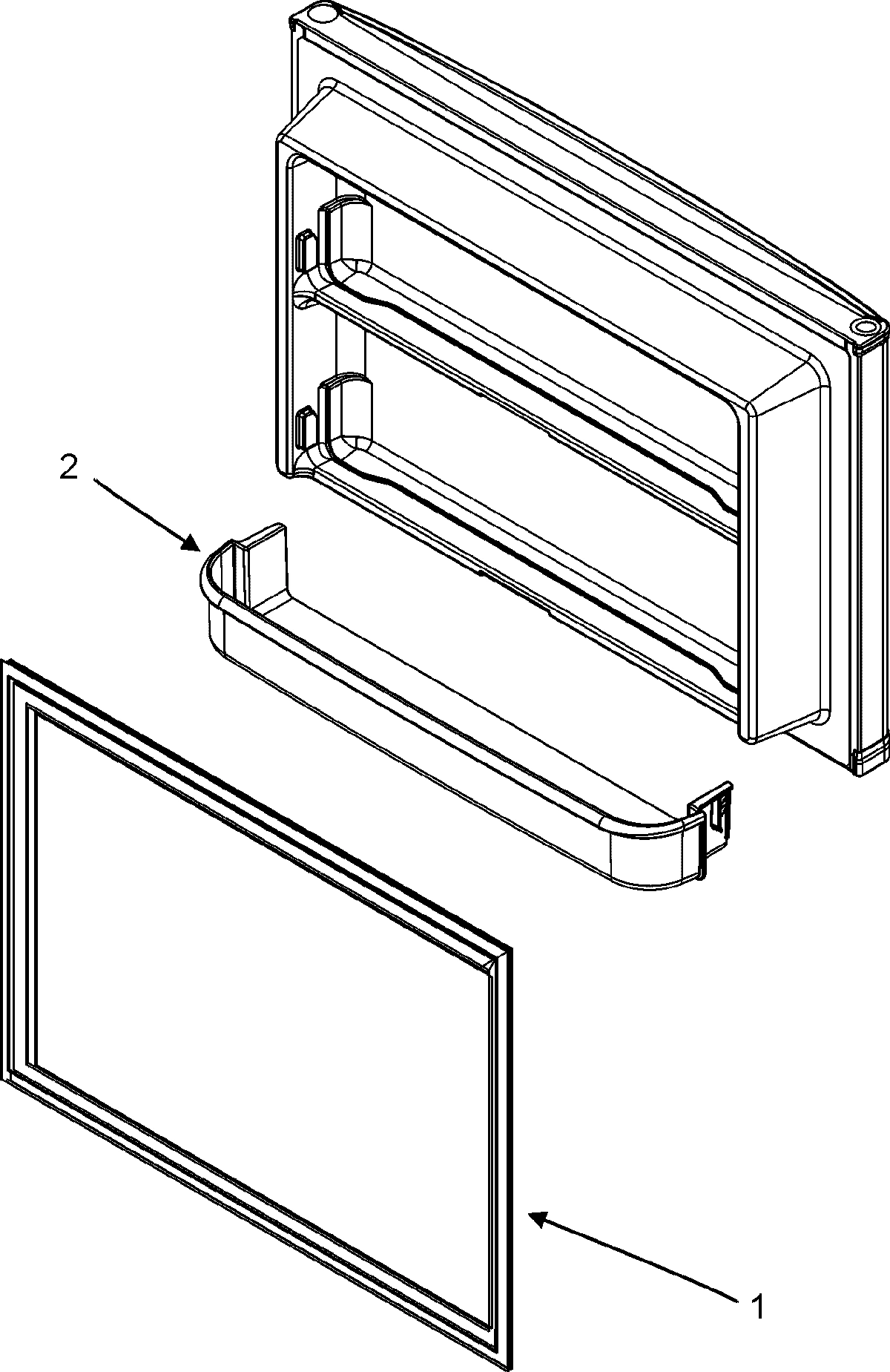

04 - FREEZER INNER DOOR

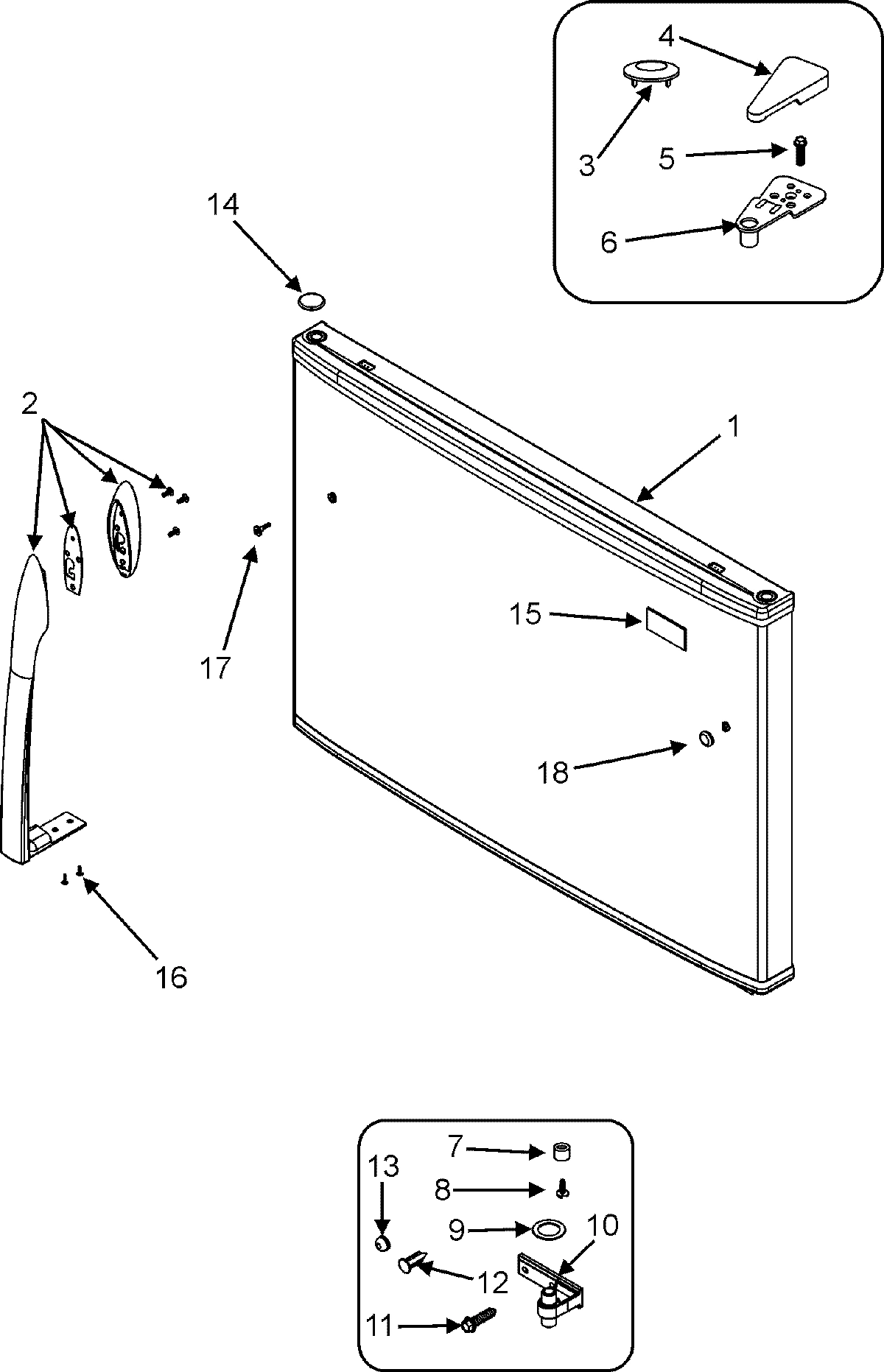

05 - FREEZER OUTER DOOR

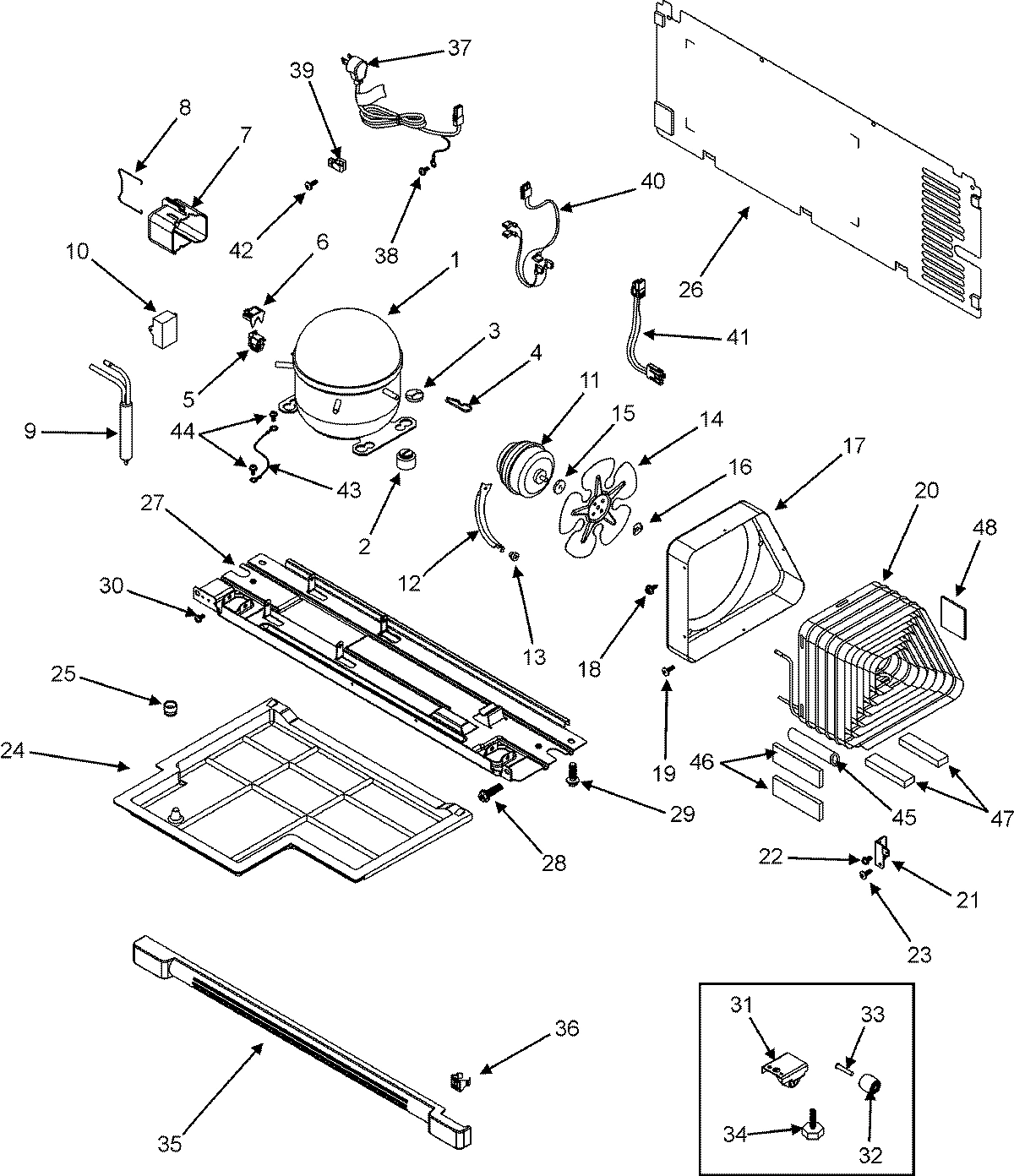

01 - COMPRESSOR

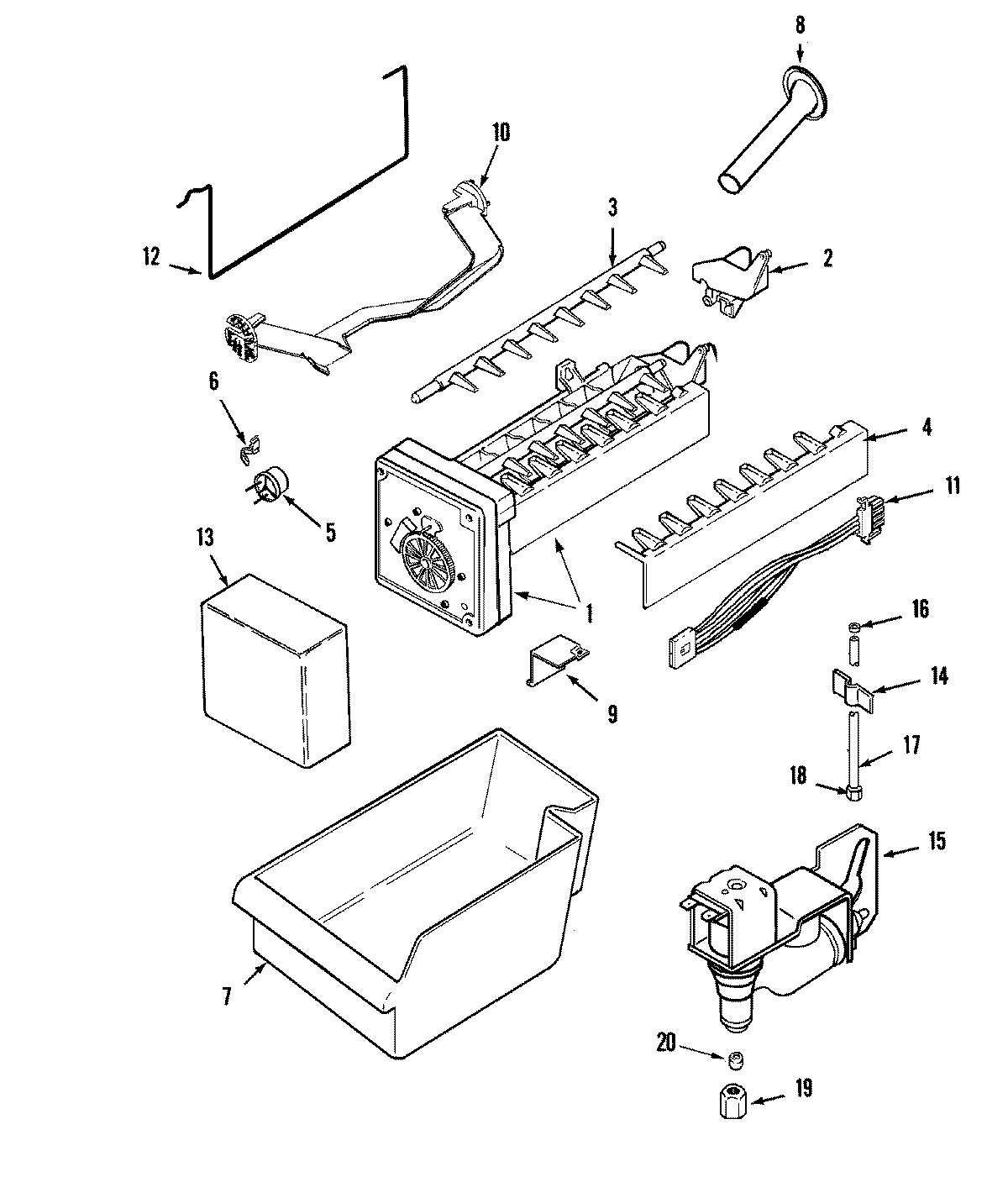

08 - OPTIONAL ICE MAKER KIT-UKI1500AXX
Common parts from model Whirlpool CT18G6U REFRIGERATOR
1
SHELF, FULL WPL 63001482 Contact Us For Availability
1
SEAL, F.F. DOOR (BLK) WPL 63001469 Contact Us For Availability
1
DAMPER/INSULATION ASSY. WPL 63001352 Contact Us For Availability
1
TUNNEL ASSY., AIR WPL 63001382 Contact Us For Availability
1
SEAL, FRZ. DOOR (BLK) WPL 63001463 Contact Us For Availability
1
DOOR ASSY., FREEZER (SLV) WPL 63001875 Contact Us For Availability
1
SCREW WPL 4000211 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
RAIL, DELI PAN (LT) WPL 63001534 Contact Us For Availability
2
DOOR, DAIRY WPL 63001397 Contact Us For Availability
2
SCREW WPL 4050071 Contact Us For Availability
2
TIMER, DEFROST WPL 63001353 Contact Us For Availability
2
COVER, EVAPORATOR WPL 63001383 Contact Us For Availability
2
SHELF, PICK OFF WPL 63001419 Contact Us For Availability
2
HANDLE ASSY., DOOR (BLK) WPL 63001462 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 63001006 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
STOP, DOOR WPL 63001394 Contact Us For Availability
3
RAIL, DELI PAN (RT) WPL 63001535 Contact Us For Availability
3
SHELF, DAIRY COMPT. WPL 63001398 Contact Us For Availability
3
CONTROL ASSY., TEMPERATURE WPL 63001358 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
CAP, HINGE (BLK) WPL 63001229 Contact Us For Availability
3
WASHER, COMPRESSOR WPL 63001007 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
SCREW WPL 63001255 Contact Us For Availability
4
SCREW WPL 63001318 Contact Us For Availability
4
SHELF ASSY., PICK OFF WPL 63001470 Contact Us For Availability
4
HOUSING, CONTROL WPL 63001354 Contact Us For Availability
4
SEAL, EVAPORATOR COVER WPL 63001385 Contact Us For Availability
4
COVER, UPPER HINGE (BLK) WPL 63001455 Contact Us For Availability
4
SPRING, COMPRESSOR WPL 63001008 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
RELAY, PTC WPL 63001003 Contact Us For Availability
5
PAN, DELI WPL 63001373 Contact Us For Availability
5
SHELF, PICK OFF WPL 63001401 Contact Us For Availability
5
TRAY, DRIP WPL 63001386 Contact Us For Availability
5
SCREW WPL 63001231 Contact Us For Availability
5
THERMOSTAT WPL 950921 Contact Us For Availability
5
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
6
OVERLOAD WPL 63001004 Contact Us For Availability
6
PIN, LOWER HINGE WPL 63001089 Contact Us For Availability
6
GLASS, CRISPER SHELF WPL 63001374 Contact Us For Availability
6
MOTOR, EVAPORATOR FAN WPL 63001057 Contact Us For Availability
6
HINGE, UPPER WPL 63001408 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
HINGE,LOWER !! WPL 63001128 Contact Us For Availability
7
SHELF, CRISPER WPL 63001375 Contact Us For Availability
7
KNOB, TEMPERATURE CONTROL WPL 63001355 Contact Us For Availability
7
BUSHING, EVAPORATOR FAN WPL 63001058 Contact Us For Availability
7
STOP, DOOR (BLK) WPL 63001456 Contact Us For Availability
7
COVER, RELAY WPL 63001013 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
8
SCREW WPL 63001226 Contact Us For Availability
8
SLIDE, CONTROL WPL 63001376 Contact Us For Availability
8
RECEPTACLE, BULB WPL 63001356 Contact Us For Availability
8
RETAINER, EVAPORATOR FAN WPL 63001062 Contact Us For Availability
8
CLIP, RELAY COVER WPL 63001014 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability
9
WASHER, HINGE WPL 63001079 Contact Us For Availability
9
PAN, CRISPER WPL 63001377 Contact Us For Availability
9
BRACKET, EVAPORATOR FAN WPL 63001063 Contact Us For Availability
9
DRIER WPL 139001 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
CAPACITOR, RUN WPL 63001005 Contact Us For Availability
10
SEAL, CRISPER SHELF (FRT) WPL 63001379 Contact Us For Availability
10
PLATE, BULB WPL 63001357 Contact Us For Availability
10
HINGE, CENTER (BLK) WPL 63001457 Contact Us For Availability
10
ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability
11
RAIL, CRISPER SUPPORT WPL 63001380 Contact Us For Availability
11
SEAL, DAMPER ASSY. WPL 63001360 Contact Us For Availability
11
BLADE, EVAPORATOR FAN WPL 63001060 Contact Us For Availability
11
SCREW WPL 63001234 Contact Us For Availability
11
MOTOR, CONDENSER FAN WPL 63001021 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability
12
CAP, CENTER HINGE (BLK) WPL 63001458 Contact Us For Availability
12
SEAL, CRISPER SHELF (REAR) WPL 63001381 Contact Us For Availability
12
WIRE HARNESS, CONTROLS WPL 63001359 Contact Us For Availability
12
CLIP, FAN BLADE WPL 63001061 Contact Us For Availability
12
BRACKET, FAN MOTOR WPL 63001020 Contact Us For Availability
12
SCREW WPL 63001092 Contact Us For Availability
12
ARM, SENSOR WPL 61005173 Contact Us For Availability
12
CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability
13
SUPPORT, CRISPER SHELF WPL 63001045 Contact Us For Availability
13
HEATER, DEFROST WPL 63001387 Contact Us For Availability
13
CAP, HINGE (BLK) WPL 63001235 Contact Us For Availability
13
GROMMET, BRACKET WPL 63001017 Contact Us For Availability
13
COVER, ICE MAKER WPL 61004594 Contact Us For Availability
14
CAP, BUSHING (BLK) WPL 63001225 Contact Us For Availability
14
CLIP, DEFROST HEATER WPL 63001050 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 63001018 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
15
KIT, EVAPORATOR WPL 12002519 Contact Us For Availability
15
NAMEPLATE (CROSLEY-BLK) WPL 63001818 Contact Us For Availability
15
GROMMET, FAN MOTOR WPL 63001074 Contact Us For Availability
16
SCREW WPL 63001432 Contact Us For Availability
16
FUSE WPL 63001052 Contact Us For Availability
16
CLIP, FAN BLADE WPL 63001019 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
SCREW WPL 63001435 Contact Us For Availability
17
CLIP, FUSE WPL 63001053 Contact Us For Availability
17
SHROUD, CONDENSER WPL 63001015 Contact Us For Availability
18
CAP, HANDLE SCREW (GRY) WPL 63001461 Contact Us For Availability
18
THERMOSTAT, DEFROST (2 WIRE) WPL 63001388 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
WIRE HARNESS, FRZ. WPL 63001059 Contact Us For Availability
19
SCREW WPL 63001093 Contact Us For Availability
20
PLUG BUTTON, ICE MAKER WPL 63001066 Contact Us For Availability
20
CONDENSER WPL 63001245 Contact Us For Availability
20
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
CAP, FILL TUBE WPL 63001065 Contact Us For Availability
21
BRACKET, VALVE WPL 63001023 Contact Us For Availability
22
CAP, I/M WIRE HARNESS WPL 63001064 Contact Us For Availability
23
SHELF, FRZ. WPL 63001389 Contact Us For Availability
24
PAN, DRAIN WPL 63001347 Contact Us For Availability
25
SEAL, EVAPORATOR COVER WPL 63001384 Contact Us For Availability
25
CAP, DRAIN WPL 63001022 Contact Us For Availability
26
COVER, FAN WPL 63001428 Contact Us For Availability
26
COVER, MACHINE COMPARTMENT WPL 63001348 Contact Us For Availability
27
SEAL WPL 63001429 Contact Us For Availability
27
SEE NOTE (BASE PAN NOT AVAILABLE) WPL Y00000000 Contact Us For Availability
28
BOLT WPL 63001251 Contact Us For Availability
29
BOLT WPL 63001252 Contact Us For Availability
31
SCREW WPL 56001210 Contact Us For Availability
31
WHEEL ASSY. (FRT) WPL 63001100 Contact Us For Availability
32
WHEEL (REAR) WPL 63001001 Contact Us For Availability
33
PIN, WHEEL WPL 63001002 Contact Us For Availability
34
LEG, LEVELING WPL 63001025 Contact Us For Availability
35
KICKPLATE ASSY. (BLK) WPL 63001444 Contact Us For Availability
36
CLIP, KICKPLATE WPL 63001351 Contact Us For Availability
37
CORD, POWER WPL 63001420 Contact Us For Availability
39
CLIP, POWER CORD WPL 63001346 Contact Us For Availability
40
WIRE HARNESS, COMPRESSOR WPL 63001012 Contact Us For Availability
41
WIRE HARNESS, COND FAN MOTOR WPL 63001028 Contact Us For Availability
42
SCREW WPL 63001276 Contact Us For Availability
43
WIRE, GROUND WPL 63001011 Contact Us For Availability
44
SCREW WPL 63001091 Contact Us For Availability
45
SEAL WPL 63001424 Contact Us For Availability
46
SEAL WPL 63001425 Contact Us For Availability
47
SEAL WPL 63001426 Contact Us For Availability
48
SEAL WPL 63001427 Contact Us For Availability
NI
TECH SHT,TOP MT WPL 16023494 Contact Us For Availability
NI
SVC MAN, TOP MT WPL 16025860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 3013913000 Contact Us For Availability
NI
LABEL, ENERGY GUIDE WPL 63001439 Contact Us For Availability
× ![]()
