Model Whirlpool CT15G4Q REFRIGERATOR – Common Parts &amp; Diagrams

1

CONTROL ASSY., TEMPERATURE WPL 61005790 Contact Us For Availability

1

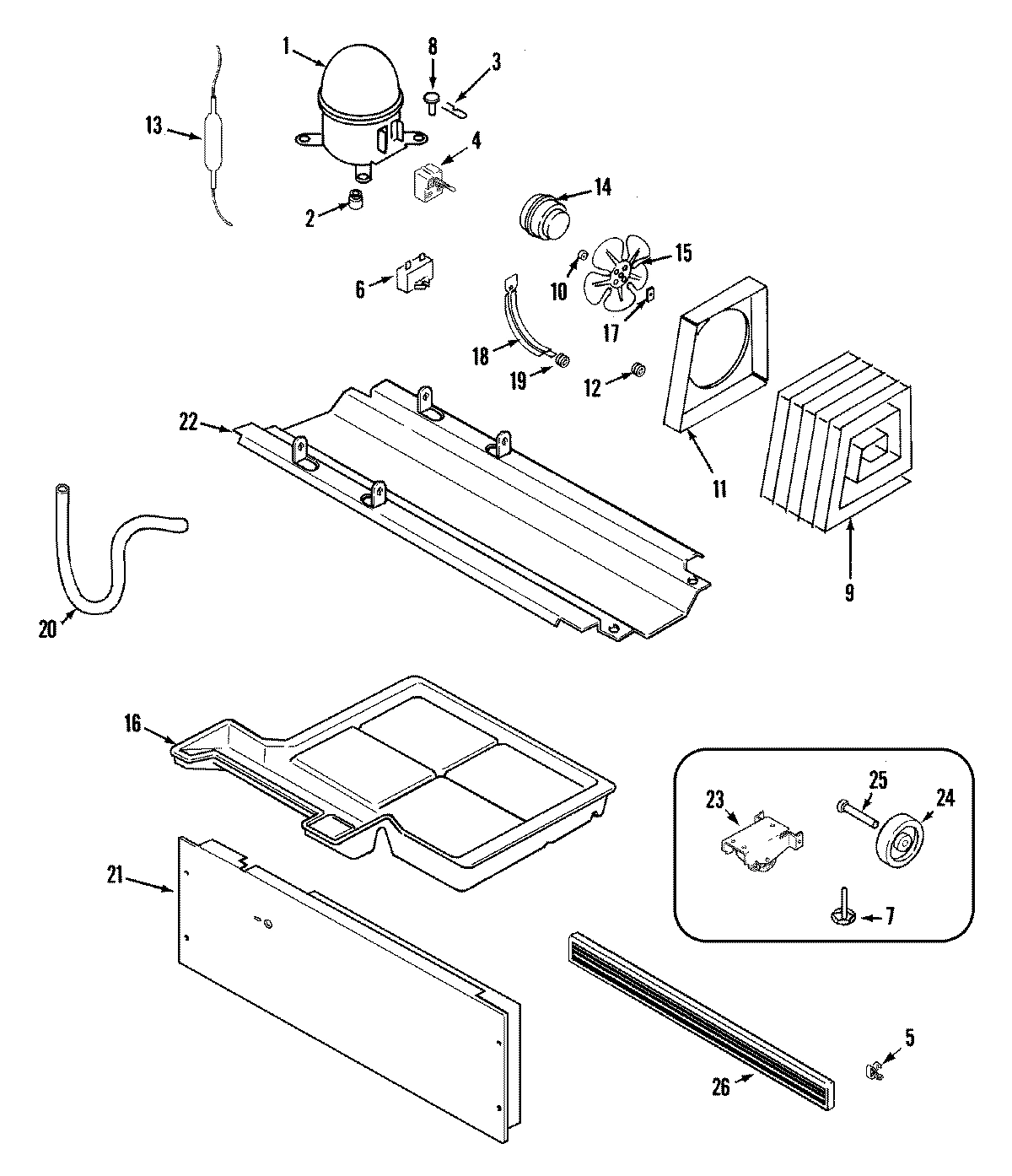

KIT, COMPRESSOR WPL 12002059 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61006032 Contact Us For Availability

1

SCREW WPL 61005388 Contact Us For Availability

1

CONTROL ASSY., TEMPERATURE WPL 61004870 Contact Us For Availability

1

SCREW WPL 6527581 Contact Us For Availability

1

KIT, COMPRESSOR (R134A) WPL 12001872 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability

1

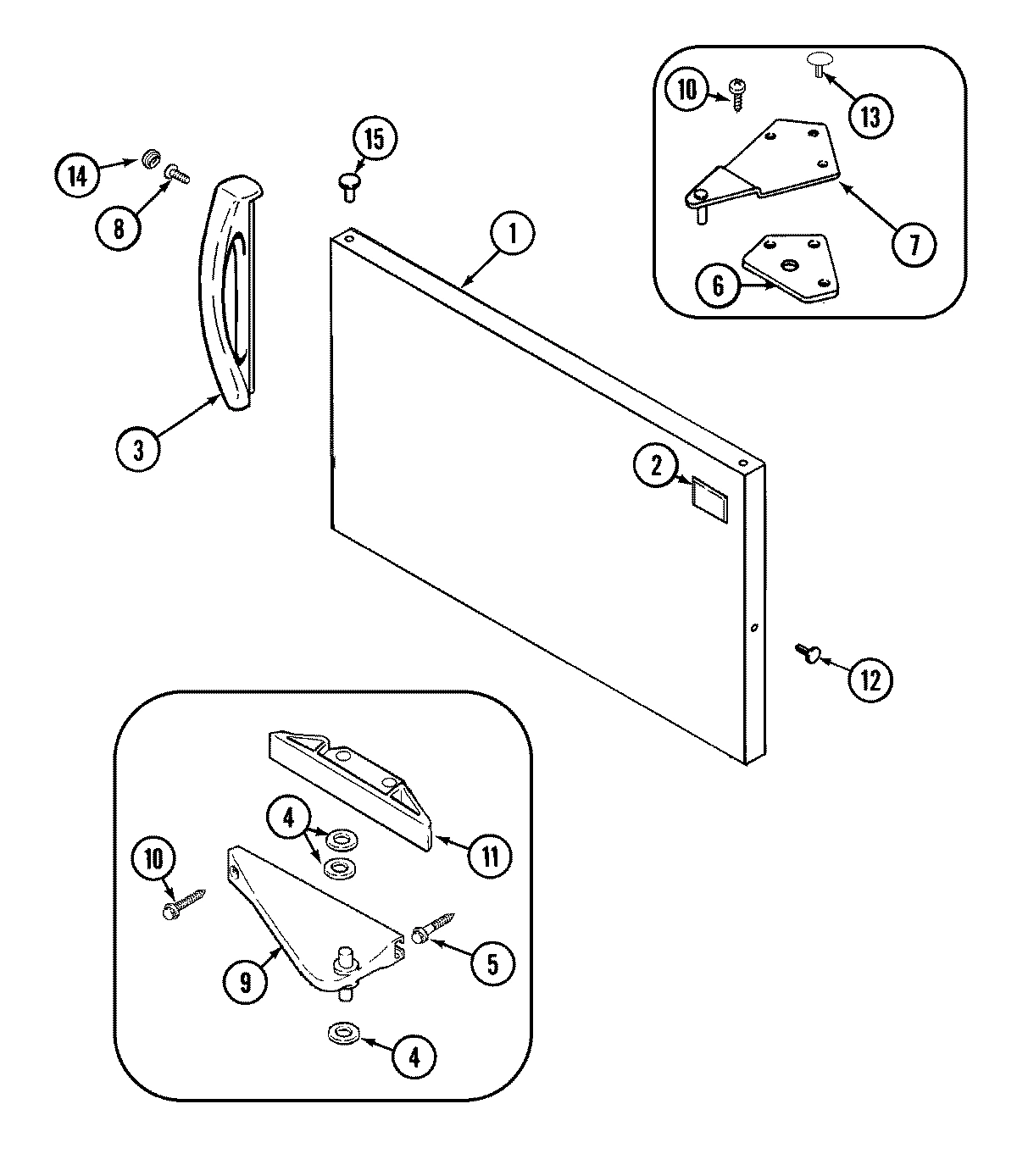

PANEL, FRZ. DOOR (BSQ) WPL 61004893 Contact Us For Availability

1

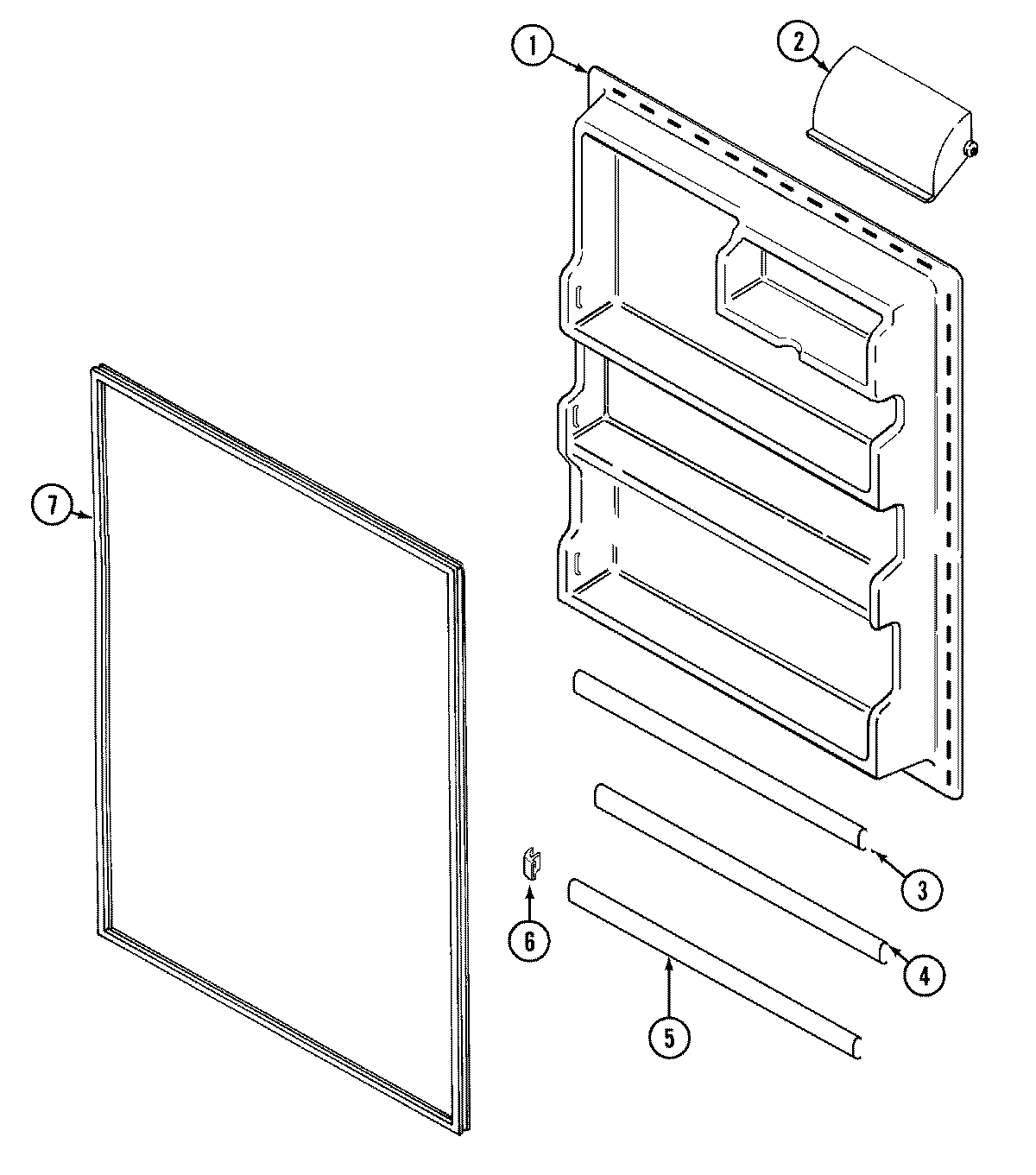

LINER, F.F. DOOR WPL 61001936 Contact Us For Availability

1

TUNNEL, AIR WPL 61001943 Contact Us For Availability

1

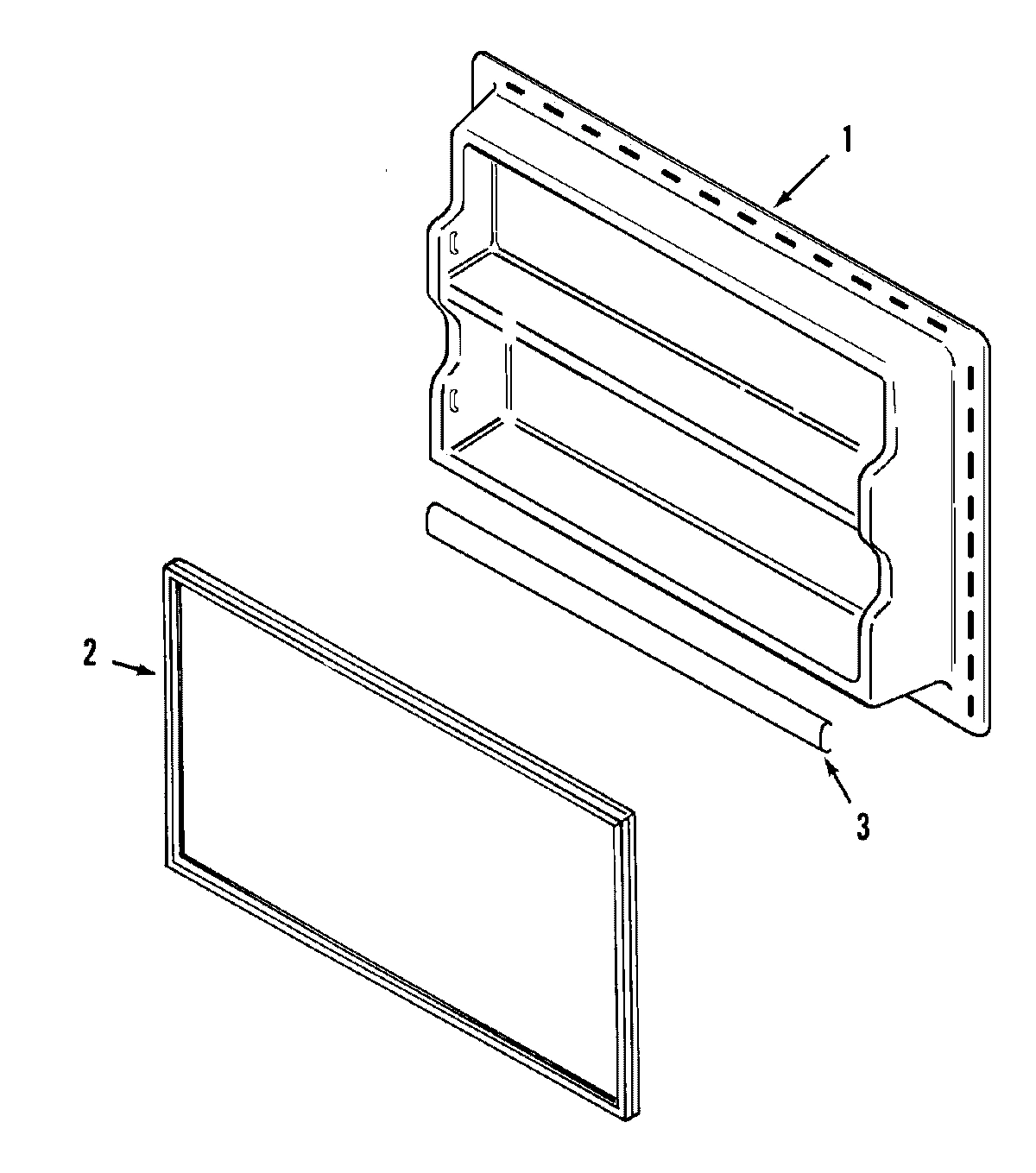

LINER, FRZ. DOOR WPL 61001927 Contact Us For Availability

1

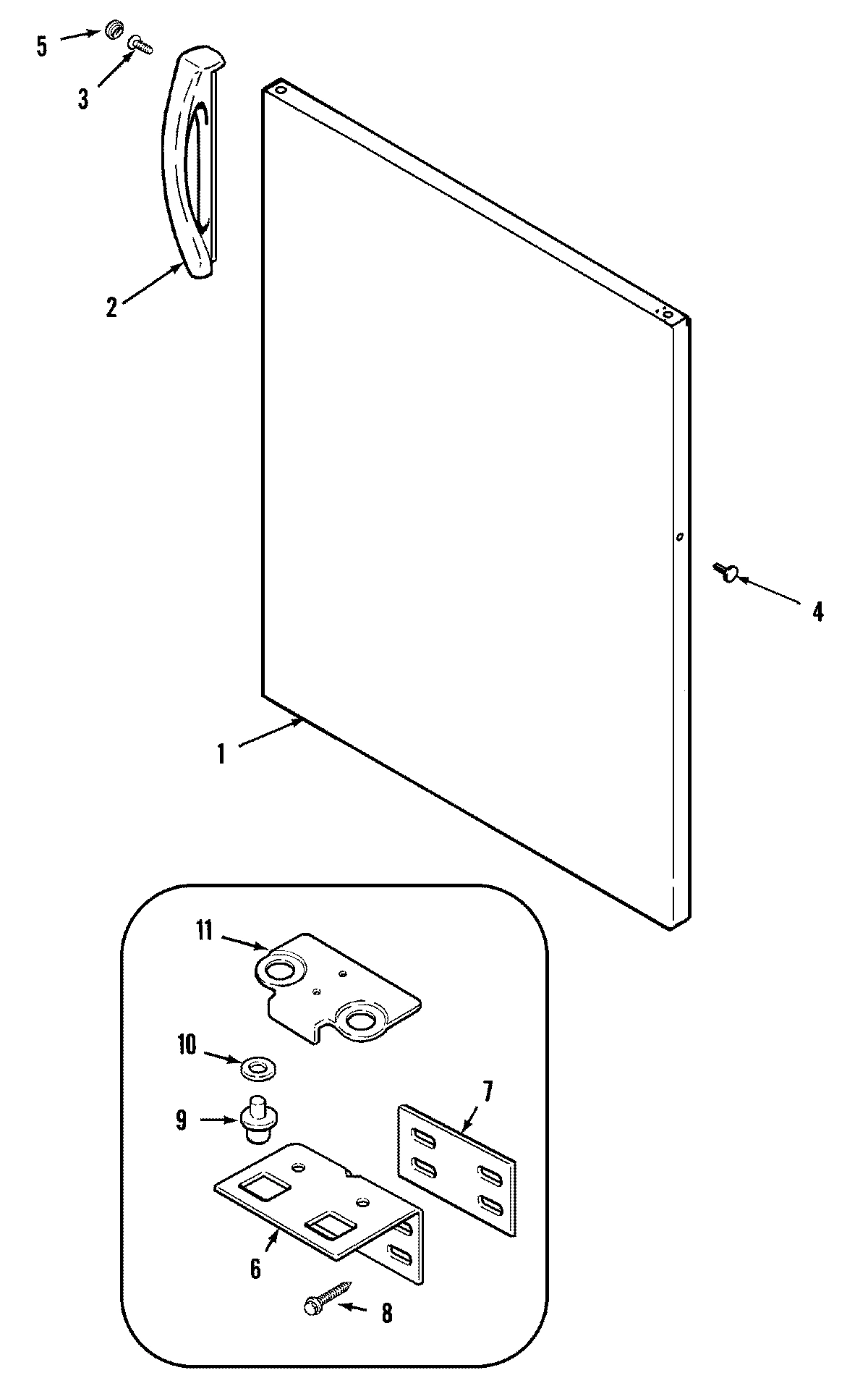

PANEL, F.F. DOOR (BSQ) WPL 61004889 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

2

SCREW WPL 4050071 Contact Us For Availability

2

TIMER, DEFROST WPL 682332 Contact Us For Availability

2

NAMEPLATE (BSQ) WPL 61004949 Contact Us For Availability

2

DOOR, DAIRY WPL 61002023 Contact Us For Availability

2

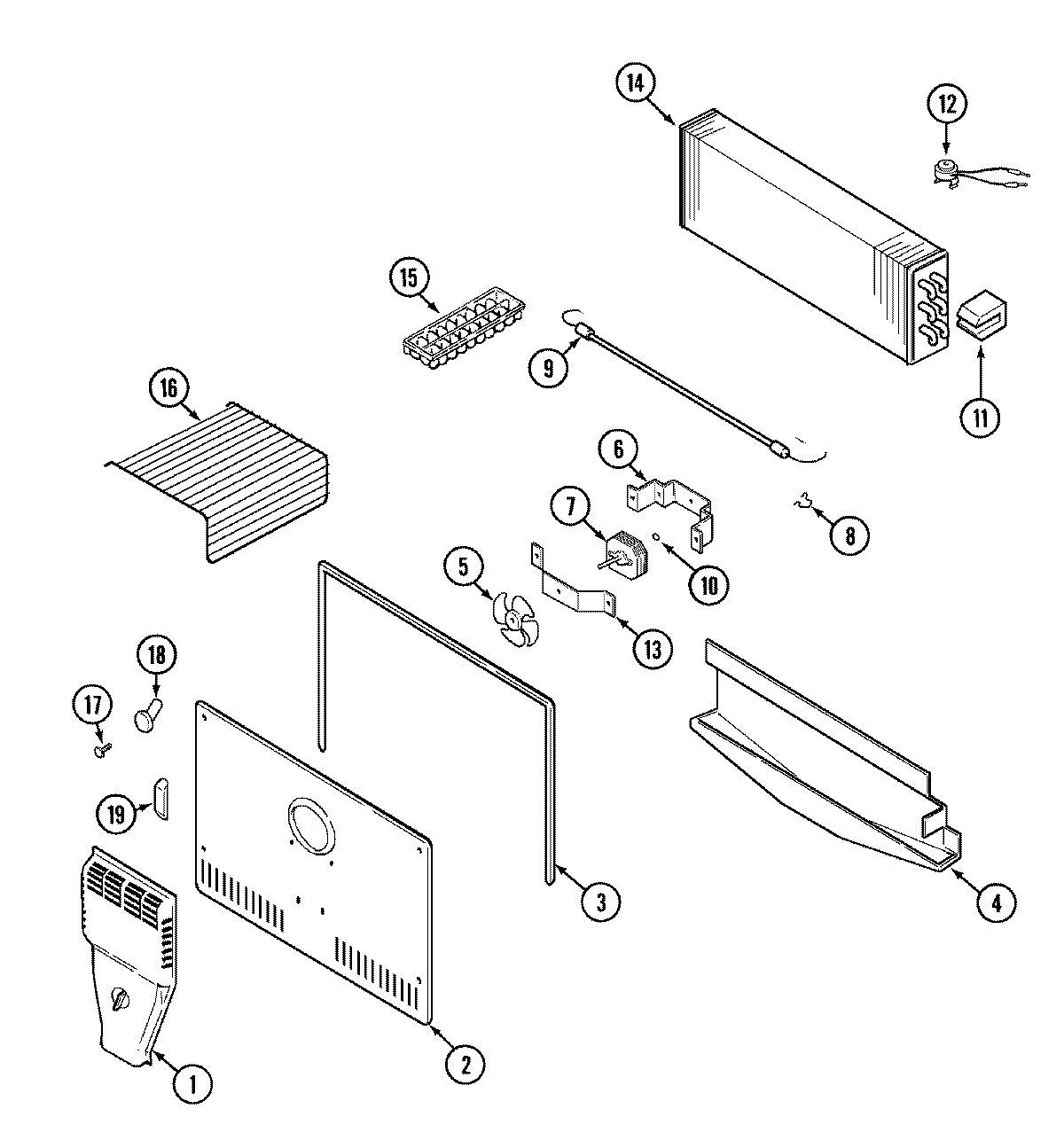

COVER, EVAPORATOR WPL 61001938 Contact Us For Availability

2

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61004002 Contact Us For Availability

2

HANDLE, F.F. DOOR (BSQ) WPL 61004890 Contact Us For Availability

3

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $33.53

3

W11045462 Whirlpool Door Trim In Stock WPL W11045462 $39.58

3

SEAL, DRAIN WPL 61001977 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability

3

HANDLE, FRZ. DOOR (BSQ) WPL 61004895 Contact Us For Availability

3

ANCHOR, SCREW WPL 61002912 Contact Us For Availability

3

SEAL, FOAM (CTR.) WPL 61001967 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004560 Contact Us For Availability

4

12002782 Whirlpool Refrigerator Overload Rela In Stock WPL 12002782 $85.92

4

12002794 Whirlpool Refrigerator Overload Rela In Stock WPL 12002794 $144.97

4

RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability

4

CLIP, RETAINER WPL 61006029 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

HOUSING, CONTROL WPL 61004946 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BSQ) WPL 61004892 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

TRAY, DRIP WPL 61004830 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

5

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

5

TRIM, GLASS WPL 61001961 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HANDLE (BSQ) WPL 61004891 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61005066 Contact Us For Availability

6

WP61002112 Whirlpool Refrigerator Shelf Retai In Stock WPL WP61002112 $10.19

6

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $60.02

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

LEG, LEVELING WPL 61002014 Contact Us For Availability

7

BULB, LIGHT WPL 319561 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

SEAL, F.F. DOOR (WHT) WPL 61004003 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

SWITCH, LIGHT WPL 61006075 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61001946 Whirlpool Refrigerator Defrost Hea Backorder WPL WP61001946 $112.83

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

CONDENSER WPL 61005427 Contact Us For Availability

9

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

9

HINGE, CENTER (BSQ) WPL 61004897 Contact Us For Availability

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

WP61006074 Whirlpool Control Knob Backorder WPL WP61006074 $46.48

SCREW WPL 4000211 Contact Us For Availability

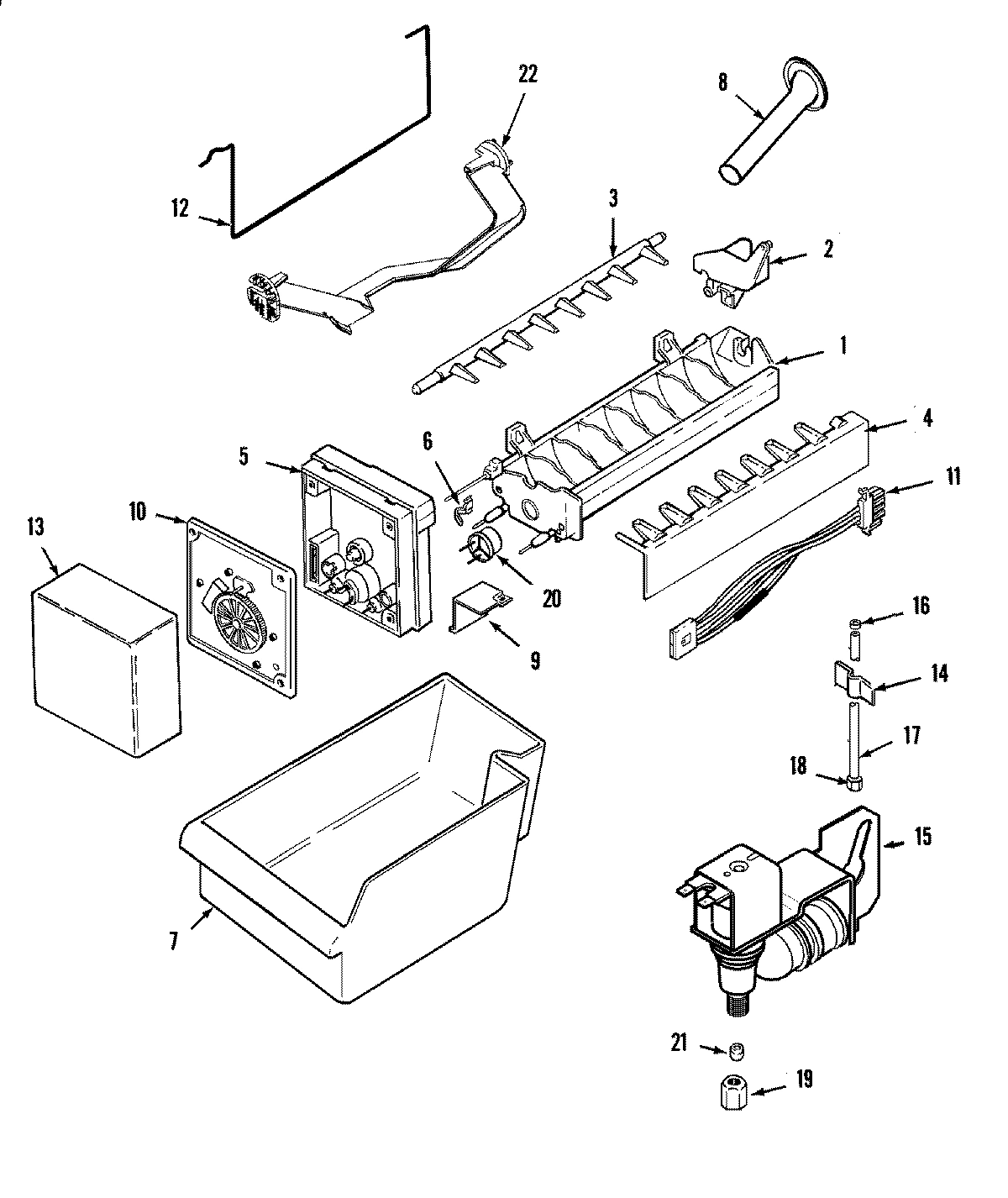

ICEMAKER WPL 951091 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DAMPER/INSULATION KIT WPL 12001838 Contact Us For Availability

STOP, DOOR (BSQ) WPL 61004912 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat Backorder WPL WP61005254 $78.61

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

PAN, CRISPER WPL 61001933 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

SHELF WPL 61001950 Contact Us For Availability

PLUG BUTTON, HINGE (BSQ) WPL 61004899 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $55.94

RAIL, CRISPER PAN (RT) WPL 61004887 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

RAIL, CRISPER PAN (LT) WPL 61004886 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 15 & 17` WPL 12001396 Contact Us For Availability

WP61005273 Whirlpool Refrigerator Inlet Valve Backorder WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

KIT, CRISPER SHELF (W/RAIL) WPL 12001442 Contact Us For Availability

PLUG BUTTON, HINGE CUP (BSQ) WPL 61004898 Contact Us For Availability

TRAY, ICE WPL 592812 Contact Us For Availability

PAN, DRAIN WPL 61004095 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

TRIVET WPL 61001966 Contact Us For Availability

17

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

17

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

17

PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability

18

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

18

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

19

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

19

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

19

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

20

THERMOSTAT WPL 950921 Contact Us For Availability

20

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

20

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

21

SLEEVE, BRASS WPL 694311 Contact Us For Availability

21

COVER, COMPRESSOR COMPARTMENT WPL 61004653 Contact Us For Availability

21

SCREW WPL 652751 Contact Us For Availability

22

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

22

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

22

PAN, COMPRESSOR MTG. WPL 61005242 Contact Us For Availability

23

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

23

SCREW WPL 4000161 Contact Us For Availability

23

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

24

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

26

KICKPLATE W/CLIPS (BSQ) WPL 61004885 Contact Us For Availability

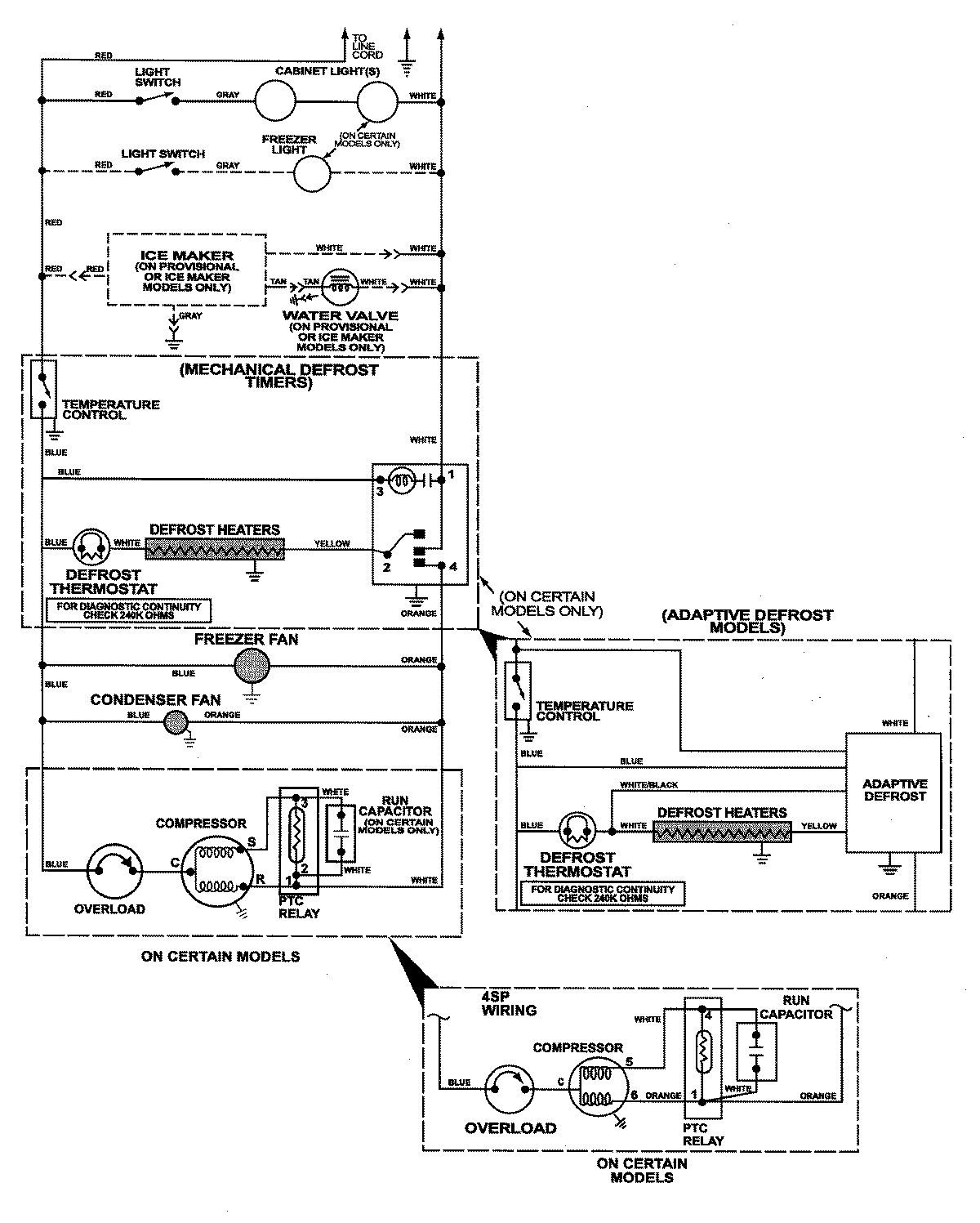

WIRING INFORMATION WPL 15002787 Contact Us For Availability

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

MANUAL, SERVICE (CROSLEY) WPL 16008421 Contact Us For Availability

MANUAL, USE & CARE WPL 61003420 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002212 Contact Us For Availability

WIRE HARNESS, FREEZER WPL 61002321 Contact Us For Availability
