Model Whirlpool CREA650ACB ELECTRIC RANGE – Common Parts & Diagrams

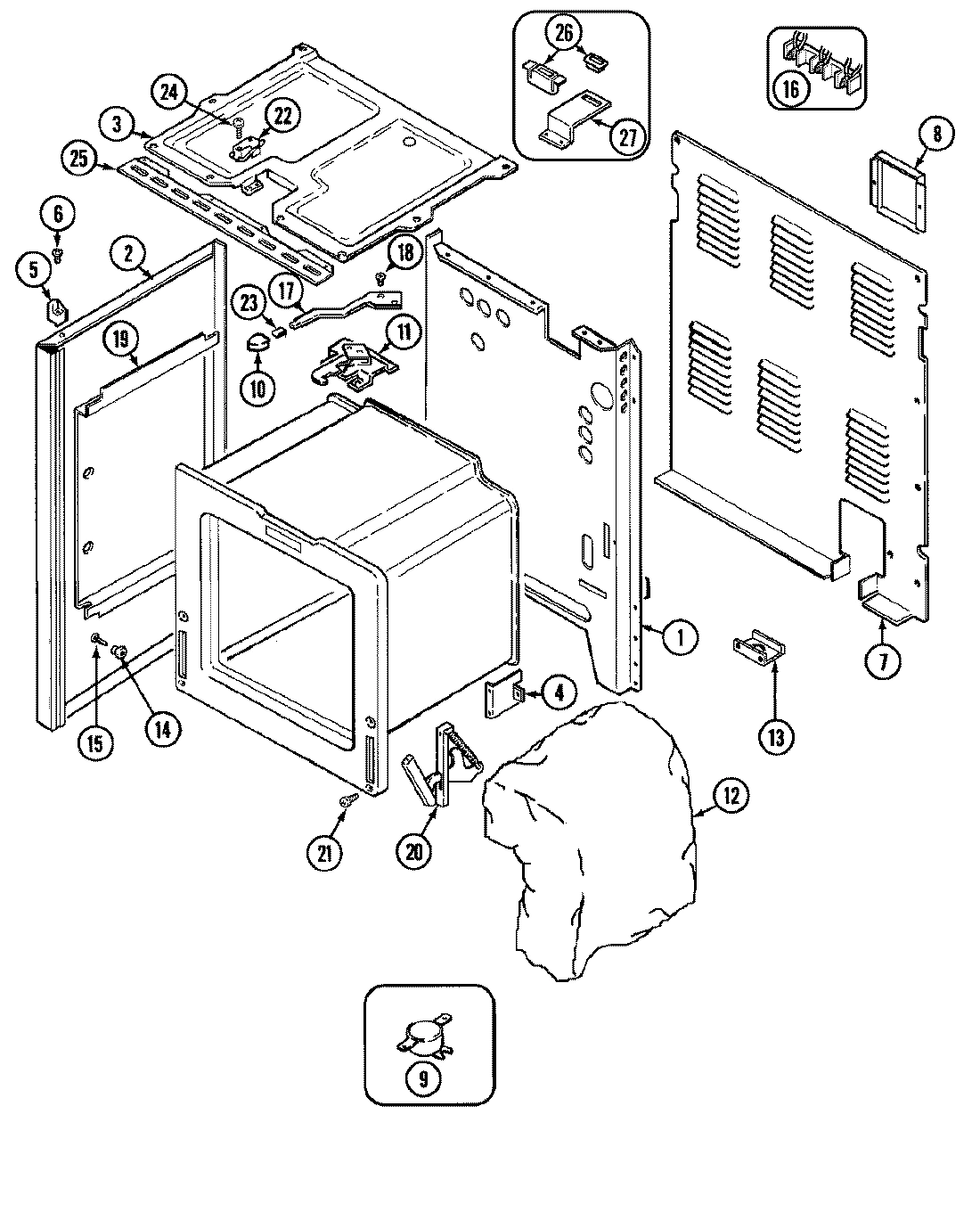

01 - BODY

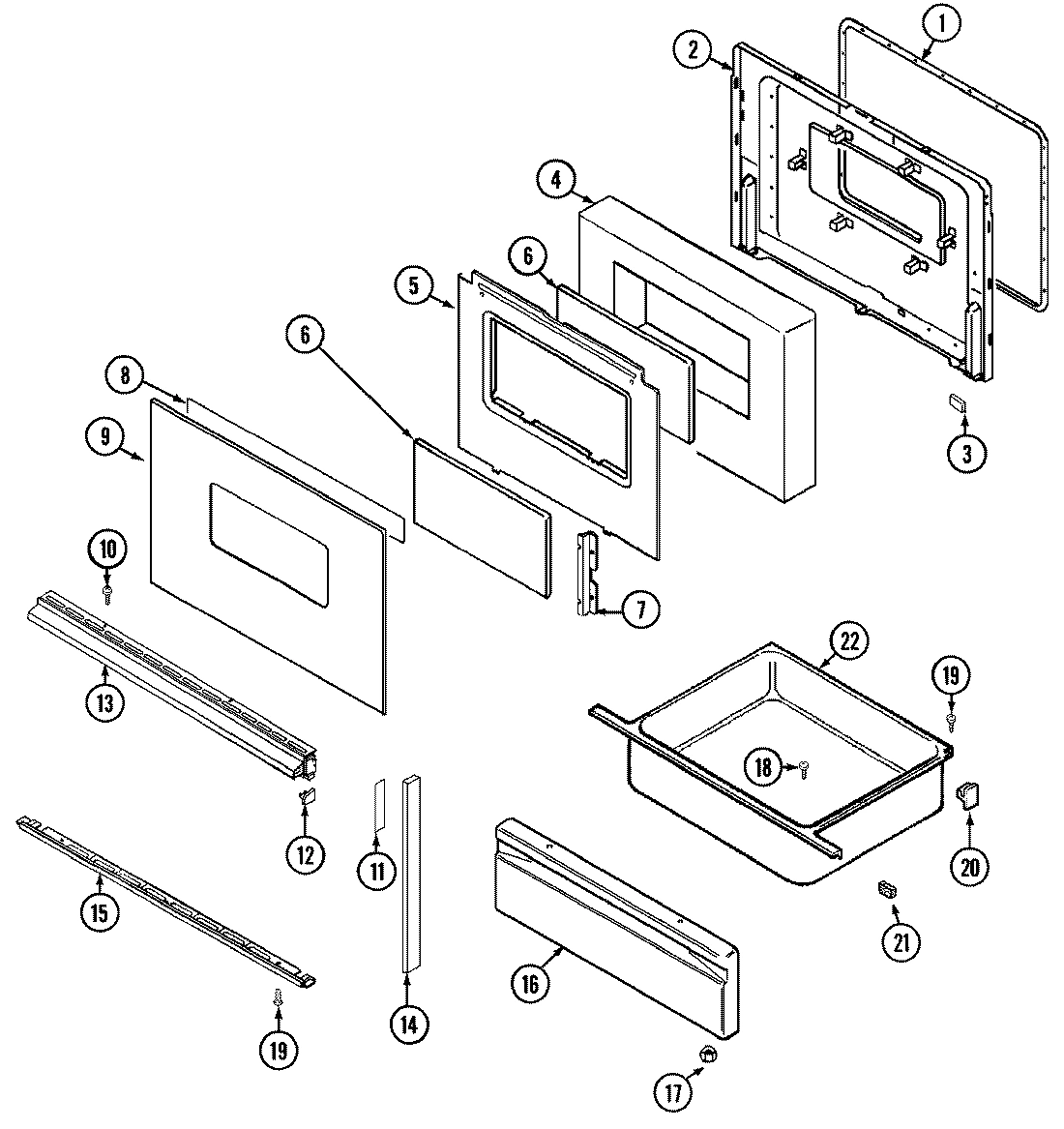

04 - DOOR/DRAWER (SER. PRE. 21)

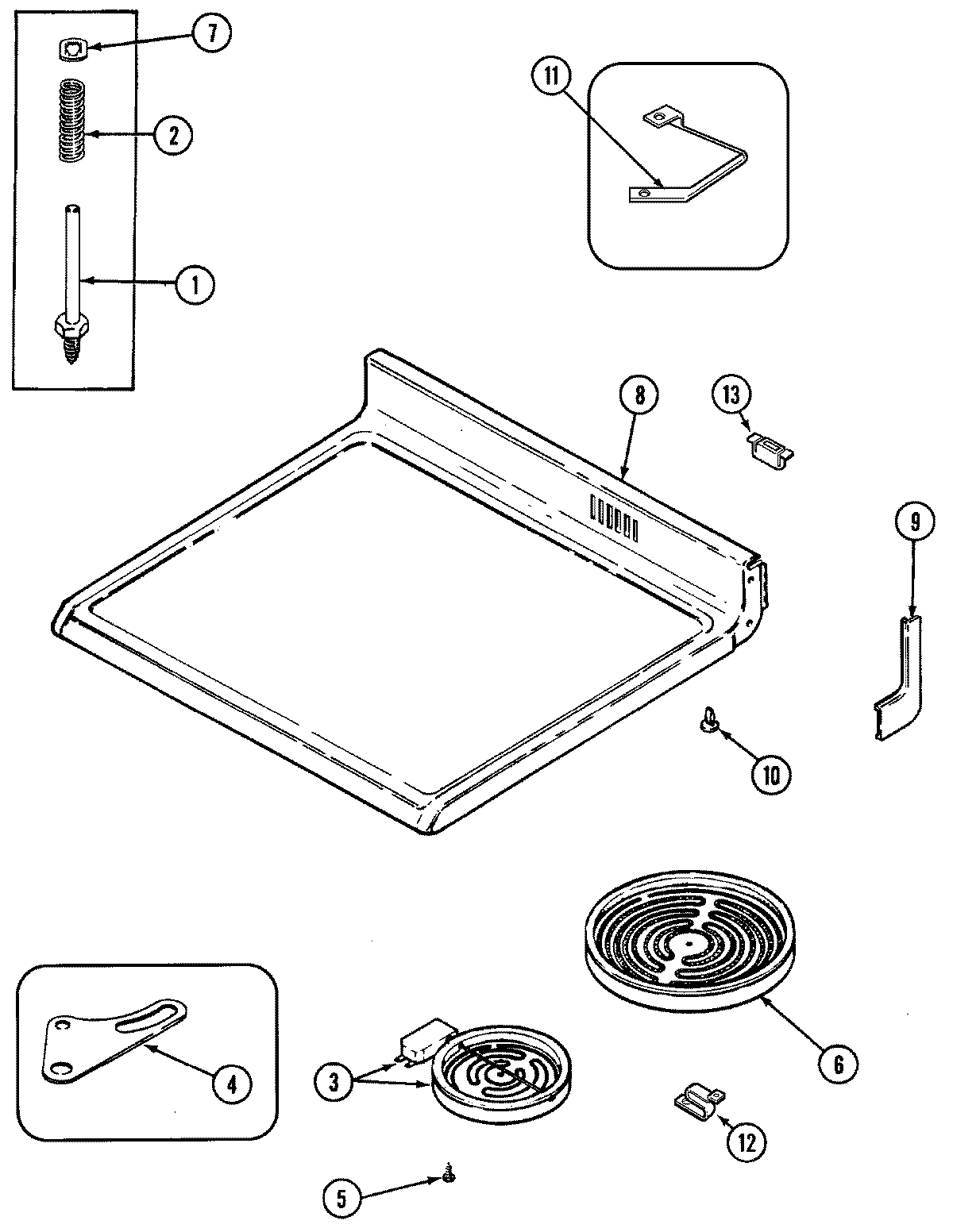

06 - TOP ASSEMBLY

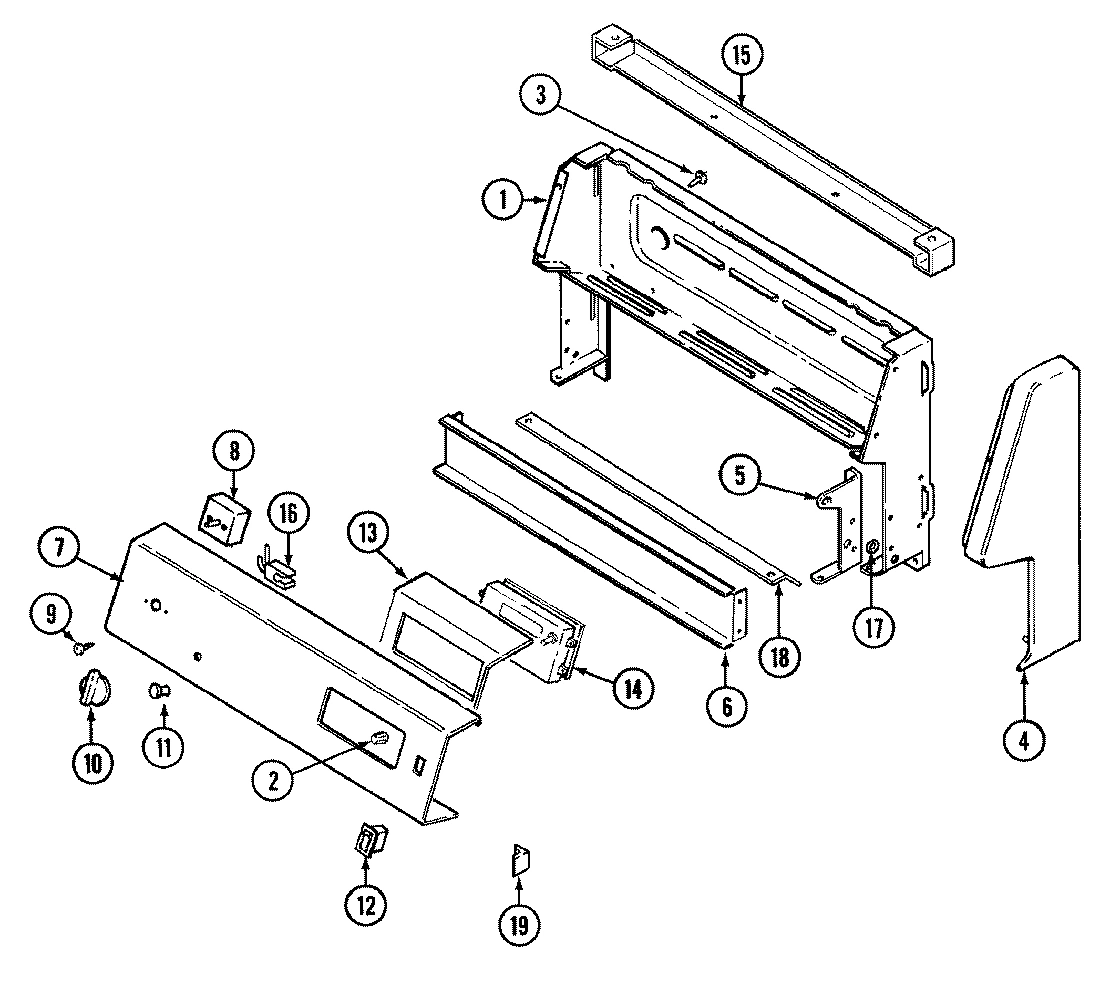

02 - CONTROL PANEL

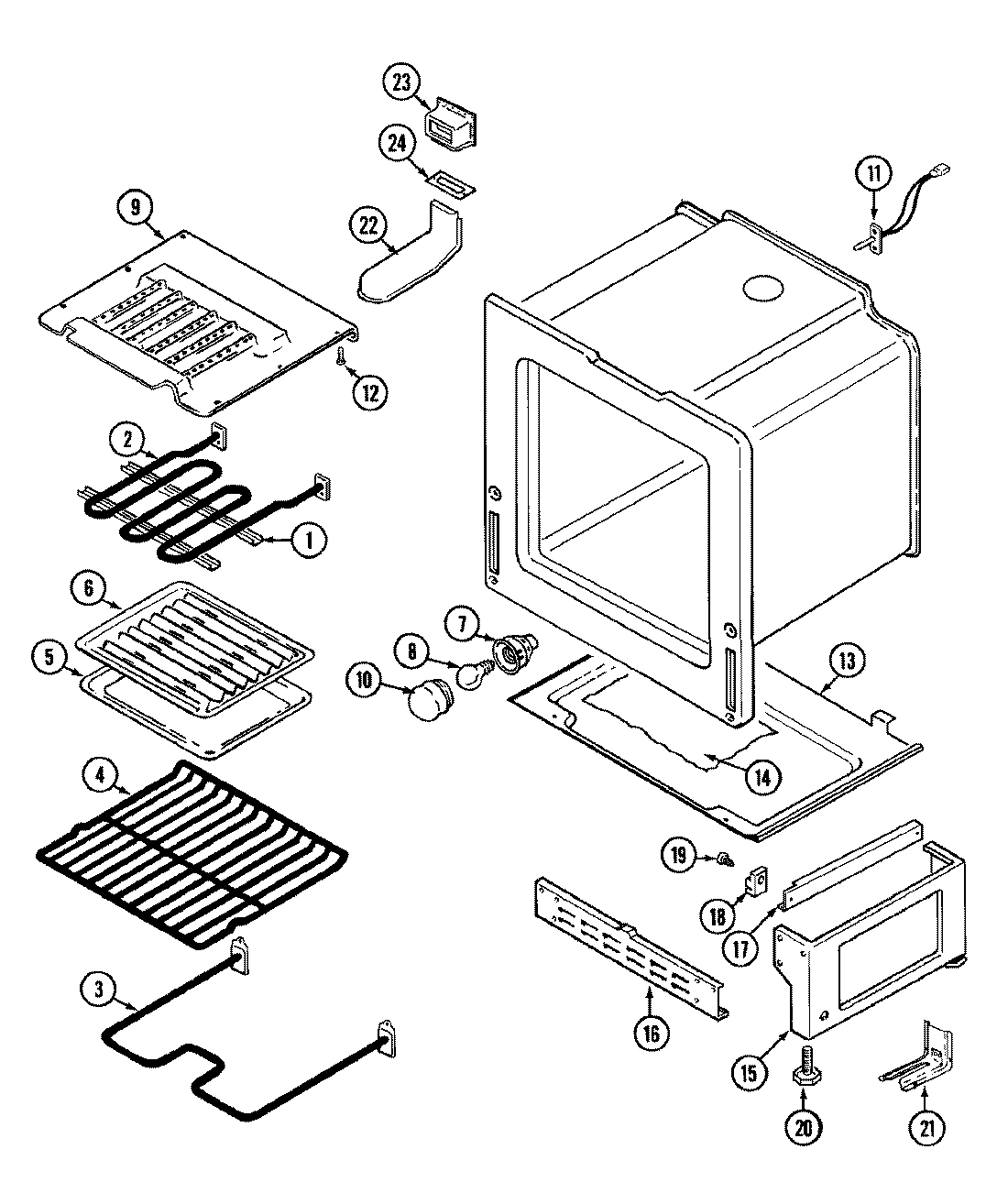

05 - OVEN/BASE

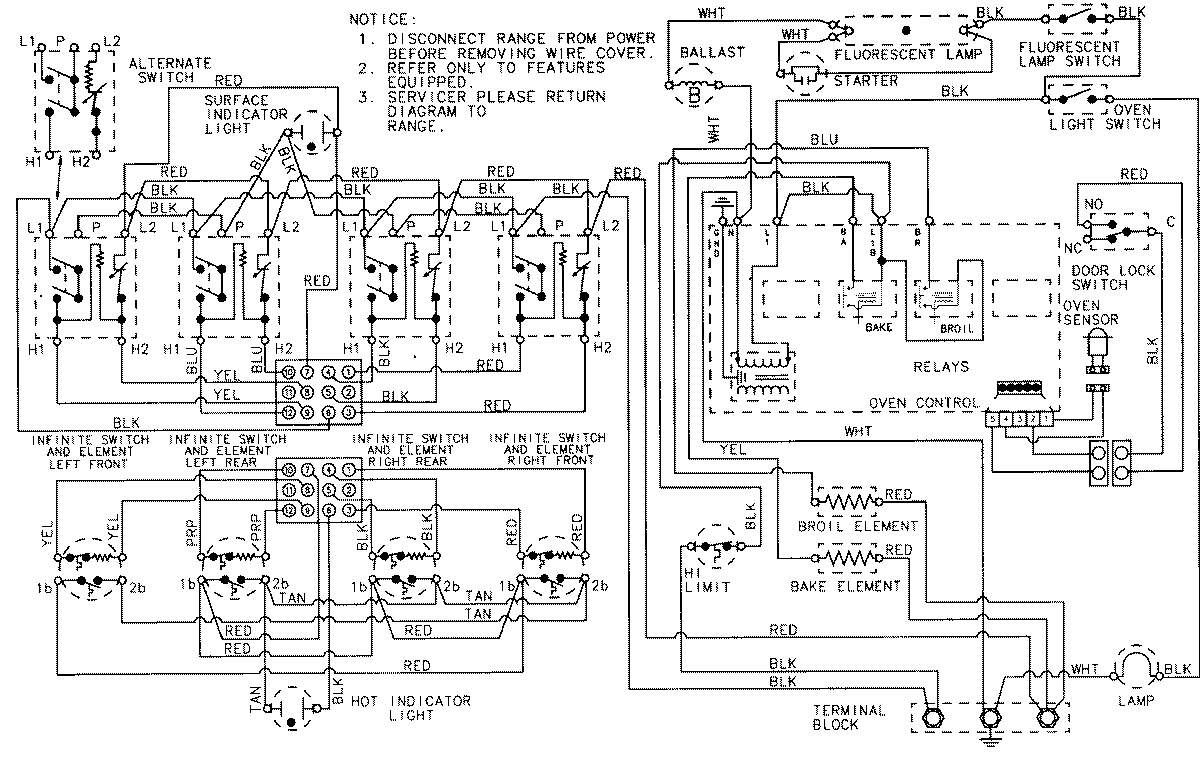

07 - WIRING INFORMATION

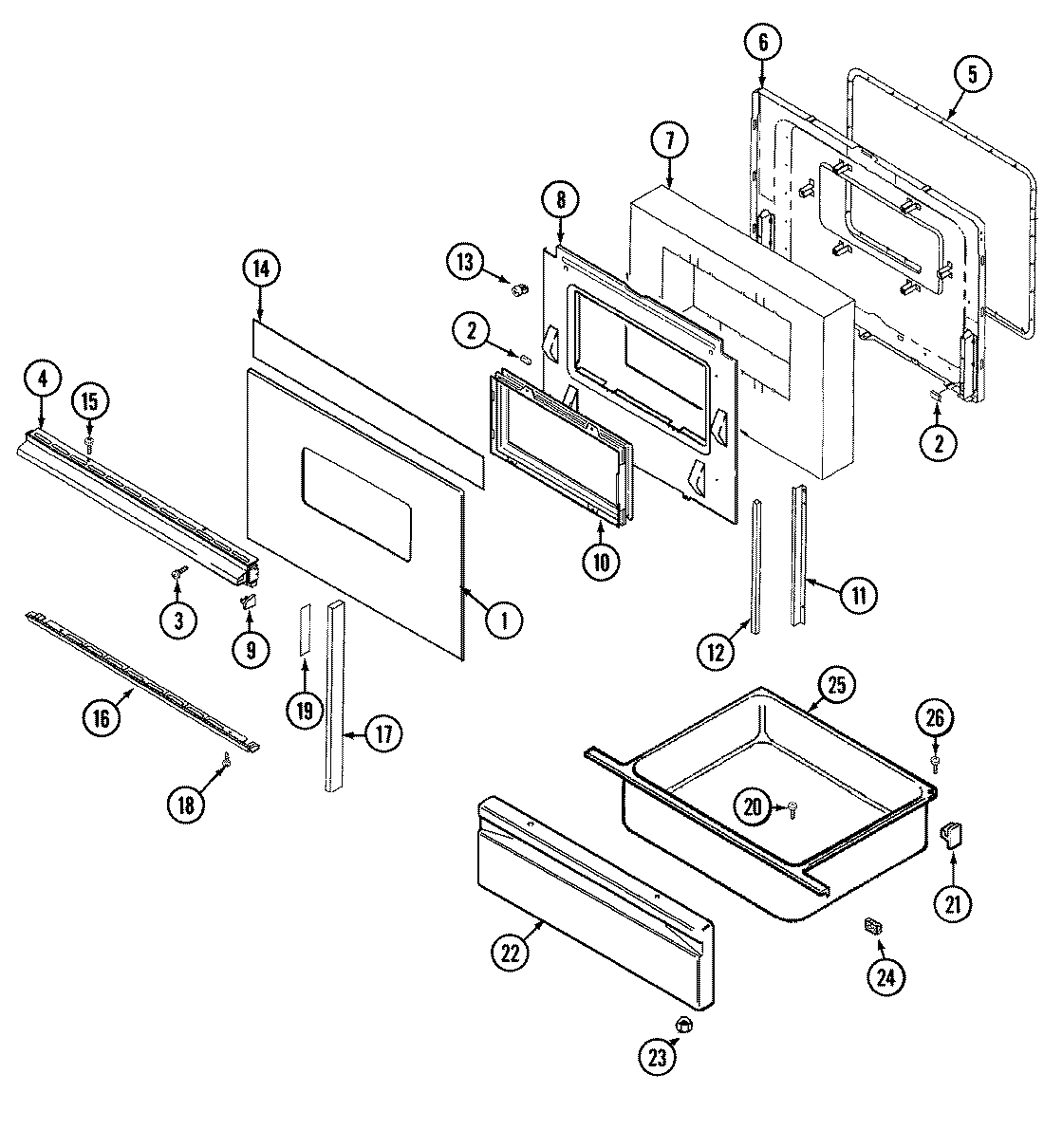

03 - DOOR/DRAWER (SER. PRE. 10-20)
Common parts from model Whirlpool CREA650ACB ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
3
BOX, BURNER WPL 4011F23819 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
END CAP (LT-BLK) WPL 74001352 Contact Us For Availability
4
END CAP (RT-BLK) WPL 74001355 Contact Us For Availability
4
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
4
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
5
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P57560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
TOP ASSY. (BLK GLASS/BLK FRM) WPL 5706S07609 Contact Us For Availability
8
TOP, MAIN (GRY GLASS/BLK TOP) WPL 74003082 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
GLIDE WPL 8016P01660 Contact Us For Availability
10
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
13
BRACKET, CLOCK WPL 74001703 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
14
CLOCK (BLK) WPL 74002729 Contact Us For Availability
14
CLOCK WPL 7601P23660 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
16
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
WASHER WPL 7109P01560 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SPACER WPL 8010P08360 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
SCREW WPL 7101P11560 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
21
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
23
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
23
NUT, LOCK WPL 7103P08560 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
24
GASKET, VENT WPL 7201P05460 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
25
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
26
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
26
SCREW WPL 7101P29160 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
NI
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
NI
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A38160 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D19960 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001430 Contact Us For Availability
× ![]()
