Model Whirlpool CRE9800DDE ELECTRIC RANGE – Common Parts & Diagrams

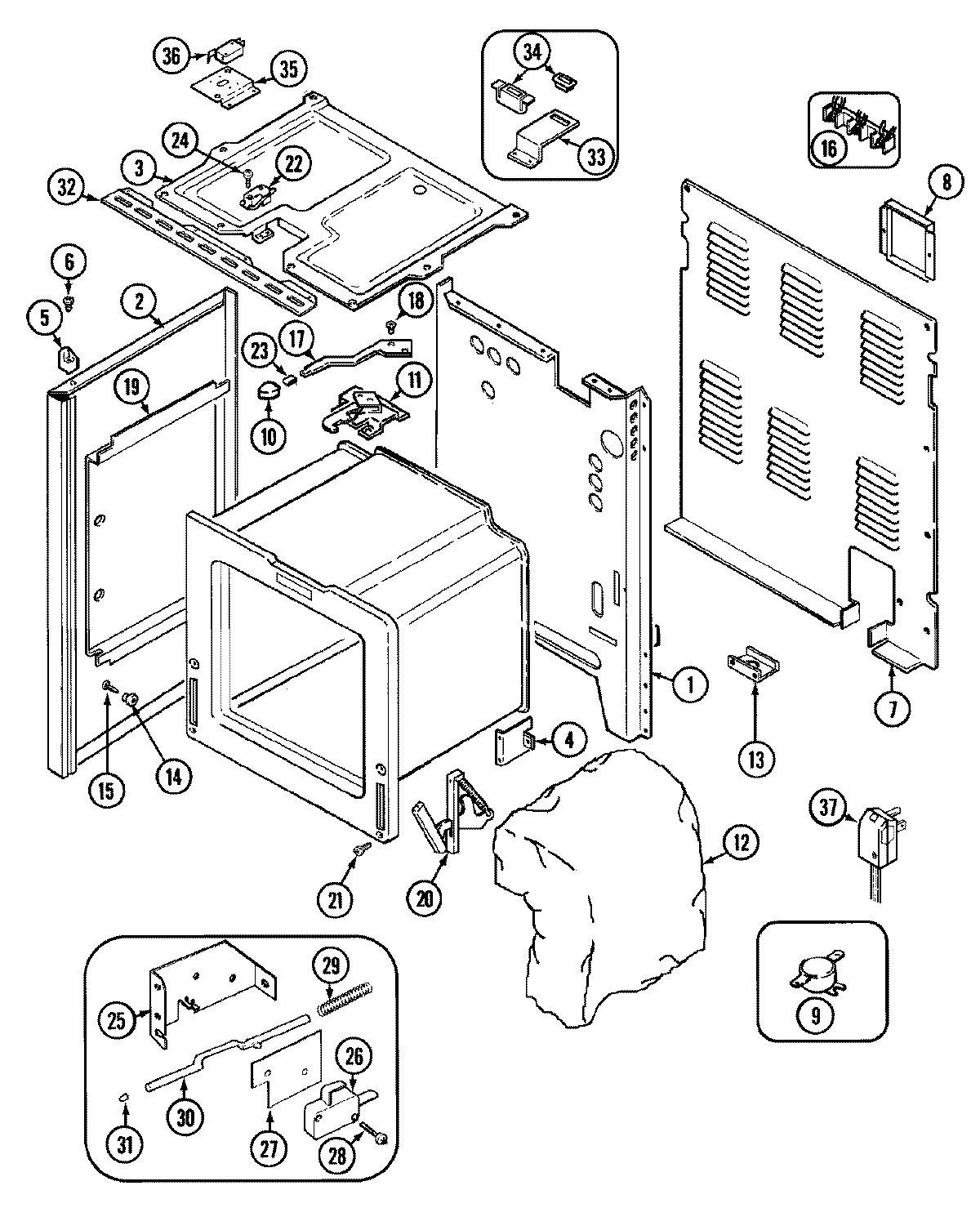

01 - BODY

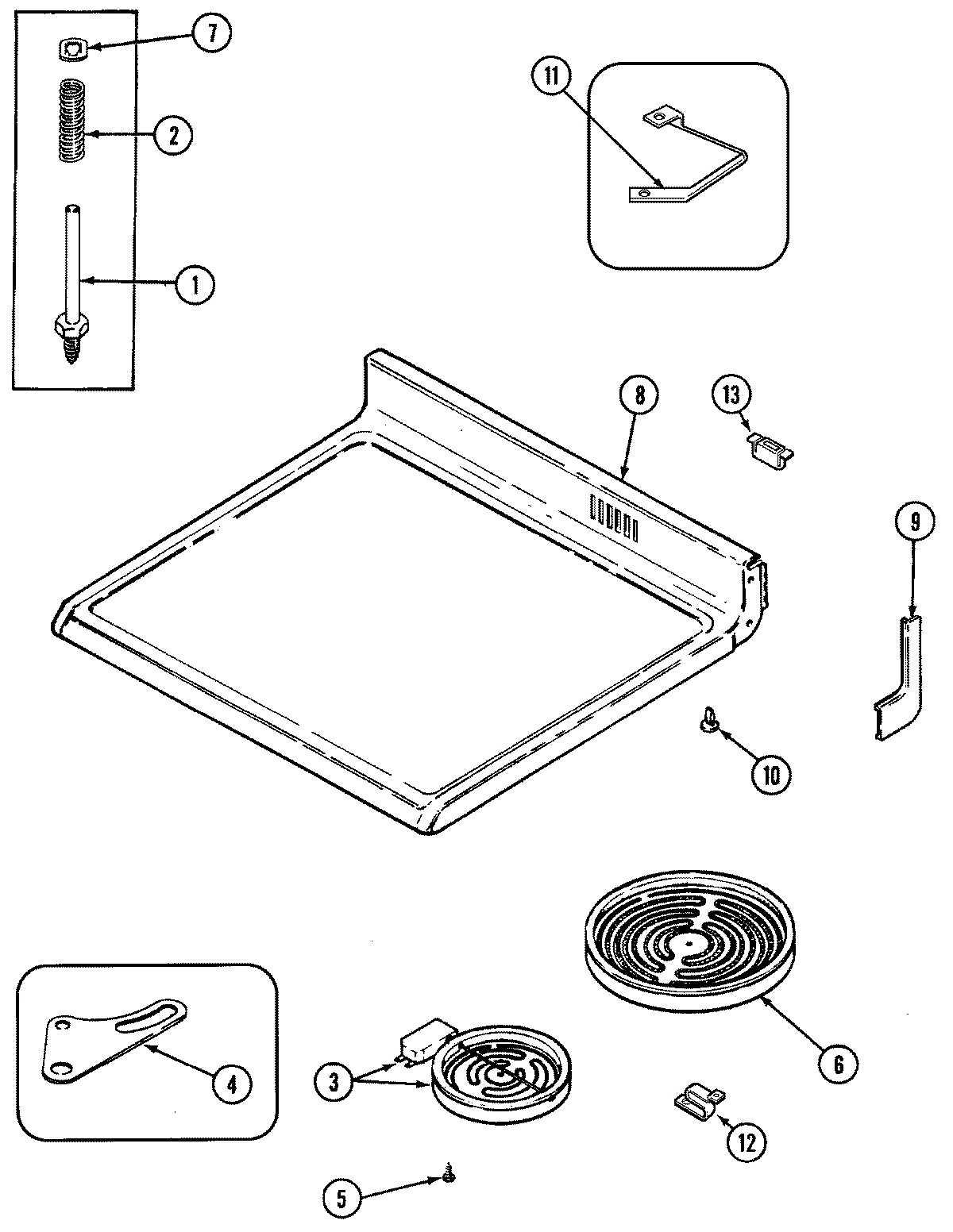

05 - TOP ASSEMBLY

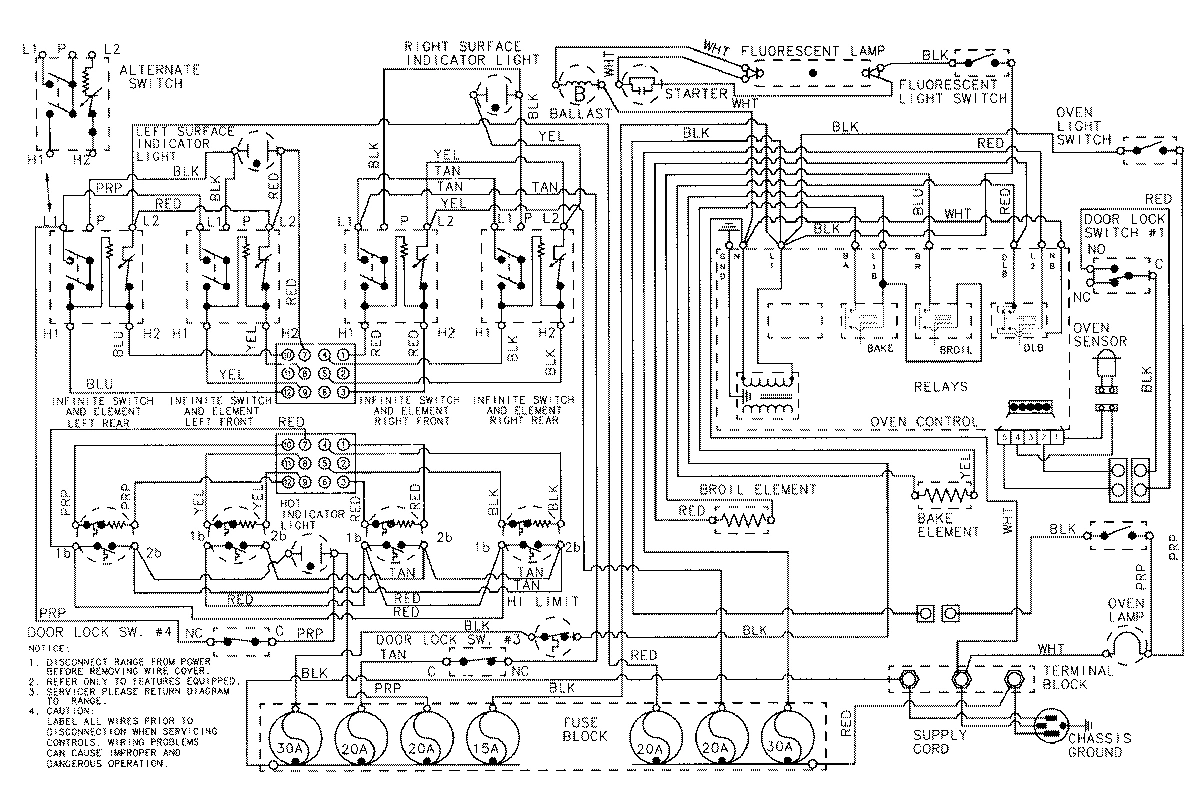

06 - WIRING INFORMATION

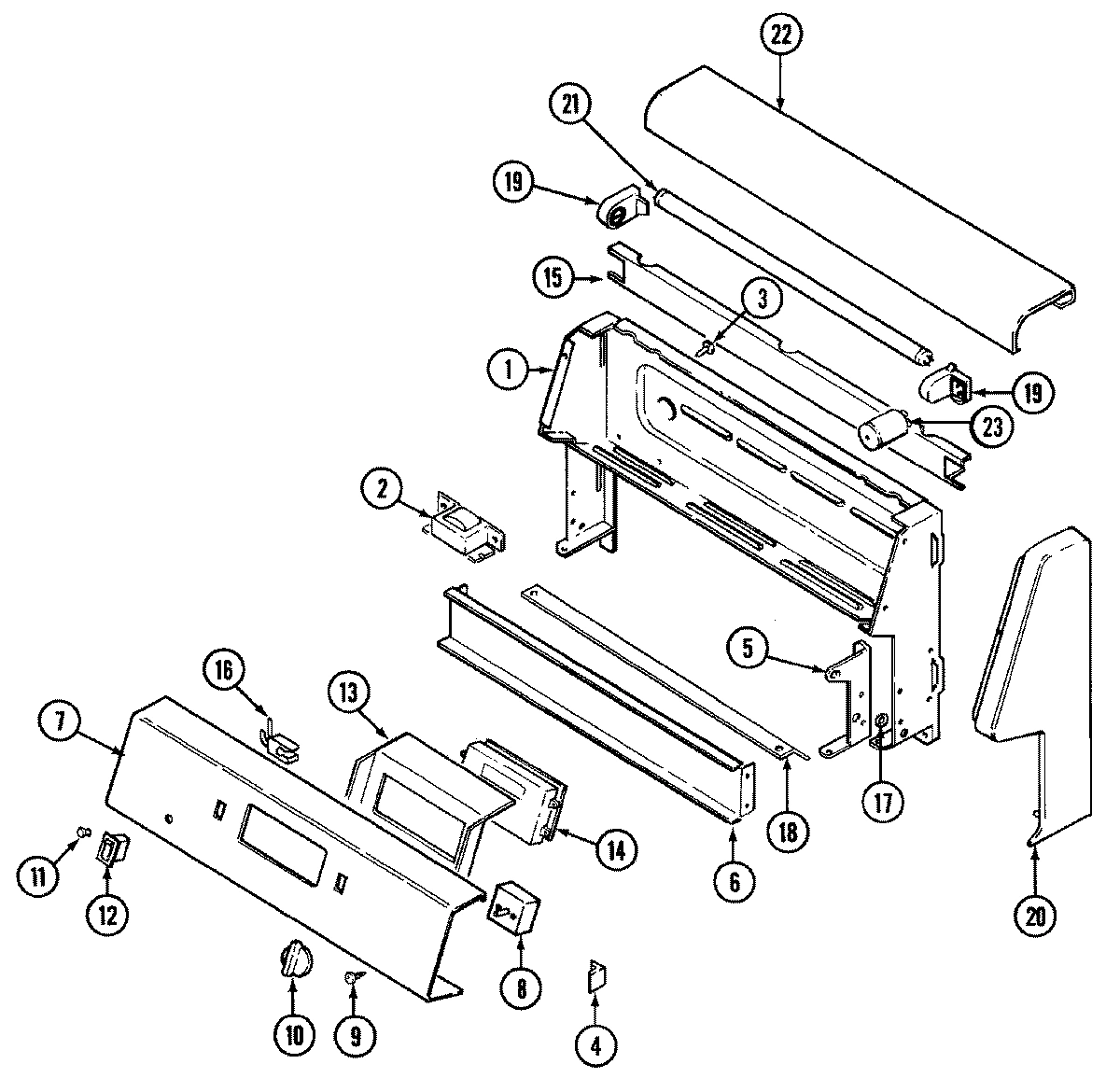

02 - CONTROL PANEL

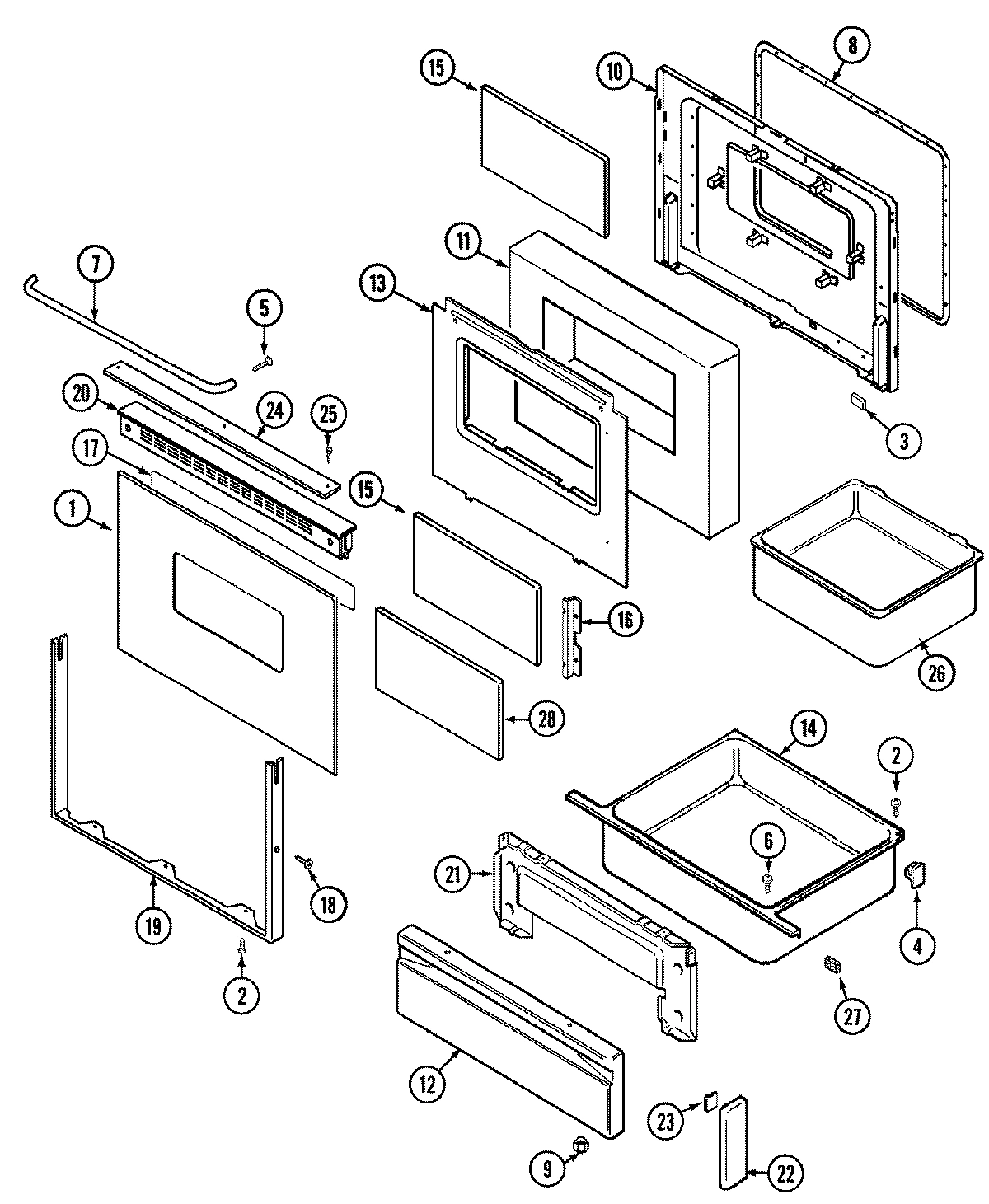

03 - DOOR/DRAWER

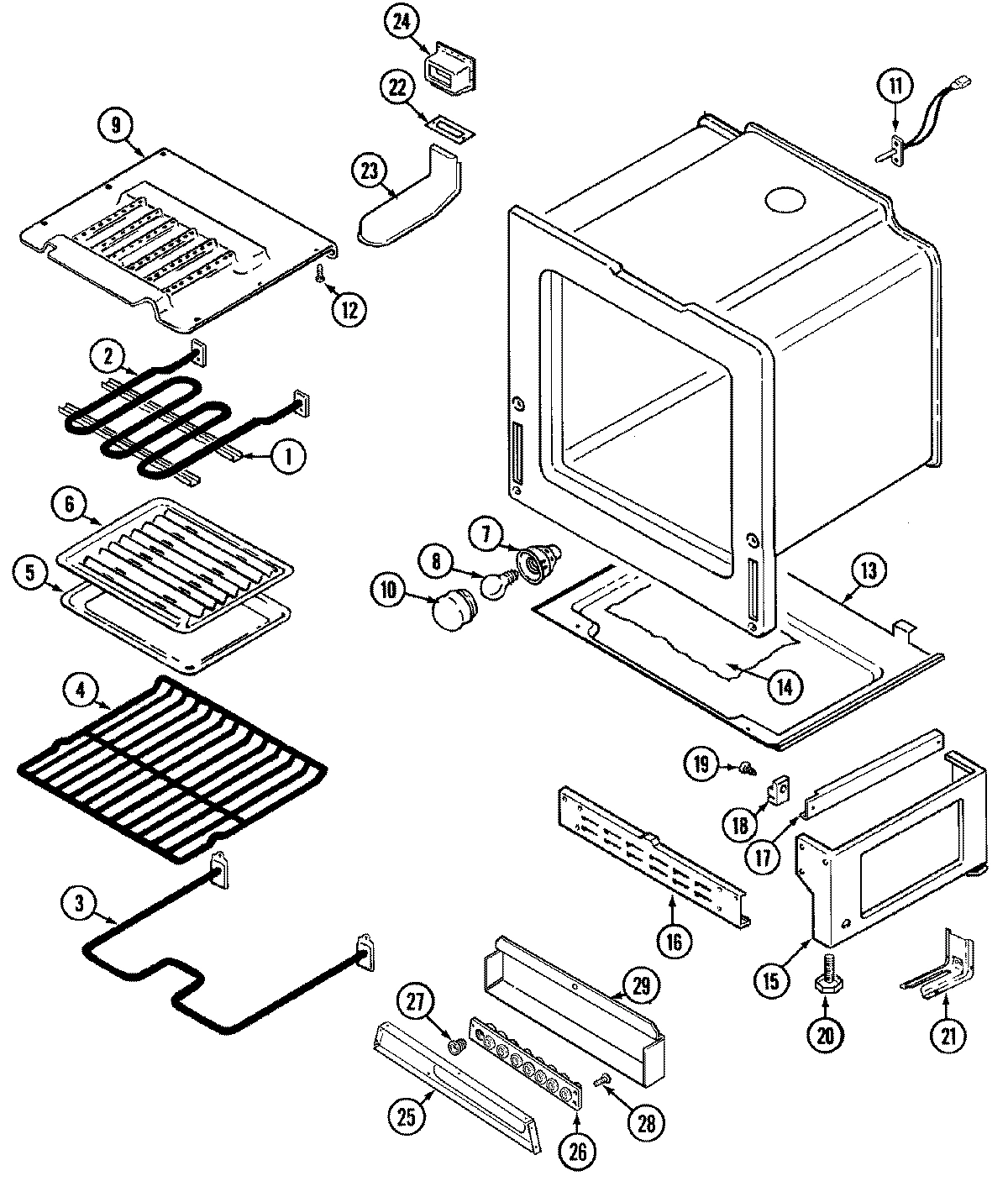

04 - OVEN/BASE
Common parts from model Whirlpool CRE9800DDE ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
BALLAST WPL 74003033 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45360 Contact Us For Availability
5
SUPPORT, LEFT WPL 3807F45460 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P55660 Contact Us For Availability
7
HANDLE, OVEN DOOR (WHT) WPL 7701P15060 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
TOP, MAIN (WHT.TOP/GRY GLASS) WPL 74001331 Contact Us For Availability
8
TOP, MAIN (WHT GLASS/WHT TOP) WPL 74003052 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
SCREW WPL 7101P07260 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
10
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
10
KNOB, SWITCH (WHT) WPL 74002760 Contact Us For Availability
10
KNOB, VALVE (WHT) WPL 7737P03760 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 74003244 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F05071 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SCREW WPL 7118P01360 Contact Us For Availability
14
CLOCK (WHT) WPL 74001321 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
16
CAP, DISCONNECT 2 CIRCUIT WPL 74002109 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
COVER, RECEPTACLE WIRES WPL 74002824 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability
19
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
END CAP, PANEL (RT-WHT) WPL 74001050 Contact Us For Availability
20
END CAP, PANEL (LT-WHT) WPL 74001051 Contact Us For Availability
20
END CAP (RT-WHT) WPL 7726P09360 Contact Us For Availability
20
END CAP (LT-WHT) WPL 7726P09460 Contact Us For Availability
20
TRIM, DOOR (UPPER-WHT) WPL 7706P30660 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
22
BRACKET, SWITCH WPL 74001144 Contact Us For Availability
22
SWITCH, LATCH (DOUBLE LOCK) WPL 74001743 Contact Us For Availability
22
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
22
COVER, LIGHT (WHT) WPL 74001222 Contact Us For Availability
22
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
22
GASKET, VENT WPL 7201P05460 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
23
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
24
WPL 7101P03160 WPL 7101P03160 Contact Us For Availability
24
SCREW (WHT) WPL 74001278 Contact Us For Availability
24
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
24
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
25
WPL 7101P34760 WPL 7101P34760 Contact Us For Availability
25
WPL 74001632 WPL 74001632 Contact Us For Availability
25
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
25
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
26
WPL 74001628 WPL 74001628 Contact Us For Availability
26
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
26
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
27
WPL 74001872 WPL 74001872 Contact Us For Availability
27
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
27
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
27
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
27
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
28
WPL 7101P33060 WPL 7101P33060 Contact Us For Availability
28
GLASS, INNER WPL 74002002 Contact Us For Availability
28
SCREW WPL 7101P06860 Contact Us For Availability
29
WPL 74001629 WPL 74001629 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
30
WPL 74001630 WPL 74001630 Contact Us For Availability
31
WPL 74001631 WPL 74001631 Contact Us For Availability
32
WPL 3801F30580 WPL 3801F30580 Contact Us For Availability
33
WPL 3801F31245 WPL 3801F31245 Contact Us For Availability
34
WPL 7407P10660 WPL 7407P10660 Contact Us For Availability
35
WPL 74001744 WPL 74001744 Contact Us For Availability
36
WPL 74001708 WPL 74001708 Contact Us For Availability
37
WPL 7402P05060 WPL 7402P05060 Contact Us For Availability
NI
WPL 7111P02060 WPL 7111P02060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001707 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001310 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP) WPL 74001473 Contact Us For Availability
NI
HARNESS, WIRE CONTROL PANEL WPL 74001616 Contact Us For Availability
NI
MANUAL, USE & CARE (FCH) WPL 74002165 Contact Us For Availability
NI
HARNESS, COOKTOP WPL 74002181 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 74002972 Contact Us For Availability
× ![]()
Login and Registration Form
