Model Whirlpool CRE9700ADB ELECTRIC RANGE – Common Parts & Diagrams

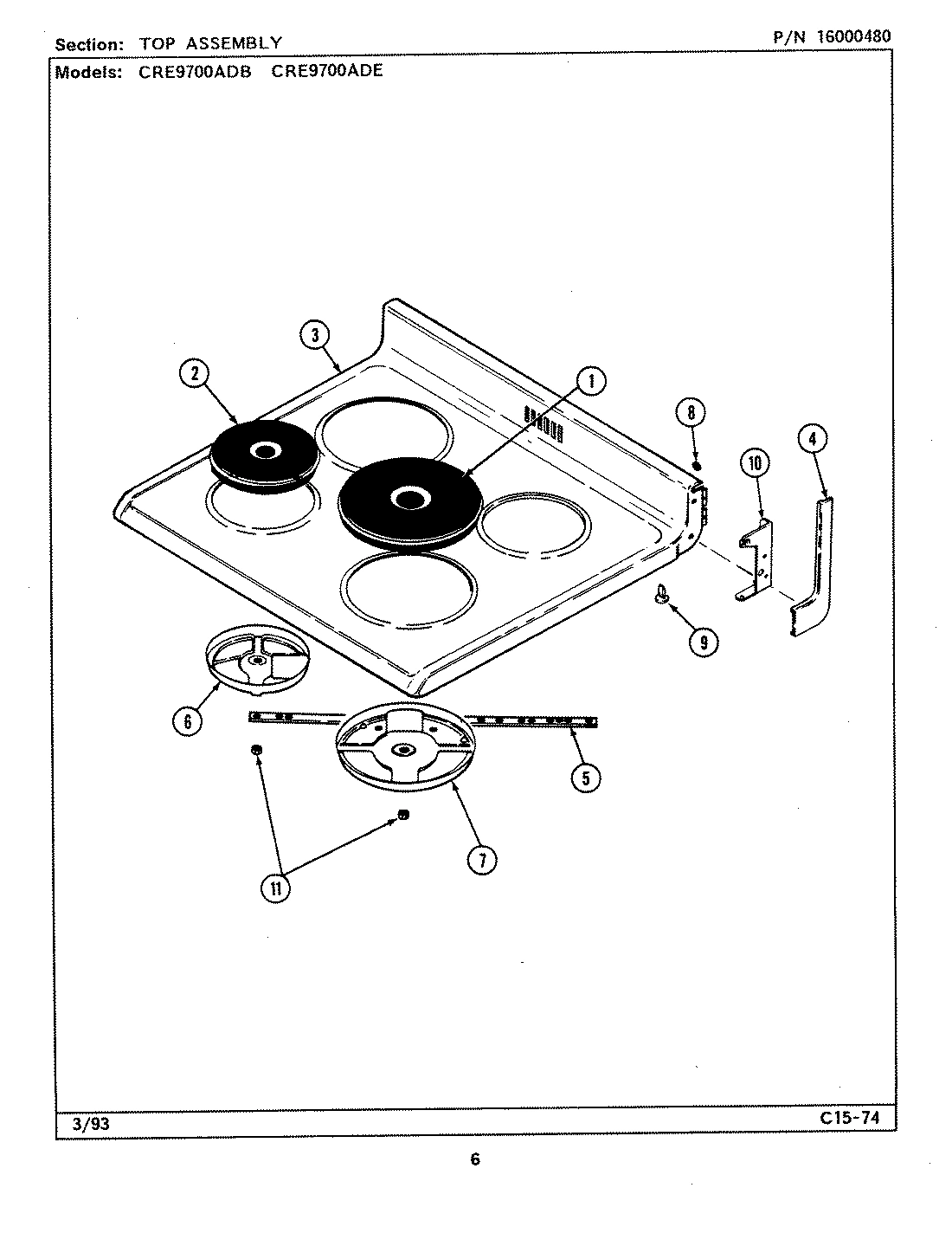

04 - TOP ASSEMBLY (CRE9700ADx)

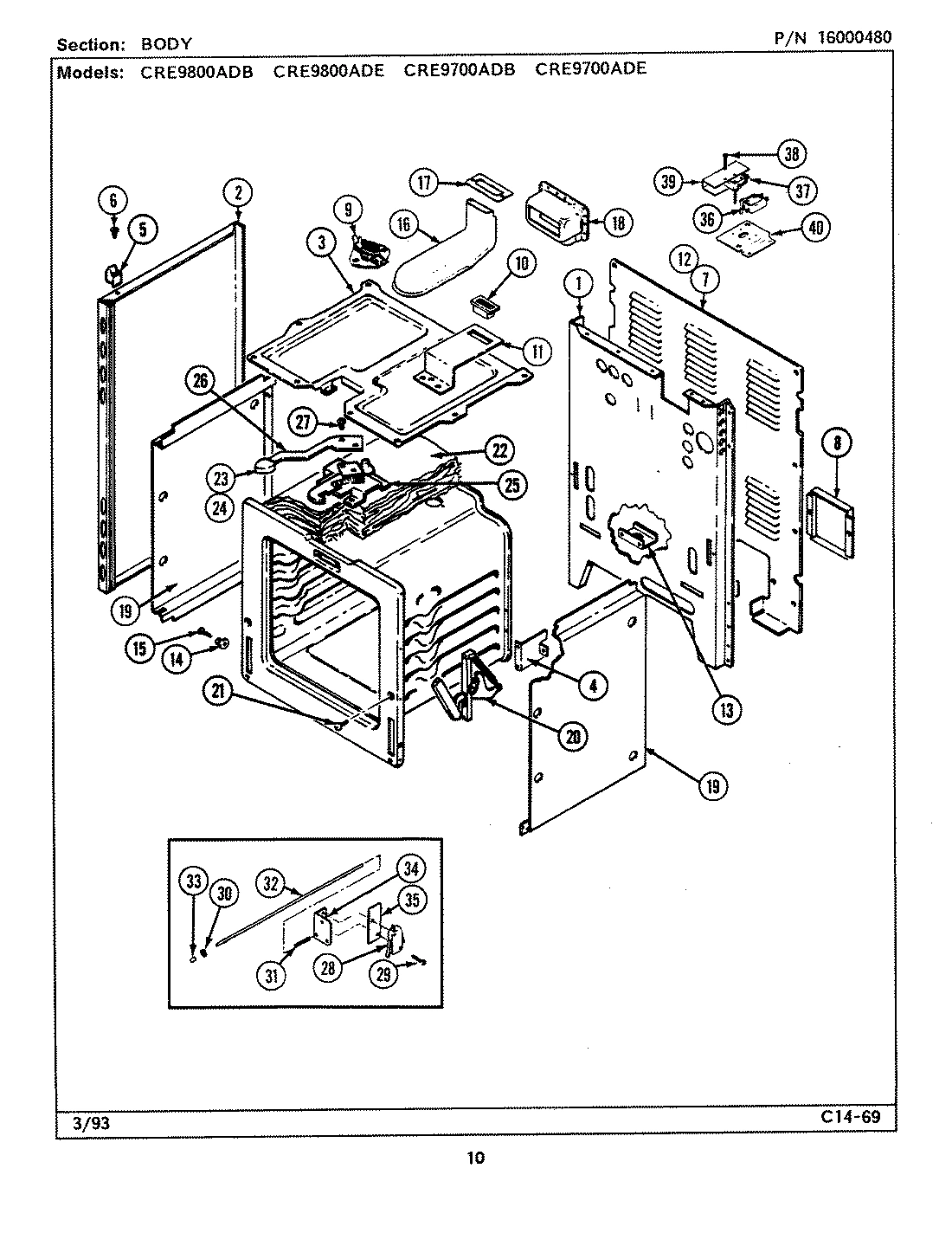

01 - BODY

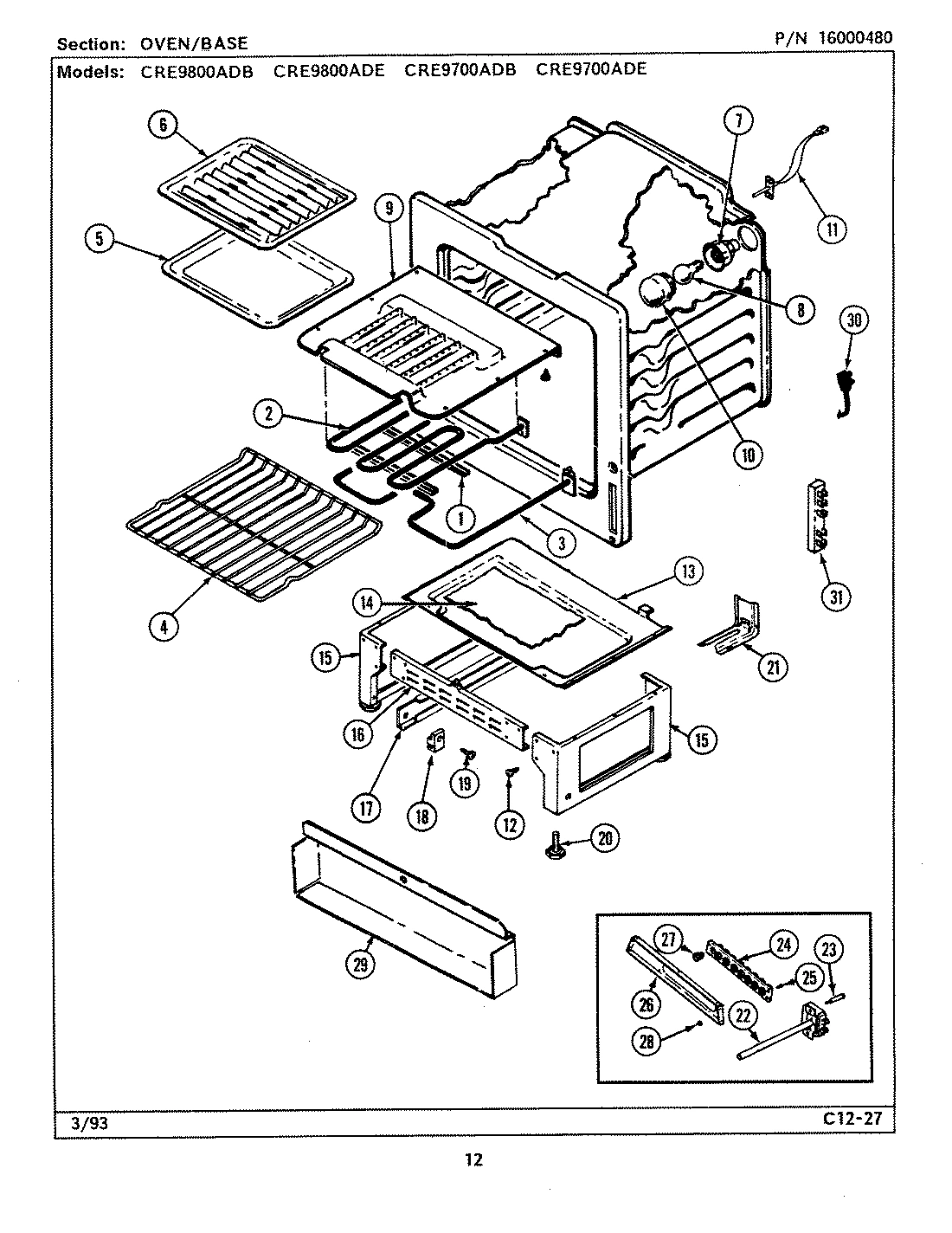

03 - OVEN/BASE

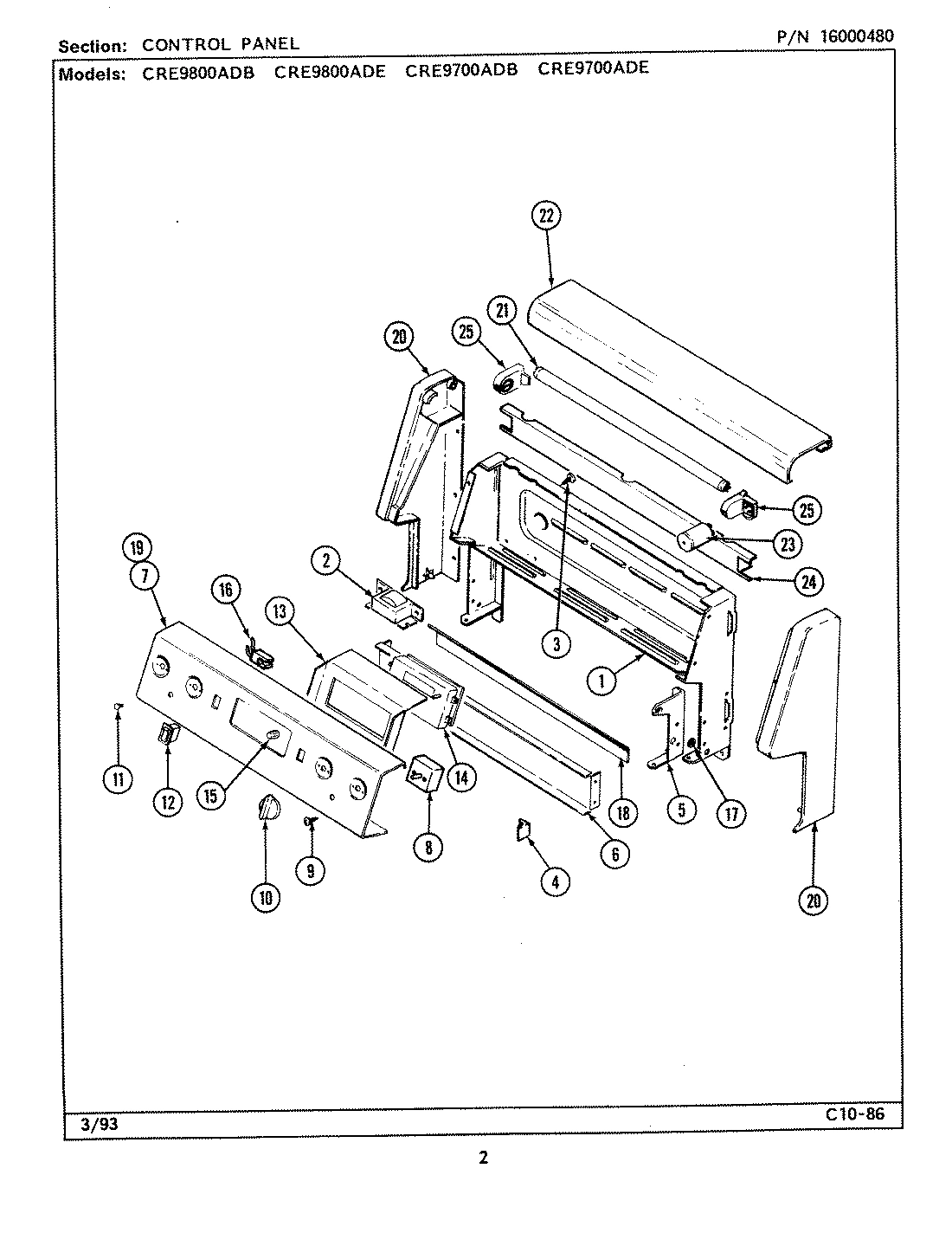

02 - CONTROL PANEL
Common parts from model Whirlpool CRE9700ADB ELECTRIC RANGE
1
ELEMENT (8``-2600W) WPL 7406P07160 Contact Us For Availability
1
ELEMENT, SURFACE 8`` (2000W) WPL 7406P08260 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
2
ELEMENT, SURFACE 6`` WPL 7406P08360 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F08570 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
3
TOP, MAIN (BLK) WPL 2002W07709 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
4
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
4
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
RACK----NA WPL 7801P03960 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
5
BRACKET ANTI-TURN WPL 3801F26851 Contact Us For Availability
5
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
5
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
7
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F38151 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P55360 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
10
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
11
HARNESS COOKTOP WPL 5175D05060 Contact Us For Availability
11
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
11
POLISH, ELECTROL RESTORING WPL 8308P00160 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
14
SCREW WPL 7118P01360 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
CLOCK WPL 7601P22360 Contact Us For Availability
15
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P47560 Contact Us For Availability
16
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
17
NUT, SPEED WPL 7103P12960 Contact Us For Availability
17
GASKET, VENT WPL 7201P05460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SCREW WPL 7118P01960 Contact Us For Availability
20
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06560 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06660 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
22
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
22
COVER, LIGHT WPL 7724P05860 Contact Us For Availability
22
COVER, LAMP WIRE WPL 7724P06260 Contact Us For Availability
23
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
23
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
24
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
24
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
24
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
25
SCREW WPL 7101P06860 Contact Us For Availability
25
HARNESS, CONTROL PANEL TO TOP WPL 5175D07060 Contact Us For Availability
25
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
25
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
25
MANUAL, USE & CARE WPL 8111P00260 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
26
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
27
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
27
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
27
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
28
KIT, LIGHT SWITCH ACTUATOR WPL 12001053 Contact Us For Availability
28
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
28
NUT WPL 7103P06460 Contact Us For Availability
29
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
29
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
30
WASHER WPL 7109P02060 Contact Us For Availability
30
CORD, POWER WPL 7402P05060 Contact Us For Availability
31
SPRING WPL 7803P06760 Contact Us For Availability
31
HARNESS, FUSE WPL 5175D07260 Contact Us For Availability
31
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
32
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
32
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
33
BUMPER WPL 8003P01260 Contact Us For Availability
34
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
34
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
35
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
36
SWITCH, LOCK WPL 7403P31760 Contact Us For Availability
37
SHIELD, LOCK SWITCH WPL 74001745 Contact Us For Availability
37
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
38
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
39
INSUL, SWITCH WPL 7003P04960 Contact Us For Availability
40
PLATE, SW MTG WPL 3605F18551 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D09260 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 74001010 Contact Us For Availability
× ![]()
