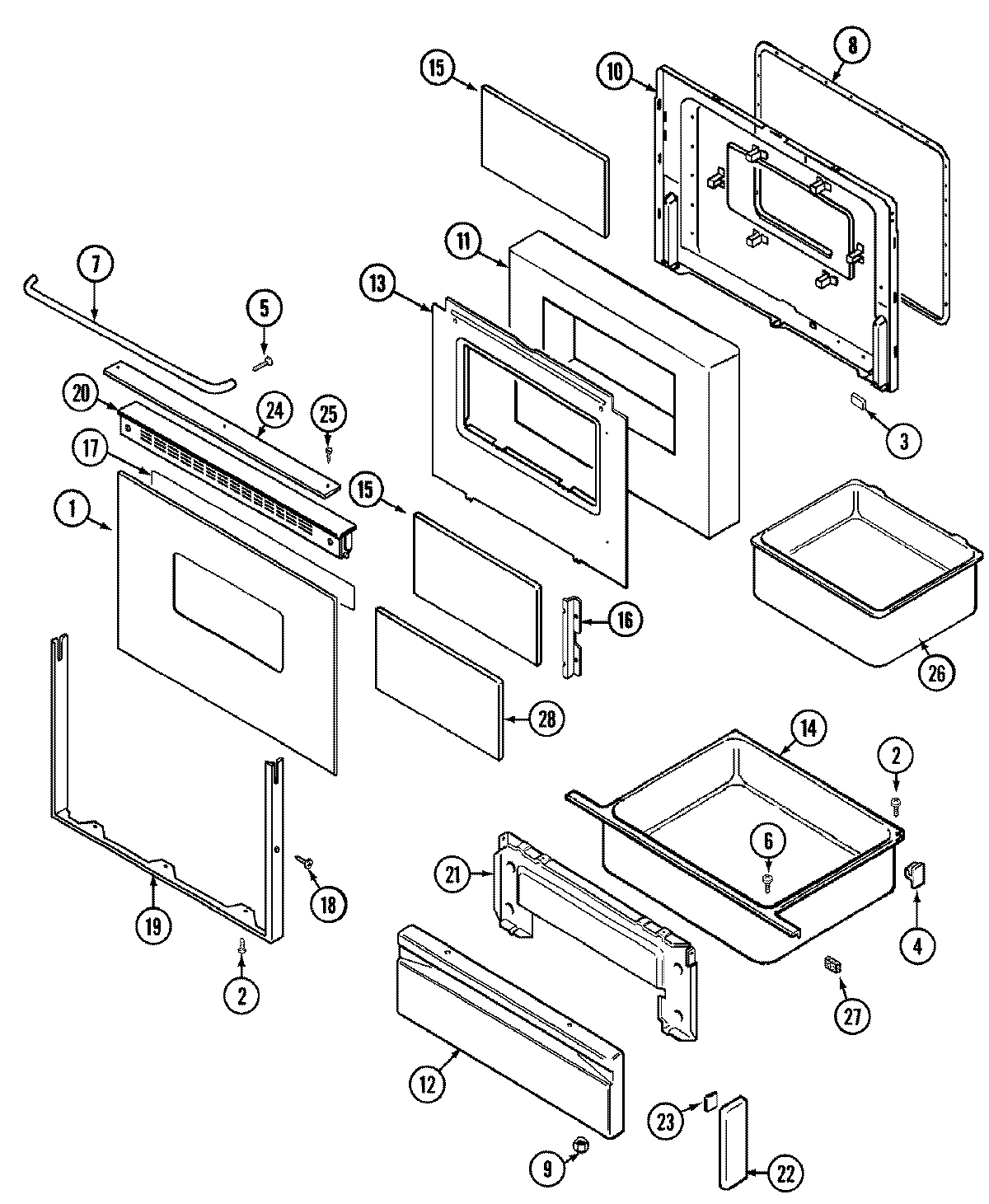

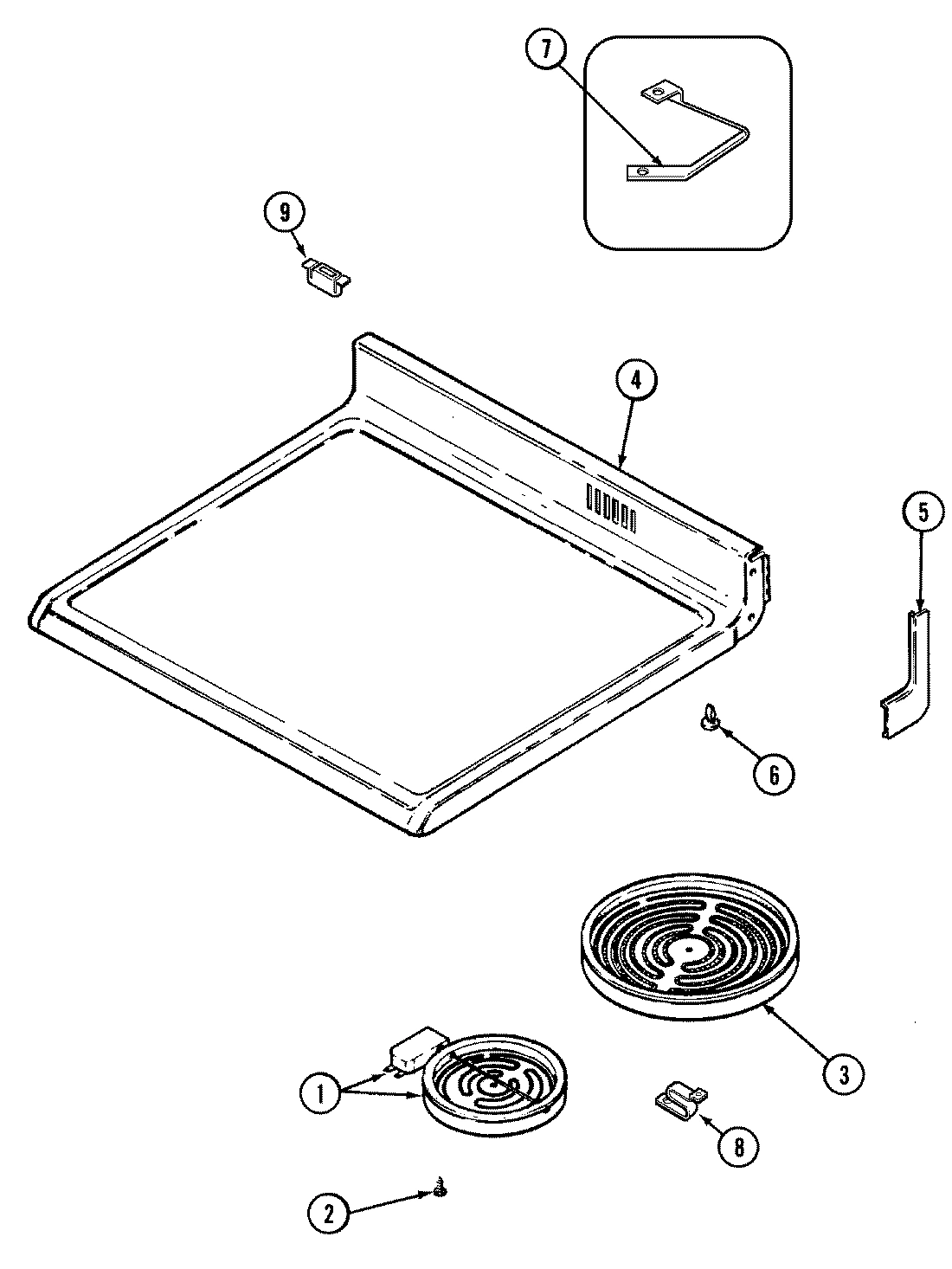

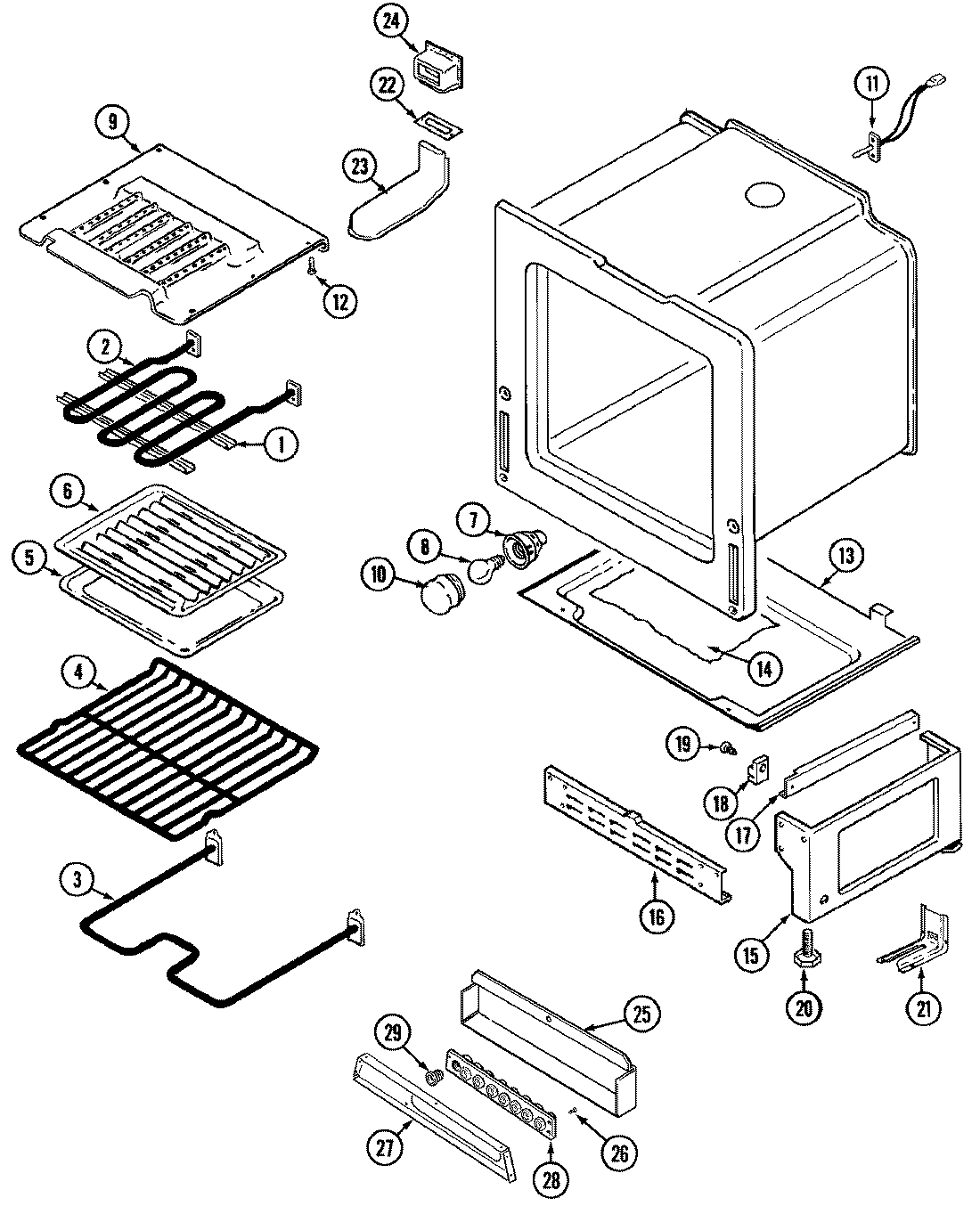

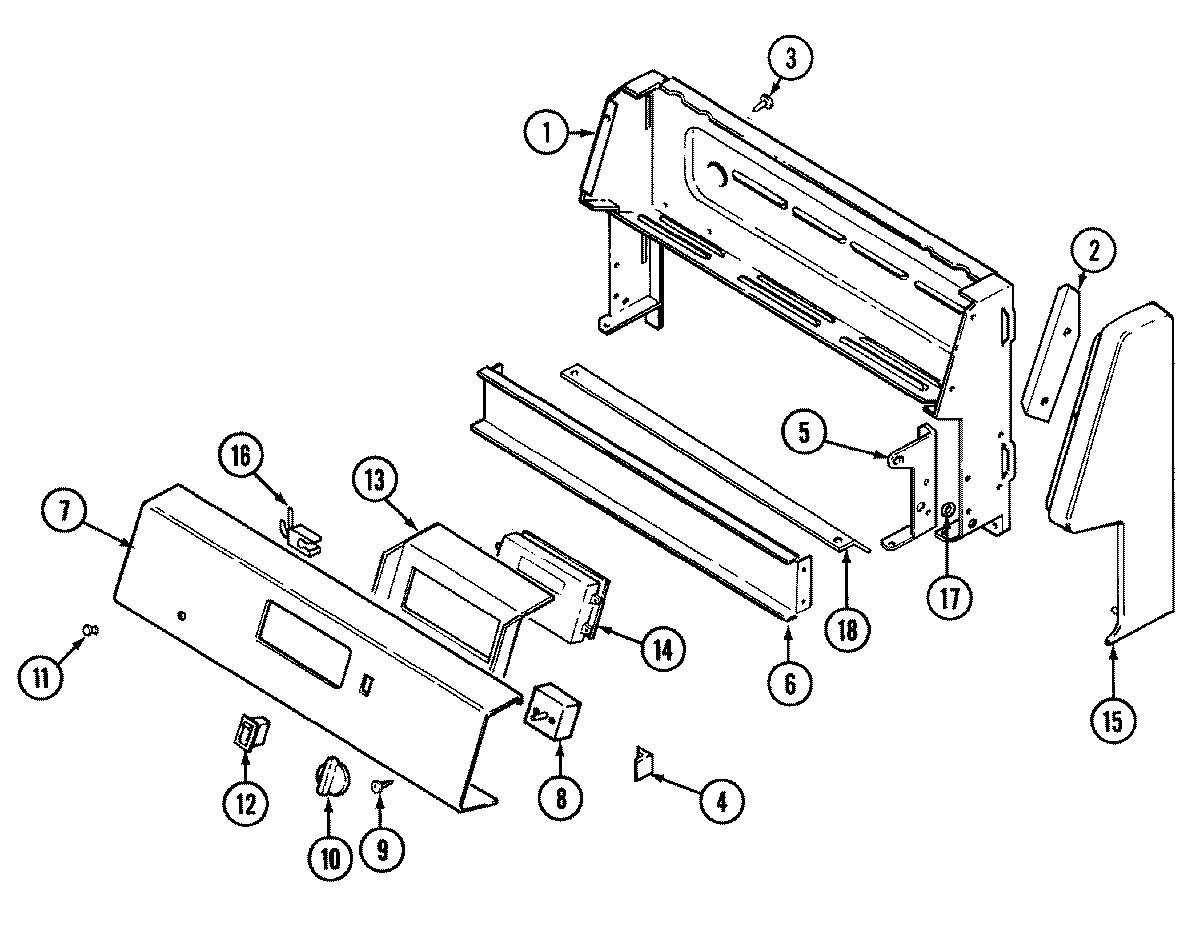

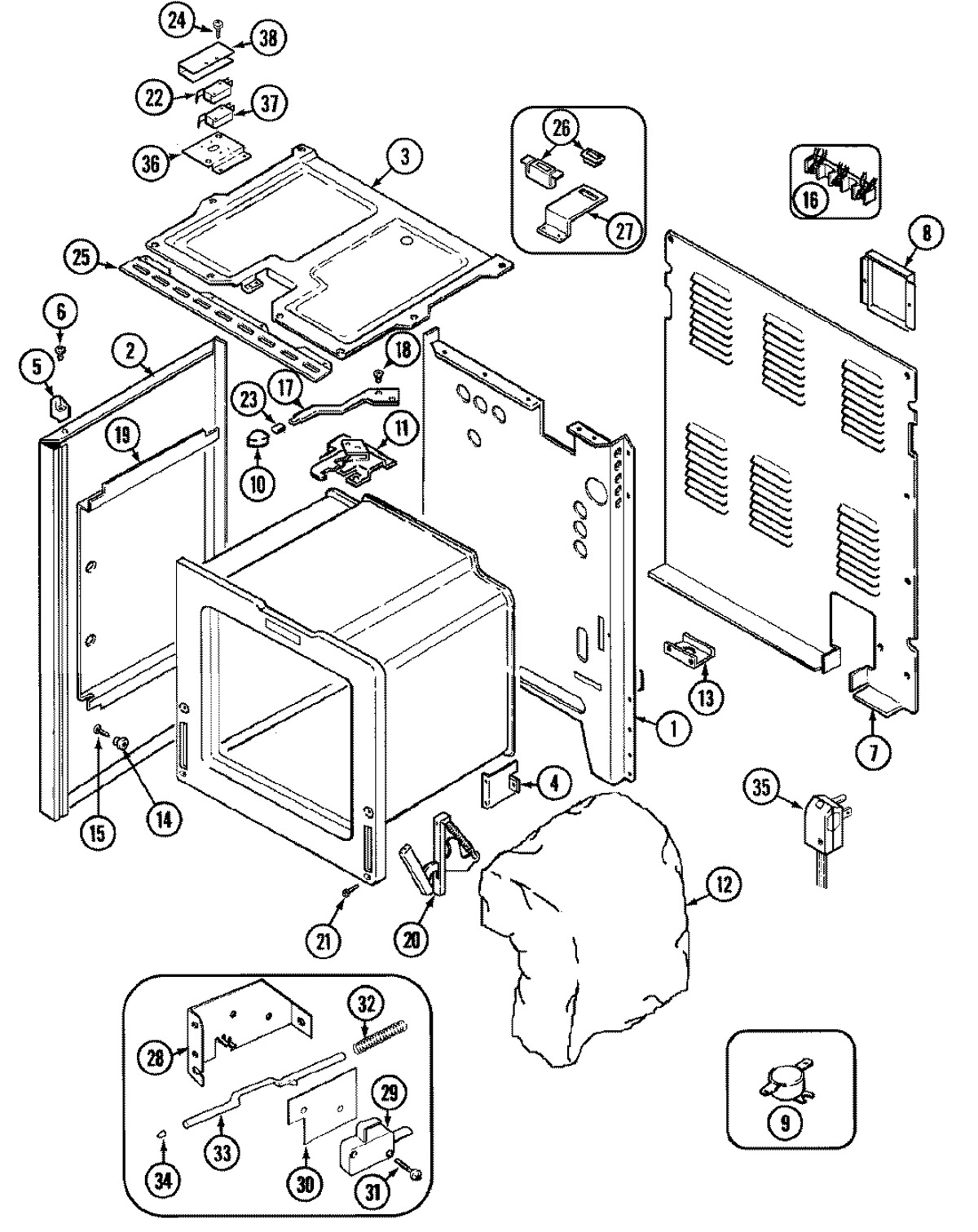

Model Whirlpool CRE9600DDM ELECTRIC RANGE – Common Parts &amp; Diagrams

1

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

1

SCREW WPL 7101P34560 Contact Us For Availability

1

GLASS, OUTER DOOR (ALM) WPL 74001294 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

2

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $130.46

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability

2

PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $52.85

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

3

LIMITER (8``) WPL 74002652 Contact Us For Availability

3

BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

4

TOP ASSY. (ALM TOP/BRN GLASS) WPL 74001991 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

SCREW WPL 7101P32660 Contact Us For Availability

5

END CAP (LT-ALM) WPL 7746P03660 Contact Us For Availability

5

END CAP (RT-ALM) WPL 7746P03760 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003125 Contact Us For Availability

7

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

7

PANEL, CONTROL (ALM) WPL 74001285 Contact Us For Availability

7

HANDLE, OVEN DOOR (ALM) WPL 74001284 Contact Us For Availability

7

COVER, WIRE WPL 4005F45551 Contact Us For Availability

8

BULB-OVEN WPL 7407P10360 Contact Us For Availability

8

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

9

SCREW WPL 7101P07260 Contact Us For Availability

9

NUT, LOCK WPL 7103P13960 Contact Us For Availability

9

SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

COVER, BULB WPL 7724P04760 Contact Us For Availability

KNOB, INFINITE (ALM) WPL 74001290 Contact Us For Availability

LINING, DOOR WPL 2402W20919 Contact Us For Availability

NUT, SNAP WPL 7103P11460 Contact Us For Availability

NUT, SNAP WPL 7103P13660 Contact Us For Availability

HANDLE, LATCH (ALM) WPL 7701P15160 Contact Us For Availability

SENSOR, OVEN WPL 7430P01060 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

LATCH ASSY. WPL 74003032 Contact Us For Availability

LATCH ASSY. WPL 8002P02560 Contact Us For Availability

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

PANEL, DRAWER (ALM) WPL 2416F05074 Contact Us For Availability

INSULATION, WRAP WPL 4804F03660 Contact Us For Availability

INSULATION, BACK WPL 74001800 Contact Us For Availability

13

RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability

13

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

13

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

CLOCK (ALM) WPL 74002169 Contact Us For Availability

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

END CAP, PANEL (RT-ALM) WPL 74001307 Contact Us For Availability

END CAP, PANEL (LT-ALM) WPL 74001308 Contact Us For Availability

GLASS, INNER WPL 74001841 Contact Us For Availability

16

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

16

RETAINER, GLASS WPL 74001844 Contact Us For Availability

16

BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability

17

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

17

LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability

17

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

18

SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability

18

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

19

FRAME, DOOR (ALM) WPL 7706P31160 Contact Us For Availability

19

RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

LEG, LEVELING WPL 74001311 Contact Us For Availability

TRIM, TOP DOOR (ALM) WPL 74001279 Contact Us For Availability

HINGE WPL 7106P05660 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P34460 Contact Us For Availability

LINING WPL 2404F04380 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

22

GASKET, VENT WPL 7201P05460 Contact Us For Availability

22

END CAP (ALM) WPL 7744P09460 Contact Us For Availability

22

SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability

23

VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability

23

TAPE WPL 8270P09860 Contact Us For Availability

23

CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability

INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability

SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability

25

COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability

25

SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability

25

BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability

26

SCREW WPL 7101P06860 Contact Us For Availability

26

BASKET, DRAWER WPL 8312P07960 Contact Us For Availability

26

LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability

BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability

SEAL, RUBBER WPL 7208P01160 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability

BLOCK, FUSE WPL 7401P03160 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

GLASS, INNER WPL 74002002 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability

FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability

FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability

30

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

31

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

32

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

33

ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability

34

BUMPER, ROD WPL 74001631 Contact Us For Availability

35

CORD, POWER WPL 7402P05060 Contact Us For Availability

36

PLATE, LATCH SWITCH WPL 74001744 Contact Us For Availability

37

SWITCH, LATCH (DOUBLE LOCK) WPL 74001743 Contact Us For Availability

38

INSULATOR, SWITCH WPL 74001999 Contact Us For Availability

NI

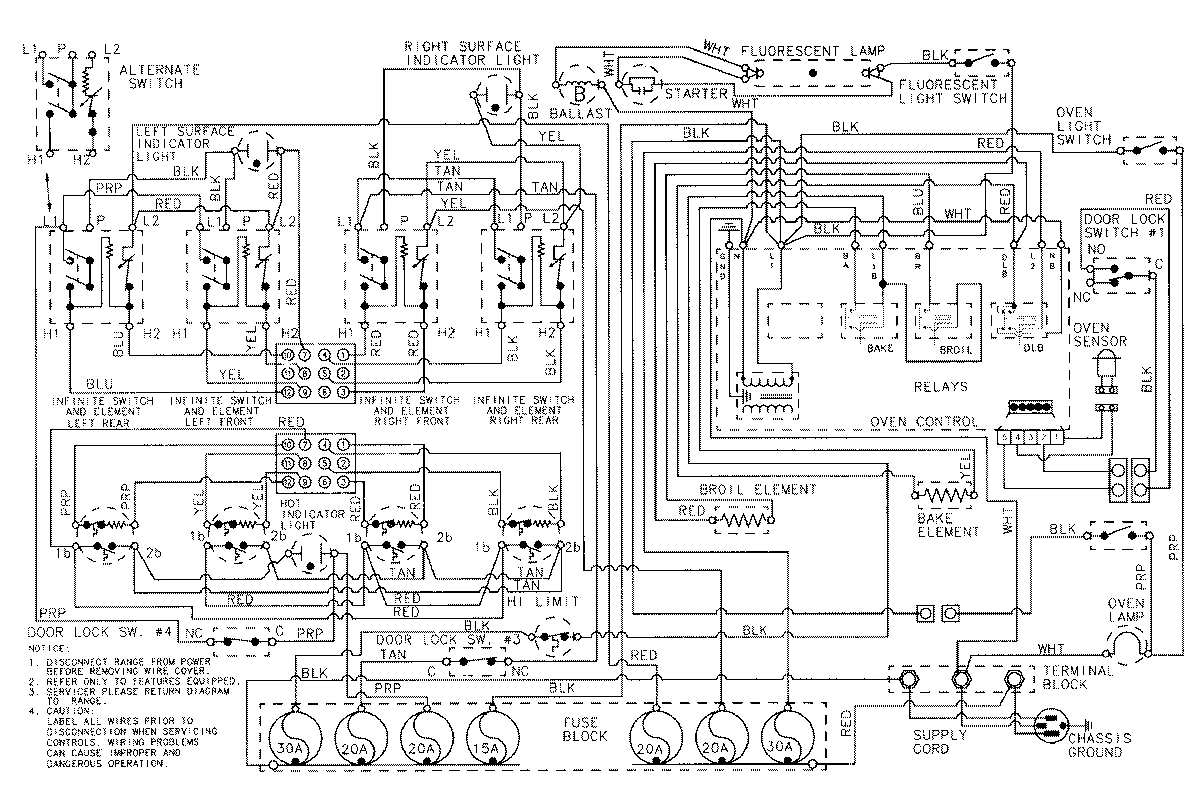

WIRING INFORMATION WPL 15001707 Contact Us For Availability
