Model Whirlpool CRE9500CDW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

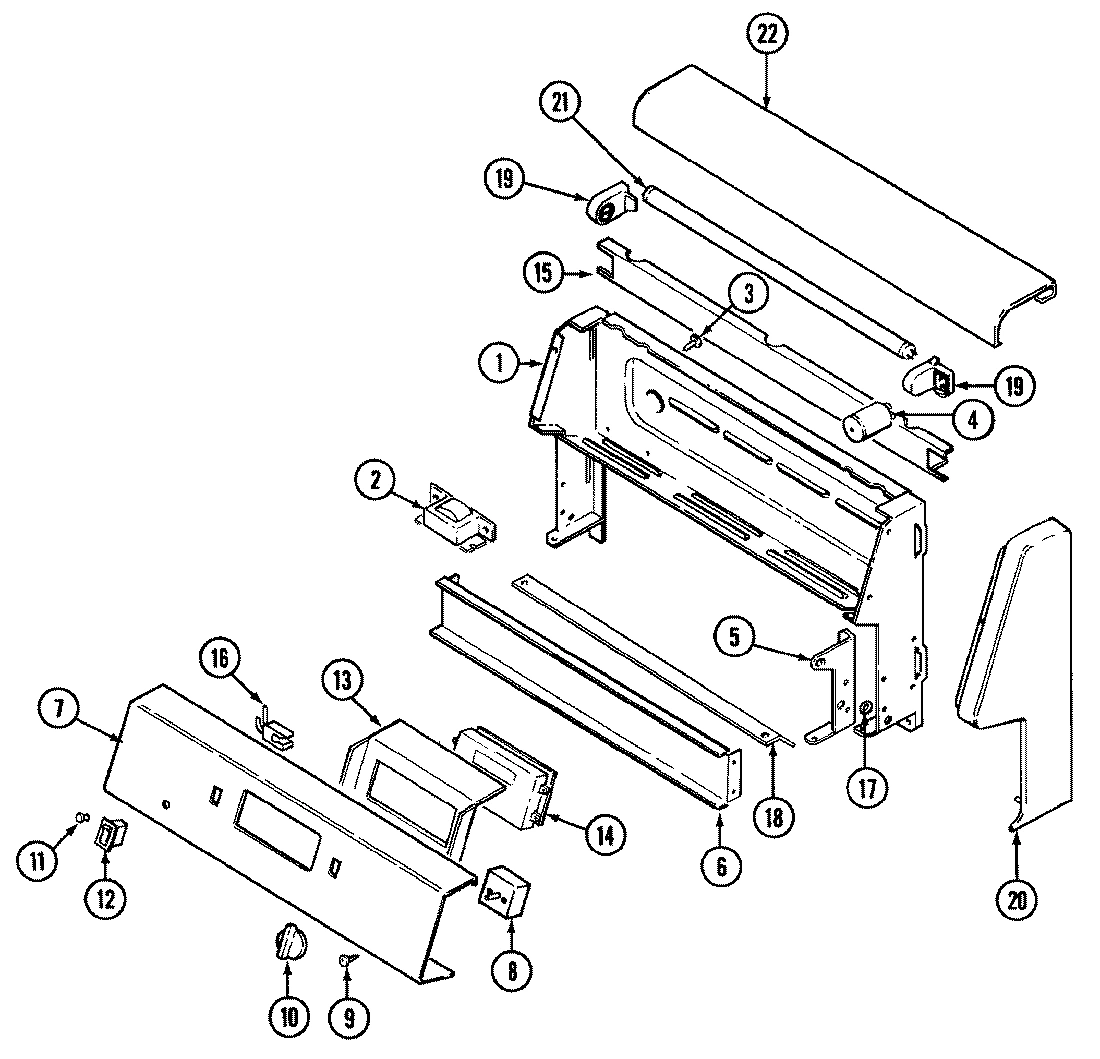

02 - CONTROL PANEL

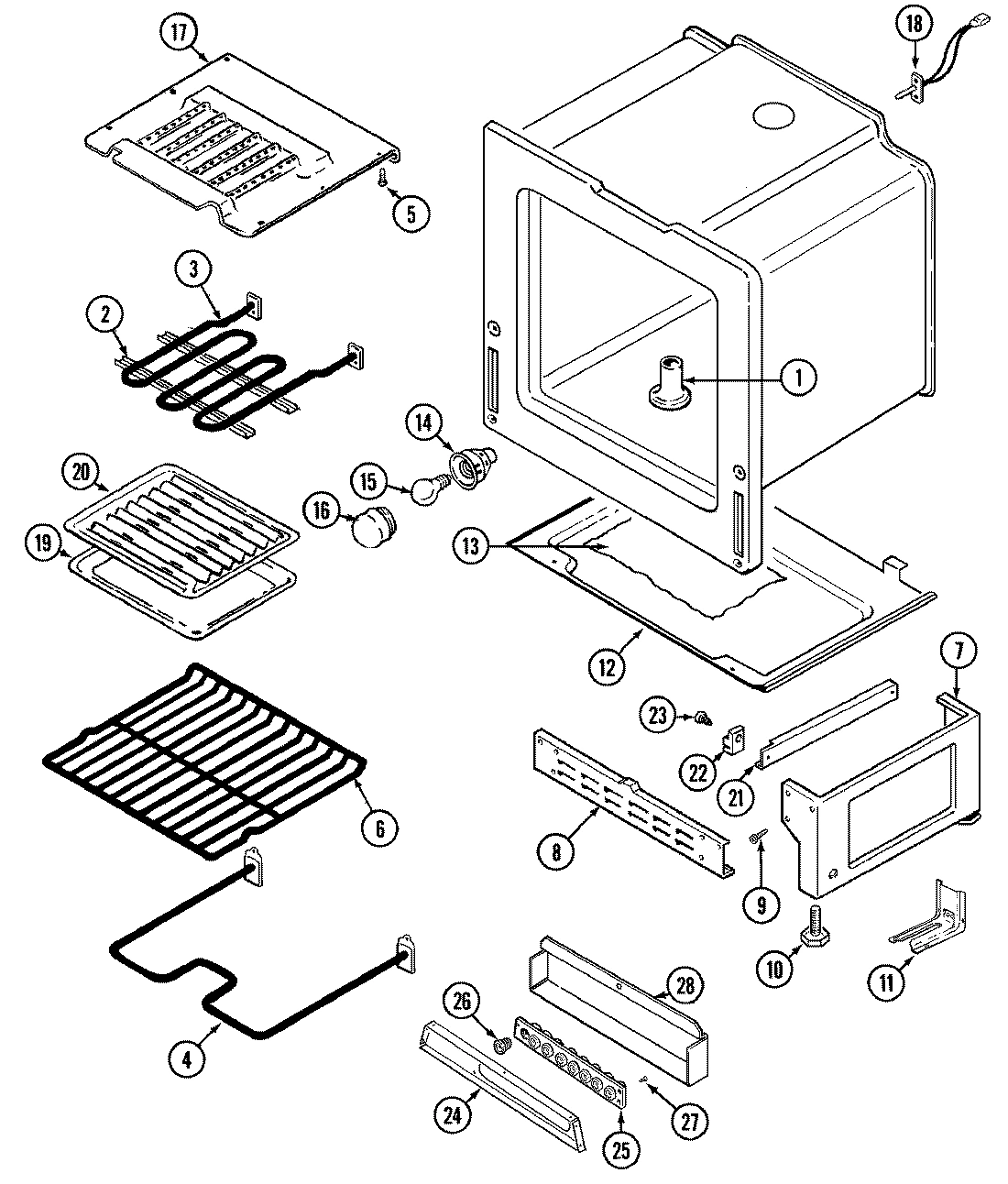

04 - OVEN/BASE

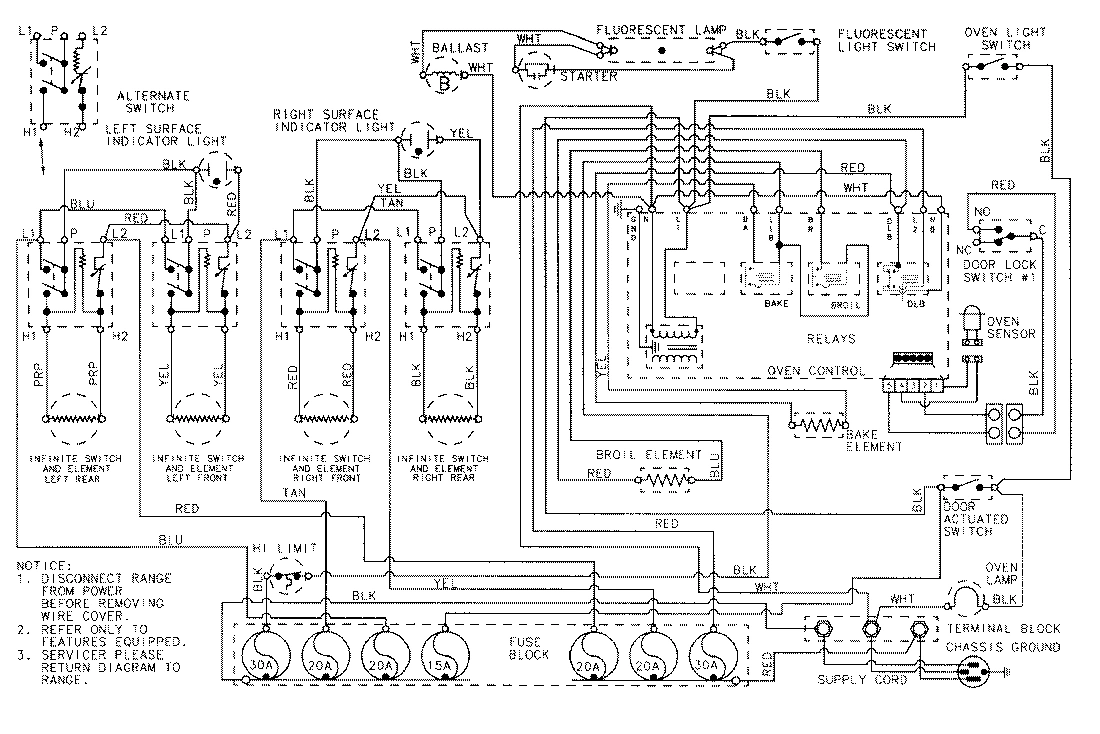

06 - WIRING INFORMATION

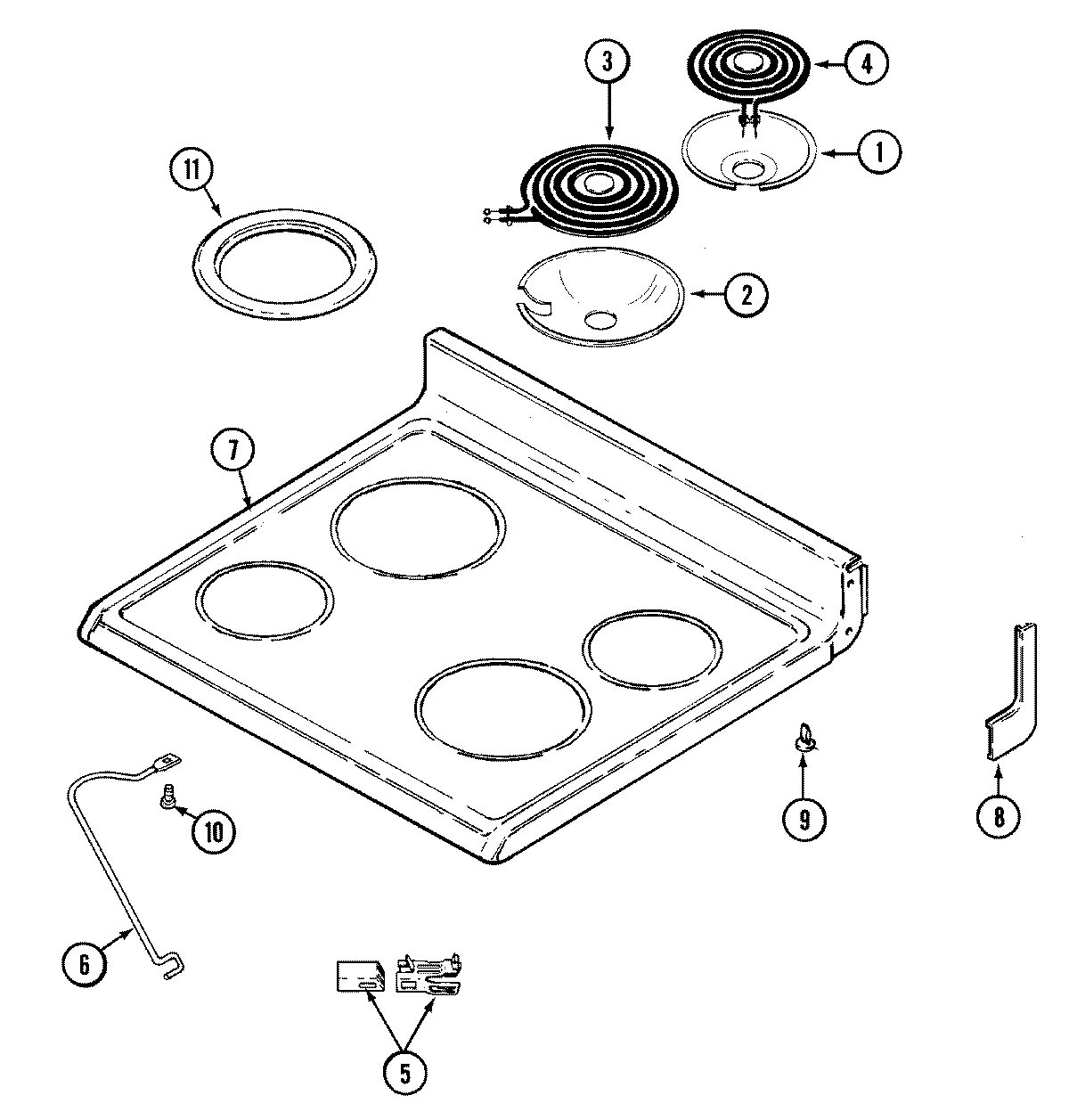

05 - TOP ASSEMBLY

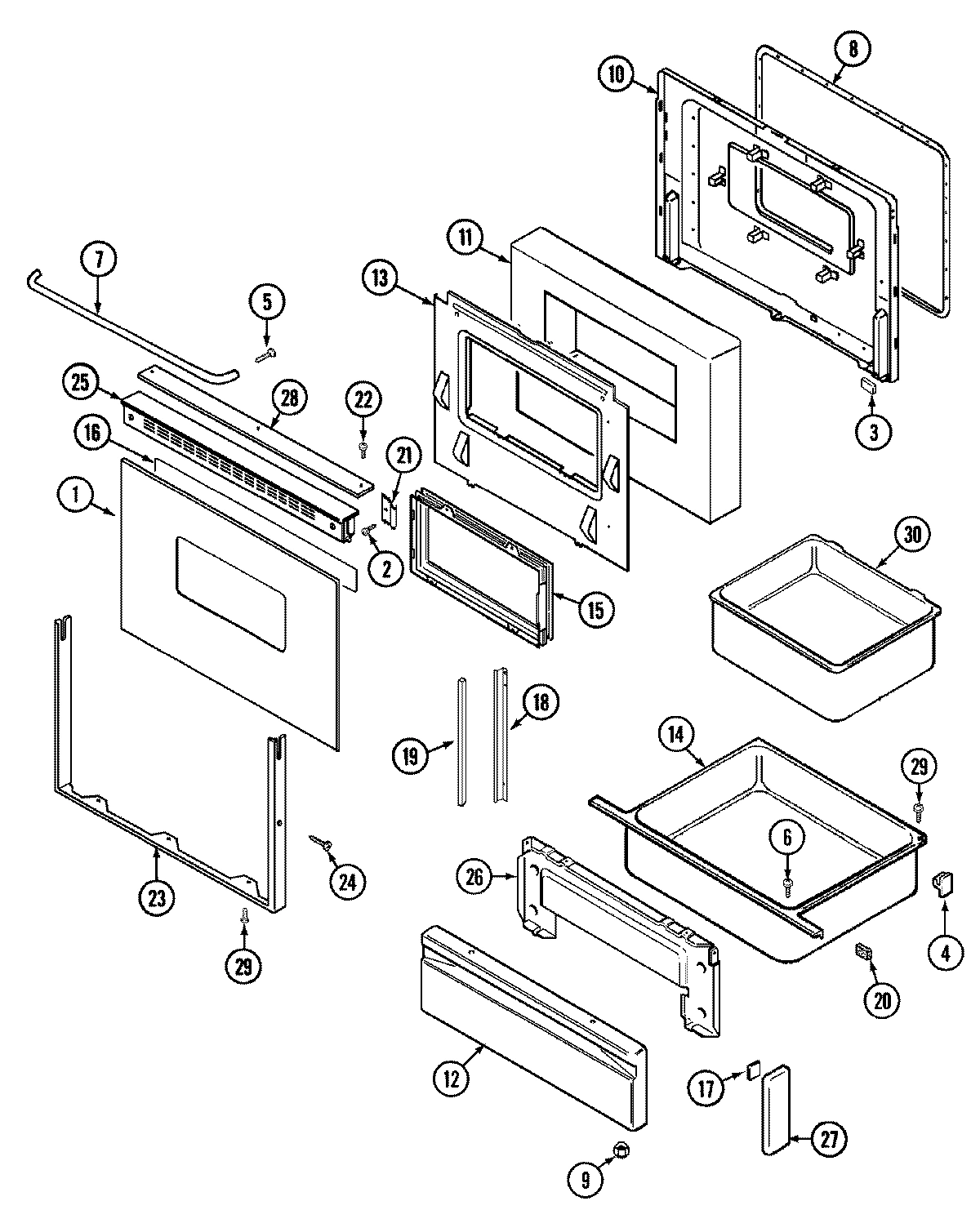

03 - DOOR/DRAWER (SER. PRE. 10)
Common parts from model Whirlpool CRE9500CDW ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
STARTER WPL 7415P00160 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
5
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SUPPORT, PROP TOP WPL 7809P02060 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P55360 Contact Us For Availability
7
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
SCREW WPL 7101P34960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
LEG, LEVELING WPL 74001311 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P13060 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P13160 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
12
PANEL, STORAGE DRAWER (WHT) WPL 2416W00171 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SCREW WPL 7118P01360 Contact Us For Availability
14
CLOCK (BLK) WPL 74001320 Contact Us For Availability
14
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
15
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
15
BULB-OVEN WPL 7407P10360 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
COVER, BULB WPL 7724P04760 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
END CAP (RT-CHR) NA WPL 74001425 Contact Us For Availability
20
END CAP (LT-CHR) WPL 74001426 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
BRACKET, SWITCH WPL 74001144 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001543 Contact Us For Availability
22
COVER, LIGHT WPL 7724P05860 Contact Us For Availability
22
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
FRAME, DOOR (BLK) WPL 7706P29460 Contact Us For Availability
23
FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability
24
SCREW WPL 7101P03160 Contact Us For Availability
24
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
24
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
25
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
25
TRIM, DOOR (UPPER-BLK) WPL 7706P30560 Contact Us For Availability
25
TRIM, DOOR (UPPER-BLK) WPL 7744P12860 Contact Us For Availability
26
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
26
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
26
FUSE, 125V 30A WPL 7416P00460 Contact Us For Availability
26
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
26
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
26
LINING WPL 2404F04380 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
27
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
27
SCREW WPL 7101P06860 Contact Us For Availability
27
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
27
END CAP (ALM) WPL 7744P09460 Contact Us For Availability
28
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
28
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
29
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
29
SPRING WPL 7803P06760 Contact Us For Availability
29
SCREW WPL 7101P29060 Contact Us For Availability
30
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
30
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
30
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
31
BUMPER, ROD WPL 74001631 Contact Us For Availability
31
BUMPER WPL 8003P01260 Contact Us For Availability
32
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
33
COVER, VENT WPL 4005F43245 Contact Us For Availability
34
COVER, LA WPL 74001133 Contact Us For Availability
35
WPL 7402P05060 WPL 7402P05060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001500 Contact Us For Availability
NI
HARNESS, WIRE CONTROL PANEL WPL 74001617 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001662 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001317 Contact Us For Availability
× ![]()
