Model Whirlpool CRE7600ADL ELECTRIC RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER

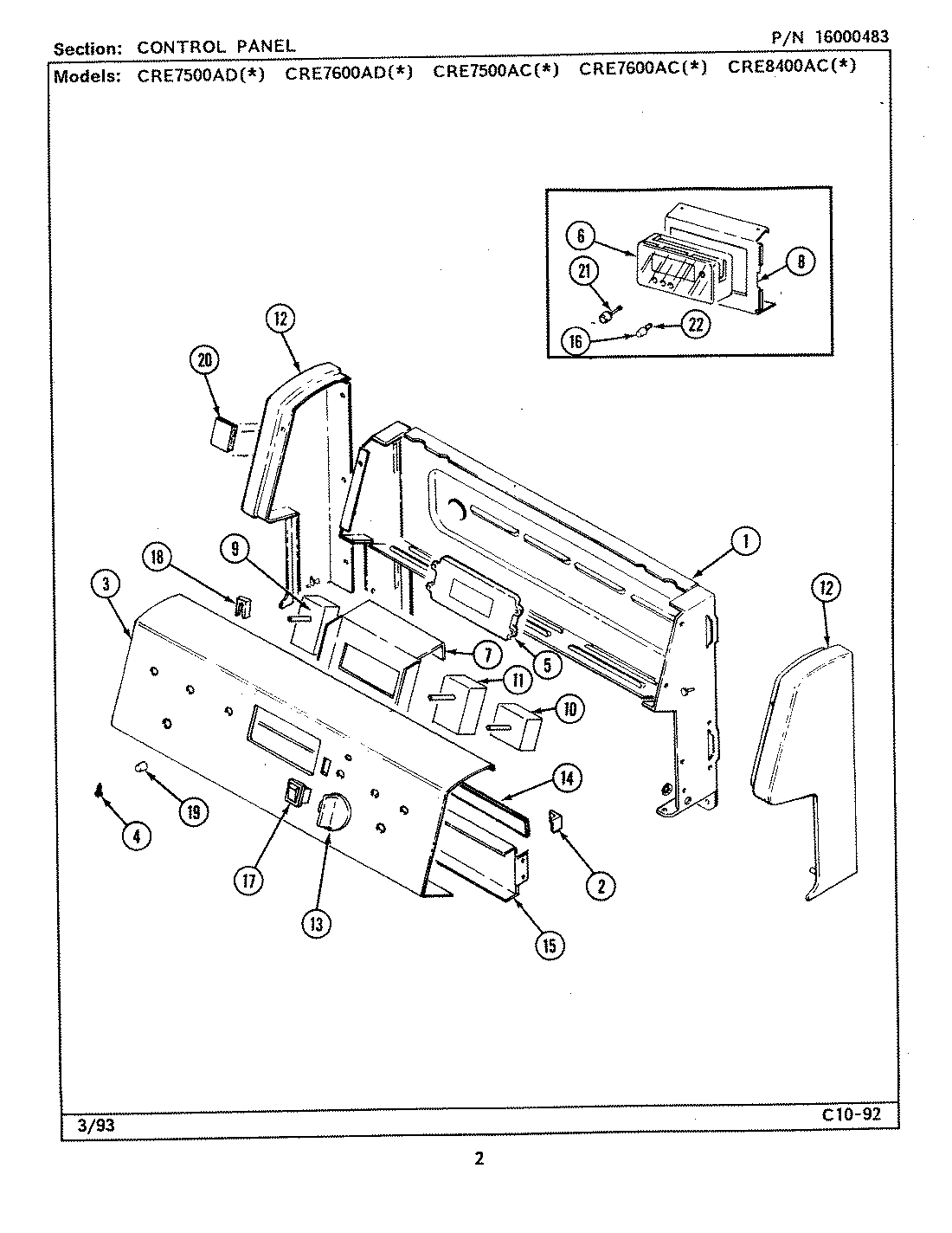

01 - CONTROL PANEL

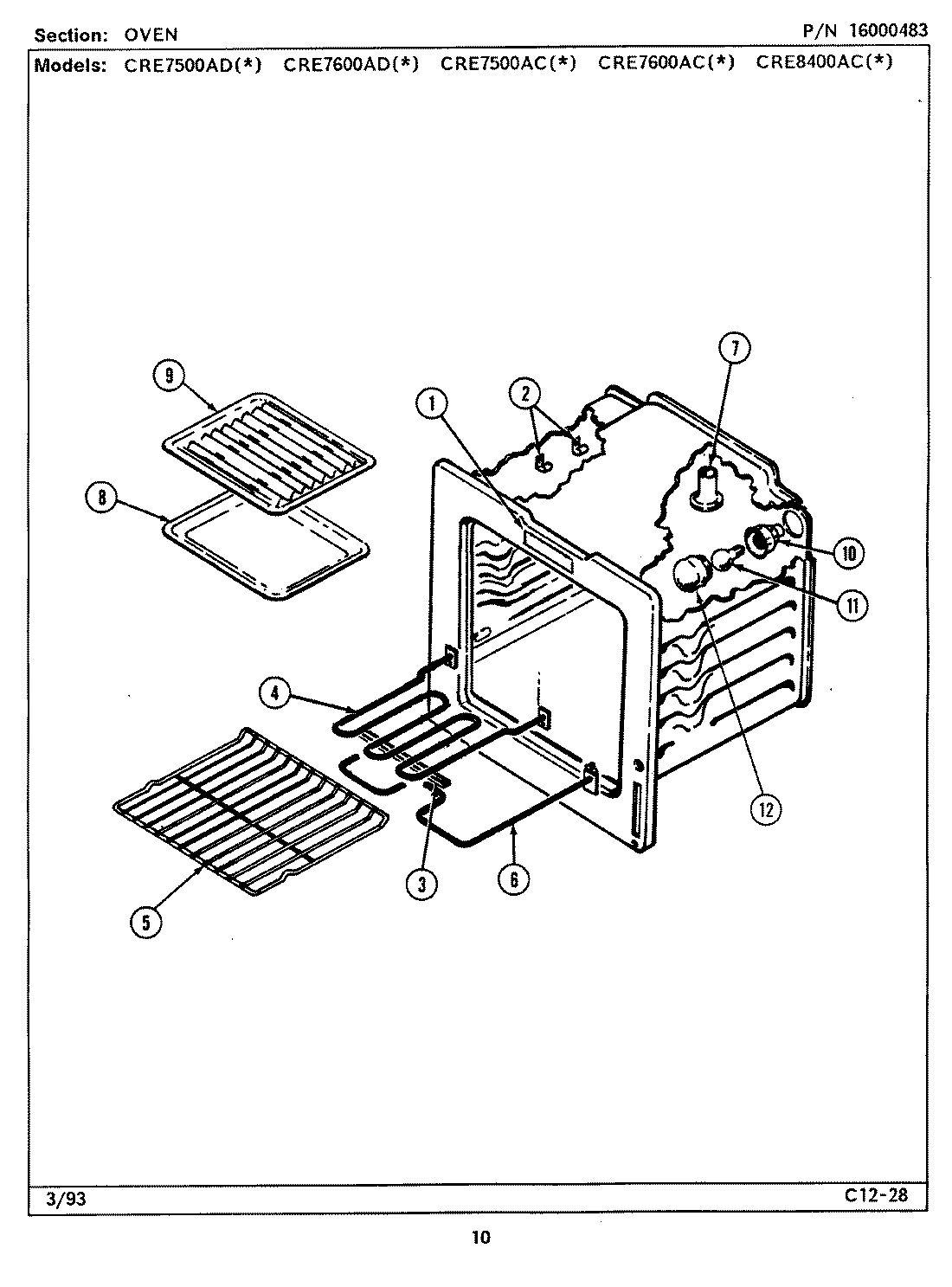

03 - OVEN
Common parts from model Whirlpool CRE7600ADL ELECTRIC RANGE
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P36760 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
SCREW WPL 7118P01960 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
CLOCK WPL 7602P11360 Contact Us For Availability
5
RACK----NA WPL 7801P03960 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
6
CLOCK WPL 7601P19060 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P12760 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
8
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
8
BRACKET, CLOCK WPL 3801F27345 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SWITCH WPL 7403P25460 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
LINING ASSY WPL 2402W19319 Contact Us For Availability
10
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
10
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
THERMOSTAT WPL 7404P08160 Contact Us For Availability
11
BULB, OVEN WPL 7407P09560 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F04374 Contact Us For Availability
12
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
12
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
14
DRAWER WPL 3405F01680 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
15
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
15
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
16
FRAME, WINDOW WPL 3603F03680 Contact Us For Availability
16
KNOB, CLOCK WPL 7711P47860 Contact Us For Availability
17
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
19
NUT, NYLON WPL 7103P04560 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
20
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
20
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
SCREW WPL 7101P31960 Contact Us For Availability
21
FRAME, DOOR (STNLS) WPL 7706P29360 Contact Us For Availability
21
KNOB, CLOCK WPL 1437242 Contact Us For Availability
22
TRIM, TOP WPL 7744P08860 Contact Us For Availability
22
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
22
WIRES, LOOSE WPL 5125A36260 Contact Us For Availability
22
HARNESS, CONTROL PANEL WPL 5170D16960 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8111P01860 Contact Us For Availability
24
SCREW WPL 7101P32960 Contact Us For Availability
25
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
26
END CAP (ALM) WPL 7744P09460 Contact Us For Availability
27
TAPE WPL 8270P09860 Contact Us For Availability
× ![]()
